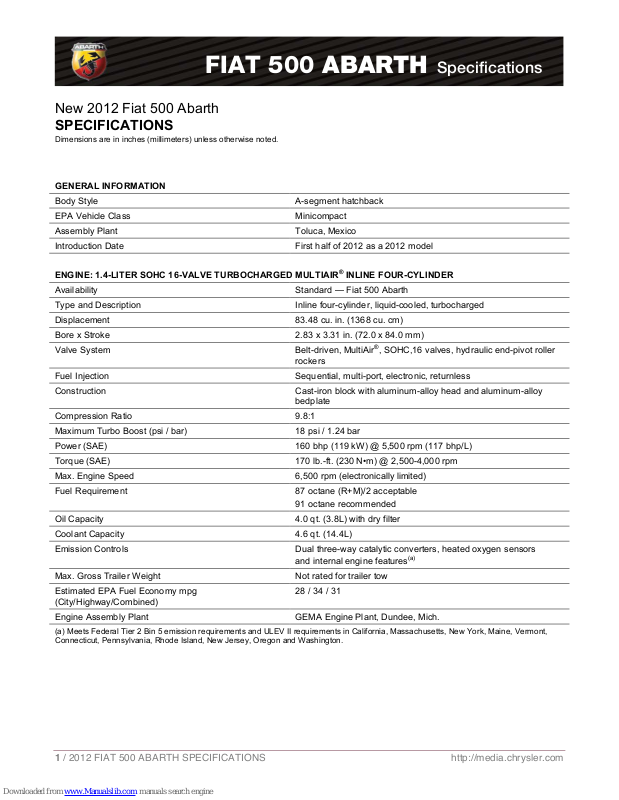

1 / 2012 FIAT 500 ABARTH SPECIFICATIONS http://media.chrysler.com
FIAT 500ABARTH Specifications
New 2012 Fiat 500 Abarth
SPECIFICATIONS
Dimensions are in inches (millimeters) unless otherwise noted.
GENERAL INFORMATION
Body Style
A-segment hatchback
EPA Vehicle Class
Minicompact
Assembly Plant
Toluca, Mexico
Introduction Date
First half of 2012 as a 2012 model
ENGINE: 1.4-LITER SOHC 16-VALVE TURBOCHARGED MULTIAIR® INLINE FOUR-CYLINDER
Availability
Standard — Fiat 500 Abarth
Type and Description
Inline four-cylinder, liquid-cooled, turbocharged
Displacement
83.48 cu. in. (1368 cu. cm)
Bore x Stroke
2.83 x 3.31 in. (72.0 x 84.0 mm)
Valve System
Belt-driven, MultiAir®, SOHC,16 valves, hydraulic end-pivot roller
rockers
Fuel Injection
Sequential, multi-port, electronic, returnless
Construction
Cast-iron block with aluminum-alloy head and aluminum-alloy
bedplate
Compression Ratio
9.8:1
Maximum Turbo Boost (psi / bar)
18 psi / 1.24 bar
Power (SAE)
160 bhp (119 kW) @ 5,500 rpm (117 bhp/L)
Torque (SAE)
170 lb.-ft. (230 N•m) @ 2,500-4,000 rpm
Max. Engine Speed
6,500 rpm (electronically limited)
Fuel Requirement
87 octane (R+M)/2 acceptable
91 octane recommended
Oil Capacity
4.0 qt. (3.8L) with dry filter
Coolant Capacity
4.6 qt. (14.4L)
Emission Controls
Dual three-way catalytic converters, heated oxygen sensors
and internal engine features
(a)
Max. Gross Trailer Weight
Not rated for trailer tow
Estimated EPA Fuel Economy mpg
(City/Highway/Combined)
28 / 34 / 31
Engine Assembly Plant
GEMA Engine Plant, Dundee, Mich.
(a) Meets Federal Tier 2 Bin 5 emission requirements and ULEV II requirements in California, Massachusetts, New York, Maine, Vermont,
Connecticut, Pennsylvania, Rhode Island, New Jersey, Oregon and Washington.
Page 2
2 / 2012 FIAT 500 ABARTH SPECIFICATIONS http://media.chrysler.com
FIAT 500ABARTH Specifications
TRANSMISSION: C510 PERFORMANCE FIVE-SPEED MANUAL
Availability
Standard on Fiat 500 Abarth
Description
1st, 2nd gear: Double Cone
3rd, 4th, 5th, gear: Single Cone
Gear Ratios
1st
3.909
2nd
2.238
3rd
1.520
4th
1.156
5th
0.872
Reverse
3.909
Final-drive Ratio
3.353
ELECTRICAL SYSTEM
Alternator
140-amp
Battery
500 CCA, maintenance free
DIMENSIONS AND CAPACITIES
(B)
Wheelbase
90.6 (2300)
Track, Front
55.4 (1406.8)
Track, Rear
55.0 (1397.0)
Overall Length
144.4 (3667.3)
Overall Width
64.1 (1627.0)
73.5 (1866.0) with side mirrors
Overall Height
59.2 (1502.4) to antenna base
58.7 (1490.3) to roof
Ground Clearance
4.1 (103.7)
Drag Coefficient (Cd)
0.367
Curb Weight, lb. (kg)
2,512 (1141.8) — 5-MTX
Weight Distribution, percent F/R
64/36 — 5-MTX
Fuel Tank Capacity, gal. (L)
10.5 (40)
(b) All dimensions measured at curb weight with standard tires.
Page 3
3 / 2012 FIAT 500 ABARTH SPECIFICATIONS http://media.chrysler.com
FIAT 500ABARTH Specifications
ACCOMMODATIONS (Estimated)
Seating Capacity, F/R
2/2
Front Seat
Head room
38.9 (989.1)
37.6 (956.3) with sunroof
Legroom
40.7 (1034.8)
Shoulder room
49.4 (1254.8)
Hip room
47.8 (1215.3)
Total seat travel
Driver — 8.2 (210.0)
Passenger — 8.2 (210.0)
EPA front row interior volume, cu. ft. (cu. m)
45.3 (1.282)
Rear Seat
Head room
35.5 (902.9)
Legroom
31.7 (805.1)
Knee clearance
3.8 (96.5)
Shoulder room
46.4 (1177.5)
Hip room
42.6 (1083.1)
EPA second row interior volume, cu. ft. (cu. m)
30.2 (0.856)
Total Interior Volume, cu. ft. (cu. m)
84.9 (2.405)
EPA Luggage Compartment Volume, cu. ft. (cu. m)
9.5 (0.268)
26.8 (0.759) with rear seats folded
EPA Interior Volume Index, cu. ft. (cu. m)
75.5 (2.137)
Trunk Liftover Height
27.2 (690.2)
BODY
Layout
Transverse-mounted front engine, front-wheel drive
Construction
Unitized steel body
SUSPENSION
Front
MacPherson suspension, coil spring with KONI® Frequency
Selective Damping (FSD) twin-tube shock absorbers and stabilizer
bar
Rear
Rear twist-beam axle with coil springs and twin-tube shock
absorbers with 0.86 (22 mm) solid stabilizer bar
STEERING
Type
Power rack and pinion with electric power steering (EPS) column
Overall Ratio
15.5:1
Turning Diameter (curb-to-curb)
37.6 ft. (11.45 m)
Steering Turns (lock-to-lock)
2.3
Page 4
4 / 2012 FIAT 500 ABARTH SPECIFICATIONS http://media.chrysler.com
FIAT 500ABARTH Specifications
TIRES
Availability
Standard on Fiat 500 Abarth
Size and type
195/45R16XL BSW all-season
Mfr. and model
Pirelli Cinturato P7 A/S
Revs per mile (km)
901 (560)
Availability
Optional on Fiat 500 Abarth
Size and type
205/40R17 BSW
Mfr. and model
Pirelli P-Zero Nero Three-season
Revs per mile (km)
877 (545)
WHEELS
Availability
Standard on Fiat 500 Abarth
Type and material
Cast-aluminum, polished face with dark mineral gray painted
pockets
Size
16 x 6.5
Availability
Optional on Fiat 500 Abarth
Type and material
Forged-aluminum with Hyper Black or optional Bianco painted
Size
17 x 7.0
BRAKES
Front
Rotor size and type
11.1 x 0.86 (282 x 22) vented
Caliper size and type
2.12 (54) single-piston with aluminum housing
Swept area
193 sq. in. (1,244 sq. cm)
Rear
Rotor size and type
9.4 x 0.4 (240 x 11) solid
Caliper size and type
1.33 (34) single-piston with aluminum housing
Swept area
153 sq. in. (984 sq. cm)
