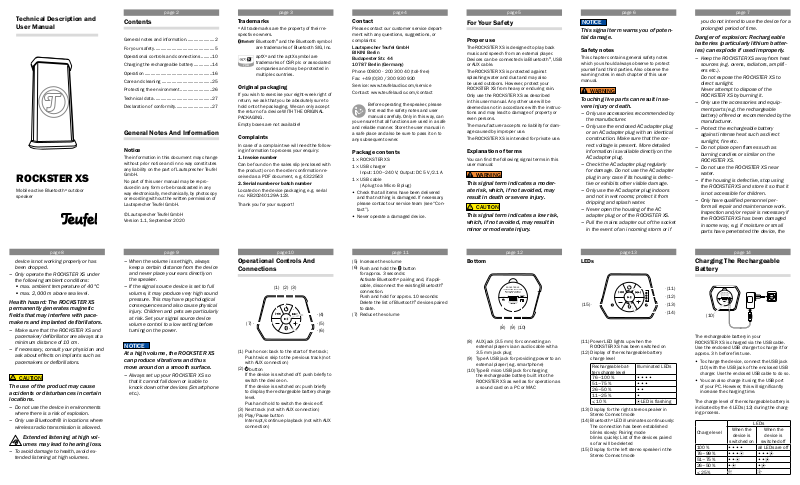

Feufel ROCKSTER XS Technical Data
Technical Description and
User Manual
ROCKSTER XS
Mobile active Bluetooth® outdoor
speaker
page 2
Contents
General notes and information ....................... 2
For your safety ................................................. 5
Operational controls and connections .........10
Charging the rechargeable battery ...............14
Operation .......................................................16
Care and cleaning .........................................25
Protecting the environment ..........................26
Technical data ...............................................27
Declaration of conformity ..............................27
General Notes And Information
Notice
The information in this document may change
without prior notice and in no way constitutes
any liability on the part of Lautsprecher Teufel
GmbH.
No part of this user manual may be reproduced in any form or be broadcasted in any
way electronically, mechanically, by photocopy
or recording without the written permission of
Lautsprecher Teufel GmbH.
© Lautsprecher Teufel GmbH
Version 1.1, September 2020
page 3
Trademarks
®
All trademarks are the property of their re-
spective owners.
Bluetooth® and the Bluetooth symbol
are trademarks of Bluetooth SIG, Inc.
aptX® and the aptX symbol are
trademarks of CSR plc or associated
companies and may be protected in
multiple countries.
Original packaging
If you wish to exercise your eight-week right of
return, we ask that you be absolutely sure to
hold onto the packaging. We can only accept
the return of a device WITH THE ORIGINAL
PACKAGING.
Empty boxes are not available!
Complaints
In case of a complaint we will need the following information to process your enquiry:
1. Invoice number
Can be found on the sales slip (enclosed with
the product) or on the order confirmation received as a PDF document, e.g. 4322543
2. Serial number or batch number
Located on the device packaging, e.g. serial
no.: KB20240129A-123.
Thank you for your support!
page 4
Contact
Please contact our customer service department with any questions, suggestions, or
complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 / 300 930 930
Service: www.teufelaudio.com/service
Contact: www.teufelaudio.com/contact
Before operating the speaker, please
first read the safety notes and user
manual carefully. Only in this way, can
you ensure that all functions are used in a safe
and reliable manner. Store the user manual in
a safe place and also be sure to pass it on to
any subsequent owner.
Package contents
1 × ROCKSTER XS
1 × USB charger
Input: 100–240 V; Output: DC 5 V/2.1 A
1 × USB cable
(A plug to a Micro B plug)
• Check that all items have been delivered
and that nothing is damaged. If necessary,
please contact our service team (see “Contact”).
• Never operate a damaged device.
page 5
For Your Safety
Proper use
The ROCKSTER XS is designed to play back
music and speech from an external player.
Devices can be connected via Bluetooth®, USB
or AUX cable.
The ROCKSTER XS is protected against
splashing water and dust and may also
be used outdoors. However, protect your
ROCKSTER XS from heavy or enduring rain.
Only use the ROCKSTER XS as described
in this user manual. Any other use will be
deemed as not in accordance with the instructions and may lead to damage of property or
even persons.
The manufacturer accepts no liability for damage caused by improper use.
The ROCKSTER XS is intended for private use.
Explanation of terms
You can find the following signal terms in this
user manual:
WARNING
This signal term indicates a moderate risk, which, if not avoided, may
result in death or severe injury.
CAUTION
This signal term indicates a low risk,
which, if not avoided, may result in
minor or moderate injury.
page 6
NOTICE
This signal term warns you of potential damage.
Safety notes
This chapter contains general safety notes
which you should always observe to protect
yourself and third parties. Also observe the
warning notes in each chapter of this user
manual.
WARNING
Touching live parts can result in severe injury or death.
– Only use accessories recommended by
the manufacturer.
– Only use the enclosed AC adapter plug
or an AC adapter plug with an identical
construction. Make sure that the correct voltage is present. More detailed
information is available directly on the
AC adapter plug.
– Check the AC adapter plug regularly
for damage. Do not use the AC adapter
plug in any case if its housing is defective or exhibits other visible damage.
– Only use the AC adapter plug indoors
and not in wet rooms; protect it from
dripping and splash water.
– Never open the housing of the AC
adapter plug or of the ROCKSTER XS.
– Pull the mains adapter out of the socket
in the event of an incoming storm or if
page 7
you do not intend to use the device for a
prolonged period of time.
Danger of explosion: Rechargeable
batteries (particularly lithium batteries) can explode if used improperly.
– Keep the ROCKSTER XS away from heat
sources (e.g. ovens, radiators, amplifiers etc.).
Do not expose the ROCKSTER XS to
direct sunlight.
Never attempt to dispose of the
ROCKSTER XS by burning it.
– Only use the accessories and equip-
ment parts (e.g. the rechargeable
battery) offered or recommended by the
manufacturer.
– Protect the rechargeable battery
against intense heat such as direct
sunlight, fire etc.
– Do not place open flames such as
burning candles or similar on the
ROCKSTER XS.
– Do not use the ROCKSTER XS near
water.
– If the housing is defective, stop using
the ROCKSTER XS and store it so that it
is not accessible for children.
– Only have qualified personnel per-
form all repair and maintenance work.
Inspection and/or repair is necessary if
the ROCKSTER XS has been damaged
in some way, e.g. if moisture or small
parts have penetrated the device, the
device is not working properly or has
been dropped.
– Only operate the ROCKSTER XS under
the following ambient conditions:
• max. ambient temperature of 40 °C
• max. 2,000 m above sea level.
Health hazard: The ROCKSTER XS
permanently generates magnetic
fields that may interfere with pacemakers and implanted defibrillators.
– Make sure that the ROCKSTER XS and
pacemaker/defibrillator are always at a
minimum distance of 10 cm.
– If necessary, consult your physician and
ask about effects on implants such as
pacemakers or defibrillators.
CAUTION
The use of the product may cause
accidents or disturbances in certain
locations.
– Do not use the device in environments
where there is a risk of explosion.
– Only use Bluetooth® in locations where
wireless radio transmission is allowed.
Extended listening at high volumes may lead to hearing loss.
– To avoid damage to health, avoid ex-
tended listening at high volumes.
page 9page 8
– When the volume is set high, always
keep a certain distance from the device
and never place your ears directly on
the speaker.
– If the signal source device is set to full
volume, it may produce very high sound
pressure. This may have psychological
consequences and also cause physical
injury. Children and pets are particularly
at risk. Set your signal source device
volume control to a low setting before
turning on the power.
NOTICE
At a high volume, the ROCKSTER XS
can produce vibrations and thus
move around on a smooth surface.
– Always set up your ROCKSTER XS so
that it cannot fall down or is able to
knock down other devices (Smartphone
etc.).
page 10
Operational Controls And
Connections
(1)
(2) (3)
(4)
(7)
(1) Push once: back to the start of the track;
Push twice: skip to the previous track (not
with AUX connection)
(2)
button
If the device is switched off: push briefly to
switch the device on.
If the device is switched on: push briefly
to display the rechargeable battery charge
level.
Push and hold to switch the device off.
(3) Next track (not with AUX connection)
(4) Play/Pause button
Interrupt/continue playback (not with AUX
connection)
(5)
(6)
page 11
(5) Increase the volume
(6)
Push and hold the button
for approx. 3 seconds:
Activate Bluetooth® pairing and, if applicable, disconnect the existing Bluetooth®
connection.
Push and hold for approx. 10 seconds:
Delete the list of Bluetooth® devices paired
to date.
(7) Reduce the volume
page 12
Bottom
ROCKSTER XS
LAUTSPRECHER TEUFEL GMBH
BUDAPESTER STRASSE 44
10787 BERLIN - GERMANY
(8) (9) (10)
(8) AUX jack (3.5 mm) for connecting an
external player via an audio cable with a
3.5 mm jack plug
(9) Type A USB jack for providing power to an
external player (e.g. smartphone)
(10) Type B micro USB jack for charging
the rechargeable battery built into the
ROCKSTER XS as well as for operation as
a sound card on a PC or MAC
page 13
LEDs
(11)
(12)
(15)
(11) Power LED lights up when the
ROCKSTER XS has been switched on
(12) Display of the rechargeable battery
charge level
Rechargeable battery charge level
76–100 % • • • •
51–75 % • • •
26–50 % • •
11–25 % •
≤ 10 % • LED is flashing
(13) Display for the right stereo speaker in
Stereo Connect mode
(14) Bluetooth® LED illuminates continuously:
The connection has been established
blinks slowly: Pairing mode
blinks quickly: List of the devices paired
so far will be deleted
(15) Display for the left stereo speaker in the
Stereo Connect mode
Illuminated LEDs
(13)
(14)
page 14
Charging The Rechargeable
Battery
ROCKSTER XS
LAUTSPRECHER TEUFEL GMBH
BUDAPESTER STRASSE 44
10787 BERLIN - GERMANY
(10)
The rechargeable battery in your
ROCKSTER XS is charged via the USB cable.
Use the enclosed USB charger to charge it for
approx. 3 h before first use.
• To charge the device, connect the USB jack
(10) with the USB jack of the enclosed USB
charger. Use the enclosed USB cable to do so.
• You can also charge it using the USB port
of your PC. However, this will significantly
increase the charging time.
The charge level of the rechargeable battery is
indicated by the 4 LEDs (12) during the charging process.
LEDs
Charge level
100 % • • • • all LEDs are off
76–99 % • • • • • • • •
51–75 % • • • • • •
26–50 % • • • •
≤ 25 % • •
When the
device is
switched on
When the
device is
switched off
page 16page 15
page 17
page 18
page 19
page 20
page 21
The USB charger
The USB charger is designed so that you can
also use it in the USA:
• For this purpose, push the plug adapter off
upwards and fold the two contact pins out.
The charger now also fits American sockets.
Once the rechargeable battery has been
fully charged, pull the USB charger out
of the socket and pull the USB plug out of the
USB jack (10). You will save power this way.
To preserve the rechargeable battery, do not
quickly connect and disconnect the charger
and the ROCKSTER XS in succession.
Operation
Activating/deactivating
• Activating: Briefly push the button (2).
The red LED (11) will illuminate.
• Deactivating: Push and hold the button
for approx. 3 seconds.
All LEDs are off.
If the ROCKSTER XS does not receive
a signal for 15 minutes, the device will
switch off. You can switch the ROCKSTER XS
back on with the button (2).
Connection to the external player
Your ROCKSTER XS offers 3 connection options:
®
– via Bluetooth
– via USB as a sound card (priority 2)
– via AUX (priority 3)
If there is a signal present at all 3 connections,
transmission will occur via Bluetooth® (priority
1). If you stop Bluetooth® transmission, playback will occur via USB (priority 2). Only when
you also stop playback on the external USB
player, transmission will occur via AUX (priority
3).
Bluetooth
You can connect compatible devices, such as
most smartphones, with your ROCKSTER XS
via Bluetooth
your smartphone is then played back by the
ROCKSTER XS.
(priority 1)
®
connection
®
(pairing). The audio output of
You can connect two external players with the
ROCKSTER XS at the same time (see „Simultaneous pairing of two external players“ on page
24).
®
1. Turn on the Bluetooth
external player (e.g. smartphone).
2. Push and hold the
3seconds.
The blue Bluetooth® LED (14) will now blink
until pairing is complete (no more than 60
seconds).
3. Let your smartphone search for Bluetooth
devices (you can find more information
in the user manual of your smartphone).
“Teufel ROCKSTER XS” should also appear
in the list of detected devices following the
scan.
4. Select “Teufel ROCKSTER XS” from the list
of detected devices.
If your external player requires the entry of a
PIN code, enter the PIN code “0000” set by
factory default.
Pairing is now complete and your
ROCKSTER XS is linked to the external
player. The blue Bluetooth® LED (14) will
illuminate continuously. The ROCKSTER XS
will now play back all sounds that would
otherwise be played by your external player.
To disconnect the Bluetooth® connection, hold
the button (6) down for approx. 3seconds or
terminate the connection on your smartphone.
function on your
button (6) for approx.
®
Establishing a connection with an external
player that is already paired
If your ROCKSTER XS was already connected
to an external player, it will be saved in the
ROCKSTER XS. It is then no longer necessary
to switch the ROCKSTER XS to pairing mode
in order to establish a new connection. You
can simply select it in the list of paired devices
instead.
NFC
With NFC, you can quickly and comfortably establish a Bluetooth® connection between a compatible external player and the
ROCKSTER XS.
Notice:
nected via NFC. If you want to connect another
external player, please proceed as described
in the chapter „Simultaneous pairing of two
external players“ on page 24.
1. Switch the ROCKSTER XS on and make sure
2. Hold your external player close to the con-
Only one external player can be con-
that the NFC function on your external player has been switched on. Bluetooth® does
not have to be turned on.
trol panel of the ROCKSTER XS.
A Bluetooth
between the devices after a short time.
request on your external player.
®
connection will be established
You may be asked to allow the NFC
connection. In this case, confirm the
Connection via USB
To operate the ROCKSTER XS as a sound card
on a PC or MAC, connect the micro-USB jack
(10) with a USB port on your computer. Use
the enclosed USB cable to do so. If you would
like to use another USB cable, make sure that
all contacts are completely occupied.
With Windows 7, 8 and 10 as well as Mac OSX
10.5 and higher, no special driver software is
required to operate the ROCKSTER XS. The
operating systems detect the ROCKSTER XS
as speaker “ROCKSTER XS” when establishing
the USB connection.
For the transmission via USB, any
ing Bluetooth® transmission must be
stopped. Otherwise, these connections have
priority over USB.
Windows 7, 8 and 10:
When establishing the USB connection,
Windows automatically detects the
ROCKSTER XS and allocates playback accordingly.
To quickly switch
between the
playback devices,
right click the
speaker icon on
the task bar and
select “Playback
devices.” The corresponding “Sound” tab of
the control panel will open.
exist-
In the “Sound” control panel, you can select
the ROCKSTER XS as the playback device on
the “Playback” tab. All PC sounds will now be
played back via the ROCKSTER XS.
Mac OS X
In the “Sound” system preference, you can select the ROCKSTER XS as the playback device
on the “Output” tab. All Mac sounds will now
be played back via the ROCKSTER XS.
If you place a check mark under “Display
volume on the menu bar” on the tab, you can
quickly select the ROCKSTER XS as an external player. For this, proceed as follows:
Push the [alt] button on
the Mac and click the
speaker symbol on the
menu bar. Select the
“ROCKSTER XS” from
the list under “Output
device”. All Mac sounds
will now be played back
via the ROCKSTER XS.
Connection via AUX
As an alternative to Bluetooth® and USB, you
can also connect your ROCKSTER XS to the
headphone jack of the external player via an
AUX cable with 3.5 mm jack plugs for example.
Select the cable connection if you do not wish
or are not allowed to use the other connection
types.
For transmission via AUX, existing Blue-
tooth® and USB connections must be
disconnected. Otherwise, these connections
have priority over AUX.
• The buttons
work with an AUX connection.
• Due to the varying output of the source de-
vices, the volume can be less with transmission via AUX than via Bluetooth
(1), (3) and (4) do not
®
.
Stereo Connect
With this function, you can connect your
ROCKSTER XS with a second ROCKSTER XS
and enjoy your music in stereo.
A connection with an external player may
already exist or can be established subsequently.
Establishing a Stereo Connect connection
(14)
(15)
ROCKSTER XS no. 1
1. For ROCKSTER XS no. 1, push the buttons
+(5) and (6) at the same time.
The LEDs (13), (14) and (15) will blink.
2. With ROCKSTER XS no. 2, also push these
buttons.
The LEDs (13), (14) and (15) will also blink
here.
3. After a short time, the two ROCKSTER XS
will connect with one another. If this is not
the case, align the top sides of the two
ROCKSTER XS towards one another.
Once the connection has been established,
the LEDs (13) (right channel) and (15) (left
channel) will indicate which ROCKSTER XS
is transmitting which stereo channel.
(13)
(5)
(6) (5)
master
(14)
(15)
ROCKSTER XS no. 2
(13)
(6)
slave
page 23page 22
More information about “Stereo Connect”
• Depending on the setup location and setup
type, the range may vary in Stereo Connect
mode. Set the two ROCKSTER XS up so that
they are within a direct “line of sight” of one
another and are no further apart than 1 m.
• The buttons
both ROCKSTER XS equally (only with a
Bluetooth® connection).
• If you switch off one ROCKSTER XS, the connected ROCKSTER XS will also be switched
off.
• If both ROCKSTER XS are switched back on,
they will automatically reconnect. To permanently disconnect the connection, push the
buttons – (7) and (6) at the same time on
one of the devices.
(1), (3) and (4) work with
Other functions
When a call is received
If your ROCKSTER XS is connected with a
compatible smartphone via Bluetooth®, music
playback will be muted when a call is received.
You can answer the call with your smartphone
and take the phone call as usual. After you
hang up, music playback will continue at the
previously selected volume.
page 24
Interruption of connection
If your ROCKSTER XS moves out of the range
of your external player, the Bluetooth
tion will be interrupted. The connection will
be re-established automatically when you are
back within range.
Simultaneous pairing of two external
players
Two external players can be paired with your
ROCKSTER XS at the same time (party mode).
The external player on which playback was last
started always has precedence.
1. Pair the first external player with the
ROCKSTER XS.
2. Push and hold the
3seconds.
3. Now also pair the second external player
with the ROCKSTER XS.
4. Eventually, you will have to select the
ROCKSTER XS again from the list of paired
devices for the first external player.
The audio output of your external players is
now emitted by the ROCKSTER XS.
button (6) for approx.
®
connec-
page 25
Care And Cleaning
NOTICE
Liquid can destroy the electronics in
your ROCKSTER XS!
– Make sure that no liquids penetrate the
device.
Unsuitable cleaning agents can
cause damage to the housing.
– Never use solvents or abrasive clean-
ers.
To clean your ROCKSTER XS
• Turn the ROCKSTER XS off and remove all
cable connections before you start cleaning.
• Ideally, you can remove any dust or light dirt
with a dry microfibre cloth.
• You can wipe off more stubborn dirt with
a cloth which has been slightly dampened
with water. Make sure that no water is able
to penetrate the housing.
• Then immediately wipe the damp surfaces
off with a soft cloth without applying pressure.
page 26
Protecting The Environment
Old devices must not be disposed
of with household waste!
Electrical equipment contains harmful
substances and valuable resources.
Every consumer is required by law to bring all
old electrical devices to an authorised collection or return point so that they can be disposed of in a manner that is environmentally
friendly and which preserves resources.
You can hand old electrical devices over to the
local reusable materials/recycling centre.
Please contact your vendor directly for more
information about this topic.
Batteries and rechargeable batteries do not belong in the household
garbage!
Every consumer is required by law to bring all
batteries and rechargeable batteries, regardless whether they contain harmful substances*) or not, to a collection point run by the
communal authority or borough or to a retailer,
so that they can be disposed of in an environmentally friendly manner.
Please only turn in batteries and rechargeable
batteries which are empty!
*) labelled with: Cd = cadmium, Hg = mercury,
Pb = lead
page 27
Technical Data
Rockster XS
Power supply: 5 V DC; 2.1 A max
Battery: Li-Ion 7.4 V/4400 mAh
Dimensions (L×W×H): 176 × 87 × 70 mm
USB charger
Manufacturer: Lautsprecher Teufel GmbH
Address: Budapester Straße 44
D-10787 Berlin
Commercial registration number: HRB198813B
Model identifier: Golden Profit Electronics Ltd.
GPE012A-050210-Z
Input: 100–240 V~ 50/60 Hz
Output: 5.0 V DC / 2.1 A / 10.5 W
Average efficiency: 82.3 %
Efficiency at low load 10%: 80.6 %
No load power consumption: 0.01 W
You can find further technical data on our
website. Technical changes reserved!
Declaration of Conformity
Lautsprecher Teufel GmbH hereby
declares that this product com-
plies with the requirements of the
directives 2014/30/EU, 2014/35/EU and
2014/53/EU to the extent they are installed
and used in accordance with the instructions
page 28
of the manufacturer. The full text of the EU
declaration of conformity is available at the
following Internet address:
www.teufelaudio.com/declaration-of-conformity.html
The following radio frequency bands and radio
transmitting powers are used in this product:
Radio network: Bluetooth® & BLE
Frequency band: 2402–2480 MHz
Transmission power: 2.5 mW/4 dBm
Please contact our customer service department with any questions, suggestions, or
complaints:
Lautsprecher Teufel GmbH
BIKINI Berlin
Budapester Str. 44
10787 Berlin (Germany)
Phone 00800 - 200 300 40 (toll-free)
Fax: +49 (0)30 / 300 930 930
Service: www.teufelaudio.com/service
Contact: www.teufelaudio.com/contact
No responsibility is assumed for the correctness of this information.
Technical changes, typographical errors and
other errors reserved.
Manual No. 196057_GB_20200915
Loading...
