Page 1
A masterpiece.
Unique in performance
and operation: the new
router OF 2200.
Tools for the
toughest demands
Page 2
The new router OF 2200.
A tool that shines
in all areas.
The router OF 2200 is the new masterpiece from Festool. It
impresses with its powerful drive, perfect technical equipment,
ideal ergonomics and top precision. Added to this is an unbe-
lievable low-end torque: 2200 Watts are sufcient for it to cut
through the hardest of material without jamming or tearing.
The router OF 2200 thus sets new standards in all areas –
simply a genuine masterpiece. But you have to experience this
yourself.
2
Page 3
3
Page 4
A quantum leap in technology, reliability and ergonomics.
A tool that can do everything.
More powerful, easier to use, increased comfort and safer –
the OF 2200 offers the most powerful low-end torque, highest
precision and top ergonomic comfort. No matter what your
task is – with the OF 2200, you have the solution in your hand.
After all, nothing is impossible!
Faultless precision.
Once the routing height is set, the
router is clamped to both guide
columns at the same time with
only one clamping handle. This
double column clamping system
guarantees accurate routing
results.
Exact ne adjustment.
Cutting depth accuracy of up to
1/10 mm thanks to clearance free
depth setting with zero function.
Ergonomically arranged soft grip
and drag indicator.
Festool routers.
For perfect results, Festool
offers you over 160 router bits
in HS and HW quality for
different shank diameters.
IPT Interactive Product Tour
Experience the new router OF 2200
in action!
You want to see more? In that case the detailed application
DVD-ROM with numerous practical examples is just what
you need! Simply request it with the enclosed card.
Or view online and place your order: www.festool.co.uk.
Corrosion-free columns.
The coating protects the
guide columns against
corrosion.
Convenient router bit change.
The spindle lock with rocker and
ratchet system enables fast and
safe router bit changes.
Prole cutter quickly adapted.
By coupling the base plate and
motor unit, you can move the
prole cutter with the ne
adjustment quickly into the ideal
position.
4
Page 5
Powerful low-speed torque.
The electronic motor control uses
the 2200 Watts to produce an
impressive low-end torque
performance. The three-bearing
mounted armature shaft guarantees low-vibration routing. For
example, in ash with a 30-mm
router bit dia. and 30 mm routing
depth.
First-class ergonomics.
An ergonomic working position
when working with the side and
guide stop is possible thanks to a
guide rod support offset by 30°.
Tool-free change.
Change the copying ring,
chip catcher and base runner
using FastFix: simply unlock,
change, click in. Centering is
automatic.
Systematic cleanliness.
The extraction ring, chip catcher
and the exhaust adapter, which
can be rotated 45°, make an
extraction performance of up to
99 % possible when routing
edges.
80 mm routing stroke.
Impressive 80 mm routing
stroke for more options and
safety.
5
Page 6

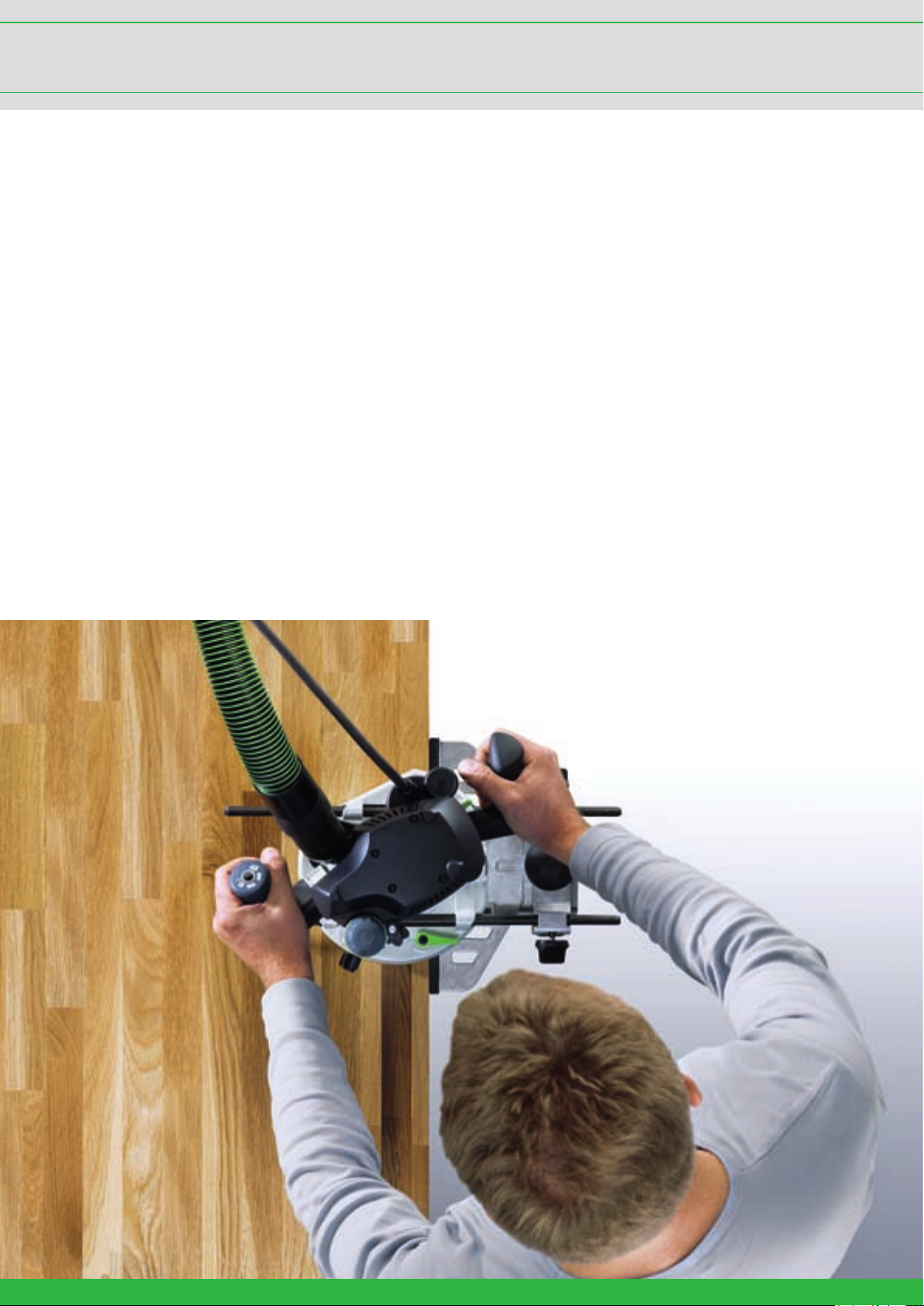

The OF 2200 unites power and ergonomics.
A tool that goes full speed ahead.
The new router OF 2200 is truly amazing. Its unbelievable
power is best demonstrated when working on large workpieces
and hard material. The optimised size-weight ratio allows you
to control the new router OF 2200 even at full power. The rm
support on the workpiece also guarantees precise results and
ensures ergonomic and safe work.
6
Page 7

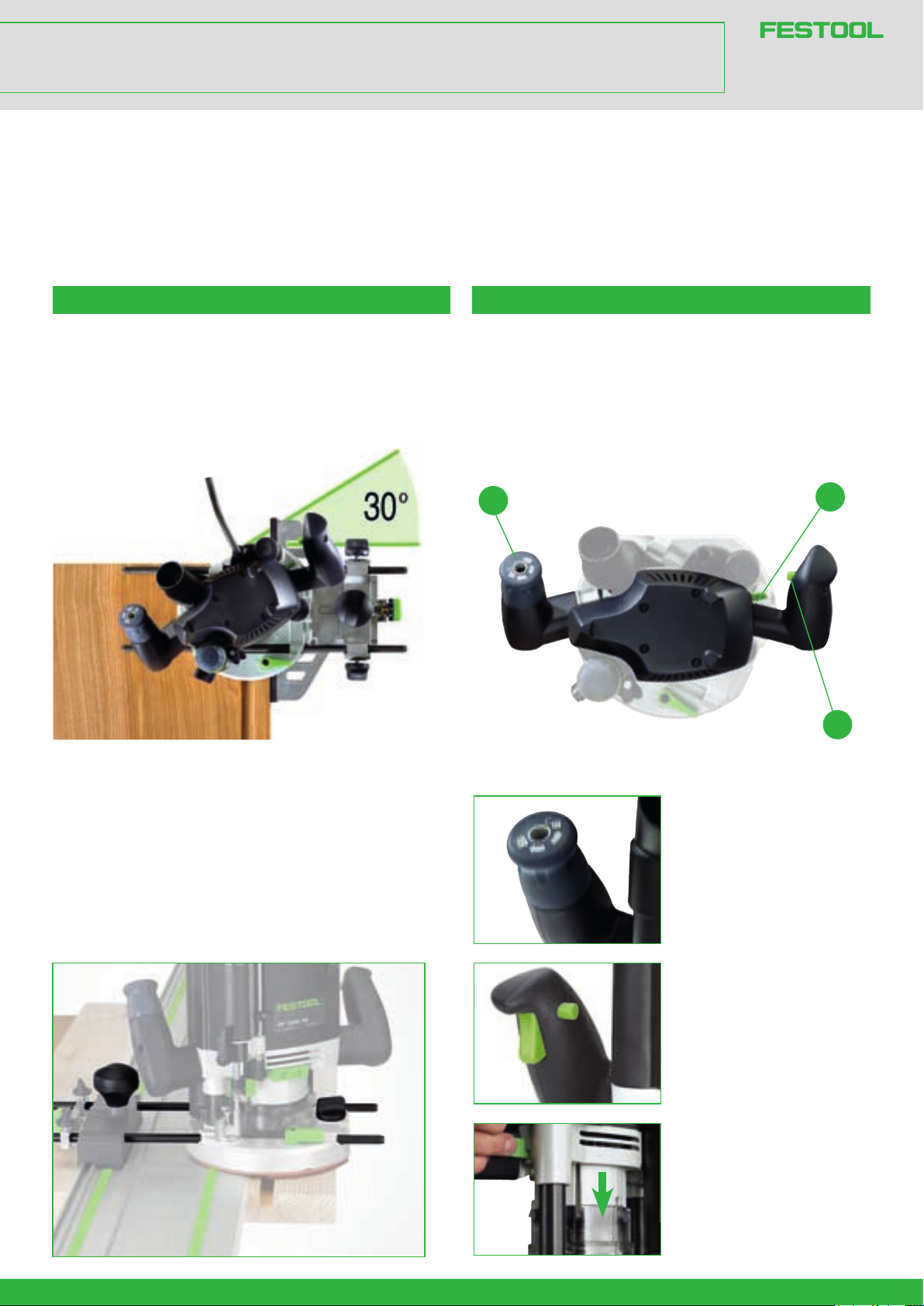

Control elements within reach30° for easier guidance
When routing with the side stop or the guide rail, the guide
rods of the OF 2200 are offset by 30°. This means that the
working position and advance direction are perfectly aligned.
A lot easier in difcult material and for long periods of routing.
Use of the side stop.
The important control elements such as double column
clamp, On-Off switch and the extraction ring trigger can be
operated conveniently – without having to let go of the
router. This means that both hands remain on the machine
during the work operation. This is comfortable and increases
safety.
1.
3.
2.
Easily secured: the side and guide stop
Clamping of the two guide rods to the base plate and
the stop requires only one clamping screw - real time
saving. The ergonomically aligned stops also optimises
the application pressure on the workpiece.
Everything under
control:
1. Double column clamp
Simply turn to lock the routing
height at both guide columns.
The router does not twist even if
strong forces are applied.
2. On-Off switch
Both hands remain rmly on the
router when switching on or off –
for more safety.
3. Extraction ring trigger
Both hands remain on the router
when the extraction ring is
triggered.
7
Page 8

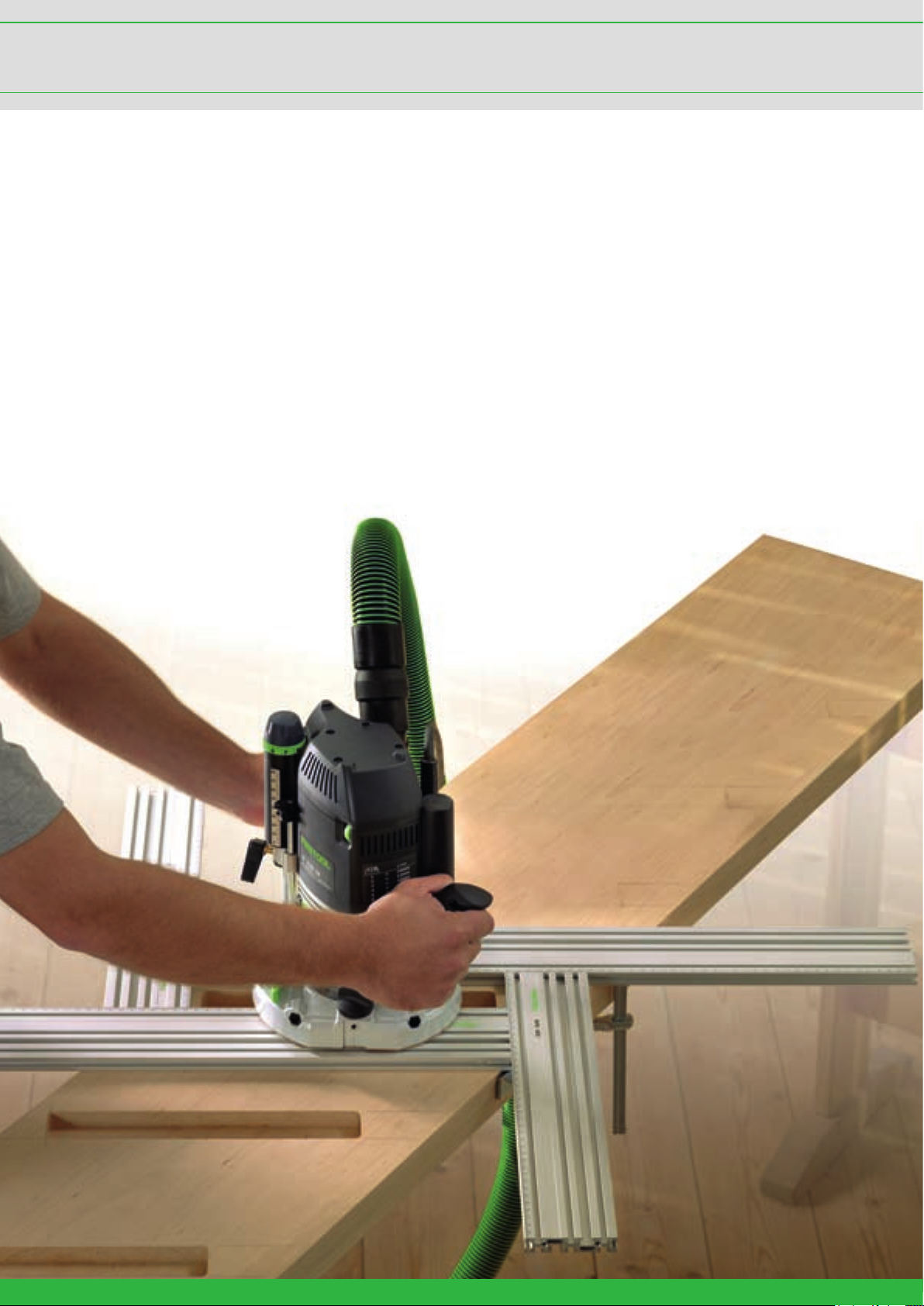

The OF 2200 offers an even greater working depth.
A tool with the right depth range.
With its extremely large routing stroke of 80 millimetres, the
OF 2200 guarantees an impressive routing depth. This is a
particular advantage when you are using templates. And this
is precisely why the new router is at home in window, conservatory, stair and interior tting as well as in mineral material processing.
8
Page 9

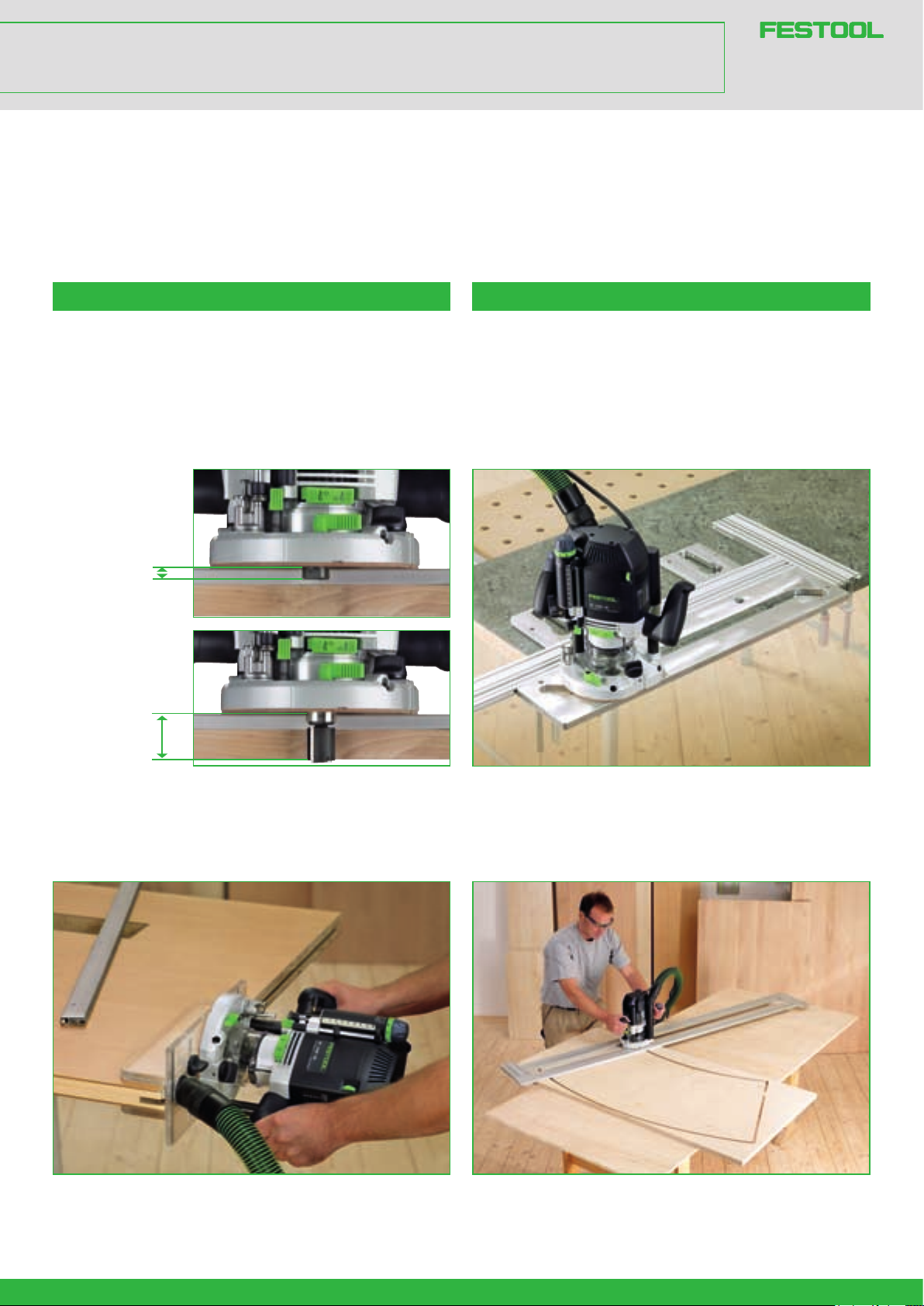

Safely reaching the depths Versatile work
A great advantage of the new OF 2200 is the 80 mm routing
stroke: the collet is up to 10 mm above the base plate and the
cutters are safely clamped even with thick materials.
Collet up to
10 mm above
the base plate
Routing
stroke up
to 80 mm
The projecting collet provides ideal support for the cutters – especially
when you are using routing templates in conjunction with thick
materials.
The new router OF 2200 also offers you many options for
routing with templates. You can use the multiple routing
template, routing aids and worktop routing templates without
any problems.
The worktop routing template can be used to produce exact corner and
panel connections in a short time.
When cutting grooves on narrow supports, the router cuts precisely
without tilting thanks to the routing aid
* System accessories available separately.
*.
The multiple routing template with extension proles* can be used to
effortlessly cut circles and segmental arches.
9
Page 10

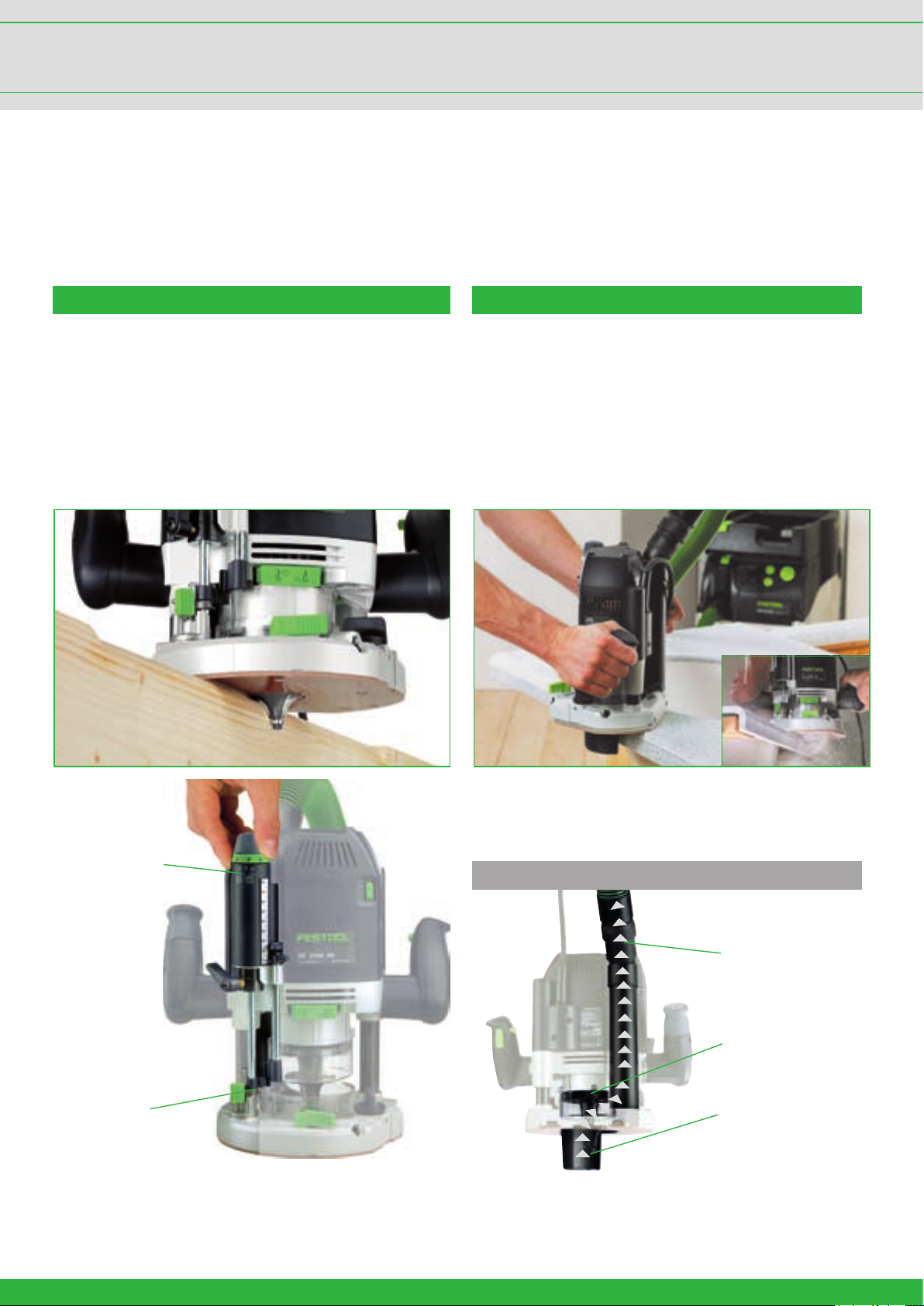

Details for precise, tidy work.
Fast and accurate prole cutter setting Work in a clean environment
A masterpiece, also with regard to ne adjustment: By coupling the base plate and motor unit, you can now move the
base plate up or down in increments of 1/10 mm. This allows
you to adapt the prole cutter more easily and exactly to your
workpiece.
Fine adjustment
in 1/10 mm
increments
Optimised dust extraction is indispensable if ne wood dust is
produced. This is why a new extraction concept with an adjustable extraction ring was developed for the OF 2200. This guarantees an extraction performance of up to 99 %, even when
routing edges.
Extraction of the routing chips is good for your health but it should still
not hamper your work. The hose system has therefore been optimised
by providing an exhaust nozzle that can be rotated up to 45°.
The new extraction concept of the OF 2200:
Coupling of base plate
and motor unit
The new fast adjustment for prole cutters supplements and optimises
the ne adjustment using the well-known zero function.
10
Exhaust nozzle can
be rotated 45°
Extraction ring can
be drained
Chip catcher for
extraction at edges
The extraction ring can be pushed upwards for a perfect view of the
router and scribe mark. When the extraction ring is lowered, a closed
chip space is created when the cutter plunges into the material, which
prevents dust from getting through.
Page 11

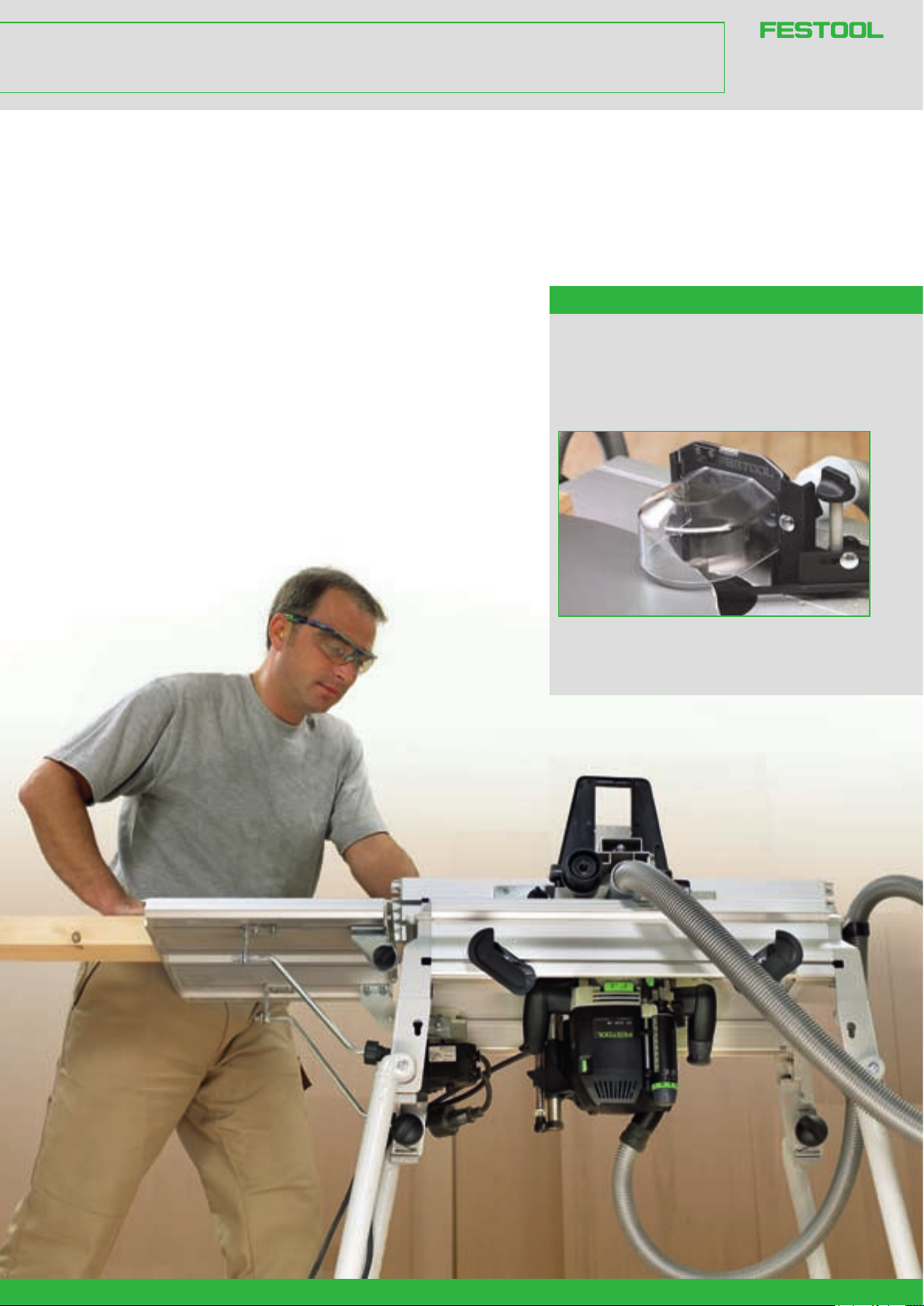

From the OF 2200 to the bench-mounted router
TF 2200.
A tool with real team spirit.
In conjunction with the CMS Compact Module System basic unit,
the new TF 2200 becomes a powerful bench-mounted router:
ideal for exible and efcient processing of large workpieces and
proles. Height adjustment of the router is carried out very sim-
ply from above with the help of a crank.
The routing guard and the double extraction connections guarantee clean work on the bench as well. Furthermore, you can exchange the router module for other CMS modules as required:
for sawing or sanding.
Applications of the bench-mounted router TF 2200
All kinds of routing work:
•
Rebates, round edges, routing radii and shapes
Routing shapes and radii at ball bearing guide
•
Jointing work at the stop
•
For large radii and proles
•
The routing guard guarantees perfect extraction and
good view of the routing position. It is included in the
TF 2200 set.
1111
Page 12
12

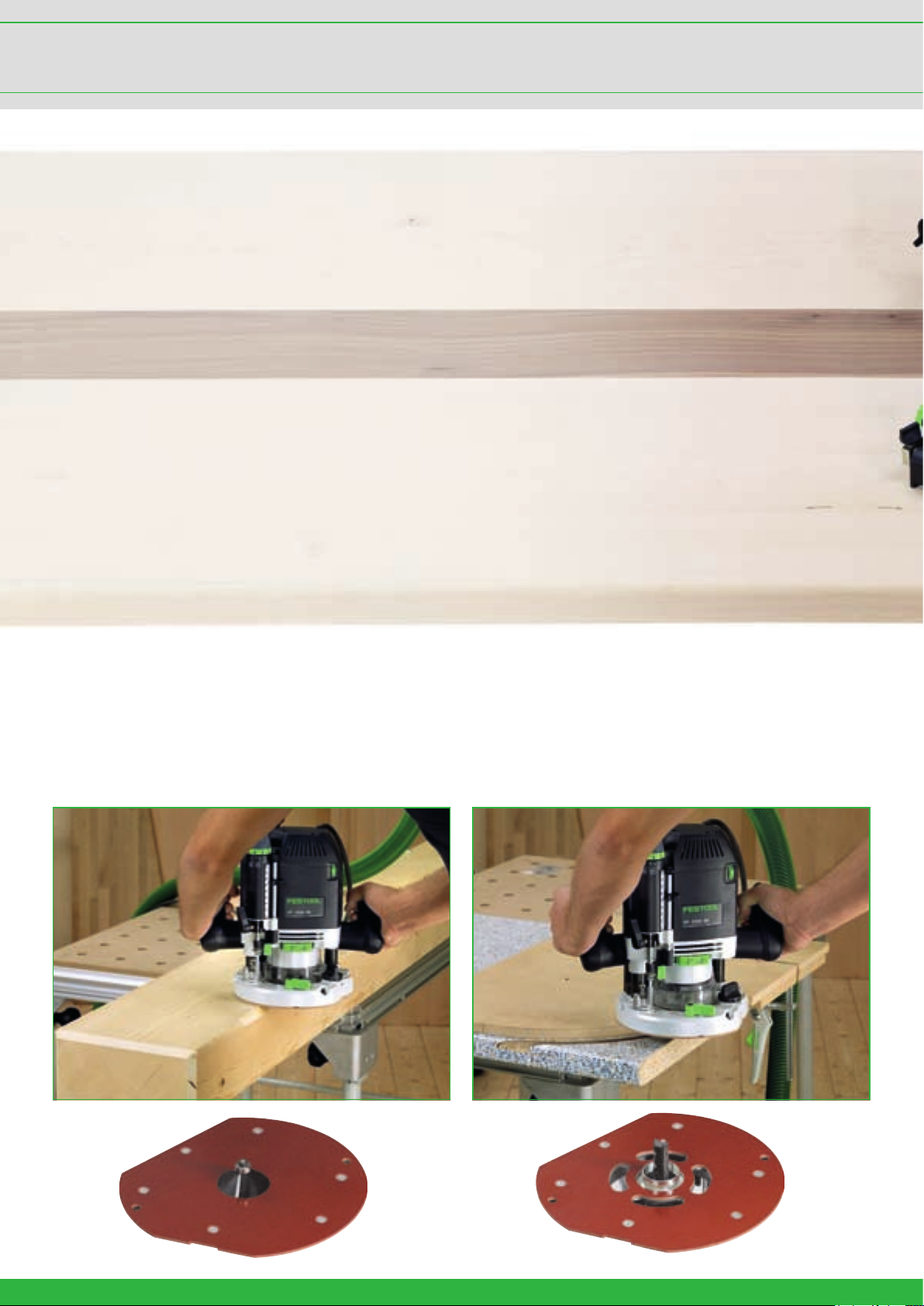

The Accessories Systainer for the OF 2200.
A tool that offers more exibility.
Complimented by the Accessories Systainer, the OF 2200
becomes a exible, complete system. It means that you
always have the accessories necessary for the widest variety
of applications at your ngertips. Thanks to the tool-free
base runner and copying ring change, you can adjust quickly
and efciently to the various tasks.
Base runner dia. 36 mm:
For copying rings with diameters up to 30 mm, in particular,
this base runner is perfectly suitable for use on edges with
small router bits. It helps prevent tipping when routing
around corners.
Base runner dia. 36 mm with extraction opening:
For copying rings with diameters up to 30 mm, in particular,
this base runner is also tted with extraction openings for
upward extraction of the chips. For safe and clean routing.
Page 13

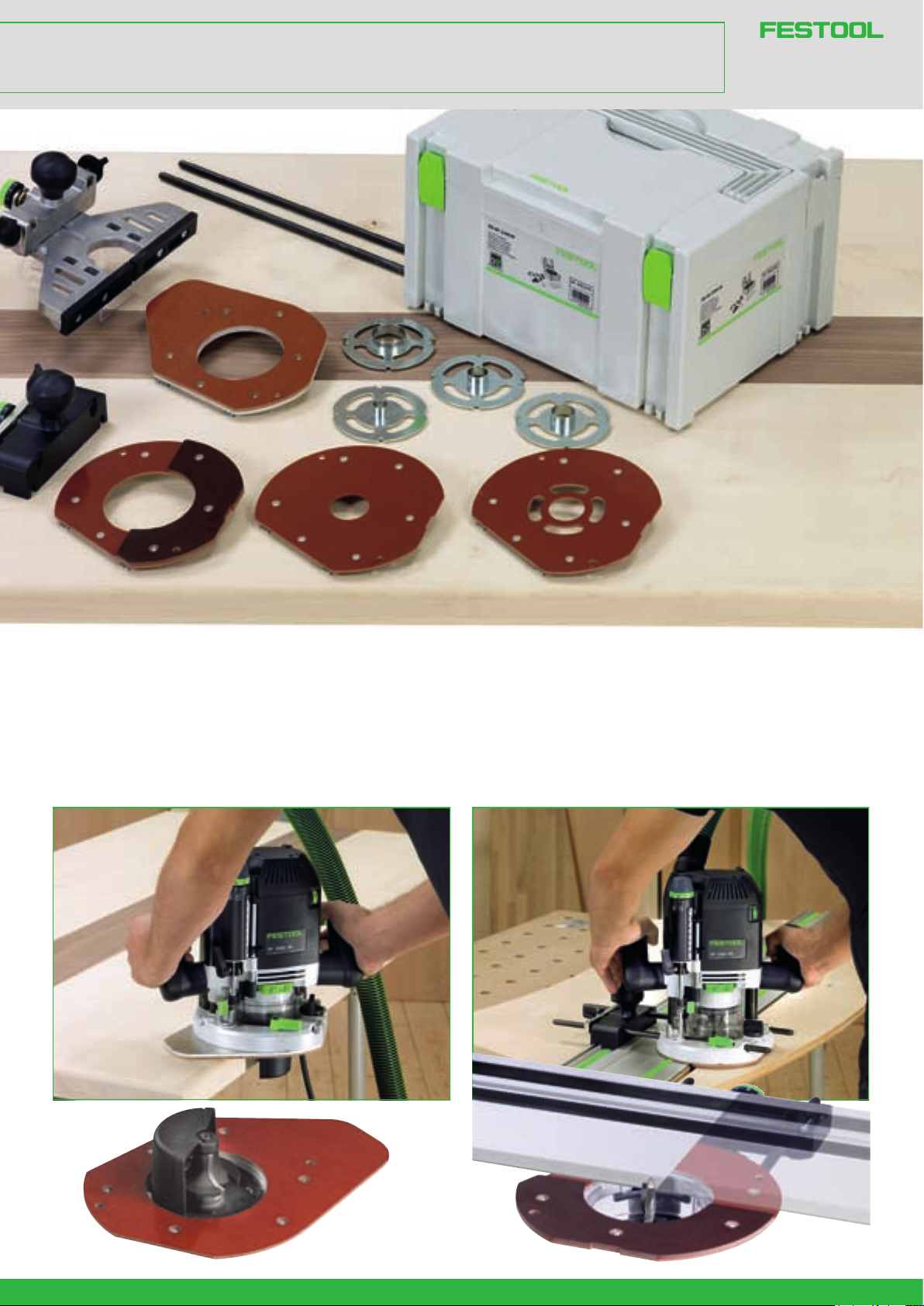

All this is included in the
Accessories Systainer SYS 2:
3 base runners
•
4 copying rings dia. 17, 24,
•
27, 40 mm
1 guide stop set with base
•
runner
1 side stop
•
2 guide bars
•
Base runner with wide support:
Provides increased safety because it reduces the risk of tipping
when routing around corners and is ideal for safe guidance of
the OF 2200 on edges.
Guide stop set with base runner:
Ideal for long sections – then it‘s really straight. Guide stop
with 1/10 mm exact ne adjustment for the guide rails FS/2.
The base runner with height adjustment in relation to the
guide rail guarantees a steady base for the router.
13
Page 14

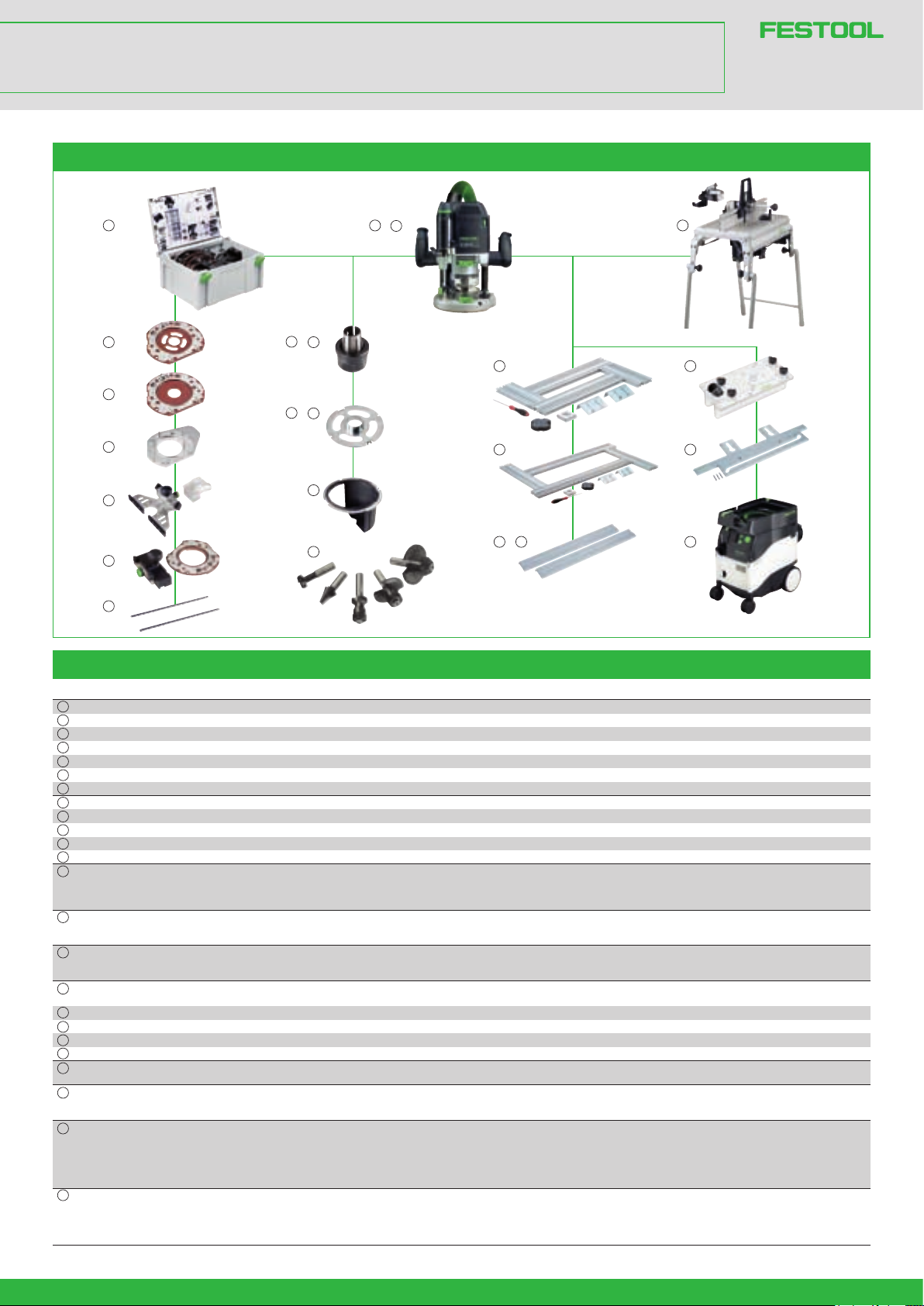

Powerful in action, easy to handle.

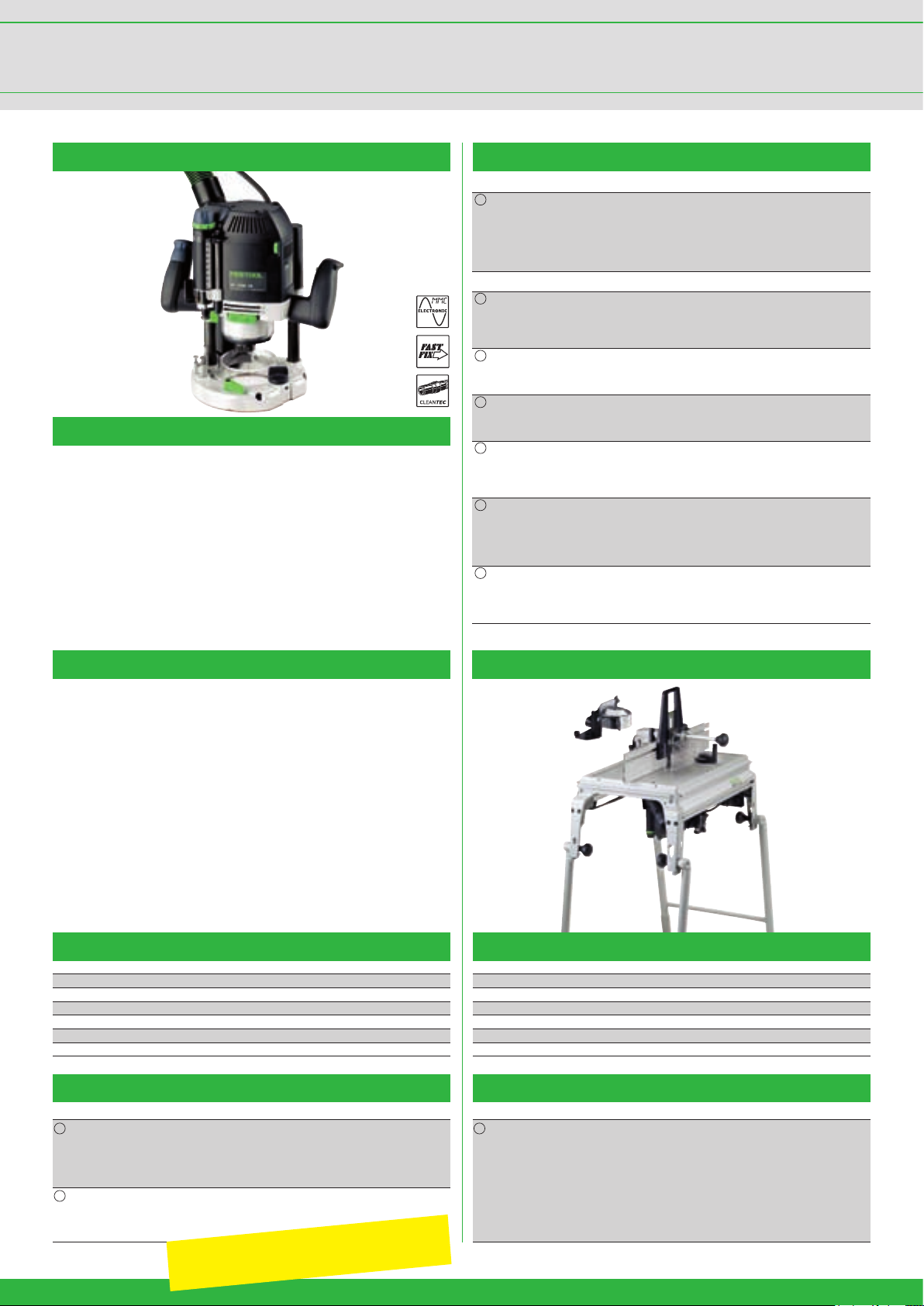

Router OF 2200
Applications
Rebating, grooving and proling
•
Routing large cutouts, circles and arcs with the multi-routing system
•
MFS
Creating worktops corner joints with the worktop system APS
•
Routing seals and espagnolettes in windows and doors
•
Flush trimming, making cutouts, grooving, proling of mineral material
•
Creation of string-boards in hardwood or softwood
•
Stationary routing with the bench-mounted router TF 2200 up to
•
router bit dia. 60 mm
Accessories Systainer version
3
Accessories
Systainer
ZS-OF 2200,
metric units
Elements
4
Base runner
LA-OF 2200
D36 CT
5
Base runner
LA-OF 2200
D36
6
Base runner
with wide
support
AFB-OF 2200
7
Side stop
SA-OF 2200
8
Guide stop set
FS-OF 2200
9
Guide rod
ST-OF 2200/2
Scope of delivery
1x side stop SA-OF 2200, guide stop set FS-OF
2200, base runner LA-OF 2200 dia. 36 CT, base
runner LA-OF 2200 dia. 36, base runner with wide
support AFB-OF 2200, copying ring dia. 17, 24, 27,
40 mm, 2 guide bars, in SYSTAINER SYS 3
Explanations/Dimensions
Specially for copying rings up to 30 mm dia. With
extraction openings for extracting chips from above.
Reduces the size of the base runner opening. Toolfree change possible
Ideal for work on edges, with 36 mm dia. base
runner opening. No tipping when routing around
corners. Tool-free change possible
Prevents tipping and is ideal for safe guidance of the
OF 2200 on edges. Tool-free change possible
For example, for rebating or grooving. With adapt-
able plastic sliding jaws, ne adjustment accurate
to 1/10 mm and extractor hood. (please order guide
bars separately)
with 1/10 mm exact ne adjustment for the guide
rails FS/2. The base runner with height adjustment
in relation to the guide rail guarantees a steady base
for the router. (please order guide bars separately)
For use of the side stop and guide stop set. Length
400 mm, included in Accessories Systainer ZS-OF
2200
Order no.
495248
Order no.
494675
494677
494682
494680
494681
495247
Features
Top power development and fully variable speed for hard materials
•
and increased material thicknesses
Precise work with little effort thanks to a guide bar support offset
•
by 30°
Tool-free copying ring and base-runner change
•
Fast, convenient router-bit change with rocker and ratchet principle
•
Greater precision through extreme torsional rigidity thanks to double
•
guide column clamp
Simple and exact routing depth setting to 1/10 mm
•
Fast prole cutter adjustment through coupleable/decoupleable base
•
plate
Dust extraction of up to 99 % during edge routing through adjustable
•
extraction ring and chip catcher
Power consumption
Plunge depth
Idling speed
Max. cutter diameter
Fine adjustment
Connection for dust extraction
Weight
2200 W
80 mm
10000–22000 rpm
89 mm
1/10 mm
Ø 36 mm (27 mm)
7,8 kg
Version
1
Router OF 2200
EB-Plus
2
Router OF 2200
EB set
Scope of delivery
Router OF 2200 EB, chip catcher,
clamping collet dia. 8 mm, clamping
collet dia. 12 mm, copying ring dia.
30 mm, operating tool, in SYSTAINER
SYS 4
Router OF 2200 scope of delivery
as described above and Accessories
Systainer SYS 2
More versatile in the set: the new
14
OF 2200 and the Accessories Systainer.
Order no.
240V: 574275
110V: 574276
240V: 574301
110V: 574302
Bench-mounted router TF 2200
Technical dataTechnical data
Power consumption
Idling speed
Max. cutter diameter
Fine adjustment
Dimensions of module mounting
Dust extraction connector
Total weight
Version
10
Benchmounted
router
TF 2200
EB set
Scope of delivery
Router OF 2200 EB-Plus, CMS basic unit
with foldaway legs, module mounting, router
stop, routing guard, press-down xture,
assembly lugs, clamping collet dia. 8 mm,
clamping collet dia. 12 mm, copying ring dia.
30 mm, top extractor hood, chip catcher,
operating tool
2200 W
10000–22000 rpm
60 mm
1/10 mm
578 x 320 mm
dia. 27/36 mm
29.4 kg
Order no.
240V: 570264
110V: 570265
Page 15
System overview and accessories
3 1
4
5
6
7
8
9
System accessories
11
Collet SZ-D 6.0/OF1400-OF2200
12
Collet SZ-D 8.0/OF 1400-OF 2200
13
Collet SZ-D 10.0/OF 1400-OF 2200
14
Collet SZ-D 12.0/OF 1400-OF 2200
15
Collet SZ-D 6.35/OF 1400-OF 2200
16
Collet SZ-D 9.53/OF 1400-OF 2200
17
Collet SZ-D 12.7/OF 1400-OF 2200
18
Copying ring KR-D 17.0/OF 2200
19
Copying ring KR-D 24.0/OF 2200
20
Copying ring KR-D 27.0/OF 2200
21
Copying ring KR-D 30.0/OF 2200
22
Copying ring KR-D 40.0/OF 2200
23
Chip catcher KSF-OF 2200
24
Routing template MFS 400
25
Routing template MFS 700
26
Extension prole MFS-VP 200
27
Extension prole MFS-VP 400
28
Extension prole MFS-VP 700
29
Extension prole MFS-VP 1000
30
Extension prole MFS-VP 2000
31
Routing aid OF-FH 2200
32
Worktop template APS 900
33
Mobile dust extractor CTM 33 E SG GB 240V
34
Router
2–
11
17–
24
18
22
–
25
23
26
30
34
–
10
31
32
33
Explanations/Dimensions
Dust-optimised collet with union nut
Attachable without tools; can be combined with different base runners
Attachable without tools and 360° rotatable chip catcher. For optimal extraction when routing
edges. Contained in the scope of delivery of the OF 2200 (spare part)
For routing cut-outs or circles with minimum effort. For routers with copying ring retainer.
For cut-outs up to 300 x 100 mm and circles up to dia. 600 mm
For routing cut-outs or circles with minimum effort. For routers with copying ring retainer.
For cut-outs up to 600 x 300 mm and circles up to dia. 1200 mm
For extension of the multiple router template MFS 400 and MFS 700, prole 200 mm
Prole 400 mm
Prole 700 mm
Prole 1000 mm
Prole 2000 mm (without scaling)
For example, for cutting grooves for door seals or safety door seals
For corner and panel connections up to 600 mm or by shifting the routing template on the prole up
to 900 mm. Routing bit dia. 14 mm and copying ring dia. 30 mm required
For wood dust and other dust with max. workplace concentration value > 0.1 mg/cm3, 1 lter bag
tted, suction hose D 27x3.5 m-AS, end cover for extraction nozzle, container/lter bag volume
max. 33/30 l, dimensions (LxWxH) 625 x 380 x 550 mm, weight 14.5 kg, in a box. Further models
are available from your specialist dealer, in the main Festool catalogue or on the Festool homepage.
Festool offers you an extensive range of over 160 router bits. In HS and HW quality for different
shank diameters. More information is available from your specialist dealer, in the main Festool
catalogue or on the Festool homepage.
Order no.
494459
494460
494461
494462
494463
494464
494465
494622
494623
494624
494625
494626
494670
492610
492611
492722
492723
492724
492725
492726
495246
492727
583464
1515
Page 16
Your link to more information...
www.festool.co.uk
News and promotions
Online product catalogue
Dealer search
Service
Application examples
3D animation
TTS Tooltechnic Systems GB Ltd
Saxham Business Park
Saxham
Bury St Edmunds
Suffolk, IP28 6RX
GREAT BRITAIN
Phone: +44 (0) 1284 760791
Fax: +44 (0) 1284 702156
E-mail: [email protected]
www.festool.co.uk
On our Festool website you can nd information about
the complete product range,
•
detailed introductions of our new products,
•
Dates of Exhibitions and Open Days with Festool,
•
the registration for our Festool Facts online
•
Newsletter,
Brochures, price lists, the catalogue and
•
user manuals for you to download,
countless product animations,
•
our comprehensive service offer,
•
interesting reports about Festool products from
•
the press,
exciting quiz and competitions - always with
•
the chance to win something great,
and all of this at your leisure.
Three Years warranty –
that means three years security
Festool grants a 2 year warranty from the
date of purchase, as long as the tool has
been used correctly. This warranty is automatically extended by a further year, provided that the warranty form with every
new tool is completed correctly and returned within 30 days of the date of
purchase.
Make a contribution yourself – support the
WWF together with Festool!
Dealer
Our most important contribution to preserving our environment is the quality of
our products, which are characterised by
their durability and positive eco-features
such as recyclability and environmental
compatibility.
By purchasing one of the promotional
products, you are supporting our collaboration with the WWF and will receive a
WWF panda keyring pendant as a thank
you gift.
© 1986 Panda symbol WWF – World Wide Fund For Nature
(Formerly World Wildlife Fund)
® „WWF“ and „living planet“ are WWF Registered Trademarks
Type no. 59405
Subject to alterations and errors. All illustrations are non-binding. Created for TTS Tooltechnic Systems AG & Co. KG, DE - 73240 Wendlingen, 03/2008
Loading...
