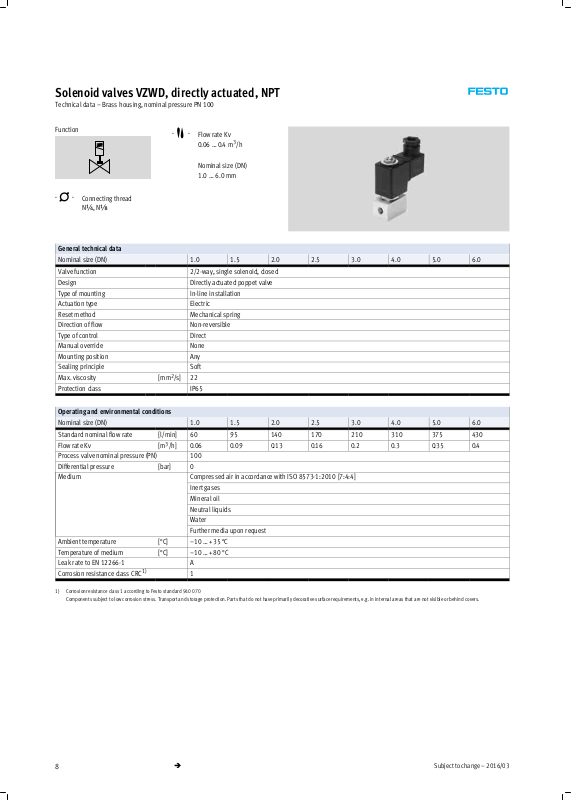

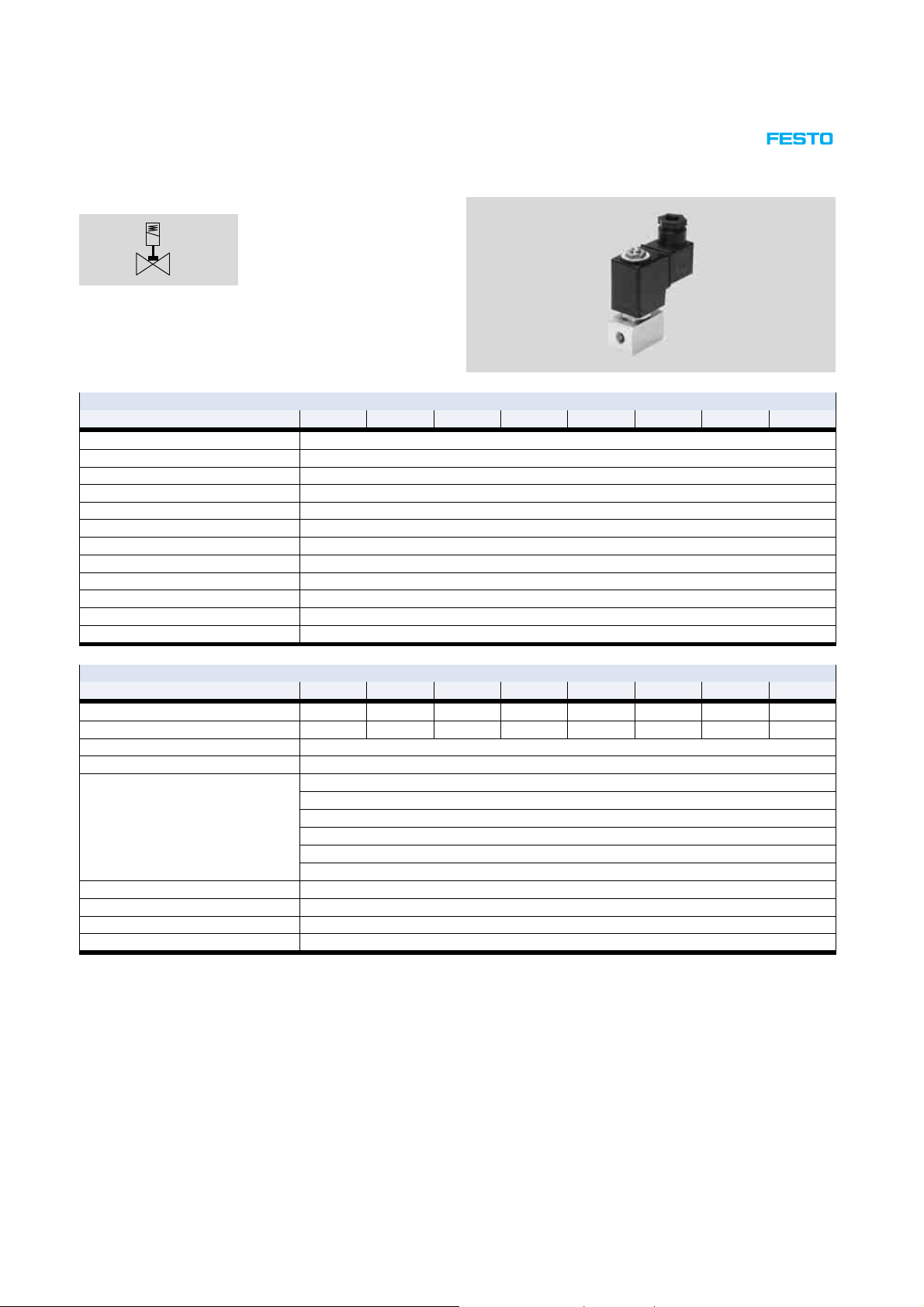

Solenoid valves VZWD, directly actuated, NPT
Technical data – Brass housing, nominal pressure PN 100
Function
-M- Flow rate Kv
0.06 … 0.4 m3/h
Nominal size (DN)
1.0 … 6.0 mm
-N- Connecting thread
N¼, Nx
General technical data
Nominal size (DN) 1.0 1.5 2.0 2.5 3.0 4. 0 5.0 6.0
Valve function 2/2-way, single solenoid, closed
Design Directly actuated poppet valve
Type of mounting In-line installation
Actuation type Electric
Reset method Mechanical spring
Direction of flow Non-reversible
Type of control Direct
Manual override None
Mounting position Any
Sealing principle Soft
Max. viscosity [mm2/s] 22
Protection class IP65
Operating and environmental conditions
Nominal size (DN) 1.0 1.5 2.0 2.5 3.0 4. 0 5.0 6.0
Standard nominal flow rate [l/min] 60 95 14 0 170 210 310 375 43 0
Flow rate Kv [m3/h] 0.06 0.09 0. 1 3 0. 1 6 0.2 0. 3 0. 3 5 0. 4
Process valve nominal pressure (PN) 100
Differential pressure [bar] 0
Medium Compressed air in accordance with ISO 85731:2010 [7:4:4]
Inert gases
Mineral oil
Neutral liquids
Water
Further media upon request
Ambient temperature [°C] –10 … +35 °C
Temperature of medium [°C] –10 … +80 °C
Leak rate to EN 12266-1 A
Corrosion resistance class CRC
1) Corrosion resistance class 1 according to Festo standard 940 070
Components subject to low corrosion stress. Transport and storage protection. Parts that do not have primarily decorative surface requirements, e.g. in internal areas that are not visible or behind covers.
1)
1
8
è
Subject to change – 2016/03
Page 2
Solenoid valves VZWD, directly actuated, NPT
Technical data – Brass housing, nominal pressure PN 100
Electrical data
VZWD- … 1 VZWD- … 2A VZWD- … 3A
Electrical connection Plug to EN 175301-803 type A, square design
CE marking – 73/23/EEC 73/23/EEC
Insulation class H F F
Duty cycle [%] 100
Permissible voltage fluctuations [%] _10
Coil
characteristics
Materials
Solenoid valves Material number
1 Housing High-alloy stainless steel 1.4305
2 Seals FPM
– Note on materials Contains PWIS (paint-wetting impairment substances), RoHS-compliant
Direct current DC [V] 24 – –
Alternating current AC [V] – 110 230
[W] 11 – –
Pick-up power [VA] – 19 18
Holding power [VA] – 16 15
[Hz] – 50, 60 50, 60
Switching time on [ms] 20
Switching time off [ms] 18
Brass CW614N
2016/03 – Subject to change
è
9
Page 3
Solenoid valves VZWD, directly actuated, NPT
Technical data – Brass housing, nominal pressure PN 100

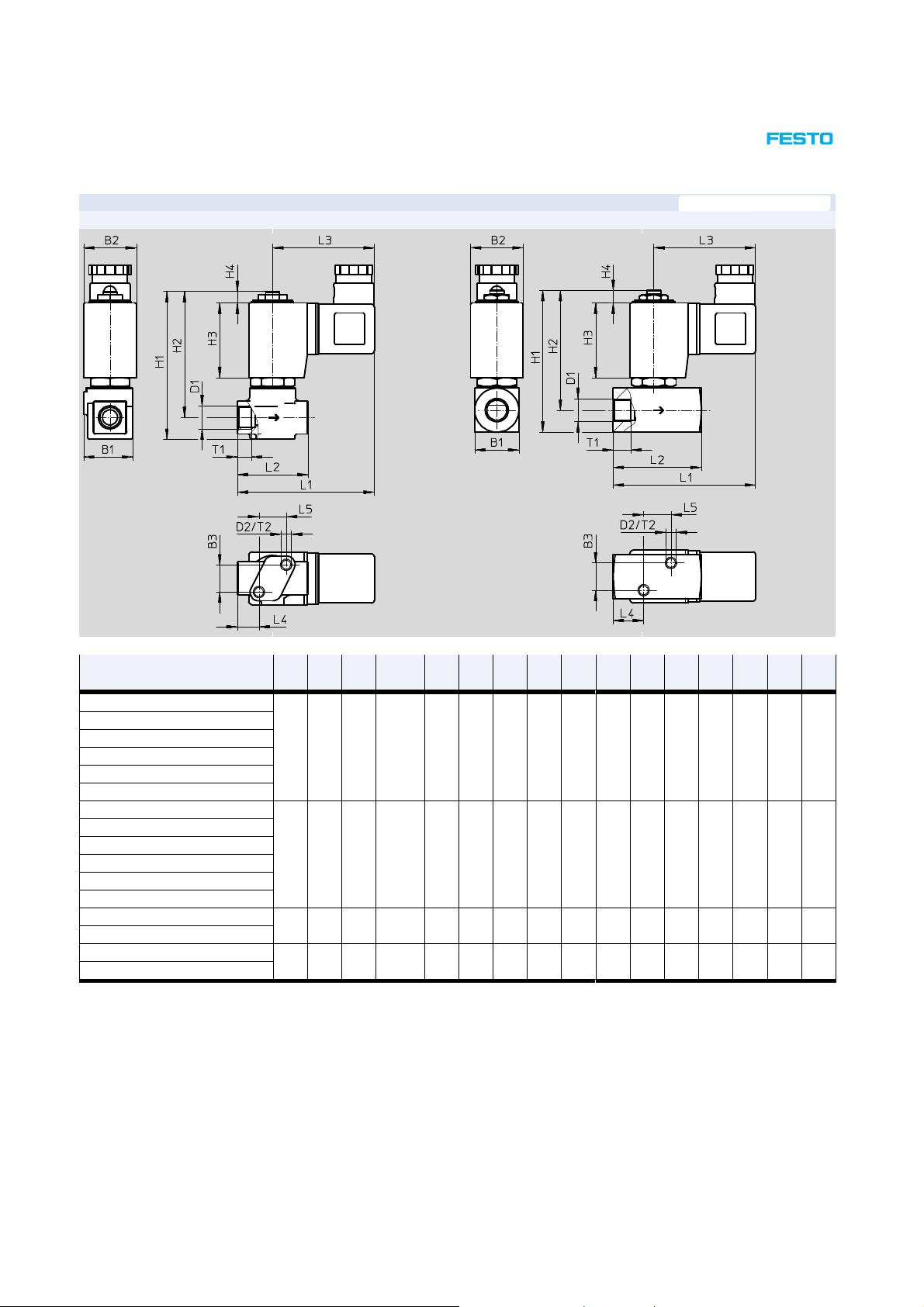

Dimensions Download CAD data è
Die-cast brass housing Milled brass housing
Type B1 B2 B3 D1 D2 H1 H2 H3 H4 L1 L2 L3 L4 L5 T1 T2
VZWD-…-Nx-10-…-90
VZWD-…-Nx-15-…-85
VZWD-…-Nx-20-…-40
VZWD-…-Nx-25-…-22
VZWD-…-Nx-30-…-15
VZWD-…-Nx-40-…-8
VZWD-…-N¼-10-…-90
VZWD-…-N¼-15-…-85
VZWD-…-N¼-20-…-40
VZWD-…-N¼-25-…-22
VZWD-…-N¼-30-…-15
VZWD-…-N¼-40-…-8
VZWD-…-Nx-50-…-5
VZWD-…-Nx-60-…-4
VZWD-…-N¼-50-…-5
VZWD-…-N¼-60-…-4
28 30 15.5 NPTx M6 84 72 42.5 6.5 78 40 58 12 15.5 8 6
28 30 15.5 NPT¼ M6 84 72 42.5 6.5 78 40 58 12 15.5 10 6
25 30 15.5 NPTx M6 81 68 42.5 7 78 40 58 12 15.5 8 6
25 30 15.5 NPT¼ M6 81 68 42.5 7 85 50 58 17 15.5 10 6
10
è
Subject to change – 2016/03
Page 4
Solenoid valves VZWD, directly actuated, NPT
Technical data – Brass housing, nominal pressure PN 100

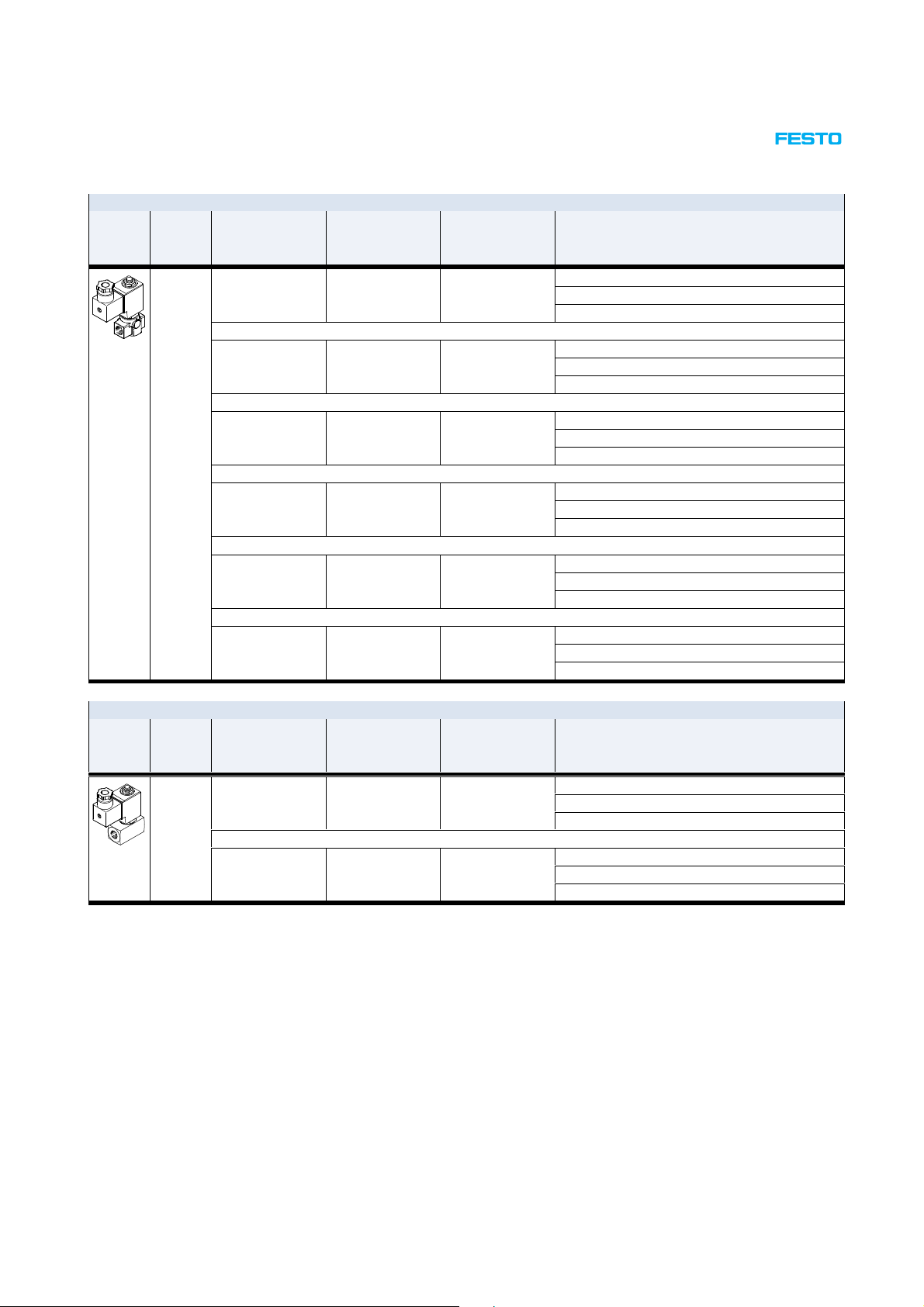

Ordering data
Process
valve
connection
NPT¼ 1 0 … 90 550 1491957 VZWD-L-M22C-M-N14-10-V-2AP4-90
Nominal size Medium pressure
DN [bar] [g] Part No. Type
1.5 0 … 85 550 1491958 VZWD-L-M22C-M-N14-15-V-2AP4-85
2 0 … 40 550 1491959 VZWD-L-M22C-M-N14-20-V-2AP4-40
2.5 0 … 22 550 1491960 VZWD-L-M22C-M-N14-25-V-2AP4-22
3 0 … 15 550 1491961 VZWD-L-M22C-M-N14-30-V-2AP4-15
4 0 … 8 550 1491962 VZWD-L-M22C-M-N14-40-V-2AP4-8
1)
Product weight Brass housing
1492040 VZWD-L-M22C-M-N14-10-V-3AP4-90
1491879 VZWD-L-M22C-M-N14-10-V-1P4-90
1492041 VZWD-L-M22C-M-N14-15-V-3AP4-85
1491880 VZWD-L-M22C-M-N14-15-V-1P4-85
1492042 VZWD-L-M22C-M-N14-20-V-3AP4-40
1491881 VZWD-L-M22C-M-N14-20-V-1P4-40
1492043 VZWD-L-M22C-M-N14-25-V-3AP4-22
1491882 VZWD-L-M22C-M-N14-25-V-1P4-22
1492044 VZWD-L-M22C-M-N14-30-V-3AP4-15
1491883 VZWD-L-M22C-M-N14-30-V-1P4-15
1492045 VZWD-L-M22C-M-N14-40-V-3AP4-8
1491884 VZWD-L-M22C-M-N14-40-V-1P4-8
Ordering data
Process
valve
connection
NPT¼ 5 0 … 5 600 1491885 VZWD-L-M22C-M-N14-50-V-1P4-5
1) The valves are suitable for vacuum with Pabs 100 mbar. Please ensure the direction of flow corresponds to the direction of the arrow.
Nominal size Medium pressure
DN [bar] [g] Part No. Type
6 0 … 4 600 1491886 VZWD-L-M22C-M-N14-60-V-1P4-4
1)
Product weight Brass housing
1491963 VZWD-L-M22C-M-N14-50-V-2AP4-5
1492046 VZWD-L-M22C-M-N14-50-V-3AP4-5
1491964 VZWD-L-M22C-M-N14-60-V-2AP4-4
1492047 VZWD-L-M22C-M-N14-60-V-3AP4-4
2016/03 – Subject to change
è
11
