Page 1
-V- New

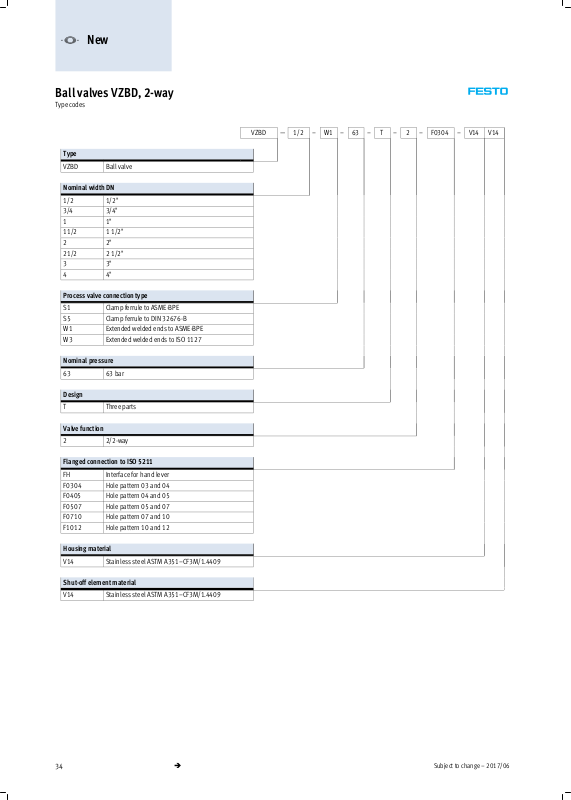

Ball valves VZBD, 2-way
Type codes
Type
VZBD Ball valve
Nominal width DN
1/2 1/2"
3/4 3/4"
1 1"
11/2 1 1/2"
2 2"
21/2 2 1/2"
3 3"
4 4"
Process valve connection type
S1 Clamp ferrule to ASME-BPE
S5 Clamp ferrule to DIN 32676-B
W1 Extended welded ends to ASME-BPE
W3 Extended welded ends to ISO 1127
VZBD — 1/2 – W1 – 63 – T – 2 – F0304 – V14 V14
Nominal pressure
63 63 bar
Design
T Three parts
Valve function
2 2/2-way
Flanged connection to ISO 5211
FH Interface for hand lever
F0304 Hole pattern 03 and 04
F0405 Hole pattern 04 and 05
F0507 Hole pattern 05 and 07
F0710 Hole pattern 07 and 10
F1012 Hole pattern 10 and 12
Housing material
V14 Stainless steel ASTM A351–CF3M/1.4409
Shut-off element material
V14 Stainless steel ASTM A351–CF3M/1.4409
34
è
Subject to change – 2017/06
Page 2
Ball valves VZBD, 2-way
Technical data
-V- New
Function
2-way ball valve made from
stainless steel
Optionally with extended welded
ends to ISO 1127 or to ASME BPE
or clamp ferrules to DIN 32676-B or
to ASME BPE
-N- Nominal width DN
DN15 … DN100
-M- Flow rate
3.5 … 436.3 m3/h
General technical data
Nominal width DN 15 20 25 32 40 50 65 80 100
Process valve connection Welded end to ISO 1127
Welded end to ASME-BPE
Clamp ferrule to DIN 32676-B
Clamp ferrule to ASME-BPE
Valve function 2/2
Design 2-way ball valve
Sealing principle Soft
Type of actuation Mechanical
Switching position indication Slot direction = flow direction
Flow direction Reversible
Type of mounting In-line installation
Mounting position Any
Based on standard ISO 5211
ISO 1127
DIN 32676-B
ASME BPE
Welded end to ISO 1127 and clamp ferrule to DIN 32676-B
Breakaway torque at differ
ential pressure, nominal
pressure, process valve PN
Inside [mm] 18.1 23.7 29.7 38.4 44.3 56.3 72.1 – –
Flow rate Kv [m3/h] 12.2 21.9 35.9 61.2 83.3 141.5 238.5 – –
Welded end to ASME-BPE and clamp ferrule to ASME-BPE
Breakaway torque at differ
ential pressure, nominal
pressure, process valve PN
Inside [mm] 9.6 15.8 22.1 – 34.8 47.7 60.3 72.9 97.5
Flow rate Kv [m3/h] 3.5 9.7 19.8 – 50.1 96.8 161.7 243.8 436.3
[Nm] 7 9 15 22 25 45 82 – –
[Nm] 7 9 15 – 18 35 55 70 90
2017/06 – Subject to change
è
35
Page 3
-V- New
Ball valves VZBD, 2-way
Technical data
Operating and environmental conditions
Nominal width DN 15 20 25 32 40 50 65 80 100
Nominal pressure of process valve PN 63
Temperature of medium [°C] –20 … +200
Medium Compressed air to ISO 8573-1:2010 [-:-:-]
Inert gases
Water – no water vapour
Neutral fluids
Certification CRN
Corrosion resistance class CRC
CE marking (see declaration
of conformity)
1) Corrosion resistance class CRC 4 to Festo standard FN 940070
Particularly high corrosion stress. Outdoor exposure under extreme corrosive conditions. Parts exposed to aggressive media, for instance in the chemical or food industries. These applications may need to be suppor
ted by special tests (è also FN 940082) using appropriate media.
2) Additional information p è Certificates.
2)
1)
4
– To EU Pressure Equipment Directive
Materials Material number
Housing Stainless steel casting 1.4409 (ASTM A351–CF3M)
Ball Stainless steel casting 1.4409 (ASTM A351–CF3M)
Shaft High-alloy stainless steel 1.4401 (ASTM A240–316)
Seals PTFE
FPM
Note on materials RoHS compliant
Contains paint-wetting impairment substances
Permissible operating pressure p as a function of the temperature of the medium t
PTFE
PTFE-reinforced
36
è
Subject to change – 2017/06
Page 4
-V- New
Ball valves VZBD, 2-way
Technical data

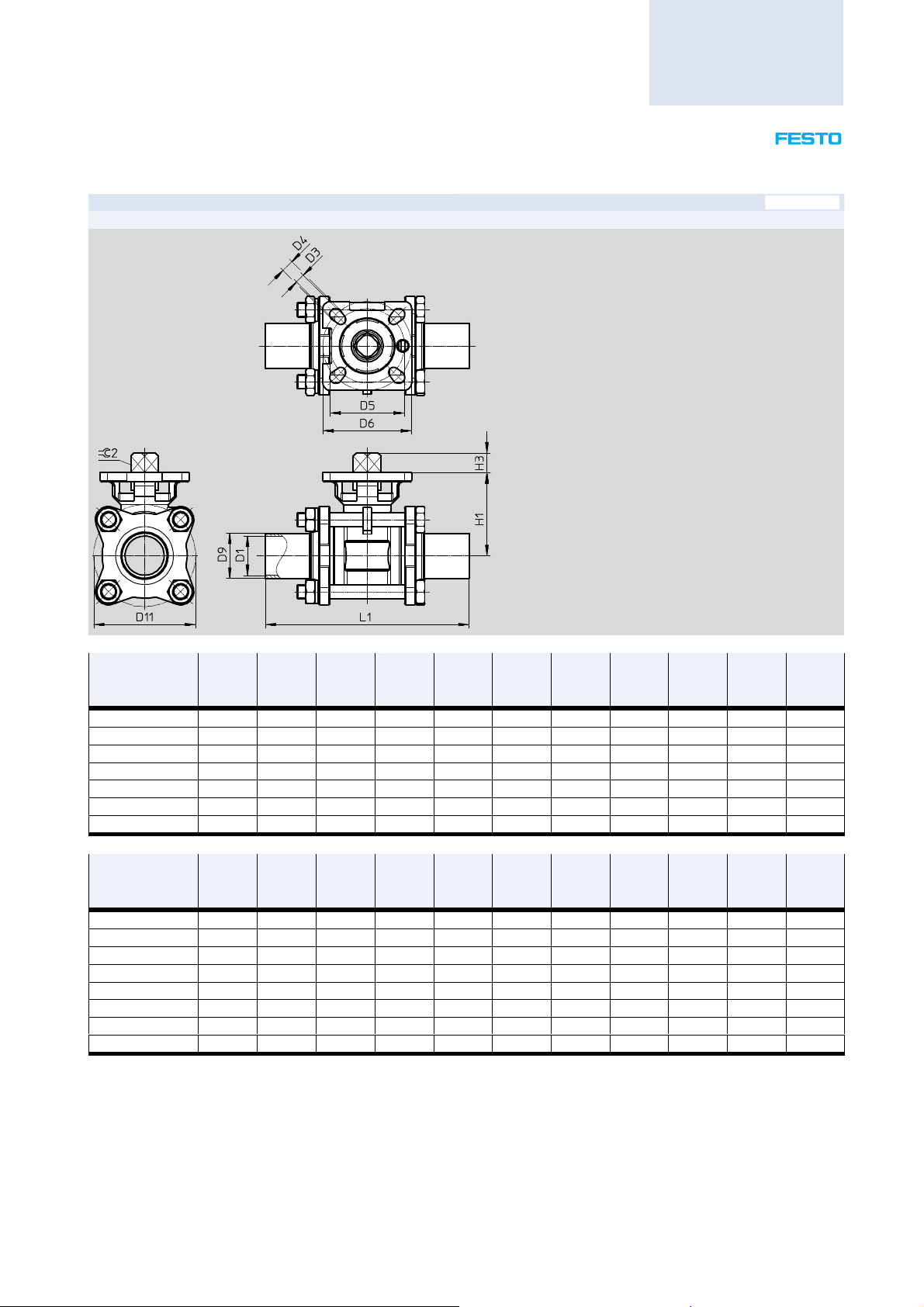

Dimensions Download CAD data è
With extended welded ends to ISO 1127 (W3) or to ASME BPE (W1)
Type D1
VZBD-1/2-W3-… 18 .1 5.5 5.5 36 42 21.3 52 38.5 9 130 9
VZBD-3/4-W3-… 23.7 5.5 5.5 36 42 26.9 61.9 42.7 9 150 9
VZBD-1-W3-… 29.7 5.5 7 42 50 33.7 70 53.5 11 160 11
VZBD-11/4-W3-… 38.4 5.5 7 42 50 42.4 85 60.1 11 180 11
VZBD-11/2-W3-… 44.3 7 9 50 70 48.3 98.8 70.6 14 200 14
VZBD-2-W3-… 56.3 7 9 50 70 60.3 120 79.8 14 230 14
VZBD-21/2-W3-… 72.1 9 11 70 102 76.1 14 7 99.4 17 290 17
Type D1
VZBD-1/2-W1-… 9.6 5.5 5.5 36 42 12.7 45.5 34 9 90.7 9
VZBD-3/4-W1-… 15.8 5.5 5.5 36 42 19.1 47 35.3 11 103 9
VZBD-1-W1-… 22.1 5.5 7 42 50 25.4 57.5 47 11 115 11
VZBD-11/2-W1-… 34.8 7 9 50 70 38.1 83 63.5 14 139 14
VZBD-2-W1-… 47.7 7 9 50 70 50.8 100 72 14 158 14
VZBD-21/2-W1-… 60.3 9 11 70 102 63.5 126 90 17 197 17
VZBD-3-W1-… 72.9 9 11 70 102 76.2 14 8 99 17 228 17
VZBD-4-W1-… 97.5 11 13 102 125 101.6 183 127.5 22 241.8 22
D3
D3
D4
D4
D5
D5
D6
D6
D9
D9
D11
D11
H1 H3 L1
H1 H3 L1
ß2
±2
ß2
±2
2017/06 – Subject to change
è
37
Page 5
-V- New
Ball valves VZBD, 2-way
Technical data

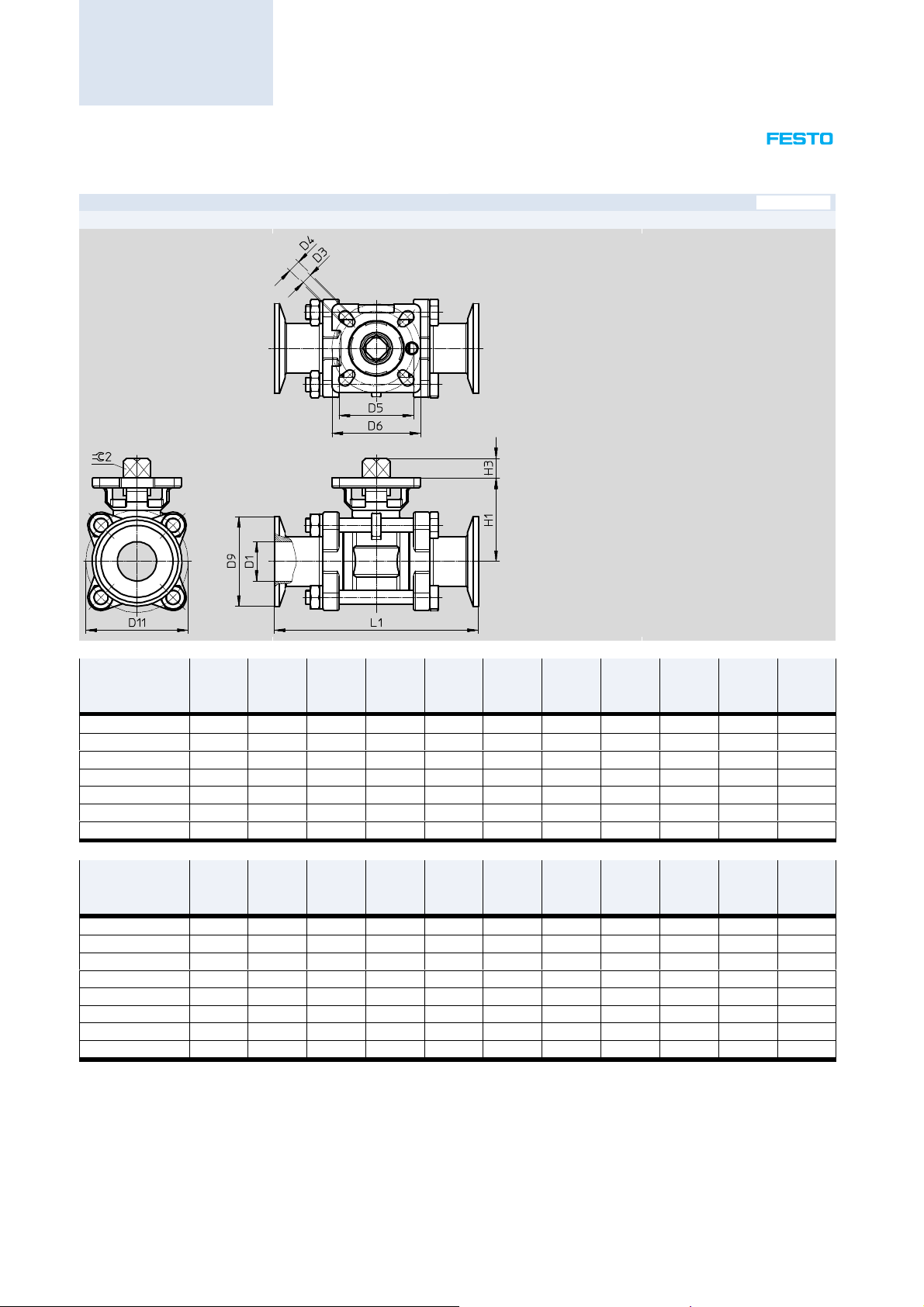

Dimensions Download CAD data è
With clamp ferrule to DIN 32676-B (S5) or to ASME-BPE (S1)
Type D1
VZBD-1/2-S5-… 18.1 5.5 5.5 36 42 21.3 52 38.5 9 130 9
VZBD-3/4-S5-… 23.7 5.5 5.5 36 42 26.9 61.9 42.7 9 150 9
VZBD-1-S5-… 29.7 5.5 7 42 50 33.7 70 53.5 11 160 11
VZBD-11/4-S5-… 38.4 5.5 7 42 50 42.4 85 60.1 11 180 11
VZBD-11/2-S5-… 44.3 7 9 50 70 48.3 98.8 70.6 14 200 14
VZBD-2-S5-… 56.3 7 9 50 70 60.3 120 79.8 14 230 14
VZBD-21/2-S5-… 72.1 9 11 70 102 76.1 147 99.4 17 290 17
Type D1
VZBD-1/2-S1-… 9.6 5.5 5.5 36 42 12.7 45.5 34 9 90.7 9
VZBD-3/4-S1-… 15.8 5.5 5.5 36 42 19.1 47 35.3 11 103 9
VZBD-1-S1-… 22.1 5.5 7 42 50 25.4 57.5 47 11 115 11
VZBD-11/2-S1-… 34.8 7 9 50 70 38.1 83 63.5 14 139 14
VZBD-2-S1-… 47.7 7 9 50 70 50.8 100 72 14 158 14
VZBD-21/2-S1-… 60.3 9 11 70 102 63.5 126 90 17 19 7 17
VZBD-3-S1-… 72.9 9 11 70 102 76.2 14 8 99 17 228 17
VZBD-4-S1-… 97.5 11 13 102 125 101.6 183 127.5 22 241.8 22
D3
D3
D4
D4
D5
D5
D6
D6
D9
D9
D11
D11
H1 H3 L1
H1 H3 L1
ß2
±2
ß2
±2
38
è
Subject to change – 2017/06
Page 6
Ball valves VZBD, 2-way
Technical data

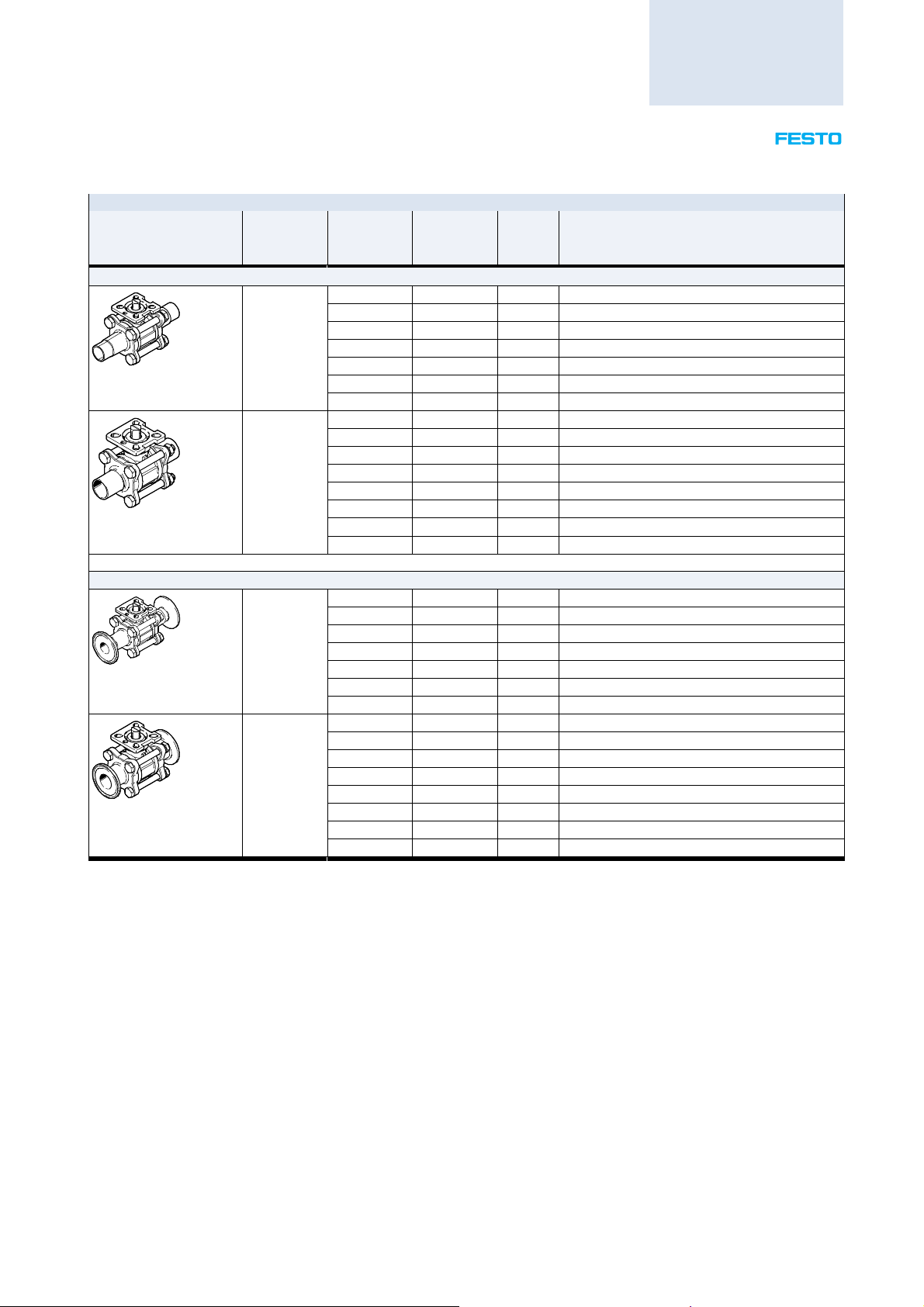

Ordering data
Standard Nominal widthDNFlange hole
Extended welded ends
ISO 1127 15 F0304 730 47835951)VZBD-1/2-W3-63-T-2-F0304-V14V14
ASME-BPE 1/2" F0304 430 47628471)VZBD-1/2-W1-63-T-2-F0304-V14V14
-V- New
Weight Part No. Type
pattern
[g]
20 F0304 930 47835961)VZBD-3/4-W3-63-T-2-F0304-V14V14
25 F0405 1350 47835971)VZBD-1-W3-63-T-2-F0405-V14V14
32 F0405 2050 47835981)VZBD-11/4-W3-63-T-2-F0405-V14V14
40 F0507 3270 47835991)VZBD-11/2-W3-63-T-2-F0507-V14V14
50 F0507 5470 47836001)VZBD-2-W3-63-T-2-F0507-V14V14
65 F0710 10080 47836011)VZBD-21/2-W3-63-T-2-F0710-V14V14
3/4" F0304 530 47628481)VZBD-3/4-W1-63-T-2-F0304-V14V14
1" F0405 950 47628491)VZBD-1-W1-63-T-2-F0405-V14V14
1 1/2" F0507 1970 47628501)VZBD-11/2-W1-63-T-2-F0507-V14V14
2" F0507 3070 47628511)VZBD-2-W1-63-T-2-F0507-V14V14
2 1/2" F0710 6180 47628521)VZBD-21/2-W1-63-T-2-F0710-V14V14
3" F0710 9080 47628531)VZBD-3-W1-63-T-2-F0710-V14V14
4" F1012 16180 47628541)VZBD-4-W1-63-T-2-F1012-V14V14
Clamp ferrule
DIN 32676-B 15 F0304 830 48022441)VZBD-1/2-S5-63-T-2-F0304-V14V14
ASME-BPE 1/2" F0304 430 47956661)VZBD-1/2-S1-63-T-2-F0304-V14V14
1) Festo is only a retailer of this product, not the manufacturer.
20 F0304 1130 48022451)VZBD-3/4-S5-63-T-2-F0304-V14V14
25 F0405 1550 48022461)VZBD-1-S5-63-T-2-F0405-V14V14
32 F0405 2250 48022471)VZBD-11/4-S5-63-T-2-F0405-V14V14
40 F0507 3370 48022481)VZBD-11/2-S5-63-T-2-F0507-V14V14
50 F0507 5670 48022491)VZBD-2-S5-63-T-2-F0507-V14V14
65 F0710 10680 48022501)VZBD-21/2-S5-63-T-2-F0710-V14V14
3/4" F0304 530 47956671)VZBD-3/4-S1-63-T-2-F0304-V14V14
1" F0405 950 47956681)VZBD-1-S1-63-T-2-F0405-V14V14
1 1/2" F0507 1970 47956691)VZBD-11/2-S1-63-T-2-F0507-V14V14
2" F0507 3070 47956701)VZBD-2-S1-63-T-2-F0507-V14V14
2 1/2" F0710 6180 47956711)VZBD-21/2-S1-63-T-2-F0710-V14V14
3" F0710 9080 47956721)VZBD-3-S1-63-T-2-F0710-V14V14
4" F1012 16180 47956731)VZBD-4-S1-63-T-2-F1012-V14V14
2017/06 – Subject to change
è
39
Page 7
-V- New
Ball valves VZBD, 2-way

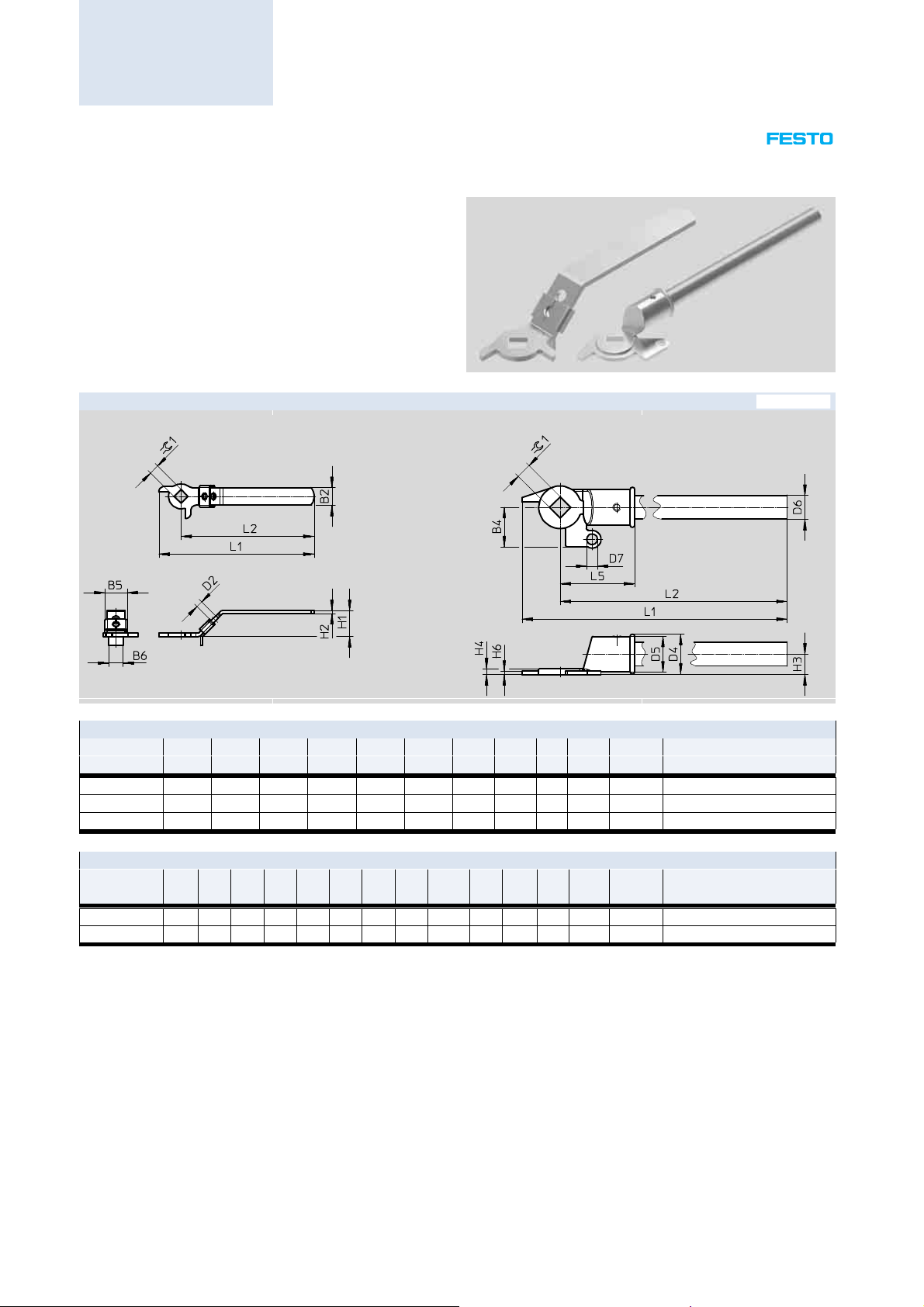

Accessories
Hand lever VAOH
Dimensions and ordering data Download CAD data è
DN15 … DN50 DN65 … DN100
High-alloy stainless steel
Free of copper and PTFE
RoHS compliant
Contains paint-wetting impairment
substances
Lockable
Dimensions and ordering data
For connection B2 B5 B6 D2 H1 H2 L1 L2 ß1 CRC2)Weight Part No. Type
[g]
DN15 … DN20 19 23.8 13 7.5 29 3 144. 2 123 9 3 170 48953581)VAOH-F8-9-H9-A
DN25 … DN32 20 24.8 16 7.5 30 3.5 176.5 151.5 11 3 250 48953591)VAOH-F8-11-H9-A
DN40 … DN50 25 31 22 7.5 31 4 214 182 14 3 530 48953601)VAOH-F8-14-H9-A
Dimensions and ordering data
For connection B4 D4 D5 D6 D7 H3 H4 H6 L1 L2 L5 ß1 CRC2)Weight Part No. Type
[g]
DN65 … DN80 44.5 45 40 27 12 23 6.5 4 387 344 84 17 3 820 48953611)VAOH-F8-17-H9-A
DN100 53.5 45 40 27 14 25 8 5 442.5 389 89.5 22 3 920 48953631)VAOH-F8-22-H9-A
1) Festo is only a retailer of this product, not the manufacturer.
2) Corrosion resistance class CRC 3 to Festo standard FN 940070
High corrosion stress. Outdoor exposure under moderate corrosive conditions. External visible parts with primarily functional requirements for the surface and which are in direct contact with a normal industrial
environment.
40
è
Subject to change – 2017/06
