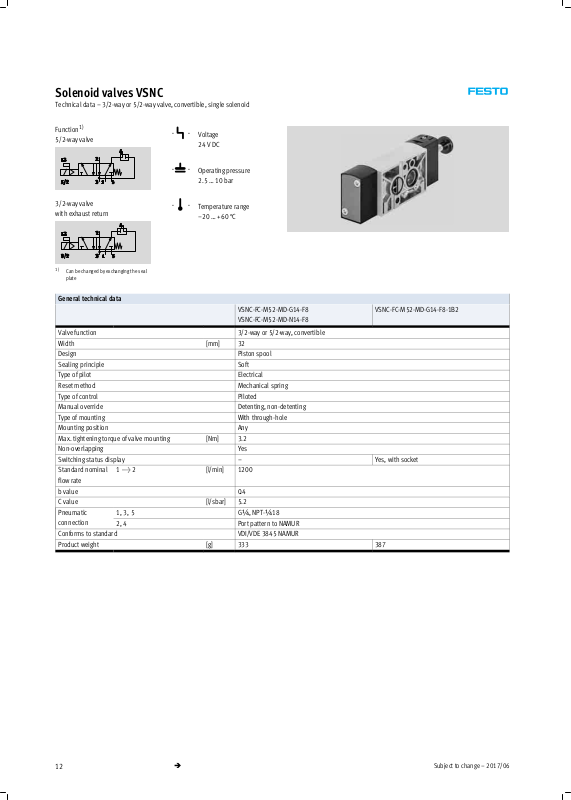

Page 1
Solenoid valves VSNC
Technical data – 3/2-way or 5/2-way valve, convertible, single solenoid
1)
Function
5/2-way valve
-P- Voltage
24 V DC
-L- Operating pressure
2.5 … 10 bar
3/2-way valve
with exhaust return
1)
Can be changed by exchanging the seal
plate
General technical data
Valve function 3/2-way or 5/2-way, convertible
Width [mm] 32
Design Piston spool
Sealing principle Soft
Type of pilot Electrical
Reset method Mechanical spring
Type of control Piloted
Manual override Detenting, non-detenting
Type of mounting With through-hole
Mounting position Any
Max. tightening torque of valve mounting [Nm] 3.2
Non-overlapping Yes
Switching status display – Yes, with socket
Standard nominal
flow rate
b value 0. 4
C value [l/sbar] 5.2
Pneumatic
connection
Conforms to standard VDI/VDE 3845 NAMUR
Product weight [g] 333 387
1 > 2 [l/min] 1200
1, 3, 5 G¼, NPT-¼18
2, 4 Port pattern to NAMUR
-Q- Temperature range
–20 … +60 °C
VSNC-FC-M52-MD-G14-F8
VSNC-FC-M52-MD-N14-F8
VSNC-FC-M52-MD-G14-F8-1B2
12
è
Subject to change – 2017/06
Page 2
Solenoid valves VSNC
Technical data – 3/2-way or 5/2-way valve, convertible, single solenoid
Operating and environmental conditions
VSNC-FC-M52-MD-G14-F8
VSNC-FC-M52-MD-N14-F8
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure [bar] 2.5 … 10
Ambient temperature [°C] –20 … +60
Temperature of medium [°C] –20 … +60
Corrosion resistance class CRC
1) Corrosion resistance class CRC 2 to Festo standard FN 940070
Moderate corrosion stress. Indoor applications in which condensation may occur. External visible parts with primarily decorative requirements for the surface and which are in direct contact with the ambient atmo
sphere typical for industrial applications.
1)
2
Electrical data
VSNC-FC-M52-MD-G14-F8
VSNC-FC-M52-MD-N14-F8
Electrical connection – 3-pin push-in connector, type B to industry standard
Coil characteristics, 24 V DC [W] See solenoid coil, to be ordered separately 3.3
Permissible voltage fluctuations [%] – ±10
Duty cycle [%] – 100
Degree of protection – IP65
Switching time on [ms] 11
Switching time off [ms] 38
VSNC-FC-M52-MD-G14-F8-1B2
VSNC-FC-M52-MD-G14-F8-1B2
(11 mm)
Materials
1 Housing Wrought aluminium alloy
2 Seals NBR
– RoHS compliant
2017/06 – Subject to change
è
13
Page 3
Solenoid valves VSNC
Technical data – 3/2-way or 5/2-way valve, convertible, single solenoid

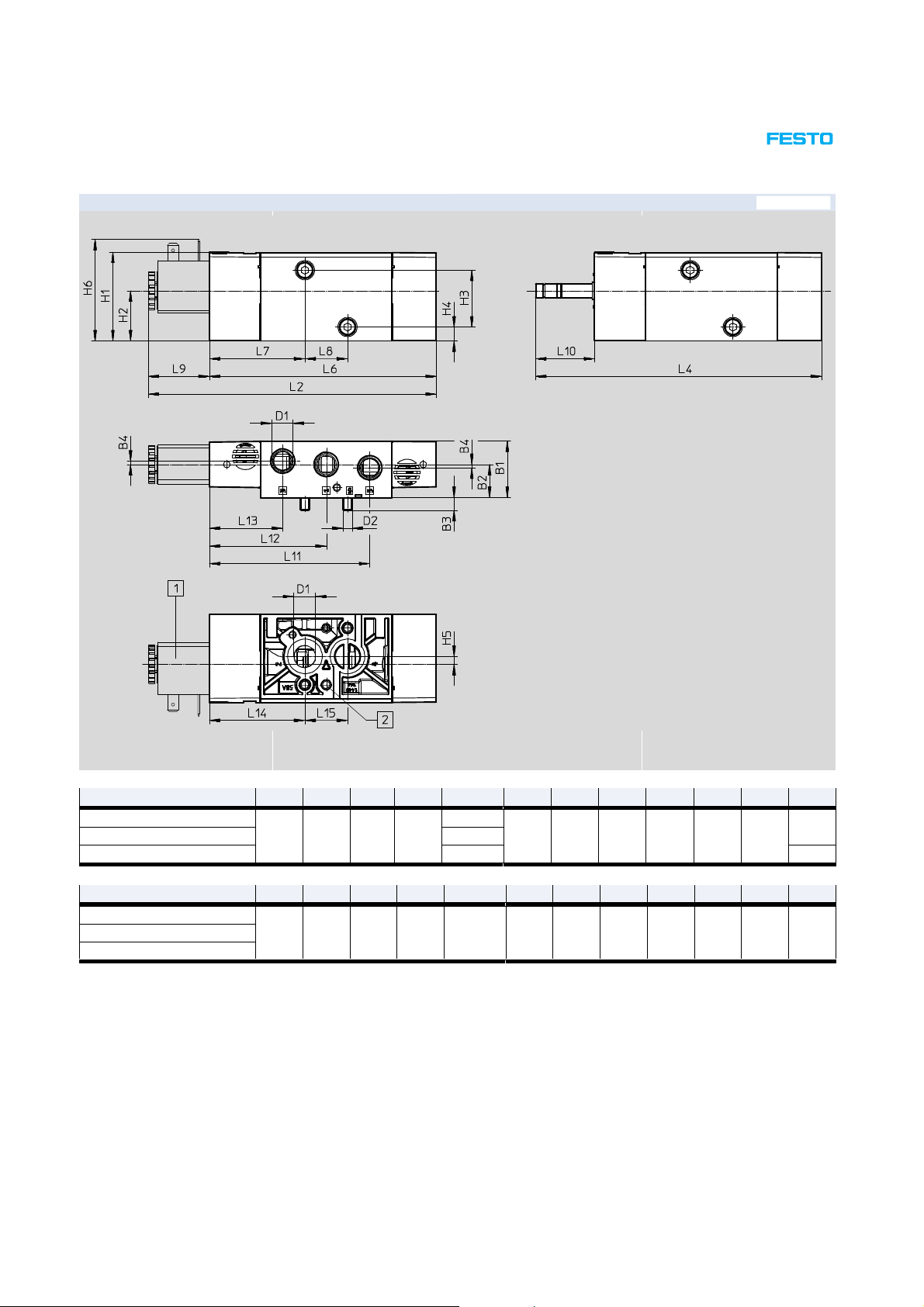

Dimensions Download CAD data è
VSNC-FC-M52-MD-…14-F8-1B2
VSNC-FC-M52-MD-…14-F8
1 Solenoid coil 2 5.5 x 4 (for threaded pin
DIN 913-M5x10-45H)
Type B1 B2 B3 B4 D1 D2 H1 H2 H3 H4 H5 H6
VSNC-FC-M52-MD-G14-F8
VSNC-FC-M52-MD-N14-F8 NPT¼-18
31.8 18.6 7.3 1.9
VSNC-FC-M52-MD-G14-F8-1B2
Type L2 L4 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15
H
G¼
M5 49.9 28.2 32 7.8 4.4
G¼ 57.2
VSNC-FC-M52-MD-G14-F8
162.2 161.1 127.8 53.8 24 34.4 33.3 90.3 65.8 41.3 53.8 24VSNC-FC-M52-MD-N14-F8
VSNC-FC-M52-MD-G14-F8-1B2
–
14
è
Subject to change – 2017/06
Page 4
Solenoid valves VSNC
Technical data – 3/2-way or 5/2-way valve, convertible, single solenoid
qCore product range
Ordering data – Valves
Directional control valve without solenoid coil Directional control valve with 24 V DC solenoid coil, without socket
Part No. Type Part No. Type
q577257 VSNC-FC-M52-MD-G14-F8 q577295 VSNC-FC-M52-MD-G14-F8-1B2
Ordering data – Valves
Directional control valve without solenoid coil
Part No. Type
577262 VSNC-FC-M52-MD-N14-F8
Festo core product range qReady for dispatch from the Festo factory in 24 hours
wReady for dispatch in 5 days maximum from stock
2017/06 – Subject to change
