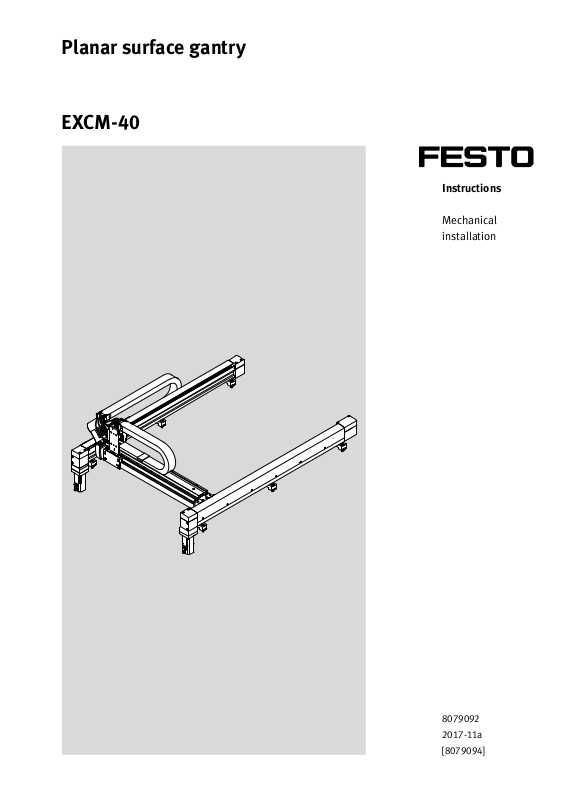

Page 1
Planar surface gantry
EXCM-40
Instructions
Mechanical
installation
8079092
2017-11a
[8079094]
Page 2
EXCM-40
Translation of the original instructions
EXCM-40-EN
®
LOCTITE
is a registered trademark of its respective trademark holder in certain countries.
Identification of hazards and instructions on how to prevent them:
Danger
Immediate dangers which can lead to death or serious injuries
Warning
Hazards that can cause death or serious injuries
Caution
Hazards that can cause minor injuries
Other symbols:
Note
Material damage or loss of function
Recommendations, tips, references to other documentation
Essential or useful accessories
Information on environmentally sound usage
Text designations:
Activities that may be carried out in any order
1. Activities that should be carried out in the order stated
– General lists
è Result of an action/References to more detailed information
2 Festo – EXCM-40-EN – 2017-11a – English
Page 3
EXCM-40
Table of Contents – EXCM-40
1 Requirements for product use 5...............................................
1.1 Target group 5.............................................................
1.2 Intended use 5.............................................................
1.3 Possible misuse 5..........................................................
1.4 Applicable documents 6.....................................................
1.5 Obligations of the machine manufacturer 6......................................
1.6 Service 6.................................................................
2 Transport and storage 7.....................................................
2.1 Restraints in the packaging 7.................................................
3 Product overview 8.........................................................
3.1 Configuration 8............................................................
3.2 Functional principle 9........................................................
3.3 Permitted mounting position 9................................................
4 Mounting 10...............................................................
4.1 Safety instructions 10........................................................
4.2 Preparation 10..............................................................
4.2.1 Installation space 11.................................................
4.2.2 Mounting surface 11.................................................
4.2.3 Mounting points 11..................................................
4.2.4 Types of mounting 12................................................
4.2.5 Mounting components 13.............................................
4.2.6 Transport restraints 13...............................................
4.3 Installation 14..............................................................
4.4 Aligning and adjusting the product 17............................................
4.4.1 Mounting profile covers 17............................................
4.4.2 Aligning and adjusting X-axis 1 18......................................
4.4.3 Aligning and adjusting X-axis 2 19......................................
4.4.4 Aligning X-axes parallel with each other 21...............................
4.4.5 Checking the toothed belt pretension 22.................................
4.4.6 Setting the toothed belt pretension 24..................................
4.5 Optional work 25............................................................
4.5.1 Positioning mounting components 25...................................
4.5.2 Manually moving the Y-axis (traverse) 26.................................
4.5.3 Attachments on the energy chain 26....................................
4.5.4 Dismantling/mounting motors 27.......................................
4.5.5 Adapting cable outlets 28.............................................
Festo – EXCM-40-EN – 2017-11a – English 3
Page 4
EXCM-40
4.6 Attachment components 29...................................................
4.6.1 Power supply line 30.................................................
4.7 Accessories 31..............................................................
4.7.1 X-axis proximity sensor 31............................................
4.7.2 Y-axis (traverse) proximity sensor 31....................................
5 Installation 34..............................................................
5.1 Safety instructions 34........................................................
5.2 Electrical installation 34.......................................................
5.2.1 Multi-pin plug distributor 34...........................................
5.2.2 Drive motors of the X-axis/Y-axis 35.....................................
5.2.3 Electrical attachment component 36....................................
5.2.4 Earthing 37........................................................
5.3 Pneumatic installation 38.....................................................
6 Commissioning 39...........................................................
7 Maintenance 40.............................................................
7.1 Safety instructions 40........................................................
7.2 Cleaning 40.................................................................
7.3 Lubrication 40..............................................................
7.4 Repair 42..................................................................
8 Dismantling 43.............................................................
8.1 Safety instructions 43........................................................
8.2 Procedure 43...............................................................
8.3 Recycling 43................................................................
A Technical appendix 44........................................................
A.1 General features 44..........................................................
A.2 Evenness 45................................................................
A.3 Approvals 45...............................................................
A.4 Materials 46................................................................
A.5 Operating and storage conditions 46............................................
4 Festo – EXCM-40-EN – 2017-11a – English
Page 5
1 Requirements for product use
1 Requirements for product use
1.1 Target group
Provide this documentation to the following persons:
– Design engineer
– Machine manufacturer
– Installer
– Commissioner
Only qualified personnel may perform mounting, installation, commissioning, maintenance and disas
sembly of the product. Qualified personnel must be familiar with:
– Mounting and operation of mechatronic systems
– Installation and operation of electrical control systems
– Installation and operation of pneumatic systems
– Regulations for accident prevention and occupational safety
– Documentation and mode of operation of the product
1.2 Intended use
This product is a handling system. The handling system executes positioning tasks within machines or
automated systems with a higher-order controller.
Only use the product as follows:
– In perfect technical condition
– In its original status, without unauthorised modifications
– Within the limits of the product defined by the technical data
– In an industrial environment
Note
In the event of damage caused by unauthorised manipulation or other than intended
use, the guarantee is invalidated and the manufacturer will not be liable for damages.
1.3 Possible misuse
Never use the product as follows:
– With unauthorised modifications or alterations to the product
– In an invalid mounting position
– With load limits exceeded
– Without a risk assessment of the complete system
– Without a safety concept for the complete system
Festo – EXCM-40-EN – 2017-11a – English 5
Page 6
1 Requirements for product use
1.4 Applicable documents
For all available product documentation è www.festo.com/pk
Further information can be found in the support portal (è www.festo.com/sp).
1.5 Obligations of the machine manufacturer
The product is an incomplete machine. Commissioning of the product is prohibited until it has been
established that the machinery in which the product will be installed is in compliance with the provi
sions of Machinery Directive 2006/42/EC.
Take the following into consideration for the destination:
– Regulations and standards
– Regulations of the testing organisations and insurers
– National specifications
1.6 Service
Please consult your regional Festo contact if you have any technical problems.
6 Festo – EXCM-40-EN – 2017-11a – English
Page 7
2 Transport and storage
2 Transport and storage
Note
Damage to the product due to incorrect transport.
Observe the transport labelling and information on the packaging.
1. Transport the product to the installation/storage location in its packaging and set it down on a firm
and flat base.
2. When storing the product please observe the storage conditions
(è A.5 Operating and storage conditions).
Note
Damage to the product due to incorrect unpacking.
Observe the labelling for unpacking on the packaging.
Unpack the product with at least 2 persons present.
Use appropriate tools.
Parts of the packaging are large and heavy:
– Do not let any parts fall onto the product.
– Use suitable aids to raise and lower the product (e.g. crane).
3. Remove the packaging in accordance with the printed sequence.
2.1 Restraints in the packaging
Transport restraints prevent uncontrolled movement of the product in the packaging during transport
and installation.
The product is provided with the following designated transport restraints:
Transport screws Cable ties
Fig. 2.1
Festo – EXCM-40-EN – 2017-11a – English 7
Page 8
3 Product overview
3 Product overview
3.1 Configuration
1
aD
X
6
Y
7
aB
aA
aJ
1 End cap
2 X-axis 1 (with energy chain)
3 End cap with belt tensioning device
4 X-axis 2
5 Mounting component
(adjusting kit or mounting accessories)
6 Drive cover (with cover)
2)
7 Coupling housing and motor flange
8 Motor 2
9 Energy chain of the Y-axis (traverse)
aJ Y-axis (traverse)
aA Slide of the Y-axis
1)
(for fastening the attachment component3))
aB Motor 1
aC Multi-pin plug distributor
aD Energy chain of the X-axis
1) Depending on the order
2) Cover only for variant EXCM-…-B-… (attachment position of motors underneath)
3) Optional
Fig. 3.1 Example illustration of EXCM-40-…-B
2
3aC
4
5
6
7
89
3)
3)
3)
8 Festo – EXCM-40-EN – 2017-11a – English
Page 9
3 Product overview
3.2 Functional principle
Two fixed stepper motors drive a toothed belt arrayed in an H-shape.
The toothed belt moves the Y-axis (traverse) and the slide located on the Y-axis (traverse) in a 2-dimen
sional space. A controller calculates the position of the slide. The controlled interaction of the motors
results in the corresponding movement of the slide.
1
Motor 1
Motor 2
Fig. 3.2 Directions of move
ment (slides of the
Y-axis)
The depicted directions of movement of the Y-axis slide (Fig. 3.2) refer to the directions of
rotation of the motor of the functional principle shown (Fig. 3.3).
X-axis
Y-axis
Motor 1
Fig. 3.3 Functional principle
1 Guide pulleys (for toothed belt)
2 Toothed belt
3 Y-axis (traverse)
4 Slide of the Y-axis
2
1
3
4
Motor 2
3.3 Permitted mounting position
Note
The product must be mounted horizontally.
Overhead mounting or other mounting positions are not permissible.
Festo – EXCM-40-EN – 2017-11a – English 9
Page 10
4 Mounting
4 Mounting
4.1 Safety instructions
Warning
Unexpected movement of the product.
Risk of impact and crushing injuries.
Before working on the product, switch off the power supply and secure it against
being switched on again.
Before working on the product, switch off the compressed air supply, vent if neces
sary and secure it against being switched on again. Pneumatic system parts can still
contain compressed air even when they are switched off.
– Vent pneumatic system parts accordingly.
When lifting the product, perform the following measures:
– Secure movable components with transport restraints to prevent unexpected
movement.
– Observe the product weight.
– Observe the position of the centre of gravity.
– Use suitable lifting gear.
– Use all of the transport lugs.
– Adjust the lifting speed.
When securing the product, perform the following measures:
– Secure the product in a professional manner.
– Only use the supplied mounting components.
– Secure the screw connections.
– Make sure the mounting surface is sufficiently strong to absorb the maximum
forces.
Observe the safety data sheet of the adhesive from the original manufacturer.
4.2 Preparation
Note
For mounting, Festo recommends using adjusting kits.
After alignment, the limit values of the axis alignment must be complied with
(è Tab. A.2, page 45).
10 Festo – EXCM-40-EN – 2017-11a – English
Page 11
4 Mounting
4.2.1 Installation space
The installation space required for the product depends on the following factors:
– Stroke of the X- and Y-axes (è www.festo.com/catalogue)
– Attachment position and type of motor
– Sufficient clearance for movement of the axes and the attachment component (Z-axis)
– Access to belt tensioning device (è Fig. 4.20, page 24).
4.2.2 Mounting surface
The mounting surface must exhibit the following characteristics:
– Torsionally rigid
– Free of stress
– Sufficient strength to absorb the maximum forces
– Sufficient evenness ( è Tab. A.2, page 45)
4.2.3 Mounting points
11
B8
B8
B7
L6
L7
B7
23 4
B7
1 Mounting component
2 End cap
L6
L
L
3 Drive cover
4 Belt tensioning device
L7
Fig. 4.1 Illustrated: EXCM-40-… with 6 mounting components
Dimensions [mm]
Thread L
1)
L6 L7 B6 B7 B8
Size Depth
M 8 14
Stroke X-axis + 141
37.5
+2
n – 1
1) If the stroke of the X-axis 900 mm, arrange the mounting kits in equal distances.
n = number of mounting kits per X-axis (è Tab. 4.2, page 13)
30.5
+2
Stroke Y-axis
+0.5
+ 385.8
78.0 ± 0.213.0
Tab. 4. 1
Festo – EXCM-40-EN – 2017-11a – English 11
B6
Page 12
4 Mounting
4.2.4 Types of mounting
The product can be mounted in 2 ways: Namely with mounting kits or with adjusting kits.
Mounting kit
Mounting kits are only intended for mounting the product.
Note
The mounting kits are not adjustable.
To align the product and maintain the limit values, some actions are required.
Reordering adjusting kits (è www.festo.com/catalogue).
1 Slot nut
2 Adjusting plate
3 Hexagon head screw1) M6x30 (2x)
4 Washer2) (2x)
5 Socket head screw2) M8x40 (2x)
1) mounted
2) supplied loose
1)
1)
5
4
Fig. 4.2
Adjusting kit
Adjusting kits are intended for mounting and adjusting the product.
The adjusting kits compensate for height differences in the mounting surface of up to
5 mm.
1 Slot nut
2 Adjusting plate
1)
1)
7
3 Hexagon head screw1) M6x30 (2x)
4 Square nut1) (2x)
5 Adjusting bolt1) (2x)
6
6 Washer2) (2x)
7 Socket head screw2) M8x40 (2x)
1) mounted
2) supplied loose
1
2
3
1
2
3
4
5
Fig. 4.3
12 Festo – EXCM-40-EN – 2017-11a – English
Page 13
4 Mounting
The term mounting component is subsequently used to refer to the mounting kit and
adjusting kit.
4.2.5 Mounting components
The number of mounting components pre-assembled on the product depends on the stroke of the X-ax
is.
Stroke of the X-axis
Number of mounting components
To ta l per X-axis (number n)
900 mm 4 2
900 … 1799 mm 6 3
1800 mm 8 4
Tab. 4. 2
4.2.6 Transport restraints
1. Remove the transport screws and retain for
future use.
Festo – EXCM-40-EN – 2017-11a – English 13
Page 14
4 Mounting
4.3 Installation
Note
If there are temperature differences between the product and the mounting surface:
Adapt the temperature of the product to the temperature of the mounting surface.
Observe the permissible ambient temperatures
(è A.5 Operating and storage conditions).
1. Make sure that the product and mounting surface have the same temperature.
2. Make sure that all of the transport screws have been removed.
3. Attach appropriate lifting gear to the 4 transport lugs 2 and 6 (è Fig. 4.4).
5
6
4
6
1 End cap
2 Transport lug with support plate (2x)
3 Lifting gear1) with mounting points
1) not included in scope of delivery
4 Transport restraint (2x)
5 Drive cover (motor side)
6 Transport lug (on transport restraint) (2x)
Fig. 4.4 Depicted: EXCM-40-…-B (motor attachment position underneath).
1
2
3
4
2
15
14 Festo – EXCM-40-EN – 2017-11a – English
Page 15
4 Mounting
Warning
Transport lugs may break if loaded incorrectly.
Danger as a result of product falling.
Load all of the transport lugs evenly and at an angle of 45° (è Fig. 4.5).
Do not laterally stress the transport lugs (è Fig. 4.5).
4. Adapt the transport lugs to the direction of
force of the lifting gear:
Loosen the nuts of the lifting eye bolts.
Turn the lifting eye bolts in the respective
direction of load (è Fig. 4.4).
Tighten the nuts of the lifting eye bolts
(tightening torque 24 Nm).
Warning
Unexpected movement of the product.
Risk of impact and crushing injuries.
When lifting the product, perform the following measures:
– Secure movable components with transport restraints to prevent unexpected
movement.
– Observe the product weight.
– Observe the position of the centre of gravity.
– Use suitable lifting gear.
– Use all of the transport lugs.
– Adjust the lifting speed.
Fig. 4.5
5. Use the lifting gear to position the product on the mounting points of the mounting surface
(è Fig. 4.1).
If mounting kits are covered by the Y-axis (traverse), this can be moved manually. To do
this, remove the motors (è 4.5.4 Dismantling/mounting motors) or release the holding
brake.
If mounting points are covered by the energy chain, this can be detached
(è 4.5.3 Attachments on the energy chain).
6. Position the product in such a way that the elongated holes of the mounting kits are located cent
rally over the prepared mounting points. Reposition the mounting components if necessary
(è 4.5.1 Positioning mounting components).
7. Secure the X-axes with screws and washers. The X-axes must be able to be moved.
Festo – EXCM-40-EN – 2017-11a – English 15
Page 16
4 Mounting
8. If present:
Remove the labelled transport restraints
(cable ties) from the moving parts.
9. Remove the transport restraints and transport lugs with support plates (è Fig. 4.4, page 14).
Note
Keep reusable transport restraints and the corresponding screws for future use (main
tenance, dismantling).
10.For motor attachment underneath: Mount loose covers with the supplied shorter screws (M5 x 40)
(tightening torque 8.3 Nm).
11.Manually move the Y-axis (traverse) back and forth over the entire stroke of the X-axes
(è 4.5.2 Manually moving the Y-axis (traverse)).
12.Tighten the screws of all mounting kits with a reduced tightening torque (10 … 20 Nm).
13.Check the position of the cable outlets on the motors and adapt if necessary
(è 4.5.5Adapting cable outlets).
16 Festo – EXCM-40-EN – 2017-11a – English
Page 17
4 Mounting
4.4 Aligning and adjusting the product
Note
The product is not aligned and adjusted upon delivery. Operating the product without
aligning and adjusting it will result in malfunctions and increased wear.
è Alignment and adjustment of the product is always required.
The subsequent steps are based on the use of adjusting kits. When using mounting kits,
some actions are required to align the product and maintain the limit values
(è A.2 Evenness).
Required aids:
– Precision spirit level (accuracy at least 0.05 mm/m)
– Steel straightedge (straightness at least 0.05 mm/m)
– Inspection bases (2x):
– Adjusting tool (accessories) (è www.festo.com/catalogue) or
– Final dimensions (height at least 10 mm, width max. 40 mm, accuracy 0.05 mm/m)
4.4.1 Mounting profile covers
1. Unscrew the screws from the profile covers.
è If required, move the already loosened energy chain.
2. Remove profile covers.
1
23
1 Screw of the profile cover
(tightening torque 1 Nm)
Fig. 4.6
Festo – EXCM-40-EN – 2017-11a – English 17
2 Profile cover of the X-axis
3 Energy chain of the X-axis
Page 18
4 Mounting
4.4.2 Aligning and adjusting X-axis 1
1. Place the inspection base onto the guide rail in the area of the adjusting kit of X-axis 1 (with energy
chain).
Checking evenness
2. Make sure that the inspection base 3 lies cor
1
rectly on the guide rail.
3. Check the guide rail 1 in the area of the ad
justing kit 2 for evenness by using a precision
4
spirit level 4.
è Setpoint value: 0.1 mm/m
3
(è A.2 Evenness)
Fig. 4.7
2
Checking sideways tilting
4. Make sure that the inspection base 3 lies cor
rectly on the guide rail.
5. Check the guide rail 1 in the area of the ad
justing kit 2 for sideways tilting by using a
precision spirit level 4.
è Setpoint value: 0.1 mm/m
(è A.2 Evenness)
Adjustment
6. Loosen one of the screws 7 on the adjusting
kit.
7. Screw the corresponding adjusting bolt 5 in
or out (h = 6 … 11 mm).
Use a spanner with a width of . 5 mm.
Observe sufficient screw-in depth of the screw
(for steel › 8 mm).
1
4
3
2
Fig. 4.8
7
5
Fig. 4.9
18 Festo – EXCM-40-EN – 2017-11a – English
Page 19
4 Mounting
8. Apply counter pressure to the adjusting
bolt 5 to maintain alignment.
9. Tighten the screw 7 (tightening torque
24 Nm).
7
10.Repeat the previous steps for all adjusting
kits.
5
Fig. 4.10
11.Inspect the guide rail of the X-axis 1 again for compliance with the limit values for evenness and
sideways tilting.
è The X-axis 1 is aligned and now forms the basis for further alignment of the product.
4.4.3 Aligning and adjusting X-axis 2
Checking height offset
1. Place inspection bases 3 onto the two guide rails 1 and 6 in the area of the opposing adjusting
kits 2 (è Fig. 4.11).
2. Make sure the inspection bases lie correctly on the guide rails.
3. Place the steel straightedge 5 onto the two inspection bases.
4. Use a precision spirit level 4 to check the guide rail of X-axis 2 6 in the area of the adjusting kit for
an offset in height in relation to the already aligned guide rail of X-axis 1 1.
è Setpoint value: 0.1 mm/m (è A.2 Evenness)
13
4
5
3
2
6
Fig. 4.11
Festo – EXCM-40-EN – 2017-11a – English 19
Page 20
4 Mounting
Checking evenness
5. Make sure that the inspection base 3 lies cor
rectly on the guide rail 8 of X-axis 2.
6. Check the guide rail in the area of the adjust
ing kit 2 for evenness by using a precision
spirit level 4.
è Setpoint value: 0.1 mm/m
(è A.2 Evenness)
Checking sideways tilting
7. Make sure that the inspection base 3 lies cor
rectly on the guide rail 8 of X-axis 2.
8. Check the guide rail 8 in the area of the ad
justing kit 2 for sideways tilting by using a
precision spirit level 4.
è Setpoint value: 0.1 mm/m
(è A.2 Evenness)
8
4
3
2
Fig. 4.12
8
4
3
2
Fig. 4.13
20 Festo – EXCM-40-EN – 2017-11a – English
Page 21
4 Mounting
Adjustment
9. Loosen one of the screws 7 on the adjusting
kit.
10.Screw the corresponding adjusting bolt 5 in
or out (h = 6 … 11 mm).
Use a spanner with a width of . 5 mm.
Observe sufficient screw-in depth of the screw
7
5
(for steel › 8 mm).
Fig. 4.14
11.Apply counter pressure to the adjusting
bolt 5 to maintain alignment.
12.Tighten the screw 7 (tightening torque
24 Nm).
7
5
Fig. 4.15
13.Repeat the previous steps for all adjusting kits.
14.Inspect the guide rail of X-axis 2 again for compliance with the limit values for height offset in rela
tion to X-axis 1, evenness and tilting.
è X-axis 2 is aligned.
4.4.4 Aligning X-axes parallel with each other
1. Loosen all of the screws of the adjusting kits one after the other on X-axis 2 by a ¼ turn. When do
ing this, apply counter pressure to the adjusting bolts to prevent them from turning.
2. Manually move the Y-axis (traverse) back and forth over the entire stroke of the X-axes to establish
the parallelism of the X-axes (è 4.5.2 Manually moving the Y-axis (traverse)).
3. Move the Y-axis (traverse) to the motor side. Tighten the screws of the adjusting kit located at this
position of X-axis 2 (tightening torque 24 Nm).
4. Move the Y-axis (traverse) to the next adjusting kit. Tighten the screws of the adjusting kit located
at this position of X-axis 2 (tightening torque 24 Nm).
5. Repeat the process for all of the other adjusting kits on X-axis 2.
6. Inspect both guide rails again for compliance with the limit values for evenness, sideways tilting and
height offset (è A.2 Evenness).
Festo – EXCM-40-EN – 2017-11a – English 21
Page 22
4 Mounting
Eliminating warping in the product
Note
Warping in the product can result in malfunctions and increased wear and thus a re
duced service life.
1. Loosen each of the 8 screws 4 on the side of
X-axis 2 1 by 1 turn.
2. Manually move the Y-axis (traverse) 2 back
and forth over the entire X-stroke to eliminate
warping (è 4.5.2).
3. Unscrew a screw 4, secure with Loctite 243
adhesive and screw tight immediately (tight
ening torque 5.9 Nm).
4. Repeat this process for all screws 4.
4.4.5 Checking the toothed belt pretension
Note
Incorrect toothed belt pretensioning can damage the product. Possible consequences:
– Reduced service life of the toothed belt, guides and ball bearings
– Altered performance of the product
– Impaired positioning accuracy
– Position errors and risk of collision caused by skipping of the toothed belt
Remedy: Check and adjust the toothed belt pretensioning in the following cases:
– After installing the product for the first time
– After the initial commissioning phase (after approx. 30 strokes at operating temper
ature)
– After removal/installation or replacement of the toothed belt
31442
Fig. 4.16
The toothed belt pretensioning can be inspected with mounted or dismounted profile
cover of the X-axis.
Use an acoustic frequency meter to check the toothed belt pretensioning.
22 Festo – EXCM-40-EN – 2017-11a – English
Page 23
4 Mounting
1. During initial start-up:
Remove motors with holding brake
(è 4.5.4 Dismantling/mounting motors).
After commissioning:
Release holding brake.
2. Place the belt tension setting piece 4 on the
guide rail 2 between the drive cover (motor
side) 3 and carriage 5.
3. Slide the Y-axis (traverse) 1 with the carriage
against the belt tension setting piece.
è The distance dimension of 144.4 mm (L11)
for checking is set.
4. Align the probe 8 underneath the belt ten
sion setting piece 4 in the middle of the
toothed belt 7. When doing this do not touch
the toothed belt.
3
Fig. 4.17
425
1
4678
Fig. 4.18
Note
The toothed belt must be able to vibrate freely and must not touch the probe of the
frequency measurement device. For evaluation of the toothed belt pretension, perform
several measurements to balance out any measurement tolerances.
5. Make the toothed belt vibrate by hitting it once with a slim, heavy object (e.g. an Allen key 6).
6. Read the self-generated frequency of the toothed belt on the frequency meter. The measured value
must be in a frequency range of 150 … 160 Hz.
è If the measured value is within this tolerance range, the toothed belt has the correct pretension.
è If the measured value is outside this tolerance range, the toothed belt pretensioning must be
adjusted.
Festo – EXCM-40-EN – 2017-11a – English 23
Page 24
4 Mounting
4.4.6 Setting the toothed belt pretension
Note
The toothed belt pretensioning diminishes during storage and operation. This is normal
and must not be changed by increasing the tension of the toothed belt. The reduced
pretension is not suitable for evaluating the level of wear of the toothed belt.
1. Unscrew the 2 threaded pins 1.
è The locking element of the belt tensioning
device is released.
Note
Clockwise rotation of the adjusting screws will increase the tension and frequency of
oscillation of the toothed belt.
Anti-clockwise rotation of the adjusting screws will reduce the tension and frequency of
oscillation of the toothed belt.
1
Fig. 4.19
2. Change toothed belt pretensioning by evenly
turning the 2 adjusting screws 2.
3. Move or travel the Y-axis (traverse) once over
the entire stroke of the X-axis. This causes the
toothed belt to fully settle and equalises dif
ferences in tension.
2
Fig. 4.20
24 Festo – EXCM-40-EN – 2017-11a – English
Page 25
4 Mounting
4. Check the toothed belt pretensioning
(è 4.4.5 Checking the toothed belt pretension).
Repeat this process until the measured value is
within the specified frequency range.
5. Secure the toothed belt pretensioning by
screwing in the 2 threaded pins 1
(tightening torque 1 Nm).
6. Pull out belt tension setting piece.
1
Fig. 4.21
Note
Within the framework of the initial start-up phase, check the toothed belt tension again
after 30 strokes (è 4.4.5 Checking the toothed belt pretension) and adjust if necessary
(è 4.4.6 Setting the toothed belt pretension).
7. Mount the profile covers of both X-axes (tightening torque 1 Nm) (è 4.4.1 Mounting profile covers).
8. Secure the energy chain to the retainers with the screws and nuts
(tightening torque 2.9 Nm) (è 4.5.3 Attachments on the energy chain).
Use Loctite 243 adhesive.
9. For motors with holding brake: Mount drive motors of the X-axes
(è 4.5.4 Dismantling/mounting motors)
4.5 Optional work
4.5.1 Positioning mounting components
The mounting components are supplied pre-positioned. If required, these may be moved within the
mounting tolerance.
1. Prepare threaded holes in the mounting surface
(è Fig. 4.1) and (è Tab. 4.1).
2. Loosen hexagon head screws 3 half a turn.
3. Position the mounting component 2
(è 4.2.3 Mounting points).
4. Tighten hexagon head screws 3
(tightening torque 9.9 Nm).
Festo – EXCM-40-EN – 2017-11a – English 25
2
Fig. 4.22
3
Page 26
4 Mounting
5. Place washers 6 under the socket head screws 7.
6. Secure the mounting component 2 to the mount
ing surface with socket head screws 7.
7
7
6
7. Tighten socket head screws 7
(tightening torque 24 Nm).
2
Fig. 4.23
4.5.2 Manually moving the Y-axis (traverse)
The Y-axis (traverse) can be moved manually for mounting and alignment purposes. The Y-axis (tra
verse) is secured against uncontrolled movements with transport restraints (cable ties) when delivered.
1. Remove the labelled transport restraints (cable
ties) from the moving parts.
2. For motors with holding brake: Remove motors (è 4.5.4 Dismantling/mounting motors).
3. Manually move the Y-axis (traverse) to the desired position.
4.5.3 Attachments on the energy chain
If mounting points are covered by the energy
chain 3, this can be detached while observing
56
the following points:
1. Remove screw 5 and nut 4.
2. If necessary, remove screws 1 and nuts 2 on
the energy chain retainer as well.
3. Remove the metal sheet 6.
1
2
3
4
Fig. 4.24
26 Festo – EXCM-40-EN – 2017-11a – English
Page 27
4 Mounting
4.5.4 Dismantling/mounting motors
Note
Third-party motors with a driving torque that is too high can damage the product.
When using third-party motors observe the following:
– Maximum permissible driving torque (è www.festo.com/catalogue)
– Mounting dimensions of motor interface (è www.festo.com/catalogue)
– Suitable combination of coupling, coupling housing and motor flange
EXCM-…-B - motor underneath EXCM-…-T - motor on top
1
2
3
4
5
6
1 Cover
2 Drive cover1) with drive pinion
3 Coupling housing
1) With motor attachment position on top: With sealing disc
Fig. 4.25
6
5
4
3
2
4 Motor flange
5 Mounting screw (4x)
6 Motor
Festo – EXCM-40-EN – 2017-11a – English 27
Page 28
4 Mounting
Dismantling the motors
Motors with a holding brake must be removed for mounting and aligning the product, as well as for
setting the toothed belt pretensioning.
EXCM-40-…
Motor EMMS-ST-57-M…
…-SB-… …-SEB-G2 with holding brake
…-ST-… …-SE-G2 without holding brake
Tab. 4. 3
1. Disconnect all of the cables from the motor.
2. Unscrew and remove the fastening screws.
3. Remove the motor.
Mounting the motors
Note
The Y-axis (traverse) and the slide of the Y-axis must have a freedom of movement of
10 cm in both directions in order to mount the motors.
1. Position the motor.
2. Tighten the mounting screws (tightening torque 3 Nm).
3. Connect the cables to the motor.
4.5.5 Adapting cable outlets
The position of the cable outlets can be adapted to the installation situation by turning the motors in
90 ° increments.
Note
The Y-axis (traverse) and the slide of the Y-axis must have a freedom of movement of
10 cm in both directions in order to mount the motors.
1. Disconnect the cables 3 from the motor 1.
2. Unscrew the mounting screws 2.
For motor attachment underneath:
Secure motor from falling.
3. Turn motor into the desired position.
3
1
2
è For motors with holding brake, the traverse
and slide of the Y-axis move
4. Tighten the mounting screws (tightening
torque 3 Nm).
5. Connect the cables to the motor.
Fig. 4.26
28 Festo – EXCM-40-EN – 2017-11a – English
Page 29
4 Mounting
4.6 Attachment components
Note
Observe the following when designing and mounting attachment components:
– Reduced freedom of movement through parts of the product
– Maximum screw-in depth on the slide of 10 mm
– Documentation of the attachment component
– Limits of the product (è A Technical appendix)
Attachment components 7 are attached to the slide of the Y-axis 1 by using an adapter plate 4.
Precise alignment is carried out by means of centring sleeves 6 and cylindrical dowel pins 2
(è Fig. 4.27).
1
2
7
3
5
1 Slide of the Y-axis
2 Cylindrical dowel pin
3 Screws for attachment component
4 Adapter plate
Fig. 4.27 Illustrated: EXCM-40-…-P-… (with pneumatic attachment component)
Festo – EXCM-40-EN – 2017-11a – English 29
5 Screws for adapter plate
6 Centring sleeves
7 Attachment component (Z-axis)
3
4
5
6
Page 30
4 Mounting
4.6.1 Power supply line
Without attachment component
(EXCM-…-T0-…)
The following pneumatic and electrical interfaces
are available for products without an attachment
component:
1 Multi-pin plug distributor (è 5.2.1)
2 Bulkhead fitting (black tubing)
3 Bulkhead fitting (silver tubing)
With electrical attachment component
(EXCM-…-E…)
The following pneumatic and electrical interfaces
are available for products with an electrical at
tachment component:
1 Multi-pin plug distributor (è 5.2.1)
2 Bulkhead fitting (black tubing)
3 Bulkhead fitting (silver tubing)
Fig. 4.28
1
2
3
1
2
3
Fig. 4.29
With pneumatic attachment component
(EXCM-…-P…)
1
The following pneumatic and electrical interfaces
are available for products with a pneumatic at
tachment component:
2
1 Multi-pin plug distributor (è 5.2.1)
2 Bulkhead fitting (black tubing)
Connect the silver tubing for controlling the
pneumatic attachment component to the com
pressed air supply at the start of the energy
chain.
30 Festo – EXCM-40-EN – 2017-11a – English
Page 31
4 Mounting
4.7 Accessories
Select suitable accessories from the Festo catalogue
(è www.festo.com/catalogue).
Observe the assembly instructions for the accessories.
4.7.1 X-axis proximity sensor
The proximity sensor detects the position of the
Y-axis (traverse) 2.
A sensor mount 1 is also required for mounting
the proximity sensor (not included in the scope of
delivery). The sensor mounting and the proximity
sensor can be moved on the X-axis.
2
Fig. 4.30
4.7.2 Y-axis (traverse) proximity sensor
The proximity sensor detects the position of the
slide on the Y-axis 3
The slot for mounting the proximity sensor is loc
ated in the slide of the Y-axis 3.
The 2 switch lugs 1 for actuation of the proximity
sensor are mounted under the cover of the Y-axis
(traverse) 2.
The positions of the proximity sensor and the
switch lugs cannot be changed.
23
Fig. 4.31
Festo – EXCM-40-EN – 2017-11a – English 31
1
1
Page 32
4 Mounting
Installation
Fig. 4.32
aJ
8
5
6
9
7
12 3
4
aF
aA
aB
aE
aC
aD
Fig. 4.33
32 Festo – EXCM-40-EN – 2017-11a – English
Page 33
4 Mounting
1. Unscrew the screws 2.
2. Remove the retaining plate 8 and the cover 3.
3. Unscrew the screw 5 and loosen the earthing cable.
4. Unscrew the screws 7 and remove the earthing component 6.
5. Unscrew the screws 9 and remove the cross plate aJ.
6. Remove all of the cable ties 4.
7. Push the guide plate 1 with the energy chain in the direction of the arrow.
è The sensor slot aB is accessible.
8. Remove the cable clamp aE.
9. Insert the proximity sensor aC into the sensor slot aB.
10.Align the proximity sensor aC flush with the outer edge of the adapter plate aD .
11.Secure the proximity sensor aC with the supplied screw (tightening torque 0.3 Nm).
12.Insert the cable of the proximity sensor into the slot aF.
13.Mount the cable clamp aE with the 2 screws (tightening torque 1.2 Nm).
è The cable is routed within the slots aB and aF.
14.Insert the plug connecter of the proximity sensor into the multi-pin plug distributor aA
(è Tab. 5.1, sensor connection 4).
15.Position the guide plate 1 with the energy chain.
16.Position the cross plate aJ.
17.Tighten the screws 9 with Loctite 243 adhesive (tightening torque 4.0 Nm).
18.Position the earthing component 6.
19.Tighten the screws 7 with Loctite 243 adhesive (tightening torque 1.2 Nm).
20.Secure the earthing cable to the earthing component 6 with screw 5 (tightening torque 1.2 Nm).
21.Secure the cables between the energy chains with cable ties 4 for strain relief.
22.Position the cover 3 and retaining plate 8.
23.Tighten the screws 2 (tightening torque 1 Nm).
Festo – EXCM-40-EN – 2017-11a – English 33
Page 34
5 Installation
5 Installation
5.1 Safety instructions
Warning
Unexpected movement of the product.
Risk of impact and crushing injuries.
Before working on the product, switch off the power supply and secure it against
being switched on again.
Before working on the product, switch off the compressed air supply, vent if neces
sary and secure it against being switched on again. Pneumatic system parts can still
contain compressed air even when they are switched off. Vent pneumatic system
parts accordingly.
5.2 Electrical installation
5.2.1 Multi-pin plug distributor
1234567
Sensor connections 1…6 Multi-pin plug connec
tion 7
Pin Function/assignment Pin Colour
2)
1…6 1 Operating voltage 5 GY
3 0 V 7 BU
1 4 Plug socket with cable for the solenoid valve
1)
2 4 Proximity sensor
end position top 2 BN
1)
1 WH
3 4 Proximity sensor1) end position bottom 3 GN
4 4 Proximity sensor for slide of Y-axis (optional) 4 YE
5 4 free for additional sensors 6 PK
6 4 free for additional sensors 8 RD
1) For variant with pneumatic attachment component (EXCM-…-P…)
2) in accordance with IEC 757, at the loose end of the cable
Tab. 5. 1
34 Festo – EXCM-40-EN – 2017-11a – English
Page 35
5 Installation
Note
Unsealed sensor connections influence the degree of protection
(è A Technical appendix).
Seal any unused sensor connections with cover caps.
5.2.2 Drive motors of the X-axis/Y-axis
Note
Before installing the motor and encoder cables - especially with regard to non-Festo
products:
Refer to the corresponding documentation for installation information.
1 Motor connection Sub-D (9-pin)
(è Tab. 5.2)
2 Encoder connection M12 (8-pin)
(è Tab. 5.3)
12
Fig. 5.1
Pin allocation for the motor cable (X-axis/Y-axis)
Motor side Controller side
Connection Pin Function Colour1)Pin Connection
Sub-D plug
(9-pin)
1 String A WH 1
2 String A/ BN 2
3 String B GN 3
4 String B/ YE 4
Plug connector
(6-pin)
1
5 -
6 -
7 Holding brake2) (+24 V DC) GY 5
6
8 Holding brake2) (GND) PK 6
9 -
Screening
1) Specification of cable colour in accordance with IEC 60757:1983-01
2) Only for motors with holding brake EMMS-ST-…-SE B: Screening on the housing
2)
Cable lug
Tab. 5. 2
Festo – EXCM-40-EN – 2017-11a – English 35
Page 36
5 Installation
Pin allocation for the encoder cable (X-axis/Y-axis)
Motor side
Controller side
Connection Pin Function Pin Connection
Socket M12,
(8-pin)
1 Signal trace A 1
2 Signal trace A/ 6
Sub-D plug
(9-pin)
3 Signal trace B 2
4 Signal trace B/ 7
5 GND encoder 4
6 Signal trace N 3
7 Signal trace N/ 8
8 VCC auxiliary supply 5 V 5
Tab. 5. 3
5.2.3 Electrical attachment component
Note
Before installing the motor and encoder cables:
Refer to the corresponding documentation for installation information.
Pin allocation for the motor cable (attachment component)
Motor side Controller side
Connection Pin Function Colour1)Connection
Sub-D plug
(9-pin)
1 String A WH Cables with wire end
2 String A/ BN
sleeves
3 String B GN
4 String B/ YE
5 -
6 -
7 Holding brake (+24 V DC) GY
8 Holding brake (GND) PK
9 -
1) Specification of cable colour in accordance with IEC 60757:1983-01
Tab. 5. 4
36 Festo – EXCM-40-EN – 2017-11a – English
Page 37
5 Installation
Pin allocation for the encoder cable (attachment component)
Motor side
Controller side
Connection Pin Function Pin Connection
Socket M12,
(8-pin)
1 Signal trace A 1
2 Signal trace A/ 6
Sub-D plug
(9-pin)
3 Signal trace B 2
4 Signal trace B/ 7
6 Signal trace N 3
7 Signal trace N 8
5 Encoder (GND) 4
8 VCC auxiliary supply 5 V 5
Tab. 5. 5
5.2.4 Earthing
Earthing of the Y-axis (traverse) and the attachment component
In the energy chain, 2 earthing cables are laid for
earthing the Y-axis (traverse).
Connect the open ends of the earthing cables
to the central earthing point (e.g. in the con
trol cabinet).
1 X-axis
2 Earthing point
5
1
3 Y-axis (traverse)
4 Slide of the Y-axis
5 Earthing component
4
2
3
Fig. 5.2
The earthing point 2 on the slide of the Y-axis 4 is used, for example, to earth an addi
tional gripper on the attachment component.
Festo – EXCM-40-EN – 2017-11a – English 37
Page 38
5 Installation
Earthing the X-axis
Connect the earthing cable 6 (not included in the scope of delivery) to the earthing component 2 on
the underside of the X-axis 1.
1. Place the cable lug of the earthing cable between the large washer 7 and the serrated washer 5.
2. Attach small washer 4.
3. Tighten the hex nut 3 (tightening torque 4 Nm).
4. Connect the open end of the earthing cable to the central earthing point (e.g. in the control cabinet).
Fig. 5.3
5.3 Pneumatic installation
Description of the pneumatic interfaces: è 4.6.1 Power supply line
12
3
4
6
5
7
38 Festo – EXCM-40-EN – 2017-11a – English
Page 39
6 Commissioning
6 Commissioning
The commissioning process is described in separate documents (è www.festo.com/sp).
If you require additional support during the commissioning phase:
Please contact your regional Festo contact person.
Additional information can be found online (è www.festo.com/sp).
Festo – EXCM-40-EN – 2017-11a – English 39
Page 40
7 Maintenance
7 Maintenance
7.1 Safety instructions
Warning
Unexpected movement of the product.
Risk of impact and crushing injuries.
Before working on the product, switch off the power supply and secure it against
being switched on again.
Before working on the product, switch off the compressed air supply, vent if neces
sary and secure it against being switched on again. Pneumatic system parts can still
contain compressed air even when they are switched off.
– Vent pneumatic system parts accordingly.
7.2 Cleaning
Note
Only clean the product in exceptional circumstances by using non-abrasive cleaning
agents and a soft cloth.
Do not clean the guide elements (e.g. guide rails).
7.3 Lubrication
The product is lubricated initially upon delivery. Lubrication is required on a regular basis
to ensure trouble free operation.
Use appropriate accessories from Festo (è www.festo.com/spareparts).
Requirements
Lubricant ISOFLEX TOPAS NB52
Lubrication interval per axis [km] 2500
Amount of lubricant per lubrication nipple [g] 1
Tab. 7. 1
Note
Lubrication of the attachment components in accordance with the corresponding docu
mentation.
40 Festo – EXCM-40-EN – 2017-11a – English
Page 41
7 Maintenance
Lubrication points
6
1
5
4
1 Slide of the Y-axis
2 Lubrication nipples on guide carriage of the
Y-axis slide (2x)
3 Lubrication nipples on guide carriages of the
X-axis (at the carriages) (4x)
Fig. 7.1
2
33
4
33
4 Carriage of the X-axis
5 Maintenance opening
6 Y-axis (traverse)
Festo – EXCM-40-EN – 2017-11a – English 41
Page 42
7 Maintenance
Danger
Serious crushing due to axis movements of the product.
Slowly move or travel the Y-axis (traverse) and the slide of the Y-axis.
Make sure that no one is located in the movement area during the axis movements.
Note
For motors with holding brake, it is not possible to manually move the Y-axis (traverse)
and the slide of the Y-axis.
The product must be connected and ready for operation.
Move the Y-axis (traverse) and slide of the Y-axis in manual override.
Observe the documentation (è Description EXCM-… “Commissioning”).
1. Lubricate each of the guide carriages of the X-axes at the 4 lubrication nipples 3 with half of the
specified amount of lubricant (è Tab. 7.1).
2. Move the Y-axis (traverse) to a suitable position for access to the maintenance opening 5
(è Fig. 7.1).
3. Move the slide of the Y-axis until the 2 lubrication nipples 2 are accessible one after the other in
the maintenance opening (è Fig. 7.1).
4. Lubricate each of the guide carriages on the Y-axis (traverse) at the lubrication nipples with half of
the specified amount of lubricant (è Tab. 7.1).
5. Move the Y-axis (traverse) and slide of the Y-axis once along the entire stroke to evenly distribute
the lubricant
6. Perform steps 1. to 5. again.
7.4 Repair
If you require support for repairs: (è www.festo.com/sp).
Please contact your regional Festo contact person.
Additional information can be found online (è www.festo.com/sp).
42 Festo – EXCM-40-EN – 2017-11a – English
Page 43
8 Dismantling
8 Dismantling
8.1 Safety instructions
Warning
Unexpected movement of the product.
Risk of impact and crushing injuries.
Before working on the product, switch off the power supply and secure it against
being switched on again.
Before working on the product, switch off the compressed air supply, vent if neces
sary and secure it against being switched on again. Pneumatic system parts can still
contain compressed air even when they are switched off. Vent pneumatic system
parts accordingly.
When lifting the product, perform the following measures:
– Secure movable components with transport restraints to prevent unexpected
movement.
– Observe the product weight.
– Observe the position of the centre of gravity.
– Use suitable lifting gear.
– Use all of the transport lugs.
– Adjust the lifting speed.
8.2 Procedure
1. Move the Y-axis (traverse) to the mechanical end position opposite the motors.
2. Disconnect all of the electric cables and pneumatic tubing from the product.
3. Mount the retaining plates with transport lugs and transport restraints (è Fig. 4.4).
4. Secure movable parts (e.g. Y-axis (traverse), attachment component, etc.) with cable ties
(è Fig. 4.4).
5. Mount transport lugs with support plate to the X-axes (è Fig. 4.4).
6. Dismantle the product.
8.3 Recycling
Incorrect disposal is harmful to the environment.
Observe local regulations regarding disposal and the environment.
Observe local regulations for disposal of modules.
Use lubricants (greases, oils) in accordance with the applicable regulations for health
and safety and hazardous substances.
Festo – EXCM-40-EN – 2017-11a – English 43
Page 44
A Technical appendix
A Technical appendix
A.1 General features
Feature
Design Planar surface gantry
Motor type Stepper motors (for details see motor data sheet)
Guide Recirculating ball bearing guide
Mounting position Horizontal
Type of mounting – Mounting kit
– Adjusting kit
Operating medium Compressed air in accordance with
ISO8573-1:2010 [7:4:4]
Operating pressure [bar] 1 … 8
Pneumatic connection (power supply) Hose size 6
Dynamic data Observe catalogue specifications
è www.festo.com/catalogue
Tab. A. 1
44 Festo – EXCM-40-EN – 2017-11a – English
Page 45
A Technical appendix
A.2 Evenness
1
2
1
1 Guide rails of the X-axes 2 Mounting component
Fig. A.1
Limit values of the X-axis alignment
(A) Evenness [mm/m] 0.1
(B) Sideways tilting [mm/m] 0.1
(C) Height offset [mm/m] 0.1
(D) Parallelism [mm/m] 0.1
Tab. A. 2
A.3 Approvals
Feature
Declaration of incorporation (è www.festo.com/sp) in accordance with Machinery Directive
2006/42/EC
Tab. A. 3
Festo – EXCM-40-EN – 2017-11a – English 45
Page 46
A Technical appendix
A.4 Materials
Component
Profiles of the X-axis Aluminium
Profile of the Y-axis
Cover of the X-axis and the Y-axis
Drive and end caps
Guide pulley
Slide
Coupling Aluminium with elastomer ring gear
Guide Steel
Drive pinion
Ball bearing
Toothed belt PU with steel cord
Tab. A. 4
A.5 Operating and storage conditions
Feature
Storage temperature [°C] –10 … +60
Storage location dry, solid and flat base
Maximum shelf life 60 months
Ambient temperature [°C] +10 … +50
Air humidity [%] 0 … 90 (non-condensing)
Degree of protection (in accordance
IP40
with EN 60529)
Noise level
1)
[dB(A)] 65
Duty cycle [%] 100
1) Energy-equivalent A-weighted noise level at 1 m distance determined locally over the measurement surface
2) In the original packaging
Tab. A. 5
2)
46 Festo – EXCM-40-EN – 2017-11a – English
Page 47
Page 48
Copyright:
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
Phone:
+49 711 347-0
Fax:
+49 711 347-2144
Reproduction, distribution or sale of this document or communica
tion of its contents to others without express authorization is
prohibited. Offenders will be liable for damages. All rights re
served in the event that a patent, utility model or design patent is
registered.
E-mail:
service_international@festo.com
Internet:
www.festo.com
Loading...
