801

WALL MOUNTED, ROOM SEALED,

FAN ASSISTED, GAS COMBINATION BOILER

INSTALLATION

INSTRUCTIONS

01/01

Phone numbers:

Installer

Service Engineer

Serial No.

G.C. NO: 47-267-17

Lichfield Road, Branston Industrial Estate, Burton Upon Trent, Staffordshire DE14 3HD

FOR SERVICE INFORMATION OR

HELP TELEPHONE: 08707 282 885

ALWAYS QUOTE YOUR SERIAL NUMBER

ALL SPECIFICATIONS SUBJECT TO CHANGE

Tel. 08707 282 885 - Fax 08707 282 886

Read these Instructions thoroughly

before using the appliance

FERROLI HELPLINE

FOR IMMEDIATE ASSISTANCE

Appr. Nr. B94.02A CE 0063AQ2150

Page 2

page INDEX

3 General Description 3 Related Documents 4 Technical Data 5 Appliance Dimensions 6 Boiler Flow Diagram 7 Key of boiler flow diagram 8 Installation Details 8 Location of Boiler

8 Air Supply 10 Flue System 10 Gas Supply 10 Water System 12 Central Heating Pump 12 Sizing of expansion vessel 13 Installation of Boiler 13 Unpacking 13 Mounting the Boiler Jig

on the Wall (rear flue)

13 Mounting the Boiler Jig

on the Wall (side flue)

14 Drilling template 15 Preparing the Flue Assembly 15 Connecting the Boiler 18 Fitting the Flue Assembly 18 Electrical Installation 19 Commissioning & Testing 19 Filling the Central Heating System 19 Filling the Domestic Hot Water System 19 Electricity Supply 19 The Gas Installation 20 To Light the Boiler 21 To Range Rate the Boiler C.H. 22 Gas pressure adjustment with Honeywell

VR 4600 N 4002 valve

23 D.H.W. Burner Pressure 23 System operation 23 Handing Over to the User 24 Time clock 26 Spare Parts List 27 Domestic Hot Water

Performance + Modureg

28 General Wiring Diagram 29 Fast Fault Finding 30 Special Installation Possibilities

801

Page 3

801

General Description

The Ferroli 801 is a wall mounted, room sealed, fan assisted, combination boiler for Central Heating (C.H.) and domestic Hot Water (D.H.W.).

The boiler is of light weight construction and the heat exchanger provides Central Heating and Domestic Hot Water from an integrally designed unit. The boiler contains its own expansion vessel for sealed systems. The wall mounting jig contains all the isolating cocks for the water and gas supplies which can be fitted to the wall and provided with all the necessary gas and water connections prior to the boiler being attached. The flue can either be left hand, right hand or rear. There are three flue lengths available and they are 0.75 metres (for wall thickness up to 565 mm), 2 metres (for wall thickness up to 1815 mm) and 3 metres (for wall thickness) up to 2815 mm. These wall thicknesses assume a rear flue outlet. For side outlet the effective wall thickness for each flue length is reduced by 91 mm plus the distance of the appliance from the side wall. The Central Heating and the Domestic Hot Water temperature is controlled by the Honeywell Modureg valve in conjunction with the P.C.B. The boiler is fitted with its own Central Heating pump. The pump is switched ON/OFF by the time clock and/or a 24 Volt room thermostat. The pump circuit also has a 6 minute over-run time. There is a Domestic Hot Water flow switch fitted and when there is a demand for Domestic Hot Water the Central Heating pump is switched off making available the maximum output of the gas burner for Domestic Hot Water. On the P.C.B. the output for Central Heating can be set. However, this is not required for the majority of installations as the boiler will automatically adjust its output to the system demand-AUTOMISER control. This does not influence the maximum output for domestic hot water. At the factory the central heating output is pre-set to maximum. The appliance is not suitable for external installation.

Related Documents

This appliance must be installed strictly in accordance with these instructions: The Gas Safety Regulations (Installations & Use) 1994. The Local Building Regulations. The Building Regulations. The Buildings Standards (Scotland - Consolidated) Regulations. British Standards Codes of Practice: B.S. 7593 1993 TREATMENT OF WATER IN DOMESTIC HOT WATER CENTRAL HEATING

SYSTEMS B.S. 5546 1990 INSTALLATION OF HOT WATER SUPPLIES FOR DOMESTIC PURPOSES B.S. 5440 PART 1 FLUES B.S. 5440 PART 2 AIR SUPPLY B.S. 5449 1990 FORCED CIRCULATION HOT WATER SYSTEMS B.S. 6798 1987 INSTALLATION OF GAS FIRED HOT WATER BOILERS B.S. 6891 1989 GAS INSTALLATIONS B.S. 7671 1992 IEE WIRING REGULATIONS B.S. 4841 1990 SPECIFICATION FOR EXPANSIONE VESSALS

Model Water Bye Laws.

Page 4

801

Technical Data G20 G31

Nominal Heat Input D.H.W. & C.H. (gross) 28.6 kW 26.0 kW Minimum Heat Input D.H.W. & C.H. (gross) 12.8 kW 12.5 kW Nominal Heat Input D.H.W. & C.H. (net) 25.8 kW 25.8 kW Minimum Heat Input D.H.W. & C.H. (net) 11.5 kW 11.5 kW Nominal Heat Output D.H.W. & C.H. 23.3 kW 23.3 kW Minimum Heat Output D.H.W. & C.H. 9.7 kW 9.7 kW

Maximum Gas Rate 2.72 m Maximum Burner Pressure 14.5 mbar 36.0 mbar

Minimum Burner Pressure 2.7 mbar 7.9 mbar Injector Marking (Main Burners) 210

Injector Size (4 off) 2.10 mm Dimensions (overall):

Height 1020 mm Width 480 mm Depth 360 mm

Weight (nett) 51 kg Weight (gross) 53 kg

Electricity supply: 230 V ~ 50 Hz External fuse 3 A Internal fuses on P.C.B. F2A to BS4265 - (2 Amp. Fast) Electrical Input 150 W

Central Heating: Max. Flow Temperature 85°C Temperature Rise Across Boiler 20°C

Domestic Hot Water Flow: 30°C Rise 11.1 litres/min. 32°C Rise 10.4 litres/min. 35°C Rise 9.5 litres/min. 40°C Rise 8.3 litres/min.

Minimum Domestic Hot Water Flow 2.5 litres/min. Maximum Domestic Cold Water Inlet pressure 10 bar

Minimum Heating Circuit Pressure 0.8 bar Maximum Heating Circuit Pressure 3.0 bar Low water pressure switch 0.4 bar

Boiler Water Capacity: Heating 2.0 litres Domestic Hot Water 0.5 litres

Connections: Gas 22 mm Domestic Hot Water Outlet 15 mm Domestic Cold Water Inlet 15 mm Pressure Relief Valve Drain 15 mm Central Heating Flow 22 mm Central Heating Return 22 mm

Minimum Installation Clearances: Sides -Left hand 5 mm Right hand 5 mm Front 50 mm* Minimum Clearance below 200 mm Minimum Clearance above 100 mm

/h 2.66 m3/h

NOTES

* Access to the front of the boiler must be

available for maintenance (min. 600 mm)

Page 5

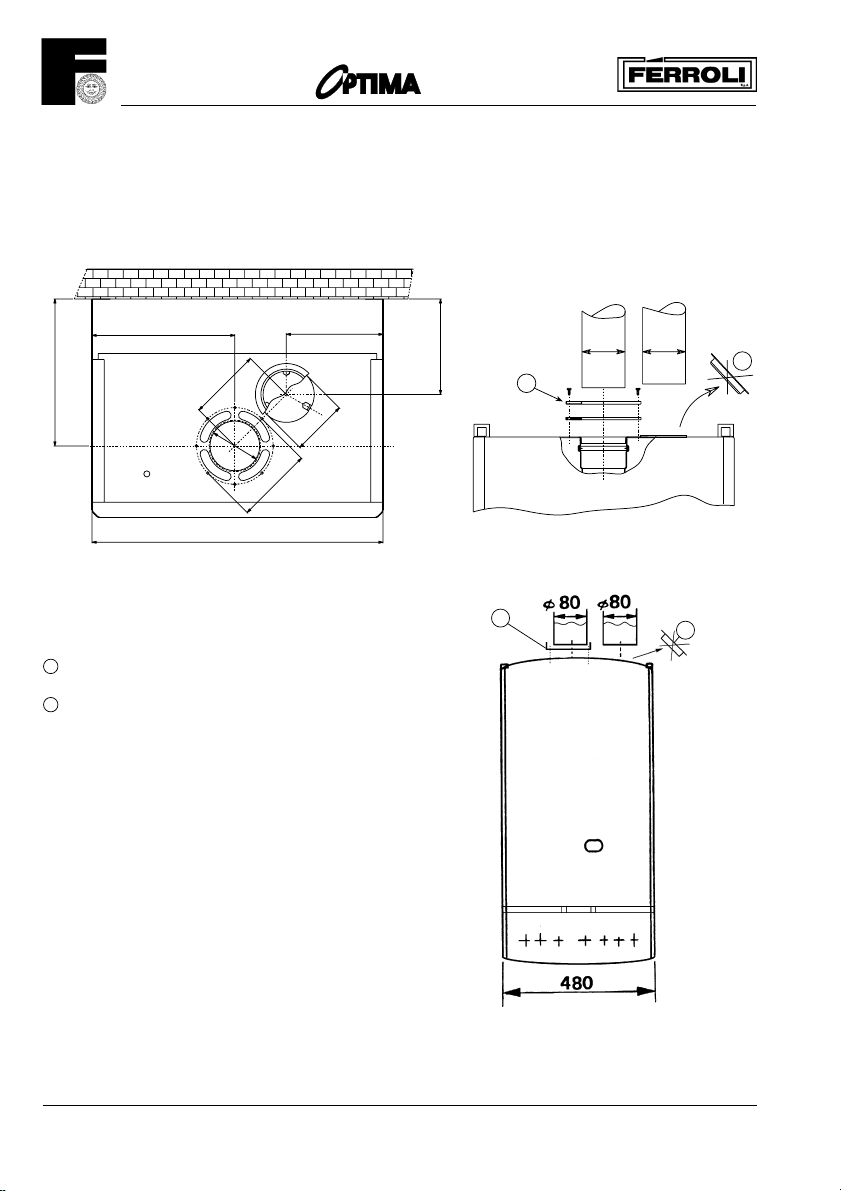

Appliance Dimensions

801

FRONT VIEW

900

480

12 3 4 5 6 7

Key

1. Electricity cable entry

2. Gas supply

3. Domestic Hot Water outlet

4. Domestic Cold Water inlet

5. Central Heating Pressure relief valve

6. Central Heating Flow outlet

7. Central Heating Return inlet

8. Air intake for two pipe flue systems

LEFT SIDE VIEW REAR VIEW

242

370

235

77.5507580505097.5

242

Fig. 1

120

8 - TOP VIEW

235

100

160

Øi92

Øi82

126.5

480

157

Page 6

Boiler Flow Diagram

801

Fig. 2

Page 7

Key

801

1 Fixing point 5 Room sealed compartment 6 Control panel 7 Gas inlet 8 Domestic hot water outlet

9 Cold water inlet 10 Central heating flow outlet 11 Central heating return inlet 12 D.H.W. draining point 14 Central heating safety valve 16 Fan 19 Combustion - heat exchanging compartment 20 Burner assembly 21 Main injector 22 Burner 26 Combustion chamber insulation 27 Copper heat exchanger for C.H. + D.H.W. 28 Flue collector from heat exchanger 29 Internal flue exit 30 Flue/surplus air collector 31 Air pressure control damper 32 Central heating pump 34 C.H. flow temperature sensor 35 Air separator 36 Automatic air vent 37 Cold water inlet filter 39 Cold water flow limiter 40 Domestic hot water expansion vessel (optional) 41 D.H.W. waterway of the heat exchanger 42 D.H.W. temperature sensor 43 Air pressure switch 44 Operator gas valve

47 Modulating regulator (Modureg) gas valve 48 Burner pressure test point 49 Overheat cut-off thermostat 50 Central heating limit thermostat 51 Central heating frost thermostat 53 Heat exchanger venting point 56 Expansion vessel 58 Fan air outlet pressure test point 59 Flue outlet pressure test point 61 C.H. selector switch 62 Time clock (if fitted) 63 C.H. boiler thermostat 68 Control box with P.C.B. 71 Modulating balance tube 80 240 V + 24 V roomstat terminal blocks 81 Ignition electrode 82 Flame sensing electrode 83 Automatic ignition control panel 84 1. gas valve operator 240V 85 2. gas valve operator 240V 86 Automatic control reset knob 87 Venturi test point 90 Flue outlet pressure test point

91 Air pressure test point 100 Fault diagnostic/temperature control panel 101 P.C.B. (printed circuit board) 114 Low water pressure switch 136 Flowmeter 145 C.H. pressure gauges 157 D.H.W. thermostat 158 Gas inlet pressure test point

Page 8

801

Installation Details

Gas Safety (Installation & Use) Regulations: 1994

In the interest of safety, it is the law that all gas appliances are installed by a competent person in accordance with the above Regulations, Building Regulations/Building Standards Scotland, Codes of Practice, current I.E.E. Regulations and the byelaws of the Local Water Undertaking. Failure to comply with the Regulations may lead to prosecution; it is in your interest and that of safety to ensure that the law is complied with.

Important - If the boiler is to be fitted in a timber framed buiding it should be fitted in accordance with the British Gas publication; Guide for Gas Installation in Timber Frame Housing: Reference DM2. If in doubt advice must be sought from the Local Gas Region of British Gas Plc.

Location of Boiler

The installation of the 801 must be on a suitable non-combustible load bearing wall which will provide an adequate fixing for the boiler mounting bracket assembly. The location should be in an area where the water pipes will not be subjected to frost conditions. In siting the combination boiler the following limitations must be observed:

The combination boiler may be installed in any room or internal space, although particular attention is drawn to the requirements of the current, i.e. wiring regulations and in Scotland the electrical provisions of the building regulations applicable in Scotland, with respect to the installation of the combination boiler in a room or internal space containing a bath or shower.

Where a room sealed appliance is installed in a room containing a bath or shower any electrical switch or appliance control utilising mains electricity, should be so situated that it cannot be touched by a person using the bath or shower.

Terminal Position

POSITION MINIMUM SPACING (fig. 3) mm

A Directly below an openable window, air vent, or any other ventilation opening 300 B Below gutters, soil pipes or drainpipes 75 C Below Eaves 100 D Below a Balcony 100 E From vertical drainpipes or soilpipes 75 F From internal or external corners 100 G Above adjacent ground or balcony level 100 H From a surface facing the terminal 600

I Facing another terminal 1,200

J From opening (door/window) in carport into dwelling 1,200 K Vertically from a terminal on the same wall 300 L Horizontally from a terminal on the same wall 300 N Below carport 600

A Quinnel Barrat and Quinnel guard (part. No. C2) should be screwed to the wall centrally over the terminal, when the distance is less than 2 m from the outside floor.

Air Supply

The room, cupboard or compartment in which the boiler is installed does not require a purpose provided vent.

Page 9

Terminal Position

Fig. 3

Minimum Clearance mm

801

Fig. 5

NOTES * If a side outlet flue is to be used, a clearance of 75 mm will be needed on the flue outlet side of the boiler.

** Access to the front of the boiler must be available for maintenance (min. 600 mm).

Page 10

801

Flue system

The boiler allows the flue outlet to be taken from the rear of the boiler or from either side. A standard flue length of 0.75 metres is provided. Alternative lengths of two or three metres can be supplied (equivalent

to wall thicknesses of up to 565, 1815 and 2815 mm for rear flues and deduct 91 mm plus distance from side wall for side outlet flues).

It is absolutely essential, to ensure that products of combustion discharging from the terminal cannot re-enter the building, or enter any adjacent building, through ventilators, windows, doors, natural air infiltration, or forced ventilation/ air conditioning.

Gas Supply

If necessary the local Gas Region should be consulted, at the installation planning stage, in order to establish the availability of an adequate supply of gas.

An existing service pipe must not be used without prior consultation with the Local Gas Region. A gas meter can only be connected by the Local Gas Region, or by a Local Gas Region's Contractor. Installation pipes should be fitted in accordance with BS6891-1988. Appliance inlet working pressure must be 20 mbar MINIMUM. Pipework from the meter to the combination boiler must be of an adequate size. The boiler requires 2.75 m3/h of natural gas. Do not use pipes of a smaller size than the combination boiler inlet gas connection. The complete installation must be tested for gas soundness and purged as described in BS6981-1988. All pipework

must be adequately supported. An isolating gas valve is provided and should be fitted on the manifold assembly.

Water System

Central Heating

It must be a sealed system. Detailed recommendations are given in BS6798, BS5449, BS6700 and CP342 Part.

2. Pipework not forming part of the useful heating surface should be insulated to prevent any heat losses or possible freezing (i.e. in roof spaces or ventilated underfloor spaces). Drain taps should be positioned at the lowest point of the system in accessible locations to permit the whole system to be drained down. The drain taps should be in accordance with BS2879. Copper tubing to BS2871, Part. 1 is recommended for water carrying pipework. Pipework in horizontal runs should have a gradient where possible to facilitate the removal of air. It should be ensured that the boiler heat exchanger is not a natural point for collecting air. A typical heating system with domestic hot water circuit is illustrated in fig. 6.

Important - A bypass must be fitted to ensure a minimum flow rate through the boiler of 6 l/min. The bypass should be fitted as far as possible from the boiler if thermostatic radiator valves are fitted throughout.

Make up Water

Provision must be made for replacing water lost from sealed system. Reference should be made to BS6798, for methods of filling and making up sealed systems. There must be no direct connection between the boiler's central heating system and the mains water supply. The use of mains water to charge and pressurise the system directly, is conditional upon the Local Water Byelaw. Again any such connection must be disconnected after use.

Domestic Hot Water

Always fit a water softener or descaler in «hard water areas». A 15 mm copper connection point on the boiler jig bracket for attaching to the main supply is provided. The maximum domestic water pressure for the inlet supply is 10 bar (145 P.S.I.). If the cold mains supply exceeds 5 bar (72 P.S.I.), a water governor or pressure reducing valve must be fitted by the installer into the mains supply in an inconspicuous but accessible position preferable between 3 and 5 metres (10-16 ft) before the appliance. Such a valve must be approved by the Water Research Council.

Attention - Is drawn to the Model Water Byelaws. Fittings manufactured from duplex (alpha-beta) brass are not acceptable for underground use and certain water

undertakings will not accept their use above ground.

Page 11

801

Gas

Cold water

Additional expansion vessel C.H.

Filling point C.H.

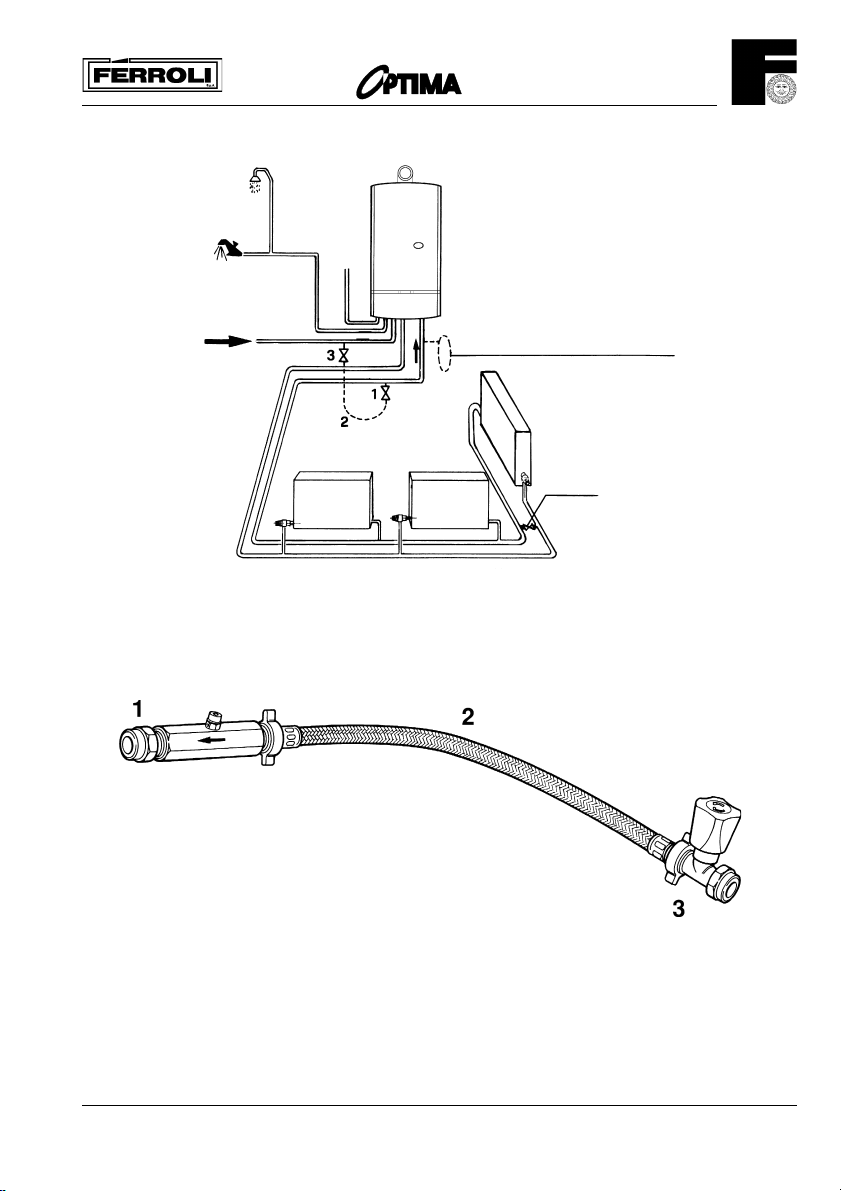

Fig. 6

NOTE: A bypass must be fitted as far as possible from the boiler if thermostatic radiator valves are fitted

throughout.

(if required)

Bypass

Key

1. Filling point C.H.

2. Temporary connection

3. Cold water supply

Fig. 7

Page 12

801

Built-in Central Heating Water Circulating Pump

The pump head available for circulating the water is given in fig. 8. N.B. - The pump is factory set at position 3. The pump is a Grundfos type 15-50 UPS series. Grunfos Pump performance graph Note - Minimum flow through boiler heat exchanger at any time should not fall below 6 litres per minute. If required an additional expansion vessel may be fitted to the central heating return inlet. If the total volume of water in the system exceeds 40 litres an additional expansion vessel must

be fitted to the central heating return inlet.

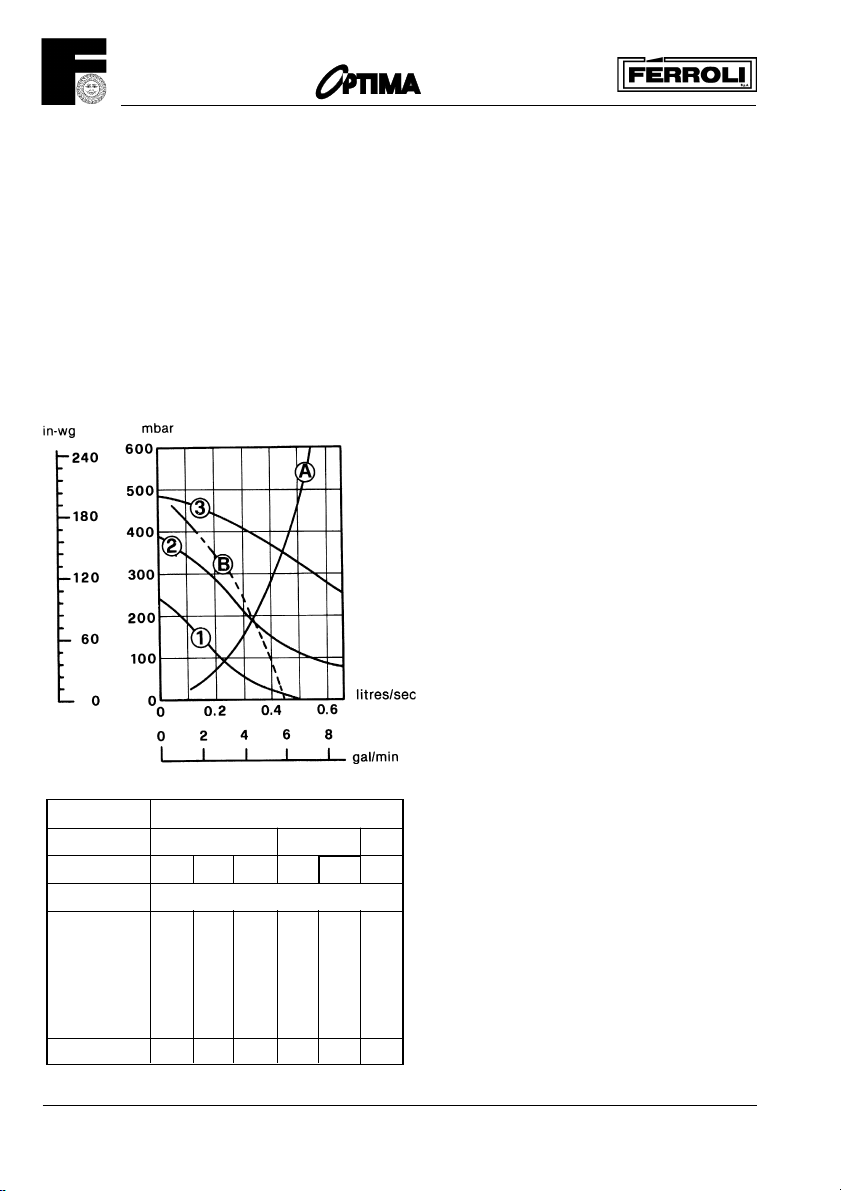

Pump performance curve Grundfos UPS 15-50

1 2 3 Speed settings A Boiler pressure drop B Max. available pump head C.H.

SAFETY VALVE SETTING (bar)

VESSEL CHARGE PRESSURE (bar)

INITIAL SYSTEM PRESSURE (bar)

TOTAL WATER CONTENT of SYSTEM

LITRES

25 3.5 6.5 13.7 4.7 10.3 8.3 50 7.0 12.9 27.5 9.5 20.6 16.5

75 10.5 19.4 41.3 14.2 30.9 24.8 100 14.0 25.9 55.1 19.0 41.2 33.1 125 17.5 32.4 68.9 23.7 51.5 41.3 150 21.0 38.8 82.6 28.5 61.8 49.6 175 24.5 45.3 96.4 33.2 72.1 57.9 200 28.0 51.8 110.2 38.0 82.4 66.2

For syst. volumes other than those given above, mult. the syst. volume by the factor across

0.5 1.0 1.5

1.0 1.5 2.0 1.5 2.0 2.0

EXPANSION VESSEL VOLUME (litres)

0.140 0.259 0.551 0.190 0.412 0.33

3.0

Fig. 8

SIZING OF ADDITIONAL EXPANSION VESSELS:

Deduct from the value given in the table the 7 litre vessel supplied.

Note

1. Fill C.H. installation to min. 1.5 bar.

2. Select by preference the expansion vessel for

increased system pressure of 2.0 bar

3. Expansion vessel must be fitted to Central Heating Return Inlet

4. The standard 7 litres expansion vessel is charged to 1 bar

Fig. 9

Page 13

801

Installation

Note - To mount the boiler on the wall, a two person lift will be needed.

1.0 UNPACKING

The appliance is delivered in 2 cartons.

1.1 The large carton contains the boiler, and the Installation/Servicing and Users Instructions.

1.2 The second carton contains the mounting jig assembly, complete with isolating valves, the assembly fixing screws and wall plugs (x4), the boiler mounting nuts and washers (x2), drilling template, flue assembly and flue bend.

When the cartons are unpacked examine for any signs of damage in transit. All protective plastic should be left in place until installation is complete.

2.0 FIXING THE MOUNTING JIG ON THE WALL (Rear Wall Flue Applications)

2.1 Select the boiler location carefully ensure that all requirements given in previous text are satisfied. Fig. 10 will also give guidance to fixing dimensions.

2.2 Locate template on wall, mark the positions of the four jig bracket fixing holes and the flue opening.

2.3 Carefully cut the circular hole (118 mm minimum diameter) for the flue assembly.

2.4 Using a 10 mm drill, drill 70 mm deep holes to accept the wall plugs, and insert wall plugs.

2.5 Fit the mounting jig assembly using the four fixing screws provided (Ensure that all the service cocks are in the OFF position). Operate valves several times to ensure they are free.

2.6 With the exception of the connection to the pressure relief valve, make all the water and gas connections to the jig bracket valves. Fully tighten (fig. 11). Water connections can be made with compression or capillary fittings (before the gas inlet to the boiler there must be at least 100 mm of straight before any bends).

3.0 FIXING THE MOUNTING JIG ON THE WALL (Side Wall Flue Applications)

3.1 Select the boiler location carefully ensuring that all the requirements given in previous text are satisfied. Fig. 10 will aso give guidance.

3.2 Locate the template on wall and mark the position of the four jig bracket fixing holes.

3.3 Using a 10 mm drill, drill 70 mm deep holes to accept the wall plugs, and insert wall plugs.

3.4 Fit the mounting jig assembly using the four fixing screws provided.

3.5 Extend a horizontal line from the centre of the rear flue outlet to the side wall.

3.6 Mark the centre line (vertically) for the flue assembly hole, and mark the centre of the hole.

3.7 Carefully cut the circular hole (118 mm minimum diameter) for the flue assembly.

Page 14

801

Important Note - Always use two spanners to prevent twisting of soft copper pipework on the boiler.

Flush out the water system. Note - The maximum inlet cold water pressure must not exceed 10 bar (145 P.S.I.) and a water

governor or a pressure reducing valve will be required if the pressure is in excess of 5 bar (72 P.S.I.). Ensure all pipework is adequately supported.

Rear flue outlet

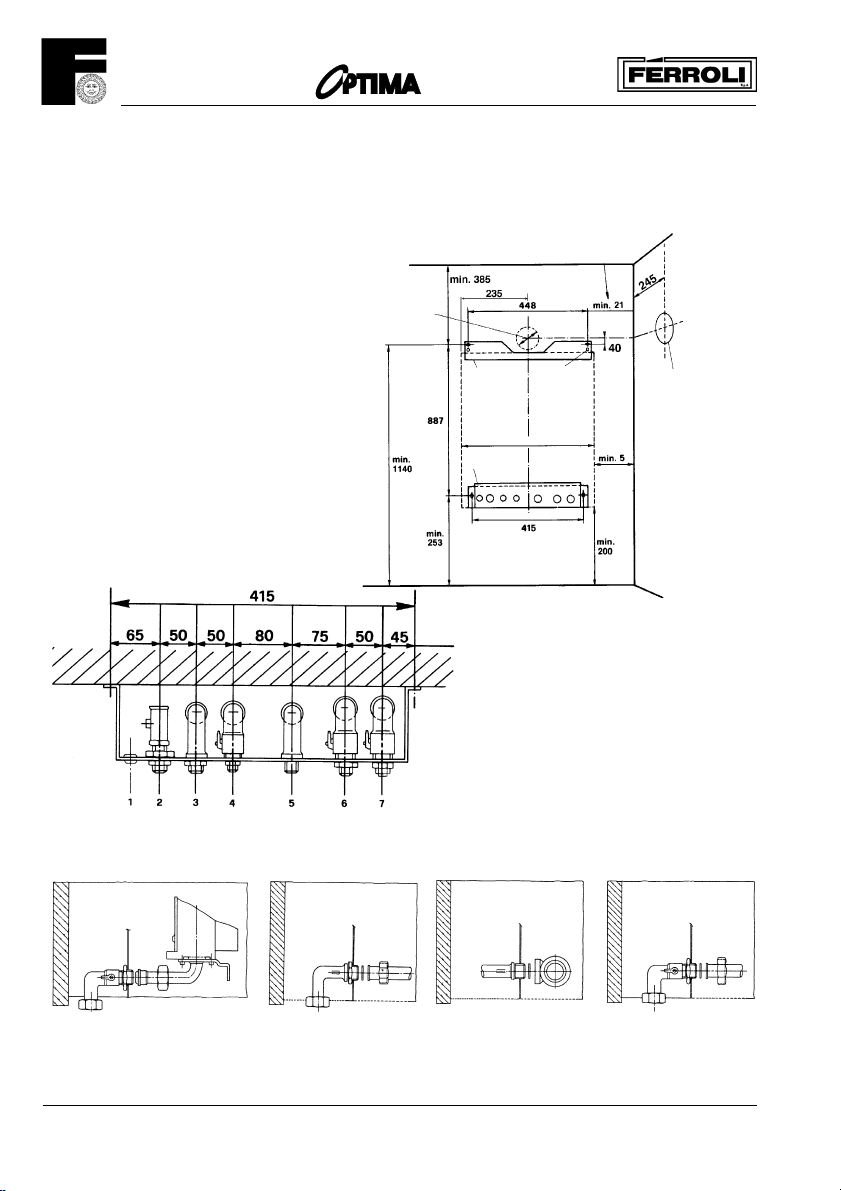

Drilling template

Diam. min. 118 mm

2 Gas 22 mm

Fig. 10

3 Domestic Hot Water outlet 15 mm

Upper bracket

Boiler = 480 mm

Lower bracket

1 = Electrical cable entry 2 = Gas supply 3 = Domestic Hot Water outlet 4 = Domestic Cold Water Inlet 5 = Outlet Central Heating safety valve 6 = Central Heating flow outlet 7 = Central Heating return inlet

2 = 22 mm 3-4-5 = 15 mm 6-7 = 22 mm

5 Outlet central heating

safety valve 15 mm

Fixing stud

boiler

4 Domestic Cold Water inlet 15 mm 6 Central Heating flow outlet 22 mm 7 Central Heating return inlet 22 mm

Side flue outlet Diam. min. 118 mm

Important Note - Always use two spanners to prevent twisting of soft copper pipework. Note - The central heating safety valve (5) should be piped 15 mm to discharge safely outside the property.

Fig. 11

Page 15

801

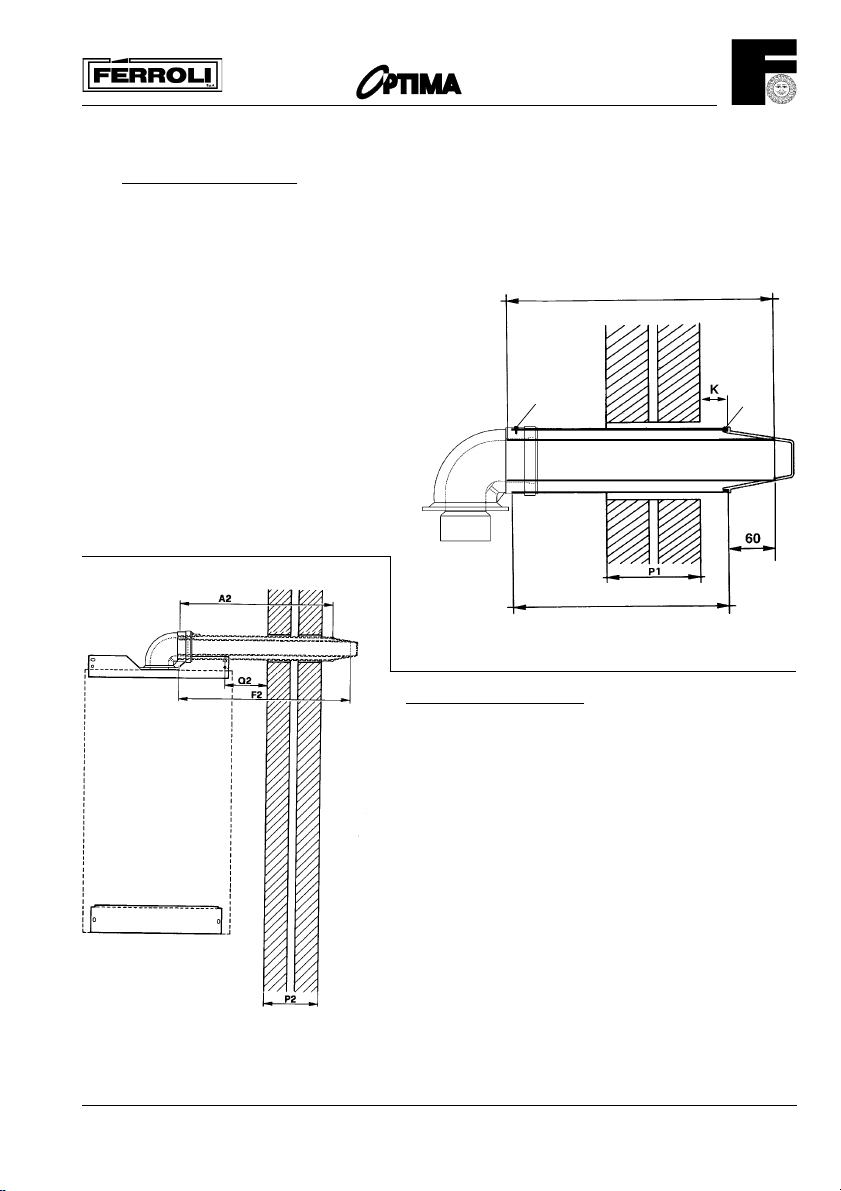

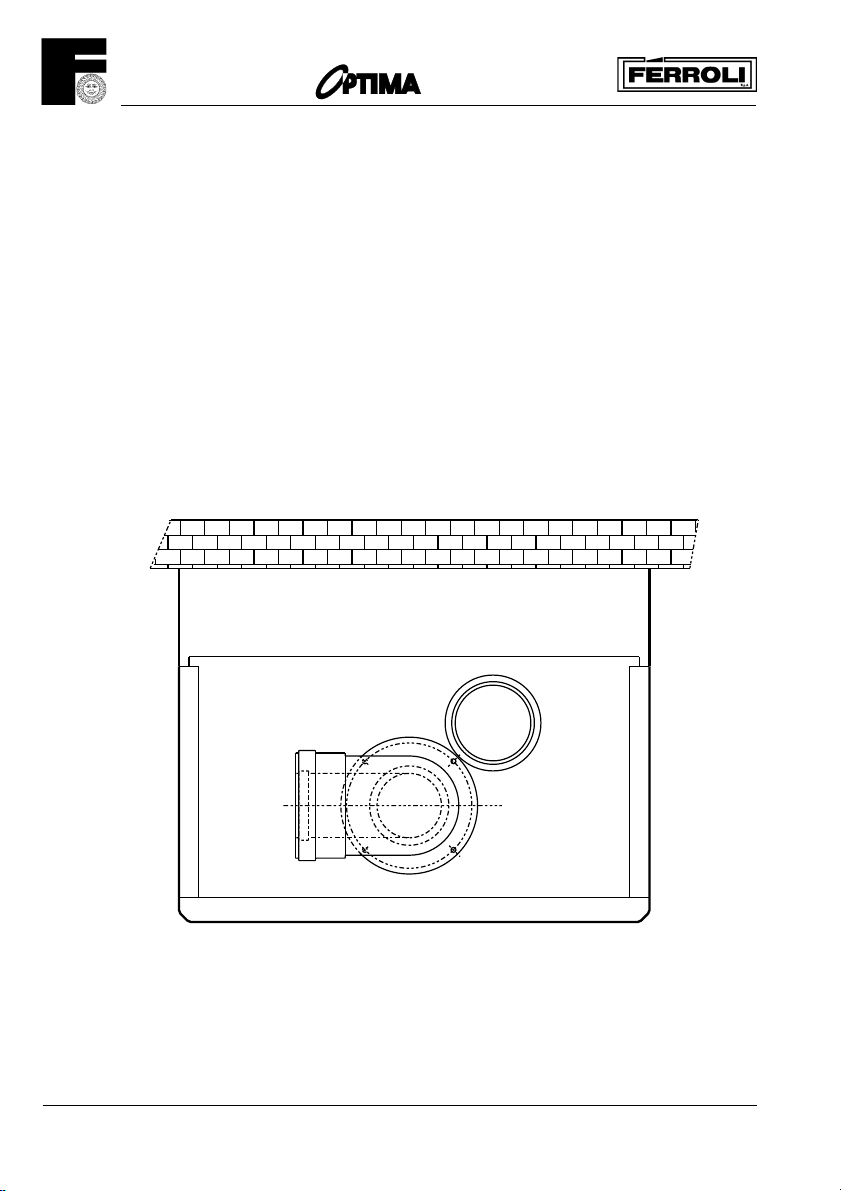

4.0 PREPARING THE FLUE ASSEMBLY

4.1

Rear Flue Outlet (fig. 12) Important - The aluminium flue pipe must protrude into the outside grill by 60 mm, never cut it to the

same length as the plastic air pipe (aluminium flue pipe = plastic air inlet pipe + 70 mm !).

Aluminium flue pipe length = Plastic air inlet pipe length plus 70 mm longer.

K = 10 mm min. 60 mm max.

4.1.1 Accurately measure the Wall thickness (P1)

4.1.2 From the end opposite to the terminal, cut the plastic air duct (dimension A1) to length (P1 + 192 mm). Note - That the terminal is not included in A1.

4.1.3 Cut the aluminium flue duct to length (P1 + 262 mm) (dimensions F1). Note - The aluminium flue pipe must be 70 mm longer than the plastic air inlet pipe.

4.1.4 Drill a 3 mm hole 15 mm from the plain end of plastic air duct.

4.1.5 Place flue components to one side to be used later.

4.2 Side Flue Outlet (fig. 13).

Aluminium flue pipe length = Plastic air inlet pipe length

4.2.1 Accurately measure the Wall thickness (P2).

4.2.2 Accurately measure the distance from the centre of the stud

4.2.3 From the end opposite to the terminal, cut the plastic air duct

Side Flue Outlet

Fig. 13

4.2.4 Cut the aluminium flue duct to length (P2 + Q2 + 250 mm)

4.2.5 Drill a 3 mm hole 15 mm from the plain end of plastic air duct.

4.2.6 Place flue components to one side to be used later.

F1 (Flue outlet)

Rear flue Outlet

Fig. 12

Fixing screw

A1 (Air intake)

Fixing screw

Important - The aluminium flue pipe must protrude into the outside grill by 60 mm, never cut it to the same length as the plastic air pipe.

plus 70 mm longer.

fixing of the mounting jig assembly to the side wall (Q2). (dimension A2) to length (P2 + Q2 + 180 mm).

Note - That the terminal is not included in length A2. (dimension F2).

Note - The aluminium flue pipe must be 70 mm longer than the plastic air inlet pipe.

Page 16

801

5.0 CONNECTING THE BOILER

5.1 Place the boiler on its back.

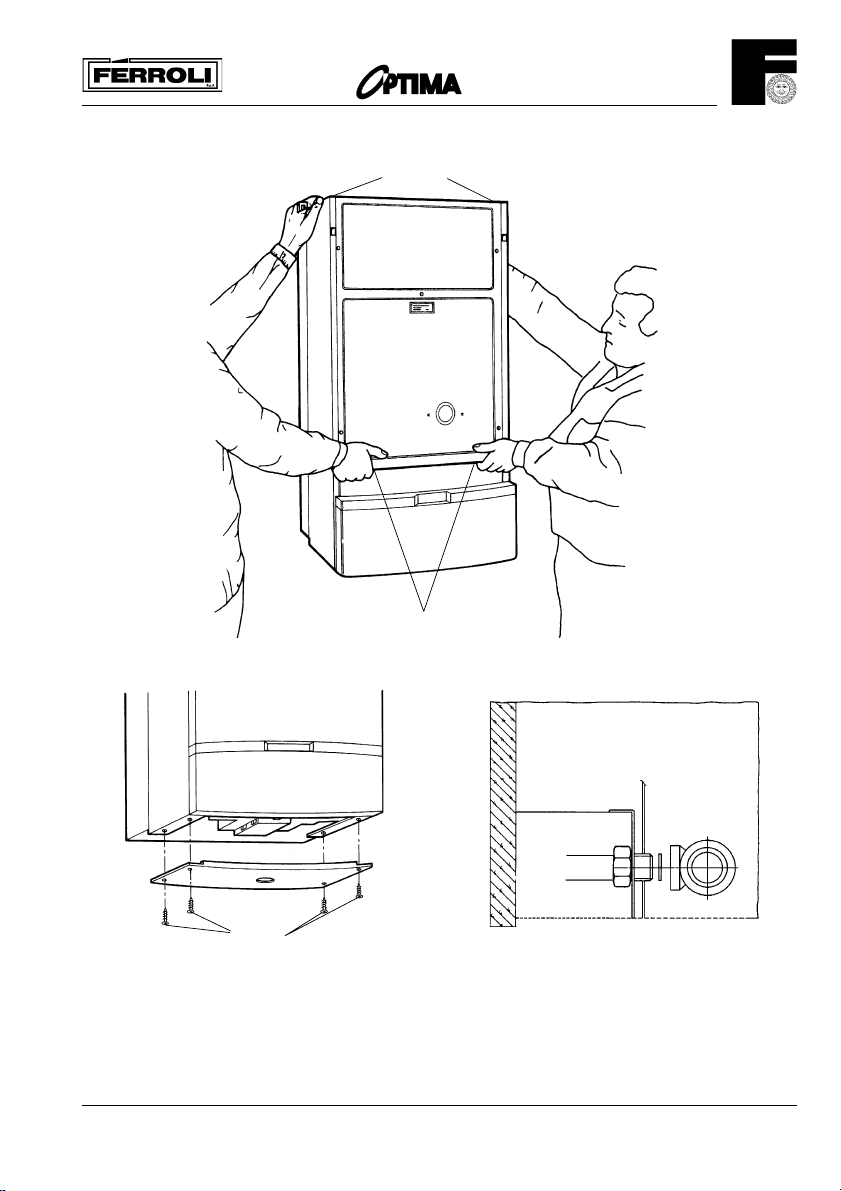

5.2 Remove the boiler base plate, four screws (fig. 16). Remove the plugs fitted to the boiler water connections. Remove the bag of sealing washers from the boiler pipework. Remove the front panel by gripping on both sides, sliding up and lifting away from the main boiler.

5.3 Lift boiler as shown in fig. 15 onto the top studs and fit supplied nuts and washers hand tight.

5.4 Lift at bottom to engage the water and gas connections. Tighten central heating flow and return, and the domestic hot water inlet and outlet, using appropriate sealing washers. Tighten the gas union.

5.5 Screw the pressure relief valve adaptor provided, through the jig bracket into the valve, using the remaining washer (fig. 17).

5.6 Connect the pressure relief valve discharge pipe (15 mm) to the outside of the building, where possible over a drain. The discharge must be such that it will not be hazardous to occupants or passers-by cause damage to external electric components or wiring. The pipe should be directed towards the wall.

It must not discharge above an entrance or window, or any type of public access. The installer must consider that the overflow could discharge boiling water.

TOP VIEW BOILER SIDE OUTLET

Fig. 14

Page 17

Fixing points

801

Lift here

Fixing screws

Fig. 16 Fig. 17

Fig. 15

Page 18

801

6.0 FITTING THE FLUE ASSEMBLY

6.1 With Sufficient Clearance To Insert Assembly From Inside

6.1.1 Insert the flue assembly into the wall.

6.1.2 Insert the flue bend in the top plate of the boiler

6.1.3 Secure the flue bend.

6.1.4 Fully insert the flue assembly into the boiler flue bend. Insert the self tapping screw supplied. Fully tighten.

6.1.5 Check the terminal relationship with the wall as shown in fig. 12.

6.1.6 Make good internal wall face.

6.1.7 Make good the outside wall face, re-weatherproof.

6.2 With insufficient Clearance To Insert Assembly From Inside

6.2.1 Insert the flue bend in the top plate of the boiler

6.2.2 Secure the flue bend.

6.2.3 From outside, push flue duct, then the air duct through the wall.

6.2.4 Fully insert the flue duct into the flue bend, then the air duct. Secure the air duct with the self tapping screw provided.

6.2.5 Continue as detailed in 6.1.5 above.

7.0 ELECTRICAL INSTALLATION

Electrical installation must be carried out by a competent electrician. The appliance is to be connected to a 240 V ~ 50 Hz supply (see fig. 18). The supply fuse rating is 3A. The terminals are accessible after removing the white base plate and single screw securing the terminal cover (see fig. 18).

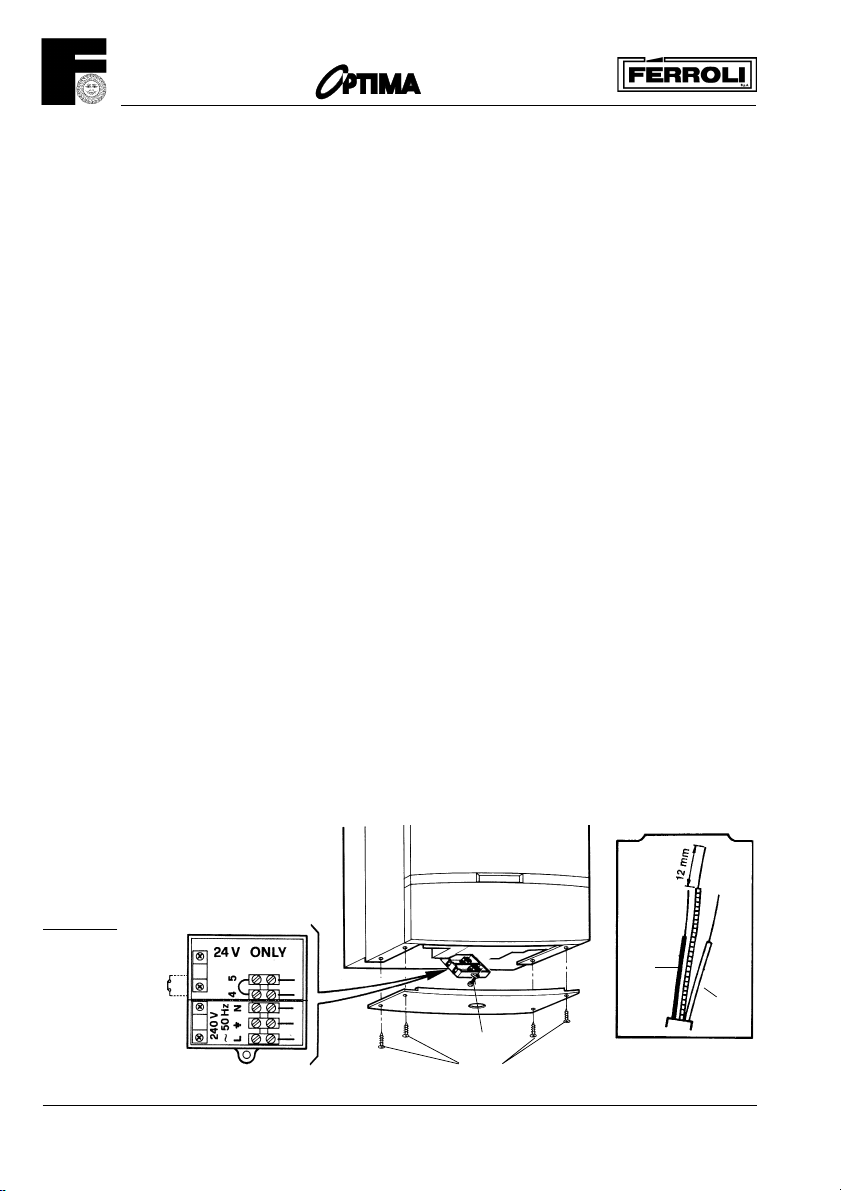

7.1 Procedure

7.1.1 The supply cable must be no less than 0.75 mm (24x0.2 mm) to BS6500 table 16.

7.1.2 The earth conductor must be cut longer than the live and neutral (fig. 19). Connect the Supply Cable to the terminal block marked 240 V ~ 50 Hz, L, N, the supply cable is to be connected as follows:

i) Connect the brown wire to the L (live) terminal). ii) The blue wire to the N (neutral) terminal. iii) The green/yellow wire to the (earth) terminal.

7.1.3 Secure the cable with the cable clamp. The supply cable can be connected to the mains supply by the use of an unswitched shuttered socket-outlet in conjunction with the 3A fused 3 pin plug both in accordance with BS

1363. This provides complete isolation. Alternatively, a fused double pole switch having a contact separation of at least 3 mm, in all poles and provided just for the boiler and its external controls can be used. A wiring diagram is provided on the appliance, attached to the rear of the front panel. In addition, there is one in this manual (fig. 25). Attention is drawn to the requirements of the current I.E.E. Regulation and in Scotland, the electrical provisions of the Building regulations.

7.2 Room Thermostat (fig. 18) (or remote time clock connection)

7.2.1 Please note that the room thermostat, clock switch connection is 24 V. To connect mains voltage to these terminals will seriously damage the printed circuit board. The room thermostat and clock switch connector block is situated within the connector box. Twin core cable should be used for this connection (terminals 4 and 5).

7.2.2 If using a remote 240 Volt time clock ensure that the motor and switch connections are totally separate in the clock and that the switch connections are independent for the 24 Volt terminals (4 and 5) on the boiler.

External controls: room stat or remote time clock in the place of loop terminals 4 and 5. Please note 24 V only, use only voltage free contacts.

IMPORTANT If 240 V is

connected to terminals 4 or 5, damage will be caused to the P.C.B.

Fig. 18

Screw

Fixing screw

Brown

Blue

Fig. 19

Page 19

8.0 COMMISSIONING AND TESTING

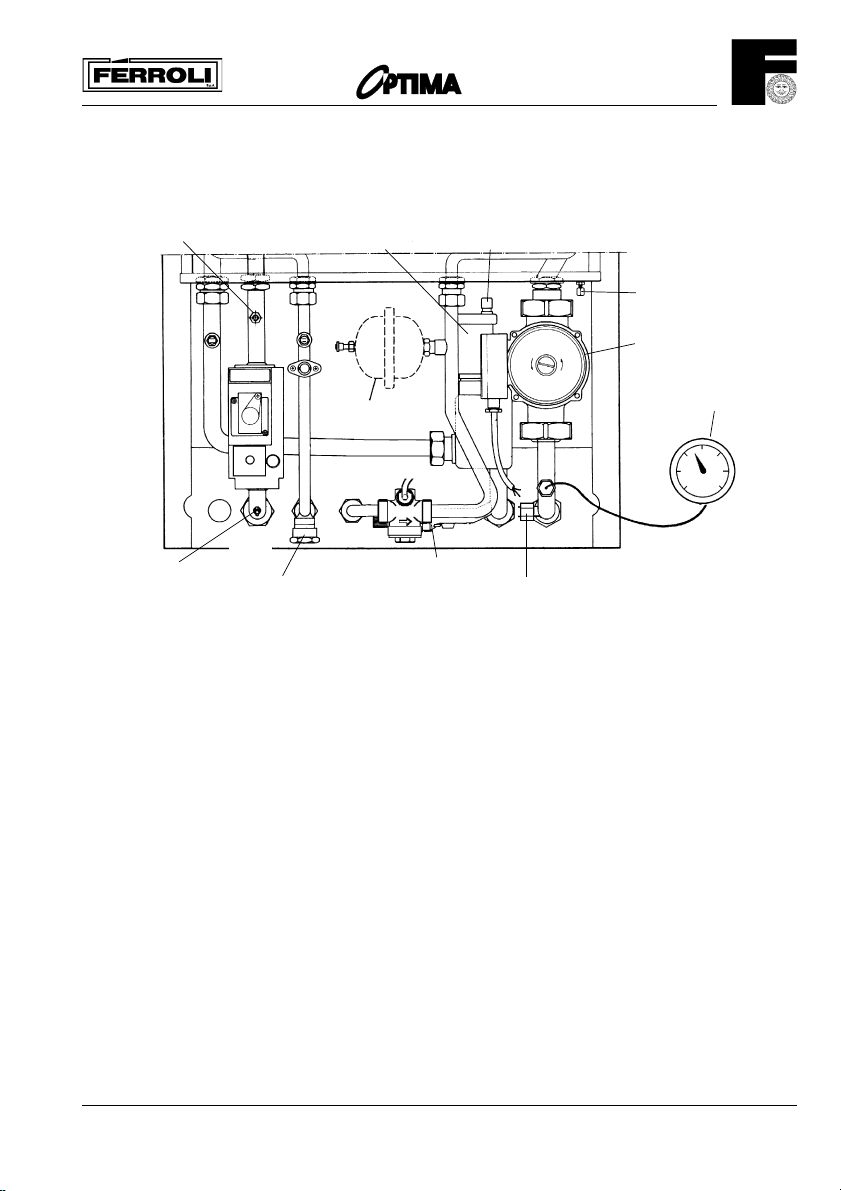

8.1 Filling the Central Heating System

801

Burner pressure

test point

Gas inlet pressure test point

D.H.W. drain point

Automatic air vent

D.H.W. expansion

vessel (optional)

C.H. pressure relief valve

Vent cap

Heat exchanger vent

Pump

pressure gauge

Fig. 20

Low water pressure switch

Remove the top front panel by gripping both sides and lifting forward away from main boiler assembly. Loosen the cap of the automatic air vent (fig. 20) and leave it loose. Open the central heating flow and return cocks (fig. 11). Gradually fill the system as detailed in Make up Water. While filling, vent the heat exchanger at venting point by loosening cap (fig. 20) and vent each radiator. Tighten cap on heat exchanger air vent. Ensure the working pressure, when filled, is between 1 to 1.5 bar on the pressure gauge (see technical data). Check the system for leaks. Flush system in accordance with BS 7593.

8.2 Filling the Domestic Hot Water System

Close all hot water draw off points. Open main cold water stop cock and ensure the cold water inlet cock is open at the boiler jig bracket (fig. 11). Slowly open each hot tap in turn until clean water, free from air pockets, is seen. Check system for leaks.

8.3 Electricity Supply

Carry out preliminary checks (i.e. earth continuity, polarily short circuit and resistance to earth using a suitable multimeter).

8.4 The Gas Installation

The whole of the gas installation including the meter, should be inspected and tested for soundness, and purged in accordance with the recommendations of BS6891-1988.

Page 20

Flame failure

reset knob

C.H. boiler thermostat

801

Flame viewing

opening

AUTO

12:31

E ID

R R VE

C.H. pressure

gauge

fig. 21

C.H./D.H.W. selector switch

Fault diagnostic lights

Domestic hot water thermostat

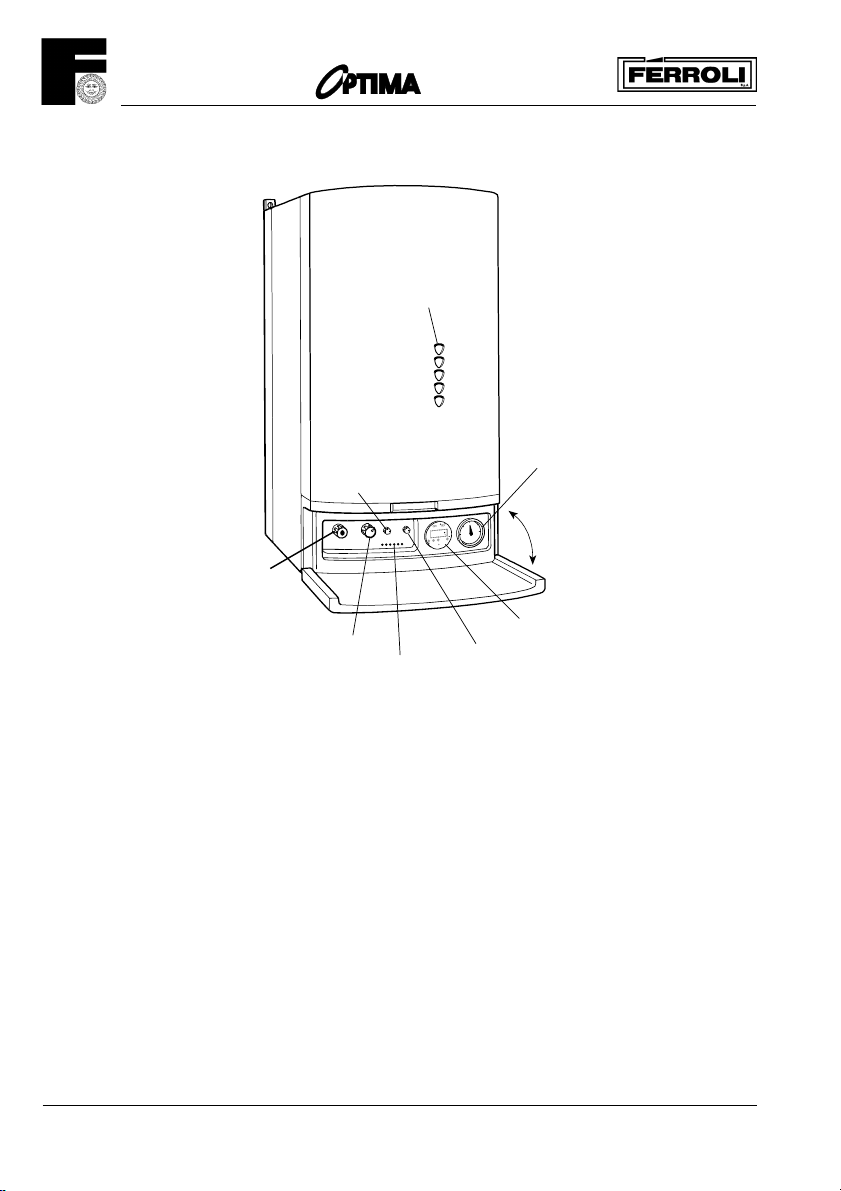

8.5 To Light the Boiler (fig. 21) a. Open controls panel door.

b. Switch on electricity supply. c. Adjust room thermostat and all external controls to «ON». Check operation of pump. d. Turn the boiler thermostat to maximum. Fan will run (A waiting time of max 3 minutes before fan will run is possible!), and main burner will light. e. Temporarily turn off by switching off electricity supply.

Important Note: If the burner stops for C.H. only after a waiting time of 3 minutes will the boiler light again!

Time clock (if fitted)

Page 21

801

Burner Pressure C.H. and D.H.W.

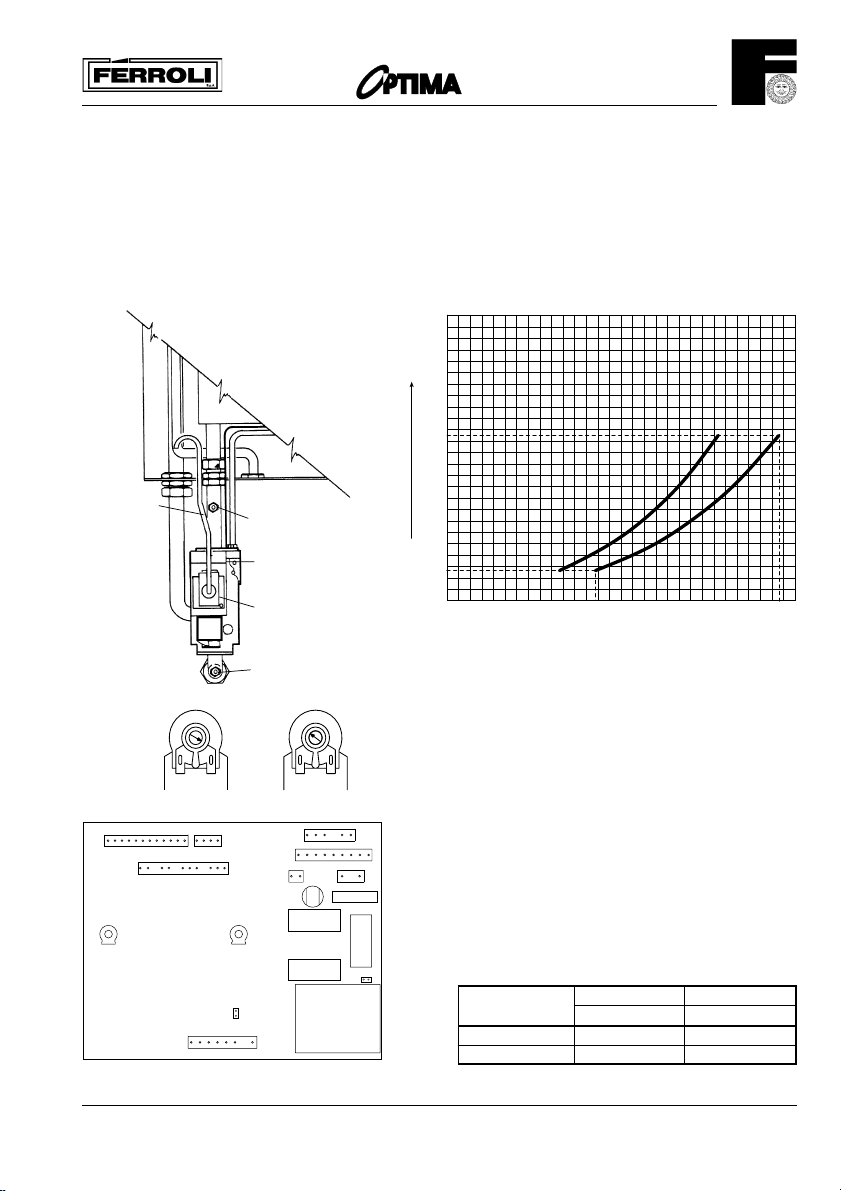

8.6 To Range Rate the Boiler C.H. (not required for standard installations).

The boiler can be range rated for an output from 9.7 kW up to 23.3 kW. When the boiler is supplied it is factory set at the maximum output 23.3 kW.

Procedure

a. Release the control panel fixing screws (fig. 30) and lower panel. b. Loosen the screw in the burner pressure test point (fig. 22) and attach a gauge. c. Switch on the electricity supply to relight the main burner.

22 20 18 16 14 12

mbar

Fig. 23

8 6 4 2 0

9.7

12.8 23.3 28.6

Note 1 - Modulation is available on central heating, so the procedures must be carried out while the system is relatively cold. Recheck boiler thermostat is set to maximum.

d. Adjust the potentiometer P1 on the PCB (fig. 24) in the control panel until the required burner pressure is obtained (Anticlockwise to reduce the pressure).

Note 2 - The range of inputs with corresponding burner pressure is given on the Data badge which is situated behind the top front panel. Further informations is on (fig.

23). e. With the pressure set, turn off the electrical supply and

mark the set input on the Data badge (with sticker supplied).

Fig. 24

Burner Pressure C.H. and D.H.W. P1 =C.H. range rating to be set on site P2 =D.H.W. temperature (factory set, not to be adjusted) P1 Adjust with screwdriver!

Pressure Minimum Maximum settings mbar mbar Natural Gas 2.7 14.5 L.P.G. 7.9 36.0

Balance tube

Fig. 22

12 1

11 10

987654321

Test point burner pressure

Gas valve

Modureg

Gas inlet pressure test point

MIN

MAX

MIN

MAX

P2P1

6 5

341

230V 50Hz

123456789

2AT

RY4

JP4

234

7263512 910

JP1

RY1

RY2

TR1

Page 22

801

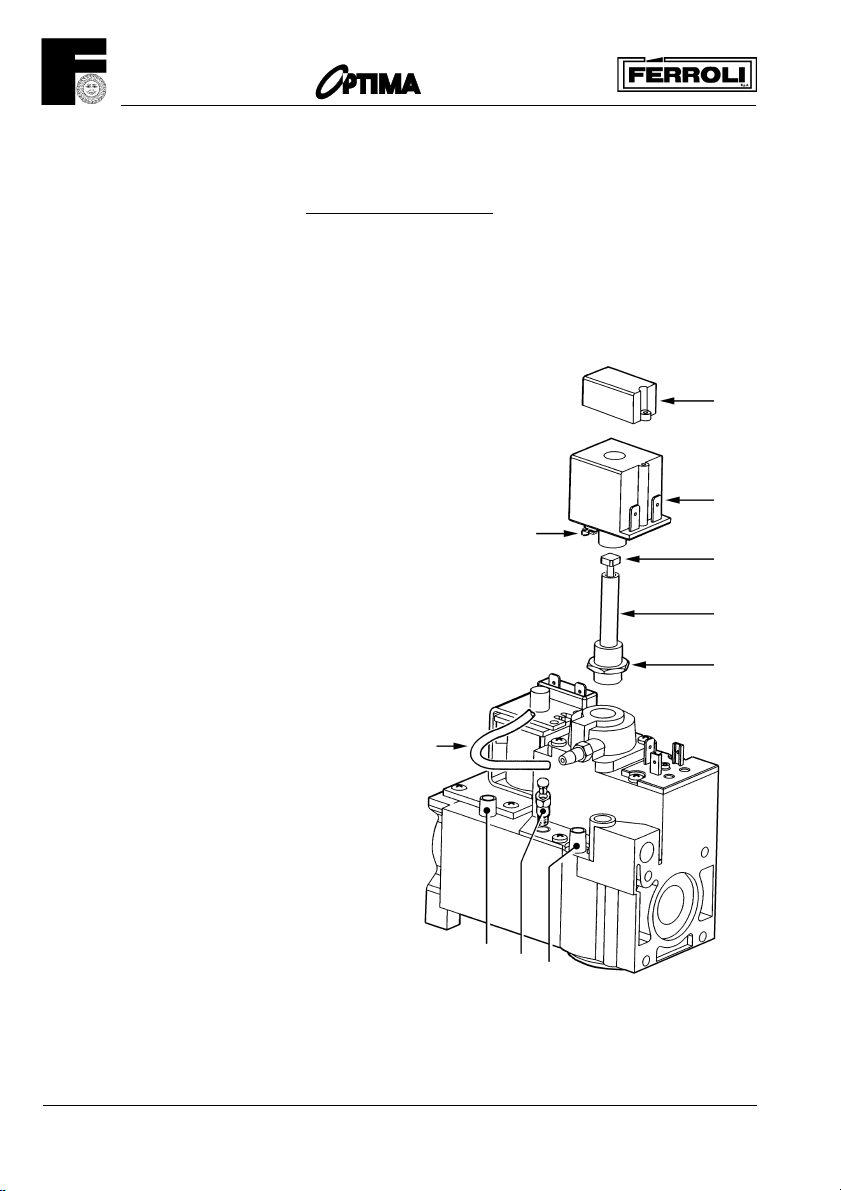

Honeywell VR 4600 N 4002 valve

with V7335A4014 Modureg

Gas pressure Adjustment

1 - With the burner lit: 2 - Connect suitable pressure gauge to burner test point "B", and then: 3 - Disconnect air pressure compensation tube "H"; 4 - Disconnect the wires from coil "C" of the Modureg; 5 - Remove protective cover "D"; 6 - Remove coil "C" by opening the coupling spring "I"; 7 - Screw the minimum adjustment screw "E" up tightly. (clockwise) 8 - Unscrew lock nut "F" on sleeve "G"; 9 - Adjust maximum pressure by rotating sleeve "G" clockwise to increase

pressure and anticlockwise to reduce pressure;

10 - Tighten sleeve lock but "F" then check that the pressure is still at the

required value;

11 - Adjust minimum pressure by rotating screw "E" anticlockwise

until the required value is reached;

12 - Fit coil "C" by sliding it into the sleeve, pushing and rotating it

lightly until the coupling spring "I" clicks into place;

13 - Shut down and ignite the burner, checking that the minimum

pressure value is stable;

14 - Reconnect the wires to coil "C" of the Modureg; 15 - Reconnect air pressure compensation tube "H"; 16 - Replace protective cover "D"; 17 - Turn burner off, remove pressure gauge, close and test,

test point;

Key A - Test point inlet pressure

B - Burner test point C - Coil D - Protective cover E - Minimum adjustment screw F - Lock nut G - Sleeve H - Pressure compensation tube I - Coupling spring L - Adapter (for only LPG version)

Page 23

801

8.7 D.H.W. Burner Pressure

The domestic hot water burner pressure is not range rateable and not adjustable but the maximum and minimum burner pressure should be checked as follows: a. Check electricity supply is still off. b. Open a D.H.W. tap at high flow until the water runs cool and leave running. c. Switch on the electricity supply. d. The pressure should be 14.5 mbar -/+ 0.5 mbar. e. Disconnect one of the wires from the «Modureg» (fig. 22), this will reduce the burner to minimum which should read 2.7 mbar +/- 0.5 mbar. If the burner pressure is not as stated check the inlet working pressure (fig. 22) which should be minimum 20 mbar. If that is correct, consult Ferroli. No attempt should be made to alter D.H.W. burner pressure. f. Switch off electrical supply and close hot tap. g. Reconnect the wire to the «Modureg». Remove pressure gauge, tighten the test screws. h. Replace control panel (2 screws). i. Turn on electricity supply, open a hot tap to full flow and when the burner lights, test for gas soundness with a leak detection fluid around the gas valve and connections including the pressure test point screws.

9.0 SYSTEM OPERATION

Let the boiler operate normally on central heating for about 30 minutes. I) Vent radiators. II) Vent heat exchanger. III) Examine all pipework for leakage. IV) Turn on a D.H.W. tap and check that the C.H. pump stops running. V) As the D.H.W. temperature reaches 60°C check the burner for modulation.

Switch off electricity.

Drain down the central heating system fully, and flush in accordance with B.S. 7593.

Refill the system as previously instructed. Repeat the venting.

Examine the system's water pressure and top up as necessary.

Replace the casing front panel and close the control panel cover.

10.0 HANDING OVER TO THE USER

After completion of installation and commissioning of the system: a. Hand over the User's Instructions' to the Householder and explain His/Her responsability under the Gas

safety (Installation and Use) Regulations 1984. b. Explain and demonstrate the lighting and shutting down procedure. c. Explain the operation of the boiler including the use and adjustment of ALL system controls.

Advise the User of the precautions necessary to prevent damage to the system and to the building,

in the event of the system remaining inoperative during frost conditions. d. Stress the importance of regular servicing by a qualified Heating Engineer and that a comprehensive

service should be carried out at LEAST ONCE A YEAR.

Page 24

801

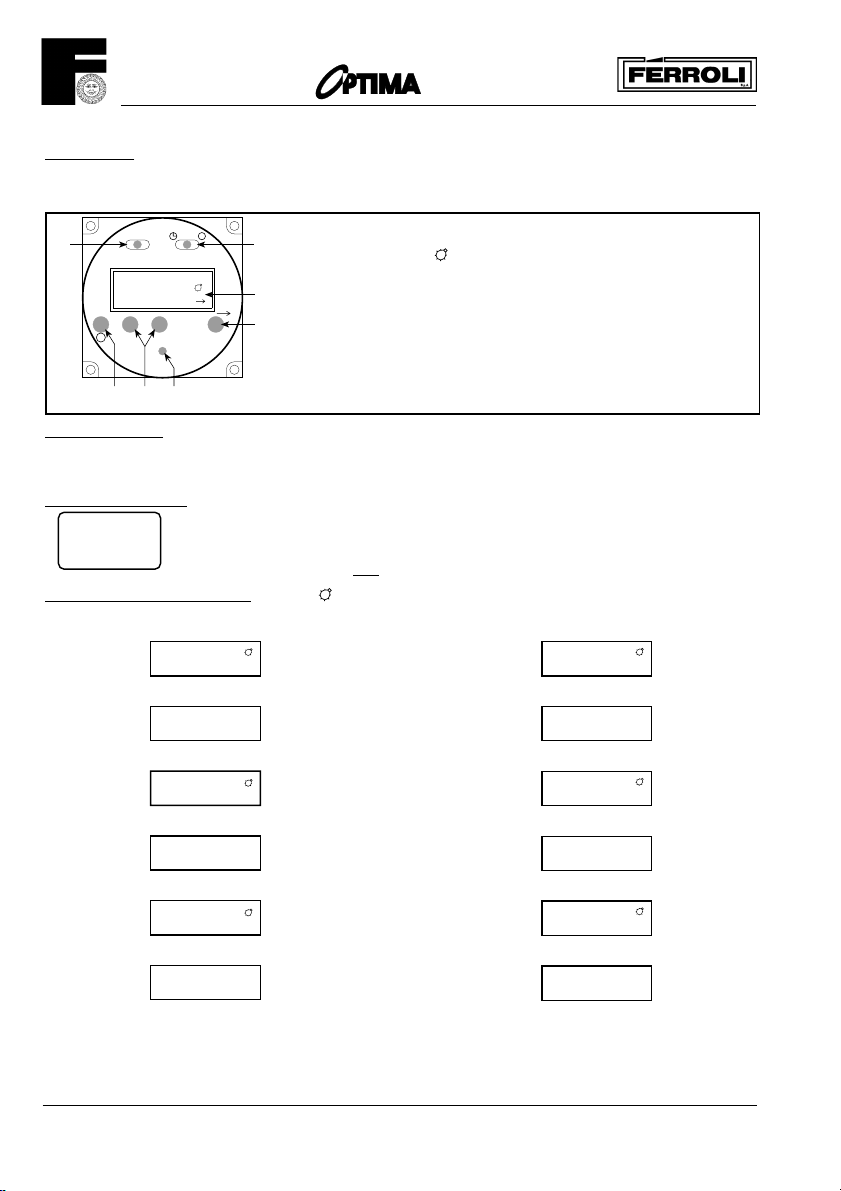

Time Clock

A 24 hour time clock is fitted to the boiler to control the central heating, this will come into operation when the selector switch is turned to the position marked “heating timed and hot water”.

AUTO

12:31

OVER RIDE

RDP

To set time of day

1. Slide switch (A) to left position

2. Using button + and Pre Set Programmes. The timer is pre programmed with 3 ON and 3 OFF times.

6:30 - 8:30

12:00 - 12:00

16:30 : 23:30

To Set Own ON and OFF times. Symbol in Display = ON time

1. Slide switch (A) to right position (P)

Display

2. Press button (P) Display

3. Press button (P) Display

4. Press button (P) Display

5. Press button (P) Display

6. Press button (P) Display

7. The timer can be programmed with up to 8 ON and

8 OFF times by repeating the above procedure.

adjust until the correct time is shown on display (B).

If these are suitable no programming is required and the slide switch (A) can be moved to the Auto position and the central heating will be ON for these periods. (12:00 - 12:00 will not switch on the boiler)

6:30

8:30

12:00

3 12:30

12:00

16:30

22:30

A Slide switch: set clock - auto - set programme

B Display. Symbol in Display = Timer ON

P Select programme ON/OFF 1.....8

D Push buttons Time + Time E Override: Boiler will switch ON if boiler is OFF;

and OFF if is ON

F I=Heating continuous - AUTO=Heating timed - O=Heating disabled R Reset (with pencil) only with switch A in set clock position

1.1 Use buttons + and - to set 1st ON time eg. 6:00

1 6:00

2.1 Use buttons + and - to set OFF time, eg. 9:00

2 9:00

3.1 Use button + and - to set 2nd ON time, eg. 12:30

4.1 Use button + and - to set 2nd OFF time eg. 14:00

5.1 Use button + and - to set 3rd ON time, eg. 16:00

6.1 Use button + and - to set 3rd OFF time eg. 23:30

8. On completion of programming slide switch (A) to Auto

Display

position, the time of day will be displayed and the central heating will switch ON and OFF according to the programme set.

14:00

16:00

23:30

Page 25

801

Over ride

By pressing the over ride button (E) the timer programme is over ridden ie, if programme is in OFF time it will come ON and if in ON time will go OFF.

The timer will revert back to it set programme on reaching the next ON or OFF time. When the programme is on over ride the sign will be shown in the display window (B).

Reset Button

By the use of a pencil the reset button can be pushed (R). This will clear all programmes apart from those factory pre set.

Reset is only possible with switch (A) in set Clock position!

Page 26

12345678

LED

157

100

136

801

101

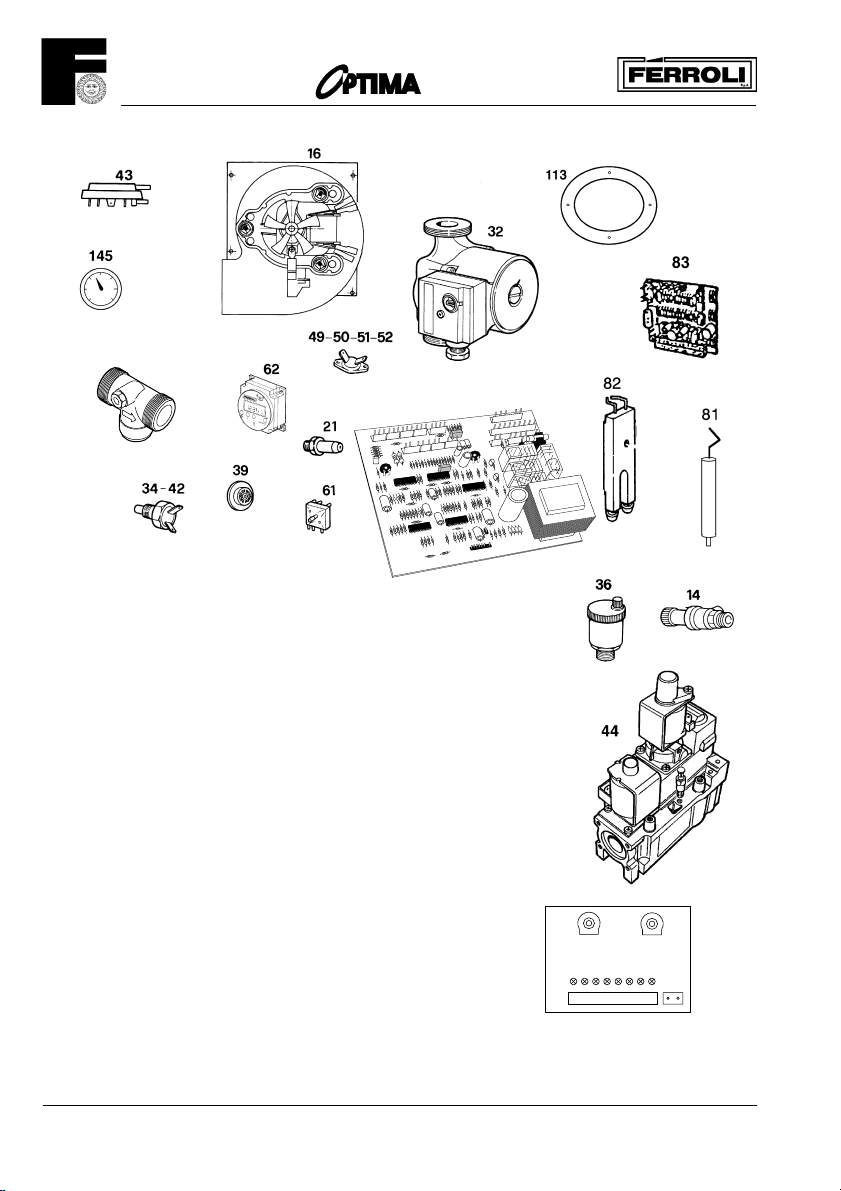

Spare Parts List

Item No.G.C. Part No.Makers Part NoNo. OffDESCRIPTION

14 386816 800130 1 C.H. safety valve 16 - 803860 1 Complete fan 21 372176 815850 4 Main injector (Natural Gas) 21 - 800920 4 Main injector (L.P.G.) 32 386814 800600 1 Central heating pump 34 386818 800310 2 Temperature sensor 36 394246 801160 1 Automatic air vent 39 386829 801220 1 Cold water flow limiter 10 lt/min. 42 386818 800310 2 Temperature sensor 43 381691 800140 1 Air pressure switch 44 - 802500 1 Combination gas valve 49 386815 801240 1 Overheat cut-off thermostat 50 386577 800160 1 Heat exchanger limit thermostat 51 386828 800180 1 Heat exchanger frost thermostat 61 372225 801230 1 C.H.selector switch 62 - 803840 1 Time clock 81 - 801440 1 Ignition electrode 82 - 801430 1 Flame sensing electrode

83 - 802560 1 Ignition board Honeywell 100 - 803420 1 Fault diagnostic/temperature control panel 101 - 803410 1 P.C.B. VMF7 113 - 823071 1 Special two pipe flue adapter 136 - 803430 1 Flowmeter 145 - 840187 1 C.H. pressure gauge

100

Page 27

Domestic Hot Water Performance

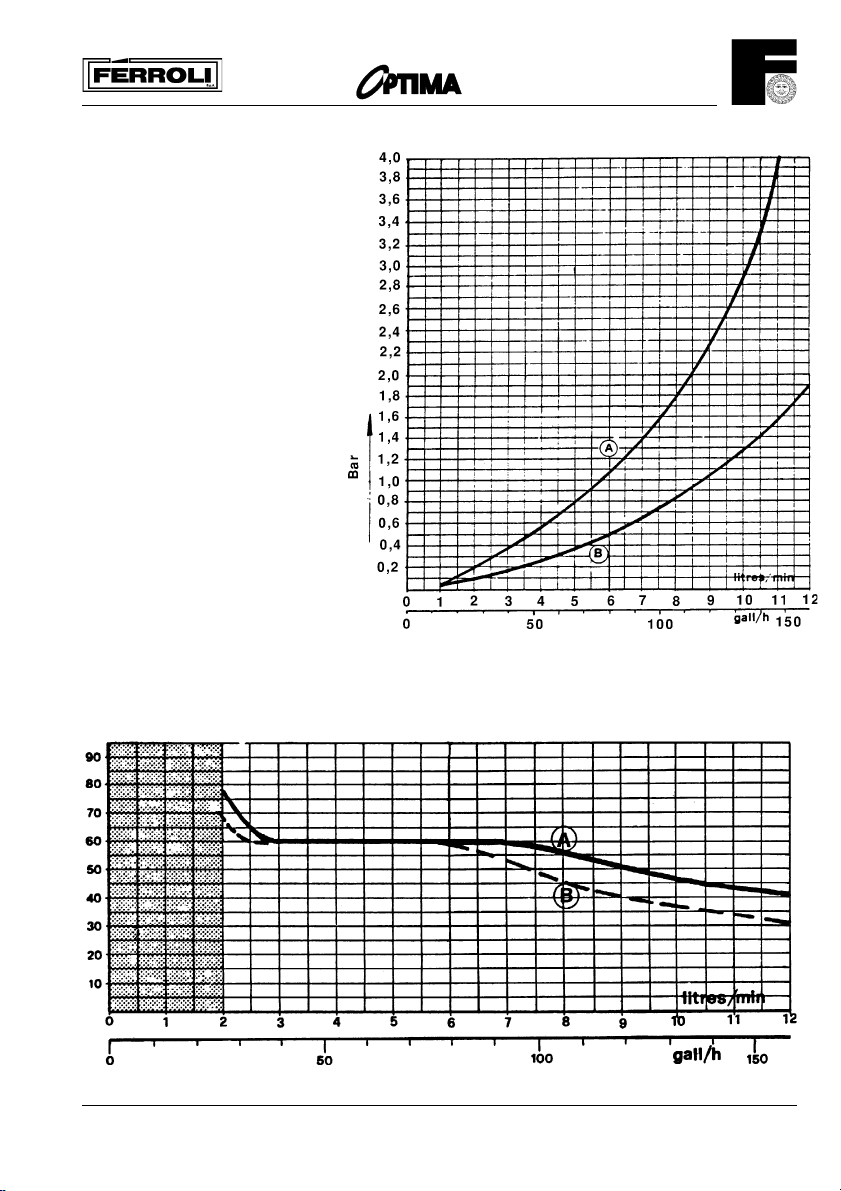

Fig. 1 - D.H.W. Pressure Drop VS. flow A=Standard with cold water Flow Restricter B=Cold Water Flow Restricter Removed

801

Fig. 1

Fig. 2 - D.H.W. temperature VS. flow A=Cold Water 15°C B=Cold Water 5°C

Fig. 2

Page 28

801

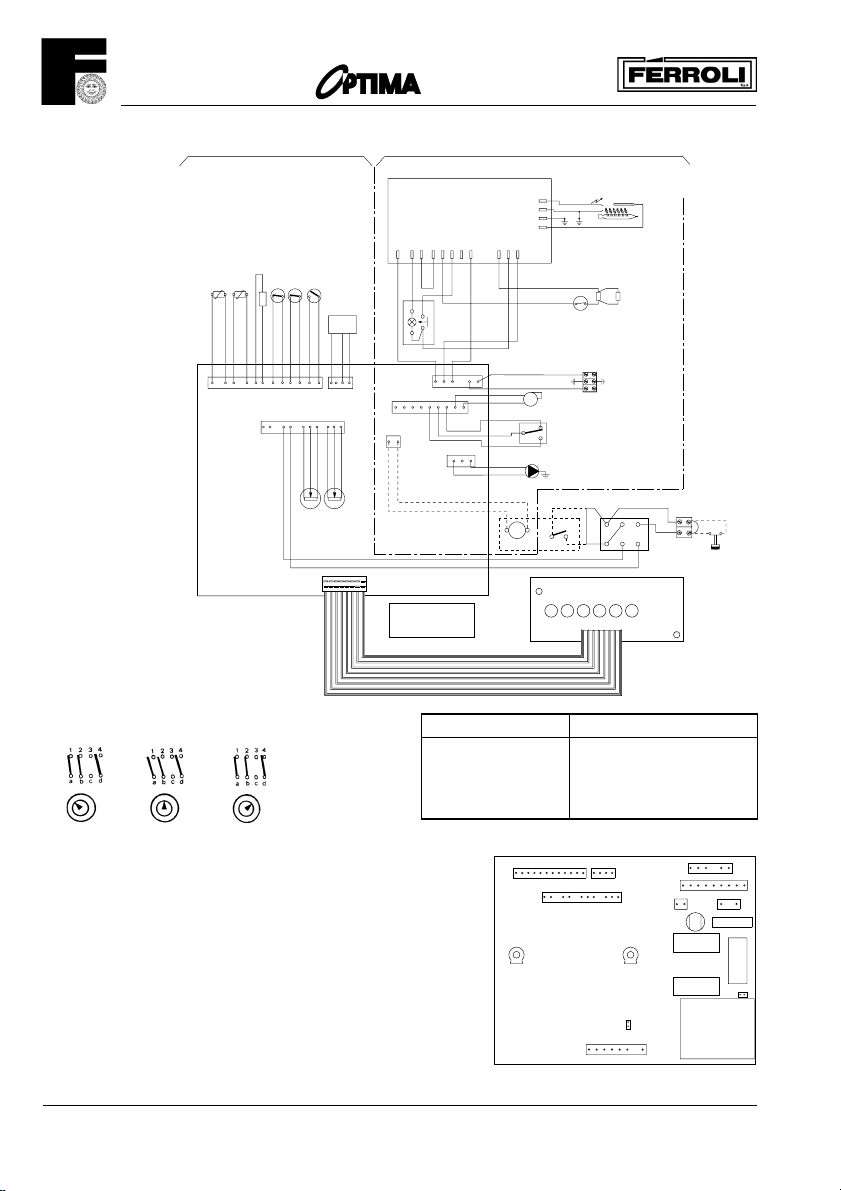

JP1 Is not required JP4 Is not required NOTE: THE TRANSFORMER ON THE P.C.B. HAS A BUILT-IN OVERHEAT PROTECTION. IF THIS IS OPEN, ALL LED'S WILL BE OFF BUT THE C.H. PUMP (32) WILL RUN SWITCH OFF THE BOILER FOR AT LEAST 20 MINUTES

24 V

5284

12 8

13 7 26135910

50114

63 157

61. C.H. selector switch

P1 = C.H. max. output

Heating timed and hot water

16 Fan 32 Central heating pump 34 C.H. flow temperature sensor 42 D.H.W. temperatuure sensor 43 Air pressure switch 46 Operator gas valve 47 Modulating regulator

(MODUREG) gas valve

49 Overheat cut-off thermostat 50 Heat exchan. limit thermostat 51 Heat exchan. frost thermostat 61 C.H. selector switch 62 Time clock (not fitted) 63 C.H. boiler thermostat 68 Control box with P.C.B.

Hot water only Heating

continuous and hot water

72 Room thermostat (not fitted) 80 Five pole terminal 240V + 24V 81 spark electrode 82 Flame sensing electrode 83 Automatic ignition control panel 84 1. gas valve operator 85 2. gas valve operator 86 automatic control reset knob 101 P.C.B. 114 Low water pressure switch 136 Flowmeter 145 C.H. pressure switch 157 D.H.W. thermostat 164 Fault diagnostic/temperature control panel

P2 = D.H.W. temperature (factory set) JP1 and JP4: Jumpers

230V ~ 50 Hz.

X6 X5

X4 X3

12 1476521313

136

OUT

197 26

129

876

CONNECTOR X7 1-2 = 230 V

3834

54 213

5214

312

VMF7

CONNECTOR X2

A D.H.W. FLOWSWITCH (ON-OFF) CAN BE CONNECTED TO TERMINALS 1 AND 3

12 1

11 10

987654321

230V

bad

LD2

L6L5L4L3L2L1

CONNECTOR X3

SHORT CIRCUIT 12-13

- BOILER STARTS FOR C.H.

- WAITING TIME IS EXCLUDED

- MAX BURNER PRESSURE C.H. CAN BE CHEDKED/SET WITH P1

234

7263512 910

JP1

6 5

RY1

RY2

TR1

24V

230V 50Hz

123456789

341

2AT

RY4

JP4

Page 29

801

General Notes - For use on the 801 - 1001 fitted with VMF7 Printed Circuit Board

*The central heating pump (32) will run to disperse heat if the temperature at the heat exchanger limit thermostat (50) is too high *The frost thermostat (51) will switch on the boiler for central heating if the temperature is too low. *Fuse on P.C.B.: 2 Amp.

Jumpers JP1 - JP4

Fitted Not fitted

JP1 No waiting time Waiting time on JP4 Fan control Fan control

High & Low speed High speed only/off

Temp. sensor

temp. Ohm

10° C 890 ohm 25° C 1000 ohm 60° C 1300 ohm 80°C 1490 ohm

RY not energised RELAY RY

RY1 central heating pump RY2 on/off relay RY3 RY4 fan

Check operation using LED's as a fault finding guide. First check section A, then B, then C, then D. 0 = LED off 1 = LED on x = LED either on/off is not important

Domestic Hot water tap open (Flow rate greater than 2,5 l/min)

LED OK FAULT POSSIBLE CAUSE OF FAULT

1 1 0 No mains electricity/switches off/fuse blown. 2 1 0 D.H.W. flowmeter (136) not operating. 3 X X Not required for D.H.W. 4 1 0 - D.H.W. sensor (42) not connected or D.H.W. temperature too high

5 0 1 - Waiting time operating: replace P.C.B. 6 1 0 Short circuit on D.H.W. sensor (42) or resistance lower than 500 Ohm

LED n° signification:

1 Mains on/low voltage on 2 Flowmeter (136) on 3 Central heating room thermostat (72) / clock (62) calling 4 Sensor (34) or (42) calling for heat 5 Central Heating waiting time, max. 3 minutes delay following shut off

Boilerstat (63), Clock (62), Roomstat (72) or use of Hot Water

6 Demand for heat - relay (RY2) will be energised 7 Air pressure switch (43) on, air flow checked

RY energised

- C.H. limit thermostat (50) open circuit (pump run)

- C.H. water pressure low (114 open circuit)

Note

If RY1 is not energised the Central Heating pump will run

CENTRAL HEATING ON Room stat (72) at Max, HW tap closed

LED OK FAULT POSSIBLE CAUSE OF FAULT

1 1 0 No main electricity/switches off, fuse blown. 2 0 1 Hot water tap open - D.H.W. flowmeter (136) contact closed 3 1 0 Roomstat (72) or clock (62) not calling for heat 4 1 0 - Central heating sensor (34) not connected or

5 0 1 Waiting time still operating (max. 3 minutes) 6 1 0 - C.H. sensor (34) short circuit or resistance lower than 500 ohm

GENERAL TEST FOR D.H.W. AND CENTRAL HEATING (First check A and B above)

LED/REL. OK FAULT POSSIBLE CAUSE OF FAULT

RY2 energised not energised Check first A and B above RY4 energised not energised Air pressure switch (43) not in NC position or miswired:

7 1 0 - fan (16) not running at full speed or

- boiler temperature too high or

- boiler thermostat (61) below CH temperature

- C.H. limit thermostat (50) open circuit (pump will run)

- C.H. water pressure low (114 open circuit)

- check wiring

- fan (16) at low speed remove jumper JP4

- air flow too low:

- air pressure switch (43) faulty

IGNITION OF BURNER (AUTOMATIC IGNITION)

1 Fan (16) should run at full speed (open hot tap or set controls

so boiler is calling for heat).

2 Check first A, B and C above (LED 6 is ON?)

3 Check spark and position of spark electrode (81) 4 Check position of flame sensing electrode (82) 5 Check burner gas pressure during ignition

Page 30

801

Special Installation Possibilities: Two-pipe air intake/flue outlet

Special Air Intake/Flue Outlet

The standard Flue/air intake hood on top of the boiler can be replaced by a special two pipe flue adapter.

235

242

= Special two pipe flue adapter 823071

= remove air intake cover Ø 80 mm

120

Øi82

126.5

480

Øi92

160

157

Ø80Ø80

Page 31

Page 32

Phone numbers:

Installer

Service Engineer

BECAUSE OF OUR CONSTANT ENDEAVOUR FOR IMPROVEMENT DETAILS MAY VARY SLIGHTLY FROM THOSE QUOTED IN THESE INSTRUCTIONS.

ALL SPECIFICATIONS SUBJECT TO CHANGE

Lichfield Road, Branston Industrial Estate, Burton Upon Trent, Staffordshire DE14 3HD

Tel. 08707 282 885 - Fax 08707 282 886

Cod. 3540250/2 - 01/01
