Table of Contents :

Not for

Reproduction

Identification Tag Location ................................................. 3

Product Identification Tag (Stamped) ............................... 3

Operator Safety ................................................................... 3

Operator Safety ............................................................... 3

Safety Decals ................................................................ 10

Safety Icons ................................................................... 11

Safety Alert Symbol and Signal Words .......................... 11

Safety Interlock System ................................................. 12

Features and Controls ...................................................... 12

Funciones de Control y Ubicaciones ............................. 12

Operation ........................................................................... 13

Before First Time Operation .......................................... 13

Checks Before Starting .................................................. 14

Starting the Engine ........................................................ 14

Stopping the Rider ......................................................... 14

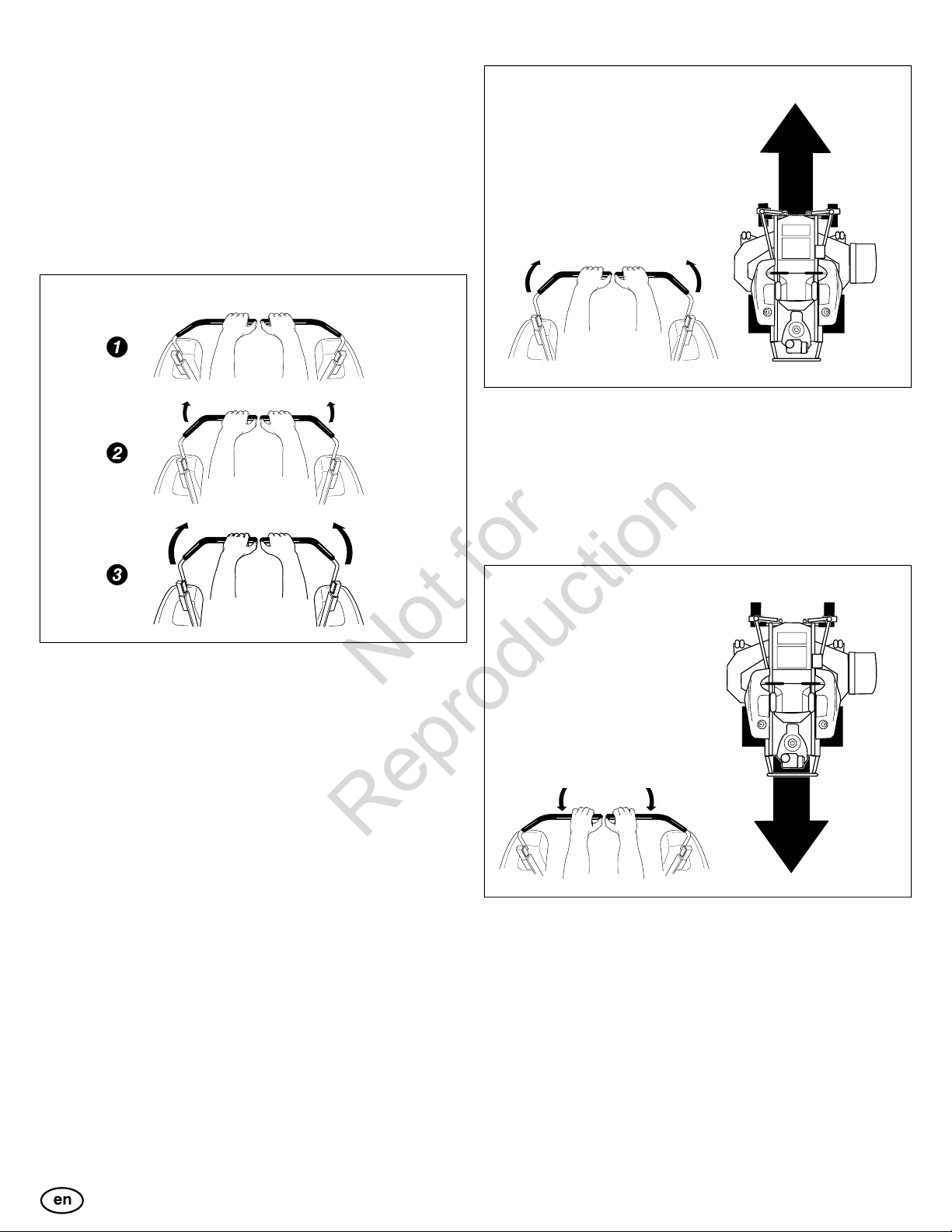

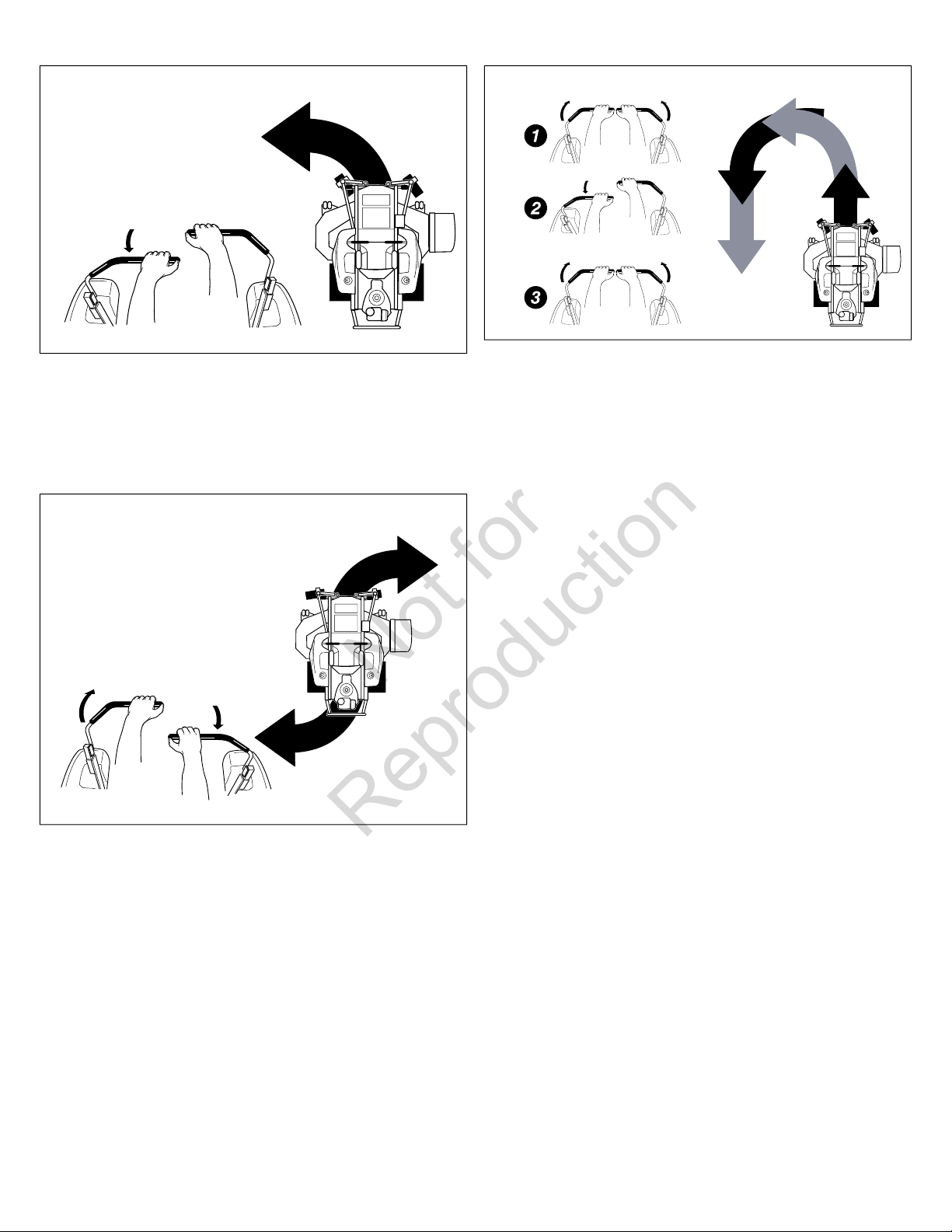

Zero-Turn Driving Practice ............................................. 14

Mowing .......................................................................... 16

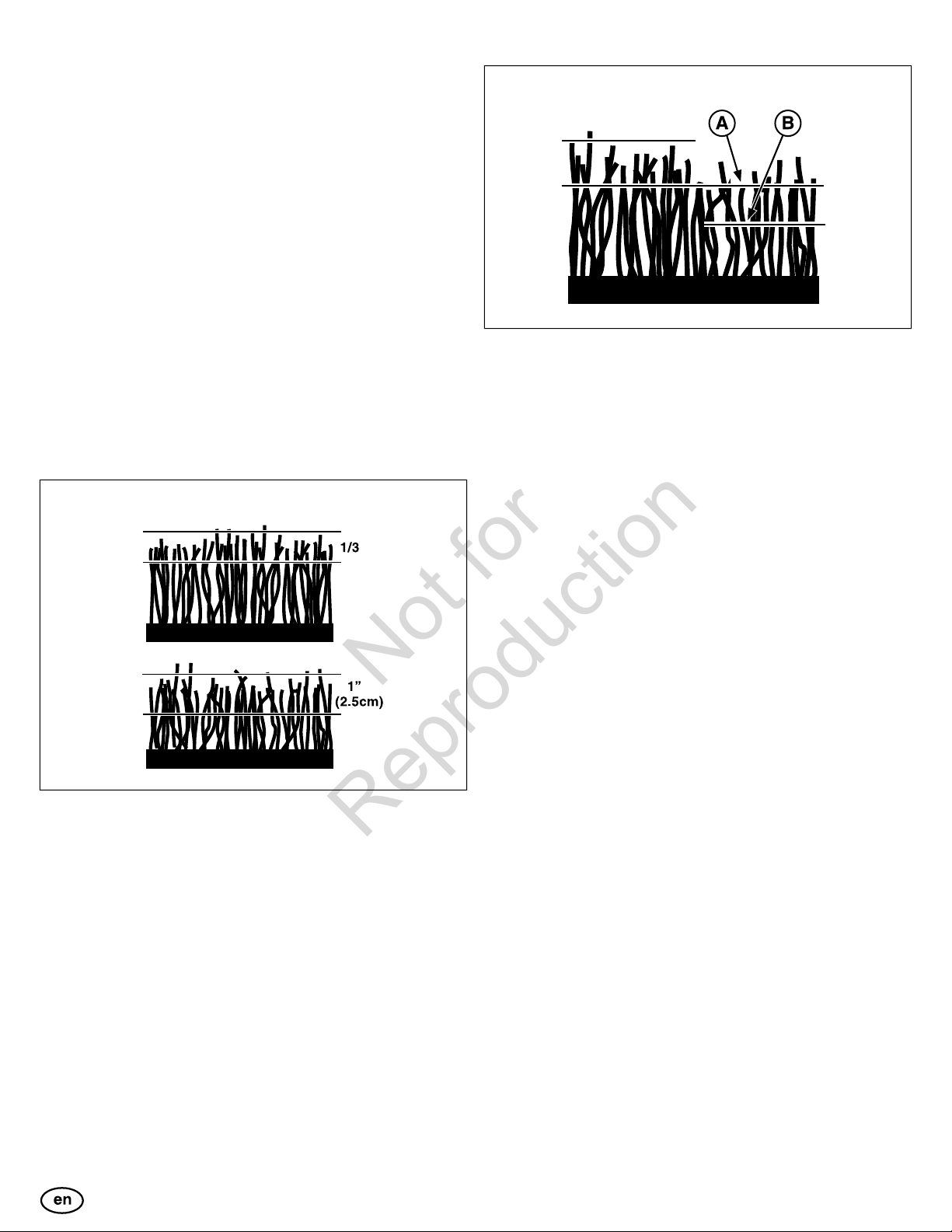

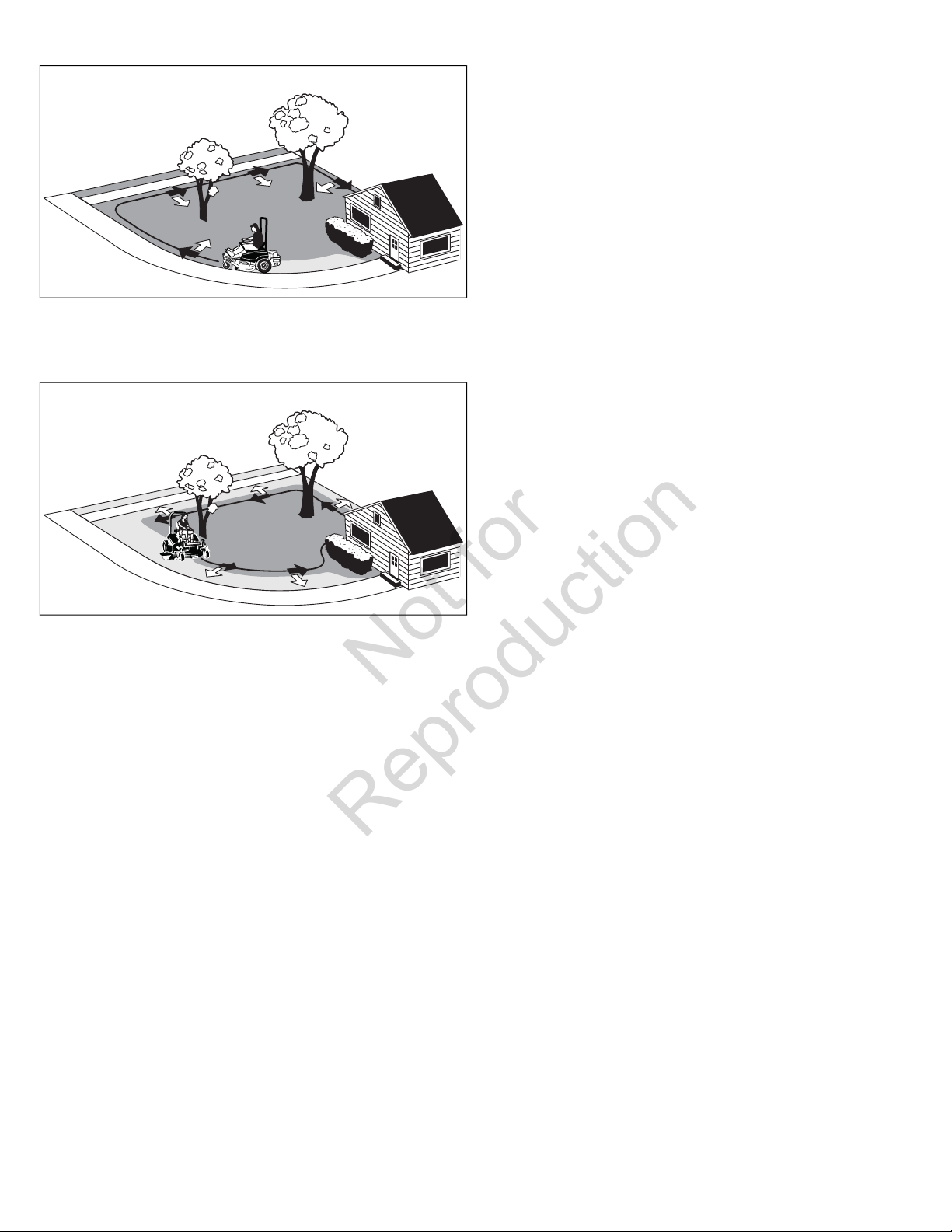

Mowing Recommendations ........................................... 16

Pushing the Rider By Hand ........................................... 18

Raise and Lower the Roll Bar ........................................ 19

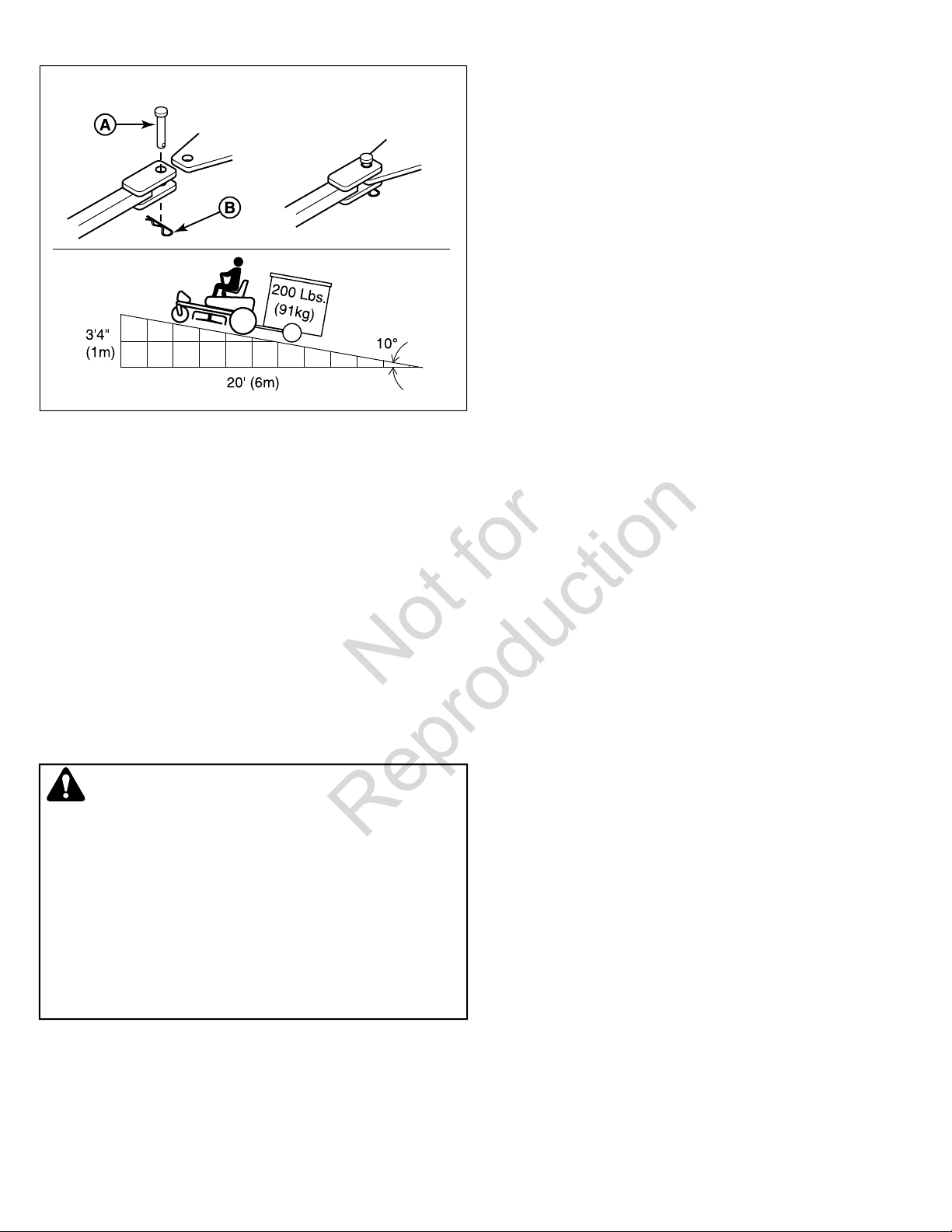

Attaching a Trailer .......................................................... 19

Storage .......................................................................... 20

Maintenance Schedule ..................................................... 21

Maintenance Schedule .................................................. 21

Maintenance Procedures ................................................. 21

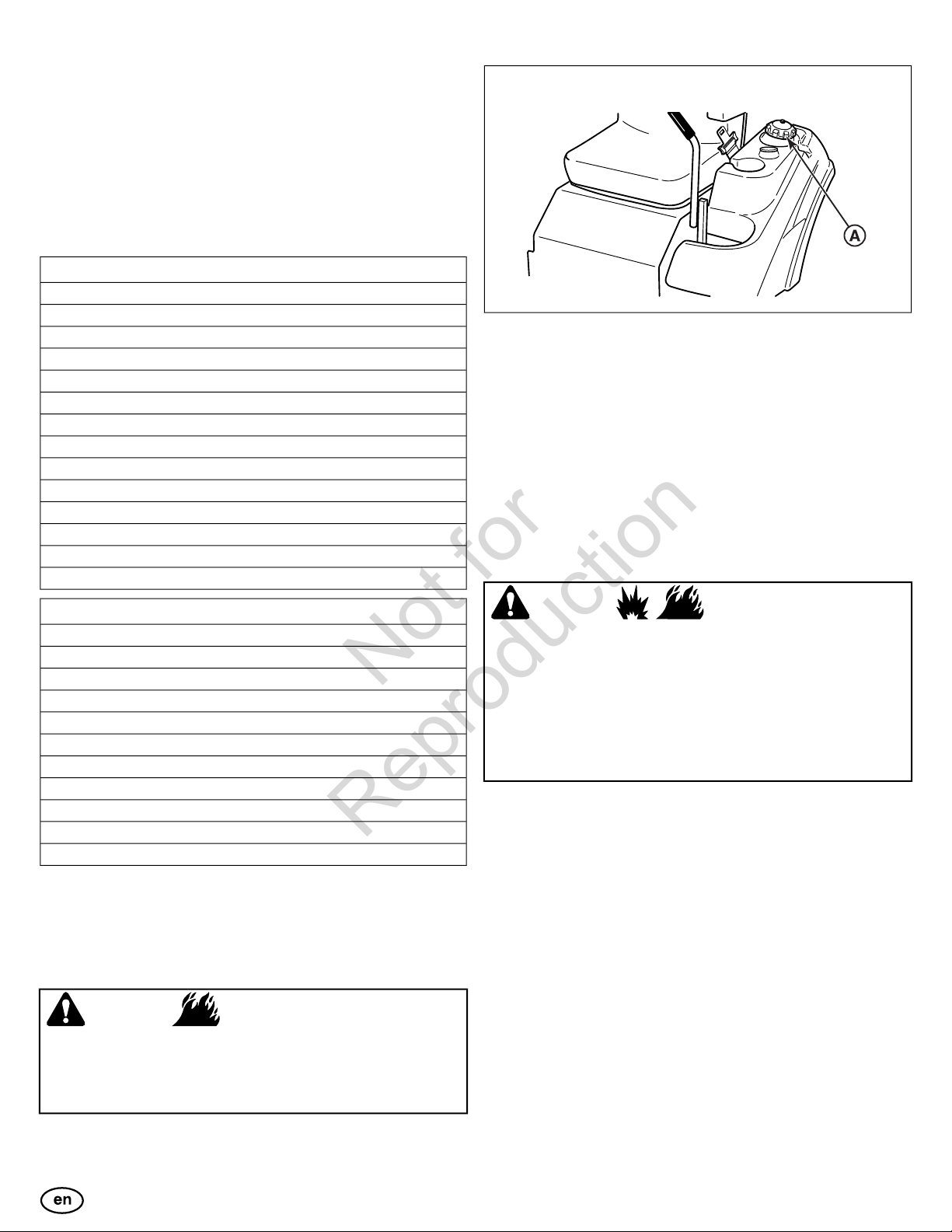

Checking / Adding Fuel ................................................. 21

Replacing the Fuel Filter ................................................ 21

Check Engine Oil Level ................................................. 21

Change Oil & Filter ........................................................ 22

Engine Maintenance ...................................................... 22

Accessing the Spark Plugs for Service .......................... 22

Inspect Muffler and Spark Arrester ................................ 22

Check Hydraulic Oil Level .............................................. 22

Change Hydraulic Oil Filter ............................................ 23

Lubrication ..................................................................... 23

Lubricate the Front Casters ........................................... 24

Servicing the Mower Blades .......................................... 24

Ground Speed Control Lever Adjustment ...................... 26

Speed Balancing Adjustment ........................................ 26

Checking Tire Pressures ............................................... 26

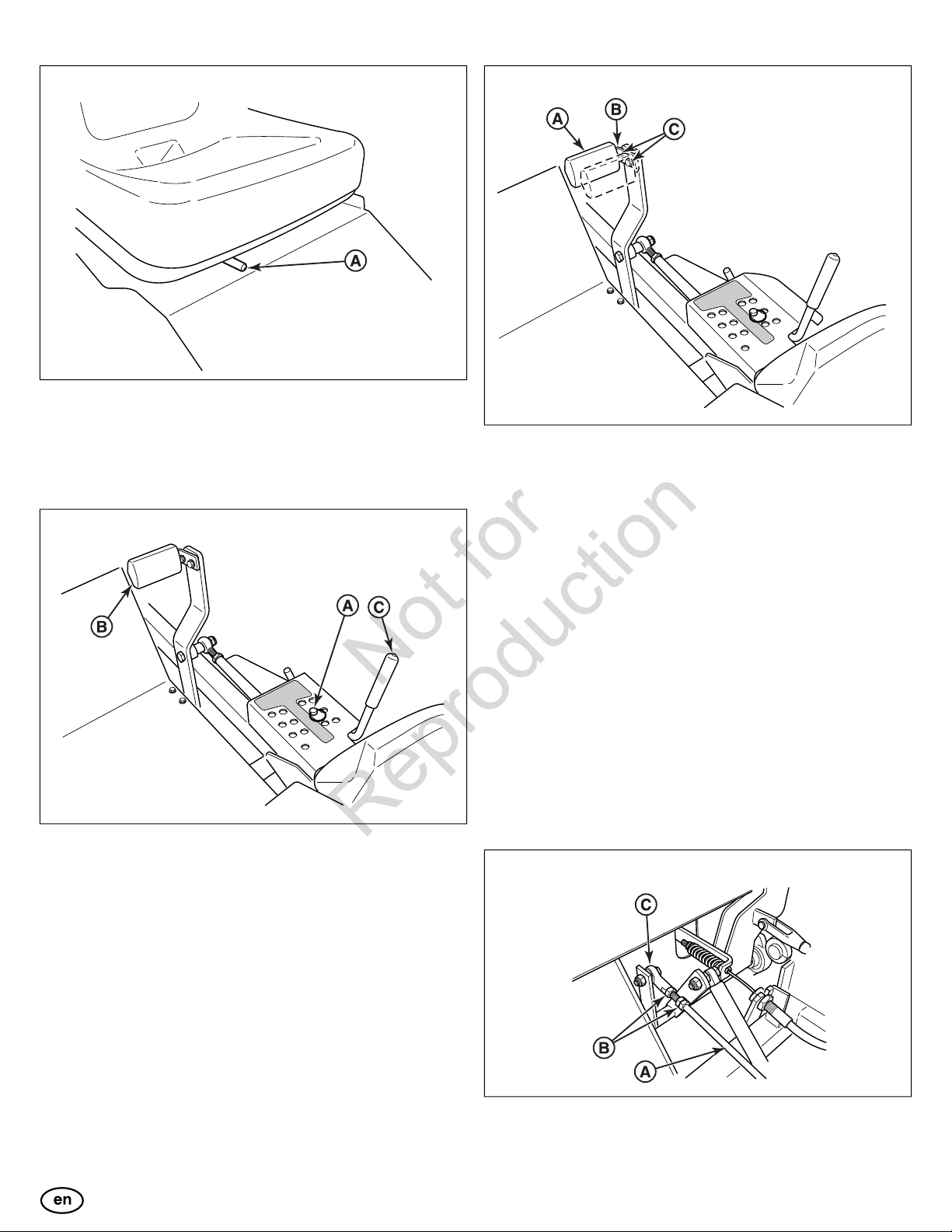

Seat Adjustment ............................................................ 26

Mowing Height Adjustment ............................................ 27

Foot Pedal Adjustment .................................................. 27

Neutral Adjustment ........................................................ 27

Return-to-Neutral Adjustment ........................................ 28

Parking Brake Adjustment ............................................. 28

Deck Lift Rod Timing Adjustment .................................. 29

Deck Leveling Adjustment ............................................. 29

Mower Belt Replacement .............................................. 31

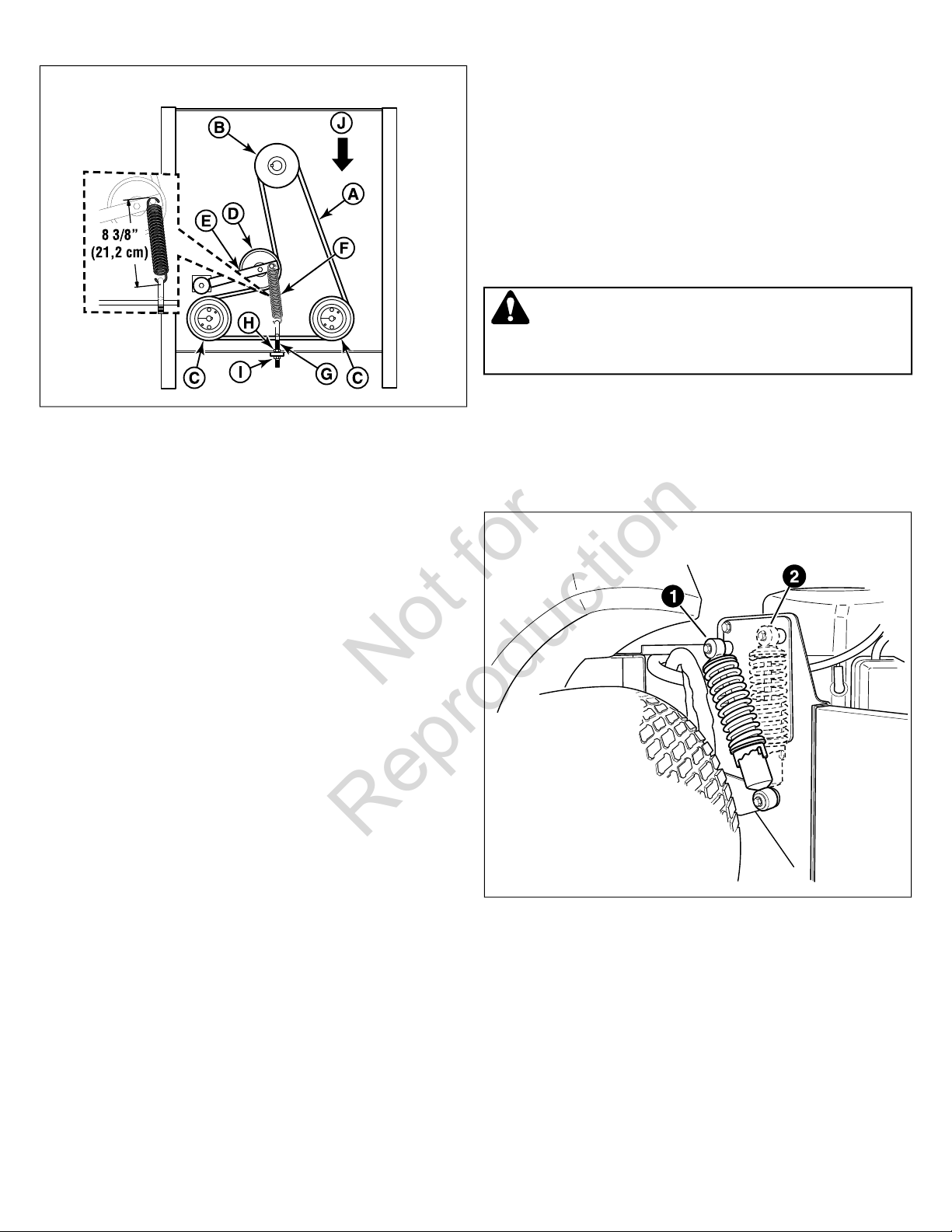

Hydraulic Pump Drive Belt Replacement ....................... 31

Rear Suspension Adjustment ........................................ 32

Battery Maintenance ..................................................... 33

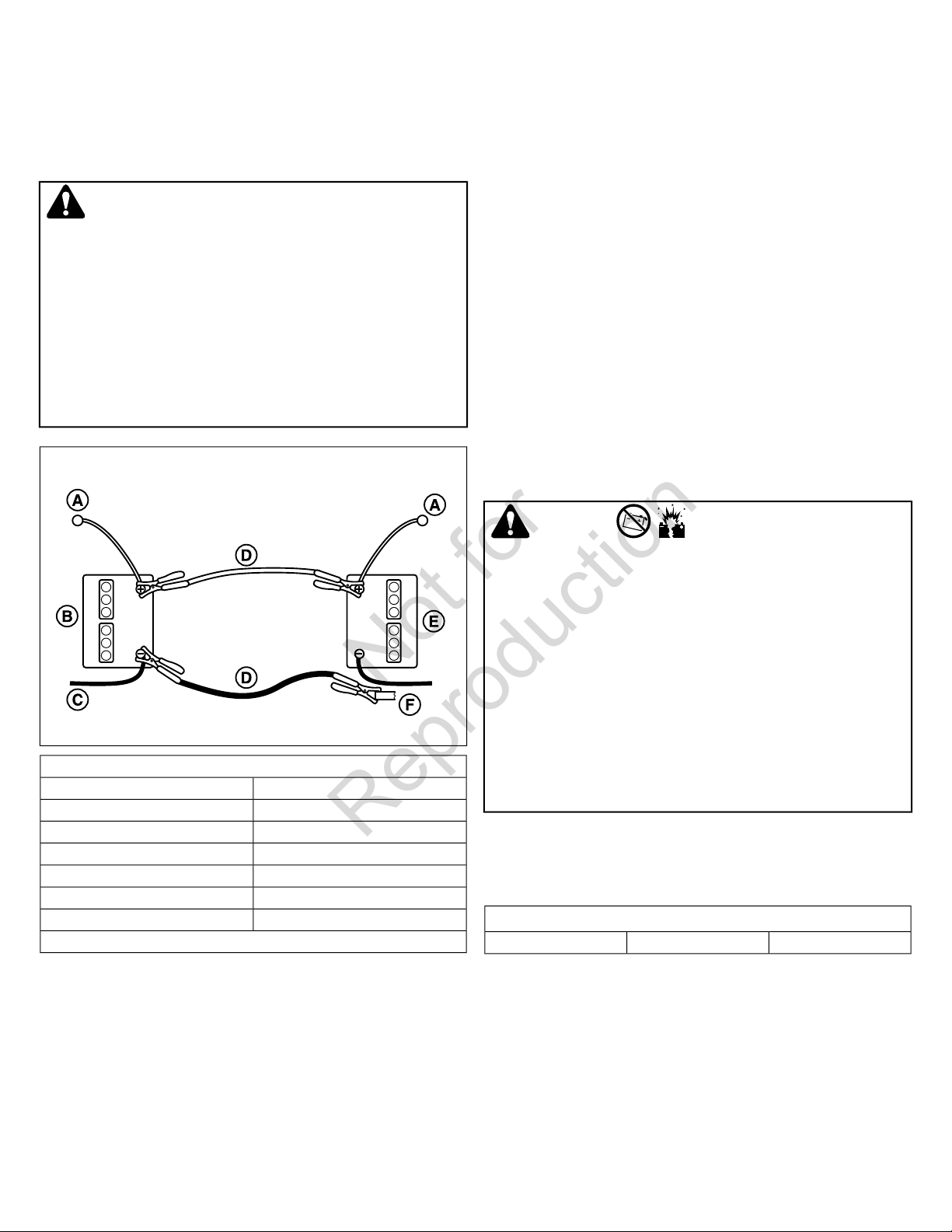

Battery Service .............................................................. 33

Troubleshooting ................................................................ 34

Troubleshooting Charts ................................................. 34

Troubleshooting Common Cutting Problems ................. 36

Specifications .................................................................... 36

Specifications ................................................................ 36

2 ferrisindustries.com

Thank you for purchasing this quality-built Ferris Commerical

Not for

Reproduction

Zero Turn Mower. We’re pleased that you’ve placed your confidence in the Ferris brand. When operated and maintained according to the manuals, your Ferris product will provide many years of dependable service.

The manuals contain safety information to make you aware of the hazards and risks associated with the unit and how to avoid them. This Commerical Zero Turn Mower was designed to be used as described in operator's manual and is not intended for any other purpose. It is important that you read and understand the instructions thoroughly before attempting to start or operate this equipment. Save these original instructions for future reference.

Product Identification Tag (Stamped)

This product requires final assembly before use. Refer to the setup guide for instructions on final assemblyprocedures. Follow the instructions completely.

Products Covered by This Manual

The following products are covered by this manual: 5900832 5900833 5900836 5900877 5900576 5900588

The images in this document are representative, and are meant to compliment the instructional copy they accompany. Your unit may vary from the images displayed. LEFT and RIGHT are as seen from the operator's position.

Ferrisis a trademark ofBriggs & StrattonPower ProductsGroup, LLC

Briggs & Stratton Power Products Group, LLC.

5375 N. Main Street Munnsville, NY 13409-4003 (800) 933-6175 ferrisindustries.com

Identification Tag Location

The Product Identification tag (A, Figure 1) can be found in the location shown.

PRODUCT REFERENCE DATA

Unit Model Number: Unit Serial Number: Mower Deck Model Number: Mower Deck Serial Number: Dealer Name: Date Purchased:

ENGINE REFERENCE DATA

Engine Make: Engine Model: Engine Type/Spec: Engine Code/Serial Number

When contacting your authorized dealer for replacement parts, service, or information you MUST have these numbers.

The Illustrated Parts List for this machine can be downloaded from ferrisindustries.com. Please provide model and serial number when ordering replacement parts.

Operator Safety

Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating

hands and feet and throwing objects.

The safety alert triangle in text signifies important cautions or warnings which must be followed.

Operating Safety

Congratulations on purchasing a superior-quality piece of lawn

Not for

Reproduction

and garden equipment. Our products are designed and manufactured to meet or exceedall industry standards for safety.

Do not operate this machine unless you have been trained. Reading and understanding this operator’s manual is a way to train yourself.

Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous! Remember, you areresponsible for your safety and that of those aroundyou.

Use common sense, and think through what you are doing. If you are not sure that the task you are about to perform can be safely done with the equipment you have chosen, ask a professional: contact your local authorized dealer.

Read the Manual

Slope Operation

Operation on slopes can be dangerous. Using the unit on a slope that is too steep where you do not have adequate wheel traction (and control) can cause sliding, loss of steering, control, and possible rollover. You should not operate ona slope greater than a 5.4 foot rise over a 20 foot length (15 degrees).

Alwaysmow across slopes,not up and down(to maintain traction on the wheels) and avoid sudden turns or rapid speed changes. Reduce speed and use extreme caution on ALL slopes.

The operator’s manual contains important safetyinformation you need to be aware of BEFORE you operate your unit as well as DURING operation.

Safe operating techniques, an explanation of the product’s features and controls, and maintenance information is included to help you get the most out of your equipment investment.

Be sure to completely read the Safety Rules and Information found onthe following pages.Also completely read theOperation section.

Children

Tragic accidents can occur with children. Do not allow them anywhere nearthe area of operation.Children are often attracted to the unit and mowing activity. Never assume that children will remain where you last saw them. If there is a risk that children may enter the area where you are mowing, have another responsible adult watch them.

Also, note that the surface condition you are on can greatly impact your ability to safely operate this machine. Operating on wet or slippery slopes cancause sliding and loss of steering and control. Do not operate on slopes that are slippery, wet, or have soft soil conditions.

If you feel unsure about operating the unit on a slope, don’t do it. It’s not worth the risk.

Thrown Objects

This unit has spinning mower blades. These blades can pick up and throw debristhat could seriously injure a bystander. Be sure to clean up the area to be mowed and remove objects thatcould be thrown by the blade BEFORE you start mowing.

Do not operate this unit without the entire grass catcher or discharge guard (deflector) in place.

Also, do not allow anyone in the area while the unit is running! If someone does enter the area, shut the unit off immediately until they leave.

4 ferrisindustries.com

Moving Parts

Not for

Reproduction

This equipment has many moving parts that can injure you or someone else. However, if you stay in the operator zone (stay seated in the seat), and follow the safety rules in this operator’s manual, the unit is safe to operate.

The mower deck has spinning mower blades that can amputate hands and feet. Do not allow anyone near the unit while it is running! Keep safety devices (guards, shields, and switches) in place and working.

To help you, the operator, use this equipment safely, it is equipped with an operator-present safety system. Do NOT attempt to alter or bypass the system. See your dealer immediately if the system does not pass all the safety interlock system tests found in this manual.

Retaining Walls, Drop-Offs and Water

Retaining walls and drop-offs around steps and water are a common hazard. Give yourself a minimum of two mower widths of clearance around these hazards and hand-trim with a walk behind mower or string trimmer. Wheels dropping overretaining walls, edges, ditches, embankments, or into water can cause rollovers, which may result in serious injury, death, or drowning.

Overhead Obstacles

Roll Bar Use

Keep the roll bar in the raised position and fasten the seat belt. There is no roll over protection when the roll bar is down! Do not jump off if the mower tips (it is safer to be secured by the seat belt with the roll bar raised.)

Lower the roll bar only when necessary (such as to temporarily clear a low overhanging obstacle) and NEVER remove it. Do NOT use the seat belt when the roll bar is down. Raise the roll bar as soon as clearance permits.

Check foroverhead clearances before driving under anyobjects. Do not allow the roll bar to contact low overhanging obstacles such as tree branches and guide wires.

Fuel and Maintenance

Always disengage all drives, shutoff the engine, and remove the key before doing any cleaning, refueling, or servicing.

Gasoline and its vapors are extremely flammable.Do not smoke while operating or refueling. Do not add fuel while engine is hot or running. Allow engine to cool for at least 3 minutes prior to adding fuel.

Do not add fuel indoors, in an enclosed trailer, garage, or any other enclosed area that is not well ventilated. Gasoline spills should be cleaned up promptly and before operation begins.

Gasoline should be stored only in sealed containers approved for fuel.

Proper maintenance is critical to the safety and performance of

Not for

Reproduction

your unit. Keep the unit free of grass, leaves, and excess oil. Be sure toperform the maintenance procedures listedin this manual, especially periodically testing the safety system.

Enclosed Areas

Only operate this unit outdoors and away from unventilated areas such as inside garages or enclosed trailers. The engine emits poisonous carbon monoxide gas and prolonged exposure in an enclosed area can result in serious injury or death.

Training

• Read, understand, and follow all instructions in the manual and on the unit before starting. If the operator(s) or mechanic(s) can not read English it is the owner’s responsibility to explain this material to them.

• Become familiar with the safe operation of the equipment, operator controls, and safety signs.

• All operators and mechanics should be trained. The owner is responsible for training the users.

• Only allow responsible adults, who are familiar with the instructions, to operate the unit.

• Neverlet children or untrainedpeople operate orservice the equipment. Local regulations may restrict the age of the operator.

• The owner/usercan prevent andis responsible for accidents or injuries occurring to themselves, other people orproperty.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

Preparation

• Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. Use only accessories and attachments approved by the manufacturer.

• Wear appropriate clothing including safety shoes, safety glasses and ear protection. Long hair, loose clothing or jewelry may get tangled in moving parts.

• Inspect the area where the equipment is to be used and remove all objects such as rocks, toys and wire, which can be thrown by the machine.

• Use extracare when handling gasolineand other fuels. They are flammable and vapors are explosive.

• Use only an approved container.

• Never remove fuel cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke.

• Never refuel or drain the machine indoors.

• Check that operator’s presence controls, safety switches and shields are attached and functioning properly. Do not operate unless they are functioning properly.

Operation

• Never run an engine in an enclosed area.

• Mow only in the daylight or with good artificial light, keeping away from holes and hidden hazards.

• Be sure alldrives are in neutral and parking brakeis engaged before starting engine.Only start engine from the operator’s position. Use seat belts if provided.

• Be sure of your footing while using pedestrian controlled equipment, especially when backing up. Walk, don’t run. Reduced footing could cause slipping.

• Slow down and use extra care on hillsides. Be sure to travel in the recommended direction on hillsides. Turf conditions can affectthe machines stability. Use cautionwhen operating near drop-offs.

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while traveling in reverse.

• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either the entire grass catcher or the deflector in place.

• Slow down and use caution when making turns and when changing directions on slopes.

• Never raise deck with the blades running.

• Never leave a running unit unattended. Always disengage the PTO, set parking brake, stop engine, and remove keys before dismounting. Keep hands and feet away from the cutting units.

• Turn off the PTO switch to disengage the blades when not mowing.

• Never operate with guards not securely in place. Be sure all interlocks are attached, adjusted properly and functioning properly.

• Never operate with the discharge deflector raised, removed or altered, unless using a grass catcher.

• Do not change the engine governor setting or overspeed the engine.

• Stop on level ground, lower implements, disengage drives, engage parking brake, shut off engine before leaving the operator’s position for any reason including emptying the grass catchers or unclogging the chute.

• Stop equipment and inspect blades after striking objects or abnormal vibration occurs. Make necessary repairs before resuming operations.

• Keep hands and feet away from the cutting units.

6 ferrisindustries.com

• Look behind and down before backing up to be sure of a

Not for

Reproduction

clear path.

• Nevercarry passengersand keep petsand bystanders away.

• Do not operate the unit while under the influence of alcohol or drugs.

• Slow downand use caution whenmaking turns and crossing roads and sidewalks. Stop blades if not mowing.

• Use carewhen loading or unloading themachine into a trailer or truck.

• Use care when approaching blind corners, shrubs, trees or other objects that may obscure vision.

• To reduce fire hazard, keep unit free of grass, leaves & excess oil. Do not stop or park over dry leaves, grass or combustible materials.

WARNING

It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered or grass-covered land unless the exhaust system isequipped with a sparkarrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws. Contact an Authorized Service Dealer to obtain a spark arrester designed for the exhaust system installed on this engine.

• OSHA regulations may require the use ofhearing protection when exposed to sound levels greater than 85 dBA for an 8 hour time period.

CAUTION

This machine produces sound levels in excess of 85 dBA at the operator’s ear and cancause hearing loss though extended periods of exposure.

Wear hearing protection when operating this machine.

which machine lift-off occurred in static tests. Actual dynamic stability may vary depending on operating conditions.

Do:

• Mow across slopes, not up and down.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the unit. Tall grass can hide obstacles.

• Use slow speed. Choose a slow speed so that you will not have to stop or change speed while on the slope.

• Use extra care with grass catchers or other attachments. These can change the stability of the unit.

• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.

• See yourauthorized dealer forrecommendations of available weights to improve stability.

Do NOT:

• Avoid starting, stopping, or turning on a slope. If tires lose traction (i.e. machine stops forward motion on a slope), disengage the blade(s) (PTO) and drive slow off the slope.

• Do not turnon slopes unless necessary, and then,turn slowly and gradually uphill, if possible. Never mow down slopes.

• Do not mow near drop-offs, ditches, or embankments. The operator could lose footing or balance or mower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

• Do not mow on wetgrass. Reduced footing or tractioncould cause sliding.

• Do not try to stabilize the unit by putting your foot on the ground. (ride-on units).

• Do not mow excessively steep slopes.

• Do not use grass catcher on steep slopes.

• Do not mow slopes if you cannot back up them.

Slope Operation

Slopes are a major factor related to loss-of-control and tip-over accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not drive on it.

WARNING

Do not use this machine on slopes greater than 15°.* Select slow groundspeed before driving onto slope. Use extra

caution when operating on slopes with rear-mounted grass catchers.

Mow across the face of slopes, not up and down, use caution when changing directions and DO NOT START OR STOP ON SLOPE.

* This limit was determined per CEN Standard EN 836:1997, Section 5.2.2 and is based on the EN 836 Stability Test procedure described in Section

4.2.4.2. The 15 degree “limit of stability” is equal to 50% of the angle at

Towed Equipment (Ride-On Units)

• Tow only witha machine that has ahitch designed for towing. Do not attach towed equipment except at the hitch point.

• Follow the manufacturer’s recommendations forweight limit for towed equipment and towing on slopes. See attaching a trailer under OPERATION.

• Never allow children or others in or on towed equipment.

• On slopes, the weight of the towed equipment may cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

• Do not shift to neutral and coast down hill.

Children

Tragic accidents can occur if the operator is not alert to the presence of children. Childrenare often attracted to the unit and the mowingactivity.Never assume thatchildren will remain where you last saw them.

• Keep children out of the mowingarea and under thewatchful

Not for

Reproduction

care of another responsible adult.

• Be alert and turn unit off if children enter the area.

• Before and during reverse operation, look behind and down for small children.

• Never carry children, even with the blade(s) off. They may fall off and be seriously injured or interfere with safe unit operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

• Never allow children to operate the unit.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

Emissions

• Engine exhaustfrom this productcontains chemicals known, in certain quantities, to cause cancer, birth defects, or other reproductive harm.

• Look for the relevant Emissions Durability Period and Air Index information on the engine emissions label.

Ignition Systems (Gasoline Models)

• This spark ignition system complies with Canadian ICES-002.

Service and Maintenance

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive.

Safe Handling of Gasoline

• Extinguish all cigarettes, cigars,pipes, and other sources of ignition.

• Use only approved gasoline containers.

• Never remove the gas cap or add fuel with the engine running. Allow the engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there is an open flame, spark, or pilot light such as near a water heater or other appliance.

• Never fill containers inside a vehicle or on a truck bed with a plastic bed liner. Always place containers on the ground away from your vehicle before filling.

• Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

• Keep nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immediately.

• Never over-fill the fuel tank. Replace gas cap and tighten securely.

• Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.

• If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapors have dissipated.

• Replace all fuel tank caps and fuel container caps securely.

Maintenance and Storage

• Always observe safe refueling and fuel handling practices when refueling the unit after transportation or storage.

• Always follow the engine manual instructions for storage preparations before storing the unit for both short and long term periods.

• Always follow the engine manual instructions for proper start-up procedures when returning the unit to service.

• Neverstore the machine or fuel container inside where there is an open flame, such as in a water heater. Allow unit to cool before storing.

• Shut off fuel while storing or transporting. Do not store fuel near flames or drain indoors.

• Keep all hardware, especially blade attachment bolts, tight and keep all parts in good working condition. Replace all worn or damaged decals.

• Never tamper with safety devices. Check their proper operation regularly.

• Disengage drives, lower implement, set parking brake, stop engine and remove key or disconnect spark plug wire. Wait for all movement to stop before adjusting, cleaning or repairing.

• Clean grass and debris from cutting units, drives, mufflers, and engine to prevent fires. Clean up oil or fuel spillage.

• Let engine cool before storing and do not store near flame.

• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

• Park machine on level ground. Never allow untrained personnel to service machine.

• Use jack stands to support components when required.

• Carefully release pressure from components with stored energy.

• Disconnect battery or remove spark plug wirebefore making any repairs. Disconnect the negative terminal first and the positive last. Reconnect positive first and negative last.

• Use care when checking blades. Wrap the blade(s) or wear gloves, and use caution when servicing them. Only replace blades. Never straighten or weld them.

• Keep hands and feet away from moving parts. If possible, do not make adjustments with the engine running.

• Charge batteries in an open well ventilated area, away from spark and flames. Unplug charger before connecting or disconnecting from battery. Wear protective clothes and use insulated tools.

8 ferrisindustries.com

• Grass catcher components are subject to wear, damage,

Not for

Reproduction

and deterioration,which could exposemoving parts or allow objects to be thrown. Frequently check components and replace with manufacturer’s recommended parts, when necessary.

• Check brake operation frequently. Adjust and service as required.

• Use only factory authorizedreplacement parts when making repairs.

• Alwayscomply with factory specifications on all settings and adjustments.

• Only authorizedservice locations shouldbe utilized for major service and repair requirements.

• Never attempt to make major repairs on this unit unless you have been properly trained. Improper service procedures can result in hazardous operation, equipment damage and voiding of manufacturer’s warranty.

• Units with hydraulic pumps, hoses, or motors: WARNING: Hydraulic fluidescaping under pressure may have sufficient force to penetrate skin and cause serious injury. If foreign fluid is injected into the skin it must be surgically removed within a few hours by a doctor familiar with this form of injury or gangrene may result. Keep body and hands away from pin holes or nozzles that eject hydraulic fluid under high pressure. Use paper or cardboard, and not hands, to search for leaks. Make sure all hydraulic fluid connections are tight and all hydraulic hoses and linesare in good condition before applying pressureto the system.If leaks occur,have the unit serviced immediately by your authorized dealer.

• WARNING: Stored energy device. Improper release of springs can result in serious personal injury. Springs should be removed by an authorized technician.

• Models equippedwith an engine radiator: WARNING: Stored energy device. To prevent serious bodily injury from hot coolant or steam blow-out, never attempt to remove the radiator cap while the engine is running. Stop the engine and wait until it is cool. Even then, use extreme care when removing the cap.

Roll Bar Instructions

For models equipped with factory-installed Roll Over Protection System (ROPS).

• Remember there is no roll over protection when the roll bar is in the down position so it is very important to always keep the roll bar in the raised position whenever possible.

• Lower the roll bar to the down position only when it is absolutely necessary.

• Check for overhead clearances before driving under any objects. Do not allow roll bar to contact low overhanging obstacles such as tree branches and guide wires.

• Never remove the roll bar from the vehicle.

• Do not exceed the machine weight rating of the roll bar.

• Read andfollow all of theinstructions shown belowregarding the inspection and maintenance of the roll bar structure and the seat belt.

Inspection of the Roll Bar Protective Structure

WARNING

Failure to properly inspect and maintain the ROLL BAR protective structure can cause serious injury or death.

A ROLL BAR, like any other safety device, needs to be periodically inspected to verify that the integrity of thedevice has not been compromised through normal machine use, misuse, age degradation, modifications, or a roll over.

To maintain operator roll over protection and roll bar effectiveness:

• If a ROLL BAR becomes damaged for any reason, such as a collision, roll over or impact, the ROLL BAR must be replaced. Small undetectable cracks can reduce the effectiveness of the ROLL BAR. Never weld, straighten, or repair the ROLL BAR.

• Never alter the ROLL BAR by welding anything to it or by drilling additional holes.

• BEFORE FIRST TIME USE - Inspect the ROLL BAR structure and mounting hardware for:

1) Check to make sure the machine GVW (Gross Vehicle Weight),including attachments, restrainedpayload, fuel and operator, is not in excess of the maximum weight specified on the ROLL BAR label.

2) Make sure there isn’t any missing, damaged, or loose mounting hardware.

WARNING

In order to avoid serious injury or death from roll over, it is important to follow the warnings listed below.

Operational Warnings

• Always use the seat belt when the roll bar is in the raised position.

• Never use the seat belt when the roll bar is in the down position.

3) Make sure the ROLL BAR has been correctly and completely installed.

• EVERY 100 HOURS - Inspect the ROLL BAR structure and mounting hardware for:

1) Any cracks in the structure (structural members and/or welds).

2) Significant corrosion on any part of the ROLL BAR structure or hardware.

3) Missing, damaged, or loose mounting hardware

4) Mounting hardware that is ofa grade lesser than specified.

5) Machine GVW (Gross Vehicle Weight), including

Not for

Reproduction

attachments, restrained payload, fuel andoperator, inexcess of the maximum weight specified on the ROLL BAR label.

California Prop 65 Exhaust Chemical Warning

6) Any modifications that have been made, such as unauthorized welds and holes.

7) Any permanent deformation or twisting of the ROLL BAR structure.

8) That the ROLL BAR label is still in place and is readable.

9) That the ROLL BAR on-product warning labels are still on the ROLL BAR and are readable.

• If there is any doubt as to the condition of the ROLL BAR, remove the machine from service and contact your dealer for assistance.

Inspection and Maintenance of the Roll Bar Seat Belt

WARNING

Failureto properly inspect andmaintain the seat belt cancause serious injury or death.

WARNING

U.S.A. Models: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

California Prop 65 Lead Warning

WARNING

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

Safety Decals

Before operating your unit, read the safety decals. The cautions and warnings are for your safety. To avoid a personal injury or damage to the unit, understand and follow all safety decals.

WARNING

If any safety decals become worn or damaged, and cannot be read, order replacement decals from your local dealer.

• The seat belt like the ROLL BAR, needs to be periodically inspected to verify that the integrity has not been compromised through normal machine use, misuse, age degradation, modifications,or a roll over. If the seatbelt does not pass all of the following tests, it should be replaced.

• BEFORE EACH USE – Conduct the following inspections/maintenance of the seat belt and retraction mechanism:

1) Check for dirt or debris in the retraction mechanism. If dirt or debris is found, it should be removed.

2) Check to make sure the retraction mechanism retracts easily and completely.

3) Check for damage to any part of the seat belt (A, Figure

2) such as nicks, cuts, loose stitching, or fraying.

4) Check that the buckle and latch (B) operate properly and that the latch plate is not excessively worn, deformed,or the buckle is damaged or cracked. The seat belt should latch and release easily.

10 ferrisindustries.com

* Located behind ROPS on the frame of the unit.

Not for

Reproduction

Safety Icons

AlertA Read the ManualB Thrown ObjectsC Pinch PointD Fire HazardE Amputation - Hand in BladeF Amputation - Foot in BladeG DropoffsH Maximum Slope Angle for Safe OperationI Overhead ObstaclesJ Rollover HazardK TipoverL Keep ROPS in Raised PositionM Keep Children AwayN Slippery SlopesO

DescriptionCallout

Safety Alert Symbol and Signal Words

The safetyalert symbol indicates a potentialpersonal injury hazard. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to designate a degree or level of hazard seriousness. A safety symbol may be used to represent the type of hazard. The signal word NOTICE is used to address practices not related to personal injury.

DANGER indicates a hazard which, if not avoided, will

result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could

result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, could

Not for

Reproduction

result in minor or moderate injury. NOTICE addresses practices not related to personal injury.

Safety Interlock System

This unit is equipped with safety interlock switches. These safety systems are present for your safety, do not attempt to bypass safety switches, and never tamper with safety devices. Check their operation regularly.

Operational SAFETY Checks

Test 1 - Engine SHOULD NOT crank if:

• PTO switch is engaged, OR

• Parking brake is not engaged, OR

• Ground speed control levers are not in the NEUTRAL position.

Test 2 - Engine SHOULD crank if:

• PTO switch is not engaged, AND

• Parking brake is engaged, AND

• Ground speed control levers are locked in the NEUTRAL position.

Test 3 - Engine should SHUT OFF if:

• Operator rises off seat with PTO engaged, OR

• Operator rises off seat with parking brake disengaged.

• Operator moves ground speed control levers out of their neutral positions before disengaging parking brake.

Test 4 - Blade Brake Check

Mower blades and mower drive belt should come to a complete stop within seven (7) seconds after electric PTOswitch is turned off (or operator rises off seat). If mower drive belt does not stop within seven (7) seconds, see your dealer.

NOTE: Once the engine has stopped, PTO switchmust be turned off, parking brake must be engaged, and the ground speed control levers must be locked in the NEUTRAL position after the operator returns to the seat in order to start the engine.

Controles de la Unidad

Nombre del ControlLlamada

Pedal Elevador de la CubiertaA Pasadorde Ajustede laAltura deCorteB

Pedal Elevador de la Cubierta, Pasador de Ajuste de la Altura de Corte y Palanca de Bloqueo del Elevador de la Cubierta: Éstos controlan la altura de corte de la cubierta de la

podadora. Presione el pedal hasta que quede fijo en la posición de 5” (12.7 cm). Coloque el pasador de ajustea la altura de corte deseada y luego suelte la palanca de bloqueo del elevador.

Palanca de Bloqueo del Elevador de la Cubierta

Freno de ManoD Palancas de Velocidad de AvanceE Palanca de Ajuste del AsientoF Tapón del Tanque de GasolinaG Medidor de CombustibleH Cinturón de Seguridad RetráctilI

WARNING

If the unit does not pass a safety test, do not operate it. See your authorized dealer. Under no circumstance should you attempt to defeat the purpose of safety interlock system.

Freno de Mano: Jale la palanca delfreno de mano para accionar el mismo y mueva la palanca completamente hacia adelante para quitarlo. NOTA: Para arrancar la unidad, el freno de mano

debe estar accionado.

DescripciónNombreIcono

Con eso se quita el freno de mano.Quitar

Features and Controls

Funciones de Control y Ubicaciones

La siguiente información describe brevemente la función de cada uno delos controles. Arrancar, detenerse, conducir y podar el césped requieren del uso combinado de varios controles que se aplican en secuencias específicas. Para aprender qué combinaciones y quésecuencia de controles deben usarse para diversas labores, sírvase leer la sección de Operación.

12 ferrisindustries.com

Con eso se fija el freno de mano.Accionar

Palancas de Velocidad de Avance: Estas palancas controlan

Not for

Reproduction

la velocidad de avance del montable. La palanca izquierda controla la rueda de tracción trasera izquierda y la derecha controla la rueda de tracción trasera derecha.

Mover la palanca hacia adelante aumenta la velocidad HACIA ADELANTE de la llanta asociada y jalarla hacia atrás aumenta la velocidad en REVERSA.

Nota: Entre más se aleje una palanca de la posición de neutral, más rápido girará la rueda de tracción.

Vea la sección deOperar el Montable de Giro Cero paraobtener las instrucciones de direccionamiento.

Palanca de Ajuste del Asiento: El asiento puede ajustarse hacia adelante yhacia atrás. Mueva la palanca hacia laizquierda, posicione el asiento según desee y suéltela para fijar el asiento en esa posición.

Tapón del Tanque de gasolina: Para quitar el tapón, gire a la izquierda.

Medidor de Combustible: Muestra el nivel de combustible en el tanque.

Medidor de HorasE Bloque de FusiblesF

Ahogador: Cierre el ahogador para arrancar en frío, y ábralo ya que el motor arranque. Si el motor está caliente es posible que no requierael ahogador. Jalela perilla hacia ARRIBA paracerrar el ahogador, y empújela hacia ABAJO para abrirlo.

Interruptor PTO (Eliminador de Energía): El interruptor PTO activa ydesactiva la podadora. Jaleel interruptor hacia ARRIBA para activarlo y empújelo hacia ABAJO para desactivarlo.

Interruptor de Encendido: El interruptorde encendido arranca y detiene el motor y tiene tres posiciones:

DescripciónNombreIcono

OFF (apagado)

RUN (activo)

START (arrancar)

Detiene el motor y corta el sistema eléctrico.

Permite que el motor corra y suministra energía al sistema eléctrico.

Da marcha para que arranque el motor.

Cinturón de Seguridad Retráctil: El cinturón de seguridadse utiliza para asegurar que el operador del asiento.

El cinturón de seguridad siempre deben ser usados cuando la barra de rollo está en la posición elevada. El cinturón de seguridad nunca debe ser usado cuando la barra antivuelcos está en la posición hacia abajo.

Tablero de Instrumentos de Control

NOTA: No deje nunca el interruptor de encendido en la posición de RUN con el motor detenido ya que esto drena la batería.

Control de Aceleración: El acelerador controla la velocidad del motor. Mueva el acelerador hacia adelante para aumentar la velocidad delmotor y hacia atrás para bajarla. Opere siempre con el acelerador en FULL.

PosiciónIcono

La velocidad de aceleración rápida.

La velocidad de aceleración lenta.

Medidor de Horas: El medidor de horas mide la cantidad de horas que el PTO lleva en posición de activado. El medidor de horas tiene una fuente de poder autónoma de modo que el total de horas siempre está visible.

Bloque de Fusibles: Las casas debloque de fusibles delos fusibles parael sistema eléctrico.

Operation

Before First Time Operation

Nombre del ControlLlamada

AhogadorA Interruptor PTO (Eliminador de

Energía) Interruptor de EncendidoC Control de AceleraciónD

• Be sure to read all information in the Safety and Operation sections before attempting to operate thistractor and mower.

• Become familiar with all of the controls and how to stop the unit.

• Drive in an open area without mowing to become accustomed to the unit.

WARNING

Not for

Reproduction

• Never operate on slopes greater than 15°.

• Select slowground speed before driving ontoa slope. Use extra caution when operating on slopes with a rear-mounted grass catcher.

• Mow across the face of slopes, not up and down, use caution when changing direction on slopes and do NOT

start or stop on a slope.

Starting the Engine

WARNING

• If you do not understand how a specific control functions, or have not yet thoroughly read the Features & Controls section, do so now.

• Do NOT attempt to operate the tractor without first becoming familiar with the location and function of all controls.

WARNING

• Never allow passengers to ride on the unit.

• Before leaving the operator’s position for any reason, engage the parking brake, disengage the PTO, stop the engine and remove the key.

• To reduce fire hazard, keep the engine, rider and mower free of grass, leaves and excess grease. Do NOT stop or park rider over dry leaves, grass or combustible materials.

• Fuel is highly flammable and must be handled with care. Never fill the tank when the engine is still hot from recent operation. Do NOT allow open flame, smoking or matches in the area. Avoid over-filling and wipe up any spills.

WARNING

Do NOT load this zero-turn rider on a trailer or truck using two separate ramps. Only use a single ramp that is at least one foot wider than the width of the rear wheels of this rider. This rider has a zero turning radius and the rear wheels could fall off the ramps, or the rider could tip over injuring the operator or bystanders.

1. While sittingin the operator's seat, engagethe parking brake and makesure the PTOswitch is disengagedand the ground speed control levers are locked in the neutral position.

2. A warm engine may not require choking. Set the engine throttle control to FAST throttle position. Then fully close the choke by pulling the knob OUT fully.

3. Insert the key into the ignition switch and turn it to START.

4. After the engine starts, gradually open thechoke (push knob down fully). Reduce to half throttle speed and allow engine to warm. Warm up the engine by running it for atleast a

minute before engaging the PTO switch or driving the rider.

5. After warming the engine always operate the unit at FULL throttle when mowing.

In the event of an emergency the engine can be stopped by simply turning the ignition switch to STOP. Use this

method only in emergency situations. For normal engine shut down follow the procedure given in Stopping the Rider.

Stopping the Rider

1. Returning the ground speed control levers to the middle position will stop rider movement. Pivot the levers outward and lock them in NEUTRAL.

2. Disengage the PTO by pushing down on the PTO switch.

3. Engage the parking brake by pulling the handle up until it locks into position.

4. Move the throttle control to mid-throttle position and turn the ignition key to OFF. Remove the key.

Zero-Turn Driving Practice

The lever controls of the Zero Turn rider are responsive, and

Checks Before Starting

• Check that the crankcase is filled to the full mark on the crankcase oil fill and dipstick. If necessary, add oil through the engine oil fill. See the engine Operator’s manual for instructions, engine oil dipstick location and oil recommendations.

• Make sure all nuts, bolts, screws and pins are in place and tight.

• Adjust the seat position, and make certain you can reach all the controls from operator’s position.

• Fill the fuel tank with fresh fuel. Refer to engine manual for fuel recommendations.

• Check the hydraulic oil level.

14 ferrisindustries.com

learning to gain a smooth and efficient control of the rider’s forward,reverse, andturning movements will take some practice.

Spending some time going through the maneuvers shown and becoming familiar with how the unit accelerates, travels, and steers — before you begin mowing —is absolutely essential to getting the most out of the Zero Turn rider.

Locate a smooth, flat area of your lawn — one with plenty of room tomaneuver. (Clearthe area of objects,people and animals before you begin.) Operate the unit at mid-throttle during this practice session(ALWAYS operate atfull throttle when mowing), and turn slowlyto prevent tire slippage and damage to your lawn.

We suggest you begin with the Smooth Travel procedure to the

Not for

Reproduction

right, and thenadvance through the forward, reverse, and turning maneuvers.

You must release the parking brake prior to moving the control levers inward.

Smooth Travel

The lever controls of the Zero Turn rider are responsive. The BEST method of handling the ground speed control levers

is in three steps — as shown in Figure 5.

Gradually move both ground speed control levers — evenly FORWARD from neutral. Slow down and repeat.

NOTE: Straight forward travel takes practice. If necessary, top speed can be balance-adjusted — see the Speed Balancing Adjustment in the Adjustments section near the back of this manual.

FIRST place your hands onto the levers as shown. SECOND, to go forward gradually push the levers forward with

your palms. THIRD, to speed up move the levers farther forward. To slow

down smoothly, slowly move the levers toward neutral.

Basic Driving

Forward Travel Practice

Reverse Travel Practice

LOOK DOWN & BEHIND, then gradually move both ground speed control levers evenly BACK from neutral. Slow down and repeat.

NOTE: Practice backing up for several minutes before attempting to do so near objects. The rider turns sharply in reverse as well as forward, and backing up straight takes practice.

Practice Turning Around A Corner

Not for

Reproduction

While traveling forward allowone handle to gradually returnback toward neutral. Repeat several times.

NOTE: To prevent pivoting directly on the tire tread, it is best to keep both wheels going at least slightly forward.

Practice Turning in Place

To turn in place, “Zero Turn,” gradually move one ground speed control lever forward fromneutral and one lever back from neutral simultaneously. Repeat several times.

NOTE: Changing the amount each lever is pulled—forward or back, changes the “pivot point” you turn on.

Advanced Driving

Execuring an End-Of-Row Zero Turn

Your Zero Turn Rider’s unique ability to turn in place allows you to turn around at the end of a cutting row rather than having to stop and Y-turn before starting a new row.

For example, to execute a left end-of row zero turn:

1. Slow down at the end of the row.

2. Move the RIGHT ground speedcontrol lever forward slightly while moving the LEFT ground speed control lever back to center and then slightly back from center.

3. Begin mowing forward again.

This technique turnsthe rider LEFT andslightly overlaps the row just cut —eliminating the need to back up and re-cut missed grass.

As you become more familiar and experienced with operating the Zero Turn rider, you will learn more maneuvers that will make your mowing time easier and more enjoyable.

Remember, the more you practice, the better your control of the Zero Turn will be!

Mowing

1. Engage the parking brake. Make sure that the PTO switch is disengaged, the ground speed control levers are locked in the NEUTRAL position and the operator is in the seat.

2. Start the engine. See Starting the Engine.

3. Set the mower cutting height.

4. Set the throttle to FULL.

5. Engage the PTO by pulling up on the PTO switch.

6. Begin mowing.

7. When finished, shut off the PTO.

8. Stop the engine. See Stopping the Rider.

Mowing Recommendations

16 ferrisindustries.com

Several factors can affect how well your machine cuts grass, Following proper mowing recommendations can improve the performance and life of your machine.

Height of Grass

Not for

Reproduction

Often cutting heightis a matter of personalpreference. Typically, you should mow the grass when it is between three and five inches high. The proper cutting height range for a specific lawn will depend upon several factors, including thetype of grass, the amount of rainfall, the prevailing temperature, and the lawn’s overall condition.

Cutting the grasstoo short causes weak, thingrass plants, which are easily damaged by dry periods and pests. Cutting too short is often more damaging than allowing the grass to be slightly higher.

Letting grass grow a bit longer—especially when it is hot and dry—reduces heat build-up, preserves needed moisture and protects the grass from heat damage and other problems. However, allowing grassto grow too high cancause thin turf and additional problems.

Cutting off toomuch at one time shocks the plant’sgrowth system and weakens the grass plants. A good rule of thumb is the

1/3 rule: to cut no more than one third of the grass height, and never more than 1 inch at a time.

When and How Often to Mow

The time of day and condition of the grass greatly affect the results you’llget when mowing. For thebest results, follow these guidelines:

• Mow when the grass is between three and five inches high.

• Mow with sharp blades. Short clippings of grass one inch or shorter decompose more quickly than longer blades. Sharp mower blades cut grass cleanly and efficiently, preventing frayed edges which harm the grass.

• Mow at time of day when the grass is cool and dry. Late afternoon or earlyevening often providethese ideal mowing conditions.

• Avoidmowing after rain oreven heavy dew, and never mulch when the grass is wet (moist grass does not mulch well, and clumps beneath the mower deck).

The amount of grass you are able to cut in one pass is also effected by the type of mowing system you are using (for example, broadcasting with side discharge decks can process a much larger volume of grass than mulching does).

Tall grass requires incremental cutting. For extremely tall grass, set the cutting height at maximum for the first pass (A, Figure 12), and then reset it to the desired height and mow a second (B) or third time.

Don’t cover the grass surface with a heavy layer of clippings. Consider using agrass collection system andstarting a compost pile.

Mowing Patterns

Always start mowing on a smooth, level area. The size and type of area to be mowed will determine the best

mowing pattern to use. Obstructions such as trees, fences and buildings, and conditions such as slopes and grades must also be considered.

• Cut long straight strips overlapping slightly.

• Where possible, change patterns occasionally to eliminate matting, graining or a corrugated appearance.

• For a truly professional cut, mow across the lawn in one direction, then re-cut the lawn by mowing perpendicular to the previous cut.

NOTE: Always operate the engine at FULL THROTTLE when mowing.

If you hear the engine slowing down, you are mowing too fast—using a slower ground speed will improve the cutting efficiency of the blades and prevents many common cutting problems. Use an appropriate ground speed for the thickness and height of the grass you are cutting (3rd gear or slower for manual gear models). If you hear the engine slowing down you are mowing too fast, use a slower ground speed.

Not for

Reproduction

Where possible, make one or two passes around the outside of the area discharging the grass INTO the lawn to keep the cut grass off fences and walks.

Mulching consists of a mower deck which cuts and re-cuts clippings into tiny particles and which then blows them down INTO the lawn. These tiny particles decompose rapidly into by-productsyour lawncan use. UNDERPROPER CONDITIONS, your mulching mower will virtually eliminate noticeable clippings on the lawn surface.

NOTE: When mulching under heavy cutting conditions, a rumbling sound may be present and is normal.

Mulching Requires EXCELLENT Mowing Conditions: Mulching mowers cannot function properly if the grass is wet, or

if the grass is simply to high to cut. Even more than normal mowing, mulching requires that the grass be dry and the appropriate amount is cut.

Do not use the mower as a mulching mower during the first two or three mowings in the spring. The long grass blades, quick growth, and often wetter conditions are more suitable for broadcasting (side-discharging) or grass bagging operation.

Engine Speed & Ground Speed for Mulching: Use full engine throttle matched with a slow ground speed so

that clippings will be finely cut. Ground speed while mulching should be HALF of the speed that would be used when broadcasting (side discharging) under similar conditions. Since mulching requires more horsepower than broadcasting, using a slower ground speed is vitally important for proper mulching operation.

The remainder of the mowing should be done in the opposite direction so that the clippings are dispersed OUT onto the area of lawn previously cut.

Mowing Methods

Broadcast Mowing

Broadcasting, orside-discharging, disperses fine clippings evenly over the entire lawn. Many golf courses use this method. Your mower hasa deep dish deck to allow freer circulation of clippings so they are broadcast evenly over the lawn.

Engine Speed & Ground Speed for Broadcasting: Always operate the engine at full throttle when mowing. If you

hear the engine slowing down, you are mowing too fast—using a slower ground speed will improve the cutting efficiency of the blades and prevents many common cutting problems.

ALWAYS use an appropriate ground speed for the thickness and height of the grass you are cutting (3rd gear or slower for manual gear models). If you hear the engine slowing down you are mowing too fast, use a slower ground speed.

How Much Grass to Cut Off When Broadcasting: Mow when the grass is 3-5 inches long. Do not cut the grass

shorter than 2 to 2-1/2 inches. Do not cut off more that 1 inch of grass in a single pass.

How Much Grass to Mulch: The best mulching action typically results from cutting only the

top ½ inch to 3/4 inch of grass blade. This provides short clippings which decompose properly (much more quickly than longer clippings). The ideal cutting height will vary with climate, time of year, and quality of your lawn. We recommend that you experiment with both the cutting height and ground speed until you achieve the best cut. Start with a high cutting height and using progressively lower settings until you find a cutting height that is matched to your mowing conditions and preferences.

Pushing the Rider By Hand

NOTICE

Do not tow rider.

Towing the unit will cause hydraulic pump and wheel motor damage. Do not use another vehicle to push or pull this unit.

1. Disengage the PTO, engage the parking brake, turn the ignition OFF, and remove the key.

2. Lift the seat plate to gain access to the hydraulic pumps.

3. To disengage the pumps (free-wheel position), turn the hydraulicrelease valves (A,Figure 15) located on thepumps

counter-clockwise a maximum of two full turns.

Mulching

18 ferrisindustries.com

Not for

Reproduction

4. Disengage the parking brake.The tractor can now be pushed by hand.

5. After moving the tractor, re-engage the pumps (drive position) byturning the release valves clockwise and tighten to 80-120 in. lbs. of torque.

Raise and Lower the Roll Bar

WARNING

Avoid serious injury or death from roll over:

2. Push or pull the top of the roll bar (C) forward against the rubber stops (D) and remove the retainer pins (B).

3. Lower the roll bar and reinstall the retainer pins and hair pin clips to secure the roll bar in the down position (see insert, Figure 16).

• Keep roll bar in the raised position and use seat belt.

• There is no roll over protection when the roll bar is down.

• Lowerthe rollbar onlywhen necessary and NEVER remove it.

• Do NOT use seat belt when the roll bar is down.

• Raise the roll bar as soon as clearance permits.

• Do NOT jump off if mower tips.

To lower the roll bar:

1. Pull the hair pin clips (A, Figure 16) out of the retainer pins (B).

To raise the roll bar:

1. Pull the hair pin clips (A) out of the retainer pins (B) and remove the retainer pins.

2. Raise the roll bar (C) until the rubber stops (D) contact the upright tubes.

3. Push or pull the top of the roll bar forward against the rubber stops and reinstall the retainer pins and hair pin clips to secure the roll bar in the raised position.

Attaching a Trailer

The maximum weight of a towed trailer should be less than 200 lbs (91kg). Secure the trailer with an appropriately sized clevis pin (A, Figure 17) and clip (B).

Not for

Reproduction

Excessive towed loads can cause loss of traction and loss of control on slopes. Reduce towed weight when operating on slopes. The surfacebeing driven on greatlyimpacts traction and stability. Wet or slippery surfaces can greatly reduce traction and the ability to stop or turn. Carefully evaluate the surface conditions before operating the unit andtrailer, andnever operate on slopes greater than 10°. See SLOPE OPERATION and TOWED EQUIPMENT in the safety section of this manual for additional safety information.

Storage

Temporary Storage (30 Days or Less)

Remember, the fuel tank will still contain some gasoline, sonever store the unit indoorsor in any other area wherefuel vapor could travel to any ignition source. Fuel vapor is also toxic if inhaled, so never store the unit in any structure used for human or animal habitation.

WARNING

Never store the unit, with gasoline in engine or fuel tank, in a heated shelter or in enclosed, poorly ventilated enclosures. Gasoline fumes may reach an open flame, spark or pilot light (such as afurnace, water heater, clothes dryer,etc.) and cause an explosion.

Handle gasoline carefully. It is highly flammable and careless use could result in serious fire damage to your person or property.

Drain fuel into an approved container outdoors awayfrom open flame or sparks.

Here is a checklist of things to do when storing your unit temporarily or in between uses:

• Keep the unit in an areaaway fromwhere children maycome into contact with it. If there’s any chance of unauthorized use, remove the spark plug (s) and put in a safe place. Be sure the sparkplug opening is protected from foreign objects with a suitable cover.

• If the unit can’t be stored on a reasonable level surface, chock the wheels.

• Clean all grass and dirt from the mower.

Long Term Storage (Longer Than 30 Days)

Before you store your unit for the off-season, read the Maintenance and Storage instructions in the Safety Rules section, then perform the following steps:

1. Draincrankcase oil while engineis hot and refill witha grade of oil that will be required when unit is used again.

2. Prepare the mower deck for storage as follows: a.) Remove mower deck from the unit.

b.) Clean underside of mower deck. c.) Coat all bare metal surfaces with paint or light coat of oil

to prevent rusting.

3. Clean external surfaces and engine.

4. Prepare engine for storage. See engine owner’s manual.

5. Clean any dirt or grass from cylinder head cooling fins, engine housing and air cleaner element.

6. Cover air cleaner and exhaust outlet tightly with plastic or other waterproof material to keep out moisture, dirt and insects.

7. Completely greaseand oil unit as outlined in the Lubrication section.

8. Clean up unit and apply paint or rust preventative to any areas where paint is chipped or damaged.

9. Be surethe battery is filled to the proper level with water and is fully charged. Battery lifewill be increased if it is removed, put in acool, dry place and fullycharged about once a month. If battery is left in unit, disconnect the negative cable.

10. Drain fuel system completely or add a gasoline stabilizer to the fuel system. If you have chosen to use a fuel stabilizer and have not drained the fuel system, follow all safety instructions andstorage precautions in thismanual to prevent the possibility of fire from the ignition of gasoline fumes. Remember, gasoline fumes can travel to distant sources of ignition and ignite, causing risk of explosion and fire.

NOTE: Gasoline, if permitted to stand unused for extended periods (30 days or more), may develop gummy deposits which can adversely affect the engine carburetor and cause engine malfunction. To avoid this condition, add a gasoline stabilizer to the fuel tank and run the engine a few minutes, or drain all fuel from the unit before placing it in storage.

Starting After Long Term Storage

Before starting the unit after it has been stored for a long period of time, perform the following steps.

1. Remove any blocks from under the unit.

2. Install the battery if it was removed.

3. Unplug the exhaust outlet and air cleaner.

4. Fill the fuel tank with fresh gasoline. See engine manual for recommendations.

5. See engine owner’s manual and follow all instructions for preparing engine after storage.

20 ferrisindustries.com

6. Check crankcase oil level and add proper oil if necessary.

Not for

Reproduction

If any condensation has developed during storage, drain crankcase oil and refill.

7. Inflate tires to proper pressure. Check fluid levels.

8. Start the engine and let it run slowly. DO NOT run at high speed immediately after starting. Be sure to run engine only outdoors or in well ventilated area.

Maintenance Schedule

UNIT MAINTENANCE

Before Each Use

Check Safety Interlock System Check Rider Brakes Check Rider / Mower for Loose Hardware Check Hydraulic Oil Level

Every 25 Hours

Clean Deck & Check/Replace Mower Blades* Lubricate Rider & Mower* Check Tire Pressures

Every 100 Hours

Check Mower Blade Stopping Time Clean Battery & Cables

Every 250 Hours

Change Hydraulic Oil & Filter

2. Fill thefuel tank to the bottom of the fillerneck. This will allow for fuel expansion. Note: Do not overfill. Refer to your engine owner's manual for specific fuel recommendations.

3. Install and hand tighten the fuel cap.

NOTICE

Do not use gasoline containing METHANOL, gasohol containing morethan 10% ethanol, gasolineadditives, premium gasoline, or white grass because engine/fuel system could result.

Replacing the Fuel Filter

ENGINE MAINTENANCE

Before Each Use

Check Engine Oil Level

Every 25 Hours

Check/Clean Cooling Fins & Intake*

Every 50 Hours

Check/Clean Spark Arrester**

Refer to Engine Owner's Manual

Service Air Filter Change Oil & Filter Check/Replace Spark Plugs Check/Replace Fuel Filter

*More oftenin hot (over 85°F, 30°C)weather or dusty operating conditions. **If equipped, replace if damaged.

Maintenance Procedures

Checking / Adding Fuel

WARNING

Gasoline is highly flammable and must be handled with care. Never fill the tank when the engine is still hot from recent operation. Donot allow open flame,smoking or matches in the area. Avoid over-filling and wipe up any spills.

To add fuel:

1. Remove the fuel cap (A, Figure 18).

WARNING

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

Do NOT remove thefuel filter when theengine is hot, as spilled gasoline may ignite. Do NOT spread hose clamps further than necessary. Ensure clamps grip hoses firmly over filter after installation.

The fuel filter is located in the fuel line between fuel tank and carburetor, near the fuel pump. If filter isdirty or clogged, replace as follows:

1. Disconnect the negative battery cable.

2. Place a container below the filter to catch spilled fuel.

3. Using a pliers, open and slide hose clamps from fuel filter.

4. Remove hoses from filter.

5. Install new filter in proper flow direction in fuel line.

6. Secure with hose clamps.

7. Reconnect the negative battery cable when finished.

Check Engine Oil Level

Interval: Before Each Use

Refer to the engine owners manual for dipstick and oil fill locations and specific engine oil check and fill procedures.

Change Oil & Filter

Not for

Reproduction

1. Warm engine by running for a few minutes. (Refer to engine operator's manual for oil & filter replacement instructions.)

2. Remove the oil drain hose (A, Figure 19) from the cable clamp (B) on the right hand side of the frame the route the hose towards the rear of the machine as shown in Figure

19.

3. Place a small pan under the oil drain hose to catch the oil. Use the appropriate tools, remove the cap from the oil drain hose and drain the engine oil.

4. After draining, replace the cap and wipe up and spilled oil Reinstall the oil drain hose into the cable clamp to retain the hose during normal operation.

5. Place an absorbent shop cloth under the engine oil filter. Remove the engine oil filter and replace with a new one.

6. Remove the shop cloth and wip up and spilled oil.

Engine Maintenance

For enginemaintenance schedules and procedures, please refer to the engine operator's manual.

Accessing the Spark Plugs for Service

Models Equipped with B&S Commercial Turf Engines Only:

This procedure is necessary to gain access to the spark plugs on the models equipped with Briggs & Stratton Commercial Turf engines. Refer to the engine operator's manual for instructions on replacing and servicing the spark plugs.

1. Park the machine on a flat, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the ignition and remove the key.

2. Loosen and remove the upper roll bar hardware (A, Figure

20) that secures the roll bar (B) and the bumper (C) to the frame.

3. Loosen but do not remove the lower roll bar hardware (D).

4. Tilt the roll bar and bumper back and towards the ground. This now creates easy access to the spark plugs.

5. Refer to engine operator's manual for instructions on replacing and servicing the spark plugs.

6. Tilt the roll bar and bumper back into place and reinstall the upper roll bar hardware.

7. Tighten both the upper and lower roll bar hardware.

Inspect Muffler and Spark Arrester

Inspect the muffler for cracks, corrosion, or other damage. Remove the spark arrester, if equipped, and inspect for damage or carbon blockage. If replacement parts are required, make sure to use only original equipment replacement parts.

WARNING

Replacement parts mustbe the same and installed in the same position as the original parts or fire could result.

Check Hydraulic Oil Level

Interval: Before Each Use

1. Before removing the reservoir cap, make sure the area around the reservoir cap and fill neck of the reservoir is free of dust, dirt, or other debris.

2. Unscrew the reservoir cap (A, Figure 21).

22 ferrisindustries.com

Not for

Reproduction

3. Look down the filler neck of the hydraulic oil reservoir (B) and observe the oil level. When cold, the oil level should be approximately 4” (10 cm) below top of the filler neck.

4. If necessary, add either Mobil 1™, 15W-50 synthetic oil or Castrol Syntec™ 5W-50 oil. DO NOT use conventional oils.

5. Reinstall the reservoir cap.

Change Hydraulic Oil Filter

Change Interval: Every 250 Hours Filter Part Number: 1719168

NOTE: Removing the oil filter from the filter base will drain the oil reservoir. Have a suitable container ready to catch any spilled oil. It is recommended that this be a dealer-only service item.

2. Lubricate the new filter base witha few drops oftransmission oil. Fill the filter half full of oil.

3. Clean the area around the filter base and remove the filter. Do NOT drain the hydraulic system oil

4. Thread the new filter onto the filter base until the gasket makes contact, then tighten 3/4 of a turn more.

5. Run the unitfor several minutes and check the transmission oil level. Add oil ifnecessary.See Check Hydraulic Oil Level.

NOTE: Use caution after changing the filter; air in the hydraulic system may affect the responsiveness of the control levers. Repeat step # 5 until the air is out of the system.

Lubrication

Lubricate the unit at the locations shown in Figures 23, 24 and 25 as well as the following lubrication points.

Grease

front caster wheel axles & yokes deck lift pivot blocks mower deck spindles mower deck idler arm

Use grease fittings when present. Disassemble parts to apply grease to moving parts when grease fittings are not installed.

Not all greases are compatible. Red grease (p/n 5022285) is recommended, automotive-type, high-temperature,lithium grease may be used when this is not available.

Oil

control handle pivots seat plate pivots deck lift pivots discharge chute hinge

1. Locate the transmission oil filter (A, Figure 22).

Generally, all moving metal parts should be oiled where contact is made with other parts. Keep oil and grease off belts and pulleys.Remember to wipe fittingand surfaces clean both before and after lubrication.

Not for

Reproduction

Servicing the Mower Blades

Removing the Mower Blades

CAUTION

Laceration hazard

Mower blades are sharp. Always wear gloves when handling, or working near, mower

blades.

1. Use ablock of wood to prevent the mower blade from turning as shown in Figure 27.

Lubricate the Front Casters

Interval: Annually

1. Remove the 1/4-28 bolt (A, Figure 26) screwed into the caster and install a 1/4-28 grease fitting.

2. Grease the front caster.

3. Remove the 1/4-28 grease fitting and reinstall the 1/4-28 bolt.

4. Repeat the process for the other side of the machine.

2. Using a wrench, remove the bolt securing the blade to the spindle.

Inspecting the Mower Blades

DANGER

Thrown objects hazard

Avoid injury: a worn or damaged mower blade can break and a piece of the blade could be thrown into the operator's area or bystander'sarea resulting in seriouspersonal injury or death.

• Inspect the mower blade every 25 hours or at least once per year.

• If the mower blade hits a solid object, stop the engine immediately and inspect the mower blades.

• Never weld or straighten bent mower blades.

1. Remove the mower blade from the unit. See Removing the Mower Blades.

2. Inspect the mower blade (Figures 28 and 29). Discard the mower blade if it has any of the following conditions:

• More than .5" (12,7 mm) of the mower blade metal has been removed from previous sharpening or wear (A, Figure 28)

• The air lifts are excessively eroded (A, Figure 29) and the notch (B) is .25" (6,35 mm) deep or greater.

24 ferrisindustries.com

• The mower blade is broken or bent.

Not for

Reproduction

4. The mower blade should have a maximum of 1/64" (0,40 mm) cutting edge (B) or less.

Balancing the Mower Blades

3. If the cutting edges are not sharp or have nicks, sharpen the blades. See Sharpening the Mower Blades.

Sharpening the Mower Blades

WARNING

Thrown objects and fire hazard

Grinding mower blades throws sparks and fine metal particles that are capable of igniting gasoline and gasoline vapors, and that can injure unprotected eyes.

Be sure all flammable materials are cleared from the area where grinding will occur.

CAUTION

Thrown objects hazard

An unbalanced mower blade can create excessive vibration and damage the unit, or cause mower blade failure resulting in thrown debris.

Be sure blade is balanced before installing.

1. Clean the mower blade to remove any dried grass or other debris.

2. Clamp a nail in a bench vise, hang the mower blade on the nail, and position the blade in a level horizontal position as shown in Figure 31.

Always wear safety glasses or goggles when grinding mower blades.

1. Sharpen mower blades with a grinder, hand file, or electric blade sharpener.

2. Sharpen theblade by removing anequal amount of material from the cutting edge of each end of the blade.

3. Keep the original bevel (A, Figure 30) when grinding. DO NOT change the mower blade bevel.

3. Check the balance of the mower blade. If either end of the mower blade moves downward is heavier than the other. Sharpen the heavy end until balance is achieved. See Sharpening the Mower Blades for sharpening instructions.

4. Repeat the process until the mower blade remains in the horizontal, level position.

Installing Mower Blades

1. Reinstall each mower blade with the air lifts (C, Figure 32) pointing up towards the mower deck as shown in Figure 32. Secure with the mower blade mounting bolt and flat washer (A & B). Wedge a wooden block (D) between the mower blade andthe mower deckhousing to keepthe mower blade from turning and torque to 70 ft. lbs (94 Nm).

Not for

Reproduction

Removethe mounting hardwareand reposition the handle either up or down from its original position. You will need to readjust the handle alignment as described above.

Speed Balancing Adjustment

If the rider veers to the right or leftwhen the ground speed control levers are in the maximum forward position, the top speed of each of these levers can be balanced by turning the adjustment bolt(s) (A, Figure 34). Only adjust the speed of the wheel that is traveling faster.

Ground Speed Control Lever Adjustment

The control levers can be adjusted in three ways. The alignment of the control levers, the placement of the levers (how close the ends are to one another) and the height of the levers can be adjusted.

To Adjust the Handle Alignment

Loosen the mount bolts (A, Figure 33) and pivot the lever(s) (C) to align with each other.

To Reduce the Speed of the Faster Wheel

1. Loosen the securing nut (B).

2. Turn the top speed adjustment bolt counter-clockwise to reduce the speed.

3. Retighten the securing nut when adjustment is complete.

WARNING

DO NOT adjust the tractor for a faster overall speed forward or reverse than it was designed for.

Checking Tire Pressures

Tire pressure should be checked periodically, and maintained at the levels shown in the Specifications chart. Note that these pressures may differ slightly from the "Max Inflation" stamped on the side-wall of the tires. Thepressures shown provideproper traction and extend tire life.

To Adjust the Handle Placement

Loosen the jam nuts and adjust the placement bolt (B) in or out to properly adjust the lever end spacing.

To Adjust the Handle Height

26 ferrisindustries.com

Seat Adjustment

The seat can be adjusted forward and back. Move the lever (A, Figure 35) towards the left, position the seat as desired, and release the lever to lock the seat into position.

Not for

Reproduction

Mowing Height Adjustment

The cutting height adjustment pin (A, Figure 36) controls the mower cutting height. The cutting height is adjustable between 1-3/4” (4,4 cm) and 5” (12,7 cm) in 1/4” (0,64 cm) increments.

2. Remove the pedal mount hardware (C) and rotate the tab 180 degrees.

3. Reinstall the pedal mount hardware and tighten securely.

4. Reinstall the foot pedal on the pedal mount tab in the proper orientation as shown in Figure 37.

1. Depress the deck lift foot pedal (B) until it locks into the 5” (12,7 cm) position.

2. Place thecutting height adjustment pin in thedesired cutting height.

3. Depress the deck lift foot pedal then push the lock lever (C) towards the right to release the lock.

4. Release the deck lift foot pedal until it comes to rest against the cutting height adjustment pin.

Neutral Adjustment

If the tractor "creeps" while the ground speed control levers are locked in the NEUTRAL, then it may be necessary to adjust the linkage rod.

NOTE: Perform this adjustment on a hard, level surface such as a concrete floor.

1. Disengage the PTO, engage the parking brake and turn off the engine.

2. There are three nuts (B, Figure 38) on the linkage rod. The first two are to be used together to run the rod and the third (towards the front of the machine) is used to lock the rod in place. Loosenthe jam nut that locksagainst the ball joint (C) and turn the linkage rod (A) to adjust.

Foot Pedal Adjustment

The deck lift foot pedal can be adjusted to accommodate the operator’s height for optimal comfort.

To adjust pedal position:

1. Remove the foot pedal (A, Figure 37) from the pedal mount tab (B).

• If the machine creeps forward, turn the rod clockwise (while standing at the rear of the machine, facing forward);

• If the machine creeps backward, turn the rod

Not for

Reproduction

counter-clockwise.

3. Lock the jam nut agains the ball joint when neutral is achieved.

NOTE: This adjustment should not be performed while the machine is running. It may take several attempts to achieve neutral, depending on how much the machine creeps.

Return-to-Neutral Adjustment

4. Position the rear set collar so that it sets tightly against neutral return bushing and tighten.

5. Pull the ground speed control lever rearward and release to check position again. Adjust as necessary toalign the ground speed control levers with the notches in the neutral lock plate.

NOTE: It is important to note that after every adjustment of the neutral return rod, the lever must be pulled rearward and released to properly check the neutral position.

Determining If Adjustment is Necessary

To determine ifit is necessary to adjust the neutral return, perform the following steps.

1. Disengage the PTO, engage the parking brake and turn off the engine.

2. Move the ground speed control levers into the operating position, pull rearward and release.

3. Move the ground speed control levers out towards the NEUTRAL position.

• If the levers align with the notches in the neutral lock plate, no adjustment is necessary.

• If the levers do not align with the notches in the neutral lock plate, adjustment is necessary.

Adjustment - Cotter Pin Fastened Neutral Return Rods

WARNING

To avoid serious injury, perform adjustments only with engine stopped, key removed and tractor on level ground.

1. Lock the ground speed control lever in the neutral position.

2. Measure the length of the neutral return spring (C, Figure

39) it should be set at 3-1/4” (8,23 cm). If the spring does not measure 3-1/4” (8,23 cm) loosen the front set collar (D) and the rear set collar (A), then move the front set collar forward or back on the neutral return rod (B) until the spring length equals3-1/4” (8,23 cm). Retightenthe front setcollar.

Parking Brake Adjustment

1. Disengage the PTO, engage the parking brake, stop the engine and remove the ignition key.

2. Raise the seat plate.

3. Locate the parking brake springs (A, Figure 40).

4. With the parking brake engaged, measure the compressed spring length. The spring should measure in the range of 1-15/16" - 2" (4,9 - 5,1 cm) when compressed.

5. If thespring is not within this rangerelease the parking brake and turn the adjustment nut (B) to compress or release the spring.

6. Engage the parking brake and re-measure spring.

CAUTION

Do not adjust the spring to be shorter than 1-15/16" (4,9 cm) when compressed. This may damage the brake mechanism.

If this does not correct the braking problem, see your dealer.

3. Make sure that the neutral return bushing (E) is seated correctly in the spring stop plate (F).

28 ferrisindustries.com

Deck Lift Rod Timing Adjustment

Not for

Reproduction

Checking the Deck Lift Rod Timing

1. Park the machine on a flat, level surface. Disengage the PTO, stop the engine and engage the parking brake. Verify the tires are inflated to the correct pressure.

2. Measure and record the distance between the lift pivots (A, Figure 41) and the lift rods (B). Repeat for the other side of the unit. See Figure 41.

2. To ensure that the deck is in the lowest cuttingposition, push the deck lift pedal by hand towards the rear of the unit and install the cutting height adjustment pin in the 3" (7,6 cm) position to hold into place.

3. Block up the mower deck with 2 X 4's (B, Figure 43) until all hanger chains are slack. See Figure 43. The arrow (A) indicates the front of the mower deck.

4. To adjust the deck lift rod timing, adjust the 5/8" hex nuts (A, Figure 44) on either side of the front lift pivot (B) until the measurements are equal. Repeat for the other side of the unit.

• If the measurements are equal, no adjustment is necessary.

• If the measurements are not equal (greater than 1/8" (3,17 mm) difference), adjustment is required. See

Adjusting the Deck Lift Rod Timing

1. Depressthe deck lift pedal (B,Figure 42) until the deck locks in the TRANSPORT position. Remove the cutting height adjustment pin (A), move the deck lift lock lever (C) to the right and lower the mower deck toits lowest cutting position.

5. Remove the blocks from under the mower deck.

6. Remove the cutting height adjustment pin from in front of the deck lift pedal arm. Lift mower deck and reinstall cutting height adjustment pin in desired mowing height.

Deck Leveling Adjustment

Before adjusting the deck level, the deck lift rod timing must be checked and/or adjusted.

Determining if the Deck Leveling Needs to Be

Not for

Reproduction

Adjusted

WARNING

Avoid Injury! Mower blades are sharp. Always wear gloves when handling blades or working near blades.

1. See Figure 45. Position the outside mower blades so they face front-to-back.

2. Measure the front tip (A) of the blade from the cutting edge to the ground.

3. Measure the rear tip (A) of the blade from the cutting edge to the ground.

• the front and rear measurements should equal 4" (10,2 cm).

If themeasurements are greaterthan 1/8" (3,17mm) of what they should be, adjustment the deck leveling.

Deck Leveling Adjustment

Models with Clevis Style Hanger Chain Setups

1. Place the deck height adjustment pin in the 4" (10,2 cm) position.

2. Place 2 X 4 blocks under each corner of the mower deck with the 3-1/2" sides being vertical.

2. Loosen the nuts (C) and allow the rearof the deck to rest on the 2 X 4's. Slide the chains in the slots until the chains are tight and tighten the nuts.

3. Repeat the process for the other side of the unit.

4. Remove all the blocks from under the mower deck.

5. Perform the Determining if the Deck Leveling Needs to Be Adjusted procedureto verify that the deck hasbeen levelled correctly.

• If the measurements are greater than 1/8" (3,17 mm) of what they should be perform the Fine Adjustment procedure.

Fine Adjustment

1. Loosen the jam nut (A, Figure 46) and turn the fine adjustment bolt (B) to adjust the deck height

• Turn the bolt clockwise to raise the deck

• Turn the bolt counter-clockwise to lower the deck.

2. Once the desired measurement is achieved, retighten the jam nut.

3. Repeat the process for the other side of the unit.

Deck Leveling Adjustment

Models with Eyebolt Style Hanger Chain Setups

1. Place the deck height adjustment pin in the 4" (10,2 cm) position.

2. Place 2 X 4 blocks under each corner of the mower deck with the 3-1/2" sides being vertical.

3. Adjust the front eyebolts (A, Figure 47) until the chains are tight and the deck is still resting on the 2 X 4 blocks. Tighten the jam nuts (B).

Coarse Adjustment

1. Loosen the nuts (D, Figure 46) and allow the front of the deck to rest on the 2 X 4's. Slide the chains in the slots until the chains are tight and tighten the nuts.

4. Loosen the nuts (C) and allow the rearof the deck to rest on the 2 X 4's. Slide the chains in the slots until the chains are tight and tighten the nuts.

30 ferrisindustries.com

5. Repeat the process for the other side of the unit.

6. Remove all the blocks from under the mower deck.

7. Perform the Determining if the Deck Leveling Needs to Be Adjusted procedureto verify that the deck hasbeen levelled correctly.

Mower Belt Replacement

Not for

Reproduction

NOTICE

To avoid damaging belts, do not pry over pulleys.

1. Park the tractor on asmooth level surfacesuch as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine and remove the ignition key.

2. Lower the mower deck to its lowest cutting position and remove the mower deck guards.

WARNING

Use extreme caution when rotating the idler arm with the breaker bar, due to the increased tension in the spring as the idler arm is being rotated. Injury may result if the breaker bar is prematurely released while the spring is under tension.

3. Using a 1/2" breaker bar,place the square end in the square hole located in the end of the idler arm (A, Figure 48). Carefully rotatethe breaker bar clockwise, which will relieve the tension on the belt exerted from the idler arm.

7. Carefully release the tension on the breaker bar.

8. Reinstall the mower deck guards.

9. Run the mower under no-load condition for about 5 minutes to break-in the new belt.

Check the Mower Belt Idler Tensioner Spring Length

1. Set the mower deck to its middle cutting height position.

2. Use the Mower Belt Idler Tensioner Spring Length chart to determine the correct spring length for your unit.

Mower Belt Idler Tensioner Spring Length

MeasurementDeck Size 6-3/4" (17.1 cm)48" 7" (17.8 cm)52"

3. Measurethe coil length (A,Figure 50) of themower belt idler tensioner spring (B). The measurement should equal the measurement asdesignated in the chart. Ifthe measurement does notequal the measurement as designated in thechart, perform the Adjust the Mower Belt Idler Tensioner Spring Length procedure.

4. Slide thedrive belt overthe edge of the stationary idler pulley (B). Carefully release the tension on the breaker bar.

5. Remove the old belt and replace with a new one. Make sure that the V-side of the belt runs in the pulley grooves.

6. Install the drive belt (A, Figure 49) on the PTO pulley, the spindle pulleys (B) and all idler pulleys (C) except the rear stationary pulley (D). Carefully rotate the breaker bar clockwise and install the belt on the rear stationary idler pulley.

Adjust the Mower Belt Idler Tensioner Spring Length

1. Loosen the jam nut (C).

2. Turn the adjustment nut (D) until the measurement as designated in the chart is achieved.

3. Re-tighten the jam nut.

Hydraulic Pump Drive Belt Replacement

The arrow (J, Figure 51) indicates the front of the mower.

Not for

Reproduction

1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key.

2. Remove the PTO drive belt (See Mower Belt Replacement for removal instructions).

3. Remove the hardware that secures the clutch anchor pad to the PTO clutch.

4. Loosenthe jam nut (H) installedon the spring anchor eyebolt (G).

5. Loosen the adjustment nut (I) to release the majority of the belt tension. Use caution and remove the nut to completely release the tension.

6. Remove the old belt and replace it with a new one (A). Make sure the V-side of the belt runs in the grooves of the crankshaft pulley and pump pulleys (B & C). The back-side of the belt shouldcontact the idler pulley (D)on the idler arm (E).

7. Reinstall the spring anchor eyebolt into the anchor tab and loosely fasten the adjustment nut. Turn the adjustment nut until a measurement of 8-3/4" (21,2 cm) is achieved from the outside of the spring hooks on the belt tension spring (F). Tighten the jam nut.

8. Reinstallthe clutch anchor pad tothe PTO clutch andsecure with the hardware previously removed.

9. Reinstall the PTO drive belt.

Rear Suspension Adjustment

The shock assembly can be adjusted in two ways to allow the operator to customize the ride according to operator’s weight and/or operating conditions. You have the option of adjusting the spring pre-load and/or the upper mounting position.

Items to consider before adjusting the suspension.

• Less spring pre-load should be used with light weight operators, which will provide a softer, more cushioned ride.

• More spring pre-load or upper mounting position #2 should be used with heavy weight operators, or when a rear-mount grass bagger system is installed, which will provide a stiffer, more rigid ride.

To Adjust the Spring Pre-Load:

1. Park machine on a flat, level surface. Disengage the PTO, stop the engine and engage the parking brake.

2. Raise the rear of the machine and secure with jackstands. Chock the front wheels to prevent the machine from rolling.

3. Remove the rear drive tires.

WARNING

Use two hands when adjusting the shock springs. This will prevent the wrench from slipping while pressure is applied.

4. See Figure 52. Using the supplied spanner wrench (p/n

5022853), insert the tip of the wrench into the notch in the pre-load adjuster. While holding the wrench in place with one hand, turncounter-clockwise to increase thepre-load, turn CLOCKWISEto decrease thepre-load. Make sureboth shocks are set to the same amount of pre-load.

5. Reinstall the rear drive tires. Torque the lug bolts to 85-95 ft/lbs. (115-129Nm). Removethe jackstands fromunder the machine.

NOTE: Spanner wrench is located under the seat on the right-hand side of the machine.

To Adjust the Upper Mounting Position:

1. Park machine on a flat, level surface. Disengage the PTO, stop the engine and engage the parking brake.

2. Raise the rear of the machine and secure with jackstands. The jackstands must under the bumper. Chock the front wheels to prevent the machine from rolling.

32 ferrisindustries.com

3. Position the jack under the cross member that ties the

Not for

Reproduction

suspension arms together and slowly raise the rear suspension to relieve the pressure on the upper shock mounting bolts.

NOTE: This will require small adjustments to the jack’s position. The shock should move freely on the mounting bolt when the pressure is relieved.

4. Reinstallthe battery and reattach the battery cables,positive [+] cable first (D).

5. Coat the cable ends and thebattery terminals withpetroleum jelly or non-conducting grease.

6. Reposition the oil reservoir and secure in place with the hardware previously removed.

4. Remove the upper shock mounting hardware and pivot the shock to the position #2 (see Figure 52). Adjust the jack to align the shock mounts to the shocks.

5. Reinstall the upper shock mounting hardware and tighten securely.

6. Remove the jack from under the suspension cross member.

7. Remove the jackstands from under the machine.

Battery Maintenance

Models with Center Mounted Hydraulic Tank

This unit is equipped with a maintenance-free BCIU1 battery.

WARNING

Keep open flames and sparks away from the battery.

• Be careful when handling the battery.

• Avoid spilling electrolyte.

• Keep flames and sparks away from the battery.

• When removing or installing battery cables, disconnect the negative cable FIRST and reconnect it LAST. If not done in this order, the positive terminal can be shorted to the frame by a tool.

Cleaning the Battery and Cables

1. Remove the hydraulic oil reservoir mounting hardware (A, Figure 53) and movethe reservoir (B) forward to expose the battery.

2. Disconnect the cables from the battery, negative [-] cable first (C).

3. Clean thebattery terminals and cable ends with a wirebrush until shiny.

Battery Service

WARNING

Keep open flames and sparks away from the battery; the gasses coming fromit are highly explosive. Ventilate the battery well during charging.

Checking Battery Voltage

A voltmetercan be used to determine condition of battery. When engine is off, the voltmeter shows battery voltage, which should be 12 volts. When engine is running,the voltmeter showsvoltage of charging circuit which normally is 13 to 14 volts.

A dead battery or onetoo weak to start theengine may not mean the battery needs to be replaced. For example, it may mean that the alternator is not charging the battery properly. If there is any doubt about the cause of the problem, see your dealer. If you need to replace the battery, follow the steps under Cleaning the Battery & Cables in the Regular Maintenance Section.

Charging a Completely Discharged Battery

1. Be aware of all the safety precautions you should observe during the charging operation. If you are unfamiliar with the use of a battery charger and hydrometer, have the battery serviced by your dealer.

2. Add distilled water sufficient to cover the plate (fill to the proper level near the end of the charge). If the battery is extremelycold, allow it to warm before addingwater because the water level will rise as it warms. Also, an extremely cold battery will not accept a normal charge until it becomes warm.

3. Always unplug or turn the charger off before attaching or removing the clamp connections.

4. Carefully attach the clamps to the battery in proper polarity (usually red to [+] positive and black to [-] negative).

5. Whilecharging, periodically measure the temperature of the electrolyte. If the temperature exceeds 125° F (51.6° C), or if violent gassing or spewing of electrolyte occurs, the charging rate must be reduced or temporarily halted to prevent battery damage.

6. Chargethe battery until fully charged (until the specific gravity of the electrolyte is 1.250 or higher and the electrolyte temperature is at least 60° F). The best method of making certain a battery is fully charged, but not over charged, is to measure the specific gravity of a cell once per hour. The battery is fully charged when the cells are gassing freely at low charging rate and less than 0.003 change in specific gravity occurs over a three hour period.

Jump Starting With Auxiliary (Booster) Battery

Not for

Reproduction

Jump starting is not recommended. However, if it must be done, follow these directions. Both booster and dis-charged batteries should be treated carefully when using jumper cables. Follow the steps below EXACTLY, being careful not to cause sparks. Refer to Figure 54.

WARNING

For your personal safety, use extreme care when jump starting. Never expose battery to open flame or electric spark – battery action generates hydrogen gas which is flammable and explosive. Do not allow battery acid to contact skin, eyes, fabrics, or painted surfaces. Batteries contain a sulfuric acid solution which can cause serious personal injury or property damage.

To avoid engine damage, do not disconnect battery while engine is running.Be sure terminal connectionsare tight before starting.

5. Connect the other end of same cable to same post marked positive (+) on booster battery.

6. Connect the second cable negative (-) to other post of booster battery.

7. Make final connection on engine block of stalled vehicle away from battery. Do not lean over batteries.

8. Start the engine of the vehicle with the booster battery. Wait a fewminutes, then attempt to start the engineof the vehicle with the discharged battery.

9. If the vehicle does not start after cranking for thirty seconds, STOPPROCEDURE. Morethan thirty seconds seldomstarts the engine unless some mechanical adjustment is made.

10. After starting, allow the engine to return to idle speed. Remove the cable connection at the engine or frame. Then remove the other end of the same cable from the booster battery.

11. Remove the other cable by disconnecting at the discharged battery first and then disconnect the opposite end from the booster battery.

12. Discard the damp cloths that were placed over the battery vent caps.

This hook-up is for negative grounded vehicles.

DescriptionCallout

To Starter SwitchA Starting Vehicle BatteryB To GroundC Jumper CableD Discharged Vehicle BatteryE Engine BlockF

Make sure vehicles do not touch.

1. Both batteries must be of the same voltage.

2. Position the vehicle with the booster battery adjacent to the vehicle with the discharged battery so that booster cables can be connected easily to the batteries in both vehicles. Make certain vehicles do not touch each other.

3. Wear safety glassesand shield eyesand face frombatteries at all times. Be sure vent caps are tight. Place damp cloth over vent caps on both batteries.

4. Connect positive (+) cable to positive post of discharged battery (wired to starter or solenoid).

WARNING

Any procedure other than the preceding could result in: (a) personal injury caused by electrolyte squirting out the

battery vents, (b) personal injury or propertydamage due to battery explosion, (c) damage to the charging system of the booster vehicle or

of the immobilized vehicle. Do not attempt to jump start a vehicle having a frozen battery

because the battery mayrupture or explode. If a frozen battery is suspected, examine all fill vents on the battery. If ice can be seen or if the electrolyte fluid cannot be seen, do not attempt to start with jumper cables as long as the battery remains frozen.

Troubleshooting

Troubleshooting Charts

Troubleshooting the Rider

RemedyCauseProblem

34 ferrisindustries.com

Troubleshooting the Rider

Not for

Reproduction

Engine will not turnover or start

poorly

consumption

Engine runs but mower will not drive

engaged.

switch in ON position. Out of fuel.

Engine flooded.

Battery terminals require cleaning.

dead. Wiring loose or broken.

Solenoid or starter motor faulty.

Safety interlock switch faulty

Spark plug(s) faulty, fouled or incorrectly gapped.

Water in fuel.

Gas is old or stale.

Fuel mixture too rich.Engine starts hard or runs

Spark plug(s) faulty, fouled or incorrectly gapped.

Low oil level.Engine knocks

Engine running too hot.Excessive oil

crankcase. Dirty air filter.Engine exhaust is black

Engine choke control is in closed position.

Hydraulic release valves(s)in "disengaged" position.

Belt is broken.

Drive belt slips.

Brake is not fully released.

Engage parking brake.Parking brake not

Place in OFF position.PTO (electric clutch)

If engine is hot, allow it to cool, then refill the fuel tank.

Move choke control to closed position.

Replace fuse.Fuse blown. Clean the battery

terminals. Recharge or replaceBattery discharged or

Visually check wiring & replace broken or frayed wires. Tighten loose connections.

See authorized service dealer.

Replace as needed. See authorized service dealer.

Clean and gap or replace. See engine manual.

Drain fuel and replace with fresh fuel.

Clean air filter. Check choke adjustment.

Clean and gap or replace. See engine manual.

Check / Add oil as required.

See engine manual.Using wrong grade oil. Clean engine fins, blower

screen and air cleaner. See engine manual.Using wrong weight oil. Drain excess oilToo much oil in

Replace air filter. See engine manual.

Move choke control to open position.

Turn valves clockwise to close.

See Hydraulic Pump Drive Belt Replacement.

See problem and cause below.

See authorized service dealer.

Unit drive belt slips

Brake will not hold

poorly

Mower will not raise

mower engaged

Excessive mower vibration

breakage

drive

Troubleshooting the Rider

oily. Tension too loose

Brake is incorrectly adjusted.

Steering linkage is loose.Unit steers or handles

Improper tire inflation

Clean as required.Pulleys or belt greasy or

Adjust spring tension. See Hydraulic Pump Drive Belt Replacement.

Replace belt.Belt stretched or worn See Parking Brake

Adjustment. Replace with new pads.Brake pads worn. Check and tighten any

loose connections. See Checking Tire

Pressures

Troubleshooting the Mower

RemedyCauseProblem

attached or damaged.

Cutting height set too low.

Discharge chute jamming with cut grass.

Blade mounting bolts are loose.

Mower blades, arbors, or pulleys are bent.

Mower blades are out of balance.

Incorrect belt tension.

Incorrect belt tension.Drive belt slips or fails to

Electrical wiring damage.Mower does not engage

Battery voltage too low.

See authorized dealer.Lift linkage not properly

Set to full throttle.Engine speed to slow.Engine stalls easily with Decrease ground speed.Ground speed too fast. Increase the cutting

height. Cut grass with discharge

pointing towards previously cut area.

Tighten to 70 ft.lbs (94 Nm)

Check and replace as necessary.

Remove, sharpen, and balance blades. See Servicing the Mower Blades.

Reinstall belt correctly.Belt installed incorrectly. Repair or replace.Bent or rough pulleys.Excessive belt wear or Replace with correct belt.Using incorrect belt.

Fixed Belt Tensioners:

Replace spring if worn;

Adjustable Belt Tensioners: Adjust to

correct tension.

Fixed Belt Tensioners:

Replace spring if worn;

Adjustable Belt Tensioners: Adjust to

correct tension. Replace with new belt.Drive belt is broken. Locate & repairdamaged

wire. Recharge battery and

check alternator. See Battery Service.

Troubleshooting Common Cutting

Not for

Reproduction

Problems

Problem: Streaking

RemedyCause

Sharpen your blades.Blades are not sharp. Replace your blades.Blades are worn down too far. Always mow at full throttle.Engine speed is too slow. Slow down.Ground speed is too fast. Clean out the mower.Deck is plugged with grass. Overlap your cutting rowsNot overlapping cutting rows enough.

Not overlappingenough when turning.

Problem: Scalping

low.

Problem: Stepped Cutting

When turning your effective cutting width decreases–overlap more when turning.

RemedyCause

Roll or level the lawn.Lawn is uneven or bumpy. Raise the cutting height.Mower deck cutting height is set too

Slow down.Ground speed is too fast. Correctly level the deck.Deck is not leveled correctly. Check and inflate the tires.Tire pressure is low or uneven.

Problem: Uneven Cutting

RemedyCause

Level the deck correctly.Deck is not leveled correctly. Sharpen or replace the blades.Blades are dull or worn. Replace the blades.Blades are damaged. Clean out the deck.Deck is clogged with grass clippings. Repair or replace the deck.Deck shell is damaged. Repair or replace the spindle.Mower spindle is bent or loose. Reinstall the blades correctly.Blades are installed incorrectly. Check and inflate the tires.Tires are not properly inflated.

Problem: Stingers

RemedyCause

Sharpen your blades.Blades are not sharp or nicked. Replace your blades.Blades are worn down too far. Always mow at full throttle.Engine speed is too slow. Slow down.Ground speed is too fast. Clean out the mower.Deck is plugged with grass.

Specifications

NOTE: Specifications are correct at time of printing and are subject to change without notice.

ENGINE

Fits models 5900576

18.5 Gross HP† Kawasaki

KawasakiMake FS600V-DS00-SModel

36.8 Cu. in (603 cc)Displacement

RemedyCause

Level the deck correctly.Deck is not leveled correctly. Check and inflate the tires.Tires are not properly inflated. Replace the blades.Blades are damaged. Repair or replace the deck.Deck shell is damaged.

36 ferrisindustries.com

Repair or replace the spindle.Mower spindle is bent or loose. Reinstall the blades correctly.Blades are installed incorrectly.

Fits models 5900877

12 volt, 15 amp charging coil; Battery: 340 ccaElectrical System

1.8 US qt. (1.7 L) w/ filterOil Capacity

20 Gross HP† Kawasaki

KawasakiMake FX600V-BS06-RModel

36.8 Cu. in (603 cc)Displacement 12 volt, 15 amp charging coil; Battery: 340 ccaElectrical System

1.8 US qt. (1.7 L) w/ filterOil Capacity

Fits models 5900832, 5900833 & 5900836

Not for

Reproduction

25 Gross HP† Kawasaki

KawasakiMake FH721BModel

41.2 Cu. in (675 cc)Displacement 12 volt, 13 amp charging coil; Battery: 340 ccaElectrical System

2.0 US qt. (1.9 L) w/ filterOil Capacity

Fits models: 5900588

26 Gross HP* Briggs & Stratton Commercial Turf

Briggs & StrattonMake 49P977-0111-G5Model

44.2 Cu. in (724 cc)Displacement 12 volt, 16 amp. Alternator; Battery: 340 ccaElectrical System

2.0 US qt. (1.9 L) w/ filterOil Capacity

†Power Ratings: All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki and tested per the SAE J1995 test standard. The gross power curves and more information can be viewed at www.kawasaki-criticalpower.com.

*Power Ratings: The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. The gross power curves can be viewed at www.BRIGGSandSTRATTON.COM. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions andengine-to-engine variability. Giventhe wide array of products on which engines are placed, the gas engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature,humidity,altitude), and engine-to-engine variability. Due to manufacturingand capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine.

TRANSMISSIONS

S/N: 2013824223 & Below

S/N: 2013824224 - 2014295181

S/N: 2014295182 - 2015250504

S/N: 2015250505 & Above

Fluid Speeds @

3400 rpm

(Pump) PJ-3HBQ-FV1F-XXXX (#5100670) (Wheel Motor) HGM-15C-3138 (#5100407)

(Pump) PJ-3KBQ-FV1F-XXXX (#5100671) (Wheel Motor) HGM-15C-3132 (#5100410)

(Pump) PK-3HBQ-FV1F-XXXX (#5102174) (Wheel Motor) HGM-15C-3138 (#5100407)

(Pump) PK-3KBQ-FV1F-XXXX (#5102175) (Wheel Motor) HGM-15C-3132 (#5100410)

(Pump) PK-3HBQ-FV1F-XXXX (#5102174) (Wheel Motor) HGM-15C-4026 (#5100877)

(Pump) PK-3KBQ-FV1F-XXXX (#5102175) (Wheel Motor) HGM-15C-4026 (#5100877)

(Pump) PK-3HBQ-FV1F-XXXX (#5102174) (Wheel Motor) TF0240LS080AAKZ (#5102682)

(Pump) PK-3KBQ-FV1F-XXXX (#5102175) (Wheel Motor) TF0240LS081AAKZ (#5102681)

Pump and Wheel MotorType Mobil 1™ 15W-50 synthetic oil or Castrol Syntec™ 5W-50 oilHydraulic

Forward: 0-10 MPH (0-16.09 km/h) Reverse: 0-5 MPH (0-8.05 km/h)

DIMENSIONS

Mower Deck Size

48"

Length

61" (155 cm)80" (203

cm)

25 psi (1.72 bar)Inflation Pressure

Weight (Aprox.)HeightOverall WidthOverall

cm)

978 lbs (444 kg)65" (165 1012 lbs (459 kg)65" (165 cm)52"

CHASSIS

Rear Wheels

Front Wheels

6 gallons (22.7 L) totalFuel Tank Capacity

22 X 10.00 - 10Tire Size 15 psi (1.03 bar)Inflation Pressure

13 X 5.00 - 6Tire Size

Notes

Not for

Reproduction

Ferris Industries - a division of Briggs & Stratton Power Products Group, LLC.

Not for

Reproduction

Owner’s Limited Warranty Information

(Effective 04/28/2004)

Thank you for purchasing Ferris commercial mowing equipment. Please take a few minutes to read this limited warranty information. It contains all the information you will need to have your Ferris mower repaired in the unlikely event that a breakdown covered by this limited warranty should occur.

Owner’s Responsibilities - As a condition to our obligations under this limited warranty, you shall have read the operator’s manual and you shall have completed and submitted to Ferris, within 20 days from the date of purchase, the Ferris Product Registration. You must properly service and maintain your Ferris product as described in the operator’s manual. Such routine maintenance, whether performed by a dealer or by you, is at your expense. The Ferris equipment, including any defective part covered by this limited warranty, must be returned to an authorized Ferris dealer within the warranty period for warranty service. This limited warranty extends only to equipment operated under normal conditions and in accordance with Ferris’ instructions.

Warranty Start Date - The limited warranty coverage begins on the day you buy your new Ferris commercial mowing equipment. An authorized Ferris dealer will assist you in filling out a Ferris Product Registration with specific information for the model you purchase and your personal information, which must be returned to Ferris.

Limited Warranty - The limited warranty, set forth below, is a written guarantee by Ferris, during the warranty period, to repair or replace parts which have a substantial defect in materials or workmanship. The warranty is “limited” because it is for a specified period of time, applies to the original purchaser only, and is subject to other restrictions.

FERRIS LIMITED WARRANTY

Ferris Industries (Ferris) warrants, in accordance with the provisions below, to the original purchaser only, for the periods described below that the commercial mower shall be free from substantial defects in material or workmanship under normal use and service. If you wish to file a claim under this limited warranty, you must provide prompt notice of your claim to an authorized Ferris dealer during the warranty period. Ferris’ obligation under this limited warranty is, at Ferris’ option, to repair or replace any part or parts of the mower, which, in the judgment of Ferris, are found to be defective and covered by this limited warranty. An authorized Ferris dealer will repair or replace the defective part or parts, at the dealer’s place of business, at no charge for the labor or parts. This limited warranty applies only to mowers sold in the United States and Canada and is subject to the following limitations.

Covered Parts Warranty Period

All Mowers 2-years (24 months) from date of retail purchase by the original purchaser for parts & labor (90 days for rental mowers) (Except as noted below*)

*Belts, Tires, Brake Pads 90 days from date of retail purchase by the original purchaser And Hoses, Battery, Blades

*Attachments 1 year from date of retail purchase by the original purchaser

*Engine If the engine manufacturer provides any warranty on the mower’s engine, Ferris will assign that warranty to the original purchaser of the mower if such assignment is reasonably practicable. Please refer to the engine manufacturer’s warranty statement, if any, that is included in the owner’s packet. We are not authorized to handle warranty adjustments or repairs on engines. Ferris offers NO WARRANTY on mower engines. Ferris does not guarantee or represent that any engine manufacturer will comply with the terms of its warranty.

Items and Conditions Not Covered

This warranty does not cover, and Ferris makes NO WARRANTY regarding, the following:

• Mowers or their parts if a complete and accurate Ferris Product Registration has not been received by Ferris.

• Loss or damage to person or property other than that expressly covered by the terms of this limited warranty.

• Pickup and delivery charges and risk of loss or damage in transit to and from any authorized Ferris dealer.

• Any damage or deterioration due to normal use, wear and tear, or environmental or natural elements, or exposure.

• Cost of regular maintenance service or parts, such as but not limited to, filters, fuel, lubricants, tune-up parts, and adjustments.

• Claims arising due to failure to follow Ferris’ written instructions, or improper storage or maintenance.

• Any repairs necessary due to use of parts, accessories or supplies, including gasoline, oil or lubricants, incompatible with the mowing equipment, or other than as recommended in the operator’s manual or other written operational instructions provided by Ferris.

• Use of non-Ferris approved parts or accessories.

• Any overtime or other extraordinary repair charges or charges relating to repairs or replacements.

• Rental of like or similar replacement equipment during the period of any warranty, repair or replacement work.

• Loss of revenue, time or use of the mowing equipment.

• Travel, telephone or other communication charges.

• Damage from continued use of defective mowing equipment.

• Freight charges on replacement parts.

• Any mowing equipment or part which, in the judgment of Ferris, has been altered or tampered with in any way or has been subjected to misuse, abuse, abnormal usage, unauthorized repair, neglect or accident, damage in transit, or has had the serial numbers altered, effaced or removed.

• Any equipment, part or item not mentioned under “Covered Parts,” above.

General Conditions

Ferris is continually striving to improve its products, and therefore reserves the right to make improvements or changes without incurring any obligation to make changes or additions to products sold previously. Any oral or written description of Ferris products is for the sole purpose of identifying the products and shall not be construed as an express warranty. No warranty claim shall give rise to a right for the purchaser to cancel or rescind any sale. No person is authorized to make any warranty or assume for Ferris any liability not strictly in accordance with this limited warranty. Any assistance Ferris provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations or exclusions of this limited warranty, nor will such assistance extend or revive the limited warranty. Ferris will not reimburse the purchaser for any expenses incurred by the purchaser in repairing, correcting or replacing any defective products except for those incurred with Ferris’ prior written permission and in accordance with this limited warranty.

Ferris’ sole and exclusive liability with respect to this limited warranty, and the purchaser’s exclusive remedy, shall be repair or replacement as set forth herein. All warranty work must be performed by an authorized Ferris dealer using only Ferris approved replacement parts. FERRIS SHALL

HAVE NO LIABILITY FOR ANY OTHER COST, LOSS OR DAMAGE, INCLUDING BUT NOT LIMITED TO, ANY INCIDENTAL, COMPENSATORY, INDIRECT, PUNITIVE, SPECIAL OR CONSEQUENTIAL LOSS OR DAMAGE. FERRIS’ AGGREGATE LIABILITY WITH RESPECT TO A DEFECTIVE PRODUCT OR PART SHALL BE LIMITED TO AN AMOUNT EQUAL TO THE MONIES PAID BY THE PURCHASER FOR THAT DEFECTIVE PRODUCT OR PART. THIS LIMITED WARRANTY, AND FERRIS’ OBLIGATIONS HEREUNDER, ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. FERRIS SHALL NOT BE LIABLE TO THE PURCHASER, OR TO ANYONE CLAIMING UNDER THE PURCHASER, FOR ANY OTHER OBLIGATIONS OR LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO FERRIS PRODUCTS OR FERRIS’ ACTS OR OMISSIONS OR OTHERWISE.

It is the express wish of the parties that this agreement and any related documents be drafted in English. Il est la volonté expresse des parties que cette convention et tous les documents s’y rattachent soient rédigés en anglais.

Not for

Reproduction

Ferris Industries IS1500Z User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
