Table of Contents:

Products Covered by This Manual......................................3

Identification Tag Location...................................................3

Product Identification Tag (Stamped).................................3

CE Identification Tag Markings - EN 836.............................3

Operator Safety.....................................................................4

California Prop 65 Exhaust Chemical Warning...............11

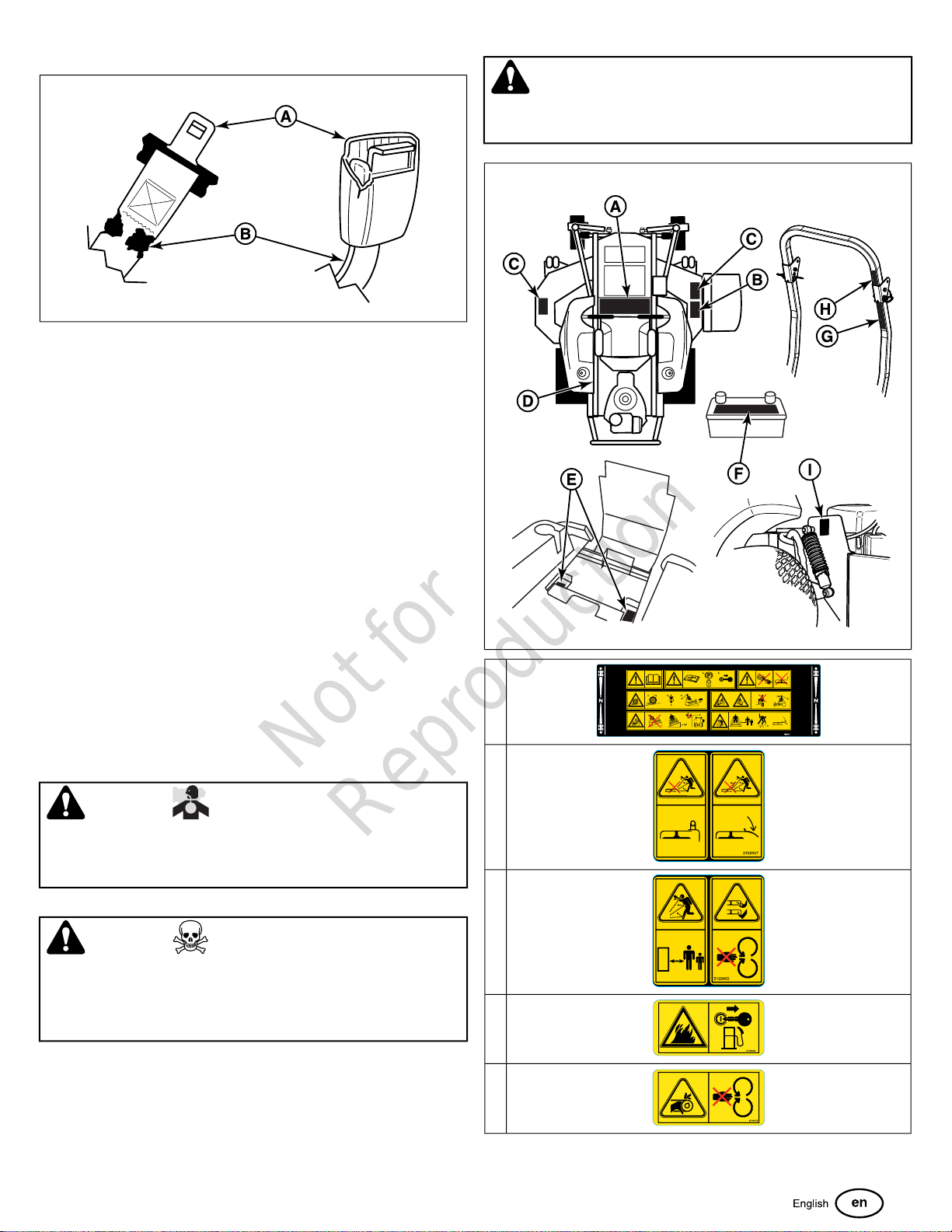

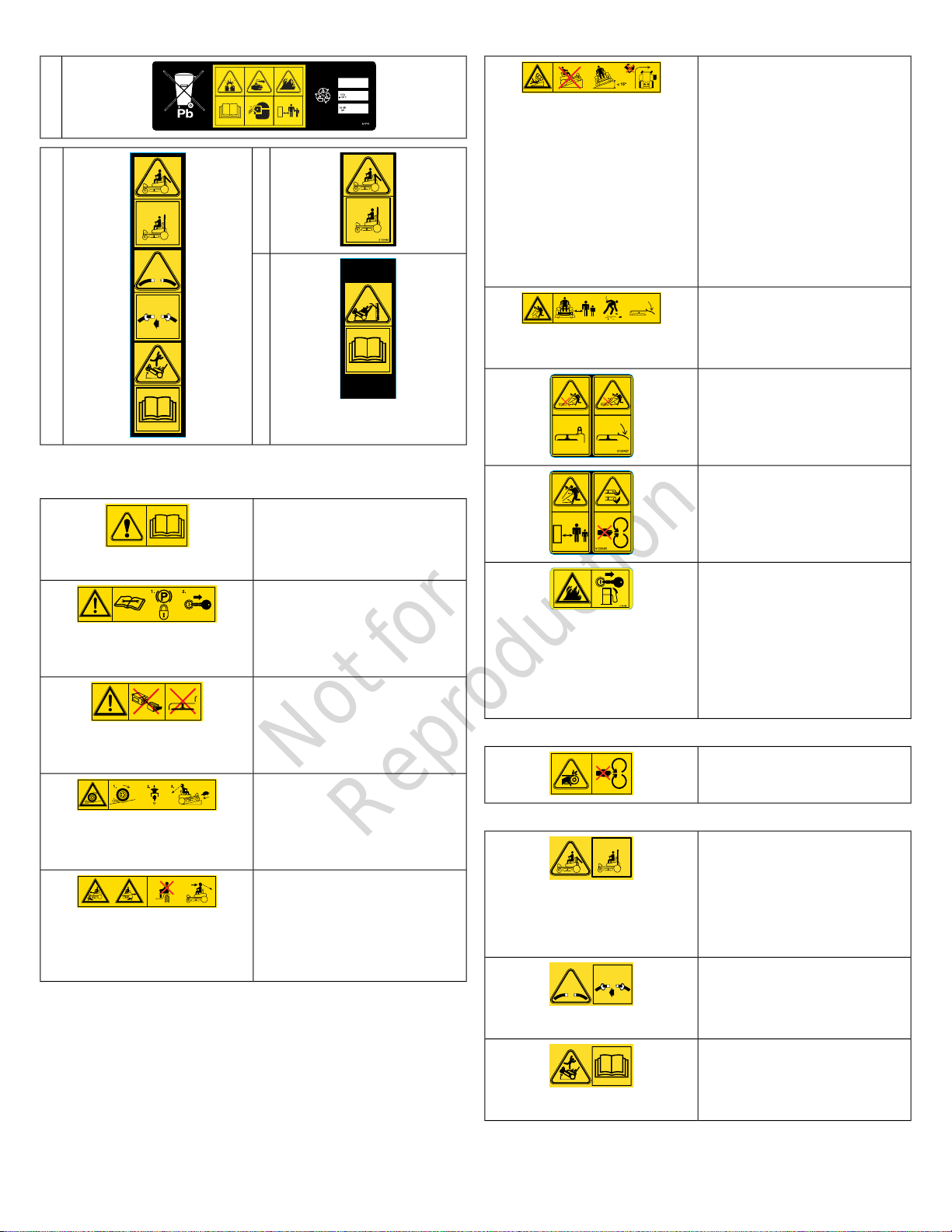

Safety Decals..................................................................11

Safety Icons....................................................................12

Safety Alert Symbol and Signal Words...........................13

Safety Interlock System..................................................13

Features and Controls........................................................13

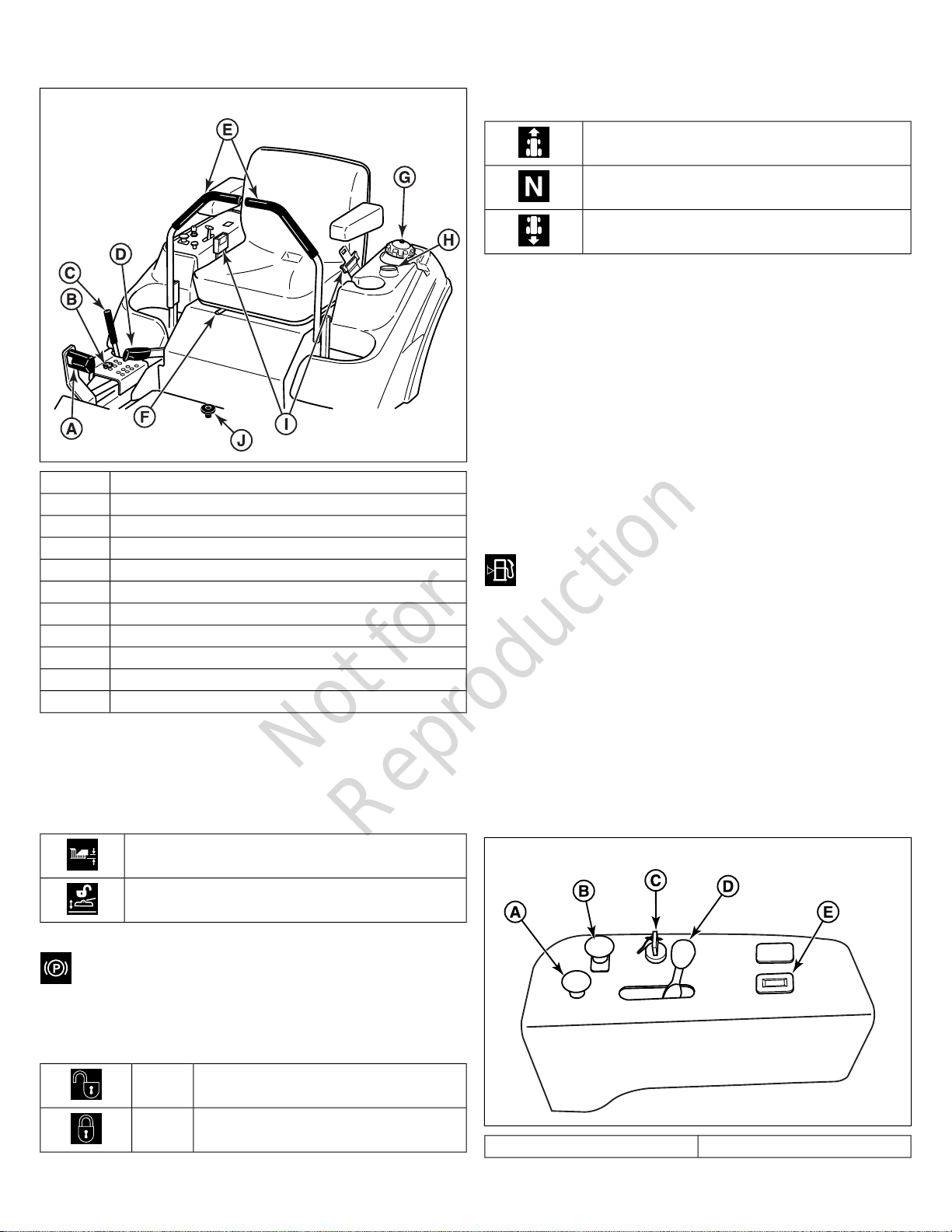

Control Functions and Locations....................................13

Operation.............................................................................15

Before First Time Operation...........................................15

Checks Before Starting...................................................15

Starting the Engine.........................................................16

Stopping the Rider..........................................................16

Zero-Turn Driving Practice..............................................16

Mowing............................................................................18

Mowing Recommendations............................................18

Pushing the Rider by Hand.............................................20

CE Units Equipped with Folding ROPS..........................20

Attaching a Trailer...........................................................21

Checking / Adding Fuel...................................................21

Check Engine Oil Level..................................................22

Engine Maintenance.......................................................22

Check / Fill Transmission Oil..........................................22

Checking Tire Pressures................................................22

Seat Adjustment.............................................................22

Ground Speed Control Lever Adjustment.......................23

Foot Pedal Adjustment...................................................23

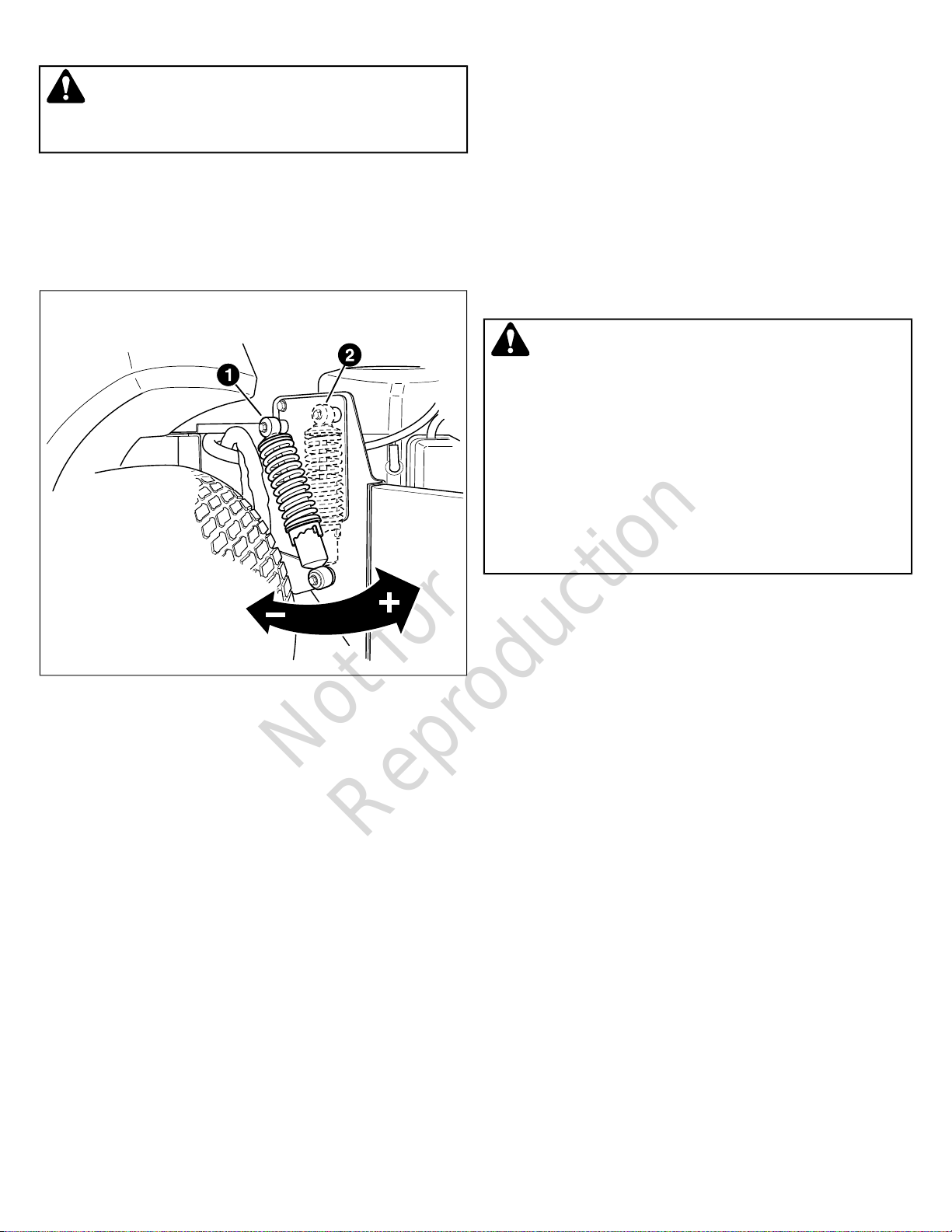

Rear Suspension Adjustment.........................................23

Storage...........................................................................24

Maintenance Schedule........................................................25

Specifications......................................................................25

Warranty...............................................................................27

Warranty Statement........................................................27

Briggs & Stratton Emissions Warranty............................28

2 ferrisindustries.com

Not for

Reproduction

Thank you for purchasing this quality-built Ferris Commerical
Zero Turn Mower. We’re pleased that you’ve placed your
confidence in the Ferris brand. When operated and maintained
according to the manuals, your Ferris product will provide many
years of dependable service.

The manuals contain safety information to make you aware of
the hazards and risks associated with the unit and how to avoid
them. This Commerical Zero Turn Mower was designed to be
used as described in operator's manual and is not intended for
any other purpose. It is important that you read and understand
the instructions thoroughly before attempting to start or operate
this equipment. Save these original instructions for future
reference.

Product Identification Tag (Stamped)

This product requires final assembly before use. Refer to the
setup guide for instructions on final assembly procedures. Follow
the instructions completely.

Products Covered by This Manual

The following products are covered by this manual:

5901244 5901245 5901255 5901256 5901309

The images in this document are representative, and are meant
to compliment the instructional copy they accompany. Your unit
may vary from the images displayed.
seen from the operator's position.

© Briggs & Stratton Corporation, Milwaukee, WI, USA. All rights
reserved.

Ferris is a trademark of Briggs & Stratton Power Products Group,
LLC

Briggs & Stratton Power Products Group, LLC.

5375 N. Main Street

Munnsville, NY 13409-4003

[phone]

LEFT

and

RIGHT

are as

PRODUCT REFERENCE DATA

Unit Model Number:

Unit Serial Number:

Mower Deck Model Number:

Mower Deck Serial Number:

Dealer Name:

Date Purchased:

ENGINE REFERENCE DATA

Engine Make:

Engine Model:

Engine Type/Spec:

Engine Code/Serial Number

When contacting your authorized dealer for replacement parts,
service, or information you MUST have these numbers.

The Illustrated Parts List for this machine can be downloaded
from ferrisindustries.com. Please provide model and serial
number when ordering replacement parts.

CE Identification Tag Markings - EN
836

ferrisindustries.com

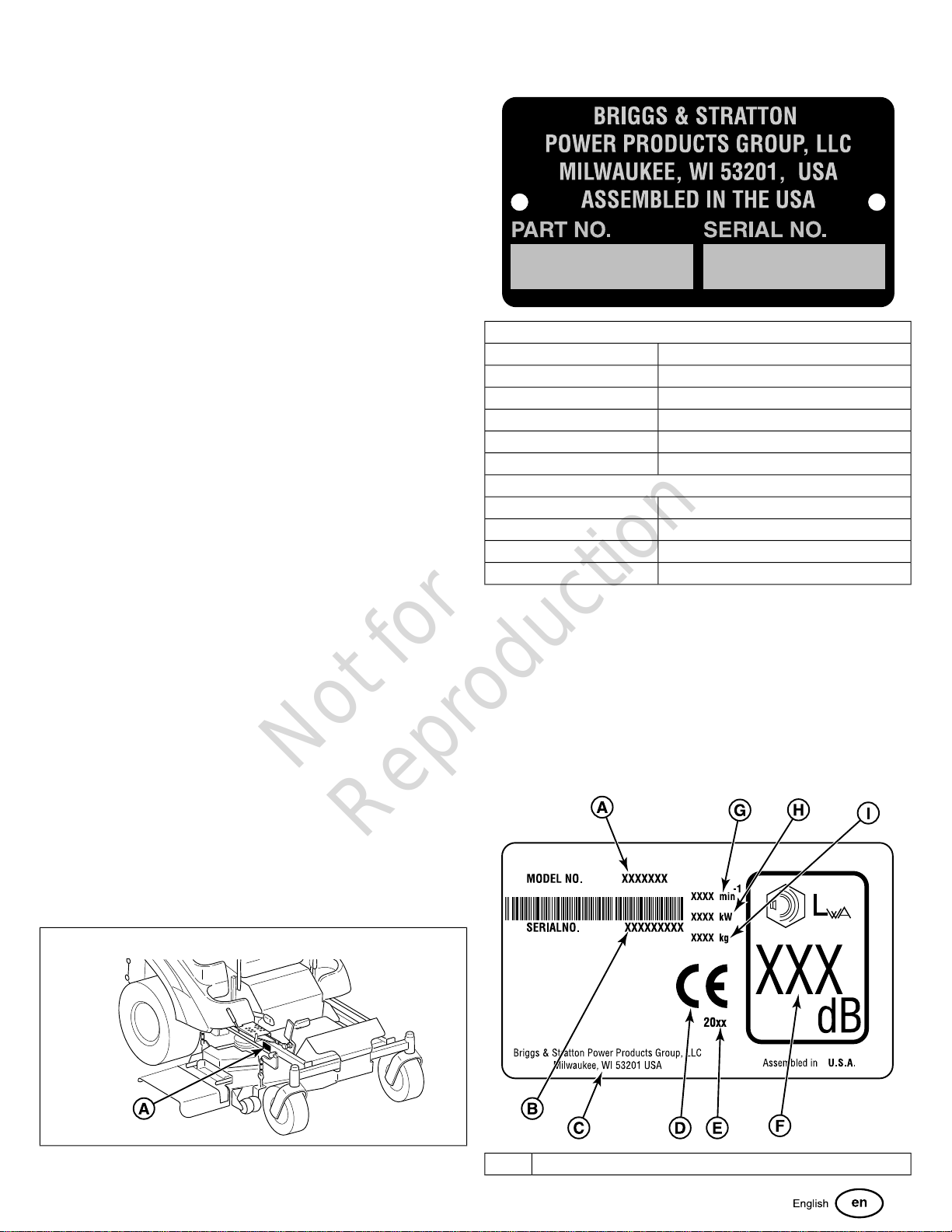

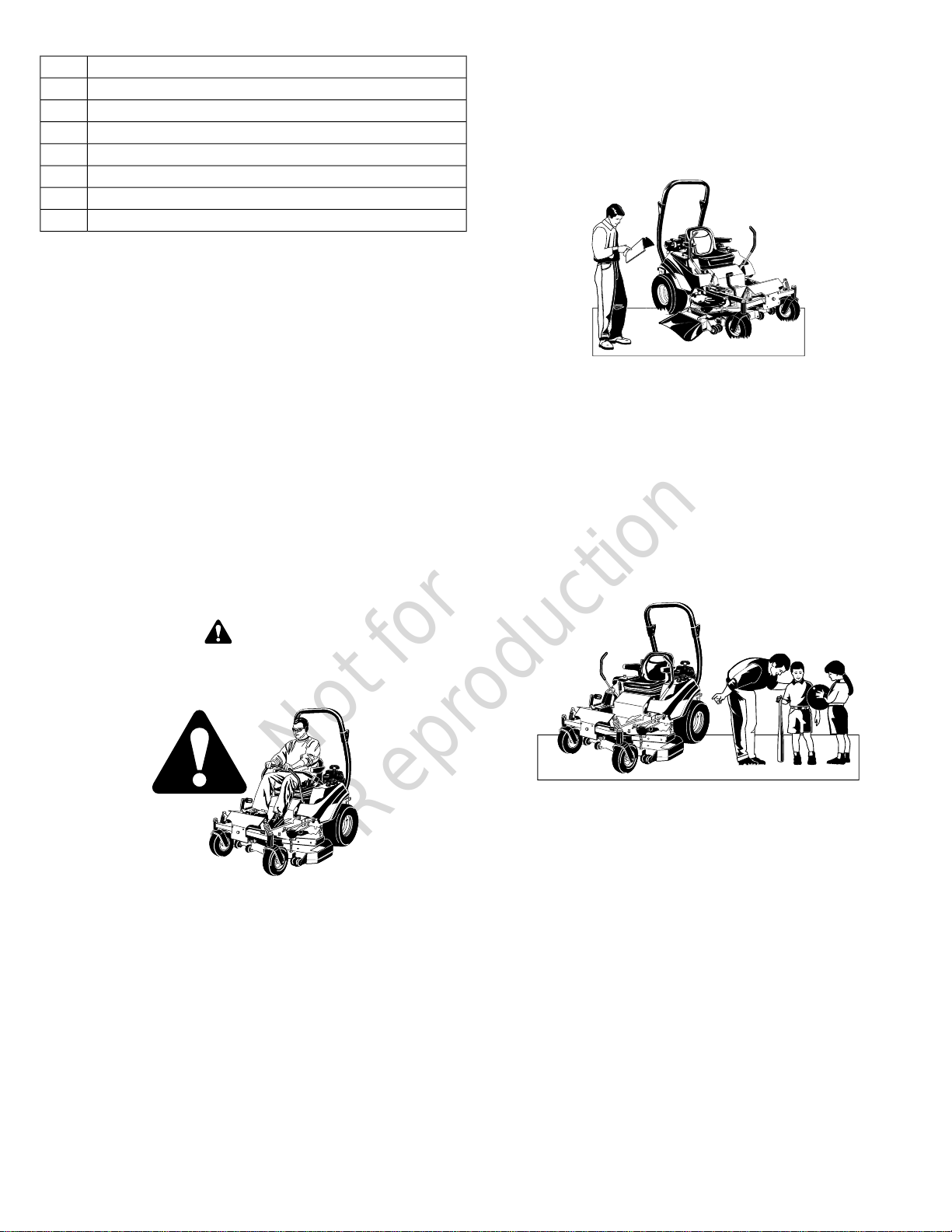

Identification Tag Location

The Product Identification tag (A, Figure 1) can be found in the
location shown.

1

Manufacturer's Identification NumberA.

3

Not for

Reproduction

Serial NumberB.

Manufacturer's AddressC.

CE Compliance LogoD.

Year of ManufactureE.

Sound Power in Decibels*F.

Maximum Engine Speed in Rotations per MinuteG.

Power Ratings in KilowattsH.

Mass of Unit in KilogramsI.

This unit complies with European Harmonized Lawn Mower
Standard EN 836, European Machinery Directive 2006/42/EC,
and European EMC Directive 2004/108/EEC.

*Tested according to 2000/14/EC

"Vibration measurement uncertainty - machine vibration was
recorded using methods and procedures outlined in the
appropriate International Standards in effect at the time of
manufacture. The uncertainties due to the measurement may
result in a variance of up to 5% from the published value shown
in the Declaration of Conformity."

Operator Safety

Read these safety rules and follow them closely. Failure to obey
these rules could result in loss of control of unit, severe personal
injury or death to you, or bystanders, or damage to property or
equipment. This mowing deck is capable of amputating

hands and feet and throwing objects.

Use common sense, and think through what you are doing. If
you are not sure that the task you are about to perform can be
safely done with the equipment you have chosen, ask a
professional: contact your local authorized dealer.

Read the Manual

The operator’s manual contains important safety information
you need to be aware of BEFORE you operate your unit as well
as DURING operation.

Safe operating techniques, an explanation of the product’s
features and controls, and maintenance information is included
to help you get the most out of your equipment investment.

Be sure to completely read the Safety Rules and Information
found on the following pages. Also completely read the
Operation section.

Children

The safety alert triangle in text signifies important cautions
or warnings which must be followed.

Operating Safety

Congratulations on purchasing a superior-quality piece of lawn
and garden equipment. Our products are designed and
manufactured to meet or exceed all industry standards for safety.

Do not operate this machine unless you have been trained.
Reading and understanding this operator’s manual is a way to
train yourself.

Power equipment is only as safe as the operator. If it is misused,
or not properly maintained, it can be dangerous! Remember,
you are responsible for your safety and that of those around
you.

Tragic accidents can occur with children. Do not allow them
anywhere near the area of operation. Children are often attracted
to the unit and mowing activity. Never assume that children will
remain where you last saw them. If there is a risk that children
may enter the area where you are mowing, have another
responsible adult watch them.

4 ferrisindustries.com

Not for

Reproduction

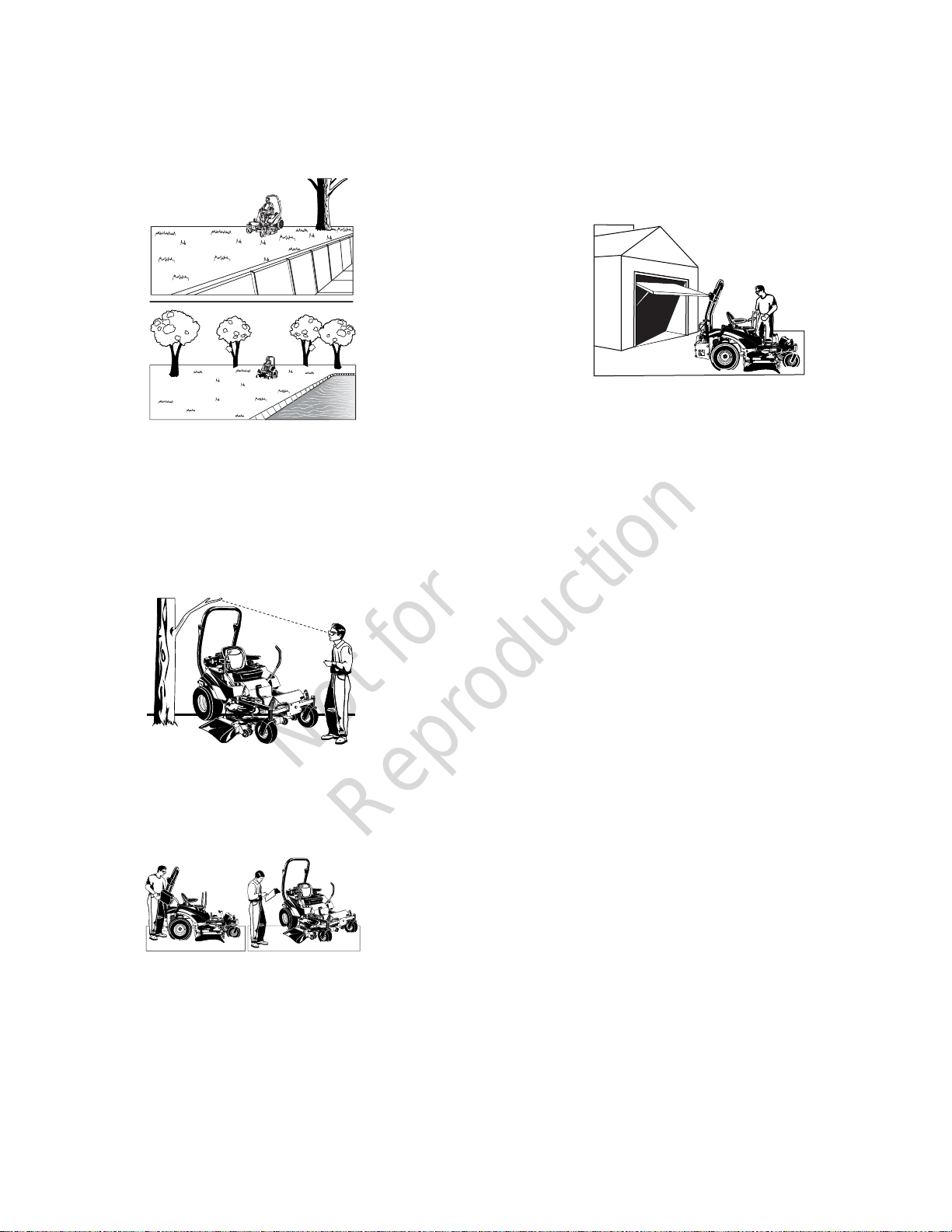

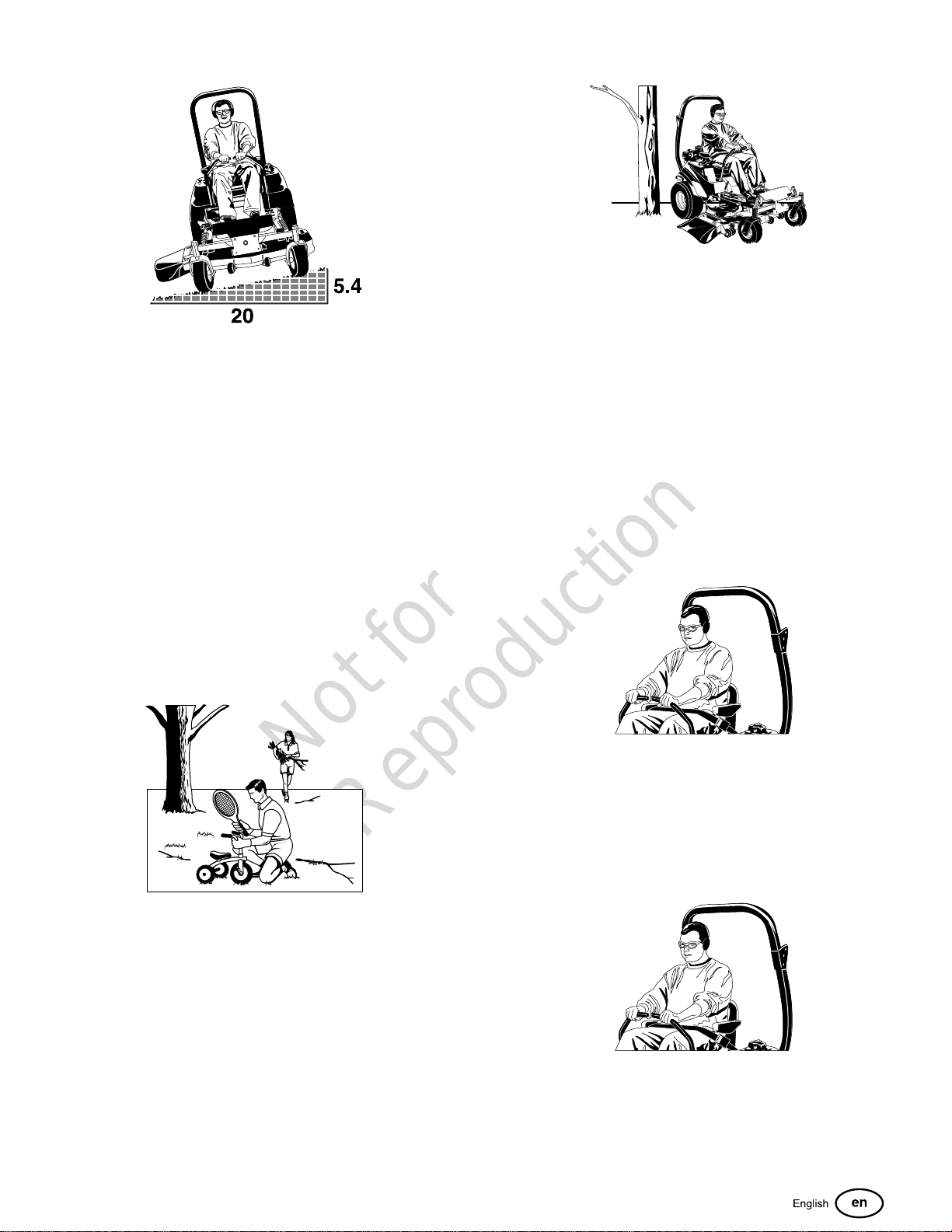

Slope Operation

Operation on slopes can be dangerous. Using the unit on a
slope that is too steep where you do not have adequate wheel
traction (and control) can cause sliding, loss of steering, control,
and possible rollover. You should not operate on a slope greater
than a 5.4 foot rise over a 20 foot length (15 degrees).

Always mow across slopes, not up and down (to maintain
traction on the wheels) and avoid sudden turns or rapid speed
changes. Reduce speed and use extreme caution on ALL
slopes.

Also, note that the surface condition you are on can greatly
impact your ability to safely operate this machine. Operating on
wet or slippery slopes can cause sliding and loss of steering
and control. Do not operate on slopes that are slippery, wet, or
have soft soil conditions.

Moving Parts

This equipment has many moving parts that can injure you or
someone else. However, if you stay in the operator zone (stay
seated in the seat), and follow the safety rules in this operator’s
manual, the unit is safe to operate.

The mower deck has spinning mower blades that can amputate
hands and feet. Do not allow anyone near the unit while it is
running! Keep safety devices (guards, shields, and switches)
in place and working.

To help you, the operator, use this equipment safely, it is
equipped with an operator-present safety system. Do NOT
attempt to alter or bypass the system. See your dealer
immediately if the system does not pass all the safety interlock
system tests found in this manual.

Roll Bar Use (For Models Equipped with a Rigid
Roll Bar)

If you feel unsure about operating the unit on a slope, don’t do
it. It’s not worth the risk.

Thrown Objects

This unit has spinning mower blades. These blades can pick
up and throw debris that could seriously injure a bystander. Be
sure to clean up the area to be mowed and remove objects that
could be thrown by the blade BEFORE you start mowing.

Do not operate this unit without the entire grass catcher or
discharge guard (deflector) in place.

Also, do not allow anyone in the area while the unit is running!
If someone does enter the area, shut the unit off immediately
until they leave.

Keep the roll bar in position and fasten the seat belt. Do not
jump off if the mower tips (it is safer to be secured by the seat
belt.)

NEVER remove the roll bar.

Roll Bar Use (For Models Equipped with a Folding
Roll Bar)

Keep the roll bar in the raised position and fasten the seat belt.
There is no roll over protection when the roll bar is down! Do
not jump off if the mower tips (it is safer to be secured by the
seat belt with the roll bar raised.)

5

Not for

Reproduction

Lower the roll bar only when necessary (such as to temporarily
clear a low overhanging obstacle) and NEVER remove it. Do
NOT use the seat belt when the roll bar is down. Raise the roll
bar as soon as clearance permits.

Retaining Walls, Drop-Offs and Water

Retaining walls and drop-offs around steps and water are a
common hazard. Give yourself a minimum of two mower widths
of clearance around these hazards and hand-trim with a walk
behind mower or string trimmer. Wheels dropping over retaining
walls, edges, ditches, embankments, or into water can cause
rollovers, which may result in serious injury, death, or drowning.

Overhead Obstacles

Check for overhead clearances before driving under any objects.

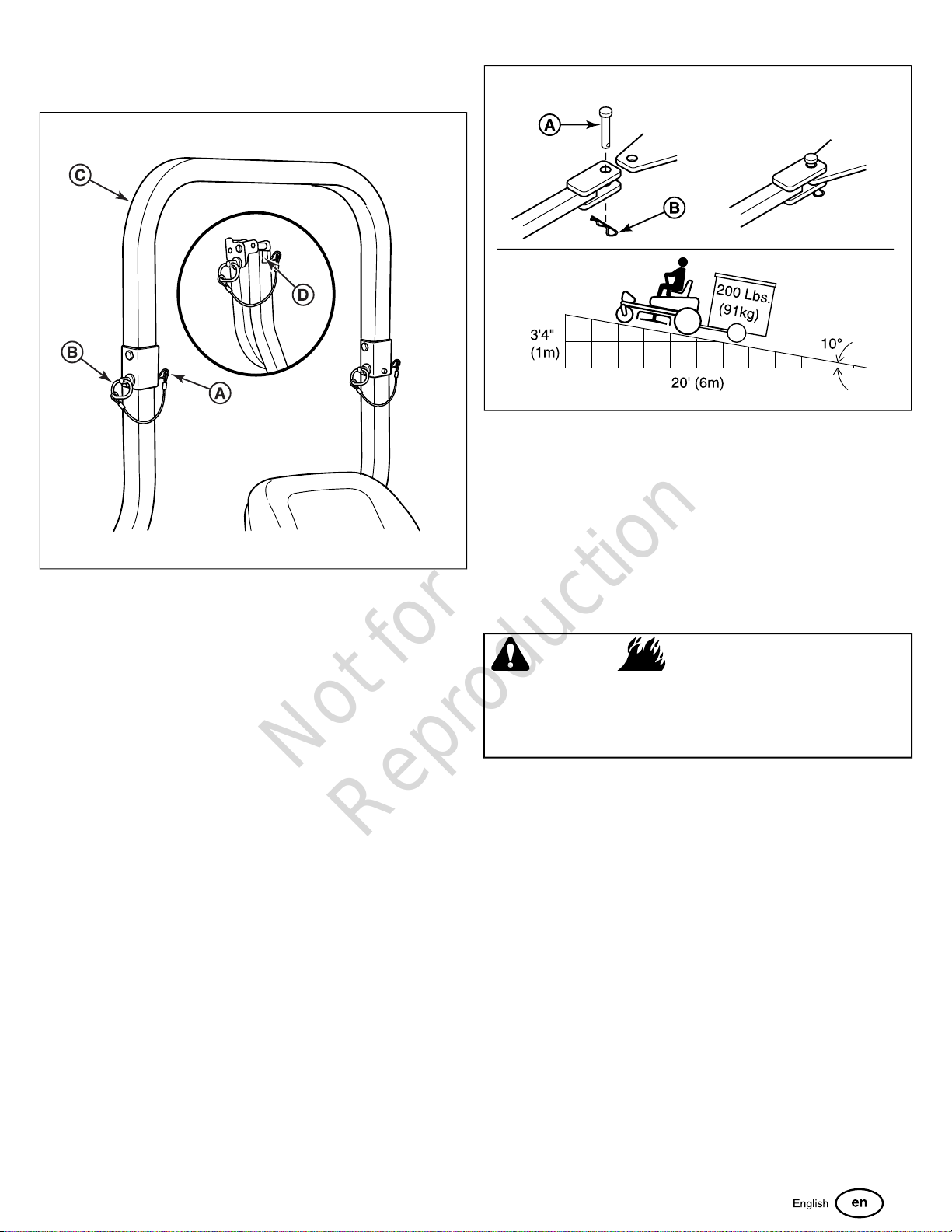

Do not allow the roll bar to contact low overhanging obstacles
such as tree branches and guide wires.

Fuel and Maintenance

Gasoline should be stored only in sealed containers approved
for fuel.

Proper maintenance is critical to the safety and performance of
your unit. Keep the unit free of grass, leaves, and excess oil.
Be sure to perform the maintenance procedures listed in this
manual, especially periodically testing the safety system.

Enclosed Areas

Only operate this unit outdoors and away from unventilated
areas such as inside garages or enclosed trailers. The engine
emits poisonous carbon monoxide gas and prolonged exposure
in an enclosed area can result in serious injury or death.

Training

• Read, understand, and follow all instructions in the manual
and on the unit before starting. If the operator(s) or
mechanic(s) can not read English it is the owner’s
responsibility to explain this material to them.

• Become familiar with the safe operation of the equipment,
operator controls, and safety signs.

• All operators and mechanics should be trained. The owner
is responsible for training the users.

• Only allow responsible adults, who are familiar with the
instructions, to operate the unit.

• Never let children or untrained people operate or service
the equipment. Local regulations may restrict the age of the
operator.

• The owner/user can prevent and is responsible for accidents
or injuries occurring to themselves, other people or property.

• Data indicates that operators, age 60 years and above, are
involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability to
operate the riding mower safely enough to protect
themselves and others from serious injury.

Preparation

Always disengage all drives, shutoff the engine, and remove
the key before doing any cleaning, refueling, or servicing.

Gasoline and its vapors are extremely flammable. Do not smoke
while operating or refueling. Do not add fuel while engine is hot
or running. Allow engine to cool for at least 3 minutes prior to
adding fuel.

Do not add fuel indoors, in an enclosed trailer, garage, or any
other enclosed area that is not well ventilated. Gasoline spills
should be cleaned up promptly and before operation begins.

6 ferrisindustries.com

• Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform the
job. Use only accessories and attachments approved by
the manufacturer.

• Wear appropriate clothing including safety shoes, safety
glasses and ear protection. Long hair, loose clothing or
jewelry may get tangled in moving parts.

Not for

Reproduction

• Inspect the area where the equipment is to be used and
remove all objects such as rocks, toys and wire, which can
be thrown by the machine.

• Use extra care when handling gasoline and other fuels.
They are flammable and vapors are explosive.

• Use only an approved container.

• Never remove fuel cap or add fuel with the engine running.
Allow engine to cool before refueling. Do not smoke.

• Never refuel or drain the machine indoors.

• Check that operator’s presence controls, safety switches
and shields are attached and functioning properly. Do not
operate unless they are functioning properly.

Operation

• Never run an engine in an enclosed area.

• Mow only in the daylight or with good artificial light, keeping
away from holes and hidden hazards.

• Be sure all drives are in neutral and parking brake is
engaged before starting engine. Only start engine from the
operator’s position. Use seat belts if provided.

• Be sure of your footing while using pedestrian controlled
equipment, especially when backing up. Walk, don’t run.
Reduced footing could cause slipping.

• Slow down and use extra care on hillsides. Be sure to travel
in the recommended direction on hillsides. Turf conditions
can affect the machines stability. Use caution when
operating near drop-offs.

• Do not mow in reverse unless absolutely necessary. Always
look down and behind before and while traveling in reverse.

• Be aware of the mower discharge direction and do not point
it at anyone. Do not operate the mower without either the
entire grass catcher or the deflector in place.

• Slow down and use caution when making turns and when
changing directions on slopes.

• Never raise deck with the blades running.

• Never leave a running unit unattended. Always disengage
the PTO, set parking brake, stop engine, and remove keys
before dismounting. Keep hands and feet away from the
cutting units.

• Turn off the PTO switch to disengage the blades when not
mowing.

• Never operate with guards not securely in place. Be sure
all interlocks are attached, adjusted properly and functioning
properly.

• Never operate with the discharge deflector raised, removed
or altered, unless using a grass catcher.

• Do not change the engine governor setting or over-speed
the engine.

• Stop on level ground, lower implements, disengage drives,
engage parking brake, shut off engine before leaving the
operator’s position for any reason including emptying the
grass catchers or unclogging the chute.

• Stop equipment and inspect blades after striking objects or
abnormal vibration occurs. Make necessary repairs before
resuming operations.

• Keep hands and feet away from the cutting units.

• Look behind and down before backing up to be sure of a
clear path.

• Never carry passengers and keep pets and bystanders
away.

• Do not operate the unit while under the influence of alcohol
or drugs.

• Slow down and use caution when making turns and crossing
roads and sidewalks. Stop blades if not mowing.

• Use care when loading or unloading the machine into a
trailer or truck.

• Use care when approaching blind corners, shrubs, trees or
other objects that may obscure vision.

• To reduce fire hazard, keep unit free of grass, leaves &
excess oil. Do not stop or park over dry leaves, grass or
combustible materials.

WARNING

It is a violation of California Public Resource Code, Section
4442, to use or operate the engine on any forest-covered,
brush-covered or grass-covered land unless the exhaust
system is equipped with a spark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federal jurisdictions may have similar laws. Contact an
Authorized Service Dealer to obtain a spark arrester designed
for the exhaust system installed on this engine.

• OSHA regulations may require the use of hearing protection
when exposed to sound levels greater than 85 dBA for an
8 hour time period.

CAUTION

This machine produces sound levels in excess of 85 dBA at
the operator’s ear and can cause hearing loss though
extended periods of exposure.

Wear hearing protection when operating this machine.

Slope Operation

Slopes are a major factor related to loss-of-control and tip-over
accidents, which can result in severe injury or death. All slopes
require extra caution. If you cannot back up the slope or if you
feel uneasy on it, do not drive on it.

7

Not for

Reproduction

WARNING

Do not use this machine on slopes greater than 15°.*

Select slow ground speed before driving onto slope. Use extra
caution when operating on slopes with rear-mounted grass
catchers.

Mow across the face of slopes, not up and down, use caution
when changing directions and DO NOT START OR STOP
ON SLOPE.

* This limit was determined per CEN Standard EN 836:1997, Section 5.2.2
and is based on the EN 836 Stability Test procedure described in Section

4.2.4.2. The 15 degree “limit of stability” is equal to 50% of the angle at
which machine lift-off occurred in static tests. Actual dynamic stability may
vary depending on operating conditions.

Do:

• Mow across slopes, not up and down.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could
overturn the unit. Tall grass can hide obstacles.

• Use slow speed. Choose a slow speed so that you will not
have to stop or change speed while on the slope.

• Use extra care with grass catchers or other attachments.
These can change the stability of the unit.

• Keep all movement on the slopes slow and gradual. Do not
make sudden changes in speed or direction.

• See your authorized dealer for recommendations of
available weights to improve stability.

Do NOT:

• Avoid starting, stopping, or turning on a slope. If tires lose
traction (i.e. machine stops forward motion on a slope),
disengage the blade(s) (PTO) and drive slow off the slope.

• Do not turn on slopes unless necessary, and then, turn
slowly and gradually uphill, if possible. Never mow down
slopes.

• Do not mow near drop-offs, ditches, or embankments. The
operator could lose footing or balance or mower could
suddenly turn over if a wheel is over the edge of a cliff or
ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced footing or traction could
cause sliding.

• Do not try to stabilize the unit by putting your foot on the
ground. (ride-on units).

• Do not mow excessively steep slopes.

• Do not use grass catcher on steep slopes.

• Do not mow slopes if you cannot back up them.

Towed Equipment (Ride-On Units)

• Tow only with a machine that has a hitch designed for
towing. Do not attach towed equipment except at the hitch
point.

• Follow the manufacturer’s recommendations for weight limit
for towed equipment and towing on slopes. See attaching
a trailer under OPERATION.

• Never allow children or others in or on towed equipment.

• On slopes, the weight of the towed equipment may cause
loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

• Do not shift to neutral and coast down hill.

Children

Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit
and the mowing activity. Never assume that children will remain
where you last saw them.

• Keep children out of the mowing area and under the
watchful care of another responsible adult.

• Be alert and turn unit off if children enter the area.

• Before and during reverse operation, look behind and down
for small children.

• Never carry children, even with the blade(s) off. They may
fall off and be seriously injured or interfere with safe unit
operation. Children who have been given rides in the past
may suddenly appear in the mowing area for another ride
and be run over or backed over by the machine.

• Never allow children to operate the unit.

• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.

Emissions

• Engine exhaust from this product contains chemicals known,
in certain quantities, to cause cancer, birth defects, or other
reproductive harm.

• Look for the relevant Emissions Durability Period and Air
Index information on the engine emissions label.

Ignition Systems (Gasoline Models)

• This spark ignition system complies with Canadian
ICES-002.

Service and Maintenance

To avoid personal injury or property damage, use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive.

Safe Handling of Gasoline

• Extinguish all cigarettes, cigars, pipes, and other sources

8 ferrisindustries.com

of ignition.

Not for

Reproduction

• Use only approved gasoline containers.

• Never remove the gas cap or add fuel with the engine
running. Allow the engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there is
an open flame, spark, or pilot light such as near a water
heater or other appliance.

• Never fill containers inside a vehicle or on a truck bed with
a plastic bed liner. Always place containers on the ground
away from your vehicle before filling.

• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable container, rather
than from a gasoline dispenser nozzle.

• Keep nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immediately.

• Never over-fill the fuel tank. Replace gas cap and tighten
securely.

• Use extra care in handling gasoline and other fuels. They
are flammable and vapors are explosive.

• If fuel is spilled, do not attempt to start the engine but move
the machine away from the area of spillage and avoid
creating any source of ignition until fuel vapors have
dissipated.

• Replace all fuel tank caps and fuel container caps securely.

Maintenance and Storage

• Always observe safe refueling and fuel handling practices
when refueling the unit after transportation or storage.

• Always follow the engine manual instructions for storage
preparations before storing the unit for both short and long
term periods.

• Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.

• Never store the machine or fuel container inside where
there is an open flame, such as in a water heater. Allow
unit to cool before storing.

• Shut off fuel while storing or transporting. Do not store fuel
near flames or drain indoors.

• Keep all hardware, especially blade attachment bolts, tight
and keep all parts in good working condition. Replace all
worn or damaged decals.

• Never tamper with safety devices. Check their proper
operation regularly.

• Disengage drives, lower implement, set parking brake, stop
engine and remove key or disconnect spark plug wire. Wait
for all movement to stop before adjusting, cleaning or
repairing.

• Clean grass and debris from cutting units, drives, mufflers,
and engine to prevent fires. Clean up oil or fuel spillage.

• Let engine cool before storing and do not store near flame.

• Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.

• Park machine on level ground. Never allow untrained
personnel to service machine.

• Use jack stands to support components when required.

• Carefully release pressure from components with stored
energy.

• Disconnect battery or remove spark plug wire before making
any repairs. Disconnect the negative terminal first and the
positive last. Reconnect positive first and negative last.

• Use care when checking blades. Wrap the blade(s) or wear
gloves, and use caution when servicing them. Only replace
blades. Never straighten or weld them.

• Keep hands and feet away from moving parts. If possible,
do not make adjustments with the engine running.

• Charge batteries in an open well ventilated area, away from
spark and flames. Unplug charger before connecting or
disconnecting from battery. Wear protective clothes and
use insulated tools.

• Grass catcher components are subject to wear, damage,
and deterioration, which could expose moving parts or allow
objects to be thrown. Frequently check components and
replace with manufacturer’s recommended parts, when
necessary.

• Check brake operation frequently. Adjust and service as
required.

• Use only factory authorized replacement parts when making
repairs.

• Always comply with factory specifications on all settings
and adjustments.

• Only authorized service locations should be utilized for
major service and repair requirements.

• Never attempt to make major repairs on this unit unless you
have been properly trained. Improper service procedures
can result in hazardous operation, equipment damage and
voiding of manufacturer’s warranty.

• Units with hydraulic pumps, hoses, or motors: WARNING:
Hydraulic fluid escaping under pressure may have sufficient
force to penetrate skin and cause serious injury. If foreign
fluid is injected into the skin it must be surgically removed
within a few hours by a doctor familiar with this form of injury
or gangrene may result. Keep body and hands away from
pin holes or nozzles that eject hydraulic fluid under high
pressure. Use paper or cardboard, and not hands, to search
for leaks. Make sure all hydraulic fluid connections are tight
and all hydraulic hoses and lines are in good condition
before applying pressure to the system. If leaks occur, have
the unit serviced immediately by your authorized dealer.

• WARNING: Stored energy device. Improper release of
springs can result in serious personal injury. Springs should
be removed by an authorized technician.

9

Not for

Reproduction

• Models equipped with an engine radiator: WARNING: Stored
energy device. To prevent serious bodily injury from hot
coolant or steam blow-out, never attempt to remove the
radiator cap while the engine is running. Stop the engine
and wait until it is cool. Even then, use extreme care when
removing the cap.

Roll Bar Instructions

For models equipped with factory-installed Roll Over Protection
System (ROPS).

WARNING

In order to avoid serious injury or death from roll over, it is
important to follow the warnings listed below.

Operational Warnings

(Specific to Units Equipped with a Rigid Roll Bar):

• Always use the seat belt when the roll bar is in position.

(Specific to Units Equipped with a Folding Roll Bar):

• Always use the seat belt when the roll bar is in the raised
position.

• Never use the seat belt when the roll bar is in the down
position.

• Remember there is no roll over protection when the roll bar
is in the down position so it is very important to always keep
the roll bar in the raised position whenever possible.

• Lower the roll bar to the down position only when it is
absolutely necessary.

(All Models):

• Check for overhead clearances before driving under any
objects. Do not allow roll bar to contact low overhanging
obstacles such as tree branches and guide wires.

• Never remove the roll bar from the vehicle.

• Do not exceed the machine weight rating of the roll bar.

• Read and follow all of the instructions shown below
regarding the inspection and maintenance of the roll bar
structure and the seat belt.

Inspection of the Roll Bar Protective Structure

• If a ROLL BAR becomes damaged for any reason, such as
a collision, roll over, or impact, the ROLL BAR must be
replaced. Small undetectable cracks can reduce the
effectiveness of the ROLL BAR. Never weld, straighten, or
repair the ROLL BAR.

• Never alter the ROLL BAR by welding anything to it or by
drilling additional holes.

• BEFORE FIRST TIME USE - Inspect the ROLL BAR
structure and mounting hardware for:

1) Check to make sure the machine GVW (Gross Vehicle
Weight), including attachments, restrained payload, fuel
and operator, is not in excess of the maximum weight
specified on the ROLL BAR label.

2) Make sure there isn't any missing, damaged, or loose
mounting hardware.

3) Make sure the ROLL BAR has been correctly and
completely installed.

• EVERY 100 HOURS - Inspect the ROLL BAR structure and
mounting hardware for:

1) Any cracks in the structure (structural members and/or
welds).

2) Significant corrosion on any part of the ROLL BAR
structure or hardware.

3) Missing, damaged, or loose mounting hardware.

4) Mounting hardware that is of a grade less than specified.

5) Machine GVW (Gross Vehicle Weight), including
attachments, restrained payload, fuel, and operator, in
excess of the maximum weight specified on the ROLL BAR
label.

6) Any modifications that have been made, such as
unauthorized welds and holes.

7) Any permanent deformation or twisting of the ROLL BAR
structure.

8) That the ROLL BAR label is still in place and is readable.

9) That the ROLL BAR on-product warning labels are still
on the ROLL BAR and are readable.

• If there is any doubt as to the condition of the ROLL BAR,
remove the machine from service and contact your dealer
for assistance.

WARNING

Failure to properly inspect and maintain the ROLL BAR
protective structure can cause serious injury or death.

A ROLL BAR, like any other safety device, needs to be
periodically inspected to verify that the integrity of the device
has not been compromised through normal machine use,
misuse, age degradation, modifications, or a roll over.

To maintain operator roll over protection and roll bar
effectiveness:

10 ferrisindustries.com

Inspection and Maintenance of the Roll Bar Seat
Belt

WARNING

Failure to properly inspect and maintain the seat belt can
cause serious injury or death.

Not for

Reproduction

2

• The seat belt like the ROLL BAR, needs to be periodically
inspected to verify that the integrity has not been
compromised through normal machine use, misuse, age
degradation, modifications, or a roll over. If the seat belt
does not pass all of the following tests, it should be replaced.

• BEFORE EACH USE – Conduct the following
inspections/maintenance of the seat belt and retraction
mechanism:

1) Check for dirt or debris in the retraction mechanism. If
dirt or debris is found, it should be removed.

WARNING

If any safety decals become worn or damaged, and cannot
be read, order replacement decals from your local dealer.

3

2) Check to make sure the retraction mechanism retracts
easily and completely.

3) Check for damage to any part of the seat belt (A, Figure

2) such as nicks, cuts, loose stitching, or fraying.

4) Check that the buckle and latch (B) operate properly and
that the latch plate is not excessively worn, deformed, or
the buckle is damaged or cracked. The seat belt should
latch and release easily.

California Prop 65 Exhaust Chemical
Warning

WARNING

U.S.A. Models: The engine exhaust from this product
contains chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm.

WARNING

Battery posts, terminals, and related accessories contain
lead and lead compounds, chemicals known to the State
of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

A

B

C

D

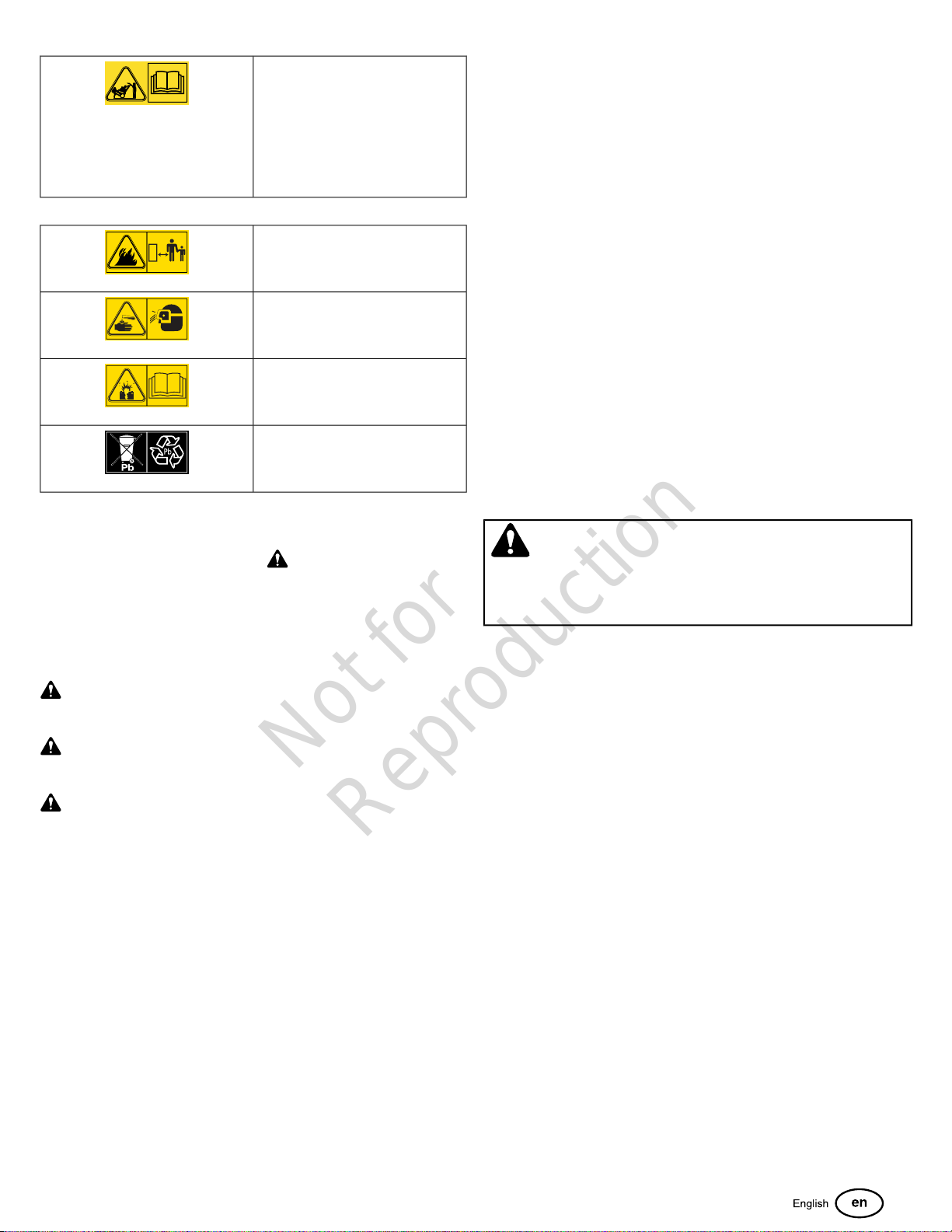

Safety Decals

Before operating your unit, read the safety decals. The cautions
and warnings are for your safety. To avoid a personal injury or
damage to the unit, understand and follow all safety decals.

E

11

Not for

Reproduction

F

HG

I

Danger - Tipping and slipping
hazard: Mow across slopes, not up

and down. Do not operate on slopes
over 15 degrees. Avoid sudden and
sharp (fast) turns while on slopes. This
limit was determined per CEN
Standard EN 836:1997, Section 5.2.2
and is based on the EN 836 Stability
Test procedure described in Section

4.2.4.2. The 15 degree “limit of
stability” is equal to 50% of the angle
at which machine lift-off occurred in
static tests. Actual dynamic stability
may vary depending on operating
conditions.

Danger - Thrown objects hazard:

Keep bystanders and children a safe
distance away. Remove objects that
can be thrown by the blade. Do not
mow without discharge chute in place.

Danger - Thrown Objects Hazard:

Do not mow without discharge chute
or entire grass catcher in place.

Safety Icons

Warning: Read and understand the

Operator’s Manual before using this
machine. Know the location and
function of all controls. Do not operate
this machine unless you are trained.

Warning: Consult technical literature
before performing technical repairs or
maintenance. When leaving the
machine, shutoff engine, set the
parking brake to the lock position and
remove the ignition key.

Danger - Amputation and
dismemberment hazard: To avoid

injury from rotating blades and moving
parts, keep safety devices (guards,
shields and switches) in place and
working.

Danger - Loss of traction, sliding,
steering and control on slopes
hazard: If machine stops forward

motion or starts sliding on a slope, stop
the blades and drive slowly off the
slope.

Danger - Amputation hazard: Do not
mow when children or others are
around. Never carry riders especially,
children even with the blades off. Do
not mow in reverse unless absolutely
necessary. Look down and behind –
before and while backing.

Danger - Amputation and Thrown
Objects Hazard: To avoid injury from

rotating blades, stay clear of deck edge
and keep others away.

Danger: Fire Hazard: Keep unit free
of grass, leaves and excess oil. Do not
add fuel while engine is hot or running.
Stop engine, remove key and allow to
cool for at least 3 minutes prior to
adding fuel. Do not add fuel indoors,
in an enclosed trailer, garage or other
enclosed areas. Clean up spilled fuel.
Do not smoke while operating this
machine.

Danger: Dismemberment - This
machine can crush and cut. Keep
hands away from belts and pulleys.

Warning: Avoid Serious Injury or
Death from Roll Over - Keep roll bar

in the raised position and use seat belt.
There is no roll over protection when
roll bar is down. Lower roll bar only
when necessary and NEVER remove
it. Raise the roll bar as soon as
clearance permits.

Warning: Avoid Serious Injury or
Death from Roll Over - Keep roll bar

in the raised position and use seat belt.
Do NOT use seat belt when the roll bar
is down.

Warning: Avoid Serious Injury or
Death from Roll Over - Do NOT jump

off if the mower tips. Read and follow
all operating instructions and warnings
in the operator’s manual.

12 ferrisindustries.com

Not for

Reproduction

Warning: Low Overhanging
Obstacles Hazard - Check for

overhead clearances before driving
under any objects. Stay clear. Do NOT
allow roll bar to contact low
overhanging obstacles, such as tree
branches and guide wires. Read and
follow all operating instructions and
warnings in the operator’s manual.

Test 2 - Engine SHOULD crank if:

• PTO switch is not engaged, AND

• Parking brake is engaged, AND

• Ground speed control levers are locked in the NEUTRAL
position.

Test 3 - Engine should SHUT OFF if:

Warning: Fire Hazard - Keep children,

open flames and sparks away from the
battery, which could ignite explosive
gases.

Warning: Sulfuric acid can cause
blindness or severe burns - Always

wear safety goggles or a face shield
when working on or near a battery.

Warning: Batteries produce
explosive gases - Read and

understand the Operator’s Manual
before using this machine.

Important: Do not discard a battery
in the trash - Contact local authorities

for disposal and/or recycling of
batteries.

Safety Alert Symbol and Signal Words

The safety alert symbol indicates a potential personal injury
hazard. A signal word (DANGER, WARNING, or CAUTION) is
used with the alert symbol to designate a degree or level of
hazard seriousness. A safety symbol may be used to represent
the type of hazard. The signal word NOTICE is used to address
practices not related to personal injury.

DANGER indicates a hazard which, if not avoided,

in death or serious injury.

WARNING indicates a hazard which, if not avoided,

result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

result in minor or moderate injury.

will

result

could

could

• Operator rises off seat with PTO engaged, OR

• Operator rises off seat with parking brake disengaged.

• Operator moves ground speed control levers out of their
neutral positions before disengaging parking brake.

Test 4 - Blade Brake Check

Mower blades and mower drive belt should come to a complete
stop within seven (7) seconds after electric PTO switch is turned
off (or operator rises off seat). If mower drive belt does not stop
within seven (7) seconds, see your dealer.

NOTE: Once the engine has stopped, PTO switch must be
turned off, parking brake must be engaged, and the ground
speed control levers must be locked in the NEUTRAL position
after the operator returns to the seat in order to start the engine.

WARNING

If the unit does not pass a safety test, do not operate it. See
your authorized dealer. Under no circumstance should you
attempt to defeat the purpose of safety interlock system.

Features and Controls

Control Functions and Locations

The information below briefly describes the function of individual
controls. Starting, stopping, driving, and mowing require the
combined use of several controls applied in specific sequences.
To learn what combination and sequence of controls to use for
various tasks see the

Operation

section.

NOTICE

product.

indicates an action that could result in damage to the

Safety Interlock System

This unit is equipped with safety interlock switches. These safety
systems are present for your safety, do not attempt to bypass
safety switches, and never tamper with safety devices. Check
their operation regularly.

Operational SAFETY Checks

Test 1 - Engine SHOULD NOT crank if:

• PTO switch is engaged, OR

• Parking brake is not engaged, OR

• Ground speed control levers are not in the NEUTRAL
position.

13

Not for

Reproduction

Tractor Controls

4

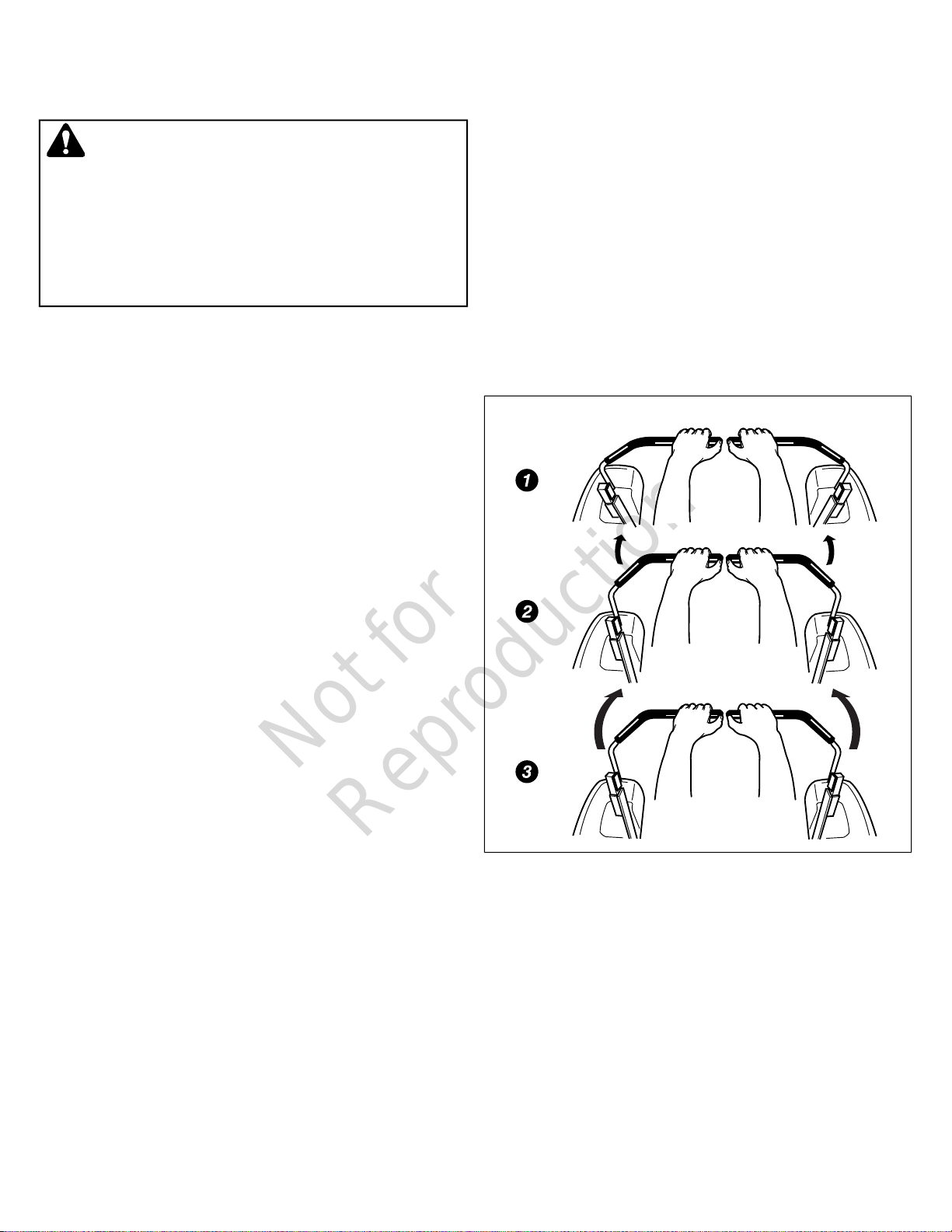

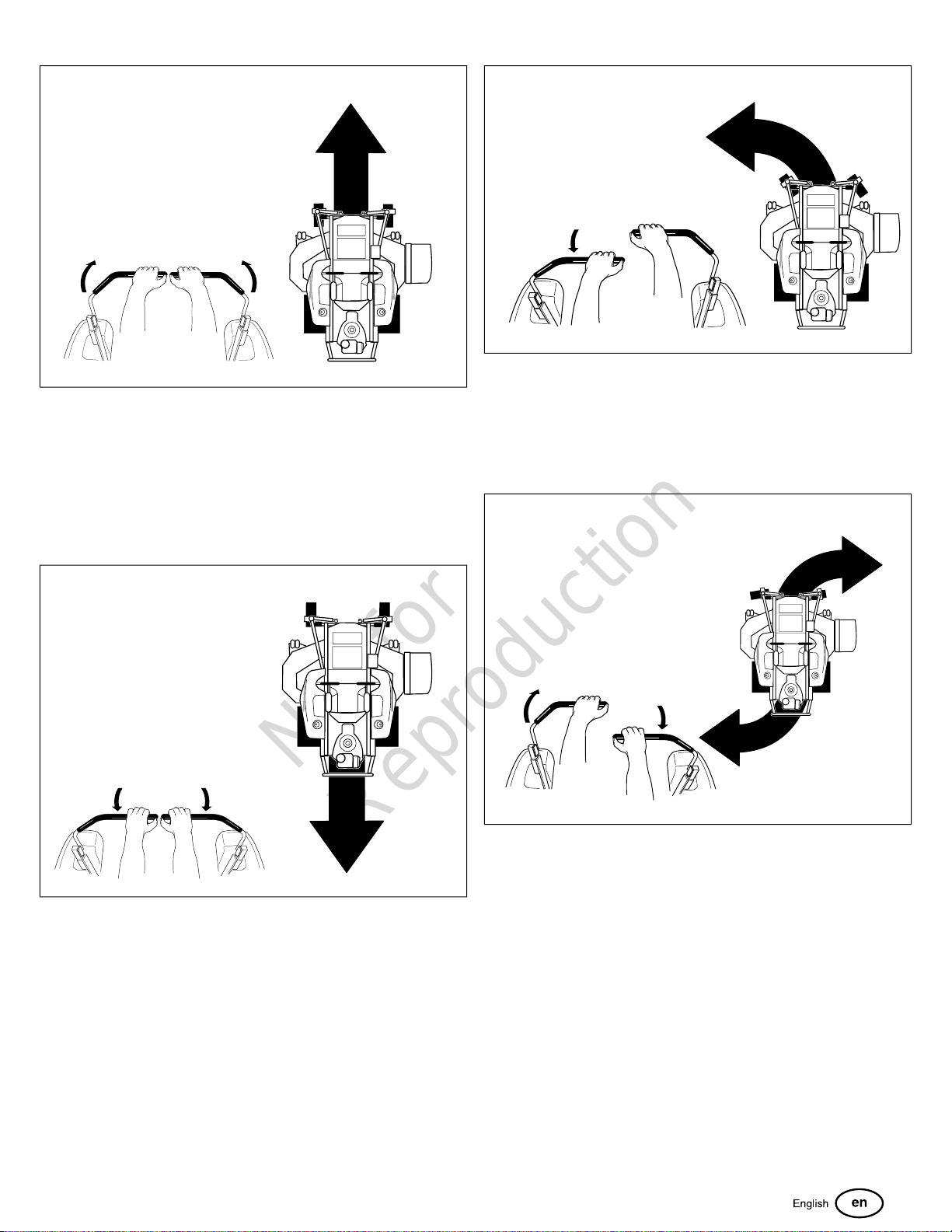

Ground Speed Control Levers: These levers control the

ground speed of the rider. The left lever controls the left rear
drive wheel and the right lever controls the right rear drive wheel.

FORWARD

NEUTRAL

REVERSE

Moving a lever forward increases the FORWARD speed of the
associated wheel, and pulling back on a lever increases the
REVERSE speed.

Note: The further a lever is moved away from the neutral position
the faster the drive wheel will turn.

Control NameCallout

Deck Lift PedalA

Cutting Height Adjustment PinB

Deck Lift Lock LeverC

Parking BrakeD

Ground Speed Control LeversE

Seat Adjustment LeverF

Fuel Tank CapG

Fuel Level GuageH

Retractable Seat BeltI

Removable Floor PlateJ

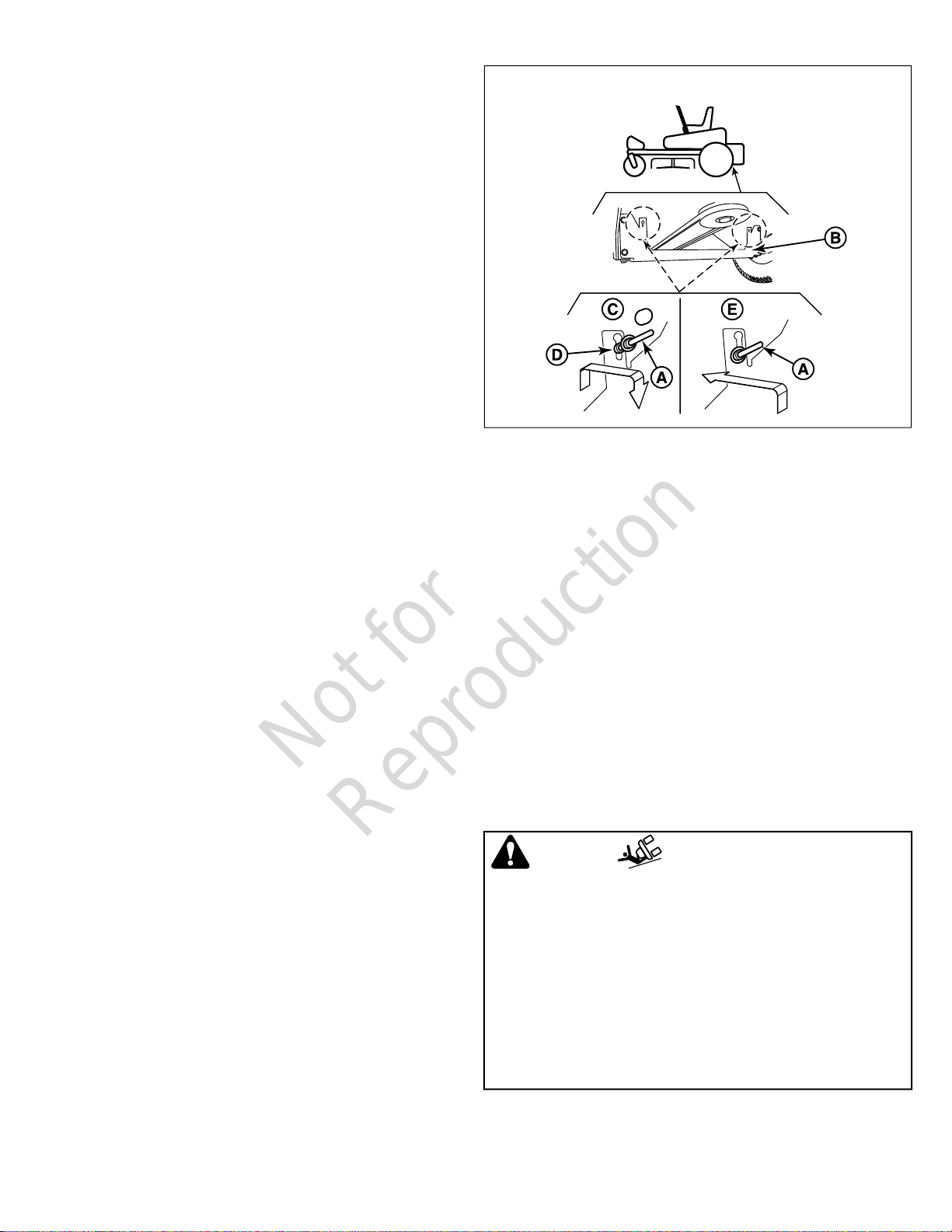

Deck Lift Pedal, Cutting Height Adjustment Pin & Deck Lift
Lock Lever: These control the cutting height of the mower deck.

Depress the pedal until it locks into the 4-1/2” (11.4 cm) position.
Place the adjustment pin in the desired cutting height and
release the lift lock lever.

See the
instructions.

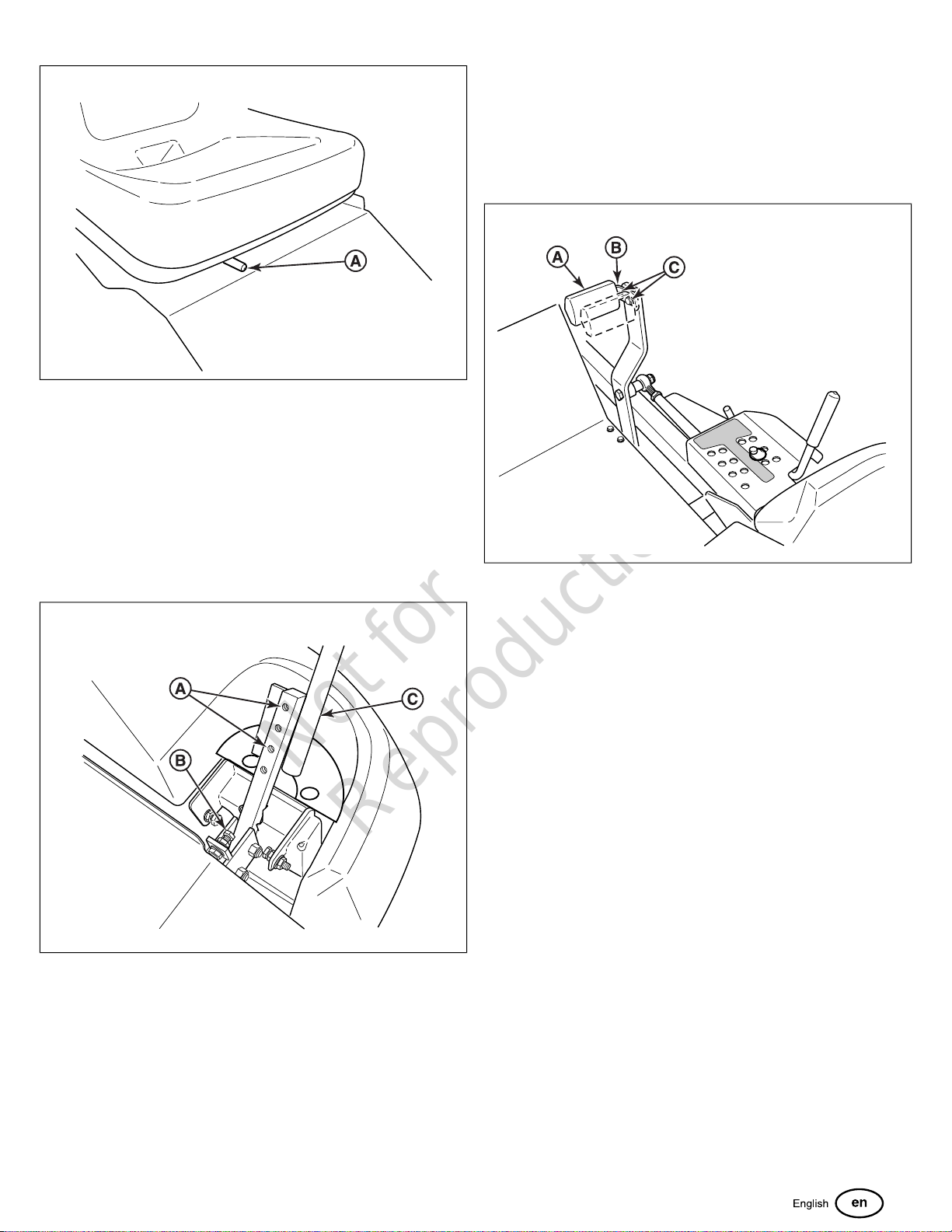

Seat Adjustment Lever: The seat can be adjusted forward and
back. Move the lever towards the left, position the seat as
desired, and release the lever to lock the seat in position.

Fuel Tank Cap: To remove the cap, turn counter-clockwise.

Retractable Seat Belt: The seat belt is used to secure the

operator to the seat.

The seat belt should always be worn when using this equipment
with a Roll Bar.

Removable Floor Plate: The floor plate can be removed for
easy access to the mower deck. To remove the plate, remove
the retainer hardware and tilt the floor pan up and then remove
from the machine. Reverse the process for re-installation.

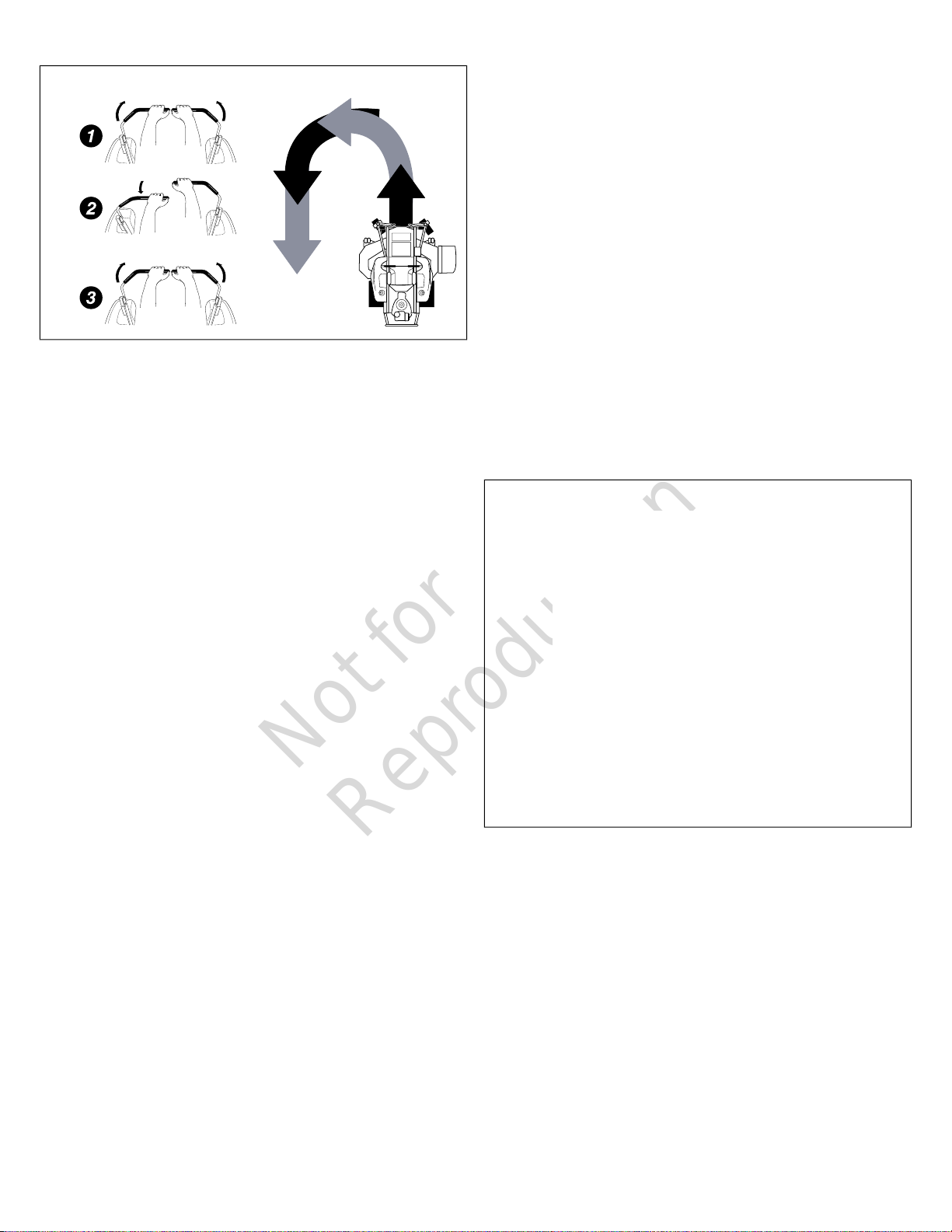

Zero-Turn Driving Practice

Fuel Level Gauge: Displays the fuel level in the tank.

section for steering

Instrument Control Panel

Cutting Height Adjustment Pin

Deck Lift Lock Lever

Parking Brake: Pull the parking brake lever back to
engage the parking brake. Move the lever fully forward to
disengage the parking brake.

NOTE: To start the unit the parking brake must be engaged.

Releases the parking brake.Disengage

Locks the parking brake.Engage

14 ferrisindustries.com

5

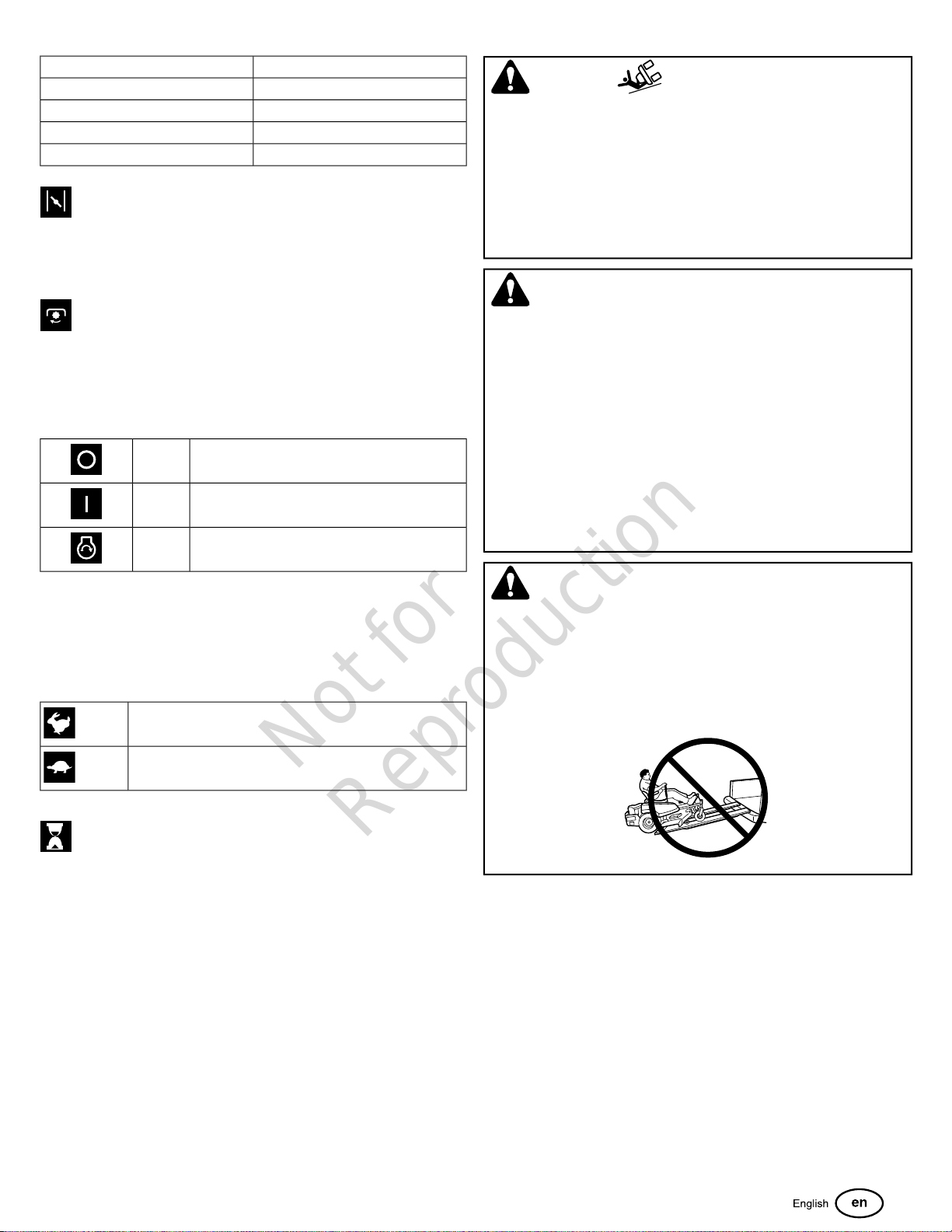

Control NameCallout

Not for

Reproduction

ChokeA

PTO SwitchB

Ignition SwitchC

Throttle ControlD

Hour MeterE

Choke: Close the choke for cold starting. Open the choke
once the engine starts. A warm engine may not require choking.
Pull the knob UP to close the choke. Push the knob DOWN to
open the choke.

PTO (Power Take Off) Switch: The PTO switch engages
and disengages the mower. Pull UP on the switch to engage,
and push DOWN to disengage.

Ignition Switch: The ignition switch starts and stops the engine,
it has three positions:

OFF

RUN

Stops the engine and shuts off the electrical
system.

Allows the engine to run and powers the electrical
system.

Cranks the engine for starting.START

WARNING

• Never operate on slopes greater than 15°.

• Select slow ground speed before driving onto a slope.
Use extra caution when operating on slopes with a
rear-mounted grass catcher.

• Mow across the face of slopes, not up and down, use
caution when changing direction on slopes and do NOT

start or stop on a slope.

WARNING

• Never allow passengers to ride on the unit.

• Before leaving the operator’s position for any reason,
engage the parking brake, disengage the PTO, stop the
engine and remove the key.

• To reduce fire hazard, keep the engine, rider and mower
free of grass, leaves and excess grease. Do NOT stop or
park rider over dry leaves, grass or combustible materials.

• Fuel is highly flammable and must be handled with care.
Never fill the tank when the engine is still hot from recent
operation. Do NOT allow open flame, smoking or matches
in the area. Avoid over-filling and wipe up any spills.

NOTE: Never leave the ignition switch in the RUN position with
the engine stopped—this drains the battery.

Throttle Control: The throttle controls engine speed. Move the
throttle forward to increase engine speed and back to decrease
engine speed. Always operate at FULL throttle.

Fast throttle speed.

Slow throttle speed.

Hour Meter: The hour meter measures the number of
hours the PTO has been engaged. The hour meter has a self
contained power source so the total hours are always visible.

Operation

Before First Time Operation

• Be sure to read all information in the Safety and Operation
sections before attempting to operate this tractor and
mower.

• Become familiar with all of the controls and how to stop the
unit.

• Drive in an open area without mowing to become
accustomed to the unit.

WARNING

Do NOT load this zero-turn rider on a trailer or truck using two
separate ramps. Only use a single ramp that is at least one
foot wider than the width of the rear wheels of this rider. This
rider has a zero turning radius and the rear wheels could fall
off the ramps, or the rider could tip over injuring the operator
or bystanders.

Checks Before Starting

• Check that the crankcase is filled to the full mark on the
crankcase oil fill and dipstick. If necessary, add oil through
the engine oil fill. See the engine Operator’s manual for
instructions, engine oil dipstick location and oil
recommendations.

• Make sure all nuts, bolts, screws and pins are in place and
tight.

• Adjust the seat position, and make certain you can reach
all the controls from operator’s position.

• Fill the fuel tank with fresh fuel. Refer to engine manual for
fuel recommendations.

15

Not for

Reproduction

• Check the hydraulic oil level.

Starting the Engine

WARNING

• If you do not understand how a specific control functions,
or have not yet thoroughly read the
section, do so now.

• Do NOT attempt to operate the tractor without first
becoming familiar with the location and function of all
controls.

1. While sitting in the operator's seat, engage the parking brake
and make sure the PTO switch is disengaged and the
ground speed control levers are locked in the neutral
position.

2. A warm engine may not require choking. Set the engine
throttle control to FAST throttle position. Then fully close
the choke by pulling the knob OUT fully.

3. Insert the key into the ignition switch and turn it to START.

4. After the engine starts, gradually open the choke (push
knob down fully). Reduce to half throttle speed and allow
engine to warm.

a minute before engaging the PTO switch or driving the
rider.

5. After warming the engine always operate the unit at FULL
throttle when mowing.

Warm up the engine by running it for atleast

Features & Controls

Locate a smooth, flat area of your lawn — one with plenty of
room to maneuver. (Clear the area of objects, people and
animals before you begin.) Operate the unit at mid-throttle during
this practice session (ALWAYS operate at full throttle when
mowing), and turn slowly to prevent tire slippage and damage
to your lawn.

We suggest you begin with the Smooth Travel procedure to the
right, and then advance through the forward, reverse, and
turning maneuvers.

You must release the parking brake prior to moving the control
levers inward.

Smooth Travel

The lever controls of the Zero Turn rider are responsive.

The BEST method of handling the ground speed control levers
is in three steps — as shown in Figure 6.

6

In the event of an emergency the engine can be stopped
by simply turning the ignition switch to STOP.

method only in emergency situations. For normal engine shut
down follow the procedure given in

Stopping the Rider

Use this

.

Stopping the Rider

1. Returning the ground speed control levers to the middle
position will stop rider movement. Pivot the levers outward
and lock them in NEUTRAL.

2. Disengage the PTO by pushing down on the PTO switch.

3. Engage the parking brake by pulling the handle up until it
locks into position.

4. Move the throttle control to mid-throttle position and turn
the ignition key to OFF. Remove the key.

Zero-Turn Driving Practice

The lever controls of the Zero Turn rider are responsive, and
learning to gain a smooth and efficient control of the rider’s
forward, reverse, and turning movements will take some
practice.

Spending some time going through the maneuvers shown and
becoming familiar with how the unit accelerates, travels, and
steers — before you begin mowing —is absolutely essential to
getting the most out of the Zero Turn rider.

FIRST place your hands onto the levers as shown.

SECOND, to go forward gradually push the levers forward with

your palms.

THIRD, to speed up move the levers farther forward. To slow
down smoothly, slowly move the levers toward neutral.

Basic Driving

Forward Travel Practice

16 ferrisindustries.com

Not for

Reproduction

7

Gradually move both ground speed control levers — evenly
FORWARD from neutral. Slow down and repeat.

NOTE: Straight forward travel takes practice. If necessary, top
speed can be balance-adjusted — see the Speed Balancing
Adjustment in the Adjustments section near the back of this
manual.

9

While traveling forward allow one handle to gradually return
back toward neutral. Repeat several times.

NOTE: To prevent pivoting directly on the tire tread, it is best
to keep both wheels going at least slightly forward.

Practice Turning in Place

10

Reverse Travel Practice

8

LOOK DOWN & BEHIND, then gradually move both ground
speed control levers evenly BACK from neutral. Slow down and
repeat.

NOTE: Practice backing up for several minutes before
attempting to do so near objects. The rider turns sharply in
reverse as well as forward, and backing up straight takes
practice.

To turn in place, “Zero Turn,” gradually move one ground speed
control lever forward from neutral and one lever back from
neutral simultaneously. Repeat several times.

NOTE: Changing the amount each lever is pulled—forward or
back, changes the “pivot point” you turn on.

Advanced Driving

Executing an End-Of-Row Zero Turn

Practice Turning Around A Corner

17

Not for

Reproduction

11

Your Zero Turn Rider’s unique ability to turn in place allows you
to turn around at the end of a cutting row rather than having to
stop and Y-turn before starting a new row.

For example, to execute a left end-of row zero turn:

1. Slow down at the end of the row.

2. Move the RIGHT ground speed control lever forward slightly
while moving the LEFT ground speed control lever back to
center and then slightly back from center.

3. Begin mowing forward again.

Height of Grass

Often cutting height is a matter of personal preference. Typically,
you should mow the grass when it is between three and five
inches high. The proper cutting height range for a specific lawn
will depend upon several factors, including the type of grass,
the amount of rainfall, the prevailing temperature, and the lawn’s
overall condition.

Cutting the grass too short causes weak, thin grass plants,
which are easily damaged by dry periods and pests. Cutting
too short is often more damaging than allowing the grass to be
slightly higher.

Letting grass grow a bit longer—especially when it is hot and
dry—reduces heat build-up, preserves needed moisture and
protects the grass from heat damage and other problems.
However, allowing grass to grow too high can cause thin turf
and additional problems.

Cutting off too much at one time shocks the plant’s growth
system and weakens the grass plants. A good rule of thumb

is the 1/3 rule: to cut no more than one third of the grass
height, and never more than 1 inch at a time.

12

This technique turns the rider LEFT and slightly overlaps the
row just cut —eliminating the need to back up and re-cut missed
grass.

As you become more familiar and experienced with operating
the Zero Turn rider, you will learn more maneuvers that will
make your mowing time easier and more enjoyable.

Remember, the more you practice, the better your control
of the Zero Turn will be!

Mowing

1. Engage the parking brake. Make sure that the PTO switch
is disengaged, the ground speed control levers are locked
in the NEUTRAL position and the operator is in the seat.

2. Start the engine. See

3. Set the mower cutting height.

4. Set the throttle to FULL.

5. Engage the PTO by pulling up on the PTO switch.

6. Begin mowing.

7. When finished, shut off the PTO.

8. Stop the engine. See

Starting the Engine

Stopping the Rider

.

.

Mowing Recommendations

Several factors can affect how well your machine cuts grass,
Following proper mowing recommendations can improve the
performance and life of your machine.

The amount of grass you are able to cut in one pass is also
effected by the type of mowing system you are using (for
example, broadcasting with side discharge decks can process
a much larger volume of grass than mulching does).

Tall grass requires incremental cutting. For extremely tall
grass, set the cutting height at maximum for the first pass (A,
Figure 13), and then reset it to the desired height and mow a
second (B) or third time.

Don’t cover the grass surface with a heavy layer of clippings.
Consider using a grass collection system and starting a compost
pile.

18 ferrisindustries.com

Not for

Reproduction

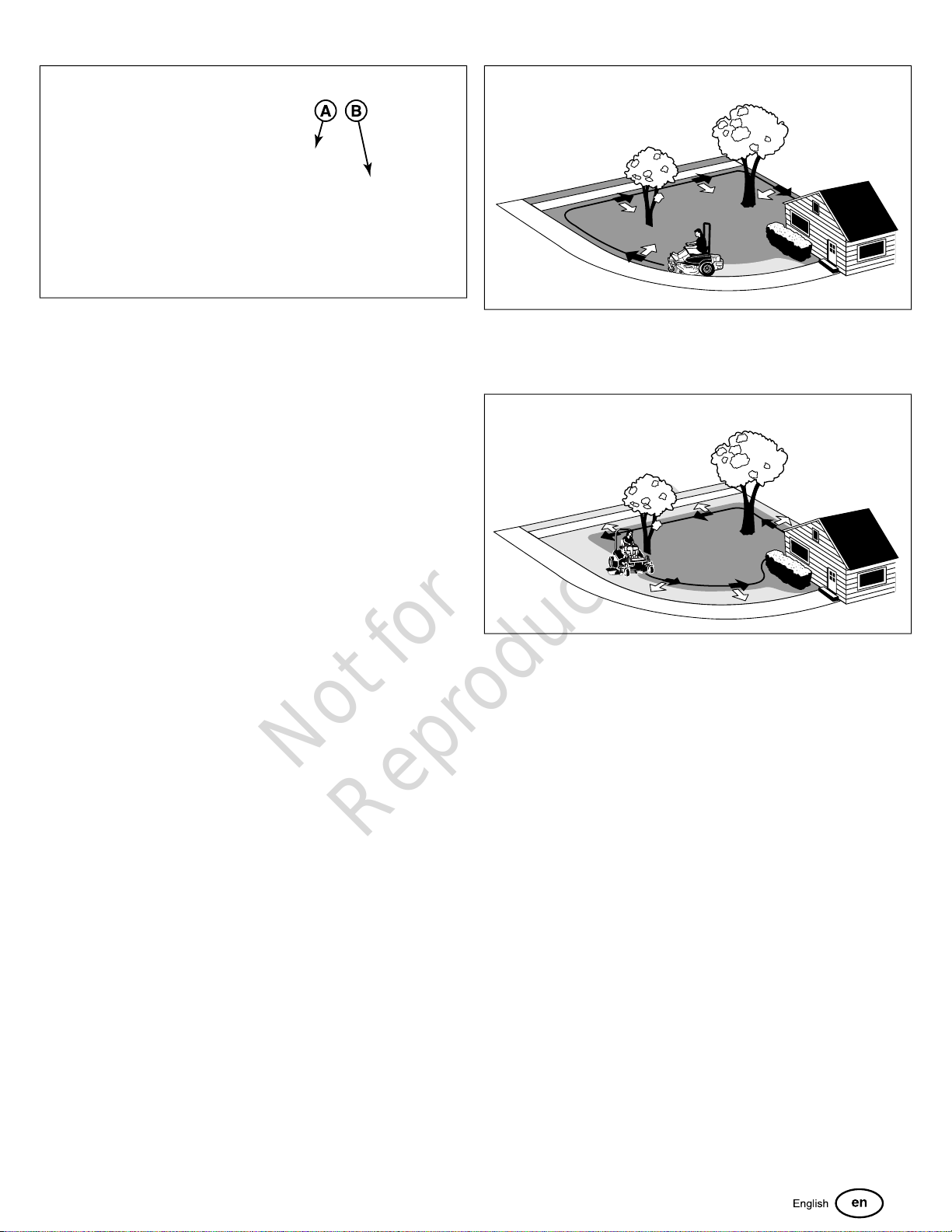

13

14

When and How Often to Mow

The time of day and condition of the grass greatly affect the
results you’ll get when mowing. For the best results, follow these
guidelines:

• Mow when the grass is between three and five inches high.

• Mow with sharp blades. Short clippings of grass one inch
or shorter decompose more quickly than longer blades.
Sharp mower blades cut grass cleanly and efficiently,
preventing frayed edges which harm the grass.

• Mow at time of day when the grass is cool and dry. Late
afternoon or early evening often provide these ideal mowing
conditions.

• Avoid mowing after rain or even heavy dew, and never
mulch when the grass is wet (moist grass does not mulch
well, and clumps beneath the mower deck).

Mowing Patterns

Always start mowing on a smooth, level area.

The size and type of area to be mowed will determine the best
mowing pattern to use. Obstructions such as trees, fences and
buildings, and conditions such as slopes and grades must also
be considered.

• Cut long straight strips overlapping slightly.

• Where possible, change patterns occasionally to eliminate
matting, graining or a corrugated appearance.

• For a truly professional cut, mow across the lawn in one
direction, then re-cut the lawn by mowing perpendicular to
the previous cut.

NOTE: Always operate the engine at FULL THROTTLE when
mowing.

If you hear the engine slowing down, you are mowing too
fast—using a slower ground speed will improve the cutting
efficiency of the blades and prevents many common cutting
problems. Use an appropriate ground speed for the thickness
and height of the grass you are cutting (3rd gear or slower for
manual gear models). If you hear the engine slowing down you
are mowing too fast, use a slower ground speed.

Where possible, make one or two passes around the outside
of the area discharging the grass INTO the lawn to keep the cut
grass off fences and walks.

15

The remainder of the mowing should be done in the opposite
direction so that the clippings are dispersed OUT onto the area
of lawn previously cut.

Mowing Methods

Broadcast Mowing

Broadcasting, or side-discharging, disperses fine clippings
evenly over the entire lawn. Many golf courses use this method.
Your mower has a deep dish deck to allow freer circulation of
clippings so they are broadcast evenly over the lawn.

Engine Speed & Ground Speed for Broadcasting:

Always operate the engine at full throttle when mowing. If you
hear the engine slowing down, you are mowing too fast—using
a slower ground speed will improve the cutting efficiency of the
blades and prevents many common cutting problems.

ALWAYS use an appropriate ground speed for the thickness
and height of the grass you are cutting (3rd gear or slower for
manual gear models). If you hear the engine slowing down you
are mowing too fast, use a slower ground speed.

How Much Grass to Cut Off When Broadcasting:

Mow when the grass is 3-5 inches long. Do not cut the grass
shorter than 2 to 2-1/2 inches. Do not cut off more that 1 inch
of grass in a single pass.

Mulching

19

Not for

Reproduction

Mulching consists of a mower deck which cuts and re-cuts
clippings into tiny particles and which then blows them down
INTO the lawn. These tiny particles decompose rapidly into
by-products your lawn can use. UNDER PROPER
CONDITIONS, your mulching mower will virtually eliminate
noticeable clippings on the lawn surface.

NOTE: When mulching under heavy cutting conditions, a
rumbling sound may be present and is normal.

Mulching Requires EXCELLENT Mowing Conditions:

Mulching mowers cannot function properly if the grass is wet,
or if the grass is simply to high to cut. Even more than normal
mowing, mulching requires that the grass be dry and the
appropriate amount is cut.

Do not use the mower as a mulching mower during the first two
or three mowings in the spring. The long grass blades, quick
growth, and often wetter conditions are more suitable for
broadcasting (side-discharging) or grass bagging operation.

Engine Speed & Ground Speed for Mulching:

Use full engine throttle matched with a slow ground speed so
that clippings will be finely cut. Ground speed while mulching
should be HALF of the speed that would be used when
broadcasting (side discharging) under similar conditions. Since
mulching requires more horsepower than broadcasting, using
a slower ground speed is vitally important for proper mulching
operation.

How Much Grass to Mulch:

The best mulching action typically results from cutting only the
top ½ inch to 3/4 inch of grass blade. This provides short
clippings which decompose properly (much more quickly than
longer clippings). The ideal cutting height will vary with climate,
time of year, and quality of your lawn. We recommend that you
experiment with both the cutting height and ground speed until
you achieve the best cut. Start with a high cutting height and
using progressively lower settings until you find a cutting height
that is matched to your mowing conditions and preferences.

16

3. To disengage the pumps (free-wheel position) (C), move
the transmission release lever up and pull it towards the
rear of the machine. When the second nut (D) has passed
through the hole, lower the rod down into the slot so it will
stay in the disengaged position. Repeat the process for the
other side of the unit.

4. Disengage the parking brake. The rider can now be pushed
by hand.

5. After moving the unit, re-engage the transmissions (drive
position) (E) by raising the transmission release lever so
that the back nut clears the slot, push the lever towards the
front of the machine. Repeat the process for the other side
of the unit.

CE Units Equipped with Folding ROPS

CE export Units are factory equipped with folding ROPS. Follow
the safety instructions below if your unit is equipped with the
folding ROPS.

Pushing the Rider by Hand

NOTICE

Do not tow rider.

Towing the unit will will cause transmission damage. Do not use
another vehicle to push or pull this unit.

1. Disengage the PTO, engage the parking brake, turn the
ignition OFF, and remove the key.

2. Locate the transmission release levers (A, Figure 16)
underneath the engine deck of the machine between the
two rear wheels on the transmission cradle (B).

Raise and Lower the Roll Bar

WARNING

Avoid serious injury or death from roll over:

• Keep roll bar in the raised position and use seat belt.

• There is no roll over protection when the roll bar is down.

• Lower the rollbar only when necessary and NEVER
remove it.

• Do NOT use seat belt when the roll bar is down.

• Raise the roll bar as soon as clearance permits.

• Do NOT jump off if mower tips.

To lower the roll bar:

20 ferrisindustries.com

Not for

Reproduction

1. Pull the hair pin clips (A, Figure 17) out of the retainer pins
(B).

17

2. Push or pull the top of the roll bar (C) forward against the
spring clips (D) and remove the retainer pins (B).

3. Lower the roll bar and reinstall the retainer pins and hair
pin clips to secure the roll bar in the down position (see
insert, Figure 17).

To raise the roll bar:

1. Pull the hair pin clips (A) out of the retainer pins (B) and
remove the retainer pins.

2. Raise the roll bar (C) until the top of the roll bar (C) contacts
the spring clips (D) on the upright tubes.

3. Push or pull the top of the roll bar forward against the spring
clips and reinstall the retainer pins and hair pin clips to
secure the roll bar in the raised position.

18

Excessive towed loads can cause loss of traction and loss of
control on slopes. Reduce towed weight when operating on
slopes. The surface being driven on greatly impacts traction
and stability. Wet or slippery surfaces can greatly reduce traction
and the ability to stop or turn. Carefully evaluate the surface
conditions before operating the unit and trailer, and never
operate on slopes greater than 10°. See SLOPE OPERATION
and TOWED EQUIPMENT in the safety section of this manual
for additional safety information.

Checking / Adding Fuel

WARNING

Gasoline is highly flammable and must be handled with care.
Allow engine to cool for at least 3 minutes before refueling.
Do not allow open flame, smoking or matches in the area.
Avoid over-filling and wipe up any spills.

To add fuel:

1. Remove the fuel cap (A, Figure 19).

Attaching a Trailer

The maximum weight of a towed trailer should be less than 200
lbs (91kg). Secure the trailer with an appropriately sized clevis
pin (A, Figure 18) and clip (B).

21

Not for

Reproduction

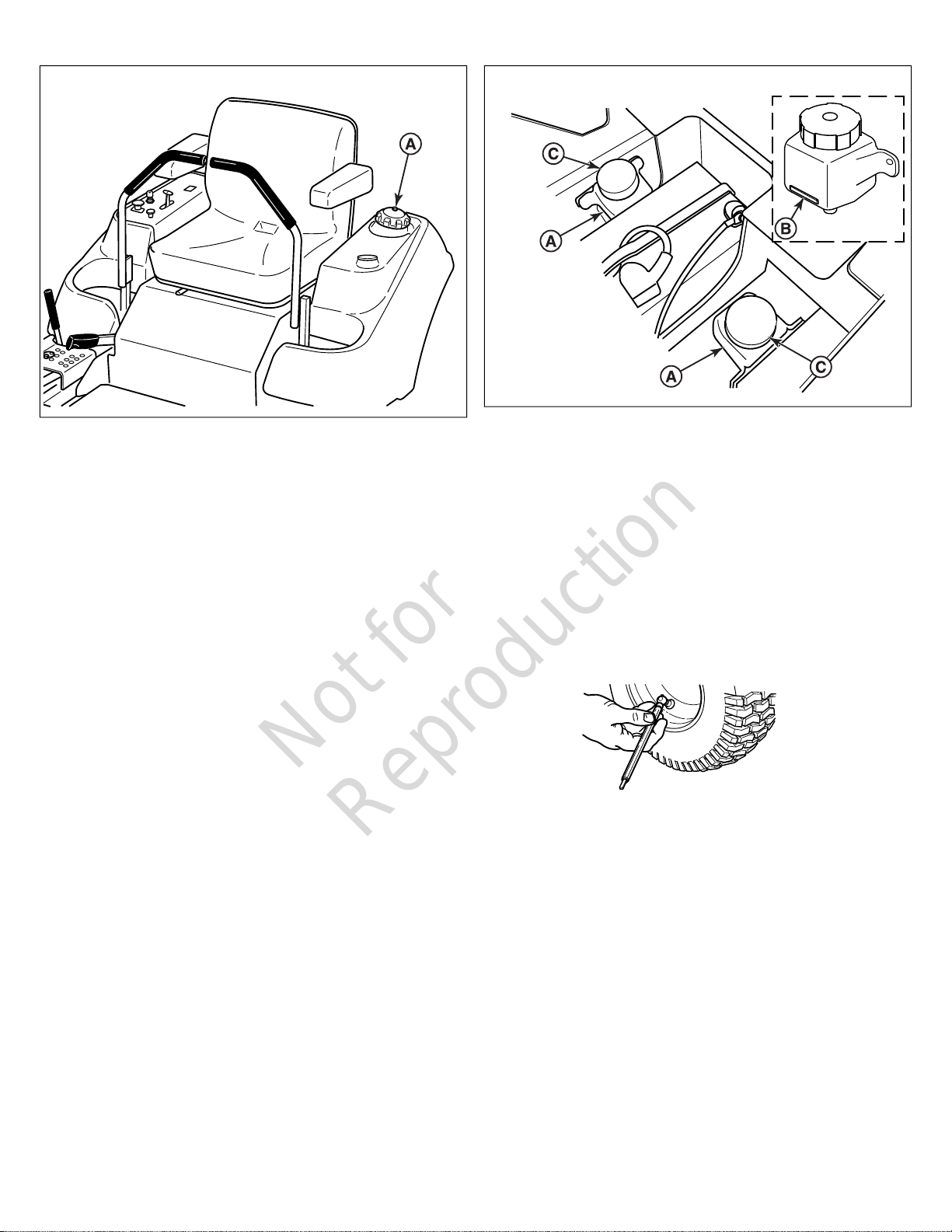

19

20

2. Fill the fuel tank to the bottom of the filler neck. This will
allow for fuel expansion.
Note: Do not overfill. Refer to your engine owner's manual
for specific fuel recommendations.

3. Install and hand tighten the fuel cap.

NOTICE

Refer to your engine owner's manual for specific fuel
recommendations.

Check Engine Oil Level

Interval: Before Each Use

Refer to the engine owners manual for dipstick and oil fill
locations and specific engine oil check and fill procedures.

Engine Maintenance

For engine maintenance schedules and procedures, please
refer to the engine operator's manual.

Check / Fill Transmission Oil

Oil Type: 20W-50 conventional detergent motor oil

1. Check the oil level when the unit is cold. Locate the
transmission oil reservoirs (A, Figure 20). The oil should be
up to the "FULL COLD" mark (B). If the oil is below this
level, proceed to step #2.

2. Before removing reservoir caps (C), make sure the area
around the reservoir cap and fill neck of the reservoir is free
of dust, dirt, or other debris. Remove the reservoir cap.

3. Add oil up to the full cold mark.

4. Reinstall the reservoir caps.

Checking Tire Pressures

Tire pressure should be checked periodically, and maintained
at the levels shown in the Specifications chart. Note that these
pressures may differ slightly from the "Max Inflation" stamped
on the side-wall of the tires. The pressures shown provide proper
traction and extend tire life.

Seat Adjustment

The seat can be adjusted forward and back. Move the lever (A,
Figure 21) towards the left, position the seat as desired, and
release the lever to lock the seat into position.

22 ferrisindustries.com

Not for

Reproduction

21

Ground Speed Control Lever Adjustment

The control levers can be adjusted in three ways. The alignment
of the control levers, the placement of the levers (how close the
ends are to one another) and the height of the levers can be
adjusted.

Foot Pedal Adjustment

The deck lift foot pedal can be adjusted to accommodate the
operator’s height for optimal comfort.

To adjust pedal position:

1. Remove the foot pedal (A, Figure 23) from the pedal mount
tab (B).

23

To Adjust the Handle Alignment

Loosen the mount bolts (A, Figure 22) and pivot the lever(s) (C)
to align with each other.

22

To Adjust the Handle Placement

2. Remove the pedal mount hardware (C) and rotate the tab
180 degrees.

3. Reinstall the pedal mount hardware and tighten securely.

4. Reinstall the foot pedal on the pedal mount tab in the proper
orientation as shown in Figure 23.

Rear Suspension Adjustment

The shock assembly can be adjusted in two ways to allow the
operator to customize the ride according to operator’s weight
and/or operating conditions. You have the option of adjusting
the spring pre-load and/or the upper mounting position.

Items to consider before adjusting the suspension.

• Less spring pre-load should be used with light weight
operators, which will provide a softer, more cushioned ride.

• More spring pre-load or upper mounting position #2 should
be used with heavy weight operators, or when a rear-mount
grass bagger system is installed, which will provide a stiffer,
more rigid ride.

Loosen the jam nuts and adjust the placement bolt (B) in or out
to properly adjust the lever end spacing.

To Adjust the Handle Height

Remove the mounting hardware and reposition the handle either
up or down from its original position. You will need to readjust
the handle alignment as described above.

To Adjust the Spring Pre-Load:

1. Park machine on a flat, level surface. Disengage the PTO,
stop the engine and engage the parking brake.

2. Raise the rear of the machine and secure with jackstands.
Chock the front wheels to prevent the machine from rolling.

3. Remove the rear drive tires.

23

Not for

Reproduction

WARNING

Use two hands when adjusting the shock springs. This will
prevent the wrench from slipping while pressure is applied.

5. Reinstall the upper shock mounting hardware and tighten
securely.

6. Remove the jack from under the suspension cross member.

7. Remove the jackstands from under the machine.

4. See Figure 24. Using the supplied spanner wrench (p/n

5022853), insert the tip of the wrench into the notch in the
pre-load adjuster. While holding the wrench in place with
one hand, turn counter-clockwise to increase the pre-load,
turn CLOCKWISE to decrease the pre-load. Make sure both
shocks are set to the same amount of pre-load.

24

Storage

Temporary Storage (30 Days or Less)

Remember, the fuel tank will still contain some gasoline, so
never store the unit indoors or in any other area where fuel
vapor could travel to any ignition source. Fuel vapor is also toxic
if inhaled, so never store the unit in any structure used for human
or animal habitation.

WARNING

Never store the unit, with gasoline in engine or fuel tank, in a
heated shelter or in enclosed, poorly ventilated enclosures.
Gasoline fumes may reach an open flame, spark or pilot light
(such as a furnace, water heater, clothes dryer, etc.) and
cause an explosion.

Handle gasoline carefully. It is highly flammable and careless
use could result in serious fire damage to your person or
property.

Drain fuel into an approved container outdoors away from
open flame or sparks.

Here is a checklist of things to do when storing your unit
temporarily or in between uses:

5. Reinstall the rear drive tires. Torque the lug bolts to 85-95
ft/lbs. (115-129 Nm). Remove the jackstands from under
the machine.

NOTE: Spanner wrench is located under the seat on the
right-hand side of the machine.

To Adjust the Upper Mounting Position:

1. Park machine on a flat, level surface. Disengage the PTO,
stop the engine and engage the parking brake.

2. Raise the rear of the machine and secure with jackstands.
The jackstands must under the bumper. Chock the front
wheels to prevent the machine from rolling.

3. Position the jack under the cross member that ties the
suspension arms together and slowly raise the rear
suspension to relieve the pressure on the upper shock
mounting bolts.

NOTE: This will require small adjustments to the jack’s position.
The shock should move freely on the mounting bolt when the
pressure is relieved.

4. Remove the upper shock mounting hardware and pivot the
shock to the position #2 (see Figure 24). Adjust the jack to
align the shock mounts to the shocks.

• Keep the unit in an area away from where children may
come into contact with it. If there’s any chance of
unauthorized use, remove the spark plug (s) and put in a
safe place. Be sure the spark plug opening is protected
from foreign objects with a suitable cover.

• If the unit can’t be stored on a reasonable level surface,
chock the wheels.

• Clean all grass and dirt from the mower.

Long Term Storage (Longer Than 30 Days)

Before you store your unit for the off-season, read the
Maintenance and Storage instructions in the Safety Rules
section, then perform the following steps:

1. Drain crankcase oil while engine is hot and refill with a grade
of oil that will be required when unit is used again.

2. Prepare the mower deck for storage as follows:
a.) Remove mower deck from the unit.

b.) Clean underside of mower deck.

c.) Coat all bare metal surfaces with paint or light coat of
oil to prevent rusting.

3. Clean external surfaces and engine.

4. Prepare engine for storage. See engine owner’s manual.

5. Clean any dirt or grass from cylinder head cooling fins,
engine housing and air cleaner element.

24 ferrisindustries.com

Not for

Reproduction

6. Cover air cleaner and exhaust outlet tightly with plastic or
other waterproof material to keep out moisture, dirt and
insects.

7. Completely grease and oil unit as outlined in the
section.

8. Clean up unit and apply paint or rust preventative to any
areas where paint is chipped or damaged.

9. Be sure the battery is filled to the proper level with water
and is fully charged. Battery life will be increased if it is
removed, put in a cool, dry place and fully charged about
once a month. If battery is left in unit, disconnect the
negative cable.

10. Drain fuel system completely or add a gasoline stabilizer
to the fuel system. If you have chosen to use a fuel stabilizer
and have not drained the fuel system, follow all safety
instructions and storage precautions in this manual to
prevent the possibility of fire from the ignition of gasoline
fumes. Remember, gasoline fumes can travel to distant
sources of ignition and ignite, causing risk of explosion and
fire.

Lubrication

NOTE: Gasoline, if permitted to stand unused for extended
periods (30 days or more), may develop gummy deposits
which can adversely affect the engine carburetor and cause
engine malfunction. To avoid this condition, add a gasoline
stabilizer to the fuel tank and run the engine a few minutes,
or drain all fuel from the unit before placing it in storage.

Starting After Long Term Storage

Before starting the unit after it has been stored for a long period
of time, perform the following steps.

1. Remove any blocks from under the unit.

2. Install the battery if it was removed.

3. Unplug the exhaust outlet and air cleaner.

4. Fill the fuel tank with fresh gasoline. See engine manual for
recommendations.

5. See engine owner’s manual and follow all instructions for
preparing engine after storage.

6. Check crankcase oil level and add proper oil if necessary.
If any condensation has developed during storage, drain
crankcase oil and refill.

7. Inflate tires to proper pressure. Check fluid levels.

8. Start the engine and let it run slowly. DO NOT run at high
speed immediately after starting. Be sure to run engine only
outdoors or in well ventilated area.

Maintenance Schedule

UNIT MAINTENANCE

Before Each Use

Check Safety Interlock System

Check Rider Brakes

Check Rider / Mower for Loose Hardware

Check Hydraulic Oil Level

Every 25 Hours

UNIT MAINTENANCE

Clean Deck & Check/Replace Mower Blades*

Lubricate Rider & Mower*

Check Tire Pressures

Every 100 Hours

Check Mower Blade Stopping Time

Clean Battery & Cables

Every 200 Hours

Change Hydraulic Oil & Filter

ENGINE MAINTENANCE

Before Each Use

Check Engine Oil Level

Every 25 Hours

Check/Clean Cooling Fins & Intake*

Every 50 Hours

Check/Clean Spark Arrester**

Refer to Engine Owner's Manual

Service Air Filter

Change Oil & Filter

Check/Replace Spark Plugs

Check/Replace Fuel Filter

*More often in hot (over 85°F, 30°C) weather or dusty operating conditions.
**If equipped, replace if damaged.

Specifications

NOTE: Specifications are correct at time of printing and are
subject to change without notice.

ENGINE

Fits models: 5901255, 5901256, and 5901309

25 Gross HP* Briggs & Stratton Professional Series

Briggs & StrattonMake

44T977-0005-G1Model

44.18 Cu. In (724 cc)Displacement

12 volt, 16 amp. Alternator, Battery: 340 ccaElectrical

System

2.0 US qt (1.89 L) w/ filterOil Capacity

Fits models: 5901244 and 5901245

27 Gross HP* Briggs & Stratton Professional Series

Briggs & StrattonMake

44Q777-0146-G1Model

44.18 Cu. In (724 cc)Displacement

12 volt, 16 amp. Alternator, Battery: 340 ccaElectrical

System

2.0 US qt (1.89 L) w/ filterOil Capacity

Power Ratings: The gross power rating for individual gasoline
engine models is labeled in accordance with SAE (Society of
Automotive Engineers) code J1940 Small Engine Power &

25

Not for

Reproduction

Torque Rating Procedure, and is rated in accordance with SAE
J1995. Torque values are derived at 2600 RPM for those
engines with “rpm” called out on the label and 3060 RPM for all
others; horsepower values are derived at 3600 RPM. The gross
power curves can be viewed at
www.BRIGGSandSTRATTON.COM. Net power values are
taken with exhaust and air cleaner installed whereas gross
power values are collected without these attachments. Actual
gross engine power will be higher than net engine power and
is affected by, among other things, ambient operating conditions
and engine-to-engine variability. Given the wide array of
products on which engines are placed, the gasoline engine may
not develop the rated gross power when used in a given piece
of power equipment. This difference is due to a variety of factors
including, but not limited to, the variety of engine components
(air cleaner, exhaust, charging, cooling, carburetor, fuel pump,
etc.), application limitations, ambient operating conditions
(temperature, humidity, altitude), and engine-to-engine
variability. Due to manufacturing and capacity limitations, Briggs
& Stratton may substitute an engine of higher rated power for
this engine.

CHASSIS

(apx.):

942 lbs (427 kg)920 lbs (417 kg)Weight

Capacity

Rear Wheels

Tire Size

Front Wheels

TRANSMISSIONS

Fluid

Speeds @ 3400 rpm

Forward

Reverse

6 gallons (22.7 L) totalFuel Tank

22 X 11 - 10 (Models with 48" mower decks);
20 X 8 - 10 (Models with 44" mower decks)

15 psi (1.03 bar)Inflation Pressure

11 X 4 - 5Tire Size

25 psi (1,72 bar)Inflation Pressure

ZS-KHEF-8T7C-11RXLH

ZS-GHEF-8T7B-11RXRH

ZT3400 TransaxlesType

SAE 20W-50 motor oilHydraulic

0-9.5 MPH (0-15.3 km/h) - Models with 48" mower decks;
0-8.6 MPH (0-13.8 km/h) - Models with 44" mower decks

0-5 MPH (0-8 km/h) - Models with 48" mower decks;
0-4 MPH (0-6.4 km/h) - Models with 44" mower decks

DIMENSIONS

Models with 48" Mower DecksModels with 44" Mower Decks

Length

Overall
Width

59" (150 cm) with discharge
chute down

47" (119.4 cm) with discharge
chute up

80" (203 cm)Overall

63" (160 cm) with discharge chute
down

51" (130 cm) with discharge chute
up

65-1/2" (165 cm)64-1/2" (164 cm)Height

26 ferrisindustries.com

Not for

Reproduction

Warranty

Warranty Statement

BRIGGS & STRATTON WARRANTY POLICY (September 2012)

LIMITED WARRANTY

Briggs & Stratton warrants that, during the warranty period
specified below, it will repair or replace, free of charge, any part
that is defective in material or workmanship or both.
Transportation charges on product submitted for repair or
replacement under this warranty must be borne by purchaser.
This warranty is effective for and is subject to the time periods
and conditions stated below. For warranty service, find the
nearest Authorized Service Dealer in our dealer locator map at

ferrisindustries.com

Service Dealer, and then make the product available to the
Authorized Service Dealer for inspection and testing.

There is no other express warranty. Implied warranties,
including those of merchantability and fitness for a
particular purpose, are limited to one year from purchase,
or to the extent permitted by law . All other implied
warranties are excluded. Liability for incidental or
consequential damages are excluded to the extent
exclusion is permitted by law. Some states or countries do

not allow limitations on how long an implied warranty lasts, and
some states or countries do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation
and exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which
vary from state to state or country to country.**

Covered Parts

Riding mowers

Walk mowers (over 30
inches of cutting width)

Pads, Hoses, Battery,
Blades

+Engine*

* Emissions-related components are covered by the Emissions
Warranty Statement

** In Australia - Our goods come with guarantees that cannot
be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. For warranty service,

.The purchaser must contact the Authorized

WARRANTY PERIOD

Period

500 hours, which occurs
first.
Unlimited hours during
the first 2 years (24
months)

(+Except as noted below)

unlimited hours
(+Except as noted below)

See Engine Operator's
Manual

Rental Warranty PeriodStandard Warranty

90 days4 years (48 months) or

90 days2 years (24 months)

90 days90 days+Belts, Tires, Brake

90 days1 year+Attachments

See Engine Operator's
Manual

find the nearest Authorized Service Dealer in our dealer locator
map at FERRISINDUSTRIES.COM/AU, or by calling 1300 274
447, or by emailing or writing to
[email protected], Briggs & Stratton
Australia Pty Ltd, 1 Moorebank Avenue, NSW, Australia, 2170.

The warranty period begins on the date of purchase by the first
retail end user, and continues for the period of time or hours
stated in the table above.

No warranty registration is necessary to obtain warranty
on Briggs & Stratton products. Save your proof of purchase
receipt. If you do not provide proof of the initial purchase
date at the time warranty service is requested, the
manufacturing date of the product will be used to determine
the warranty period.

ABOUT YOUR WARRANTY

We welcome warranty repair and apologize to you for being
inconvenienced. Warranty service is available only through

Ferris

Authorized Service Dealers. Most warranty repairs are
handled routinely, but sometimes requests for warranty service
may not be appropriate. This warranty only covers defects in
materials or workmanship. It does not cover damage caused
by improper use or abuse, improper maintenance or repair,
normal wear and tear, or stale or unapproved fuel.

Improper Use and Abuse - The proper, intended use of this
product is described in the Operator's Manual. Using the product
in a way not described in the Operator's Manual or using the
product after it has been damaged will void your warranty.
Warranty is not allowed if the serial number on the product has
been removed or the product has been altered or modified in
any way, or if the product has evidence of abuse such as impact
damage, or water/chemical corrosion damage.

Improper Maintenance or Repair - This product must be
maintained according to the procedures and schedules provided
in the Operator's Manual, and serviced or repaired using genuine
Briggs & Stratton parts or equivalent. Damage caused by lack
of maintenance or use of non-original parts is not covered by
warranty.

Normal Wear - Like all mechanical devices, your unit is subject
to wear even when properly maintained. This warranty does
not cover repairs when normal use has exhausted the life of a
part or the equipment. Except as noted in the warranty period,
maintenance and wear items such as filters, belts, cutting
blades, and brake pads (except engine brake pads) are not
covered by warranty due to wear characteristics alone, unless
the cause is due to defects in material or workmanship.

Stale Fuel - In order to function correctly, this product requires
fresh fuel that conforms to the criteria specified in the Operator's
Manual. Damage caused by stale fuel (carburetor leaks, clogged
fuel tubes, sticking valves, etc) is not covered by warranty.

Other Exclusions - This warranty excludes damage due to
accident, abuse, modifications, alterations, improper servicing,
freezing or chemical deterioration. Attachments or accessories
that were not originally packaged with the product are also
excluded. There is no warranty coverage on equipment used
for primary power in place of utility power or on equipment used

27

Not for

Reproduction

in life support applications. This warranty also excludes failures
due to acts of God and other force majeure events beyond the
manufacturer's control.

Briggs & Stratton Emissions Warranty

California, U.S. EPA, and Briggs & Stratton
Corporation Emissions Control Warranty
Statement - Your Warranty Rights and Obligations

Effective April 2013

The California Air Resources Board, U.S. EPA, and Briggs &
Stratton (B&S) are pleased to explain the emissions control
system warranty on your Model Year 2013-2014
engine/equipment. In California, new small off-road engines
and large spark ignited engines less than or equal to 1.0 liter
must be designed, built, and equipped to meet the State's
stringent anti-smog standards. B&S must warrant the emissions
control system on your engine/equipment for the periods of time
listed below provided there has been no abuse, neglect, or
improper maintenance of your engine/equipment.

Your exhaust emissions control system may include parts such
as the carburetor or fuel injection system, ignition system, and
catalytic converter. Also included may be hoses, belts,
connectors, sensors, and other emissions-related assemblies.
Your evaporative emission control system may include parts
such as: carburetors, fuel tanks, fuel lines, fuel caps, valves,
canisters, filters, vapor hoses, clamps, connectors, and other
associated components.

Where a warrantable condition exists, B&S will repair your
engine/equipment at no cost to you including diagnosis, parts,
and labor.

Manufacturer’s Warranty Coverage:

Small off-road engines and large spark ignited engines less
than or equal to 1.0 liter, and any related emissions components

of the equipment, are warranted for two years1. If any
emissions-related part on your engine/equipment is defective,
the part will be repaired or replaced by B&S.

1

Two years or for the time period listed in the respective engine or product

warranty statement, whichever is greater.

Owner’s Warranty Responsibilities:

• As the engine/equipment owner, you are responsible for
the performance of the required maintenance listed in your
owner's manual. B&S recommends that you retain all
receipts covering maintenance on your engine/equipment,
but B&S cannot deny warranty solely for the lack of receipts
or your failure to ensure the performance of all scheduled
maintenance.

• As the engine/equipment owner, you should however be
aware that B&S may deny you warranty coverage if your
engine/equipment or a part has failed due to abuse, neglect,
improper maintenance, or unapproved modifications.

• You are responsible for presenting your engine/equipment
to a B&S distribution center, servicing dealer, or other
equivalent entity, as applicable, as soon as a problem exists.

The warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days. If you have any
questions regarding your warranty rights and responsibilities,
you should contact B&S at 1-800-444-7774 (in USA) or
BRIGGSandSTRATTON.COM.

Briggs & Stratton Emissions Control Warranty
Provisions

The following are specific provisions relative to your Emissions
Control Warranty Coverage. It is in addition to the B&S engine
warranty for non-regulated engines found in the Operator's
Manual.

1. Warranted Emissions Parts
Coverage under this warranty extends only to the parts
listed below (the emissions control systems parts) to the
extent these parts were present on the B&S engine and/or
B&S supplied fuel system.

a. Fuel Metering System

• Cold start enrichment system (soft choke)

• Carburetor and internal parts

• Fuel pump

• Fuel line, fuel line fittings, clamps

• Fuel tank, cap and tether

• Carbon canister

b. Air Induction System

• Air cleaner

• Intake manifold

• Purge and vent line

c. Ignition System

• Spark plug(s)

• Magneto ignition system

d. Catalyst System

• Catalytic converter

• Exhaust manifold

• Air injection system or pulse value

e. Miscellaneous Items Used in Above Systems

• Vacuum, temperature, position, time sensitive
valves and switches

• Connectors and assemblies

2. Length of Coverage

For a period of two years from date of original purchase1,
B&S warrants to the original purchaser and each
subsequent purchaser that the engine is designed, built,
and equipped so as to conform with all applicable
regulations adopted by the Air Resources Board; that it is
free from defects in material and workmanship that could
cause the failure of a warranted part; and that it is identical
in all material respects to the engine described in the

28 ferrisindustries.com

Not for

Reproduction

manufacturer's application for certification. The warranty
period begins on the date the engine is originally purchased.

1

Two years or for the time period listed in the respective engine or

product warranty statement, whichever is greater.

The warranty on emissions-related parts is as follows:

• Any warranted part that is not scheduled for
replacement as required maintenance in the owner's
manual supplied, is warranted for the warranty period
stated above. If any such part fails during the period of
warranty coverage, the part will be repaired or replaced
by B&S at no charge to the owner. Any such part
repaired or replaced under the warranty will be
warranted for the remaining warranty period.

• Any warranted part that is scheduled only for regular
inspection in the owner's manual supplied, is warranted
for the warranty period stated above. Any such part
repaired or replaced under warranty will be warranted
for the remaining warranty period.

• Any warranted part that is scheduled for replacement
as required maintenance in the owner's manual
supplied, is warranted for the period of time prior to the
first scheduled replacement point for that part. If the
part fails prior to the first scheduled replacement, the
part will be repaired or replaced by B&S at no charge
to the owner. Any such part repaired or replaced under
warranty will be warranted for the remainder of the
period prior to the first scheduled replacement point for
the part.

• Add on or modified parts that are not exempted by the
Air Resources Board may not be used. The use of any
non exempted add on or modified parts by the owner
will be grounds for disallowing a warranty claim. The
manufacturer will not be liable to warrant failures of
warranted parts caused by the use of a non exempted
add on or modified part.

3. Consequential Coverage
Coverage shall extend to the failure of any engine
components caused by the failure of any warranted
emissions parts.

4. Claims and Coverage Exclusions
Warranty claims shall be filed according to the provisions
of the B&S engine warranty policy. Warranty coverage does
not apply to failures of emissions parts that are not original
equipment B&S parts or to parts that fail due to abuse,
neglect, or improper maintenance as set forth in the B&S
engine warranty policy. B&S is not liable for warranty
coverage of failures of emissions parts caused by the use
of add-on or modified parts.

Air Index. Briggs & Stratton makes this information available to
the consumer on our emissions labels. The engine emissions
label will indicate certification information.

The Emissions Durability Period describes the number of
hours of actual running time for which the engine is certified to
be emissions compliant, assuming proper maintenance in
accordance with the Operating & Maintenance Instructions. The
following categories are used:

Moderate:

Engine is certified to be emissions compliant for 125 hours of
actual engine running time.

Intermediate:

Engine is certified to be emissions compliant for 250 hours of
actual engine running time.

Extended:

Engine is certified to be emissions compliant for 500 hours of
actual engine running time.

For example, a typical walk-behind lawn mower is used 20 to
25 hours per year. Therefore, the Emissions Durability Period
of an engine with an intermediate rating would equate to 10 to
12 years.

Briggs & Stratton engines are certified to meet the United States
Environmental Protection Agency (USEPA) Phase 2 or Phase
3 emissions standards. The Emissions Compliance Period
referred to on the Emissions Compliance label indicates the
number of operating hours for which the engine has been shown
to meet Federal emissions requirements.

For engines less than 225 cc displacement:

Category C = 125 hours, Category B = 250 hours, Category A
= 500 hours

For engines of 225 cc or more displacement:

Category C = 250 hours, Category B = 500 hours, Category A
= 1000 hours

Look For Relevant Emissions Durability Period
and Air Index Information On Your Small Off-Road
Engine Emissions Label

Engines that are certified to meet the California Air Resources
Board (CARB) small off-road Emissions Standard must display
information regarding the Emissions Durability Period and the

29

Not for

Reproduction

Notes

Not for

Reproduction

Notes

Not for

Reproduction
