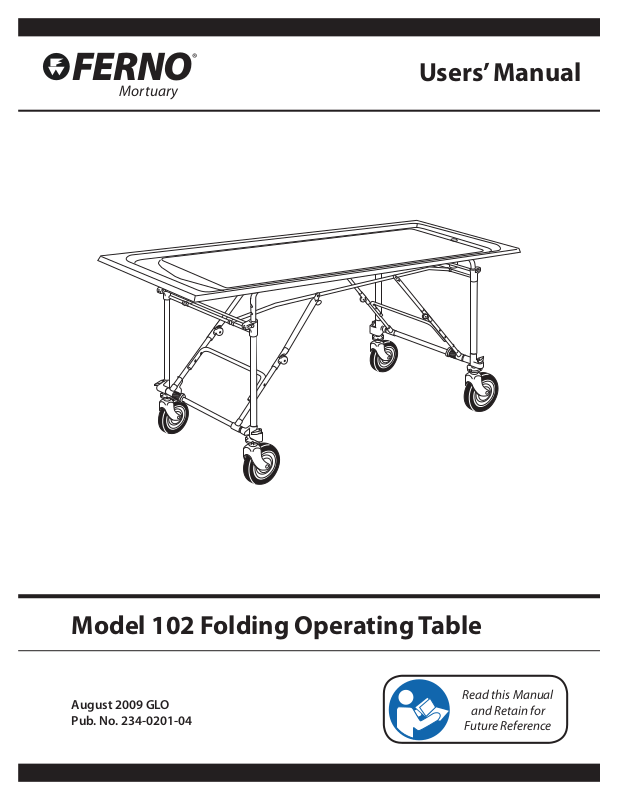

Ferno 102 User Manual

Users’ Manual

FERNO

®

Mortuary

Model 102 Folding Operating Table

August 2009 GLO
Pub. No. 234-0201-04

Read this Manual

and Retain for

Future Reference

Ferno Customer Relations

For ordering assistance or general information:

CANADA AND THE U.S.A.

Telephone (Toll-free) 1.877.733.0911

Telephone [phone]

Fax (Toll-free) 1.888.388.1349

Fax [phone]

Internet www.ferno.com

ALL OTHER LOCATIONS

For assistance or information, please contact your Ferno distributor.
If you do not have a Ferno distributor, please contact Ferno
Customer Relations:

Ferno-Washington, Inc.

70 Weil Way

Wilmington, Ohio 45177-9371, U.S.A.

Telephone [phone]

Fax [phone]

Internet www.ferno.com

EUROPEAN REPRESENTATIVE

Ferno (UK) Limited

Stubs Beck Lane, Cleckheaton

West Yorkshire BD19 4TZ, United Kingdom

Telephone [phone]

Fax [phone]

Internet www.ferno.co.uk

Model 102 Folding Operating Table

Serial Number _________________________

Location: Leg Crosstube

USERS’ MANUAL

To request additional free users’ manuals,
contact Ferno Customer Relations, your
Ferno distributor, or visit www.ferno.com.

Ferno Technical Support

Customer service and product support are important aspects of each
Ferno product. Please have the product serial number available
when calling, and include it in all written communications. For
technical support questions:

Telephone (Toll-free) 1.800.733.3766 ext. 1010

Telephone [phone] ext. 1010

Email [e-mail]

Disclaimer

This manual contains general instructions for the use, operation
and care of this product. The instructions are not all-inclusive. Safe
and proper use of this product is solely at the discretion of the
user. Safety information is included as a service to the user. All
other safety measures taken by the user should be within and under
consideration of applicable regulations. It is recommended that
training on the proper use of this product be provided before using
this product in an actual situation.

Retain this manual for future reference. Include it with the product
in the event of transfer to new users. Additional free copies are
available upon request from Customer Relations.

Proprietary Notice

The information disclosed in this manual is the property of Ferno­Washington, Inc., Wilmington, Ohio, USA. Ferno-Washington, Inc.
reserves all patent rights, proprietary design rights, manufacturing
rights, reproduction use rights, and sales use rights thereto, and
to any article disclosed therein except to the extent those rights
are expressly granted to others or where not applicable to vendor
proprietary parts.

Limited Warranty Statement

The products sold by Ferno are covered by a limited warranty,
which is printed on the invoice you received when you purchased
the product. Please refer to the warranty terms as printed on
your invoice. The complete terms and conditions of the limited
warranty, and the limitations of liability and disclaimers, are also
available upon request by calling Ferno at 1.800.733.3766 or

1.937.382.1451.

© Copyright Ferno-Washington, Inc. All Rights Reserved.

2

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table

TABLE OF CONTENTS

Section Page Section Page

Ferno Customer Relations ______________________ 2
Ferno Technical Support _______________________ 2

1 - Safety Information ___________________________ 4

1.1 Warning ________________________________ 4

1.2 Important _______________________________ 4

1.3 Bloodborne Disease Notice _________________ 4

1.4 Symbol Glossary _________________________ 4

1.5 Safety and Instruction Labels _______________ 5

2 - Operator Skills and Training __________________ 5

2.1 Skills __________________________________ 5

2.2 Training ________________________________ 5

3 - About the Table _____________________________ 6

3.1 Description _____________________________ 6

3.2 GeneralSpecications ____________________ 6

3.3 Components ____________________________ 7

4 - Using the Table ______________________________ 8

4.1 Before Placing the Table in Service __________ 8

4.2 General Guidelines for Use _________________ 8

4.3 Swivel Locks ____________________________ 8

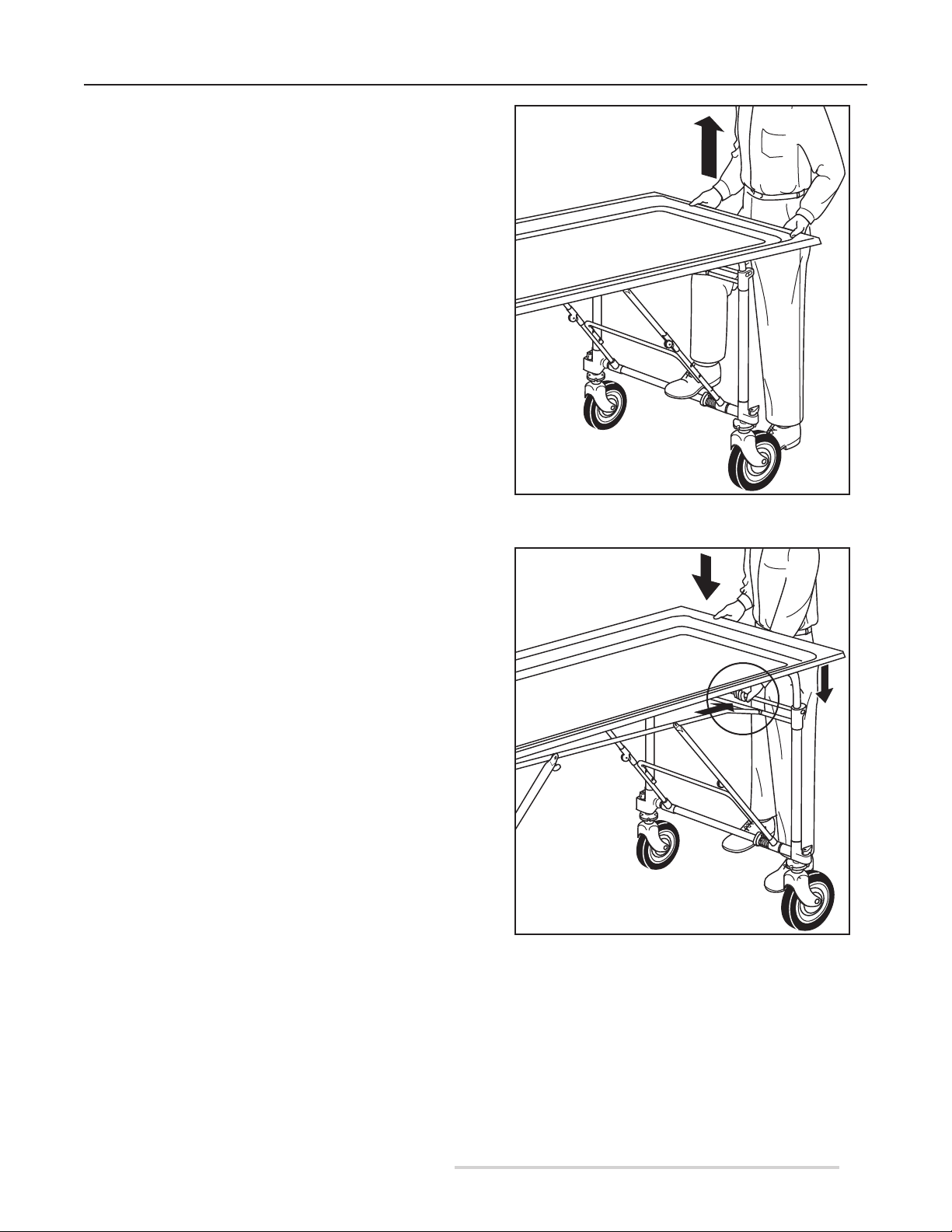

4.4 Adjusting the Height of the Table Top ________ 9

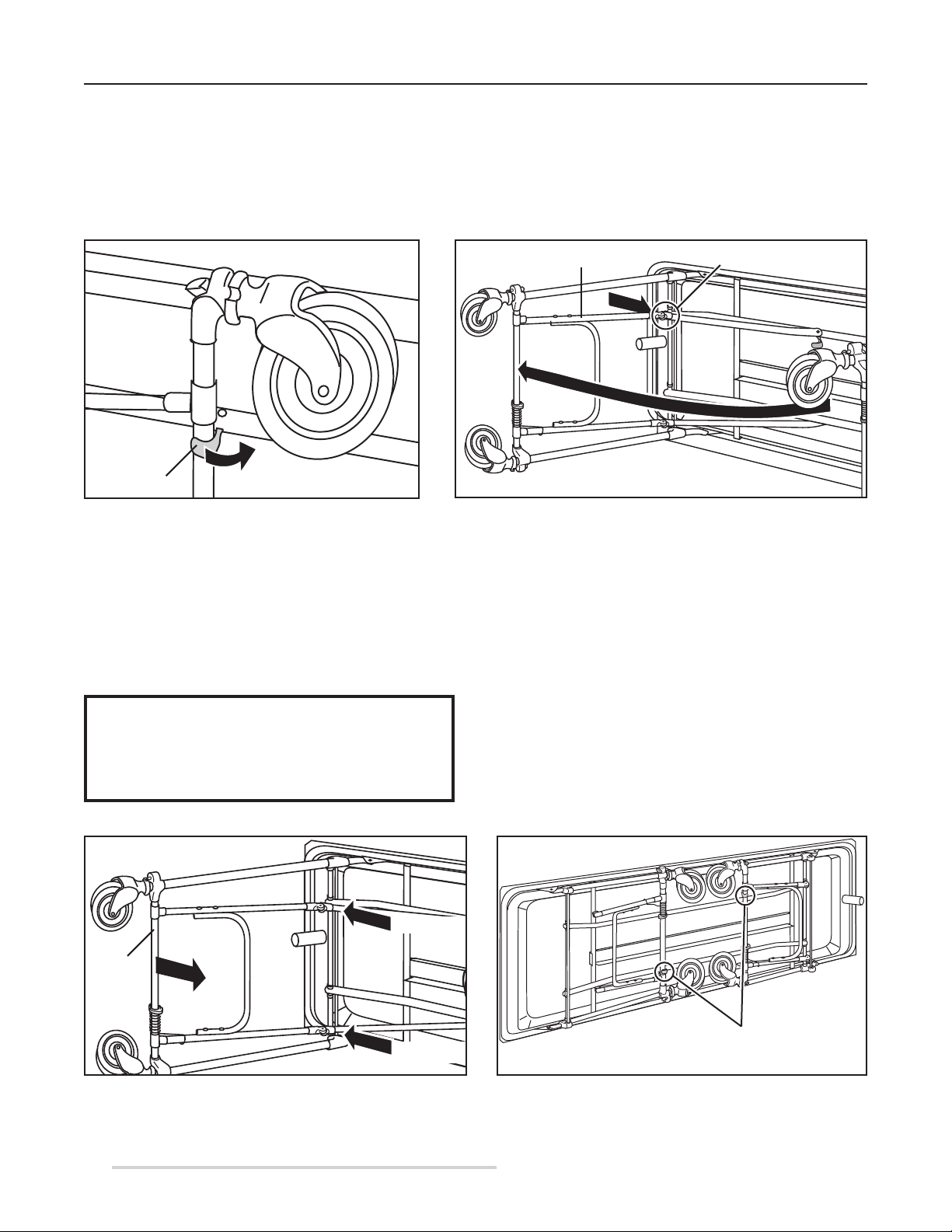

4.5 Unfolding the Table Legs _________________ 10

4.6 Folding the Table Legs ___________________ 10

5 - Maintenance _______________________________ 11

5.1 Maintenance Schedule ___________________ 11

5.2 Disinfecting and Cleaning the Table _________ 11

5.3 Inspecting the Table _____________________ 11

5.4 Waxing the Table Legs and Frame __________ 12

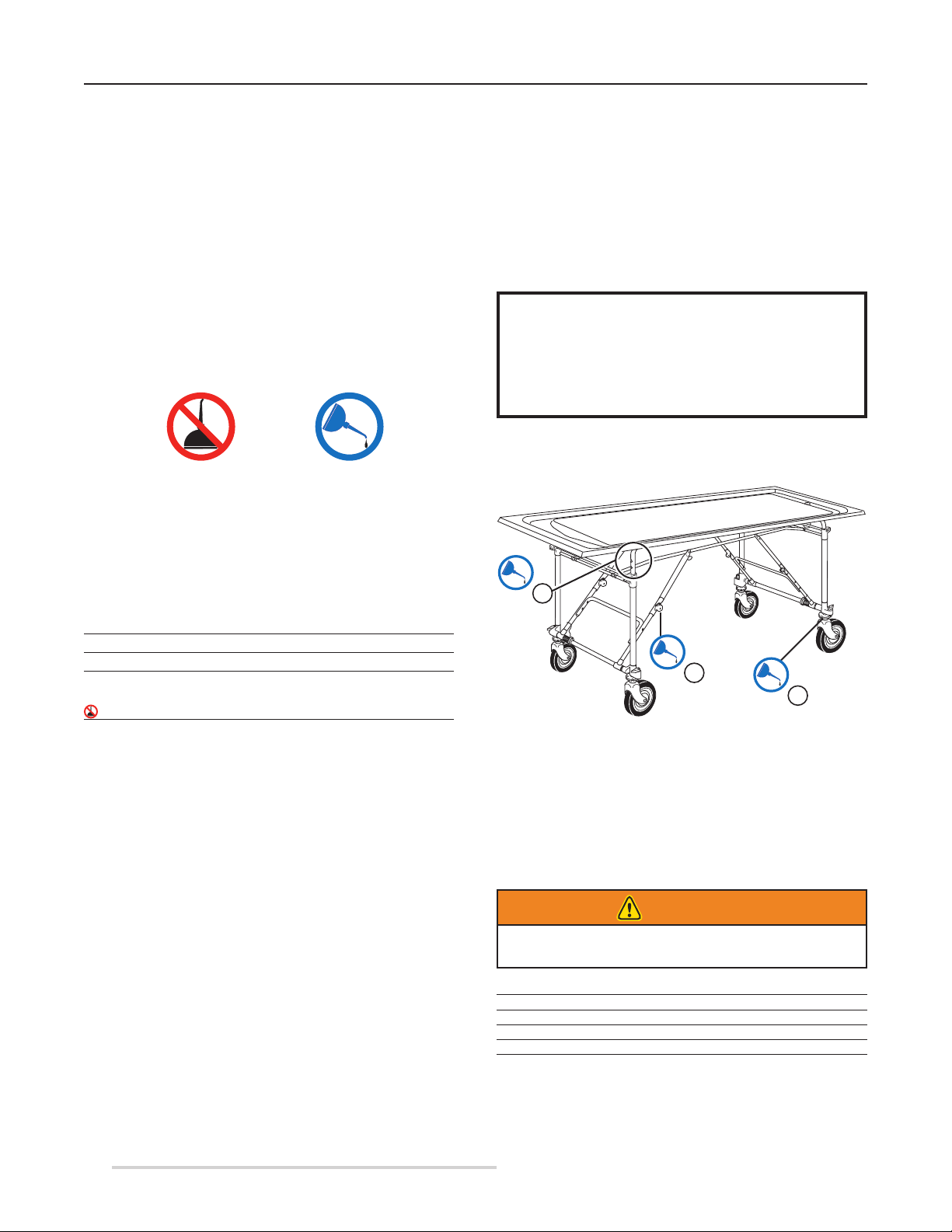

5.5 Lubricating the Table ____________________ 12

6 - Accessories and Related Products _____________ 12
7 - Parts and Service ___________________________ 13

7.1 U.S.A. and Canada ______________________ 13

7.2 Worldwide _____________________________ 13

7.3 Parts List ______________________________ 13

Training Record ______________________________ 14
Maintenance Record ___________________________ 15

© Ferno-Washington, Inc 234-0201-04 August 2009

3

Safety Information

Model 102 Folding Operating Table

1  SAFETY INFORMATION

1.1 Warning

Warning notices indicate a potentially hazardous situation
which, if not avoided, could result in injury or death.

WARNING

Untrained operators can cause injury or be injured. Permit
only trained personnel to operate the table.

Improper use of the table can cause injury. Use the table
only for the purpose described in this manual.

Improper operation can cause injury. Operate the table
only as described in this manual.

Improper maintenance can cause injury. Maintain the
table only as described in this manual.

Attaching improper items to the table can cause injury.
Use only Ferno-approved items on the table.

Improper parts and service can cause injury. Use only
Ferno parts and Ferno-approved service on the table.

Modifying the table can cause injury and damage. Use
the table only as designed by Ferno.

1.2 Important

Important notices emphasize important usage or maintenance
information.

1.4 Symbol Glossary

The symbols dened below are used on the table and in

this users’ manual. Ferno uses symbols recognized by the
International Standards Organization (ISO), American
National Standards Institute (ANSI) and the mortuary
services industry.

General Warning

of Potential Injury

Read the Users’

Manual

Load Limit

Operation Requires

One Trained Operator

Important

1.3 Bloodborne Disease Notice

To reduce the risk of exposure to bloodborne diseases such
as HIV-1 and hepatitis when using the table, follow the
disinfecting and cleaning instructions in this manual.

Do Not

Lubricate

Lubricate

Product meets European

Union Standards

Unlocked Locked

4

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table

1.5 Safety and Instruction Labels

Safety and instruction labels place important information from
the users’ manual on the table. Read and follow label instructions.
Replace worn or damaged labels immediately. New labels are
available from EMSAR (page 13) or from your distributor. The

labelsshownhereareafxedtothetable.

Safety Information, Skills and Training

2  OPERATOR SKILLS AND TRAINING

2.1 Skills

Operators using the table need:

a working knowledge of mortuary-service procedures.●

a complete understanding of the procedures described ●
in this manual.

2.2 Training

Operator trainees need to:

read and understand this manual.●

be trained on the use of the table.●

practice with the table before using it with a body.●

record their training information. A sample training ●
record sheet is provided on page 14.

WARNING

Untrained operators can cause injury or be injured.
Permit only trained personnel to operate the table.

© Ferno-Washington, Inc 234-0201-04 August 2009

5

About the Table

Model 102 Folding Operating Table

3  ABOUT THE TABLE

3.1 Description

The Model 102 Folding Operating Table (called the table
in this manual) is a mortuary-service product designed to
provide an adjustable surface for embalming, transfer, and
dressing.

The table-top is constructed of stainless steel. The table has
a total of seven level locking positions and can be adjusted
independently between 32-3/4" and 38-3/4" (83 cm - 98 cm)
at one or both ends. The table-top is convex and has a deep

perimetertroughtoguideuidstoadrainatthefootend.

The legs fold compact for storage. The table has 6" (15 cm)
wheels that swivel and lock.

3.2 General Specications

Height
Minimum 32-3/4 in./83 cm
Maximum 38-3/4 in./98 cm
Length 80 in./205 cm
Width (Overall) 30 in./77 cm
Folded Thickness 6 in./15 cm
Wheelbase 27 in. x 64 in. (69 cm x 163 cm)
Weight 87 lb/39.5 kg
Load Limit 1000 lb/454 kg

WARNING

Improper use of the table can cause injury. Use
the table only for the purpose described in this
manual.

Load Limit

Inspect the table if the load limit
has been exceeded (See Inspecting
the Table, page 11).

Some general specications are rounded to the nearest whole

number. Metric conversions are calculated before rounding the
Imperial measurements. For more information, contact Ferno
Customer Relations (page 2) or your Ferno distributor.

Fernoreservestherighttochangespecicationswithoutnotice.

USERS’ MANUAL

To request additional free users’ manuals,
contact Ferno Customer Relations, your
Ferno distributor, or visit www.ferno.com.

6

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table

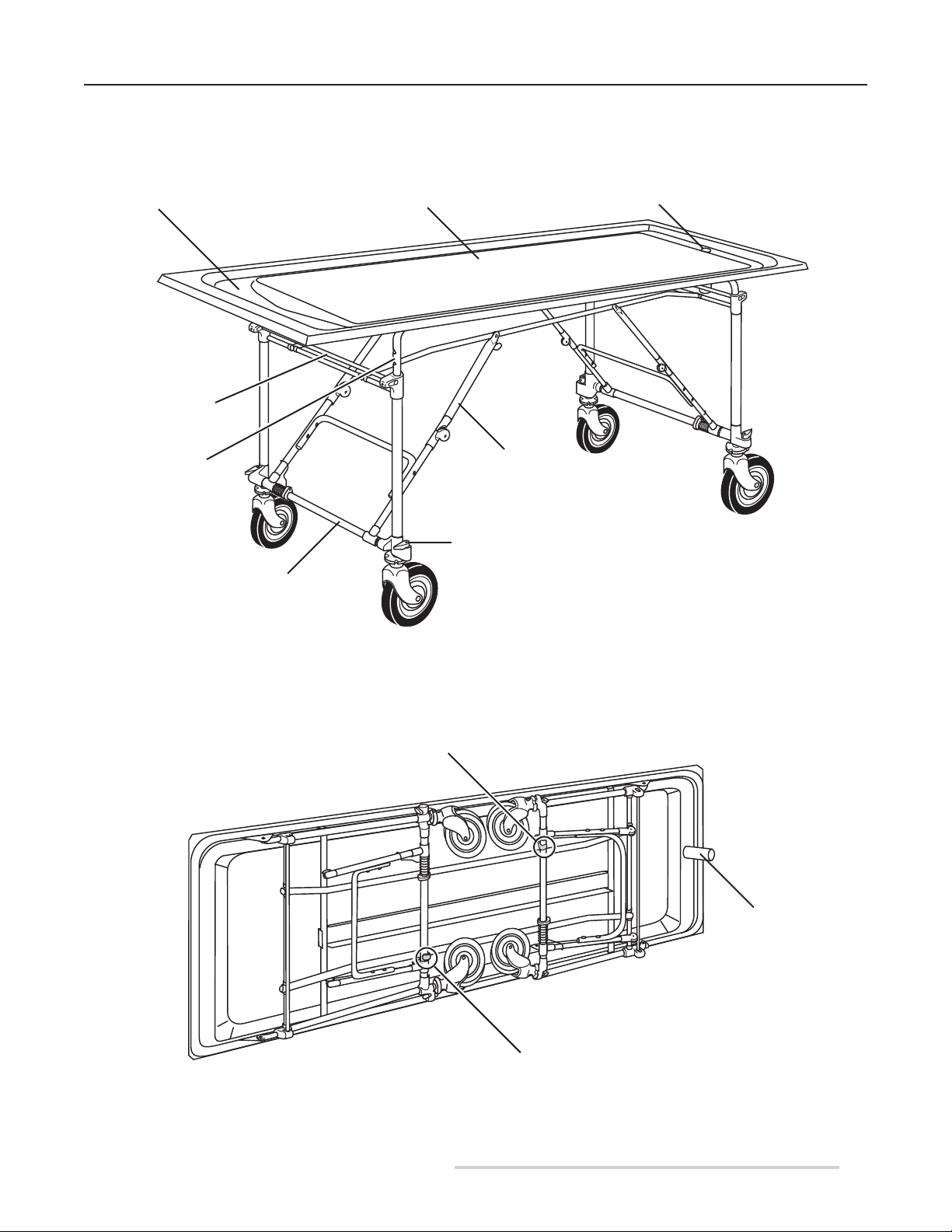

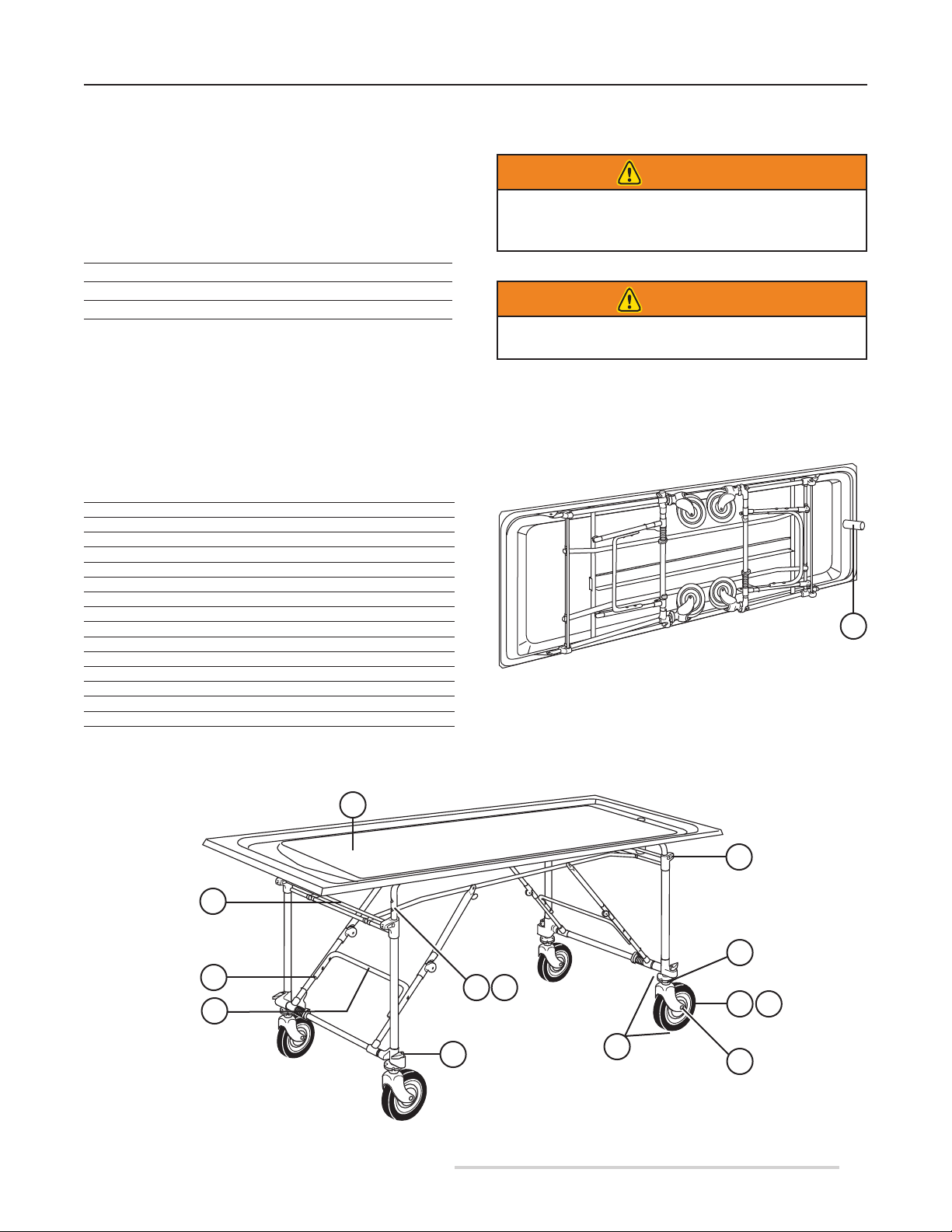

3.3 Components

About the Table

Trough

Ratchet

Control Bar

(Each End)

Ratchet

Tube (4)

Crossbar (2)

Table Top

Drain Opening

Leg Brace (4)

Wheel Swivel

Lock (4)

© Ferno-Washington, Inc 234-0201-04 August 2009

Leg Clip

Drain Tube

Leg Clip

7

Using the Table

Model 102 Folding Operating Table

4  USING THE TABLE

4.1 Before Placing the Table in Service

Personnel who will work with the table need to read this ●
manual.

Conrmthatthe table operates properly.See● Inspecting the

Table, page 11.

4.2 General Guidelines for Use

The table is for professional use only, by a trained operator.●

Follow standard mortuary-service procedures when using ●
the table.

Lift only the weight you can safely handle. Use additional ●
help when working with a heavy body.

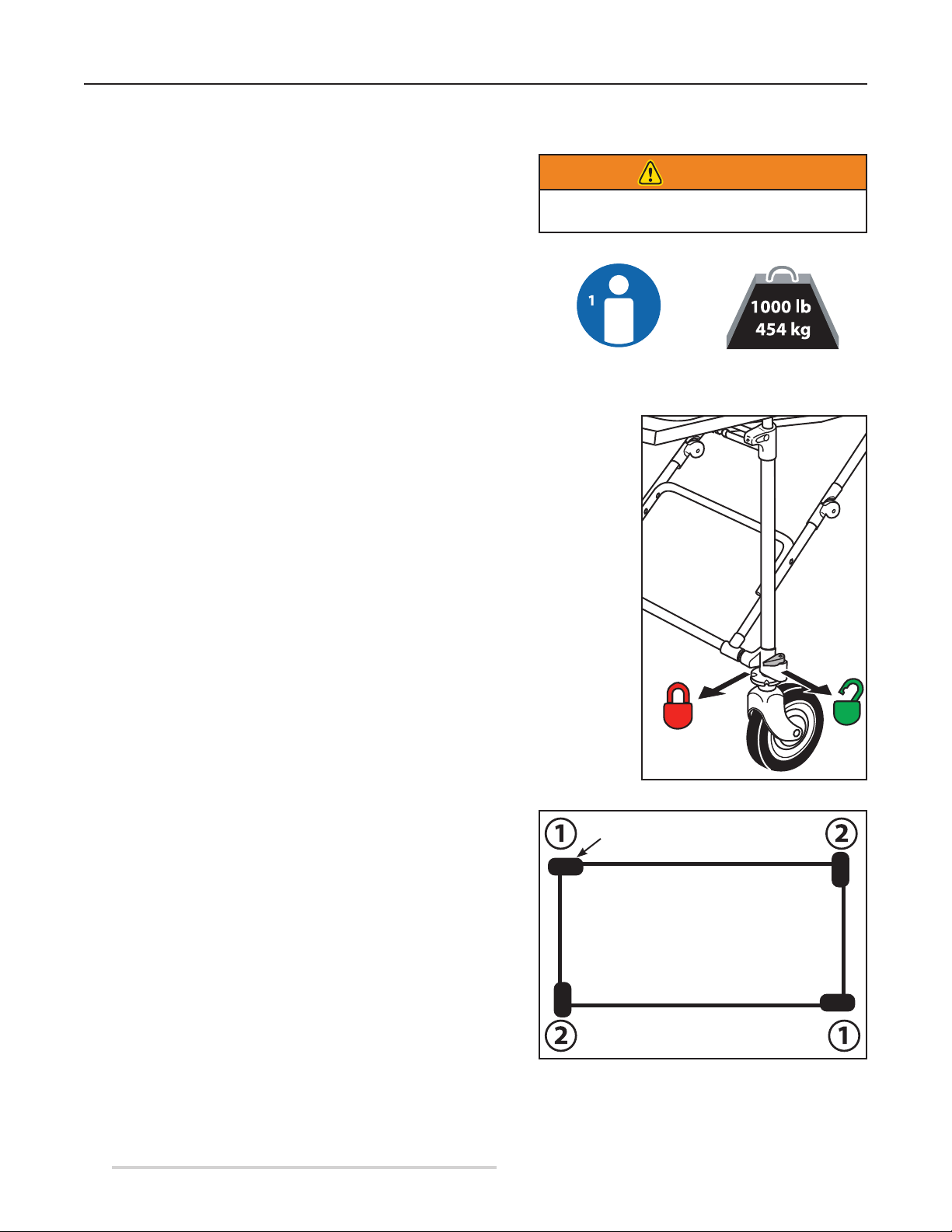

4.3 Swivel Locks

Eachof the four wheels istted with alocking caster.Lock the

casters to help hold the table steady and unlock the casters to roll
the table.

To lock the caster, turn the swivel lock toward the end of the ●
table (Figure 1).

To unlock the caster, turn the swivel lock toward the long side ●
of the table (Figure 1).

To help prevent the table from rolling during use, lock the ●
casters at 90° angles as shown in Figure 2.

(1) Align two wheels of opposite corners parallel to the

long sides of the table and lock them.

(2) Turn the remaining two wheels perpendicular to the

long sides of the table and lock them.

WARNING

Improper operation can cause injury. Operate
the table only as described in this manual.

Operation Requires

One Trained Operator

Figure 1 ­Using the

Swivel Lock

Load Limit

Caster (4)

Figure 2 - Conguring the Casters

To Hold the Table Stationary

8

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table Using the Table

4.4 Adjusting the Height
of the Table Top

The table top is adjustable between seven level positions.
Each end of the table can be adjusted independently. To tilt
the table top, raise one end of the table higher than the other.

Raising the end opposite of the drain will assist Note:

draining.

RAISING THE TABLE TOP

Grasp one end of the table with both hands and lift 1.
slightly to assume the weight of the table top and
body. Use additional help as needed to help control the
weight of a heavy body.

Press downward on the crossbar with one foot as you 2.
raise the table top a little higher than the desired height
(Figure 3).

Slowly lower the table top until it locks into the nearest 3.
locking position.

If keeping the table level, move to the opposite end of 4.
the table and repeat Steps 1-3.

Figure 3 - Raising the Table Top

LOWERING THE TABLE TOP

Stand at the end of the table you wish to lower.1.

With one hand, grasp the table top and lift slightly 2.
to assume the weight of the table top and body. Use
additional help as needed to help control the weight of
a heavy body.

Placing your other hand3. in the center of the ratchet
control bar (Figure 4), pull and hold the ratchet
control bar to disengage the lock, then lower the table
top until it is almost the desired height.

Release the ratchet control bar and continue lowering 4.
the table top until it locks into the nearest locking
position.

If keeping the table level, move to the opposite end of 5.
the table and repeat Steps 1-4.

Figure 4 - Grasp the Center of the Ratchet Control Bar

When Lowering the Table Top

© Ferno-Washington, Inc 234-0201-04 August 2009

9

4.5 Unfolding the Table Legs

Place the table on its side.1.

Slide the leg clip off the leg crossbar (Figure 5). 2.

Unfold the leg assembly and pull one of the leg 3.

Model 102 Folding Operating TableUsing the Table

braces until the upper and lower braces are aligned and the
hinges lock (Figure 6).

Repeat Steps 2 and 3 to unfold and lock the other leg assembly.4.

Leg Clip

Figure 5 - Unhooking the Leg Clip

4.6 Folding the Table Legs

Adjust both ends of the table top to the lowest position.1.

Important

Lower both ends of the table top before folding the
table. Failure to do so may result in damage to the
ratchet tubes.

Leg Brace

Figure 6 - Unfolding and Locking the Legs

Place the table on its side.2.

Pull the crossbar of one leg assembly toward the 3.
center of the table while pushing on the upper leg
braces (above the hinge, Figure 7). Fold the leg
assembly against the bottom of the table.

Slide the leg clip over the crossbar to hold the leg in 4.
the folded position (Figure 8).

Repeat Steps 3 and 4 to fold and secure the other leg 5.
assembly.

Hinge

Crossbar

10

Figure 7 - Folding the Legs

Leg Brace

Leg Brace

Leg Clips

Figure 8 - Legs Folded and Secured with Leg Clips

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table

5  MAINTENANCE

Maintenance

5.1 Maintenance Schedule

The table requires regular maintenance. Set up and follow a
maintenance schedule. The table at right represents minimum
intervals for maintenance.

Keep maintenance records. A sample maintenance record
sheet is provided on page 15.

When using maintenance products, follow the manufacturers’
directions and read the manufacturers’ material safety data
sheets. You can purchase a recommended disinfectant from
your Ferno distributor or Ferno Customer Relations (page 2).

5.2 Disinfecting and Cleaning
the Table

Ferno recommends inspecting the table for visible wear and
damage as you disinfect and clean it.

To disinfect:● Apply disinfectant to all surfaces

according to the disinfectant manufacturer’s
instructions for application method and contact time.

To clean:● Hand wash all parts of the table with warm

water and a mild detergent. Rinse with warm, clear
water. Dry with a towel or allow the table to air-dry.

WARNING

Improper maintenance can cause injury. Maintain
the table only as described in this manual.

Minimum

Maintenance Intervals

Each Use

As Needed

Disinfecting (this page)

Cleaning (this page)

Inspecting (this page)

Waxing (page 12)

Lubricating (page 12)

Important

Disinfectants and cleaners containing bleach,
phenolics, or iodines can cause damage. Do not use
products containing these chemicals.

•

•

• •

•

•

Each Month

5.3 Inspecting the Table

Inspect the table regularly. Follow the checklist below and
operate the table through all its functions as described in
this manual.

If inspection shows damage or excessive wear, remove
the table from service until repair is made. See Parts and
Service, page 13.

INSPECTION CHECKLIST

Are all components present?●

Is the table free of excessive wear?●

Are all screws, nuts, bolts, and roll pins securely in ●
place?

Do all moving parts operate smoothly and properly?●

Does each end of the table top lock properly into all ●
six raised positions?

Do the legs fold properly and do the leg clips function ●
properly?

Do the wheels roll without wobbling and are the tires ●
free of abrasions and wear?

Do the casters lock and unlock properly?●

Important

Water under high pressure, or steam, can penetrate
joints, ush away lubricant, and cause corrosion. Use
caution when cleaning moving parts such as joints and
hinges, and reapply lubricant if needed.

Important

Using abrasive cleaning compounds or applicators
on the table can cause damage. Do not use abrasive
materials to clean the table.

© Ferno-Washington, Inc 234-0201-04 August 2009

11

Maintenance, Accessories

5.4 Waxing the Table Legs and Frame

While it is not necessary to wax this table, waxing the
aluminum legs and lower frame will not damage them, and
will maintain the table’s appearance. Do not wax the table

top, which is constructed of stainless steel.

Disinfect and clean the table before applying wax. Use an
automotive wax as directed by the wax manufacturer.

Model 102 Folding Operating Table

5.5 Lubricating the Table

Disinfect and clean the table before applying lubricant. Use
the lubricants designated below to lubricate the table. Do not
lubricate points marked with the “do not lubricate” symbol.

Do Not Lubricate Lubricate

LUBRICATION POINTS

Use a small amount of lubricant. Lubricate identical

points on each side of the table.

1. Ratchet Tubes (4) White lithium grease

2. Leg-Brace Hinge (4) WRL-191S or E-Z-1 (1-2 drops)

3. Wheel Bearing (4) WRL-191S or E-Z-1 (1-2 drops)

LUBRICATIONFREE ITEMS

Ratchet control bar spring Do not lubricate

Important

Lubricating parts that should not be lubricated allows
dirt and foreign particles to collect on those parts,
resulting in damage. Lubricate only the numbered
reference points shown.

1

2

3

6  ACCESSORIES AND RELATED PRODUCTS

Ferno offers a full line of mortuary service accessories
and products. Always follow the instructions packed with
accessories. Keep the instructions with this manual. Be
aware of any special considerations (loading heights, door
widths, etc.) when using accessories.

Contact Ferno Customer Relations (page 2) or your Ferno
distributor for product information.

12

WARNING

Attaching improper items to the table can cause
injury. Use only Ferno-approved items on the table.

Model Description Part Number

14 Body Lifter 010-1400
38-BB Body Bridge 069-5790
Ultra Care 4000™ Body/Casket Lift (U.S.A.) 066-3914
Ultra Care 4000™ Body/Casket Lift (50 Hz) 066-3915

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table

7  PARTS AND SERVICE

Parts and Service

7.1 U.S.A. and Canada

In the United States and Canada, to order parts or for professional
table repair, contact EMSAR® - the only agent authorized by
Ferno to manage, service, and repair Ferno products.

Telephone (Toll-Free) 1.800.73.EMSAR
Telephone [phone]
Fax [phone]
Internet www.EMSAR.com

7.2 Worldwide

To order Ferno parts and for professional repair, contact your
Ferno distributor. Your distributor is the only agent authorized
by Ferno to manage, service, and repair Ferno products.

7.3 Parts List

No. Part Description Qty

1 090-0795 U-Brace w/hardware and plugs 1
2 090-0524 Plug, black plastic 2
3 090-0793 Lock bar (29") w/springs 1
4 090-5530 Table-top (stainless steel, bolt-on, no frame)* 1
5 190-1017 Lock bar springs 4
6 090-1259 1/2" Bearing (for wheel shank) 2
7 090-2904 6" Wheel, plain w/.375 bearings 1
8 090-1266 3/8" Bearing (for 6" wheel) 2
9 090-0180 3/8" Axle bolt and nut 1
10 090-0796 6" Wheel caster assy. complete 1
11 090-3045 Swivel lock lever assy. 1
12 090-0871 Ratchet tube w/hardware (before 1988) 1
13 090-5474 Ratchet tube w/hardware (after 1988) 1
14 090-0790 Drain assy. (bolt-on style) 1
15 190-1782 Label sheet 1

WARNING

Improper parts and service can cause injury. Use
only Ferno parts and Ferno-approved service on the
table.

WARNING

Modifying the table can cause injury and damage.
Use the table only as designed by Ferno.

14

*Replacement stainless-steel table-top “skin” only, without tube frame.
This is a bolt-on version. All earlier versions are unavailable.

4

3

2

1

© Ferno-Washington, Inc 234-0201-04 August 2009

11

5

6

12 13

87

10

9

13

Model 102 Folding Operating Table

TRAINING RECORD

Date Name Training Method

14

© Ferno-Washington, Inc 234-0201-04 August 2009

Model 102 Folding Operating Table

MAINTENANCE RECORD

Date Maintenance Performed By

© Ferno-Washington, Inc 234-0201-04 August 2009

15
