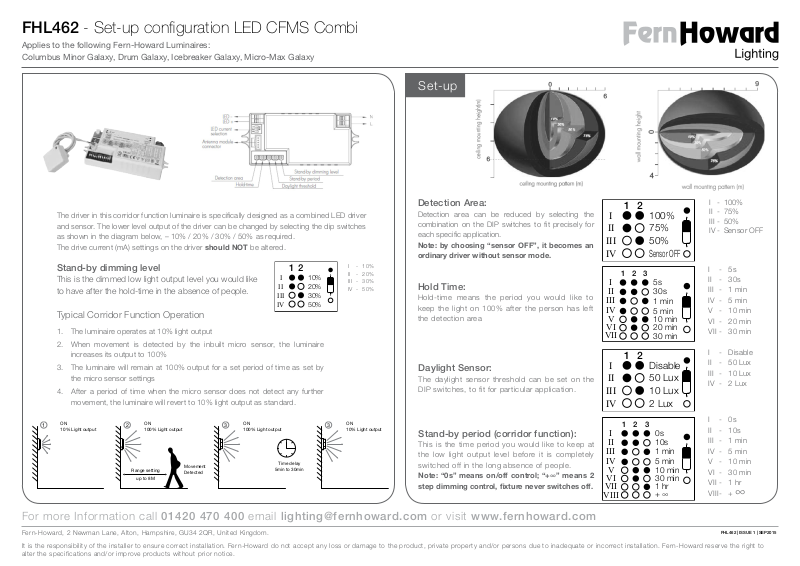

FHL462 - Set-up conguration LED CFMS Combi
12
12
VIII
Applies to the following Fern-Howard Luminaires:
Columbus Minor Galaxy, Drum Galaxy, Icebreaker Galaxy, Micro-Max Galaxy
Set-up
The driver in this corridor function luminaire is specically designed as a combined LED driver
and sensor. The lower level output of the driver can be changed by selecting the dip switches
as shown in the diagram below, – 10% / 20% / 30% / 50% as required.
The drive current (mA) settings on the driver should NOT be altered.
Stand-by dimming level
This is the dimmed low light output level you would like
to have after the hold-time in the absence of people.
12
10%
I
II
III
IV
20%
30%
50%
Typical Corridor Function Operation
1. The luminaire operates at 10% light output
2. When movement is detected by the inbuilt micro sensor, the luminaire
increases its output to 100%
3. The luminaire will remain at 100% output for a set period of time as set by
the micro sensor settings
4. After a period of time when the micro sensor does not detect any further
movement, the luminaire will revert to 10% light output as standard.
1
ON
10% Light output
2
Range setting
up to 8M
ON
100% Light output
Movement
Detected
3
ON
100% Light output
Time delay
5min to 30min
3
I - 10%
II - 20%
III - 30%
IV - 50%
ON
10% Light output
Detection Area:
Detection area can be reduced by selecting the
combination on the DIP switches to t precisely for
each specic application.
Note: by choosing “sensor OFF”, it becomes an
ordinary driver without sensor mode.
Hold Time:
Hold-time means the period you would like to
keep the light on 100% after the person has left
the detection area
Daylight Sensor:
The daylight sensor threshold can be set on the
DIP switches, to fit for particular application.
Stand-by period (corridor function):
This is the time period you would like to keep at
the low light output level before it is completely
switched off in the long absence of people.
Note: “0s” means on/off control; “+∞” means 2
step dimming control, xture never switches off.
I
II
III
IV
I
II
III
IV
V
VI
VII
I
II
III
IV
I
II
III
IV
V
VI
VII
123
123
100%
75%
50%
Sensor OFF
5s
30s
1 min
5 min
10 min
20 min
30 min
Disable
50 Lux
10 Lux
2 Lux
0s
10s
1 min
5 min
10 min
30 min
1 hr
+ ∞
I - 100%
II - 75%
III - 50%
IV - Sensor OFF
I - 5s
II - 30s
III - 1 min
IV - 5 min
V - 10 min
VI - 20 min
VII - 30 min
I - Disable
II - 50 Lux
III - 10 Lux
IV - 2 Lux
I - 0s
II - 10s
III - 1 min
IV - 5 min
V - 10 min
VI - 30 min
VII - 1 hr
VIII - +
∞
For more Information call 01420 470 400 email lighting@fernhoward.com or visit www.fernhoward.com
Fern-Howard, 2 Newman Lane, Alton, Hampshire, GU34 2QR, United Kingdom.
It is the responsibility of the installer to ensure correct installation. Fern-Howard do not accept any loss or damage to the product, private property and/or persons due to inadequate or incorrect installation. Fern-Howard reserve the right to
alter the specifications and/or improve products without prior notice.
FHL462 | ISSUE 1 | SEP2015
