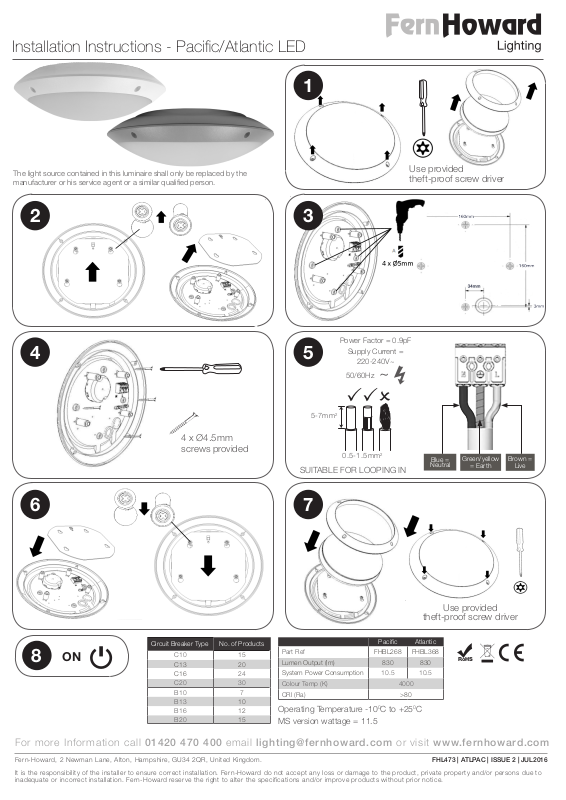

Fern-Howard FHBL368, FHBL268 Installation Instructions

Installation Instructions - Pacic/Atlantic LED



1

The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualied person.

2

4

4 x Ø4.5mm
screws provided

3

Power Factor = 0.9pF

5

5-7mm

SUITABLE FOR LOOPING IN

Supply Current =

220-240V~

50/60Hz

2

0.5-1.5mm

~

2

Use provided
theft-proof screw driver

Blue =

Neutral

Green/yellow

= Earth

Brown =

Live

6

7

Use provided

theft-proof screw driver

Circuit Breaker Type No. of Products

8

For more Information call 01420 470 400 email [e-mail] or visit www.fernhoward.com

Fern-Howard, 2 Newman Lane, Alton, Hampshire, GU34 2QR, United Kingdom.

It is the responsibility of the installer to ensure correct installation. Fern-Howard do not accept any loss or damage to the product, private property and/or persons due to
inadequate or incorrect installation. Fern-Howard reserve the right to alter the specifications and/or improve products without prior notice.

ON

C10

C13 20
C16 24

C20
B10 7
B13 10
B16 12
B20 15

15

30

Part Ref FHBL268 FHBL368

Lumen Output (lm) 830 830

System Power Consumption 10.5 10.5

Colour Temp (K) 4000

CRI (Ra) >80

Operating Temperature -100C to +250C
MS version wattage = 11.5

Pacic Atlantic

RoHS

FHL473 | ATLPAC | ISSUE 2 | JUL2016
