Fermax LYNX Ref. 1609 Installation Manual

CALL DIVERT FUNCTION – INSTALLATION GUIDE

1. INTRODUCTION:

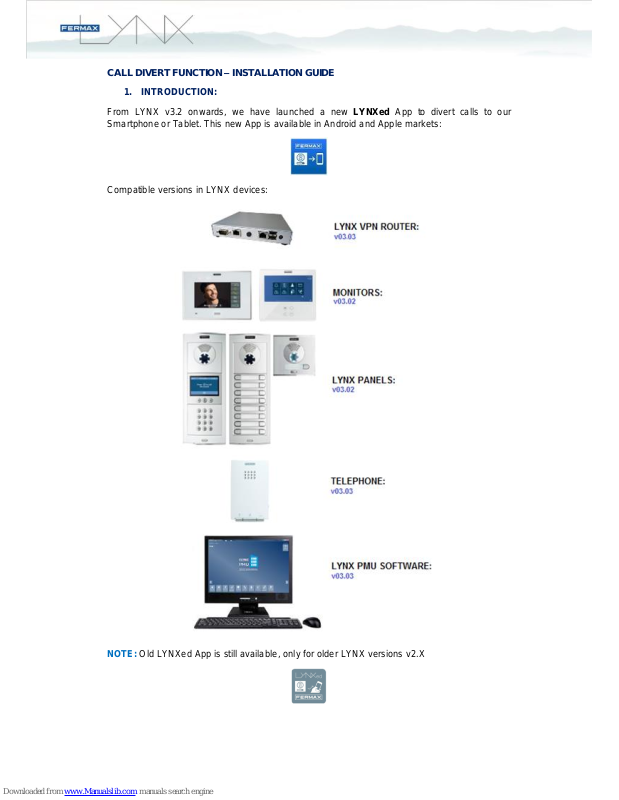

From LYNX v3.2 onwards, we have launched a new LYNXed App to divert calls to our
Smartphone or Tablet. This new App is available in Android and Apple markets:

Compatible versions in LYNX devices:

NOTE: Old LYNXed App is still available, only for older LYNX versions v2.X

2. LYNX VPN ROUTER CAPABILITIES:

LYNX Ref.1609 has got the following capabilities in terms of connectivity and quantity of terminals
supported:

Upstream
Bandwidth per conversation

Concurrent conversations
supported

5 in High Quality (HQ)
7 in Medium Quality (MQ) or Low Quality (LQ)

Terminals
per apartment

20 LYNXed Apps paired per apartment.

Connections
per device

8000 paired terminals supported per each Ref.1609
200 VPN active connections

(Active connection = App running on main screen)

NOTE: In most cases, only 1 x Ref.1609 is enough for each project that requires call divert

function connectivity. In case that more terminals or connections are required, we recommend to
add a second Ref.1609 connected to Internet for the same installation. For a second Ref.1609, a
new Internet connection is also needed (1 x iNET connection for each Ref.1609).

3. NEW LICENSES SYSTEM:

New monitors and telephones delivered from FERMAX include a License for LYNXed. This
License has to be registered in LYNXed and it is valid up to 20 devices paired per apartment.
Each license will be on a sticker in the corresponding LYNX device:

LYNX Monitors include Audio&Video License, so the call will appear in the corresponding
LYNXed Apps paired with Audio&Video streaming.

LYNX Telephones include Audio License, the call will be diverted with no video on LYNXed App.
In case Video is needed, it is possible to acquire Audio&Video license apart. Please contact
FERMAX Sales department.

4. HOW TO SETUP LYNX CALL DIVERT

In this section, we are going to explain the steps to configure LYNX Call Divert function in your
LYNX installation. The following example represents a simple LYNX network, but the steps to
setup the system can be applied for any other IP Addressing or LYNX project:

STEP 1 – CONNECT LYNX VPN Ref.1609

Connect your LYNX VPN ROUTER Ref.1609 to your LYNX system and provide an iNET
connection through a standard router or gateway.

By default, we will get the following IPs on each port:

 LAN = 10.206.0.0 / 255.0.0.0
 WAN = DHCP (IP given by Private Router)

For the moment, we will use standard LAN IP to register our Ref.1609 in FERMAX DNS Server
(STEP 2). WAN IP can be set as “Static IP” if necessary, depending on private network used.

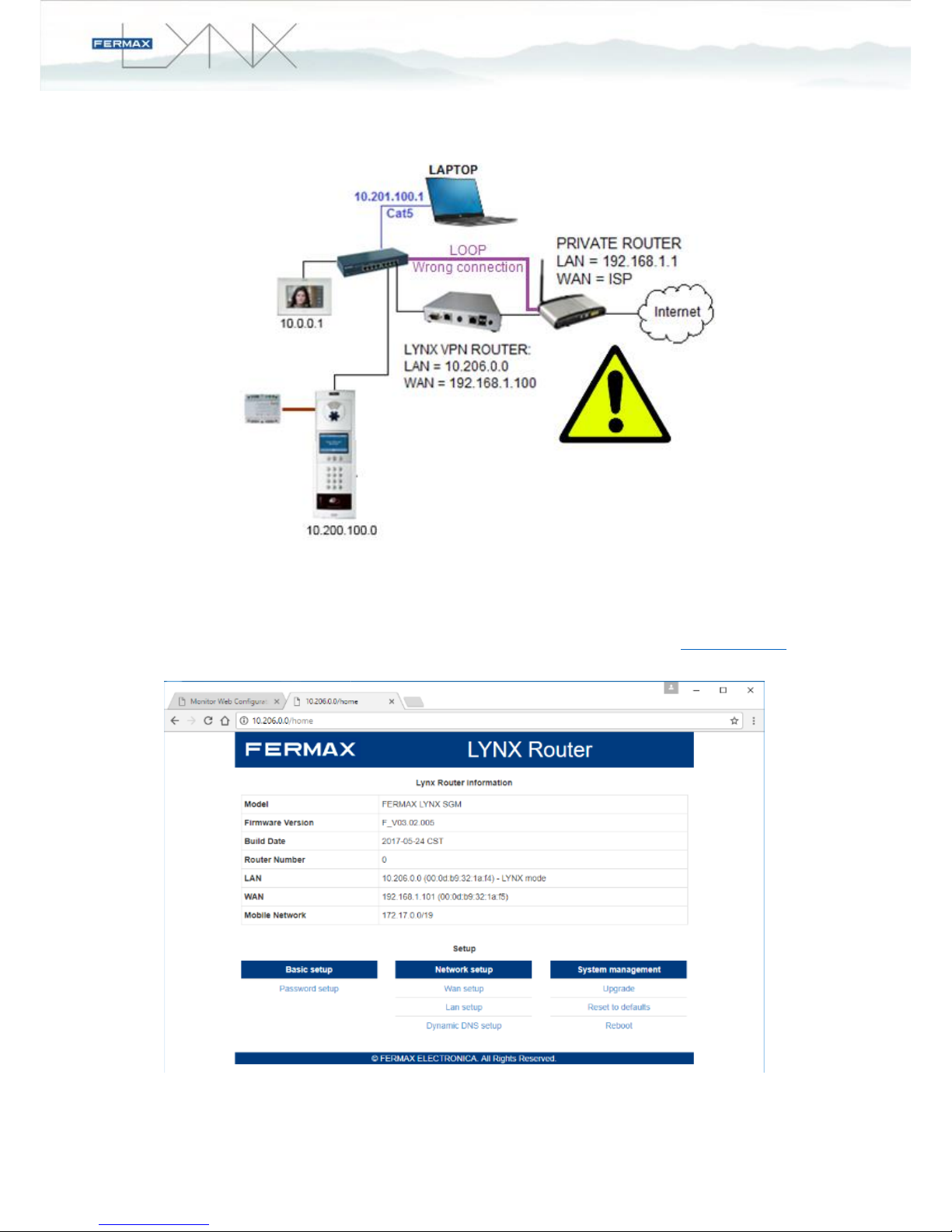

REMARK: Do not use the same IP Addressing in LAN and WAN ports. Ref.1609 cannot route
incoming packets if both networks are the same in terms of IPs.

STEP 2 – REGISTER LYNX VPN SERVER

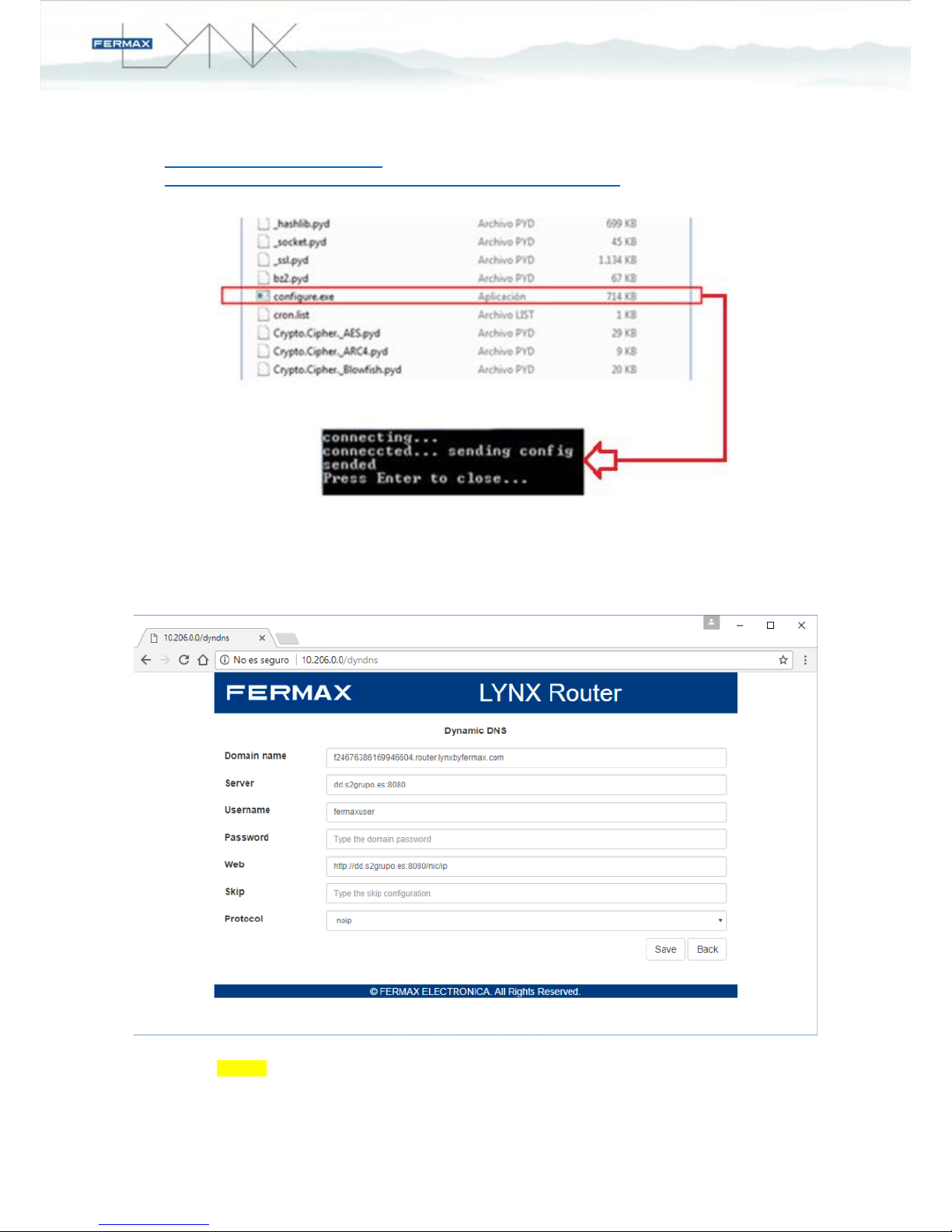

The second step is to register our Ref.1609 in our FERMAX Dynamic DNS Server. This will avoid
network problems in case that our ISP changes our public IP Address for Internet. For this task,
we will need to connect a PC/Laptop to our LYNX network as well as Internet:
