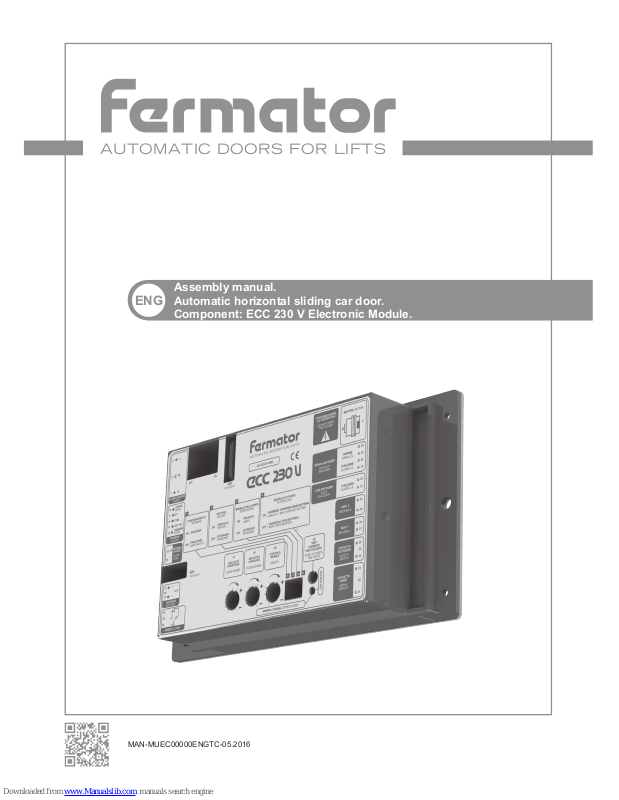

Fermator ECC 230 V Assembly Manual

MAN-MUEC00000ENGTC-05.2016

ENG

Assembly manual.
Automatic horizontal sliding car door.
Component: ECC 230 V Electronic Module.

AUTOMATIC DOORS FOR LIFTS

AUTOMATIC DOORS FOR LIFTS

2

ECC 230 V

CONNECTIONS

Motor 24 V DC

3

230 V

24...230 V

24...230 V

1-IN

J209

2-IN

12 V 2,2 Ah

Azul/Blue

Reopening Contact

Rojo/Red

Azul/Blue

Encoder

Final close course contact

Microrruptor

final carrera cerrar

Microrruptor

reapertura contacto

cerrado

Marrón/Brown

Azul/Blue

Marrón/Brown

11

12

8

9

10

L5

N7

PE6

181920

384041 39

1 2

3

4

1 2 3 4

37

363534

33

293027

28

31

32

22

23

21

252624

0V

14

13

+

12 V

151617

QCI.EC00.C00EE

BATERÍA

BATTERY

FUS 20A SP

FUS 4A SP

SEÑAL

DE PISO

FLOOR

LEVEL

...OK STATUS

NO ABRIR

LA TA PA

DO NOT OPEN

THE COVER

FUERZA

SAFETY

OPEN SPEED

VELOCIDAD

ABRIR

VELOCIDAD

CERRAR

CLOSE SPEED

PULSAR PARA

VERIFICAR

PUSH TO CHECK

THE DOOR

SPECIAL

ESPECIAL

STANDARD

ESTÁNDAR

MOTOR

ENCODER

FINAL CARRERA

LIMIT SWITCH

WORKING

FUNCIONAMIENTO

DOOR MODEL

MODELO PUERTA

HEAVY

PESADA

STANDARD

ESTÁNDAR

FLOOR LEVEL

SEÑAL DE PISO

2 INPUTS / 1 INPUT WITHOUT BATTERY

2 ENTRADAS / 1 ENTRADA SIN BATERÍA

1 INPUT WITH BATTERY

1 ENTRADA CON BATERÍA

ENTRADAS

INPUTS

OUT 24 V

CERRAR

CLOSE

ABRIR

OPEN

0 V

COM

ALIMENT.

SUPPLY

ABIERTA / OPEN

MOTOR & ENCODER

F.C. ABRIR

OPEN L.S.

F.C. CERRAR

CLOSE L.S.

SIN ENCODER

WITHOUT

ENCODER

CON ENCODER

WITH

ENCODER

CONTACTO

SERIE

SERIAL

SWITCH

CONTACTO

SEGURIDAD

SAFETY

SWITCH

REABRIR 2

REOPEN 2

REABRIR 1

REOPEN 1

F.C.CERRAR

CLOSE L.S.

ABIERTA / CERRADA // OPEN / CLOSED

AUTOMATIC DOORS FOR LIFTS

3

ECC 230 V

The unit has to be programmed using the DIP switches on the front of the unit. If any
change is made to any of the above switch selections, the unit must be switched OFF
and ON again to read the new programming.

The switches functions are:

1 Working.

ON: En c o der.

The door movement control will be done using the motor encoder or the motor encoder
and a close limit switch.

OFF: Limit switch.
The door movement control will be done using an open limit switch and a close limit
switch.

2 Motor.

ON: Special Motor.

Different control is applied to perform the door movement with a special motor.

OFF: Standard Motor.

Standard control is applied to perform the door movement.

3 Door model.

ON: Heavy door.

The motor supplies a 30% extra torque to be able to move heavy doors.

OFF: Standard door.

Standard control is applied to perform the door movement.

4 Floor level.

Inputs 12 V battery

ON

2 Inputs





1 Input



OFF



Note: With DIP-switch No. 4 OFF is necessary to install a oor level contact in each oor.

J209 1 & 2 INGRESSI.
1 InPUT (1-IN ).

The door control unit will be controlled by a single input. Any voltage between 24 V DC to
60 V DC or 100 V AC to 230 V AC applied between terminals 10 & 12 will close the doors.
Without input active the door remains opened. Open input is not used.

2 Inputs (2-IN ).

The door control unit will be controlled by two independent inputs. Any voltage between
24 V DC to 60 V DC or 100 V AC to 230 V AC applied between terminals 10 & 12 will
cause the doors to close. And between terminals 8 & 10 will cause the doors to open. In
the absence of a signal, the doors will remain static. If both inputs are applied then the
open signal has priority.

1

O
N

234

O
F
F

PROGRAMMING
