Ferm FCD-2400 User Manual

Download

Page 1

Ferm • P.O. Box 134 • 8280 AC Genemuiden • NL • www.ferm.com 0306-03

Ferm Combidrill with Impact function

FCD-2400 I 2

USER’S MANUAL

Art.nr. 718790

Screwfix art.nr 19323

UK Subject to change

Document Ref: FCD240012/19323/PMR6/issue 1/Mar 02

Page 2

Ferm 7

FERM COMBIDRILL FCD-2400 1 2 USERS MANUAL

TECHNICAL SPECIFICATIONS

PACKAGE CONTENTS

1 Cordless drill 2 Batteries 1 Battery charger 2 Double sided bits 1 Case 1 Users manual 1 Safety instructions 1 Guarantee card

Check the machine, loose parts and accessories for transport damage.

PRODUCT INFORMATION

1 Direction switch 2 On/off switch 3 Torque setting ring 4 Impact sleeve 5 Chuck 6 Battery

SAFETY INSTRUCTIONS

The following pictograms are used in these instructions for use:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the

instructions in this manual.

Denotes risk of electric shock.

Carefully read this manual before using the machine. Make sure that you know how the machine functions and how to operate it. Maintain the machine in accordance with the instructions to make sure it functions properly. Keep this manual and the enclosed documentation with the machine.

Ferm products are manufactured to high quality standards they are safe and fit for purpose at time of sale, but all tools can be dangerous if the correct precautions are not taken. Always follow these instructions, do not carry out the operation until you are sure you can do so in safety. Remember to consider the work environment for safe operation as well as safety for tool use.

Warning! When using electric tools, basic safety

precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product. Save these instructions for future reference.

PERSONAL SAFETY Use Personal Protection Safety Equipment

Protect eyes with safety glasses or goggles note: the use of safety protective eyewear without the CE mark can lead to serious injury if the lens breaks. A suitable dust mask should be worn if cutting; drilling or sanding is dusty, in particular chipboard or MDF. Approved safety footwear and headgear should worn as appropriate, for example on building works or when heavy weights are involved. Wear a suitable apron to protect against sparks/debris. Wear earplugs or ear defenders.

Dress properly

Do not wear loose clothing or jewellery. It can get caught in moving parts. Non-skid footwear is recommended when working out doors. Wear protective hair covering to contain long hair

Stay alert

Watch what you are doing Use common sense. Do not operate tools when tired or after taking alcohol or prescription/ non-prescription drugs.

3 4

2 Ferm

EXPLODED VIEW

SPARE PARTS LIST FCD-2400 I 2

REF NR. DESCRIPTION FERM NR.

3 SWITCH 406654 4 FCD-2400 I B BATTERY 718791 11 DRILL CHUCK 406516 12 LEFT BOLT DRILL CHUCK 406403 29 LEFT / RIGHT BUTTON 406656

- CHARGER FCD-2400 I C 406517

Page 3

ELECTRICAL INFORMATION

This product is complete with a pre-wired mains plug, it is double insulated in accordance with EN 60335 – no earth wire is required If the plug needs replacing follow these instructions.

Wire correctly

The wires in the mains lead are coloured in the following way:

BLUE -Neutral BROWN -Live

Securing wires

Secure wires carefully and firmly to the correct terminals. Secure the mains cable in the plug cord grip firmly Fit a 5-amp fuse. If a 13amp (BS1363) plug is used a (BS

1362) ASTA approved 5-amp fuse must be fitted.

Recycle/Dispose of old plug and cable

Prevent inadvertent connection to socket and risk of electric shock. If in doubt always consult a Qualified Electrician.

ENVIRONMENT

Recycle the packaging according to the identification marks on it. At the end of the product or its accessories life please recycle where facilities exist.

NiCd batteries are recyclable, take them to a local recycling station or phone the Helpline for current advice on recycling.

Helpline

For any questions relating to operational or safety matters contact:

Ferm Customer Helpline on: 0115 966 1199 Monday-Friday 8am – 6pm Saturday 9am – 1 pm

GUARANTEE

The guarantee conditions can be found on the separately enclosed guarantee card.

We declare under our sole responsibility that this

product is in conformity with the following

standards or standardized documents

prEN50260-1, prEN50260-2-1, prEN50260-2-2,

EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3.

in accordance with the regulations.

98/37/EEC, 73/23/EEC,

89/336/EEC

from 01-12-2000

GENEMUIDEN NL

G.M. Ensing Quality department

DECLARATION OF CONFORMITY

(UK)

Blue

(Neutral)

Green & Yellow

(Earth)

Brown

(Live)

Fuse

(13 Amp)

6 Ferm

OPERATIONAL SAFETY

Warning! The battery is normally sealed but in

event of the battery being damaged be aware that it contains acid, if you get any on your skin or in your eyes wash the affected parts with water immediately and seek medical advice as soon as possible.

Warning! Do not short circuit the battery it will

cause it to overheat, catch fire or even explode. To avoid this happening: Do not connect wires to the terminals of the battery. Do not expose the battery or drill to water, rain or damp atmospheres. Ensure that no metal objects (coins, nails etc) are caught in the battery housing or battery socket in the drill. Do not throw or dispose of the battery into water or fire.

Concentrate

Routine and repetition can lead to mistakes. Remember that a slight lack of concentration can result in serious injuries in a split second.

Keep work area clean

Cluttered areas and benches invite injuries.

Consider the work environment

Do not expose power tools to rain or use them in damp or wet locations. Keep work area well lit. Do not use power tools in the presence of flammable liquids, vapours or gases.

Guard against electric shock

This unit and its charger contain dangerous voltages. Use a RCD (residual current device) to provide protection against electrical shock. Prevent body contact with grounded surfaces (e.g. pipes, radiator, ranges or refrigerators).

Keep children and pets away

Do not let children or pets come into contact with the tool, extension cable or work area.

Do not force the tool

It will work better and safer at the rate for which it was intended.

Use the right tool

Do not force small tools or attachments to do the job of a heavy-duty tool. Do not use tools for purposes for which they were not intended; for example do not use a circular saw for cutting trees or logs.

Do not abuse cable

Never carry the tool by the cable or pull it to disconnect it from the power socket. Keep the cable away from heat, oil and sharp edges. Do not touch the metal plug pins when connecting or removing the plug.

Secure Work

Use clamps or a vice to hold work. It is safer than using your hand and it frees both hands to operate the tool

Do not over-reach

Keep a proper footing and balance at all times.

Disconnect tools from power supply

When not in use, before servicing and when changing accessories such as blades, bits and cutters. Always remove the battery and set the direction switch to lock position. Always switch off and unplug from

the power supply before making adjustments or inserting batteries into charger unit.

Remove adjusting keys and wrenches

Ensure that they are removed from the tool before switching on.

Avoid unintentional starting

Do not carry plugged in tools with your finger on the switch. Check that the switch is off before plugging in to socket.

Extension cables

Use only three core earthed extension cables suitable for the power input of the tool (minimum cable size

1.5mm2). Plug into an earthed socket only. When using a cable reel unwind it fully. Do not use long extension cables.

Outdoors use

If the tool is suitable to be used outdoors, only use an extension cable intended for outdoor use and marked accordingly. Use a RCD (residual current device) to provide protection against electrical shock. Do not use in rain or damp conditions.

Connect a dust extraction device

Whenever there are facilities for fitting a dust or fume extraction system, make sure it is connected and used.

Use recommended accessories

The use of any other accessory or attachment other than recommended in the instructions or catalogue may present a risk of personal injury.

Warning! Before using this drill check carefully for

hazards, for example when drilling walls make sure you do not contact with electrical wires, water pipes or asbestos. If asbestos is present, cease operations and contact your local council for advice.

Ferm 3

Page 4

INSERTING AND REMOVING ACCESSORIES

- Remove battery and set direction switch in middle (lock) position.

- Put the accessory into the chuck (5) as far as it will go, then tighten firmly anticlockwise by hand only – hold one section of the chuck and turn the other to tighten.

- Remove accessories by turning the front part of the chuck clockwise while holding the other. Keep your finger off the trigger-switch during these operations.

- Insert battery and unlock direction switch to make drill ready for use.

Use as a screwdriver

- Remove battery and set direction switch in middle (lock) position.

- Set sleeve (4) to drill setting then inset a suitable screwdriver bit into the chuck. Set the torque ring (3) to desired setting (1 is low and 8 is high) Insert battery and unlock direction switch to make drill ready for use.

- Start at low setting and increase setting until the correct setting for the job is found.

- Use the direction switch set to the right to insert screws and to the left to remove them.

- Do not use as a screwdriver with the torque ring set in drill position, this will damage the drill.

Use as a drill

- Remove battery and set direction switch in middle (lock) position.

- Set the sleeve (4) to drill setting. Insert a drill bit into chuck and set the torque ring (3) to drilling position.

- Check the direction switch is set to the correct direction, normally to "R" for right hand operation.

- Insert battery and unlock direction switch to make drill ready for use

Use as an impact drill

For drilling hard material like stone or concrete.

- Remove battery and set direction switch in middle (lock) position.

- Set the sleeve (4) to impact/hammer setting. Insert a suitable hard tipped masonry bit into chuck.

- Check the direction switch is set to the correct direction, normally to "R" for right hand operation.

- Insert battery and unlock direction switch to make drill ready for use.

MAINTENCE, CARE AND REPAIR

CLEANING

Clean by brushing with a soft brush Do not use flammable liquids to clean the drill – never use solvents such as petrol, ammonia or alcohol; they damage the plastic parts and present a fire risk.

FAULTS Switch OFF immediately at the mains plug and remove the plug when:

- The plug or cable is damaged.

- The charger is not operating as it should.

- You smell or see smoke caused by scorched insulation in the machine or charger.

Overheating

The ventilation slots are blocked with dirt. Clean with dry cloth.

The machine does not start when switched on

- Change the battery for a fully charged one.

- Check that the battery charger is working, if the charging light does not come on; change the fuse in the plug.

- Take to your Ferm Dealer for repair.

The motor is defective

Take to your Ferm Dealer.

MAINTAIN TOOLS WITH CARE

Keep the tool clean for better and safer performance. Store the accessories properly in accordance with the maker’s instructions. Follow instructions for changing accessories. Inspect tool and extension cables periodically and if damaged, have them repaired by a qualified person or authorised service body. Keep handles free from oil or grease. Keep the ventilation slots clean to prevent motor overheating.

Check for damaged parts

Do not use a tool with damaged parts, before further use a damaged tool must be carefully checked by a qualified person to determine that it will operate properly. Check for alignment of moving parts, binding or breakage of parts, mounting and other conditions that may affect its operation. A damaged part or guard should be properly repaired by an authorised service centre, unless indicated otherwise in the instruction manual. Have defective switches replaced by an authorised service centre. Do not use a tool if the switch does not turn on and off.

Have your tool repaired by an expert

This appliance is manufactured in accordance with relevant safety standards. Only experts must carry out repairing of electrical appliances, otherwise considerable danger for the user may result.

Storing tools

When not in use tools should be stored in the dry, out of reach of children.

3 4

Ferm 5

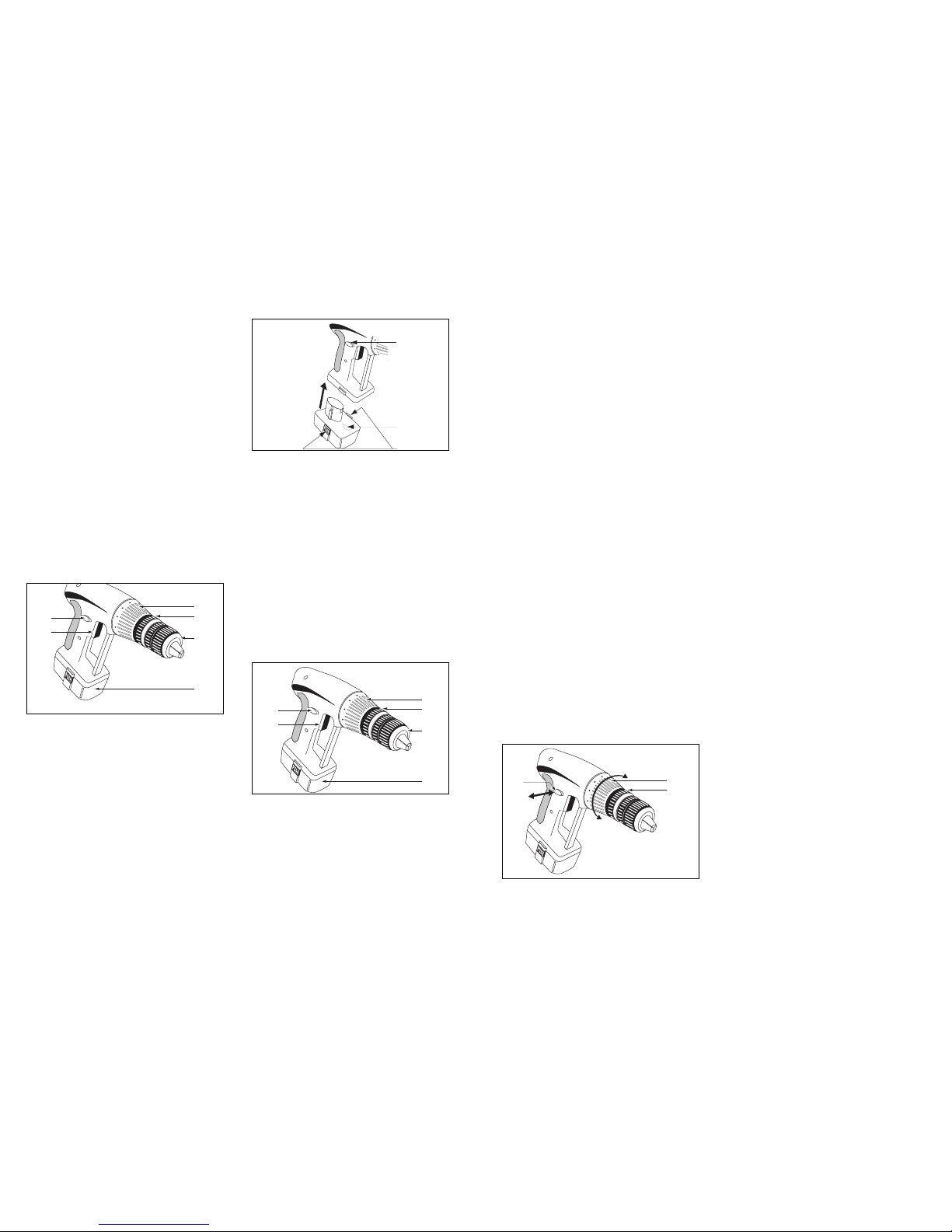

USING THE COMBI DRILL

BEFORE OPERATING

- Check that the voltage marked on the charger is suitable for use with your mains supply.

- The output voltage on the charger is suitable to use with the drill battery.

- The battery voltage is suitable for the drill.

Note: The battery supplied with the drill is not fully charged.

CHARGING THE BATTERY

- Place the battery charger (9) on a level surface, check it is connected correctly and the air vents on the charger are not blocked, then put the battery (7) into the charger. - Make sure the terminals on the battery tongue line up with the + and – terminals on the charger. The red light (10) on the charger indicates the battery is being fast charged.

- When charging is finished the red light will go out and the green light (11) will light, indicating that the battery is ready for use

- The first charge will take 1-2 hours; the battery will reach maximum performance after it has been charged 4-5 times.

- Only use the charger between +10 degrees C and +40 degrees C in dry conditions.

INSERT/REMOVE BATTERY

- Make sure the direction switch (1) is in the middle (lock) position so that the drill does not start unexpectedly.

- Place the battery (7) in the end of the handgrip, it can only go in one way and will click when in place.

- To remove battery, push the tabs (8) in on either side of the battery with finger and thumb and pull out of handgrip.

OPERATION To switch ON/OFF

Make sure the direction switch (1) is set to left or right position, then press the trigger switch (2)

To lock trigger

Release the trigger switch and put the direction switch (1) in the central position

Speed control

Adjust the drills speed by more or less pressure on the trigger-switch (2).

Direction of rotation

Change the direction of rotation by setting the direction switch (1) to left or right, this must be done when the drill is not rotating.

Drill or impact setting

Set sleeve (4) clockwise to "drill" position and anticlockwise to "impact or hammer setting"

3 4

4 Ferm
