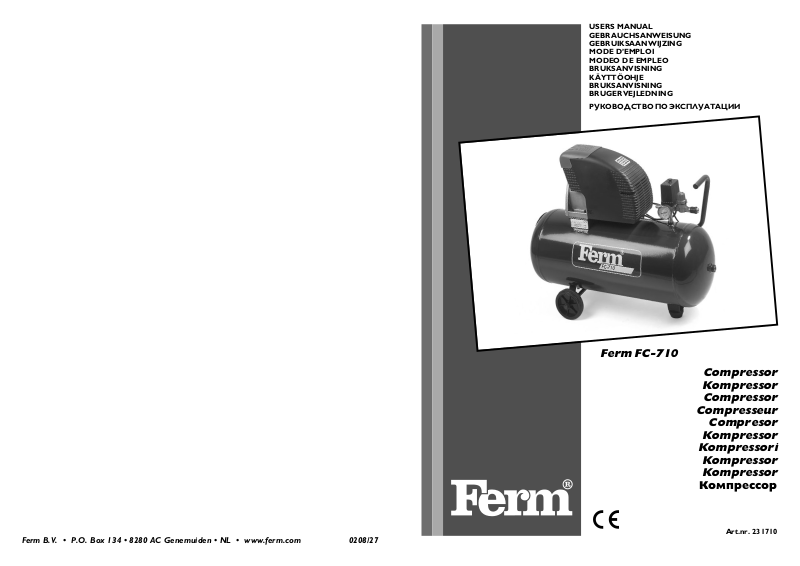

FERM FC-710 User Manual [de]

Ferm B.V. • P.O. Box 134 • 8280 AC Genemuiden • NL • www.ferm.com 0208/27

Ferm FC-710

Compressor

Kompressor

Compressor

Compresseur

Compresor

Kompressor

Kompressori

Kompressor
Kompressor

äÓÏÔÂÒÒÓ

USERS MANUAL
GEBRAUCHSANWEISUNG
GEBRUIKSAANWIJZING
MODE D’EMPLOI
MODEO DE EMPLEO
BRUKSANVISNING
KÄYTTÖOHJE
BRUKSANVISNING
BRUGER VEJLEDNING

кмдйЗйСлнЗй ий щдлигмДнДсаа

Art.nr. 231710

Ferm 192 Ferm

Product: Ferm Compressor

Type FC-710, Art. nr. 231710

Ferm, Genemuiden, The Netherlands

1. TECHNICAL DATA

This is a directly linked 1-cylinder compressor in mobile
design. This compressor is also equipped with a reducing
valve, a automatic shutdown and a quick coupling.

Sound pressure level 83,8 dB(A)

CAREFULLY READ THE INSTRUCTIONS
BEFORE YOU USE THE COMPRESSOR!

2. SPECIFIC SAFETY RULES

BEFORE USING THE COMPRESSOR:

1. Place the compressor in a well ventilated, frost
free area.

To obtain sufficient ventilation and cooling the distan­ce between the shield and the wall needs to be at least
50 to 60 cm.

2. The following points need to be checked:

- do the voltage of the engine and the engine safe
guard, if any, correspond to the mains voltage (ap­pliances for a mains voltage of 230 V can be connec­ted to a mains voltage of 220 V without any pro­blems);

- an earthed mains connection (wall socket) needs
to be used;

- are the mains lead and the mains plug in a good con­dition: solid, without any loose ends or damage;

- the pressure reducing valve may not be copletely
closed so as to prevent damage to membranes;

- the oil level with help from the gauge. The oil level
should be within the area indicated by both marks
on the gauge, when the compressor is placed level.

-before use the air tank needs to be empty.

IMPORTANT: To prevent damage to the motor
windings as a result of voltage variation it is advisable
to mount an engine safety switch.

WHILE USING THE COMPRESSOR:

1. Do not use extension cables which are too long.

IMMEDIATELY SWITCH OFF THE COMPRES­SOR IN CASE OF:

1. defective mains plug, mains line or damage to the
mains line;

2. defective switch;

3. smoke or bad smell caused by scorched insulation.

3. INSTALLATION

The compressor needs to be placed in well-ventilated,
frost-free area. To obtain sufficient ventilation and coo­ling the distance between the shield and the wall needs to
be at least 50 to 60 cm.

4. OPERATING THE COMPRESSOR

- The mains switch needs to be in “OFF” or “0” posi­tion before the mains plug is connected to the mains
voltage.

- Bij switching the switch to “ON” or “1” the compres­sor will operate.

- Always keep the mains lead away from moving parts
of any linked up air-pressure equipment.

-With the use of the reducing valve it is possible to ad­just the air pressure by hand. By pressing the reducing
valve the chosen position can be locked. However, do
not close the reducing valve too much, in order to
prevent damage to the membranes.

5. MAINTENANCE

The mains plug always needs to be taken out
of the socket (the mains socket) during main­tenance or cleaning activities. Never use wa­ter or other agressive liquids to clean the ma­chine. Clean the machine by brushing it with
a brush.

PERIODIC MAINTENANCE OF THE COMPRES­SOR WILL PREVENT UNNECESSARY PROBLEMS!

Oillevel

The compressor comes with a special test oil, that must
be Replaced after about 100 hours of use. Check the oil
level from time to time, using the oil gauge.
When the compressor is level and has not been used for
some time, the oil level should be within the area indica­ted by both marks on the gauge. The oil must be replaced
after every 1000 hours of use. Use compressor oil API
CC SAE 40 rather than motor oil. If the compressor is

!

GB

English

Art.

nr.

Type

V~/Hz W RPM LTR. L/MIN BAR

231710 FC-710 230~50 1.500 2.800 50 245 8

1'

Exploded

view 2

FC-710

AVAILABLE SPARE PARTS FOR FC-710

REF.NR. DESCRIPTION FERM NR.

1 CYLINDER COVER (RED) 208217
2REAR COVER 208200
3 COVER 208201
6 VALVE PLATE 208252
7 FAN 208202
9 OIL LEVEL GAUGE 208203

11 CRANKSHAFT + AXLE 208204

8223091 CONNECTION ROD COMPLETE 208205

21 CONDENSOR 25 uF 800025
23 CYLINDER 208210
24 CYLINDER HEAD PACKING 208211
26 GASKET VALVE PLATE HEAD 208212
27 HEAD 208213
29 FILTER 205730
30 STATOR 208221
31 ROTOR 208222
32 CYLINDER PACKING 208216

Ferm 3

used in temperatures below 0°C, use API CC SAE 20 oil.

Every month:

Clean the air filter.

Every 1,000 working hours:

Refresh the oil
Carefully clean the outside of both the compressor
and the engine, to ensure an efficient cooling.

Condensation :

Regularly, i.e. several times a week, drain condensa­tion from the air chamber, using the drain cock situa­ted on the underneath of the air chamber.

Have your tool repaired by an expert!

This electric appliance is in accordance with the rele­vant safety rules. Repairing of electric appliances may
be carried out only by experts other wise it may cause
considerable danger for the user.

We declare under our sole responsability that this

product is in conformity with the following

standards or standardized documents

prEN1012-1, EN60204-1, EN292, ISO5388

EN550014, EN55104, EN61000-3-2, EN61000-3-3

in accordance with the regulations:

89/392/EEC - 91/368/EEC

93/44/EEC - 93/68/EEC

73/23EEC - 89/336/EEC - 92/31/EEC

from 01-04-1999

GENEMUIDEN NL

G.M. Ensing

Quality department

Produkt: Ferm Kompressor

Typ FC-710, Art.nr. 231710

Ferm, Genemuiden, die Niederlände

1. TECHNISCHE DATEN

Es handelt sich hierbei um ein direkt gekoppelter 1-Zylin­der Kompressor in mobiler Ausführung. Diese Kom­pressor ist außerdem mit einem Druckreduzierventil, ei­nem automatischen Ausschalter und einer Schnellkup­plung ausgestattet.

Schalldruckpegel 83,8 dB(A)

LESEN SIE DIESE GEBRAUCHSANWEI­SUNG GUT DURCH, BEVOR SIE DEN KOM­PRESSOR BENUTZEN.

2. SPEZIELLE

SICHERHEITSVORSCHRIFTEN

BEVOR INGEBRAUCHNAHME DER KOM­PRESSOR:

1. Stellen Sie den Kompressor in einem gut gelüf­teten, frostfreien Raum.

Für eine optimale Ventilation und Kühlung muß der
Abstand zwischen Schutzkappe und Wand min­destens 50 bis 60 cm betragen.

2. Kontrollieren Sie folgendes:

- stimmt die Anschlußspannung des Motors und
eventuell der Motorsicherung mit der Netzspan­nung überein (Maschinen für eine Netzspannung
von 230 V können problemlos an eine Netzspan­nung von 220 V angeschlossen werden);

- benutzen Sie einen geerdeten Netzanschluß.

- sind Netzkabel und Netzstecker in gutem Zu­stand: stabil und ohne Knicke oder Beschädigun­gen;

- Vermeiden Sie zu lange Verlängerungskabel.

- um Schäden an den Membranen zu vermeiden,
darf das Druckreduzierventil nicht völlig geschlos­sen sein;

- Der Ölstand mittels der Ölstandmesser. Das Öl
soll zwischen den beiden Markierungen auf dem
Ölstandsmesser stehen, wenn der Kompressor
horizontal aufgestellt ist.

- vor Inbetriebnahme müssen der Luftverschluß ge­schlossen und der Lufttank leer sein.

WICHTIG: Um zu vermeiden, daß Spannungssch­wankungen Schaden an der Motorwicklung verursa­chen, ist es empfehlenswert, einen Motorsicherungs­schalter anzubringen.

Deutsch

D

CE

ı

DECLARATION OF CONFORMITY

(

UK

)

18 Ferm

AVAILABLE SPARE PARTS FOR FC-710

REF.NR. DESCRIPTION FERM NR.

1 AUTOMATIC ON/OFF SWITCH 240018
2 PRESSURE GAUGE REAR 240100
3 PRESSURE REDUCER MICRO 205887
4 NO RETURN VALVE 1/2” M 205889
5 SAFETY VALVE 1/4” 8,5 BAR 205915
7 RILSAN TUBE 4/6 205902
8 WHEEL 125 MM 205896

9 DRAIN TAP 1/4” 205888
10 RUBBER SUPPORT H50X30 208114
13 CONNECTOR 0° 208219
14 AIR PRESS TUBE 208220

Exploded

view 1

FC-710
