Ferimex Wireless 802.11g Multi-mode AP User Manual

Download

Page 1

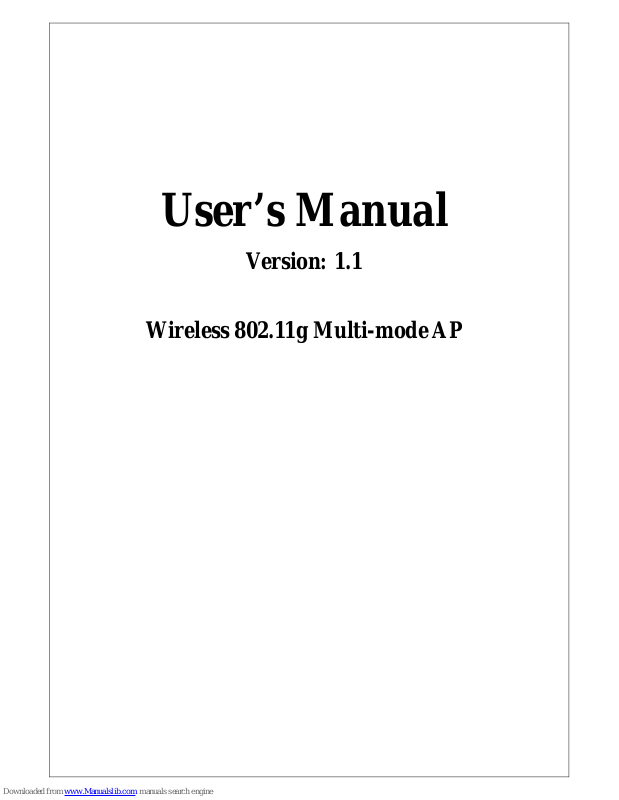

User’s Manual

Version: 1.1

Wireless 802.11g Multi-mode AP

Page 2

Trademarks

THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenc e to radio or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) T his device may not cause harmful interference, and (2) this device must accept any interference received, including interferenc e that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for com pliance could void the user's authority to operate this equipment.

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Page 3

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Table of Contents

REVISION HISTORY .....................................................................................................................I

TERMINOLOGY...........................................................................................................................II

1 INTRODUCTION.................................................................................................................... 1

1.1 PACKA GE CONTENTS ............................................................................................................1

1.2 PRODUCT SPECIFICATIONS ................................................................................................... 1

1.3 PRODUCT FEATURES ............................................................................................................ 2

1.4 UPPER PANEL DESCRIPTION................................................................................................. 3

1.5 REAR PANEL DESCRIPTION................................................................................................... 4

2 INSTALLATION ..................................................................................................................... 5

2.1 HARDWARE INSTALLATION .................................................................................................. 5

2.2 SOFTWARE INSTALLATION.................................................................................................... 5

3 SOFTWARE CONFIGURATION ......................................................................................... 6

3.1 PREP ARE YOUR PC TO CONFIGURE THE WLAN ACCESS POINT............................................ 6

3.2 CONNECT TO THE WLAN ACCESS POINT............................................................................. 8

3.3 MANAGEMENT AND CONFIGURATION ON THE WLAN ACCESS POINT .................................. 8

3.3.1 Status.......................................................................................................................... 8

3.3.2 Setup Wizard.............................................................................................................. 9

I LAN Interface Setup.................................................................................................... 10

II Wireless Basic Settings................................................................................................ 11

III Wireless Security Setup........................................................................................... 12

3.3.3 Wireless - Basic Settings..........................................................................................12

3.3.4 Wireless - Advanced Settings .................................................................................. 14

3.3.5 Wireless - Security Setup......................................................................................... 15

I WEP Key Setup ........................................................................................................... 17

3.3.6 Wireless - Access Control........................................................................................ 18

3.3.7 WDS Settings........................................................................................................... 20

I WDS Security Setup....................................................................................................21

II WDS AP T able............................................................................................................. 21

3.3.8 Site Survey............................................................................................................... 22

3.3.9 TCP/IP Settings........................................................................................................ 23

Page 4

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

3.3.10 Log...........................................................................................................................25

3.3.11 Statistics................................................................................................................... 26

3.3.12 Upgrade Firmware................................................................................................... 27

3.3.13 Save/ Reload Settings .............................................................................................. 27

3.3.14 Password Setup........................................................................................................28

3.3.15 Logout...................................................................................................................... 29

4 FREQUENTLY ASKED QUESTIONS (FAQ)....................................................................30

4.1 WHAT AND HOW TO FIND MY PC’S IP AND MAC ADDRESS?............................................... 30

4.2 WHAT IS WIRELESS LAN? ................................................................................................. 30

4.3 WHA T ARE ISM BANDS? .................................................................................................... 30

4.4 HOW DOES WIRELESS NETWORKING WORK?....................................................................... 30

4.5 WHAT IS BSSID? ............................................................................................................... 31

4.6 WHAT IS ESSID? ............................................................................................................... 31

4.7 WHAT ARE POTENTIAL FACTORS THAT MAY CAUSES INTERFERENCE? ................................. 32

4.8 WHA T ARE THE OPEN SYSTEM AND SHARED KEY AUTHENTICA TIONS? .............................. 32

4.9 WHAT IS WEP? .................................................................................................................. 32

4.10 WHAT IS FRAGMENT THRESHOLD?..................................................................................... 32

4.11 WHAT IS RTS (REQUEST TO SEND) THRESHOLD?.............................................................. 33

4.12 WHAT IS BEACON INTERVAL?............................................................................................. 33

4.13 WHAT IS PREAMBLE TYPE?................................................................................................ 34

4.14 WHAT IS SSID BROADCAST? ............................................................................................. 34

4.15 WHAT IS WI-FI PROTECTED ACCESS (WPA)? .................................................................... 34

4.16 WHAT IS WP A2?................................................................................................................ 35

4.17 WHAT IS 802.1X AUTHENTICATION? .................................................................................. 35

4.18 WHAT IS TEMPORAL KEY INTEGRITY PROTOCOL (TKIP)? ................................................. 35

4.19 WHAT IS ADVANCED ENCRYPTION STANDARD (AES)? ...................................................... 35

4.20 WHAT IS INTER-ACCESS POINT PROTOCOL (IAPP)?........................................................... 35

4.21 WHAT IS WIRELESS DISTRIBUTION SYSTEM (WDS)?......................................................... 36

4.22 WHAT IS CLONE MAC ADDRESS?...................................................................................... 36

Page 5

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Revision History

ATE R

EVISION OF USER’S MANUAL FIRMWARE

2006/5/19 First release (Version 1.0) a1.4.0

Page 6

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Terminology

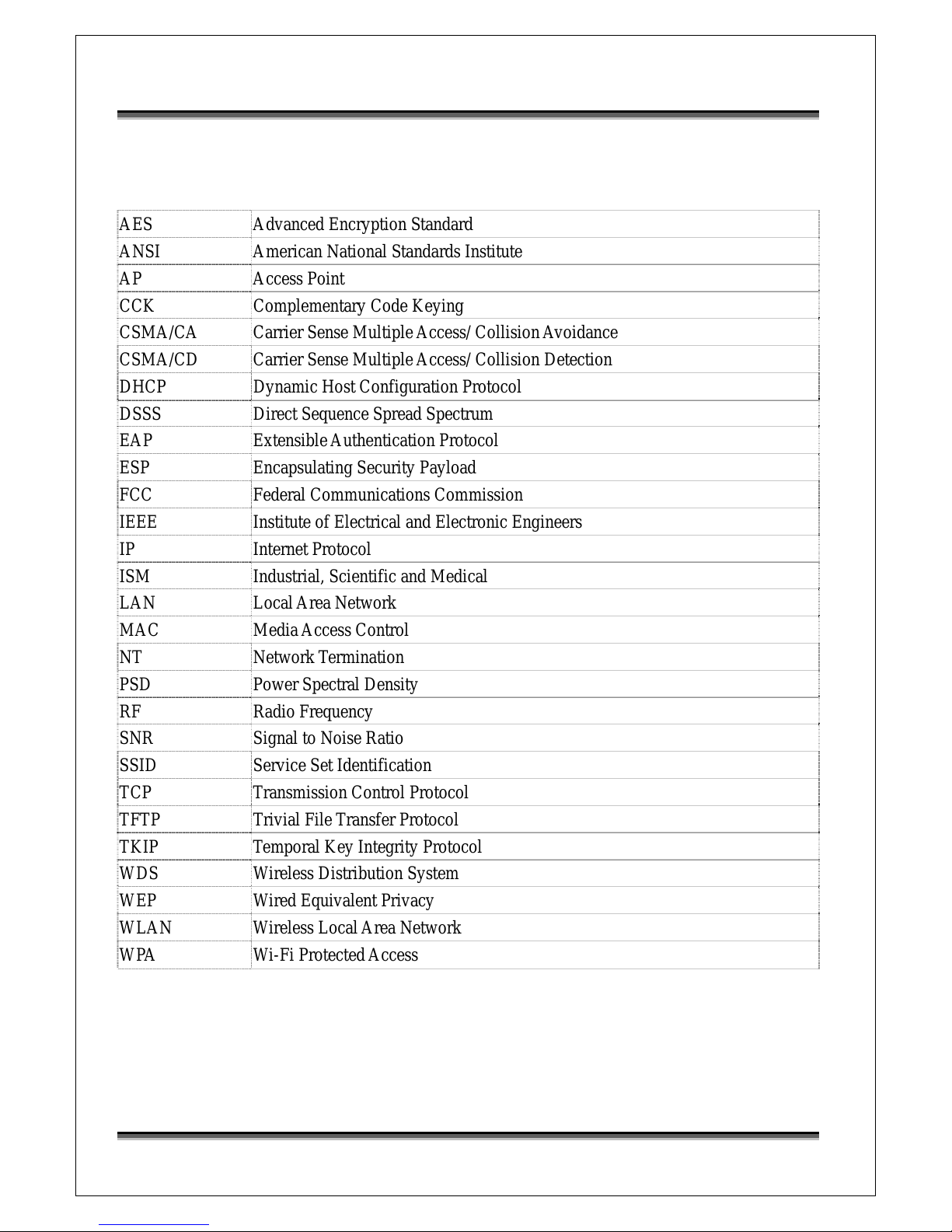

AES Advanced Encryption Standard ANSI American National Standards Institute AP Access Point CCK Complementary Code Keying CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance CSMA/CD Carrier Sense Multiple Access/ Collision Detection DHCP Dynamic Host Configuration Protocol DSSS Direct Sequence Spread Spectrum EAP Extensible Authentication Protocol ESP Encapsulating Security Payload FCC Federal Communications Commission IEEE Institute of Electrical and Electronic Engineers IP Internet Protocol ISM Industrial, Scientific and Medical LAN Local Area Network MAC Media Access Control NT Network Termination PSD Power Spectral Density RF Radio Frequency SNR Signal to Noise Ratio SSID Service Set Identification TCP Transmission Control Protocol TFTP Trivial File Transfer Protocol TKIP Temporal Key Integrity Protocol WDS Wireless Distribution System WEP Wired Equivalent Privacy WLAN Wireless Local Area Network WPA Wi-Fi Protected Access

Page 7

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

1 Introduction

The Wireless LAN Access Point is an affordable IEEE 802.11b/g wireless LAN Access Point solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN.

This document describes the steps required for the initial IP address assign and other WLAN router configuration. The description includes the implementation of the above steps.

1.1 Package contents

The package of the WLAN Access Point includes the following items,

9 The WLAN Access Point 9 The AC to DC power adapter 9 The Documentation CD

1.2 Product Specifications

Product Name Wireless 802.11g Multi-mode AP Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT) Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet) Modulation Method CCK(802.11b), OFDM(802.11g) Frequency Band 2.4GHz – 2.497GJz ISM Band, DSSS RF Output Power CCK< 17 dBm, OFDM< 13.5 dBm Receiver Sensitivity 802.11b -80 dBm@8%, 802.11g -68 dBm@5% Operation Range 30 to 280 meters (depend on surrounding) Antenna External Antenna LED Power, Active (WLAN/Ethernet) Security 64 bit/ 128 bit WEP, WPA, WPA2 LAN interface One 10/100BaseT with RJ45 connector Power Consumption 7.5V DC Power Adapter Operating Temperature 0 ~ 50oC ambient temperature Storage Temperature -20 ~ 70oC ambient temperature Humidity 5 to 90 % maximum (non-condensing) Dimension 118 x 75 x 25 mm

Page 8

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

1.3 Product Features

¾ Complies with IEEE 802.11b/g standard for 2.4GHz Wireless LAN. ¾ Supports AP/Client/WDS/AP+WDS modes on wireless interfaces. ¾ Supports 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption function to

protect the wireless data transmission.

¾ Supports IEEE 802.1x Authentication. ¾ Support Wi-Fi Protected Access Auth entication with Radius and Pre-Shared Key

mode.

¾ Supports Inter-Access Point Protocol (IAPP). ¾ Supports Wireless Distribution System (WDS). ¾ Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface. ¾ Supports DHCP server to provide clients auto IP addresses assignment. ¾ Supports DHCP client auto IP address assignment from ISP. ¾ Supports clone MAC address function. ¾ Supports WEB based management and configuration. ¾ Supports Log table and remote Log service.

¾ Support Setup Wizard mode.

Page 9

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

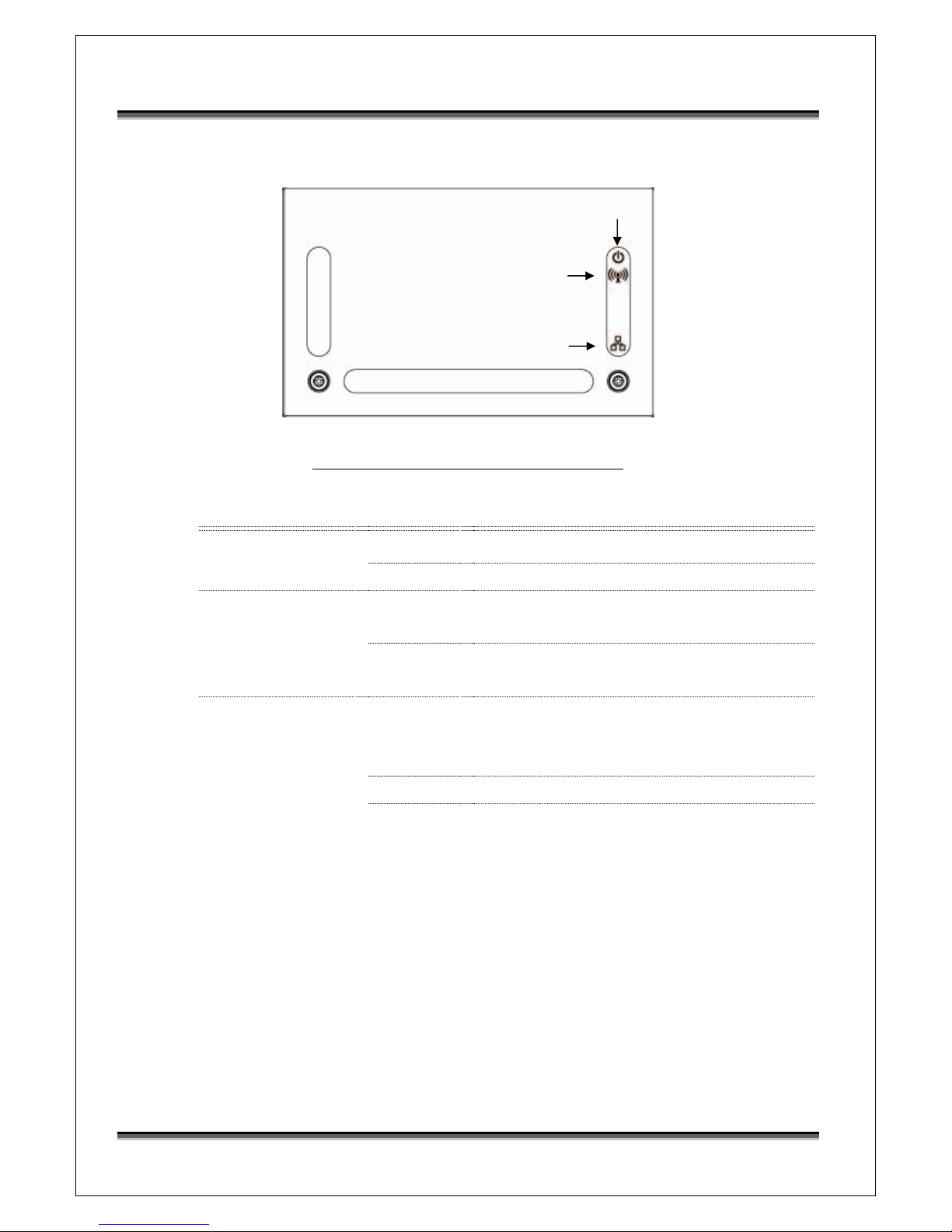

1.4 Upper Panel Description

Figure 1 –WLAN Access Point Upper Panel

LED Indicator State Description

1. Power LED

The WLAN Access Point is powered on.

Off

The WLAN Access Point is powered off.

2. WLAN LED

Flashing

Data is transmitting or receiving on the antenna.

Off

No data is transmitting or receiving on the antenna.

3. LAN LED ACT

Flashing

Data is transmitting or receiving on the LAN interface.

Port linked.

Off

No link.

Power LED

WLAN LED

LAN LED

Page 10

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

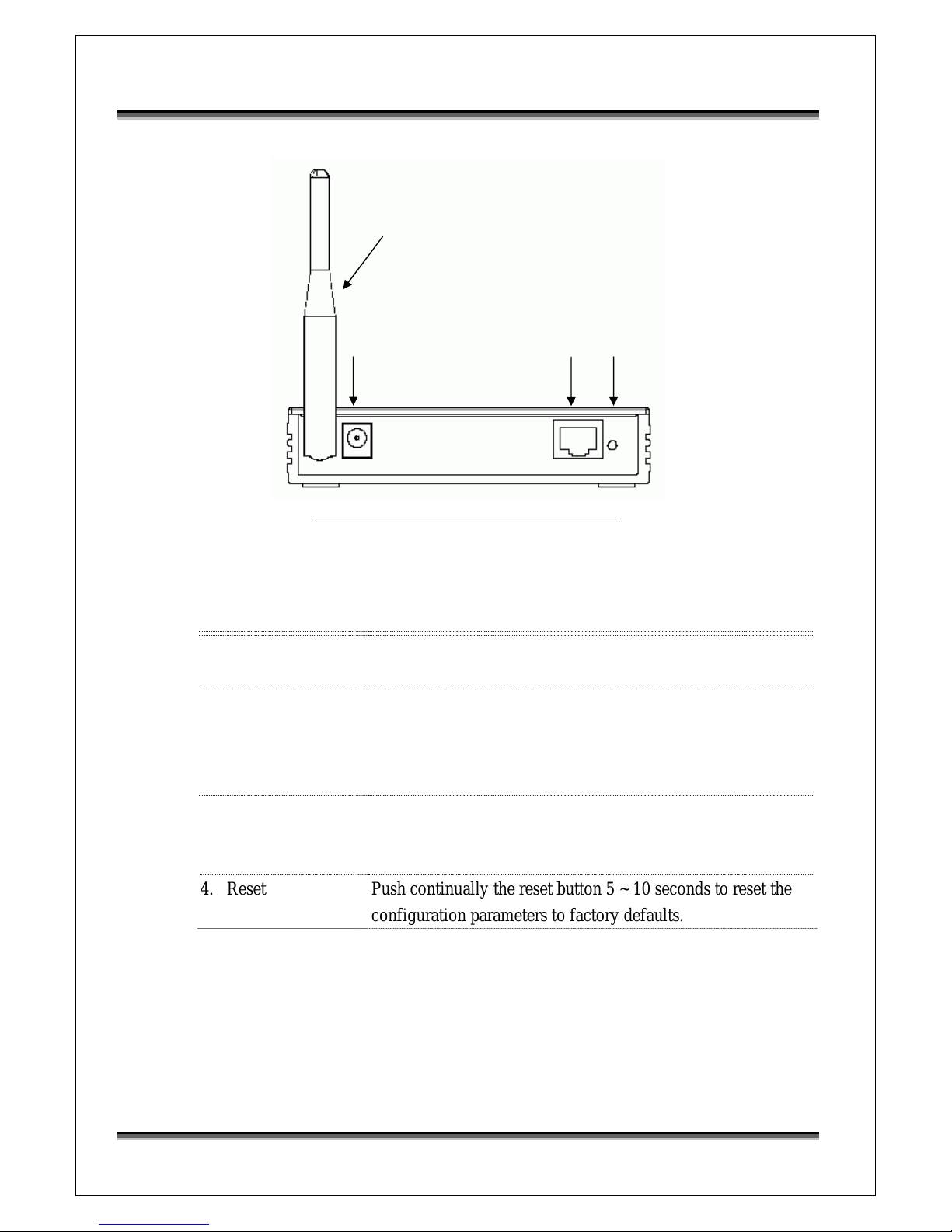

1.5 Rear Panel Description

Figure 2 – WLAN Access Point Rear Panel

Interfaces Description

1. Antenna

(Fixed / SMA)

The Wireless LAN Antenna.

2. Power The power jack allows an external DC +7.5 V power supply

connection. The external AC to DC adaptor provide adaptive power requirement to the WLAN Access Point.

3. LAN The RJ-45 sockets allow LAN connection through Category 5

cables. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively.

4. Reset Push continually the reset button 5 ~ 10 seconds to reset the

configuration parameters to factory defaults.

LAN

Power

Antenna

Reset

Page 11

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

2 Installation

2.1 Hardware Installation

Step 1: Place the Wireless LAN Access Point to the best optimum transmission location.

The best transmission location for your WLAN Access Point is usually at the geographic center of your wireless network, with line of sign to all of your mobile stations.

Step 2: Connect the WLAN Access Point to your wired network. Connect the Ethernet

LAN interface of WLAN Access Point by category 5 Ethernet cable to your switch/ hub/ xDSL modem or cable modem. A straight-through Ethernet cable with appropriate cable length is needed.

Step 3: Supply DC power to the WLAN Access Point. Use only the AC/DC power

adapter supplied with the WLAN Access Point; it may occur damage by using a different type of power adapter.

The hardware installation finished.

2.2 Software Installation

¾ There are no software drivers, patches or utilities installation needed, but only the

configuration setting. Please refer to chapter 3 for software configuration.

Notice: It will take about 55 seconds to complete the boot up sequence after

powered on the WLAN Access Point; Power LED will be active, and after that the WLAN Activity LED will be flashing to show the WLAN interface is enabled and working now.

Page 12

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

3 Software configuration

There are web based management and configuration functions allowing you to have the jobs done easily.

The WLAN Access Point is delivered with the following factory default parameters on the Ethernet LAN interfaces.

Default IP Address: 192.168.1.254 Default IP subnet mask: 255.255.255.0 WEB login User Name: <empty> WEB login Password: <empty>

3.1 Prepare your PC to configure the WLAN Access Point

For OS of Microsoft Windows 95/ 98/ Me:

1. Click the Start button and select Settings, then click Control Panel. The Control

Panel window will appear.

Note: Windows Me users may not see the Network control panel. If so, select View all Control Panel options on the left side of the window

2. Move mouse and double-click the right button on Network icon. The Network

window will appear.

3. Check the installed list of Network Components. If TCP/IP is not installed, click the

Add button to install it; otherwise go to step 6.

4. Select Protocol in the Network Component Type dialog box and click Add button.

5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK

button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation.

6. Select TCP/IP and click the properties button on the Network dialog box.

7. Select Specify an IP address and type in values as following example. 9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

good to connect the Wireless LAN Access Point.

9 IP Subnet Mask: 255.255.255.0

8. Click OK and reboot your PC after completes the IP parameters setting.

For OS of Microsoft Windows 2000, XP:

1. Click the Start button and select Settings, then click Control Panel. The Control

Page 13

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Panel window will appear.

2. Move mouse and double-click the right button on Network and Dial-up Connections

icon. Move mouse and double-click the Local Area Connection icon. The Local Area

Connection window will appear. Click Properties button in the Local Area Connection window.

3. Check the installed list of Network Components. If TCP/IP is not installed, click the

Add button to install it; otherwise go to step 6.

4. Select Protocol in the Network Component Type dialog box and click Add button.

5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK

button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation.

6. Select TCP/IP and click the properties button on the Network dialog box.

7. Select Specify an IP address and type in values as following example. 9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

good to connect the Wireless LAN Access Point.

9 IP Subnet Mask: 255.255.255.0

8. Click OK to completes the IP parameters setting.

For OS of Microsoft Windows NT:

1. Click the Start button and select Settings, then click Control Panel. The Control

Panel window will appear.

2. Move mouse and double-click the right button on Network icon. The Network

window will appear. Click Protocol tab from the Network window.

3. Check the installed list of Network Protocol window. If TCP/IP is not installed, click

the Add button to install it; otherwise go to step 6.

4. Select Protocol in the Network Component Type dialog box and click Add button.

5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK

button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation.

6. Select TCP/IP and click the properties button on the Network dialog box.

7. Select Specify an IP address and type in values as following example. 9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

good to connect the Wireless LAN Access Point.

9 IP Subnet Mask: 255.255.255.0

8. Click OK to complete the IP parameters setting.

Page 14

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

3.2 Connect to the WLAN Access Point

Open a WEB browser, i.e. Microsoft Internet Explore, then enter 192.168.1.254 on the URL to connect the WLAN Access Point.

3.3 Management and configuration on the WLAN Access Point

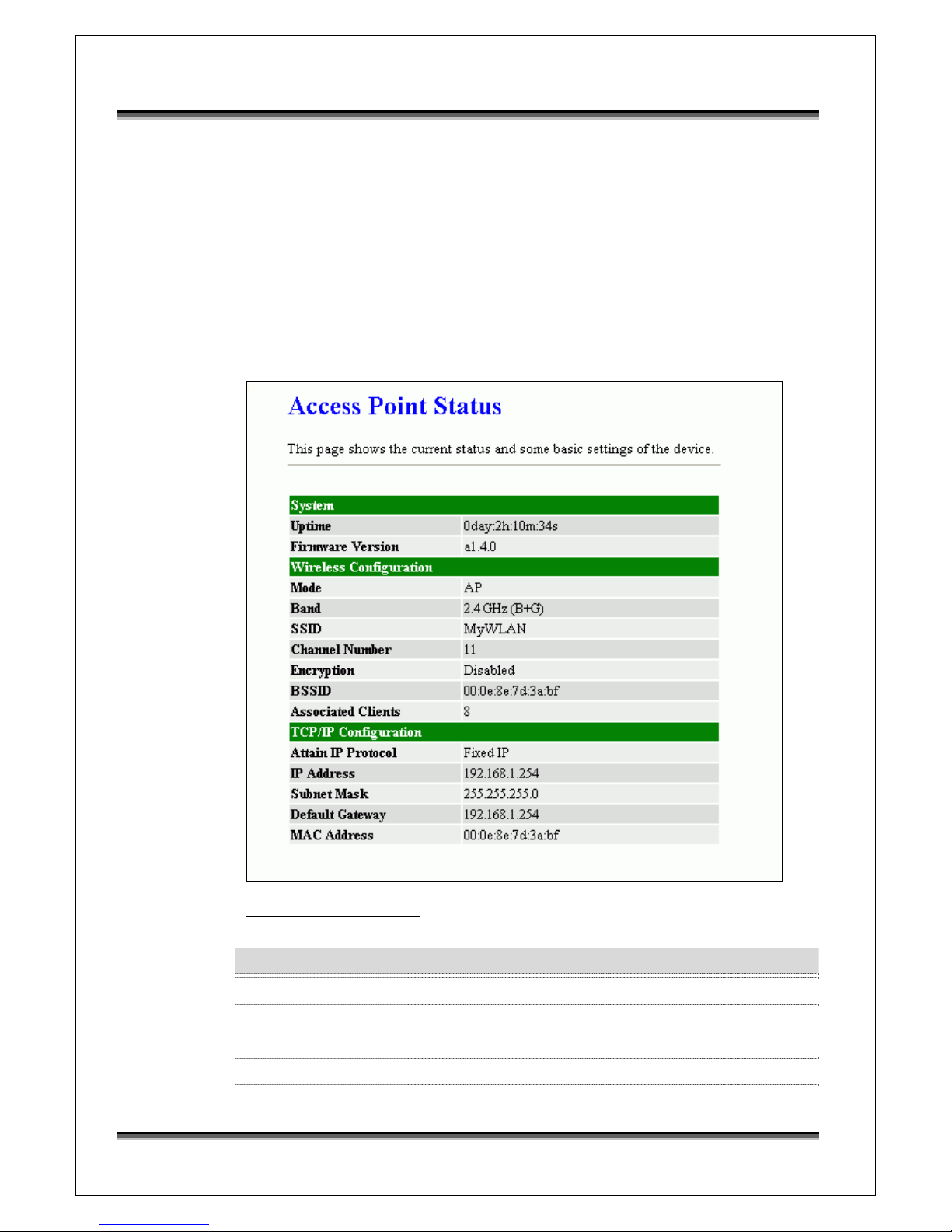

3.3.1 Status

This page shows the current status and some basic settings of the device, includes system, wireless, and Ethernet LAN configuration information.

Screen snapshot – Status

Item D

escription

System Uptime It shows the duration since WLAN Access Point is

powered on.

Firmware version It shows the firmware version of WLAN Access Point.

Page 15

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Wireless configuration Mode It shows wireless operation mode Band It shows the current wireless operating frequency. SSID It shows the SSID of this WLAN Access Point.

The SSID is the unique name of WLAN Access Point and shared among its service area, so all devices attempts

to join the same wireless network can identify it. Channel Number It shows the wireless channel connected currently. Encryption It shows the status of encryption function. Associated Clients It shows the number of connected clients (or stations,

PCs). BSSID It shows the BSSID address of the WLAN Access Point.

BSSID is a six-byte address. Associated Clients It shows total numbers of WLAN clients connected, TCP/IP Configuration Attain IP Protocol It shows how the WLAN Access Point gets the IP

address. The IP address can be set manually to a fixed

one or set dynamically by DHCP server. IP Address It shows the IP address of WAN interface of WLAN

Access Point. Subnet Mask It shows the IP subnet mask of LAN interface of WLAN

Access Point. Default Gateway It shows the default gateway setting for outgoing data

packets. MAC Address It shows the MAC address of WLAN Access Point.

3.3.2 Setup Wizard

This page guides you to configure wireless Access Point for first time

Page 16

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

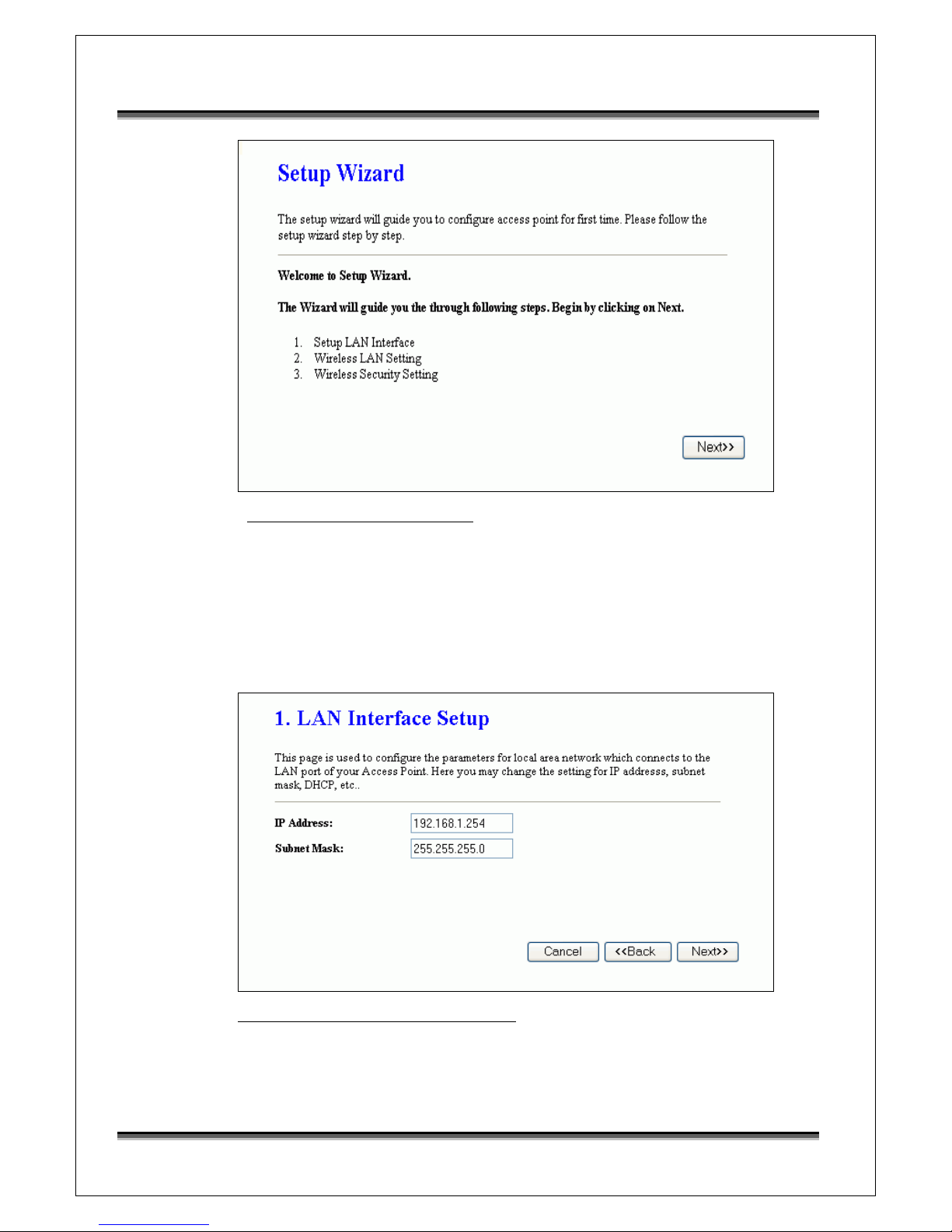

Screen snapshot – Setup Wizard

I LAN Interface Setup

This page is used to configure local area network IP address and subnet mask

Screen snapshot – LAN Interface Setup

Page 17

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

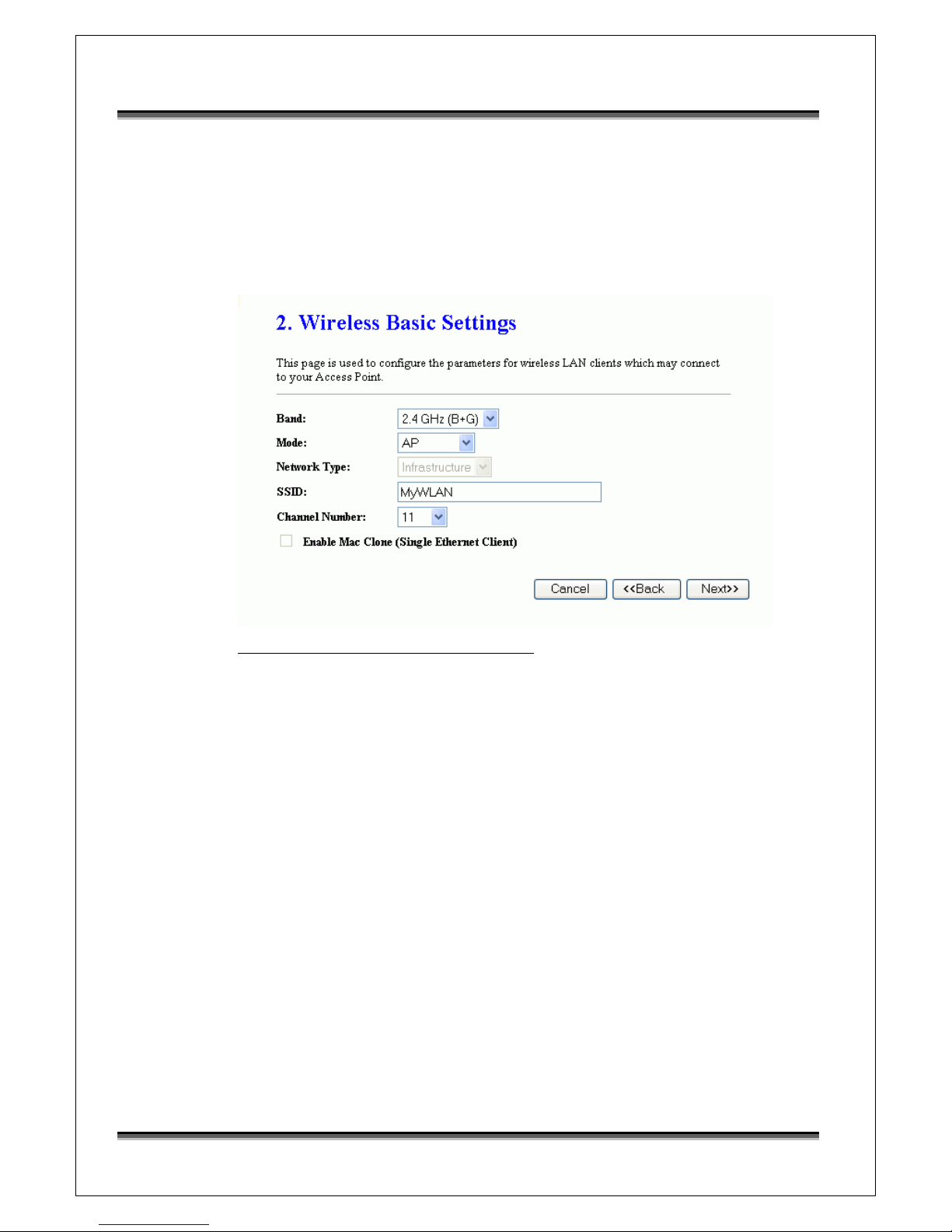

II Wireless Basic Settings

This page is used to configure basic wireless parameters like Band, Mode, Network Type SSID, Channel Number, Enable Mac Clone(Single Ethernet Client)

Screen snapshot – Wireless Basic Settings

Page 18

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

III Wireless Security Setup

This page is used to configure wireless security

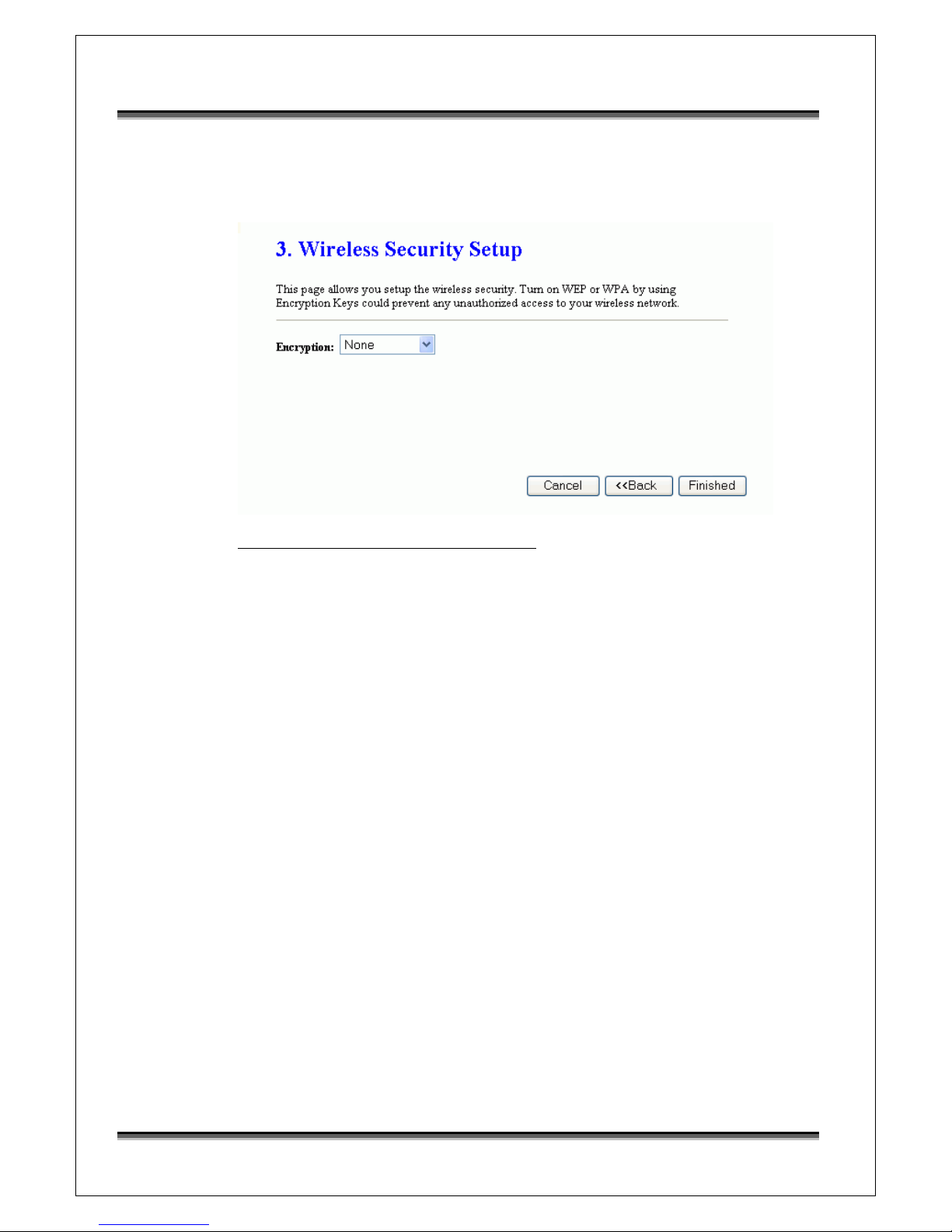

Screen snapshot – Wireless Security Setup

3.3.3 Wireless - Basic Settings

This page is used to configure the parameters for wireless LAN clients that may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters.

Page 19

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

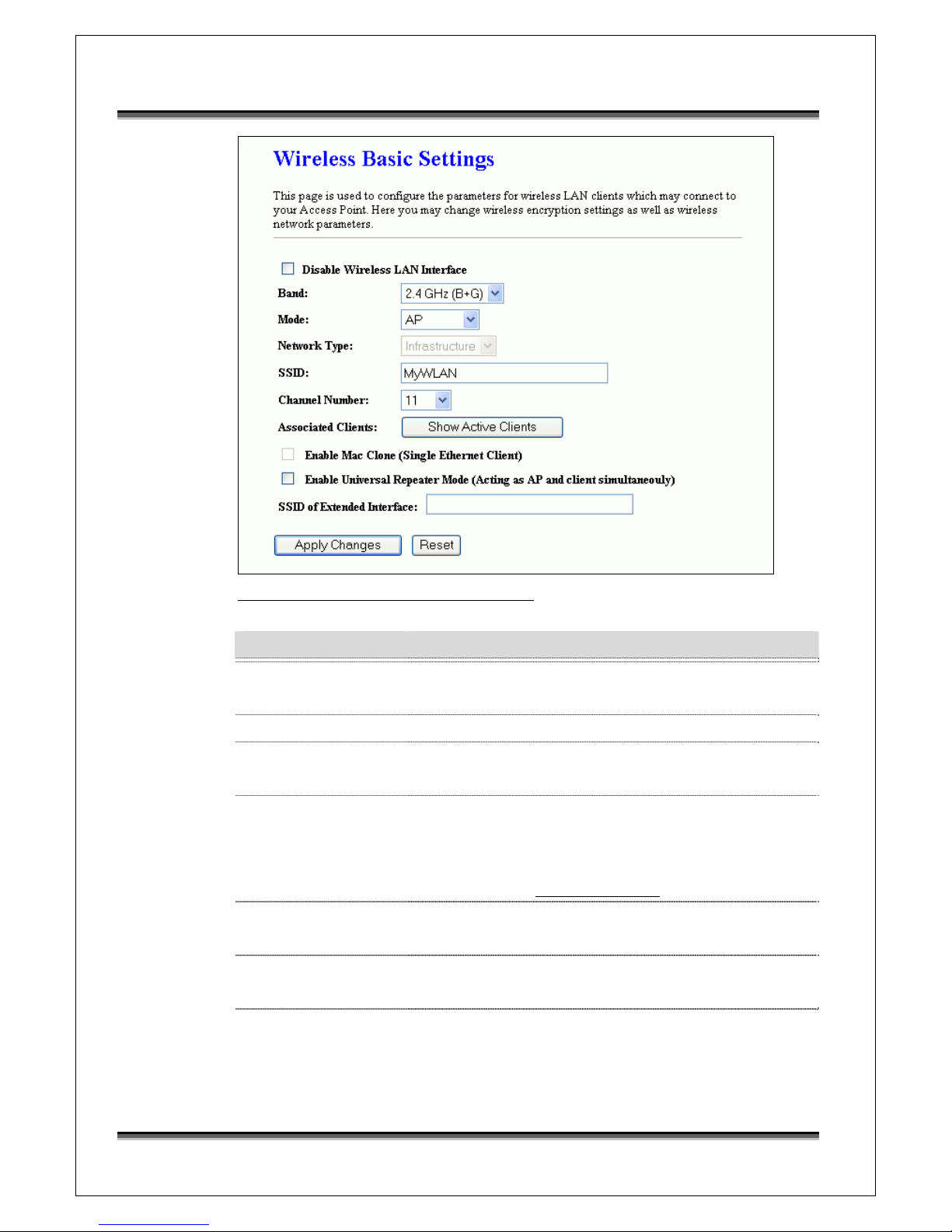

Screen snapshot – Wireless Basic Settings

Item D

escription

Disable Wireless LAN Interface

Click on to disable the wireless LAN data transmission.

Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(B+G) Mode Click to select the WLAN AP / Client / WDS / AP+WDS

wireless mode. Site Survey The Site Survey button provides tool to scan the wireless

network. If any Access Point or IBSS is found, you could

choose to connect it manually when client mode is

enabled. Refer to 3.3.9 Site Survey. SSID It is the wireless network name. The SSID can be 32

bytes long. Channel Number Select the wireless communication channel from

pull-down menu. Associated Clients Click the Show Active Clients button to open Active

Wireless Client Table that shows the MAC address,

transmit-packet, receive-packet and transmission-rate for

Page 20

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

each associated wireless client. Enable Mac Clone (Single Ethernet Client)

Take Laptop NIC MAC address as wireless client MAC

address. [Client Mode only] Enable Universal Repeater Mode

Click to enable Universal Repeater Mode

SSID of Extended Interface

Assign SSID when enables Universal Repeater Mode.

Apply Changes Click the Apply Changes button to complete the new

configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting.

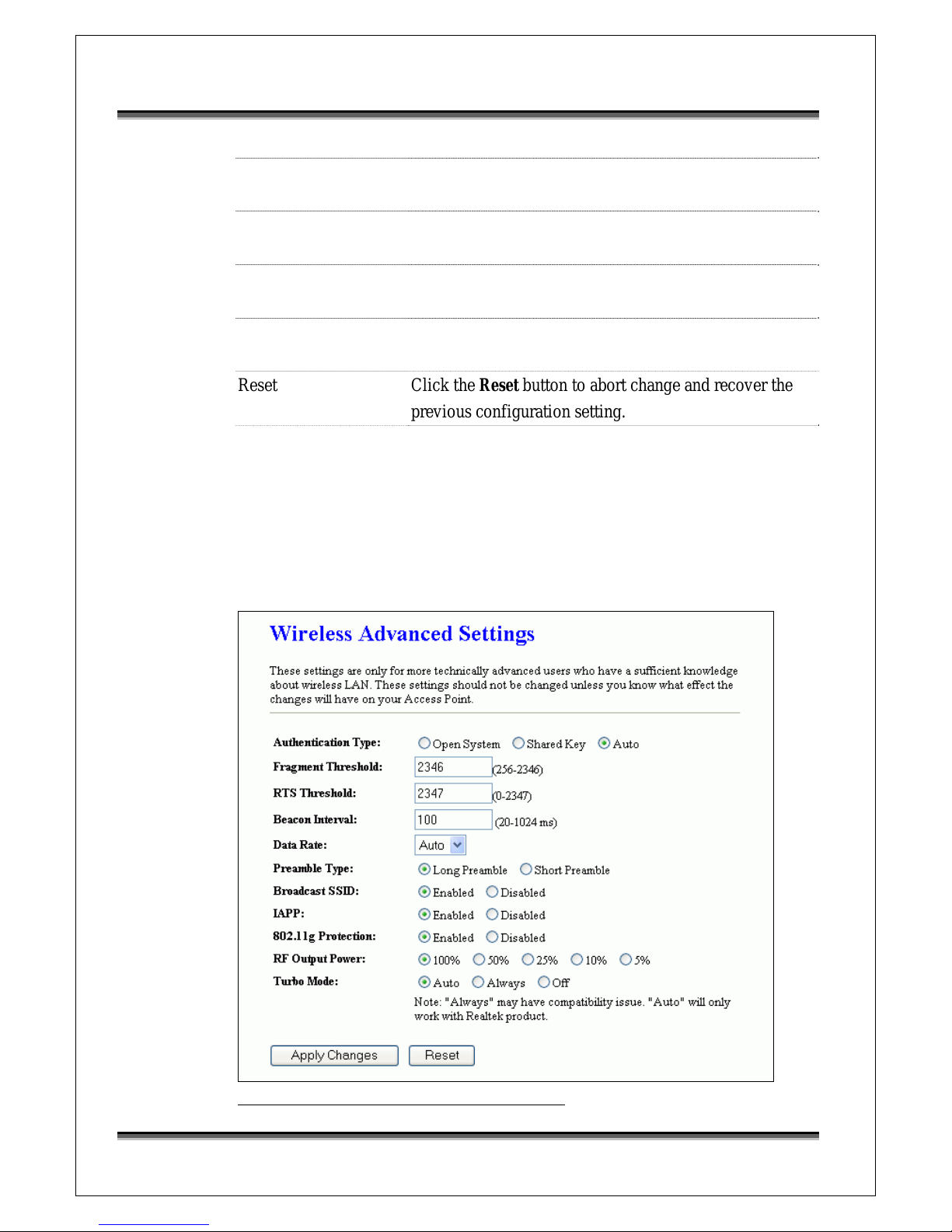

3.3.4 Wireless - Advanced Settings

These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your WLAN Access Point.

Screen snapshot – Wireless Advanced Settings

Page 21

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Item D

escription

Authentication Type Click to select the authentication type in Open System,

Shared Key or Auto selection.

Fragment Threshold Set the data packet fragmentation threshold, value can be

written between 256 and 2346 bytes.

Refer to 4.10 What is Fragment Threshold? RTS Threshold Set the RTS Threshold, value can be written between 0

and 2347 bytes.

Refer to 4.11 What is RTS(Request To Send) Threshold? Beacon Interval Set the Beacon Interval, value can be written between 20

and 1024 ms.

Refer to 4.12 What is Beacon Interval? Data Rate Select the transmission data rate from pull-down menu.

Data rate can be auto-select, 11M, 5.5M, 2M or 1Mbps. Preamble Type Click to select the Long Preamble or Short Preamble

support on the wireless data packet transmission.

Refer to 4.13 What is Preamble Type? Broadcast SSID Click to enable or disable the SSID broadcast function.

Refer to 4.14 What is SSID Broadcast? IAPP Click to enable or disable the IAPP function.

Refer to 4.20 What is Inter-Access Point Protocol(IAPP)?

802.11g Protection Protect 802.11b user. RF Output Power To adjust transmission power level. Turbo Mode Click to enable/disable turbo mode.(Only apply to

WLAN IC of Realtek). Apply Changes Click the Apply Changes button to complete the new

configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting.

3.3.5 Wireless - Security Setup

This page allows you setup the wireless security. Turn on WEP, WPA, WPA2 by using encryption keys could prevent any unauthorized access to your wireless network.

Page 22

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

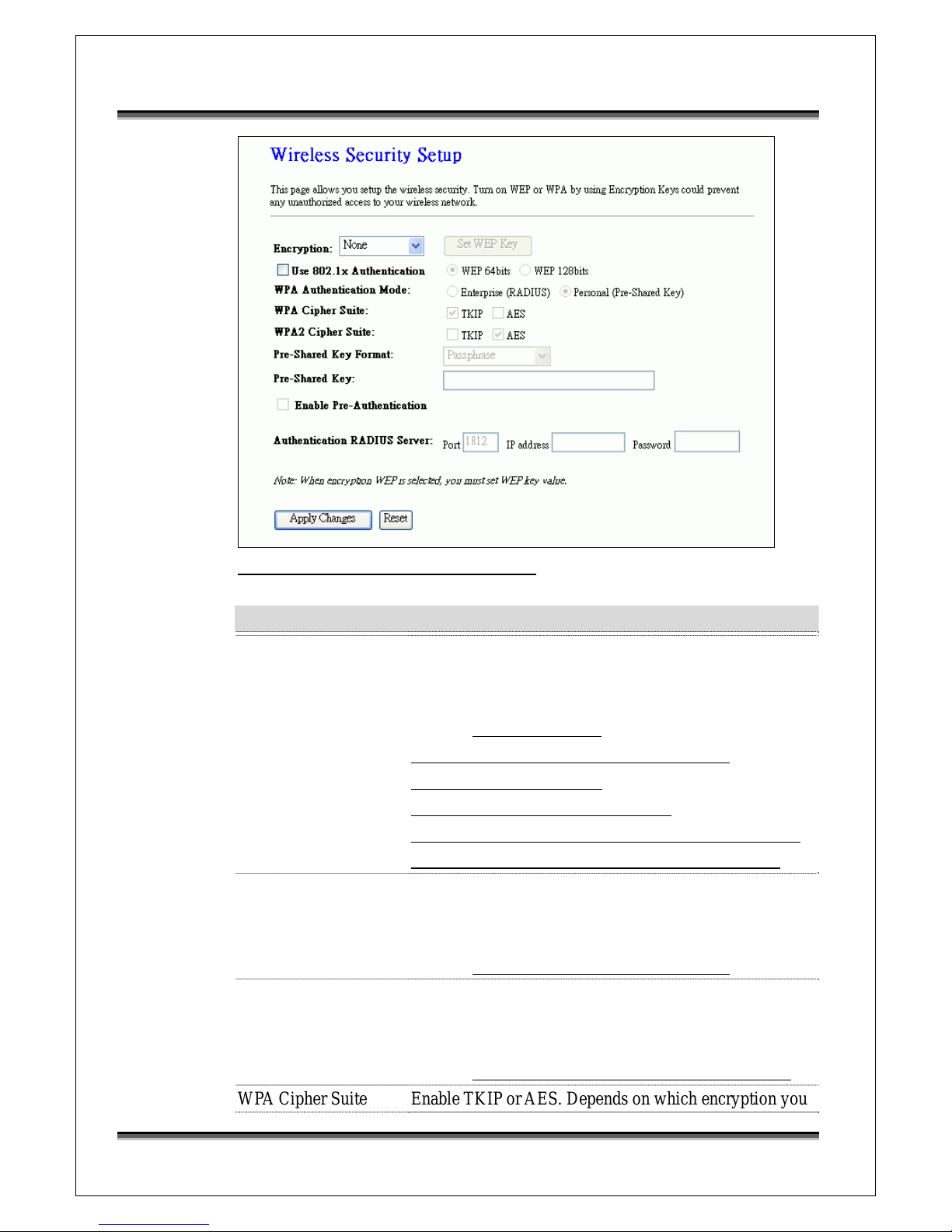

Screen snapshot – Wireless Security Setup

Item D

escription

Encryption Select the encryption supported over wireless access. The

encryption method can be None, WEP, WPA(TKIP),

WPA2 or WPA2 Mixed

Refer to

4.9 What is WEP?

4.15 What is Wi-Fi Protected Access (WPA)?

4.16 What is WPA2(AES)?

4.17 What is 802.1X Authentication?

4.18 What is Temporal Key Integrity Protocol (TKIP)?

4.19 What is Advanced Encryption Standard (AES)? Use 802.1x Authentication

While Encryption is selected to be WEP. Click the check box to enable IEEE 802.1x authentication function.

Refer to 4.16 What is 802.1x Authentication? WP A Authentication Mode

While Encryption is selected to be WPA.

Click to select the WPA Authentication Mode with

Enterprise (RADIUS) or Personal (Pre-Shared Key).

Refer to 4.15 What is Wi-Fi Protected Access (WPA)? WPA Cipher Suite Enable TKIP or AES. Depends on which encryption you

Page 23

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

set. WPA2 Cipher Suite Enable TKIP or AES. Depends on which encryption you

set. Pre-Shared Key Format While Encryption is selected to be WPA.

Select the Pre-shared key format from the pull-down

menu. The format can be Passphrase or Hex (64

characters). [WPA, Personal(Pre-Shared Key) only] Pre-Shared Key Fill in the key value. [WPA, Personal(Pre-Shared Key)

only] Enable Pre-Authentication

Click to enable Pre-Authentication. [WPA2/WPA2

Mixed only, Enterprise only] Authentication RADIUS Server

Set the IP address, port and login password information

of authentication RADIUS sever. Apply Changes Click the Apply Changes button to complete the new

configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting.

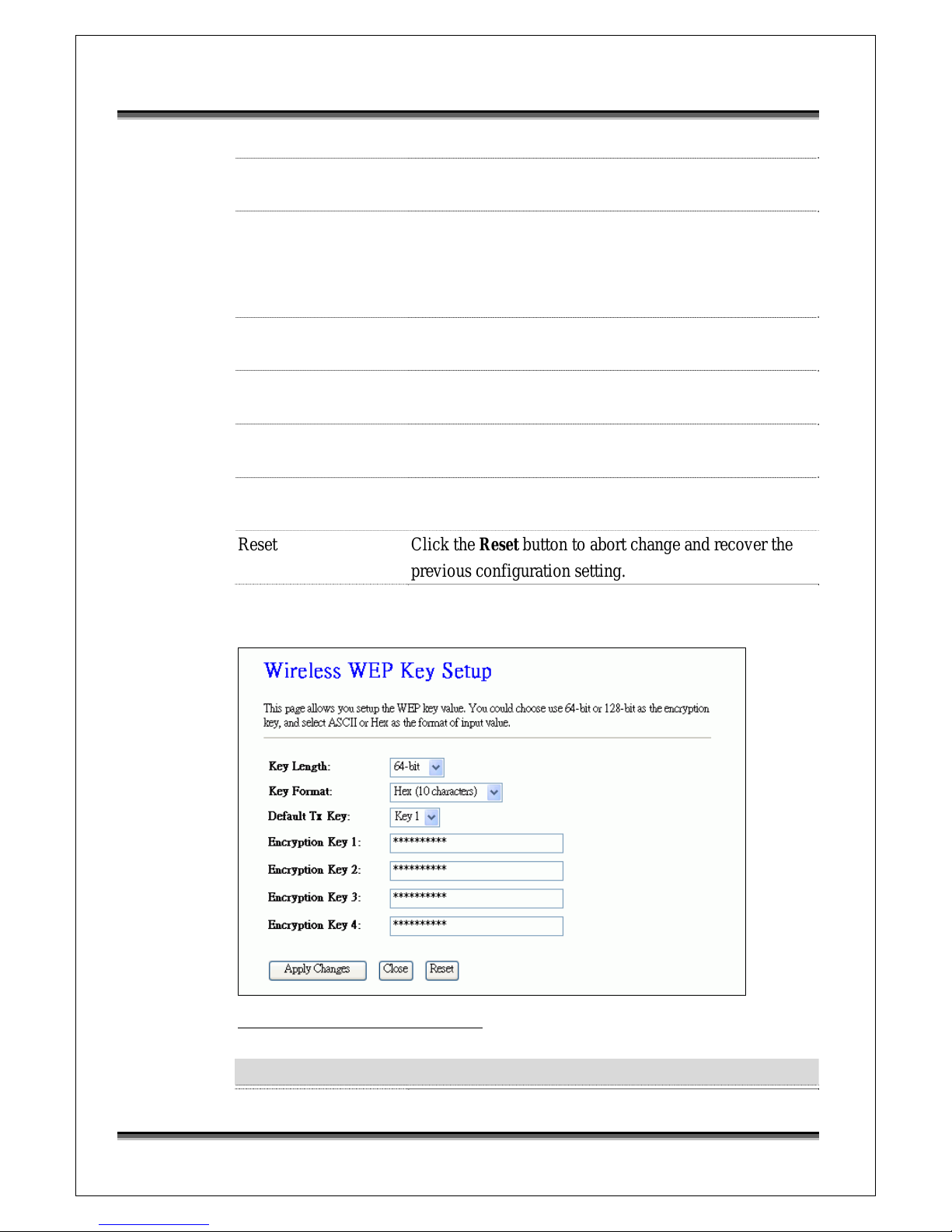

I WEP Key Setup

Screen snapshot – WEP Key Setup

Item D

escription

Page 24

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Key Length Select the WEP shared secret key length from pull-down

menu. The length can be chose between 64-bit and

128-bit (known as “WEP2”) keys.

The WEP key is composed of initialization vector (24

bits) and secret key (40-bit or 104-bit). Key Format Select the WEP shared secret key format from pull-down

menu. The format can be chose between plant text

(ASCII) and hexadecimal (HEX) code. Default Tx Key Set the default secret key for WEP security function.

Value can be chose between 1 and 4. Encryption Key 1 Secret key 1 of WEP security encryption function. Encryption Key 2 Secret key 2 of WEP security encryption function. Encryption Key 3 Secret key 3 of WEP security encryption function. Encryption Key 4 Secret key 4 of WEP security encryption function. Apply Changes Click the Apply Changes button to complete the new

configuration setting. Close Click to close this WEP Key setup window. Reset Click the Reset button to abort change and recover the

previous configuration setting.

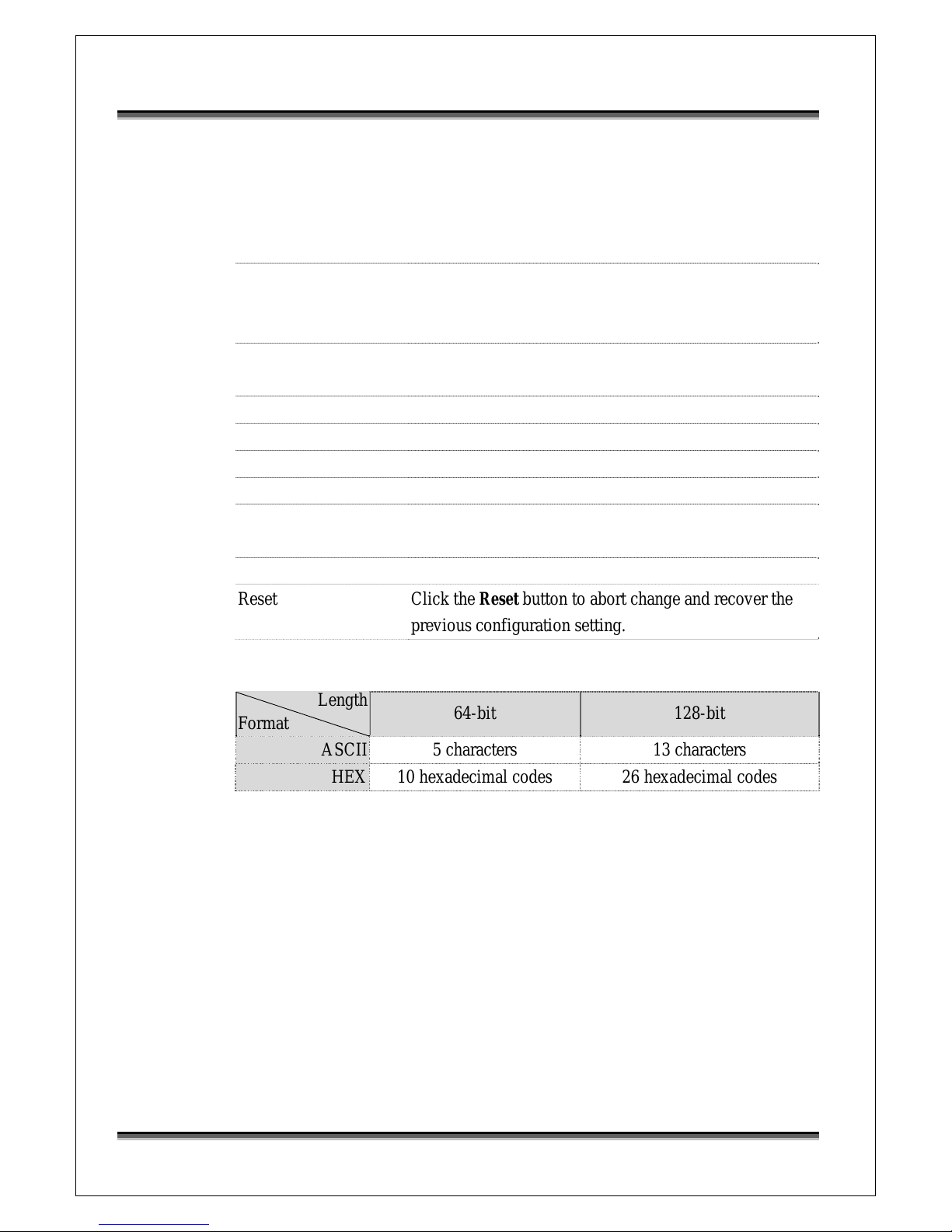

WEP encryption key (secret key) length:

Length

Format

64-bit 128-bit

ASCII 5 characters 13 characters

HEX 10 hexadecimal codes 26 hexadecimal codes

3.3.6 Wireless - Access Control

If you enable wireless access control, only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When this option is enabled, no wireless clients will be able to connect if the list contains no entries.

Page 25

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

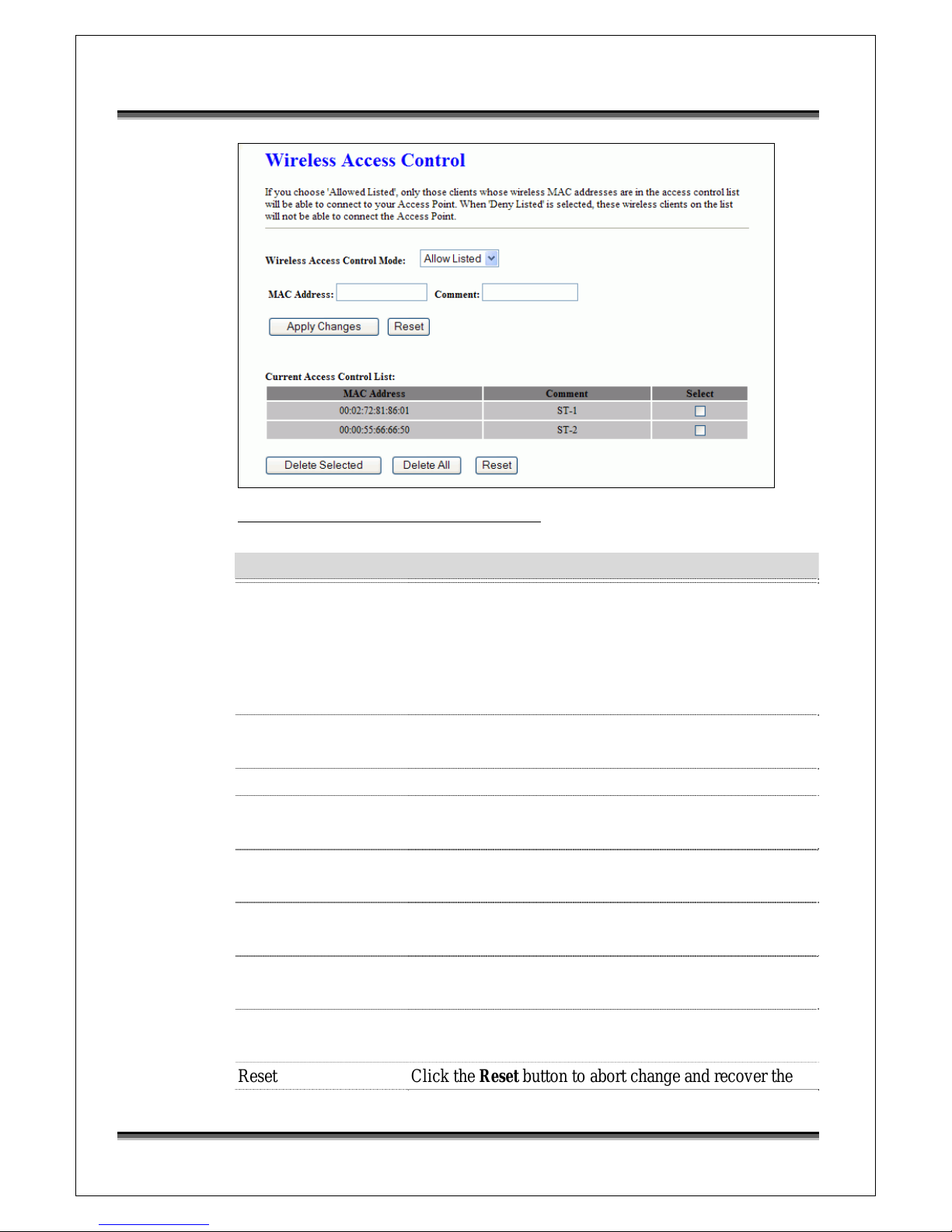

Screen snapshot – Wireless Access Control

Item D

escription

Wireless Access Control Mode

Click the Disabled, Allow Listed or Deny Listed of drop

down menu choose wireless access control mode.

This is a security control function; only those clients

registered in the access control list can link to this

WLAN Access Point. MAC Address Fill in the MAC address of client to register this WLAN

Access Point access capability. Comment Fill in the comment tag for the registered client. Apply Changes Click the Apply Changes button to register the client to

new configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting. Current Access Control List

It shows the registered clients that are allowed to link to

this WLAN Access Point. Delete Selected Click to delete the selected clients that will be access

right removed from this WLAN Access Point. Delete All Click to delete all the registered clients from the access

allowed list. Reset Click the Reset button to abort change and recover the

Page 26

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

previous configuration setting.

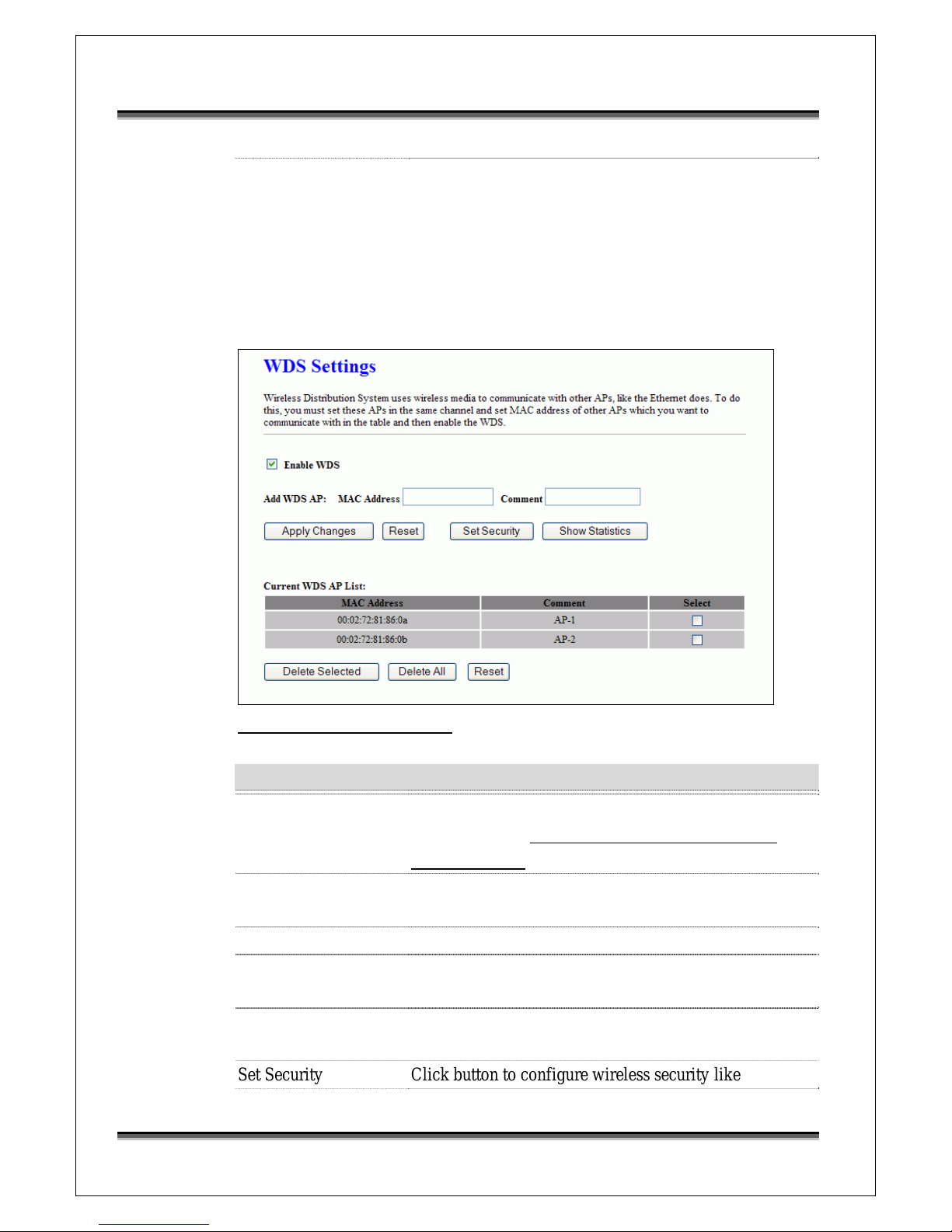

3.3.7 WDS Settings

Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, you must set these APs in the same channel and set MAC address of other AP that you want to communicate with in the table and then enable the WDS.

Screen snapshot – WDS Setup

Item D

escription

Enable WDS Click the check box to enable wireless distribution

system. Refer to 4.21 What is Wireless Distribution

System (WDS)? MAC Address Fill in the MAC address of AP to register the wireless

distribution system access capability. Comment Fill in the comment tag for the registered AP. Apply Changes Click the Apply Changes button to register the AP to new

configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting. Set Security Click button to configure wireless security like

Page 27

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

WEP(64bits), WEP(128bits), WPA(TKIP), WPA2(AES)

or None Show Statistics It shows the TX, RX packets, rate statistics Delete Selected Click to delete the selected clients that will be removed

from the wireless distribution system. Delete All Click to delete all the registered APs from the wireless

distribution system allowed list. Reset Click the Reset button to abort change and recover the

previous configuration setting.

I WDS Security Setup

Requirement: Set [Wireless]->[Basic Settings]->[Mode]->AP+WDS

This page is used to configure the wireless security between APs. Refer to

3.3.6 Wireless Security Setup.

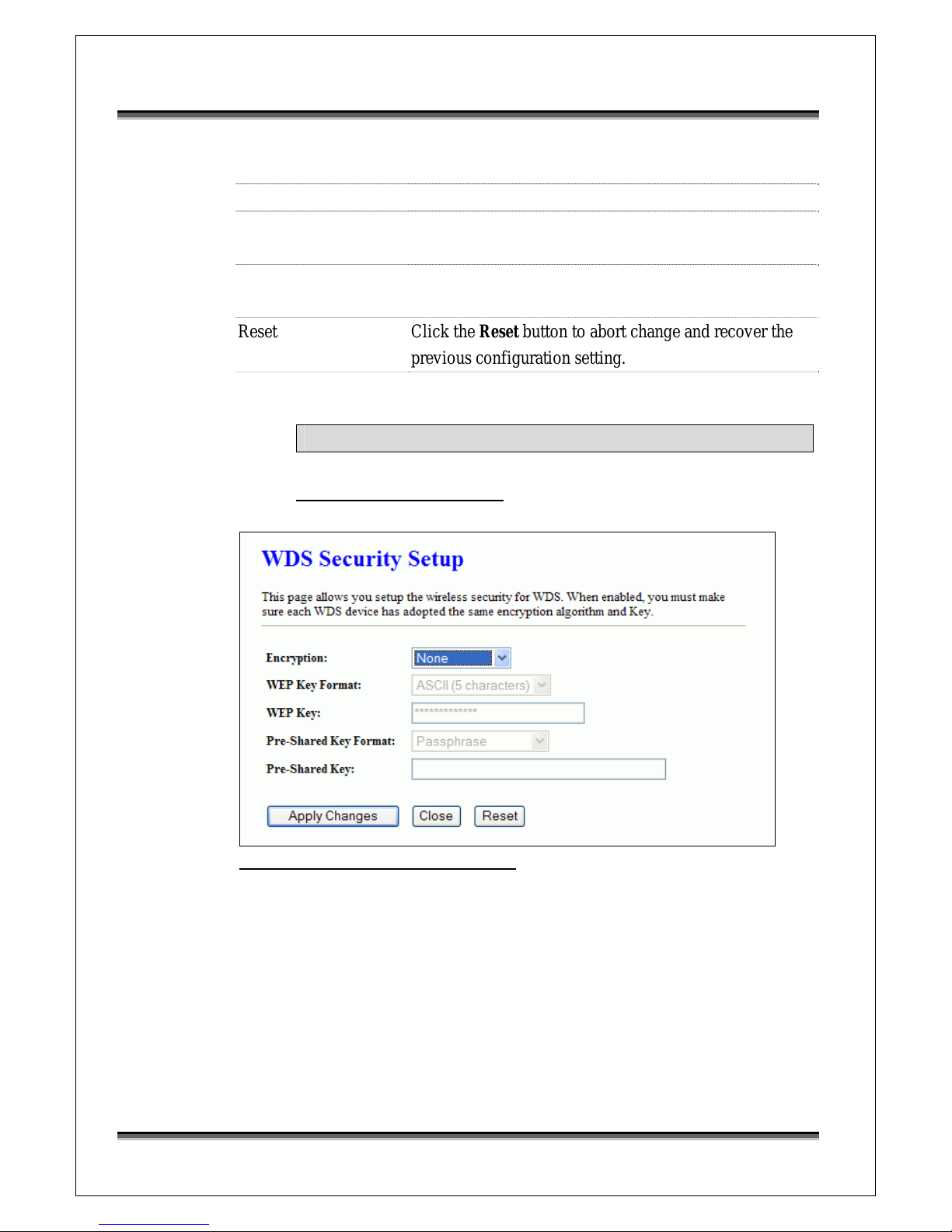

Screen snapshot – WDS Security Setup

II WDS AP T able

This page is used to show WDS statistics

Page 28

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

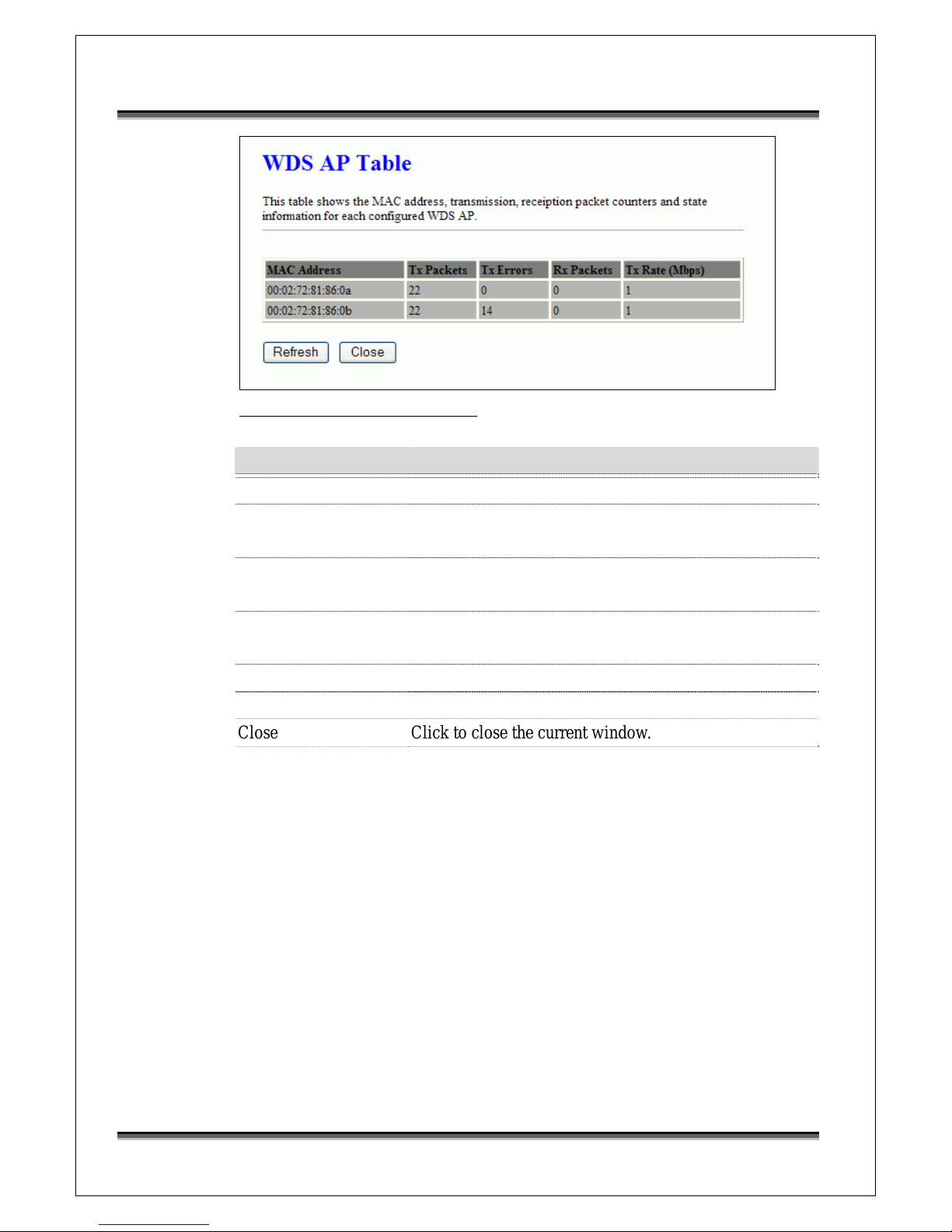

Screen snapshot – WDS AP Table

Item D

escription

MAC Address It shows the MAC Address within WDS. Tx Packets It shows the statistic count of sent packets on the wireless

LAN interface. Tx Errors It shows the statistic count of error sent packets on the

Wireless LAN interface. Rx Packets It shows the statistic count of received packets on the

wireless LAN interface. Tx Rare (Mbps) It shows the wireless link rate within WDS. Refresh Click to refresh the statistic counters on the screen. Close Click to close the current window.

3.3.8 Site Survey

This page is used to view or configure other APs near yours.

Page 29

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

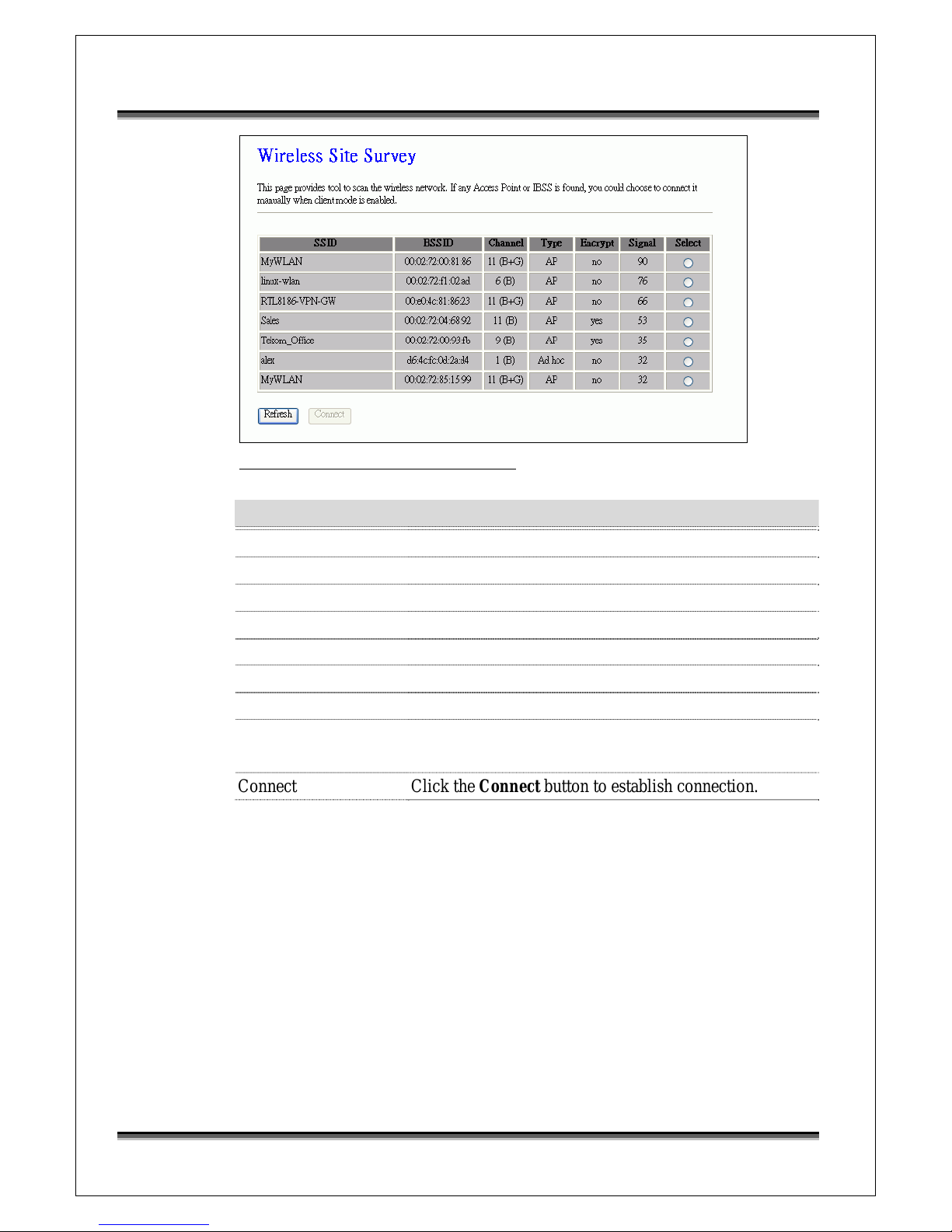

Screen snapshot – Wireless Site Survey

Item D

escription

SSID It shows the SSID of AP. BSSID It shows BSSID of AP. Channel It show the current channel of AP occupied. Type It show which type AP acts. Encrypt It shows the encryption status. Signal It shows the power level of current AP. Select Click to select AP or client you’d like to connect. Refresh Click the Refresh button to re-scan site survey on the

screen. Connect Click the Connect button to establish connection.

3.3.9 TCP/IP Settings

This page is used to configure the parameters for local area network that connects to the LAN ports of your WLAN Access Point. Here you may change the setting for IP address, subnet mask, DHCP, etc.

Page 30

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

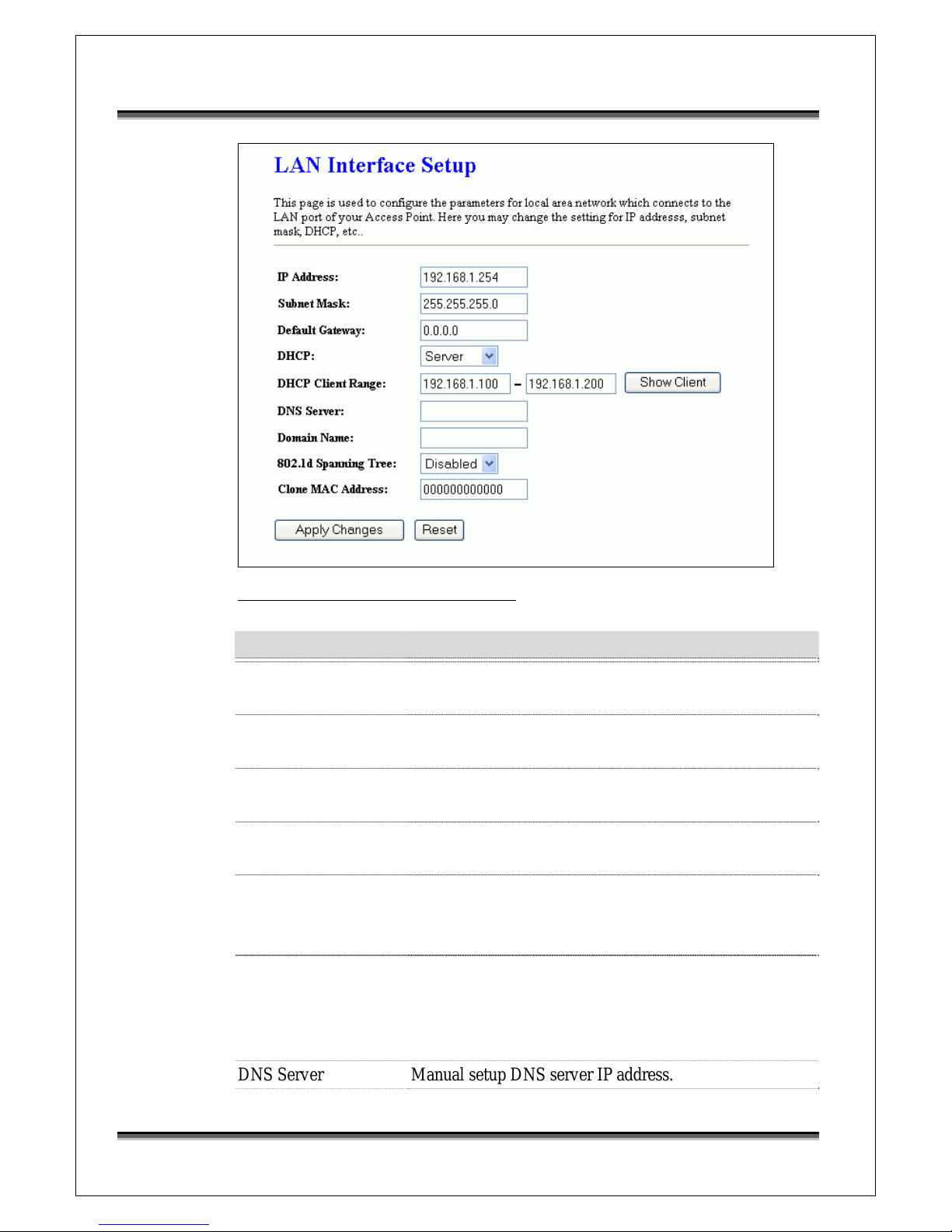

Screen snapshot – LAN Interface Setup

Item D

escription

IP Address Fill in the IP address of LAN interfaces of this WLAN

Access Point. Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN

Access Point. Default Gateway Fill in the default gateway for LAN interfaces out going

data packets. DHCP Click to select Disabled, Client or Server in different

operation mode of wireless Access Point. DHCP Client Range Fill in the start IP address and end IP address to allocate a

range of IP addresses; client with DHCP function set will

be assigned an IP address from the range. Show Client Click to open the Active DHCP Client Table window that

shows the active clients with their assigned IP address,

MAC address and time expired information. [Server

mode only] DNS Server Manual setup DNS server IP address.

Page 31

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Domain Name Assign Domain Name and dispatch to DHCP clients. It is

optional field.

802.1d Spanning Tree Select to enable or disable the IEEE 802.1d Spanning

Tree function from pull-down menu. Clone MAC Address Fill in the MAC address that is the MAC address to be

cloned. Refer to 4.24 What is Clone MAC Address? Apply Changes Click the Apply Changes button to complete the new

configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting.

3.3.10 Log

This page is used to configure the remote log server and shown the current log.

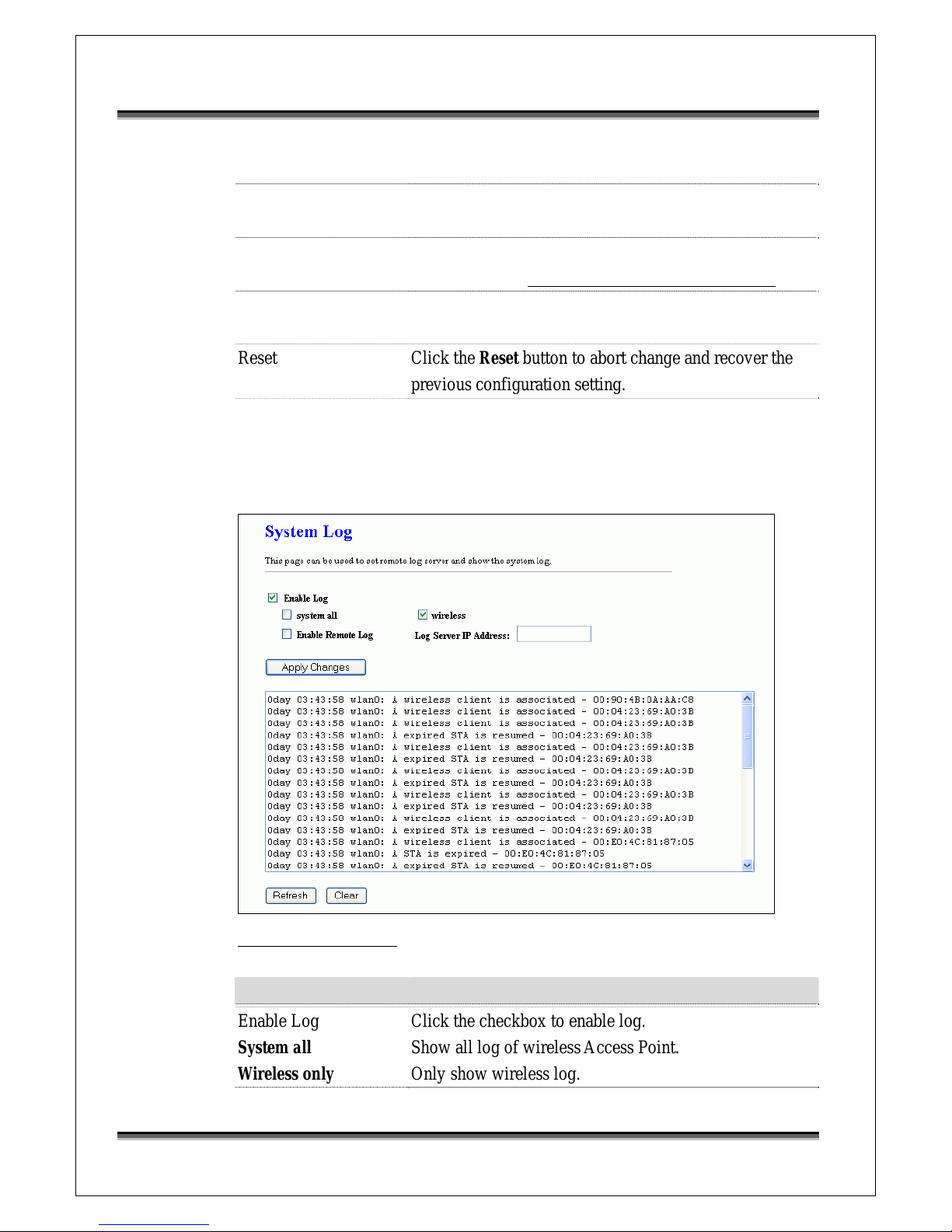

Screen snapshot – Log

Item D

escription

Enable Log

System all Wireless only

Click the checkbox to enable log.

Show all log of wireless Access Point.

Only show wireless log.

Page 32

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Enable Remote Log Log Server IP Address

Click the checkbox to enable remote log service.

Input the remote log IP address Apply Changes Click the Apply Changes button to save above settings. Refresh Click the refresh the log shown on the screen. Clear Clear log display screen

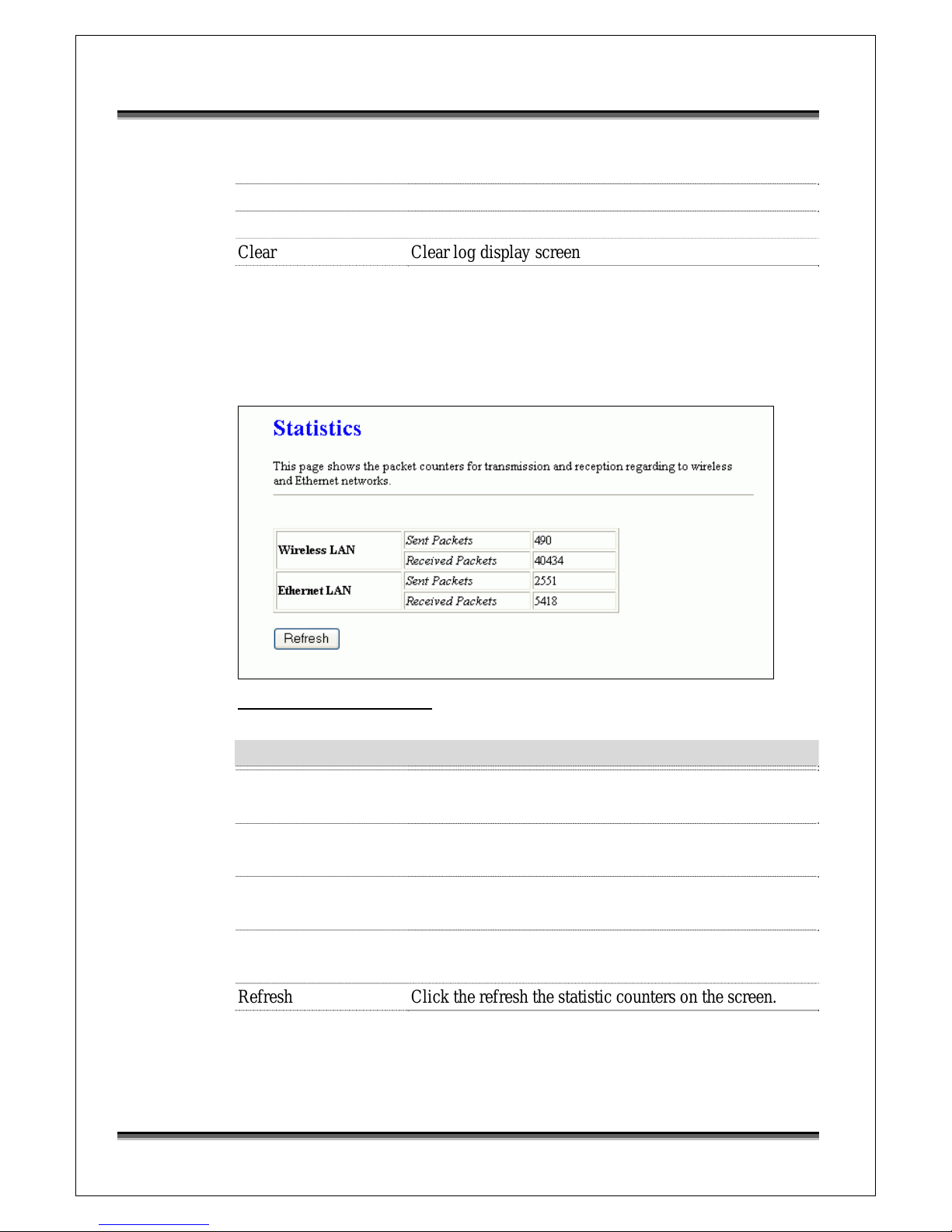

3.3.11 Statistics

This page shows the packet counters for transmission and reception regarding to wireless and Ethernet LAN networks.

Screen snapshot – Statistics

Item D

escription

Wireless LAN Sent Packets

It shows the statistic count of sent packets on the wireless

LAN interface. Wireless LAN Received Packets

It shows the statistic count of received packets on the

wireless LAN interface. Ethernet LAN Sent Packets

It shows the statistic count of sent packets on the

Ethernet LAN interface. Ethernet LAN Received Packets

It shows the statistic count of received packets on the

Ethernet LAN interface. Refresh Click the refresh the statistic counters on the screen.

Page 33

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

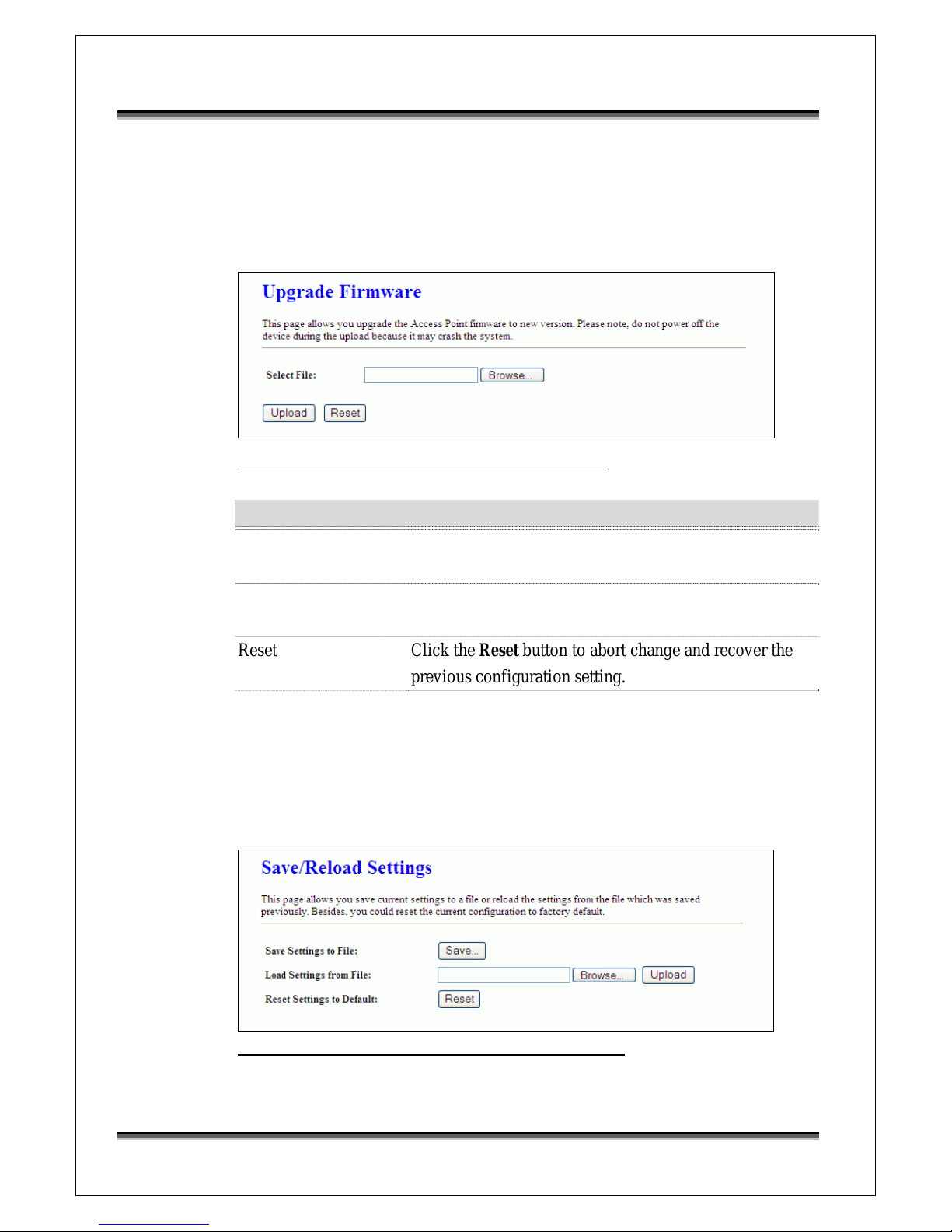

3.3.12 Upgrade Firmware

This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system.

Screen snapshot – Management - Upgrade Firmware

Item D

escription

Select File Click the Browse button to select the new version of web

firmware image file. Upload Click the Upload button to update the selected web

firmware image to the WLAN Access Point. Reset Click the Reset button to abort change and recover the

previous configuration setting.

3.3.13 Save/ Reload Settings

This page allows you save current settings to a file or reload the settings from the file that was saved previously. Besides, you could reset the current configuration to factory default.

Screen snapshot – Management - Save/Reload Settings

Page 34

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

Item D

escription

Save Settings to File Click the Save button to download the configuration

parameters to your personal computer. Load Settings from File Click the Browse button to select the configuration files

then click the Upload button to update the selected

configuration to the WLAN Access Point. Reset Settings to Default

Click the Reset button to reset the configuration

parameter to factory defaults.

3.3.14 Password Setup

This page is used to set the account to access the web server of Access Point. Empty user name and password will disable the protection.

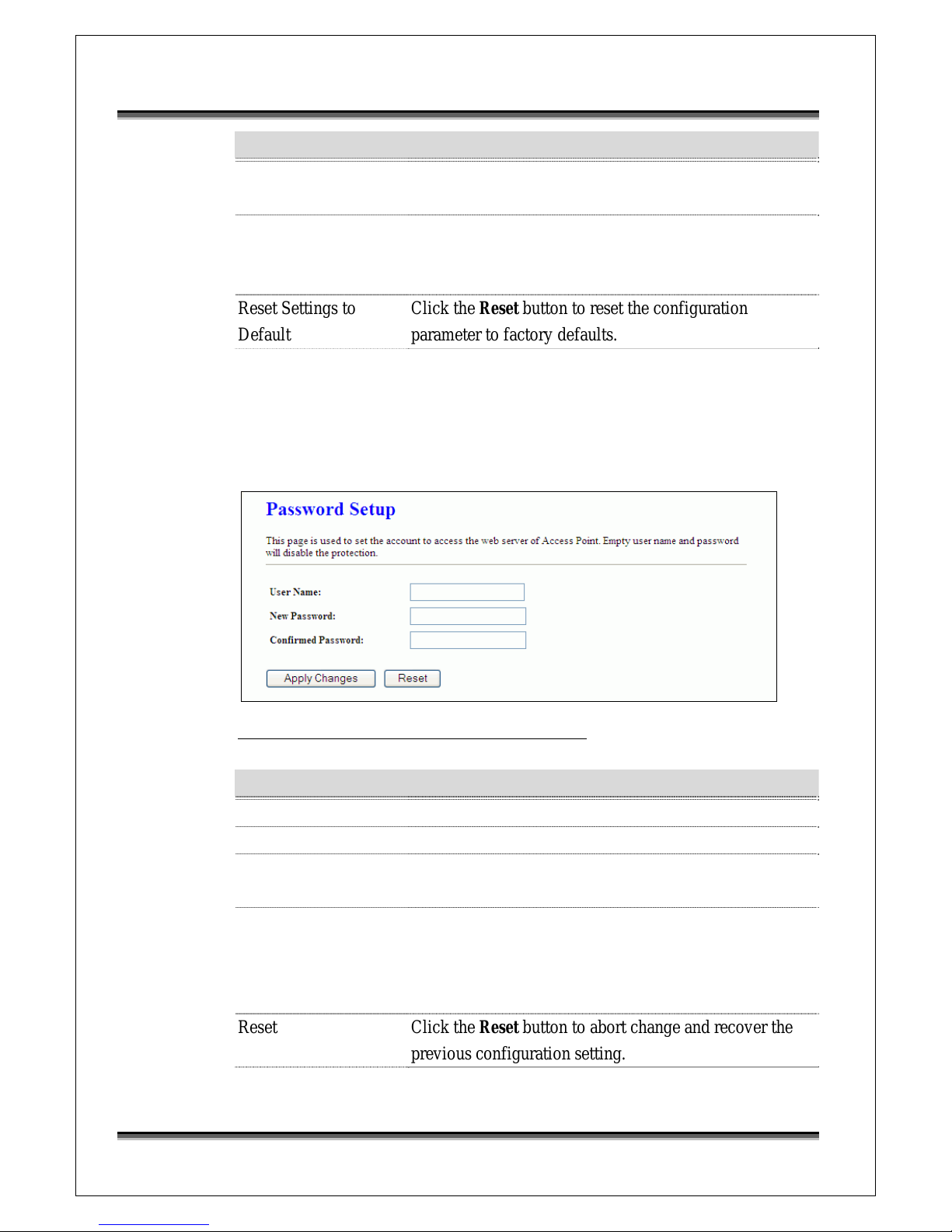

Screen snapshot – Management - Password Setup

Item D

escription

User Name Fill in the user name for web management login control. New Password Fill in the password for web management login control. Confirmed Password Because the password input is invisible, so please fill in

the password again for confirmation purpose. Apply Changes Clear the User Name and Password fields to empty,

means to apply no web management login control.

Click the Apply Changes button to complete the new

configuration setting. Reset Click the Reset button to abort change and recover the

previous configuration setting.

Page 35

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

3.3.15 Logout

This page is used to logout web management page. This item will be activated next time you login after you define user account and password.

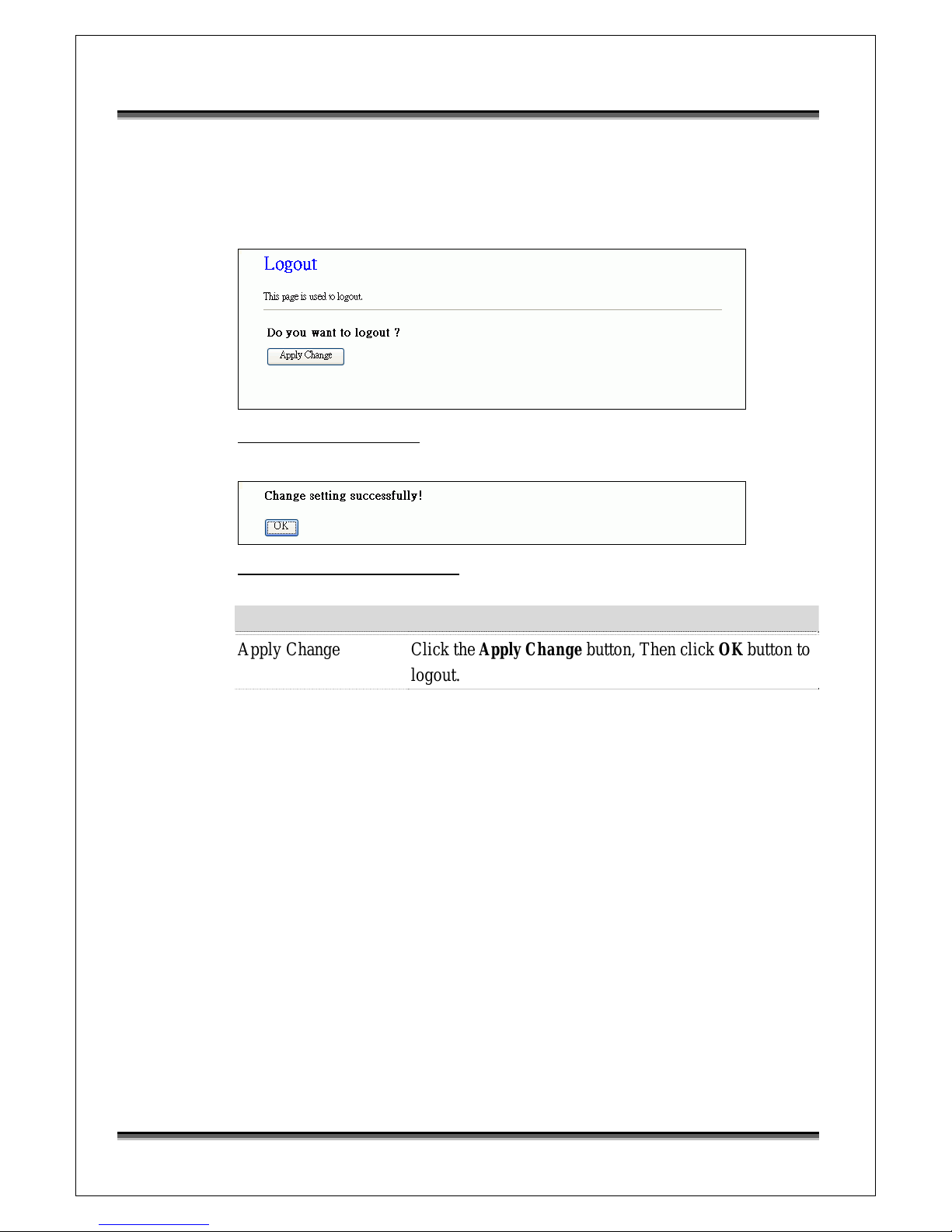

Screen snapshot – Logout

Screen snapshot – Logout - OK

Item D

escription

Apply Change Click the Apply Change button, Then click OK button to

logout.

Page 36

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

4 Frequently Asked Questions (FAQ)

4.1 What and how to find my PC’s IP and MAC address?

IP address is the identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four num bers separated by periods. Each number can be zero to 255. For example, 191.168.1.254 could be an IP address.

The MAC (Media Access Control) address is your computer's unique hardware number. (On an Ethernet LAN, it's the same as your Ethernet address.) When you're connected to the Internet from your computer (or host as the Internet protocol thinks of it), a correspondence table relates your IP address to your computer's physical (MAC) address on the LAN.

To find your PC’s IP and MAC address,

9 Open the Command program in the Microsoft Windows. 9 Type in ipconfig /all then press the Enter button.

¾ Your PC’s IP address is the one entitled IP Address and your PC’s MAC address is

the one entitled Physical Address.

4.2 What is Wireless LAN?

A wireless LAN (WLAN) is a network that allows access to Internet without the need for any wired connections to the user’s machine.

4.3 What are ISM bands?

ISM stands for Industrial, Scientific and Medical; radio frequency bands that the Federal Communications Commission (FCC) authorized for wireless LANs. The ISM bands are located at 915 +/- 13 MHz, 2450 +/- 50 MHz and 5800 +/- 75 MHz.

4.4 How does wireless networking work?

The 802.11 standard define two modes: infrastructure mode and ad hoc mode. In infrastructure mode, the wireless network consists of at least one access point connected to the wired network infrastructure and a set of wireless end stations. This configuration is called a Basic Service Set (BSS). An Extended Service Set (ESS) is a set of two or more BSSs forming a single subnetwork. Since most corporate WLANs require access

Page 37

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

to the wired LAN for services (file servers, printers, Internet links) they will operate in infrastructure mode.

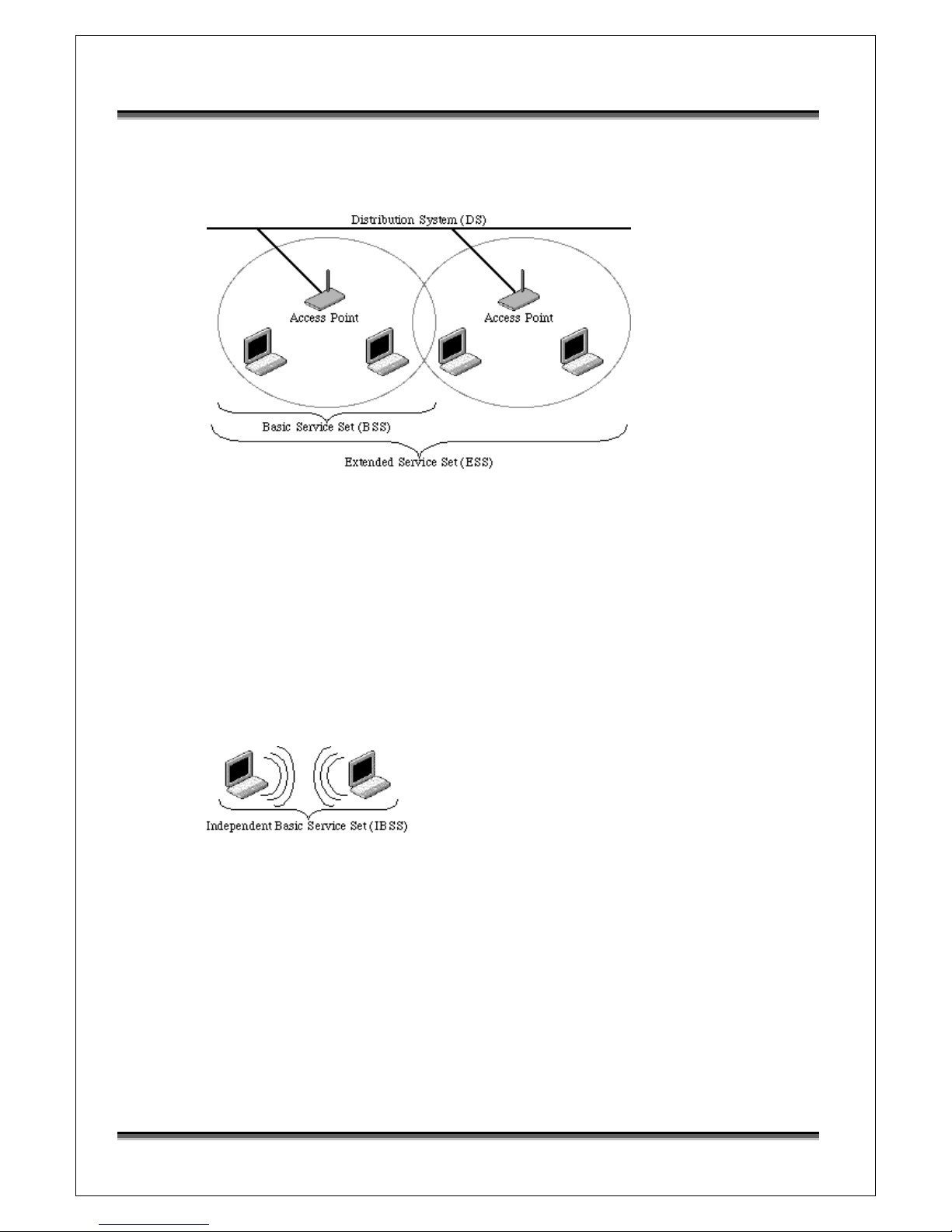

Example 1: wireless Infrastructure Mode

Ad hoc mode (also called peer-to-peer mode or an Independent Basic Service Set, or IBSS) is simply a set of 802.11 wireless stations that communicate directly with one another without using an access point or any connection to a wired network. This mode is useful for quickly and easily setting up a wireless network anywhere that a wireless infrastructure does not exist or is not required for services, such as a hotel room, convention center, or airport, or where access to the wired network is barred (such as for consultants at a client site).

Example 2: wireless Ad Hoc Mode

4.5 What is BSSID?

A six-byte address that distinguishes a particular a particular access point from others. Also know as just SSID. Serves as a network ID or name.

4.6 What is ESSID?

The Extended Service Set ID (ESSID) is the name of the network you want to access. It is used to identify different wireless networks.

Page 38

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

4.7 What are potential factors that may causes interference?

Factors of interference:

¾ Obstacles: walls, ceilings, furniture… etc. ¾ Building Materials: metal door, aluminum studs. ¾ Electrical devices: microwaves, monitors and electrical motors.

Solutions to overcome the interferences:

9 Minimizing the number of walls and ceilings. 9 Position the WLAN antenna for best reception. 9 Keep WLAN devices away from other electrical devices, eg: microwaves,

monitors, electric motors, … etc.

9 Add additional WLAN Access Points if necessary.

4.8 What are the Open System and Shared Key authentications?

IEEE 802.11 supports two subtypes of network authentication services: open system and shared key. Under open system authentication, any wireless station can request authentication. The station that needs to authenticate with another wireless station sends an authentication management frame that contains the identity of the sending station. The receiving station then returns a frame that indicates whether it recognizes the sending station. Under shared key authentication, each wireless station is assumed to have received a secret shared key over a secure channel that is independent from the

802.11 wireless network communications channel.

4.9 What is WEP?

An optional IEEE 802.11 function that offers frame transmission privacy similar to a wired network. The Wired Equivalent Privacy generates secret shared encryption keys that both source and destination stations can use to alert frame bits to avoid disclosure to eavesdroppers.

WEP relies on a secret key that is shared between a mobile station (e.g. a laptop with a wireless Ethernet card) and an access point (i.e. a base station). The secret key is used to encrypt packets before they are transmitted, and an integrity check is used to ensure that packets are not modified in transit.

4.10 What is Fragment Threshold?

The proposed protocol uses the frame fragmentation mechanism defined in IEEE 802.11 to achieve parallel transmissions. A large data frame is fragmented into several

Page 39

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

fragments each of size equal to fragment threshold. By tuning the fragment threshold value, we can get varying fragment sizes. The determination of an efficient fragment threshold is an important issue in this scheme. If the fragment threshold is small, the overlap part of the master and parallel transmissions is large. This means the spatial reuse ratio of parallel transmissions is high. In contrast, with a large fragment threshold, the overlap is small and the spatial reuse ratio is low. However high fragment threshold leads to low fragment overhead. Hence there is a trade-off between spatial re-use and fragment overhead.

Fragment threshold is the maximum packet size used for fragmentation. Packets larger than the size programmed in this field will be fragmented.

If you find that your corrupted packets or asymmetric packet reception (all send packets, for example). You may want to try lowering your fragmentation threshold. This will cause packets to be broken into smaller fragments. These small fragments, if corrupted, can be resent faster than a larger fragment. Fragmentation increases overhead, so you'll want to keep this value as close to the maximum value as possible.

4.11 What is RTS (Request To Send) Threshold?

The RTS threshold is the packet size at which packet transmission is governed by the RTS/CTS transaction. The IEEE 802.11-1997 standard allows for short packets to be transmitted without RTS/CTS transactions. Each station can have a different RTS threshold. RTS/CTS is used when the data packet size exceeds the defined RTS threshold. With the CSMA/CA transmission mechanism, the transmitting station sends out an RTS packet to the receiving station, and waits for the receiving station to send back a CTS (Clear to Send) packet before sending the actual packet data.

This setting is useful for networks with many clients. With many clients, and a high network load, there will be many more collisions. By lowering the RTS threshold, there may be fewer collisions, and performance should improve. Basically, with a faster RTS threshold, the system can recover from problems faster. RTS packets consume valuable bandwidth, however, so setting this value too low will limit performance.

4.12 What is Beacon Interval?

In addition to data frames that carry information from higher layers, 802.11 includes management and control frames that support data transfer. The beacon frame, which is a type of management frame, provides the "heartbeat" of a wireless LAN, enabling

Page 40

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

stations to establish and maintain communications in an orderly fashion.

Beacon Interval represents the amount of time between beacon transmissions. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point).

4.13 What is Preamble Type?

There are two preamble types defined in IEEE 802.11 specification. A long preamble basically gives the decoder more time to process the preamble. All 802.11 devices support a long preamble. The short preamble is designed to improve efficiency (for example, for VoIP systems). The difference between the two is in the Synchronization field. The long preamble is 128 bits, and the short is 56 bits.

4.14 What is SSID Broadcast?

Broadcast of SSID is done in access points by the beacon. This announces your access point (including various bits of information about it) to the wireless world around it. By disabling that feature, the SSID configured in the client must match the SSID of the access point.

Some wireless devices don't work properly if SSID isn't broadcast (for example the D-link DWL-120 USB 802.11b adapter). Generally if your client hardware supports operation with SSID disabled, it's not a bad idea to run that way to enhance network security. However it's no replacement for WEP, MAC filtering or other protections.

4.15 What is Wi-Fi Protected Access (WPA)?

Wi-Fi’s original security mechanism, Wired Equivalent Privacy (WEP), has been viewed as insufficient for securing confidential business communications. A longer-term solution, the IEEE 802.11i standard, is under development. However, since the IEEE

802.11i standard is not expected to be published until the end of 2003, several members of the WI-Fi Alliance teamed up with members of the IEEE 802.11i task group to develop a significant near-term enhancement to Wi-Fi security. Together, this team developed Wi-Fi Protected Access.

To upgrade a WLAN network to support WPA, Access Points will require a WPA software upgrade. Clients will require a software upgrade for the network interface card, and possibly a software update for the operating system. For enterprise networks, an

Page 41

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

authentication server, typically one that supports RADIUS and the selected EAP authentication protocol, will be added to the network.

4.16 What is WPA2?

It is the second generation of WPA. WPA2 is based on the final IEEE 802.11i amendment to the 802.11 standard.

4.17 What is 802.1x Authentication?

802.1x is a framework for authenticated MAC-level access control, defines Extensible Authentication Protocol (EAP) over LANs (WAPOL). The standard encapsulates and leverages much of EAP, which was defined for dial-up authentication with Point-to-Point Protocol in RFC 2284.

Beyond encapsulating EAP packets, the 802.1x standard also defines EAPOL messages that convey the shared key information critical for wireless security.

4.18 What is Temporal Key Integrity Protocol (TKIP)?

The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the IEEE 802.11i encryption standard for wireless LANs. TKIP is the next generation of WEP, the Wired Equivalency Protocol, which is used to secure 802.11 wireless LANs. TKIP provides per-packet key mixing, a message integrity check and a re-keying mechanism, thus fixing the flaws of WEP.

4.19 What is Advanced Encryption Standard (AES)?

Security issues are a major concern for wireless LANs, AES is the U.S. government’s next-generation cryptography algorithm, which will replace DES and 3DES.

4.20 What is Inter-Access Point Protocol (IAPP)?

The IEEE 802.11f Inter-Access Point Protocol (IAPP) supports Access Point Vendor interoperability, enabling roaming of 802.11 Stations within IP subnet.

IAPP defines messages and data to be exchanged between Access Points and between the IAPP and high layer management entities to support roaming. The IAPP protocol uses TCP for inter-Access Point communication and UDP for RADIUS request/response exchanges. It also uses Layer 2 frames to update the forwarding tables of Layer 2 devices.

Page 42

USER’S MANUAL OF WLAN ACCESS POINT Version: 1.1

4.21 What is Wireless Distribution System (WDS)?

The Wireless Distribution System feature allows WLAN AP to talk directly to other APs via wireless channel, like the wireless bridge or repeater service.

4.22 What is Clone MAC Address?

Clone MAC address is designed for your special application that request the clients to register to a server machine with one identified MAC address. Since that all the clients will communicate outside world through the WLAN Access Point, so have the cloned MAC address set on the WLAN Access Point will solve the issue.
