FENDA TECHNOLOGY W5 User Manual

W5

CAUTION

PACKAGE CONTENTS

BUTTON CONTROLS

Standby:

Long press to Turn ON and Turn OFF the unite

Pairing、Play/Plause:

Under Bluetooth mode, long press entering pairing mode.

Under Bluetooth and MicroSD card mode, short press to

pause/play music

Calling:

a. Under Bluetooth mode, short press to answer the call and long

press to reject the call.

b. Long press to switch between Bluetooth, MicroSD and AUX mode,

Volume decrease:

Short press to decrease the volume

under Bluetooth and MicroSD card mode, press entering previous

song.

Volume increase:

Short press to increase the volume

under Bluetooth and MicroSD card mode, press entering next song.

Bluetooth mode

● Turn on the unit, W5 will automatically search the Bluetooth

device. If the device paired before, W5 will connect automatical-

ly. If can’t find paired device, W5 will enter pairing mode

automatically,.

● Active “Bluetooth” function on your device and search for “Fenda

W5”.

● Enter “0000” if your device asks for the PIN code.

SHENZHEN FENDA TECHNOLOGY CO., LTD.

ADD：Fenda Hi-Tech Park, Zhoushi Road, Shiyan,

Baoan, Shenzhen, China

Tel：[phone] (800 Line)

Fax: [phone]

P.C：518108

Charging:

1. Connect mini USB port of unit to computer or charger’s USB

port using USB cable included in the package.

2. Charging LED bright after finishing charging

3. Recommend to charge the unit once every month and turn off

the unit if not use.

Micro USB

Charge Indicator

AUX IN

Specifications

Power Output：3W

Frequency Response：80Hz-20KHz

Power Input：5V 500mA

Separation：≥40dB

S/N Ratio：≥75dB

Product dimension：W93 x D34 x H81mm

MicroSD (TF)

1.Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

2.NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications.

However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for

help.

3.This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including

interference that may cause undesired operation.

4.The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure
condition without restriction.

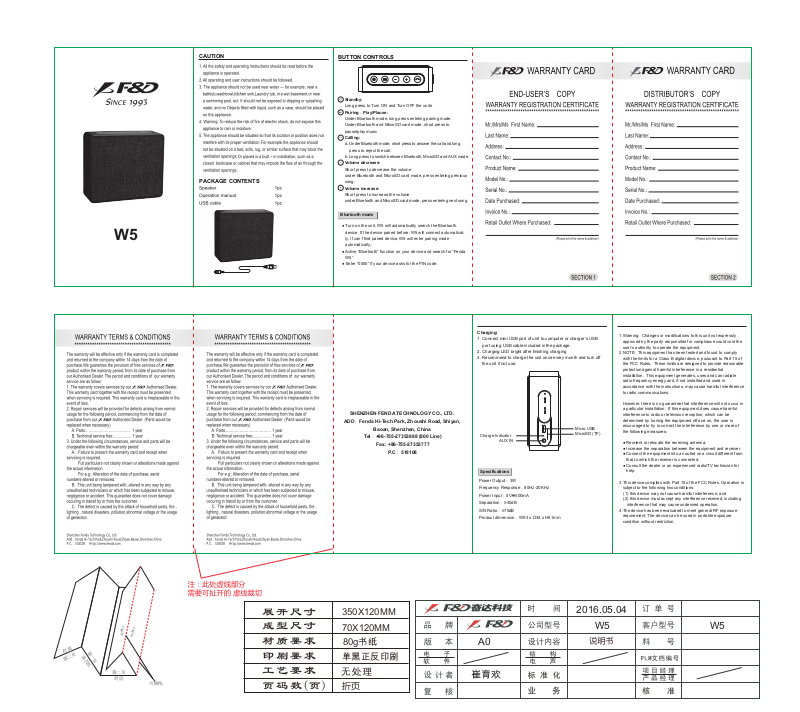

封面
