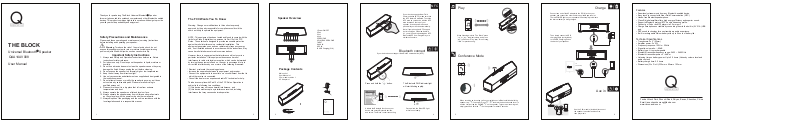

FENDA TECHNOLOGY W260B User Manual
THE BLOCK
Universal Bluetooth Speaker
QAA14AV008
User Manual
R
Thank you for purchasing The Block Universal Bluetooth Speaker
R
for smart phones, tablets, notebook computers and other Bluetooth enabled
devices. This product combines high-tech innovation with design to provide
you with years of dependability and enjoyment.
Safety Precautions and Maintenance
Please read these operating and maintenance (servicing) instructions
before installing and operating your speaker.
Warning: To reduce the risk of fire or electric shock, do not
expose this speaker system to rain or moisture (including swimming
pools or objects filled with liquids, such as vases or drinks).
1. Always read Safety and Operation instructions before use. Retain
Important Safety Instructions
instructions for later reference.
2. For indoor use only. Do not expose the speaker to liquid, moisture or
humidity.
3. Do not use abrasive cleaners to clean the speaker case as they may
damage the finish. Always unplug the unit before cleaning.
4. Do not expose the speaker to extremely high or low temperatures.
5. Keep the unit away from direct sunlight.
6. Use only accessories and attachments as supplied and designated in
the instruction manual.
7. Do not attempt to open or modify the speaker in any way, as it does
not contain any serviceable parts. Please refer all servicing to
qualified personnel.
8. Please store the unit in a dry place that is free from extreme
temperatures and dust.
9. Always operate the speaker on a flat and level surface.
10. Always operate the speaker away from children and small animals
as they may play with the power cord and other small parts.
11. Always dispose of the packaging and the unit in accordance with the
local regulations and in a responsible manner.
1
The FCC Wants You To Know
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
NFC
Play
Charge
Features
● Seamlessly stream music from any Bluetooth-enabled device.
Easy touch to connect with Near Field Communication (NFC).
●
● Hands-free Bluetooth speakerphone.
●
Class-D digital amplifier offers high energy efficiency and superior sound.
● Supports Bluetooth protocol BT3.0 audio streaming profile.
● Connect an iPod or an MP3 player via 3.5mm port.
● Charge Smartphones or tablets by connecting them to the built in (5V 2.1A) USB
port.
●
DSP sound technology for an extraordinary audio experience.
● Built in rechargeable lithium battery with up to 6 hours of battery life.
Technical Specifications
Transducers: 2x 2” (52mm)
●
Amplifier power: 2 x 5W
●
● Frequency response: 150Hz – 20kHz
Signal-to-noise ratio: ＞80dB
●
●
Battery type: Li-ion rechargeable
Bluetooth transmitter frequency range: 2.402 – 2.480GHz
●
Bluetooth transmitter power: 0 – 4dBm
●
● Listening time on battery power: Up to 5.5 hours (Varies by volume level and
audio content)
●
Battery charge time: 5.5 hours
Dimensions (W x D x H): 335mm x 80mm x 103mm
●
Speaker Overview
10
8
9
1.Power ON/OFF
2.Pair
3.Vol-
4.Vol+
5.PREVIOUS
6.PLAY/PAUSE/PHONE
7.NEXT
8.AUX IN
9.DC IN
10.USB Charging(2.1A)
If your device supports Near Field
Communication (NFC), make sure that
the NFC feature is activated. Touch the
NFC area on your device with the NFC
area located on the top of your
speaker. It can be powered on and
paired with your device automatically.
Note: if your phone has NFC support
but is running an OS below Android
4.1, you will need to download an NFC
Bluetooth APP from Google Play or a
similar online store.
Bluetooth connect
If your device does not support Near Field Communication (NFC).
When listening music to “The Block”, press
“ ” or “ ” to adjust volume, and press
“ ” to Pause or Play, “ ”for next song,
“ ” for previous song.
Conference Mode
Connect one end of the AC adaptor to the DC IN jack on your
speaker, and connect the other end into a suitable power oulet.
The red POWER light on your speaker will flash rapidly to indicate
the internal battery is being charged.
Then simply connect a USB
charging cable (not included)
to the USB Charging Port on
the back of your speaker.
Package Contents
Main unit x 1
User Manual x 1
3.5mm audio cable x 1
AC Adaptor x 1
Press and hold the “ ” button.
Blue tooth
Bluet ooth
Devic es
The Block
Activate the Bluetooth function on your
device and search Bluetooth devices,
2
and select “The Block” to start connecting.
The Bluetooth PAIR indicator light
will start blinking rapidly.
Once paired, the Blue LED light
will turn on steadily.
Aux in
When receiving an incoming call on your cell phone via Bluetooth linked with the
speaker, tap “ ”to answer. Press“ ” “ ”to obtain the desired sound level. To
end the call, just tap the PHONE“ ” on the speaker. To ignore an incoming call,
simply press and hold the “ ”on the speaker for about 2 seconds.
Use the 3.5mm cable (included) to connect
the speaker to another audio source,
4
5 63
then play music.
Fenda Hi-tech Park, Zhoushi Road, Shiyan, Baoan, Shenzhen, China
Email: jane.chenzhenrong@fenda.com
www.ravon-audio.com
