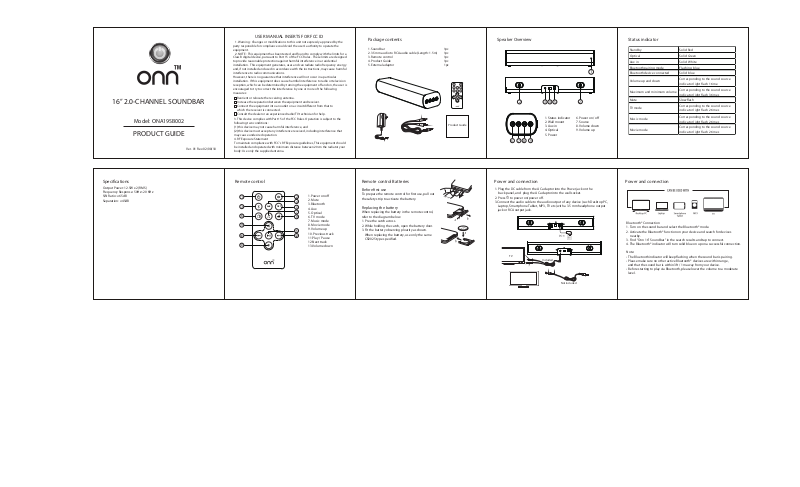

FENDA TECHNOLOGY SB925C User Manual
16” 2.0-CHANNEL SOUNDBAR
Model: ONA19SB002
PRODUCT GUIDE
Ver. 01 Rev.02/08/18
1. Warning: Changes or modications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
2. NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
3. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
4. RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should
be installed and operated with minimum distance between 20cm the radiator your
body: Use only the supplied antenna.
USER MANUAL INSERTS FOR FCC ID
Package contents Speaker Overview
1. Soundbar 1pc
2. 3.5mm audio to RCA audio cable (Length: 1.5m) 1pc
3. Remote control 1pc
4. Product Guide 1pc
5. External adaptor 1pc
AUX OPT
2
Product Guide
6 7 8 9
3 4 5
1. Status indicator
2. Wall mount
3. Aux in
4. Optical
5. Power
1
2
6. Power on / o
7. Source
8. Volume down
9. Volume up
Status indicator
Standby Soli d Red
Optic al Soli d Green
Aux in Soli d White
Bluetooth pai ring mode Fla shing bl ue
Bluetooth devic e connected Soli d blue
Volume up an d down
Maxi mum and mini mum volu me
Mute
TV mode
Musi c mode
Movie mode
Corres ponding to the sound s ource
indi cator l ight flash 1 time
Corres ponding to the sound s ource
indi cator l ight flash 3 times
Slow fla sh
Corres ponding to the sound s ource
indi cator l ight flash 2 times
Corres pond
indi cator l ight flash 2 times
Corres ponding to the sound s ource
indi cator l ight flash 2 times
ing to the sou nd source
Specications
Output Power: 12.5W x 2(RMS)
Frequency Response: 50Hz~20 KHz
S/N Ratio: ≥65dB
Separation: ≥45dB
Remote control
1
3
6
9
10 12
13
AUX OPT
2
4
5
7
8
11
1.Power on o
2. Mute
3.Bluetooth
4.Aux
5. Optical
6. TV mode
7. Music mode
8. Movie mode
9. Volume up
10. Previous track
11.Play / Pause
12.Next track
13.Volume down
Remote control Batteries
Before rst use
To prepare the remote control for rst use, pull out
the safety strip to activate the battery.
Replacing the battery
When replacing the battery in the remote control,
refer to the diagram below.
1. Pree the catch across.
2. While holding the catch, open the battery door.
3. Fit the battery observing ploarity as shown.
When replacing the battery, use only the same
CR2025 type specied.
Power and connection
1. Plug the DC cable from the AC adaptor into the Power jack on the
back panel, and plug the AC adaptor into the wall socket.
2. Press to power on/power o.
3.Connect the audio cable to the audio output of any device (such Desktop PC,
Laptop, Smartphone Tablet, MP3, TV etc.)with a 3.5 mm headphone output
jack or RCA output jack.
T V
Included
Not included
Power and connection
Bluetooth® Connection
1. Turn on the sound bar and select the Bluetooth® mode.
2. Activate the Bluetooth® function on your device and search for devices
nearby.
3. Find “Onn 16” Soundbar” in the search results and tap to connect.
4. The Bluetooth® indicator will turn solid blue on upon a successful connection.
Note:
• The Bluetooth indicator will keep flashing when the sound bar is pairing.
• Please make sure no other active Bluetooth® devices are within range,
and that the sound bar is within 3ft / 1m away from your device.
• Before starting to play via Bluetooth, please lower the volume to a moderate
level.
