Page 1
FR SERIES
TECHNICAL
MANUAL
Page 2
1
FR SERIES
Congratulations on purchasing a FR Series. As with all of our
bikes and components, our aim is to provide the rider with the
best product and riding experience. Read this manual supplement
thoroughly, as it is designed to help you set your bike up correctly,
and care for it.
For further information, visit:
FELTBICYCLES.COM
INTRODUCTION
CONTENTS
INTRODUCTION
Geometry ................................................................................................. 2
SETUP
Head Tube Cable Guides .......................................................................... 3
Front Brake Cable/Hose Routing............................................................... 4
Cable Liner Installation Guide ..................................................................5
Cable Routing Requirements ..................................................................... 6
Cable Routing Grommet Guide ............................................................. 7-8
CONTACT INFORMATION
Contact.....................................................................................................9
Page 3
3
2

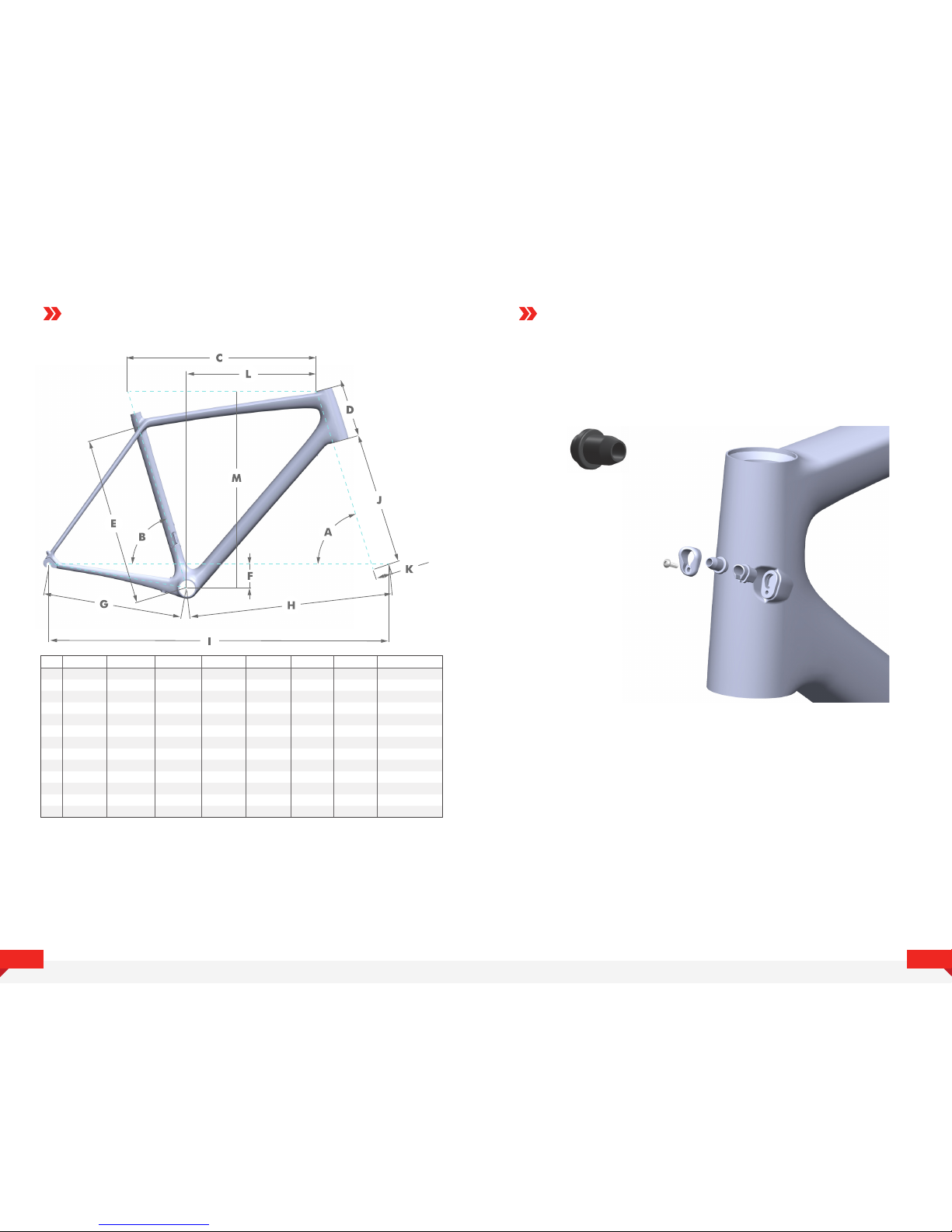

GEOMETRY HEAD TUBE CABLE GUIDES
The head tube cable guides contain rubber reducers for all cable sizes
that are interchangeable and can be arranged to fit each rider's setup
and personal preferences.
Brake (5mm)
A
B
C
D
E
F
G
H
I
J
K
L
M
43
70.5
75.25
495
90
405
72
403
573
965
380
52
362
499
47
71.5
74.5
512
100
425
72
403
575
967
380
52
369
512
51
72.5
74
530
115
465
72
403
577
710
380
47
377
530
54
73
73.5
548
135
505
70
405
585
747
380
47
385
550
Size
Head Tube Angle
Seat Tube Angle
Top Tube Horizontal
Head Tube
Seat Tube
BB Drop
Chain stay
Front Center
Wheelbase
Fork Length
Fork Oset
Reach
Stack
56
73.5
73.5
563
155
525
70
405
591
767
380
43
394
572
58
73.75
73.25
583
177
555
70
407
606
790
380
43
405
594
61
74
73
604
205
595
70
410
621
828
380
43
414
621
Page 4
CABLE LINER
INSTALLATION GUIDE
5
4
ROUTINGROUTING

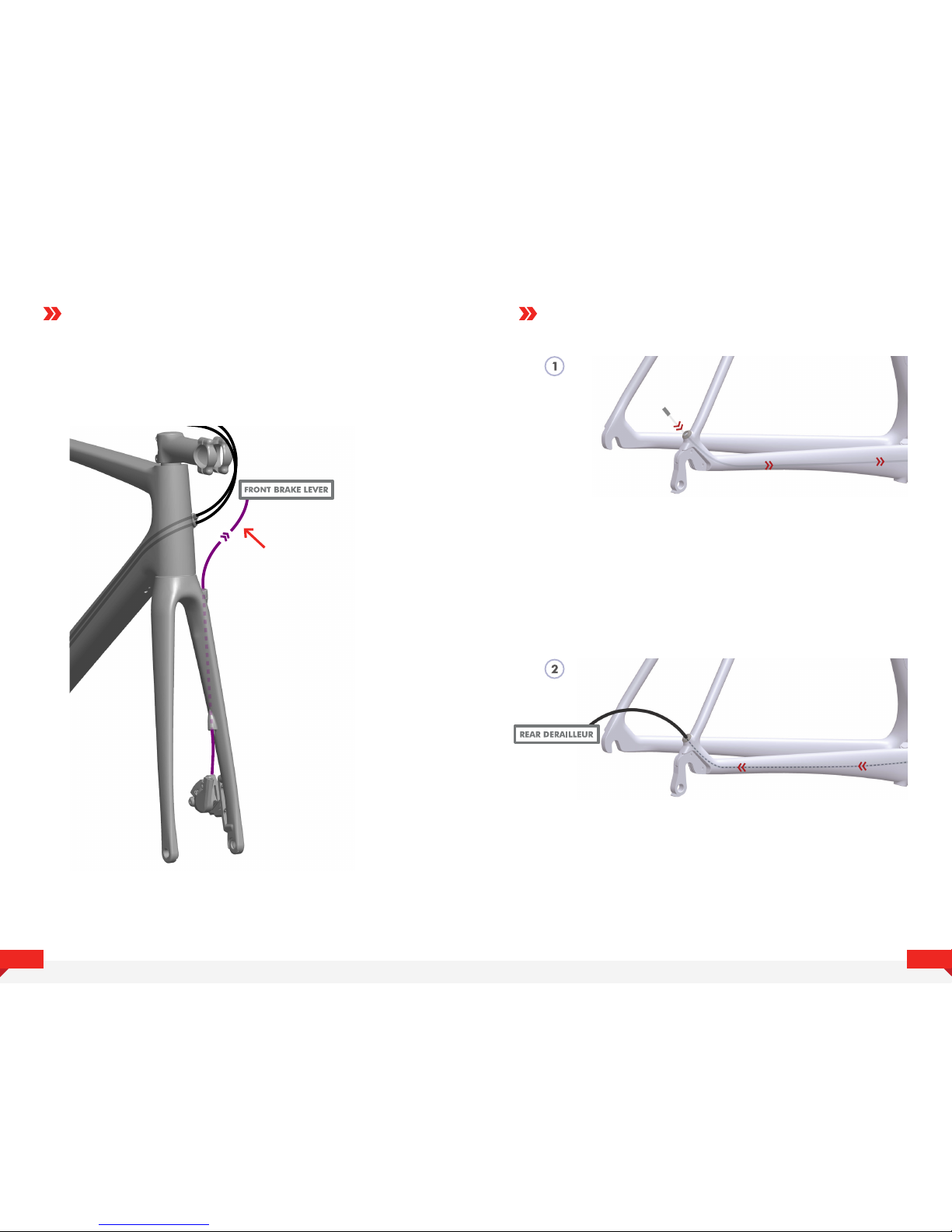

FRONT BRAKE
It is best to route the cable from the bottom up. Begin by
inserting the end of the cable into the lower hole, feeding
the cable through the fork blade toward the upper hole.
IMPORTANT
To allow for full range of
handlebar movement, it’s
important to always route
the front brake cable on the
outside of the the cables
exiting the ports found on
the headtube. (as shown)
Start by locating the port found on the driveside junction between the seat and the
chain stay. Thread the cable liner through the port until it exits the port found on the
bottom bracket.
Once the cable liner has been properly threaded through the chain stay, you can
now route the derailleur cable through the liner using a typical cable installation
procedure.
Page 5

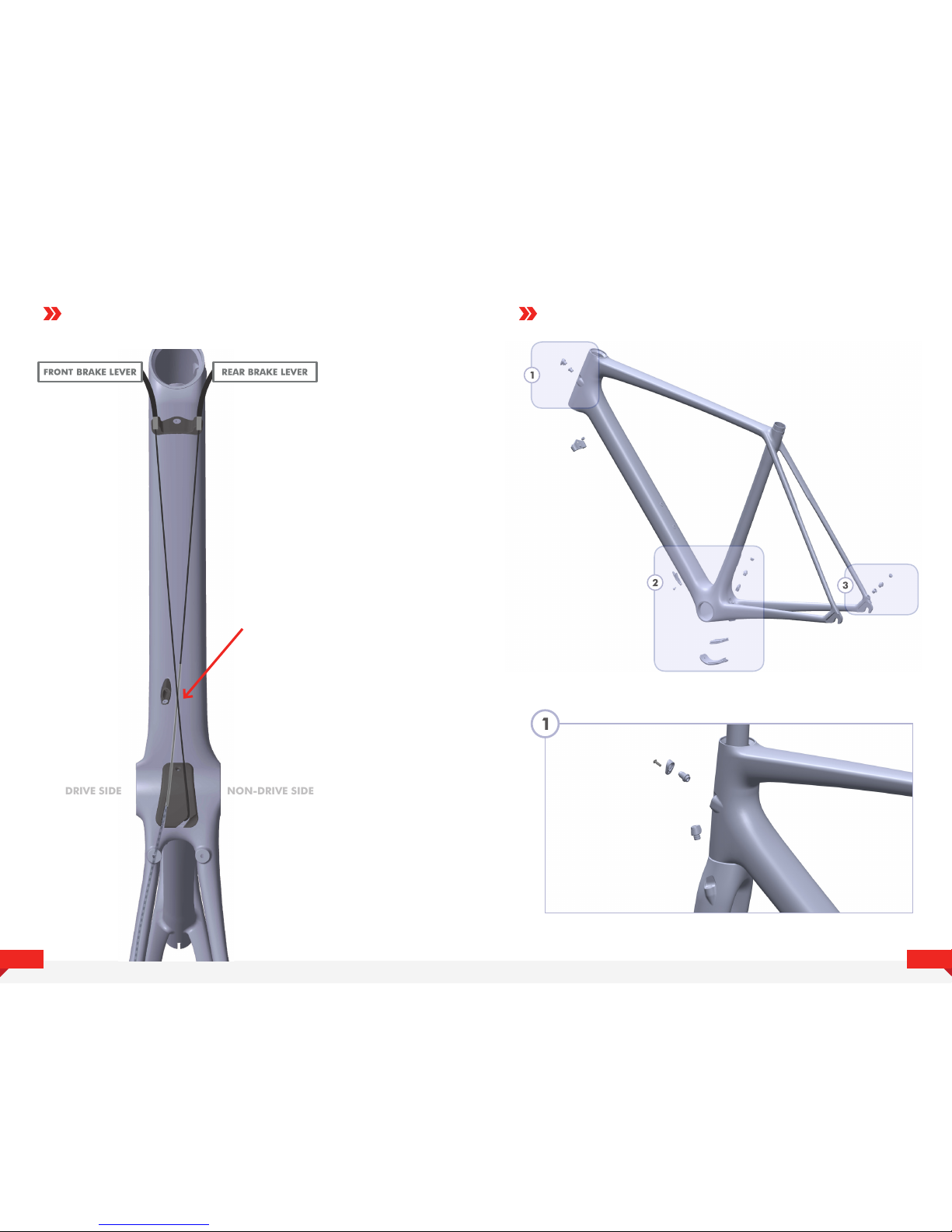

GROMMET MAP
ROUTING GUIDE
ROUTING
7
6
DRIVE SIDE
NON-DRIVE SIDE
IMPORTANT
Make sure to cross the front and rear
derailleur cables. On the rear derailleur
derailleur cable, make sure that the cable
liner extends at least an inch passed the
intersection of the two cables.
Page 6

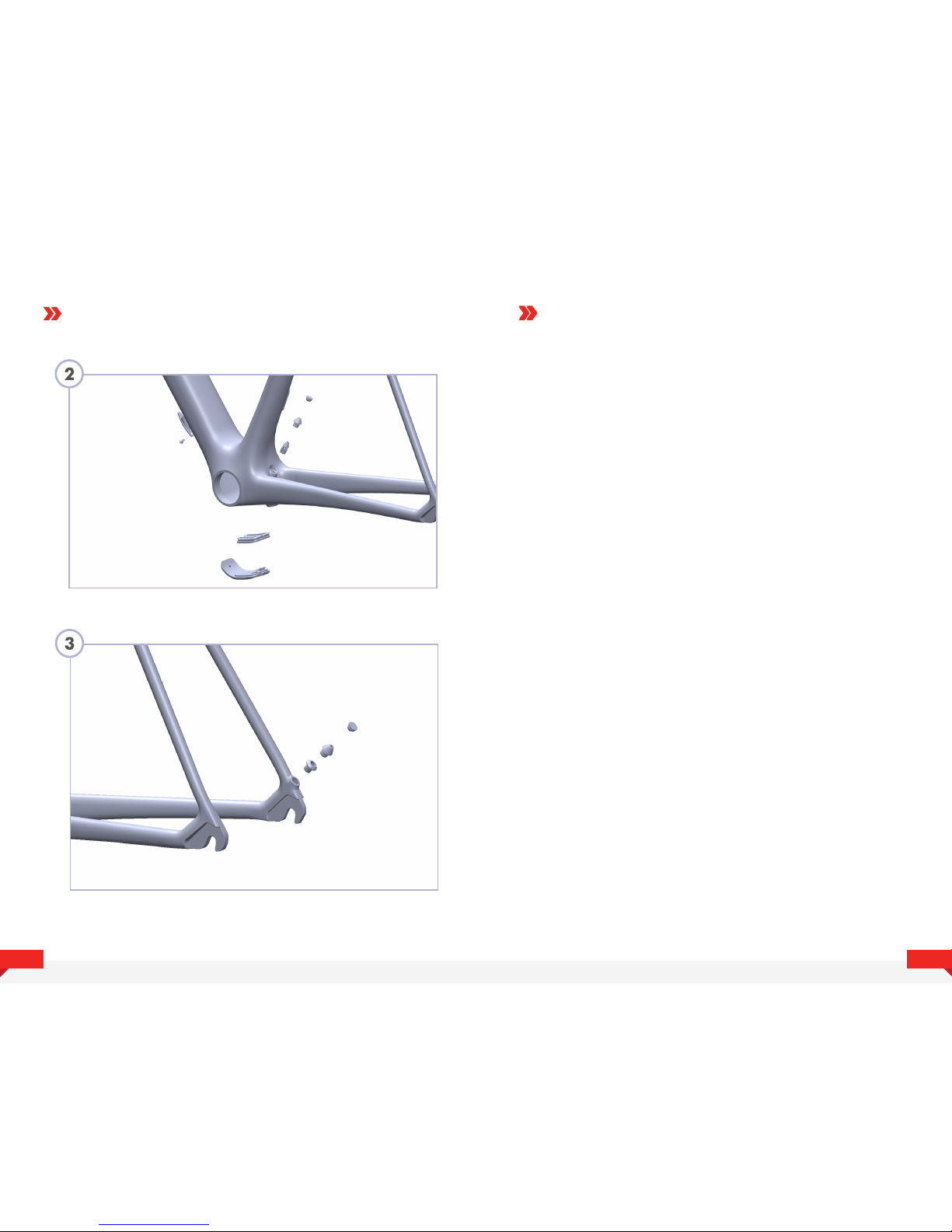

GROMMET MAP
CONT.
9
8
CONTACT
INFORMATION
Felt Racing, LLC
12 Chrysler
Irvine, CA 92618
USA
WWW.FELTBICYCLES.COM
Felt GmbH
Industriestr. 39
26188 Edewecht
Germany
