DOCTRINE
TECHNICAL
MANUAL
Page 2
1
DOCTRINE
Congratulations on purchasing a Felt Doctrine. As with all of our
bikes and components, our aim is to provide the rider with the
best product and riding experience. Read this manual supplement
thoroughly, as it’s to help you set your bike up correctly,
and care for it.
For further information, visit:
FELTBICYCLES.COM
INTRODUCTION
CONTENTS
INTRODUCTION
Geometry .....................................................................................................................................2
Brake De coupling B racket ............................................................................................................3
SETUP
Caliper Installation .......................................................................................................................4
Cable Guides ...............................................................................................................................5
CABLE CONFIGURATION
Mechanical Shifting 1X .................................................................................................................6
Mecha nical Shif ting 2x or Dropper Po st .......................................................................................7
DI2 1x or 2X .................................................................................................................................8
CONTACT INFORMATION
Contact ........................................................................................................................................9
Page 3
3
2

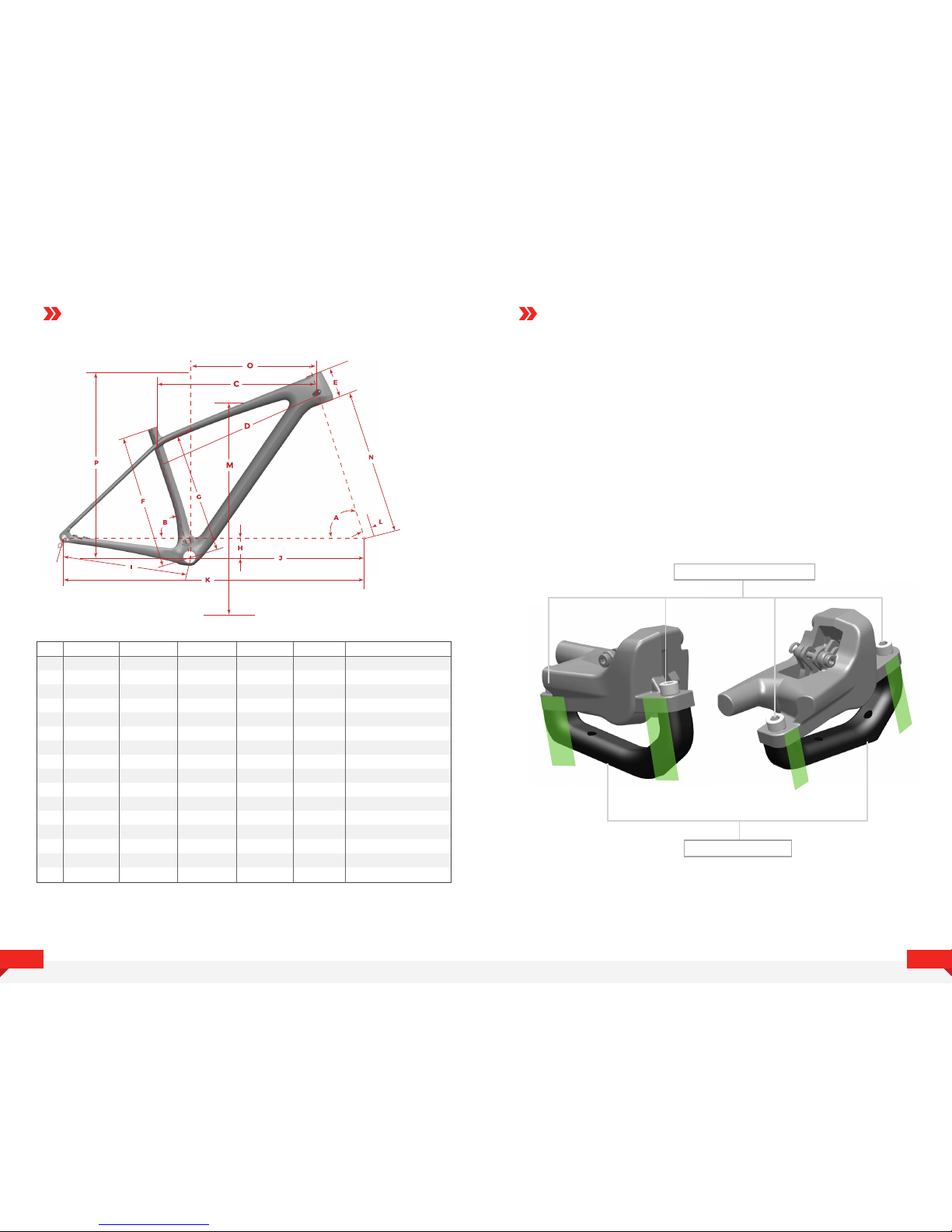

GEOMETRY
All doctrine frames include a decoupling bracket.
This bracket removes the brake tab from the seat stay
improving braking performance. It should be installed
as follows:
1. Mount caliper on adapter with 6mm socket
head cap screws.
2. Align outside surfaces (highlighted in green)
and torque to 8Nm.
BRAKE DECOUPLING
BRACKET
DECOUPLING BRACKET
6mm Soc ket Head Cap Sc rews
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
16”
69.5
73
590
576
95
400
351
65
430
665
1087
51
714
506
403
611
18”
69.5
73
612
589
105
451
402
65
430
688
1109
51
757
506
422
620
20”
69.5
73
634
607
115
502
453
65
430
710
1132
51
799
506
441
630
22”
69.5
73
656
628
125
554
505
65
430
733
1155
51
841
506
461
639
Size
Head Angle
Seat Angle
Top Tube (horizontal)
Top Tube (actual)
Head Tube
Seat Tube
Seat Tube (center-to-center)
Bottom Bracket Drop
Chain Stay
Front-Center
Wheelbase
Fork Rake
Standover Height
Fork Length
Reach
Stack
14”
69.5
73
568
564
90
360
311
61
430
644
1066
51
683
506
384
602
Page 4
5
4

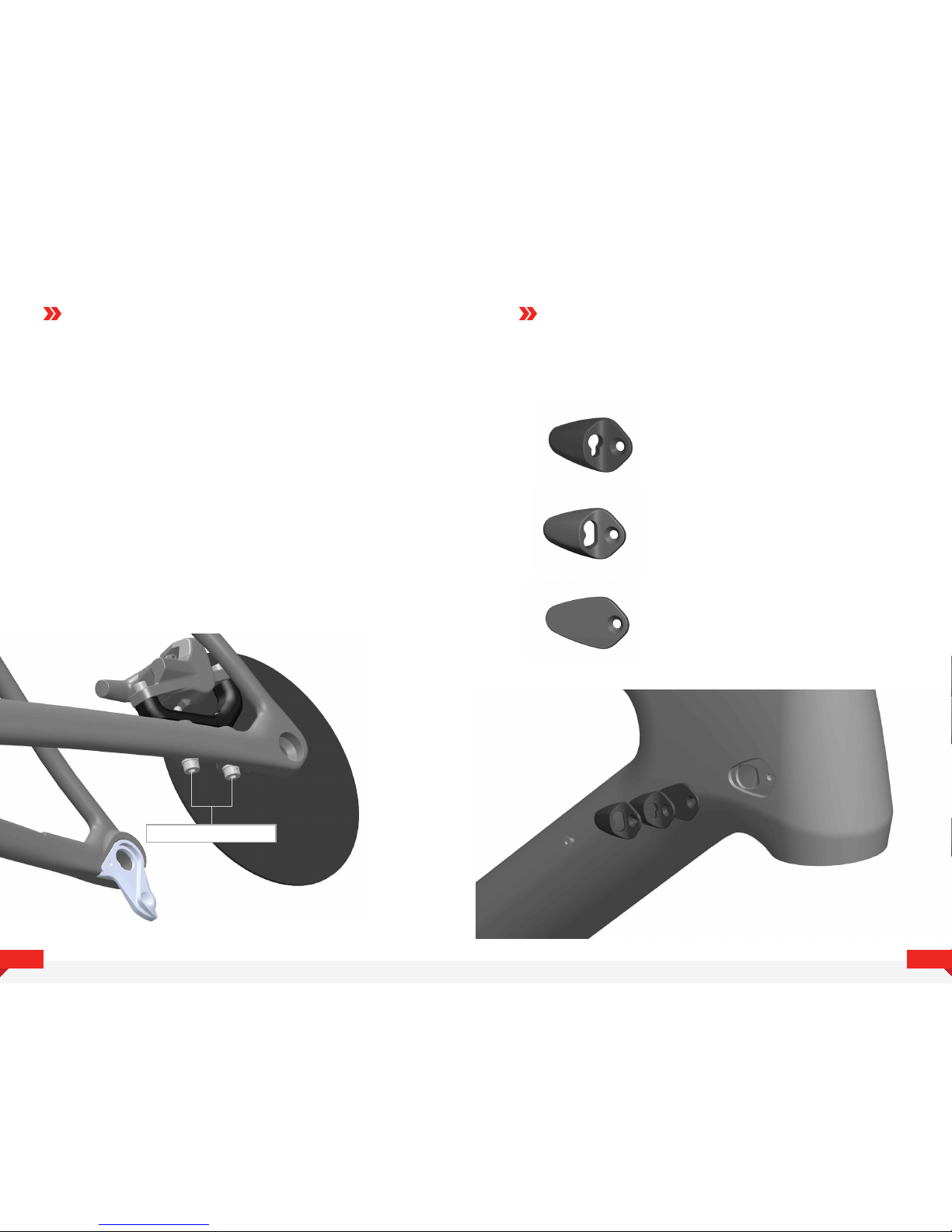

CALIPER INSTALLATION CABLE GUIDES
1. Install the caliper/adapter assembly on bike
using included 5mm socket head cap screws,
but do not tighthen them down yet.
2. Install wheel and rotor
3. Squeeze brake lever to center caliper,
tighten mounting screws gently.
4. Spin wheel to check for rotor rub, if rub
is detected adjust as necessary.
5. When the caliper is centered properly torque
the mounting bolts to 5Nm
6. Some times it is required to readjust the position of the caliper
on the decoupling bracket if the caliper cannot be centered
properly after following this procedure.
5mm Soc ket Head Cap Scr ews
There are 3 interchangeable cable guides
that fit the Doctrine.
• Blanking plate (CCN096YB)
This covers the cable
port when it is not used
• Two Hole 5mm x 3mm (CCN098YB)
This port fits a 4 or 5mm cable or
hoses as well as a E-tube wire.
• Two Hole 5mm (CCN099YB)
This Cable port fits two
4 or 5mm cables or hoses.
Page 5
7
6

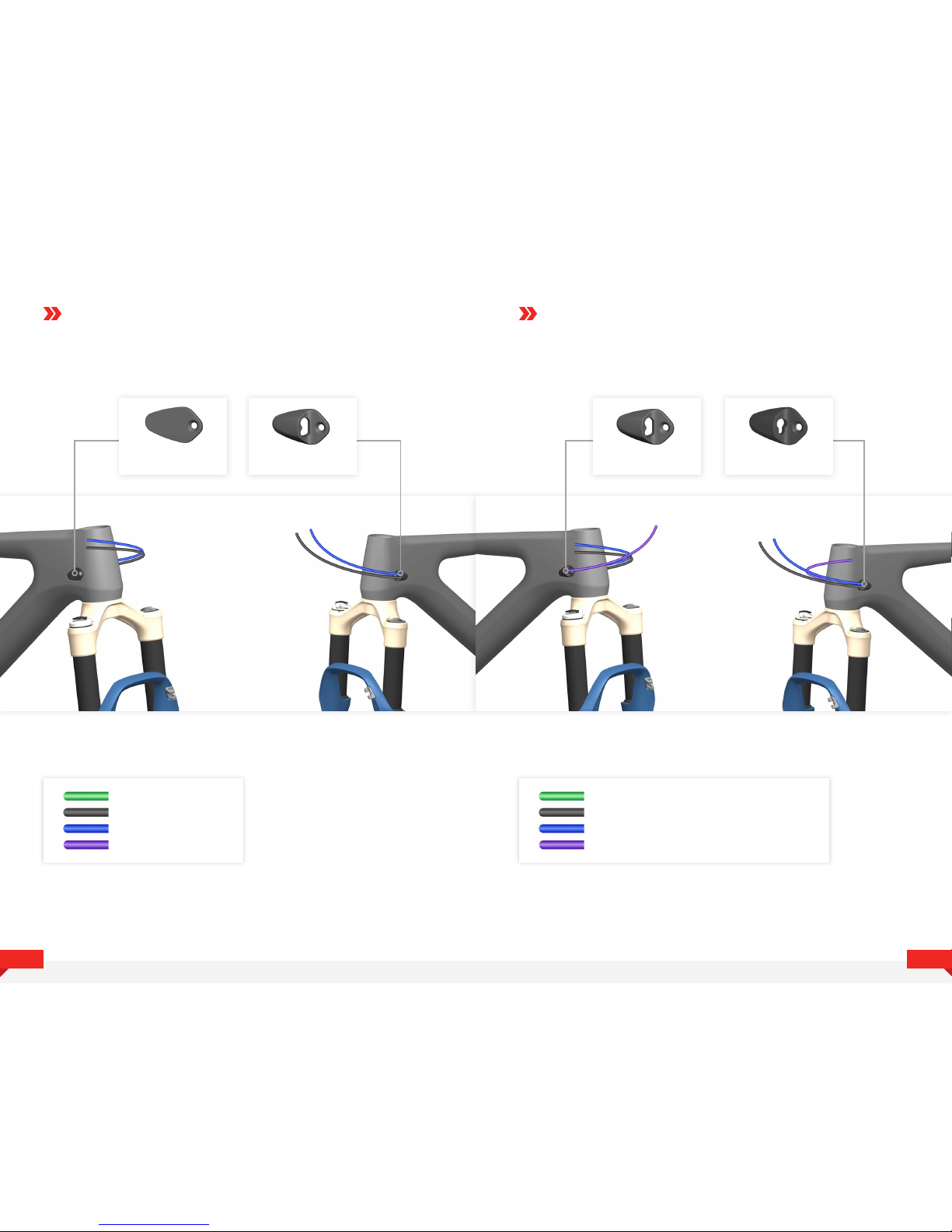

CABLE PORT CONFIGURATION
MECHANICAL SHIFTING 1X
DI2 WIR E
BRAKE CABLE
DERAILLEUR CABLE
DROPPER POST CABLE
Blanking Plate
Two Hole 5mm
Two Ho le
5mm x 3mm
Two Hole 5mm
CABLE PORT CONFIGURATION
MECHANICAL SHIFTING 2X or DROPPER POST
DI2 WIR E
BRAKE CABLE
DERAILLEUR CABLE
DROPPER POST C ABLE / DE RAILLEUR CABLE
Page 6
9
8
Two Ho le
5mm x 3mm
Blanking Plate

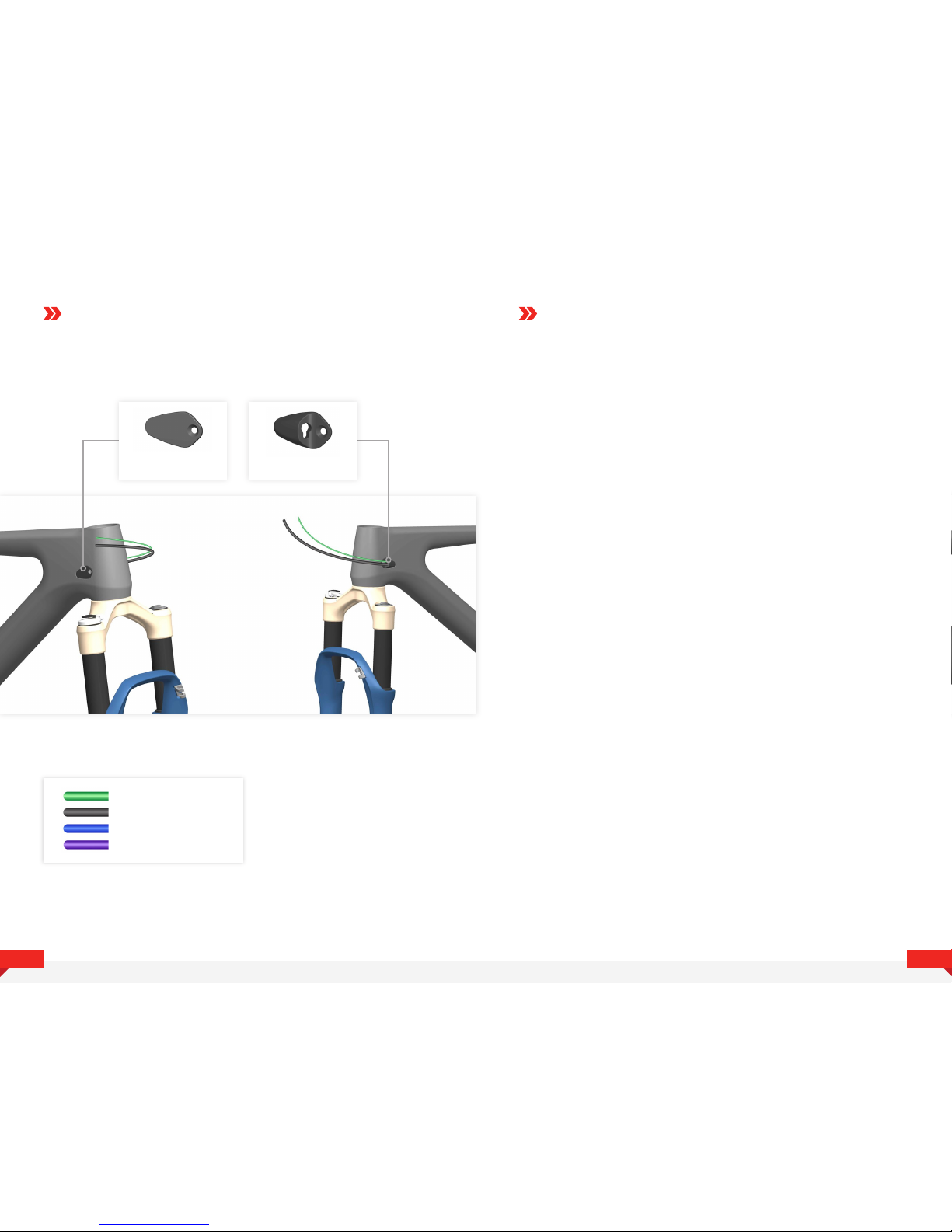

CABLE PORT CONFIGURATION
DI2 1X or 2X
CONTACT
INFORMATION
Felt Racing, LLC
12 Chrysler
Irvine, CA 92618
USA
WWW.FELTBICYCLES.COM
Felt GmbH
Industriestr. 39
26188 Edewecht
Germany
DI2 WIR E
BRAKE CABLE
DERAILLEUR CABLE
DROPPER POST CABLE
