Page 1
Paper shredder 520 HS
POWERSHRED
OPERATING INSTRUCTIONS
NOTICE D'UTILISATION
MANUAL DEL PROPIETARIO
BETRIEBSANLEITUNG
520
520 CC
®
POWERSHRED 4
80
520
520CC
520HS
Edition 03/98 1.490.999.112 1
1.490.999.112 – Edition 03/98
Page 2
520
520 CC
520 HS Paper shredder
USA
Paper shredder Fellowes 520/520 CC/520 HS .................................................. 3–8
F
Déchiqueteuse Fellowes 520/520 CC/520 HS ................................................. 9–14
E
Destructora de documentos Fellowes 520/520 CC/520 HS ........................... 15–20
D
Aktenvernichter Fellowes 520/520 CC/520 HS ............................................... 21-26
2 1.490.999.112 Edition 03/98
Page 3
520
520 CC
Paper shredder 520 HS
Contents
Contents Page
1. Important Safety Instructions.................................................................................. 4
2. Parts Identification .................................................................................................. 4
3. Technical Specifications ......................................................................................... 5
4. Supplies.................................................................................................................. 6
5. Installation .............................................................................................................. 6
6. Caution ................................................................................................................... 6
7. Operation................................................................................................................ 6
8. Malfunctions ........................................................................................................... 7
9. Maintenance ........................................................................................................... 7
10. Checklist for Inoperative Machine .......................................................................... 7
11. Warranty ................................................................................................................. 8
12. Customer Service ................................................................................................... 8
Edition 03/98 1.490.999.112 3
Page 4
520
520 CC
520 HS Paper shredder
1. Important Safety Instructions
1. Read all instructions before use.
2. Save these instructions for later use.
3. Follow all warnings and instructions marked on
the product.
4. Unplug this product from the wall outlet before
cleaning. Clean with a damp cloth using a mild
soap and water solution. (Do not use abrasives
or petroleum based cleaners.)
5. Place this product as close as possible to
power source for quick and easy unplugging.
6. Do not use this product near water.
7. This product should never be placed near or
over a radiator or heat source.
8. Operate from the type power source indicated
on the marking label. If you are not sure of the
type of power available, consult your dealer or
local electricity board.
9. Do not allow anything to rest on the power
cord. Do not place this product where people
may walk on the cord.
10. If an extension cord is used with this product,
make sure that the total of the ampere ratings
on the products plugged into the extension cord
do not exceed the extension cord ampere
rating. Also, make sure that the total of all
products plugged into the wall outlet does not
exceed 15 amps.
11. Do not attempt to service this product yourself,
as opening or removing covers may expose
you to dangerous live parts or other risks.
12. Unplug this product and refer servicing to
qualified personnel under the following
conditions:
A) When the power cord or plug is damaged or
frayed.
B) If liquid has been spilled on the product.
C) If the product has been exposed to rain.
D) If the product does not operate normally when
the operating instructions are followed.
E) If the product has been dropped or the casing
has been damaged.
13. Keep out of the reach of children.
14. This shredder should be operated only with an
operator in attendance.

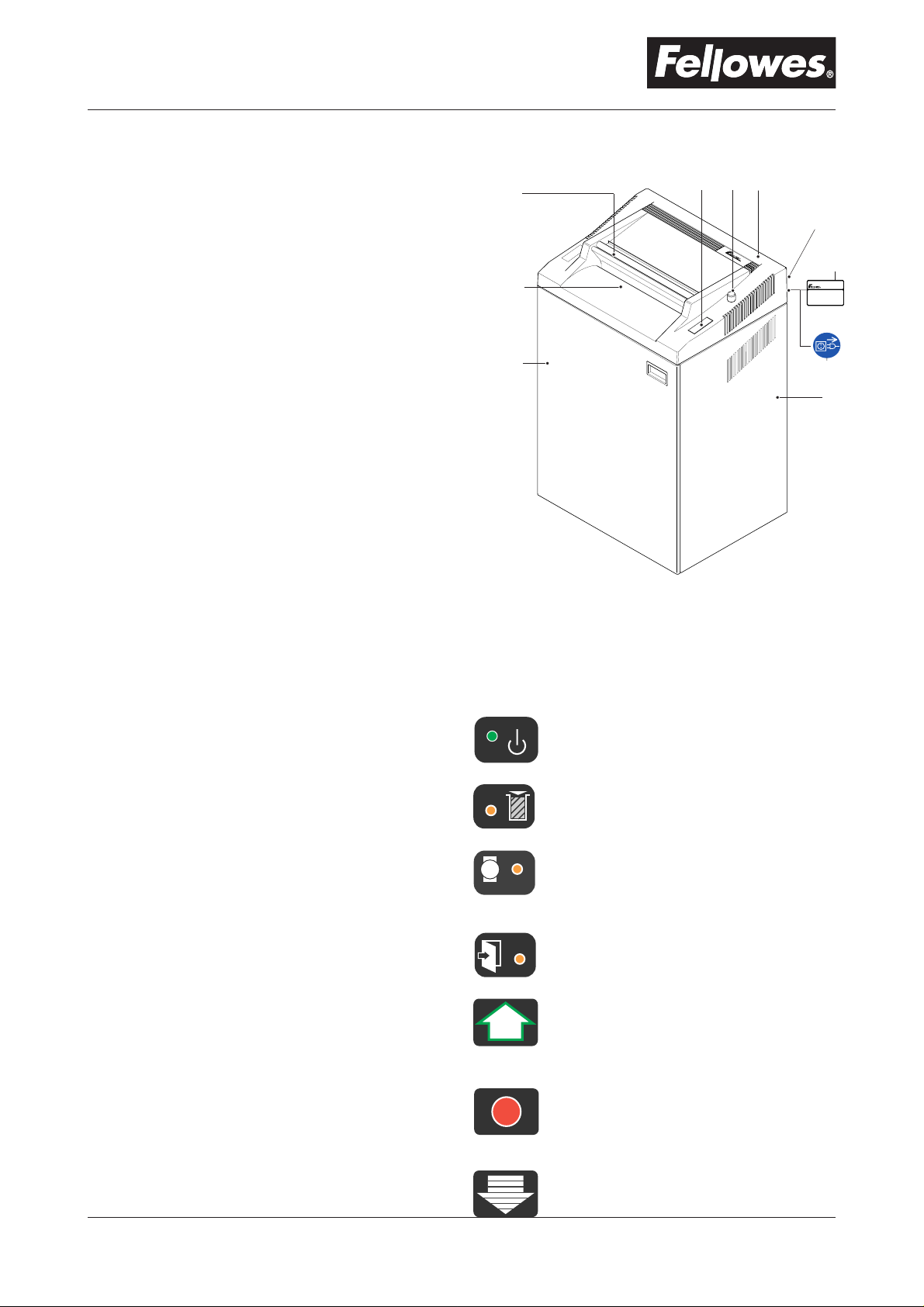

2. Parts Identification
2
1
3
10
POWERSHRED 4
80
9
8
520
520CC
520HS
1. Membrane keyboard 6. Caution label
2. Security key lock 7. Cabinet
(520HS only) 8. Cabinet access door
3. Cover 9. Paper feed opening
4. Main power switch 10. Paper guide roller
5. Serial Label
Ready for operation
green LED
Cut material bag full
red LED
Paper jam – electric motor
overloaded
red LED
Front door not closed
red LED
On
shredder is switched on – cutting system
runs forward
4
Fellowes Manufacturing Co.
1789 Norwood Avenue
R
Itasca, IL 60143 USA
Model:
Serial #:
Voltage: Motor:
Current: Manufactured:
6
7
5
Stop
cutting head stops – shredder remains
ready for operation
Reversing
cutting system runs in reverse
4 1.490.999.112 Edition 03/98
Page 5
Paper shredder 520 HS
3. Technical Specifications
Model 520 Model 520CC Model 520HS
Cutting style Strip cut Cross cut High Security
Shred size 5/32" 1/4" 5/32" x 2" 1/16" x 5/8" 1/32"x7/16"
(3.9mm) (5.8mm) (3.9 x 50mm) (1.9 x 15mm) (.78 x 11mm)
Security rating DIN 32757–1 2 2 3 4 5
*Sheet capacity -
8-1/2" x 11" - 20 lb. 28 36-38 26-28 19 11-12
A4, 70g/m
Speed 32 FPM 25 FPM 25 FPM
2
(16 lb.) 35 50 32 23 15
(143 mm/s) (100 mm/s) (100 mm/s)
520
520 CC
Cross cut
Entry width 16" 16" 16"
Motor power 1 H.P. 1 H.P. 1 H.P.
Input voltage 100 V, 50 Hz 100 V, 50 Hz 100 V, 50 Hz
(Depending on country) 115 V, 60 Hz 115 V, 60 Hz 115 V, 60 Hz
Dimensions 231/2" x 181/2" x 353/4" (595 x 470 x 918 mm)
Weight 180 lbs. (82 kg) 194 lbs. (88 kg) 194 lbs. (88 kg)
Waste container volume 41.2 gallons (156 liters)
*Ppaper DIN 19307 SM 4a – 70
Noise level In idle 60dB - Under load 68 dB strip cuts and 75 dB cross cuts
(400 mm) (400 mm) (400 mm)
(0.8 kw) (0.8 kw) (0.8 kw)
220/240 V, 50 Hz 220/240 V, 50 Hz 220/240 V, 50 Hz
Edition 03/98 1.490.999.112 5
Page 6
520
520 CC
520 HS Paper shredder
4. Supplies
– Bags for cut material
(Packed in dispenser carton, 50 or 100 bags to
a roll depending on size. Contact Fellowes or
your local Fellowes dealer for the stock number
of the bag that fits your machine.)
– Cutting block oil for cross-cut units
Stock # 35250
5. Installation
– Refer to separate set–up instructions for proper
assembly
– Operate this product only from the type of
power source indicated on the marking label
– Install the paper shredder so that the plug is
easily accessible
– Shredder must be operated only in upright
position
– Set up paper shredder so that the ventilation
slots are unobstructed. To ensure sufficient
ventilation of the shredder a minimum distance
of 4" (10 cm) to the wall or to the furniture must
be maintained.

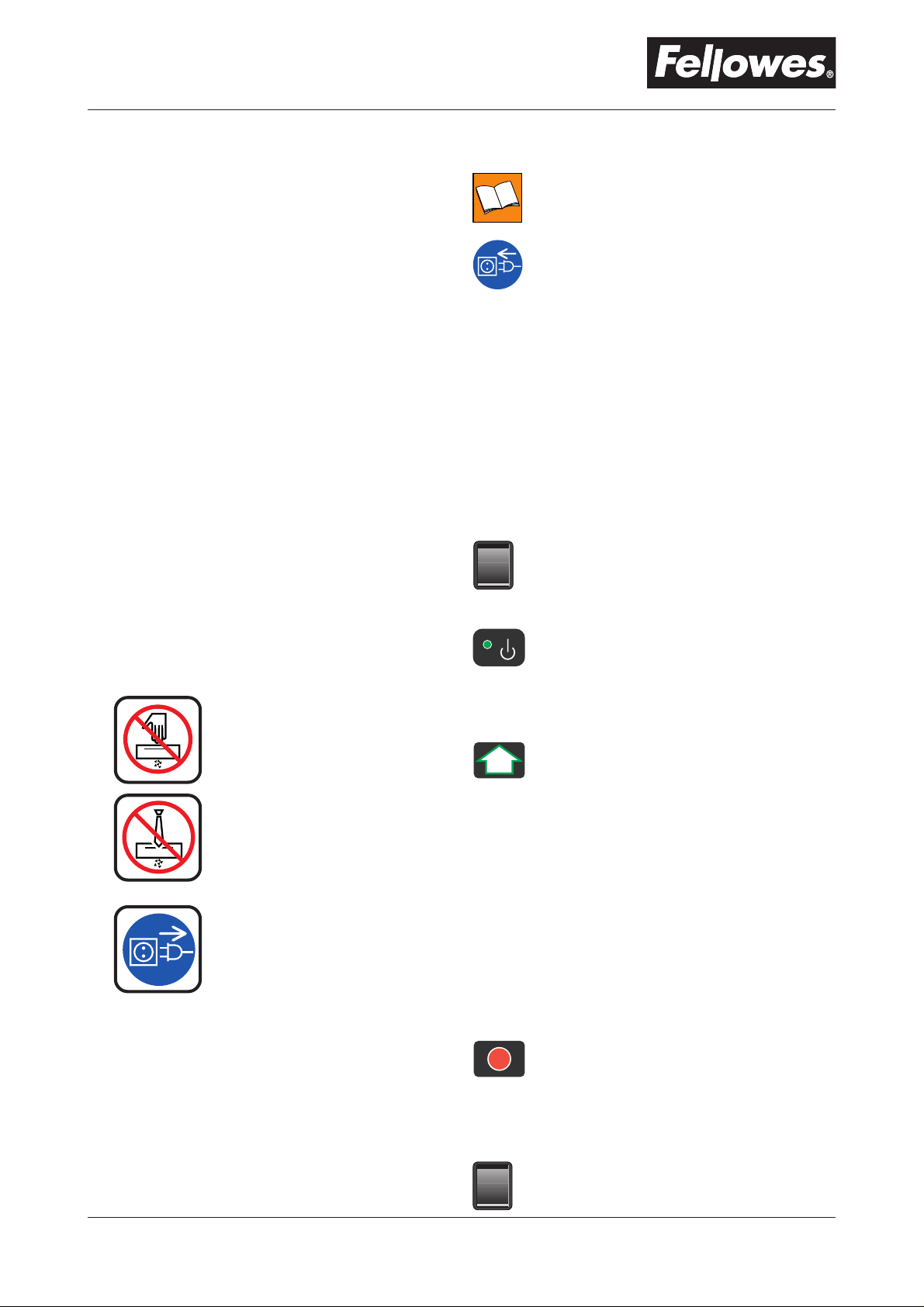

6. Caution
7. Operation
Read operating instructions before putting
shredder into operation
Insert plug in power outlet
Install waste bag for shredded material
– Open front door and completely remove
bag frame from cabinet
– Fold new bag around frame.
Allow bag to overhang frame by
appoximately 7" (20 cm).
– Slide frame with bag back into cabinet
– Close cabinet door.
Switching equipment on
– Set main power switch (located on back
I
0
of shredder) to ON (1) position.
– (On the 520 HS, the security key lock
switch must also be turned on)
Green LED lights
• Equipment is ready for operation
(standby)
Never insert hand, fingers or any
foreign objects into the feed
opening.
Serious injury may result.
Keep all loose articles of
clothing, ties, jewelery, long hair
or other loose objects away from
feed opening.
Injury may result.
Always turn off and unplug the
machine before moving,
servicing, cleaning or any other
conduct other than normal
operation.
Serious injury may result.
To shred paper
– Press green arrow button at least 4 sec
• Cutting system runs in forward direction
– Insert paper into the paper feed opening
• Shredding occurs
or
– Feed paper
• The shredding process is started by a photo–cell in the paper feeding opening
When the paper feeding opening is free again, the
cutting system automatically switches off after approx.
3 sec. and returns to standby.
When shredding is completed
– Push stop button
• Cutting system stops
• Equipment returns to "ready-to-operate"
(standby) condition
Switching equipment off
I
– Set main power switch (located on back
0
of shredder) to OFF (0) position.
6 1.490.999.112 Edition 03/98
Page 7
520
520 CC
Paper shredder 520 HS

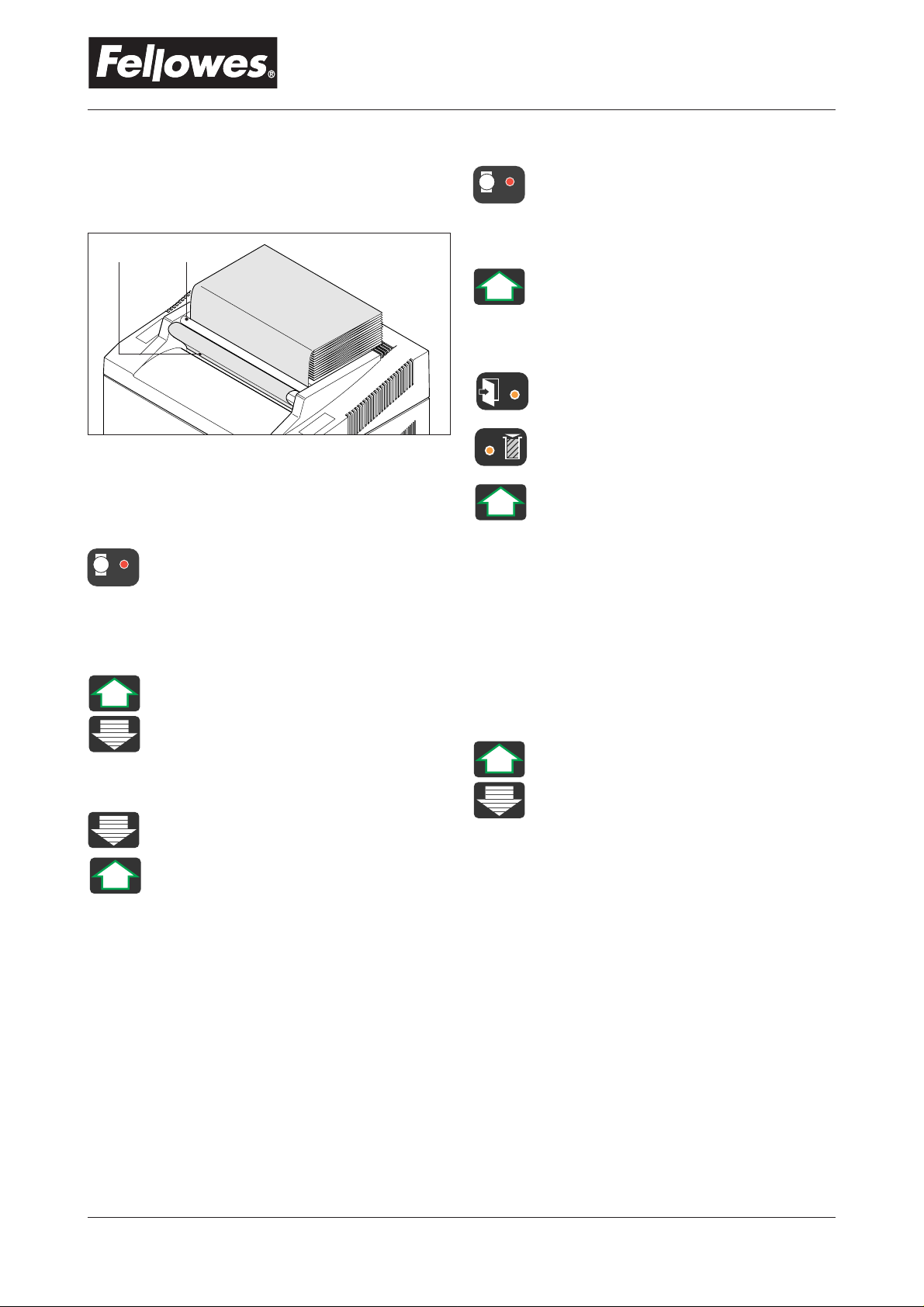

Feeding continuous forms
– Pass the leading edge of the form under
the paper guide roller (1) and into the
paper feed opening (2).
2
1
8. Malfunctions
Paper jam
Red LED on keyboard lights
• Shredder reverses automatically and
runs in this mode for a few seconds.
Electronic motor overheated
Red LED on keyboard lights
• Shredder switches off automatically.
• Allow shredder to cool down for approx.
15-20 min.
– Press green arrow button at least 4 sec
Cabinet door contact ajar / bag full
Red LED lights
• Shredder switches off automatically.
• Make sure cabinet door is properly
closed and/or empty waste container.
– Press green arrow button at least 4 sec
9. Maintenance
• Pull out jam and remove excess paper.
Caution!
Do not
material through the machine by
alternating the cutting system between
forward and reverse.
If paper jam cannot be removed
• Hold down reverse button until paper
can be pulled out of the cutting system.
• Press green arrow button at least 4 sec
• Continue shredding in smaller
quantities so as not to jam the machine
further.
or
• Continue shredding in smaller
quantities so as not to jam the machine
further.
• The shredding process is started by a
photo–cell in the paper feeding opening
attempt to force the jammed
Note:
The 520 HS
unless the jammed material has been
completely removed from the throat.
will not run
forward again
(Cross cut unit only)
– When shredding capacity drops or the
noise increases.
• Spray special cutting block oil onto
cutting system.
• Run cutting system forward and backward several times without feeding
paper.
• Continue shredding.
10. Checklist for Inoperative Machine
If the equipment does not work properly, please
check the following points first:
– Is the plug inserted?
– Is the switch turned on?
– Is the cabinet door closed?
– Is the waste receptacle full?
Empty waste bag.
– Is there a paper jam in the shredder?
See Malfunctions
– Is the motor overheated?
Switch machine off and allow motor to
cool down for approximately 15-20 min.
If none of the above applies and the equipment still
does not run, please contact our customer service
department.
Edition 03/98 1.490.999.112 7
Page 8
520
520 CC
520 HS Paper shredder
11. Warranty
FELLOWES® POWERSHRED LIMITED
WARRANTY
1 year
5 years
Fellowes® warrants this product to be free from
defects in material and workmanship for a
period of one year from the date of purchase by
the original consumer. At it's option, Fellowes
will repair or replace without charge for material
or labor, any component found to be defective
during the warranty period. Additionally, the
cutting cylinders are warranted for 5 years from
the original purchase date and will be replaced
without charge for material or labor if found by
Fellowes® to be defective.
Warranty Exclusions
The parties agree that the buyer's sole and
exclusive remedy against Fellowes® shall be for
the repair or replacement of defective parts as
provided herein. The buyer agrees that no
other remedy (including, but not limited to,
incidental or consequential damages for lost
profits, lost sales, injury to property or any other
incidental or consequential loss) shall be
available to him. This warranty shall NOT apply
and is void under the following circumstances:
1. When this product or any part thereof has been
subjected to accident, alteration, abuse, or
misuse.
2. When the original Model and Serial Number
Plate has been altered, effaced or removed.
3. When repair or service covered under this
warranty (other than routine maintenance
(as described in the
performed by personnel without the express
written consent of Fellowes®.
4. When the product has been used pursuant to
any verbal or written rental, lease or loan
agreement.
THIS WARRANTY DESCRIBED HEREIN SHALL
BE IN LIEU OF ANY OTHER WARRANTY,
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. ANY REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR
IN ADDITION TO THIS WARRANTY ARE
UNAUTHORIZED AND SHALL NOT BE BINDING
UPON FELLOWES.
on all parts and labor
parts and labor on cutting cylinders
Owner's Manual
) has been
®
12. Customer Service
United States
Fellowes Manufacturing Co.
1789 Norwood Avenue
Itasca, IL 60143
Tel.: 1-800-955-0959
Canada
Fellowes Manufacturing of Canada Ltd.
2750 John Street
Markham, Ontario L3R 2W4
Tel.: 1-800-665-4339
United Kingdom
Fellowes Manufacturing UK Ltd.
Doncaster Road
Kirk Sandall
Doncaster, South Yorkshire DN3 1HT
Tel.: 01302-885 331
Australia
Fellowes Manufacturing (Australia) Pty.Ltd.
10 Fellowes Court
Tullamarine, Victoria 3043
Tel.: (03) 9330-3211 in Melbourne
1-800-331-177 outside Melbourne
Nederland
Fellowes
P.O. Box 180
4130 Ed Vianen
Nederland
Tel.: 0347-377988
Germany
Fellowes GmbH
Dieselstraße 27
D-30827 Garbsen
Tel.: 05131-49770
France
Fellowes Lynx S.A.
194 allée de la Croix des Hormes
69250 Montanay
Tel.: 33-72-08-25-50
8 1.490.999.112 Edition 03/98
USA
Loading...
