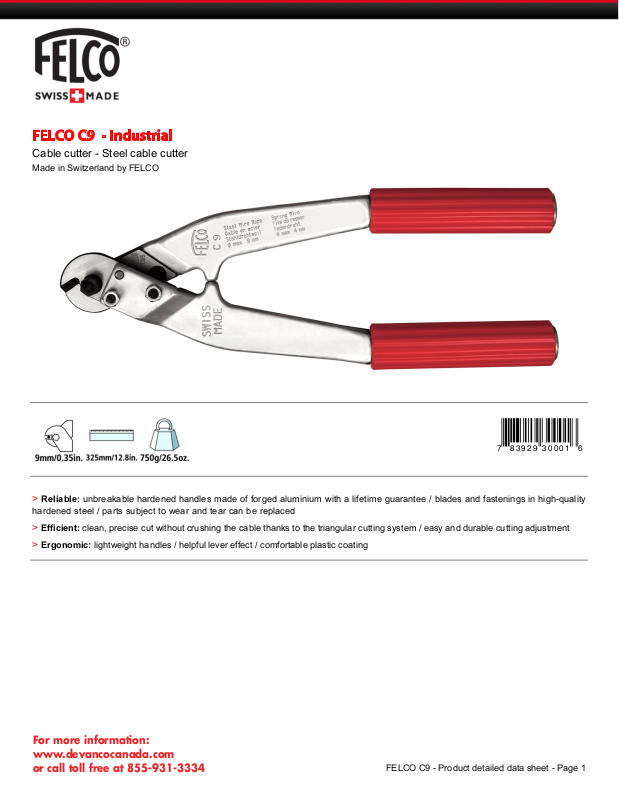

FELCO C9 - Industrial
7 8 3 9 2 9 3 0 0 0 1 6
Cable cutter - Steel cable cutter
Made in Switzerland by FELCO
> Reliable: unbreakable hardened handles made of forged aluminium with a lifetime guarantee / blades and fastenings in high-quality
hardened steel / parts subject to wear and tear can be replaced
> Efficient: clean, precise cut without crushing the cable thanks to the triangular cutting system / easy and durable cutting adjustment
> Ergonomic: lightweight handles / helpful lever effect / comfortable plastic coating
For more information:
www.devancocanada.com
or call toll free at 855-931-3334
FELCO C9 - Product detailed data sheet - Page 1
Page 2
RECOMMENDED FOR
Our recommendation ( = Recommended, = Strongly recommended, = Best fit)
Cables, wire-drawing mills
Springs industry
Electricity, telecommunications
Oil industry
Automotive, pneumatics industry
Rail transport
Gondola lifts, cable cars, ski-lifts, life-lines
Watersports
Harbour activities
Forestry Industry
Agriculture, viticulture
DIY, leisure, floral arrangements
Civil engineering, buildings
Repair and manufacturing workshops
Small hand
Average-sized hand
Large hand
Right-handed
Left-handed
FELCO C9 - Product detailed data sheet - Page 2
Page 3
CUTTING CAPACITIES
Material Maximum cutting diameter
Galvanized steel cables, textile core 9mm (0.35in)
Galvanized steel cables, steel core 8mm (0.31in)
Hard steel cables, resistance 160 kg/mm2 7mm (0.28in)
Non-oxidable steel cables, resistance 190 kg/mm2 6mm (0.24in)
Extra tough cables and strands, resistance 210 kg/mm2 5mm (0.2in)
Electric cables (copper or aluminium) with steel core) 9mm (0.35in)
Aluminum- or copper rods 9mm (0.35in)
Iron rods, resistance 60 kg/mm2 7mm (0.28in)
Tempered spring wire 3mm (0.12in)
Welded wire mesh
Rubber conveyor belt
THE POINTS OF EXCELLENCE
High-strength blades
Hardened and tempered knives for cutting the strongest of cables.
Triangular cutting action
FELCO's innovative triangular cut allows you to progressively cut cable wires and at the same
time avoid squashing of strands. Thanks to this feature, it is generally not necessary to tie the
cable before the cut.
Forged aluminum handles
Lightweight, strong and sturdy thanks to special aluminum alloys and advanced precision
forging methods. Equipment comes with a lifetime guarantee*.
FELCO C9 - Product detailed data sheet - Page 3
Page 4
ACCESSORIES
FELCO 980 FELCO 990
Maintenance product Maintenance product
Spray Grease
FELCO C9 - Product detailed data sheet - Page 4
Page 5
SPARE PARTS
7 83929 40347 2
7 83929 40351 9
7 83929 40344 1
7 83929 40345 8
7 83929 40346 5
7 83929 40342 7
7 83929 40343 4
FELCO REF. Designation Composition UCC Barcode
C9/5 Blade 1x C9/5
C9/90 Kit 1x C9/6 + 1x C9/7 + 2x C9/8
C9/2
Handle with coating
and pin
1x C9/2 + 1x C9/3 + 1x C9/4
C9/3 Coating 1x C9/3
C9/4 Pin 1x C9/4
C9/10 Hexagon screw 1x C9/10
C9/11 Counter nut 1x C9/11
FELCO C9 - Product detailed data sheet - Page 5
Page 6
MAINTENANCE
PARTS REPLACEMENT
Oiling
After cleaning, it is advisable to oil the tool so as to protect it from corrosion. The oil will also
unjam the tool.
Changing the blades
If the tool is no longer cutting properly and has already been resharpened on a number of
occasions, or when its cutting edge is no longer holding firm when cutting, change the blades!
HOW TO ORDER REPAIR PARTS
DEVANCO CANADA
19192 HAY ROAD, UNIT Q
SUMMERSTOWN, ON K0C 2E0
TOLL FREE: 855-931-3334
www.devancocanada.com
WHEN ORDERING REPAIR PARTS
PLEASE SUPPLY THE FOLLOWING INFORMATION:
3 PART NUMBER
3 DESCRIPTION
3 MODEL NUMBER
