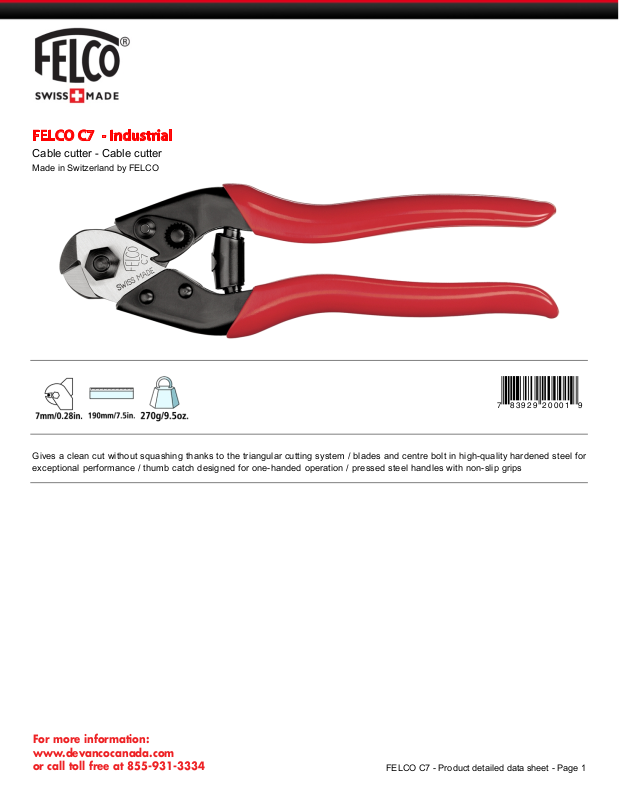

FELCO C7 - Industrial
7 8 3 9 2 9 2 0 0 0 1 9
Cable cutter - Cable cutter
Made in Switzerland by FELCO
Gives a clean cut without squashing thanks to the triangular cutting system / blades and centre bolt in high-quality hardened steel for
exceptional performance / thumb catch designed for one-handed operation / pressed steel handles with non-slip grips
For more information:
www.devancocanada.com
or call toll free at 855-931-3334
FELCO C7 - Product detailed data sheet - Page 1
Page 2
RECOMMENDED FOR
Our recommendation ( = Recommended, = Strongly recommended, = Best fit)
Cables, wire-drawing mills
Springs industry
Electricity, telecommunications
Oil industry
Automotive, pneumatics industry
Gondola lifts, cable cars, ski-lifts, life-lines
Aeronautics
Watersports
Harbour activities
Forestry Industry
Agriculture, viticulture
Packaging, unpacking, strips
DIY, leisure, floral arrangements
Cinema, theatre, events
Administration, police, customs
Civil engineering, buildings
Repair and manufacturing workshops
Small hand
Average-sized hand
Large hand
Right-handed
Left-handed
FELCO C7 - Product detailed data sheet - Page 2
Page 3
CUTTING CAPACITIES
Material Maximum cutting diameter
Galvanized steel cables, textile core 7mm (0.28in)
Galvanized steel cables, steel core 6mm (0.24in)
Hard steel cables, resistance 160 kg/mm2 5mm (0.2in)
Non-oxidable steel cables, resistance 190 kg/mm2 4mm (0.16in)
Extra tough cables and strands, resistance 210 kg/mm2 3mm (0.12in)
Electric cables (copper or aluminium) with steel core) 7mm (0.28in)
Aluminum- or copper rods 5mm (0.2in)
Iron rods, resistance 60 kg/mm2 4mm (0.16in)
Tempered spring wire 2.5mm (0.1in)
Welded wire mesh
Rubber conveyor belt
THE POINTS OF EXCELLENCE
High-strength blades
Hardened and tempered blades for cutting the strongest of cables.
Triangular cutting action
FELCO's innovative triangular cut allows you to progressively cut cable wires and at the same
time avoid squashing of strands. Thanks to this feature, it is generally not necessary to tie the
cable before the cut.
FELCO C7 - Product detailed data sheet - Page 3
Page 4
ACCESSORIES
FELCO 902 FELCO 903 FELCO 910 FELCO 912
Sharpening tool Sharpening tool Holster Holster
Sharpening stone Sharpener Leather - With belt loop and clip Leather - With belt clip
FELCO 913 FELCO 980 FELCO 990
Holster Maintenance product Maintenance product
In mock leather - With belt loop Spray Grease
FELCO C7 - Product detailed data sheet - Page 4
Page 5
SPARE PARTS
7 8 3 9 2 9 4 0 3 3 9 7
7 8 3 9 2 9 4 0 3 4 0 3
7 8 3 9 2 9 4 0 3 4 1 0
7 8 3 9 2 9 4 0 3 3 8 0
FELCO REF. Designation Composition UCC Barcode
C7/35 Coating 1x C7/35
C7/4 Bolt 1x C7/4
MAINTENANCE
C7/5 Counter nut 1x C7/5
C7/10 Spring 1x C7/10
Oiling
After cleaning, it is advisable to oil the tool so as to protect it from corrosion. The oil will also
unjam the tool.
For more information:
www.devancocanada.com
or call toll free at 855-931-3334
FELCO C7 - Product detailed data sheet - Page 5
