Feitian Technologies FTEPASS User Manual

ePass2003

User Guide

V1.1

Feitian Technologies Co., Ltd.

Website: www.FTsafe.com

Revision History:

Date Revision Description

May. 2011 V1.0 Release of the first version

Sept. 2011 V1.1 Update some pictures and text

ePass2003 User Guide

i

ePass2003 User Guide

Software Developer’s Agreement

All Products of Feitian Technologies Co., Ltd. (Feitian) including, but not limited to, evaluation copies, diskettes,

CD-ROMs, hardware and documentation, and all future orders, are subject to the terms of this Agreement. If you do

not agree with the terms herein, please return the evaluation package to us, postage and insurance prepaid, within

seven days of their receipt, and we will reimburse you the cost of the Product, less freight and reasonable handling

charges.

1. Allowable Use – You may merge and link the Software with other programs for the sole purpose of protecting

those programs in accordance with the usage described in the Developer’s Guide. You may make archival copies

of the Software.

2. Prohibited Use – The Software or hardware or any other part of the Product may not be copied, reengineered,

disassembled, decompiled, revised, enhanced or otherwise modified, except as specifically allowed in item 1.

You may not reverse engineer the Software or any part of the product or attempt to discover the Software’s

source code. You may not use the magnetic or optical media included with the Product for the purposes of

transferring or storing data that was not either an original part of the Product, or a Feitian provided enhancement

or upgrade to the Product.

3. Warranty – Feitian warrants that the hardware and Software storage media are substantially free from significant

defects of workmanship or materials for a time period of twelve (12) months from the date of delivery of the

Product to you.

4. Breach of Warranty – In the event of breach of this warranty, Feitian’s sole obligation is to replace or repair, at the

discretion of Feitian, any Product free of charge. Any replaced Product becomes the property of Feitian.

Warranty claims must be made in writing to Feitian during the warranty period and within fourteen (14) days after

the observation of the defect. All warranty claims must be accompanied by evidence of the defect that is deemed

satisfactory by Feitian. Any Products that you return to Feitian, or a Feitian authorized distributor, must be sent with

freight and insurance prepaid.

EXCEPT AS STATED ABOVE, THERE IS NO OTHER WARRANTY OR REPRESENTATION OF THE PRODUCT, EXPRESSED OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE.

5. Limitation of Feitian’s Liability – Feitian’s entire liability to you or any other party for any cause whatsoever,

whether in contract or in tort, including negligence, shall not exceed the price you paid for the unit of the Product

that caused the damages or are the subject of, or indirectly related to the cause of action. In no event shall

Feitian be liable for any damages caused by your failure to meet your obligations, nor for any loss of data, profit or

savings, or any other consequential and incidental damages, even if Feitian has been advised of the possibility of

damages, or for any claim by you based on any third-party claim.

1

ePass2003 User Guide

6. Termination – This Agreement shall terminate if you fail to comply with the terms herein. Items 2, 3, 4 and 5

shall survive any termination of this Agreement.

2

ePass2003 User Guide

Contents

Chapter 1 RunTime Installation ................................................................................................................ 4

1.1 Supported Platform ....................................................................................................................................... 4

1.2 Preparing for Installing ePass2003 ................................................................................................................. 4

1.3 Installing ePass2003 Runtime ........................................................................................................................ 4

1.4 Uninstalling ePass2003 Runtime .................................................................................................................... 8

Chapter 2 ePass2003 Token Manager ....................................................................................................... 11

2.1 Prerequisite .................................................................................................................................................. 11

2.2 Overview ...................................................................................................................................................... 11

2.2.1 Interface without USB Key Insertion ............................................................................................................................ 11

2.2.2 Interface with USB Key Insertion .................................................................................................................................. 12

2.2.3 Interface Buttons .......................................................................................................................................................... 12

2.3 Login............................................................................................................................................................. 12

2.4 Certificate Management .............................................................................................................................. 14

2.4.1 Viewing Certificate Information ................................................................................................................................... 15

2.4.2 Importing ...................................................................................................................................................................... 16

2.4.3 Exporting ...................................................................................................................................................................... 18

2.4.4 Deletion ........................................................................................................................................................................ 19

2.5 Changing Token Name ................................................................................................................................. 20

2.6 Changing User PIN ....................................................................................................................................... 20

2.7 Unlocking (Admin Version Only) .................................................................................................................. 24

2.8 Initializing (Admin Version Only) .................................................................................................................. 25

2.9 Changing SO PIN (Admin Version Only) ....................................................................................................... 26

Chapter 3 Windows PIN Management ..................................................................................................... 28

3.1 Overview ...................................................................................................................................................... 28

3.2 EnterSafe Minidriver PIN Management for Windows ................................................................................. 28

3.2.1 Changing a User PIN ..................................................................................................................................................... 28

3.2.2 Unblocking EnterSafe Minideriver ................................................................................................................................ 30

Appendix: Terms and Abbreviations ............................................................................................................. 38

3

Chapter 1 RunTime Installation

1.1 Supported Platform

Windows Platform:

 Windows 2000

 Windows XP x86/x64

 Windows 2003 x86/x64

 Windows Vista x86/64

 Windows 2008 x86/x64

 Windows 7 x86/x64

ePass2003 User Guide

Linux

Mac OS

1.2 Preparing for Installing ePass2003

Before installing ePass2003 Runtime, make sure the following requirements are satisfied:

 Your operating system is one in the above list

 Your computer has at least one USB port available

 Your BIOS supports the USB device, and USB support has been enabled in CMOS settings

 USB extension or hub available (optional)

 ePass2003 Token available

1.3 Installing ePass2003 Runtime

1.

Before you can use the ePass2003, you must install the Runtime library. Execute ePass2003-Setup.exe.

The following select language interface appears:

4

Figure 1 select language

2.

After select language, click “OK”, the following welcome interface appears:

ePass2003 User Guide

Click “Next”, the following select install path interface appears:

3.

Figure 2 welcome interface

5

ePass2003 User Guide

Figure 3 select install path

Click “Next”, the following choose CSP interface appears:

4.

Figure 4 choose CSP

6

ePass2003 User Guide

Note: ePass2003 supports Private CSP and Microsoft CSP.

For older windows systems such as Windows2000/XP, users must install patch KB909520 to enable the

option ‘Microsoft CSP’.

 Private CSP is provided by FEITIAN, the CSP name is “EnterSafe ePass2003 CSP v1.0”.

 Microsoft CSP means Microsoft Base CSP (Microsoft Base Smart Card Crypto Provider), it supports Minidriver,

and user can install the middleware through system update, no redundant installation package, no

complicated installation process; we also have installation package for the user who doesn’t have the

Internet. But please pay attention, from Vista and above, Microsoft has integrated Minidriver into Windows

system, for XP and below, Windows system doesn’t install Base CSP (Microsoft CSP option disable), user can

add Base CSP through system patch KB909520.

5.

After select CSP, click “Install” to continue, the following interface appears:

6.

After install process finish, the following interface appears:

Figure 5 install process

7

ePass2003 User Guide

Figure 6 install completed

7.

Click “Finish” to finish the installation.

1.4 Uninstalling ePass2003 Runtime

After install the ePass2003 runtime, you can uninstall it through following methods:

 Use “Add or Remove Programs” to uninstall

Open “start” menu  select “Control Panel”, double click “Add or Remove Programs”, choose “ePass2003

(Remove only)” in the “Currently installed programs” list, then click “Change/Remove”.

 Uninstall it from start menu

Open “start” menu  “All Programs”  “EnterSafe”  “ePass2003”  “Uninstall ePass2003”.

1.

Both of above two methods can launch the Uninstall Wizard of ePass2003, see following interface:

8

ePass2003 User Guide

Figure 7 uninstall wizard interface

2.

Click “Uninstall”, the following uninstall process interface appears:

Figure 8 uninstall process

9

3.

After uninstall process finish, the following interface appears:

ePass2003 User Guide

Figure 9 uninstall completed

4.

Click “Finish” to close uninstall wizard, now ePass2003 has been already uninstalled from your computer.

10

ePass2003 User Guide

Chapter 2 ePass2003 Token Manager

2.1 Prerequisite

Because the Manager is based on the middleware of ePass2003 and it needs to access the token, you must have

installed ePass2003 product on your computer before using the Manager.

The token must be PKI initialized before use.

2.2 Overview

2.2.1 Interface without USB Key Insertion

You can find the shortcut for the Manager by clicking Start -> All Programs -> EnterSafe -> ePass2003. Click the

shortcut to start the Manager. The following interface appears:

Figure 10 USB Key Not Inserted

11

ePass2003 User Guide

2.2.2 Interface with USB Key Insertion

Connect ePass2003 to a USB port on your computer. The Manager will recognize it immediately as follows:

Figure 11 USB Key Inserted

Note: The total private memory space and the free private memory space refer to the PIN protected spaces. Since

the private key is extremely sensitive and it is managed by the COS, it doesn’t show the total private memory

space and the free private memory space.

2.2.3 Interface Buttons

The buttons on the interface are: Login, Import, Export, Delete, Change User PIN, Change USB Key Name, View

Certificate Information and Exit.

2.3 Login

Select a USB key from the list on the right to which you want to log in and click Login. The following interface

appears:

12

ePass2003 User Guide

Figure 12 Login dialog box

Note: When the PIN input dialog is displayed, the Manager will start the safe desktop. In this status, only the box

is highlighted. Except input in the box, most of other operations are disabled.

Optionally, you can use a soft keyboard by checking Soft keyboard option here to avoid monitoring of a potential

Trojan program.

Figure 13 Soft Keyboard

Note: The physical keyboard is disabled when you are using the soft keyboard.

After you enter a proper PIN and click OK, the interface as shown in Figure 5 appears. A token list is displayed on

the top. Below are the properties and their values. By clicking Hide Details or More Details button, you can hide

the details or show them. After you have logged in, you can view not only the public data but the private data. In

addition, the Login button changes to Log out button. To securely log out, click this button.

13

ePass2003 User Guide

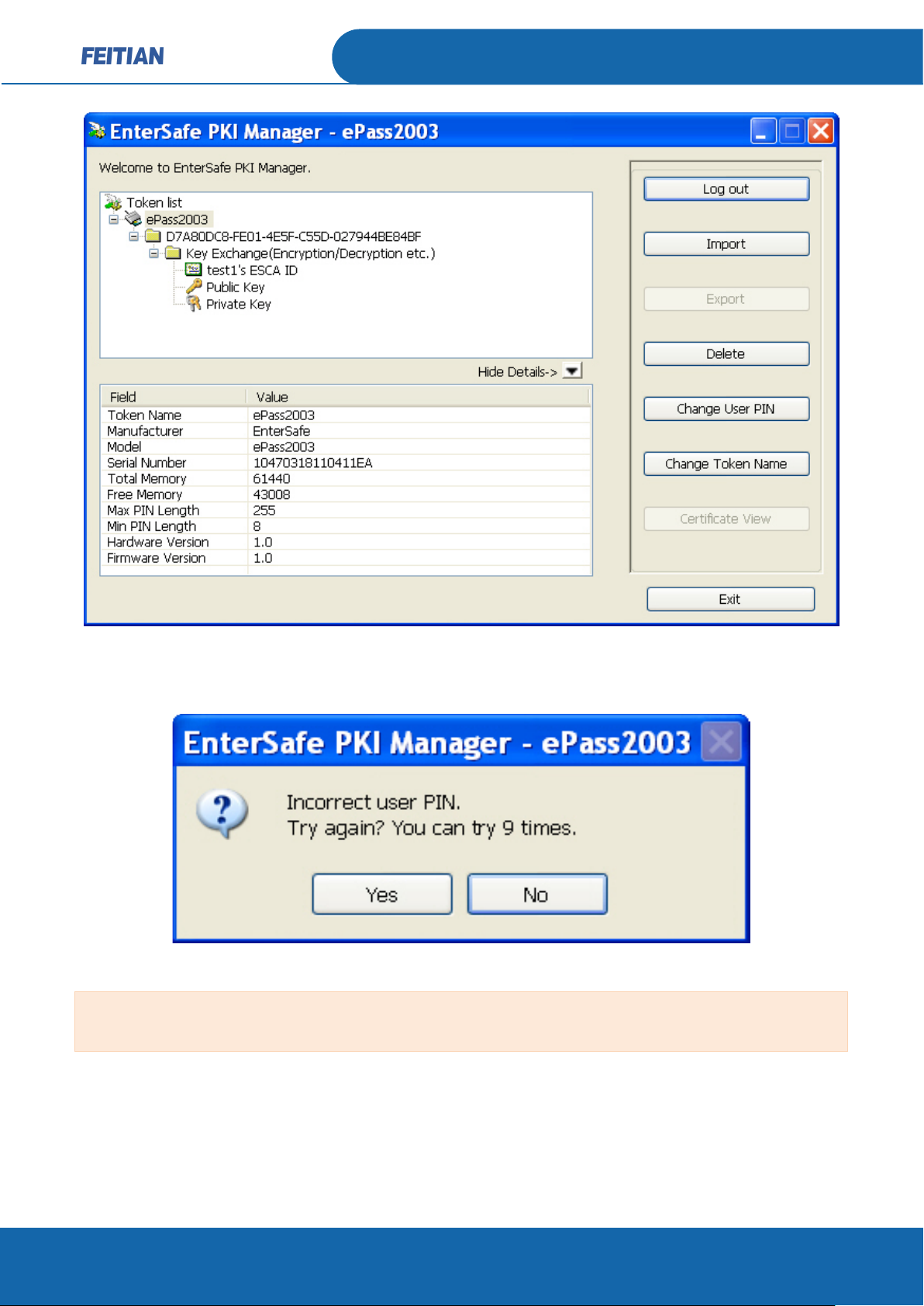

Figure 14 Logged In

If you type an incorrect password in the PIN input box, the following interface appears:

Figure 15 Incorrect PIN Prompt

Note: There is a limit on the number of incorrect PIN inputs. If this number reaches 9, the token will be locked.

You cannot perform any operations with it in this case.

2.4 Certificate Management

After you have logged into the Manager, you can view certificate information, import a certificate, delete a

14

ePass2003 User Guide

certificate etc.

2.4.1 Viewing Certificate Information

Click the “+” on the left side of a container (folder icon) in the token list or double-click the icon to

1.

display its content. Click the “+” on the left side of a certificate icon to display the key-pair. When a certificate is

selected, the Certificate View button is enabled.

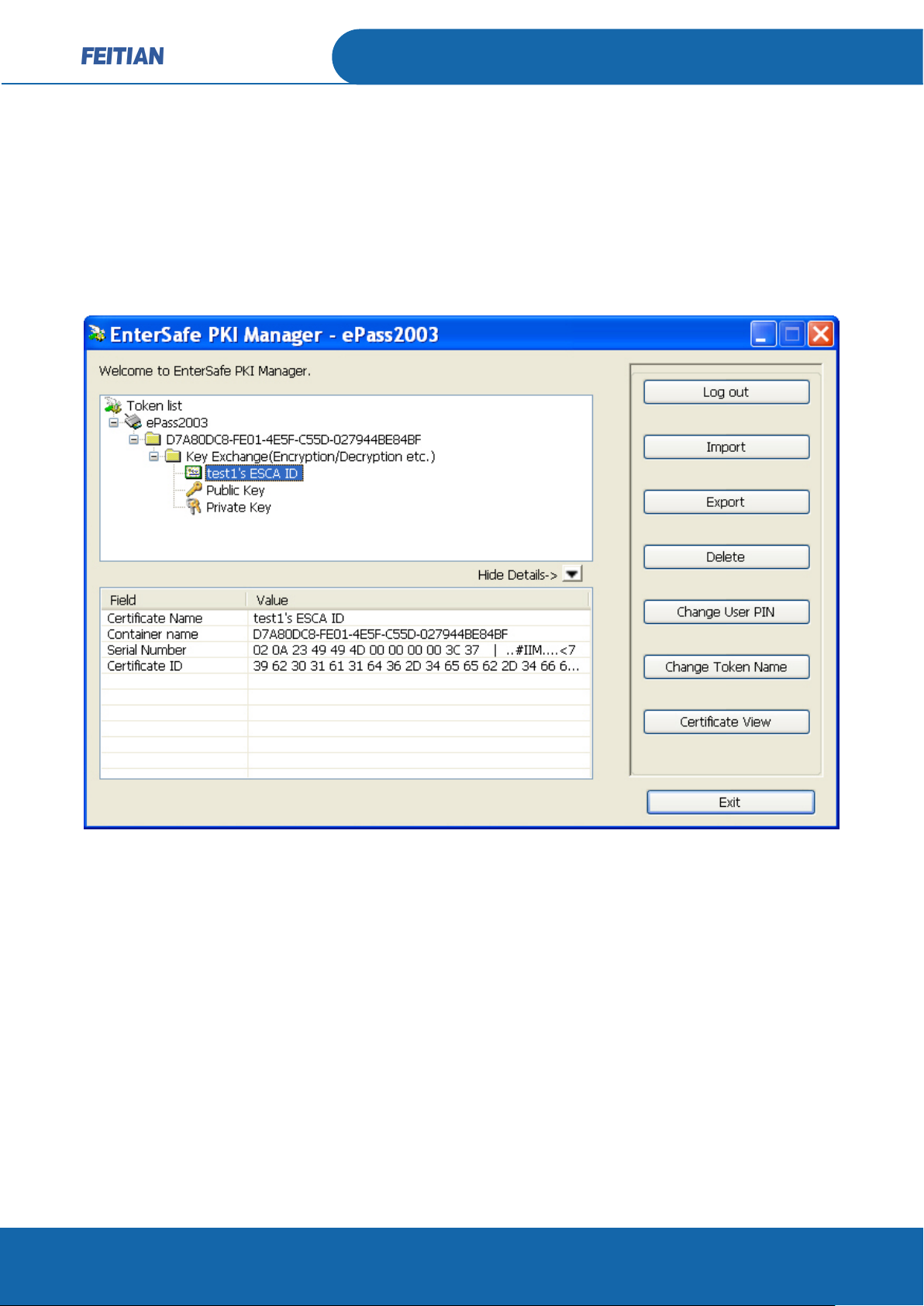

Figure 16 V iewing Certificate Information

By clicking Certificate View button or double-clicking a certificate icon, the following dialog box appears:

2.

15

ePass2003 User Guide

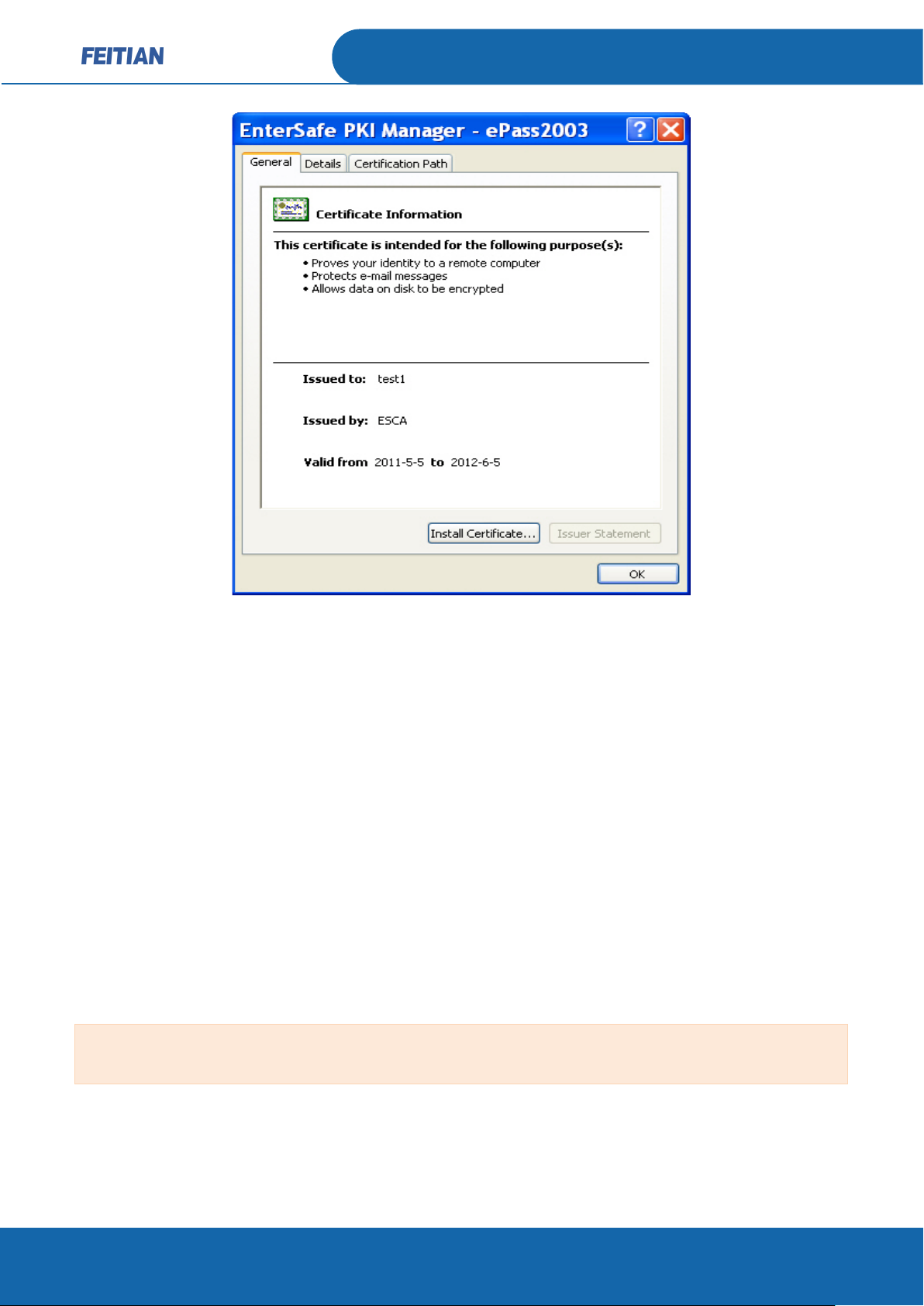

Figure 17 Certificate Information

You can view the information of your interest.

2.4.2 Importing

Currently, ePass2003 supports the following certificate types: P12, PFX, P7B, CRT and CER. The P12 and PFX types

contain a key-pair (a public key and a private key), while the P7B, CRT and CER types do not. The PFX and CER

types are used as examples below.

2.4.2.1 Importing PFX Certificate

Click Import button in the main interface of the Manager. The following interface appears. Click Browse button to

choose a PFX certificate to be imported. If necessary, enter a password below. You are allowed to create a

container or select a container for the certificate. Since the PFX certificate consists of a public key and a private key,

it can be used for both exchanging and signing. You should specify a purpose for the certificate. Click OK.

Note: Two certificates for different purposes can be stored in a single container. When importing a certificate to

an existing container, the existing certificate for the same purpose in the container will be replaced if applicable.

16

ePass2003 User Guide

Figure 18 Certificate Import

2.4.2.2 Importing P7B Certificate

Click Import button in the main interface of the Manager. The following interface appears. Click Browse button to

choose a P7B certificate to be imported. You must create a container to store the certificate. Since the P7B

certificate does not contain a key-pair, it can only be used for exchanging. Click OK.

17

ePass2003 User Guide

Figure 19 Certificate Import

2.4.3 Exporting

You can export a certificate from the token to a file.

From the tree view in the main interface of the Manager, choose the certificate to be exported and click Export

button. A dialog box appears. Specify a path to the certificate file and its name.

18

Figure 20 Certificate Export Path

Click Save. If the operation has succeeded, the following message will appear:

ePass2003 User Guide

Figure 21 Successful Export

Note: The private/public key-pair cannot be exported.

2.4.4 Deletion

From the tree view of the main interface of the Manager, choose the certificate you want to delete and

1.

click Delete. The following interface appears:

Figure 22 Deleting Certificate

19

ePass2003 User Guide

2.

Click Yes to delete the selected certificate if you do want.

By the same way, you can delete the keys or containers in ePass2003. If you select ePass2003 and click Delete, all

containers, certificates and keys in the token will be deleted.

2.5 Changing Token Name

Generally, the token is distinguished by serial number. For intuitive purpose, the token can be given a common

name.

Click Change Token Name button. The following interface appears:

1.

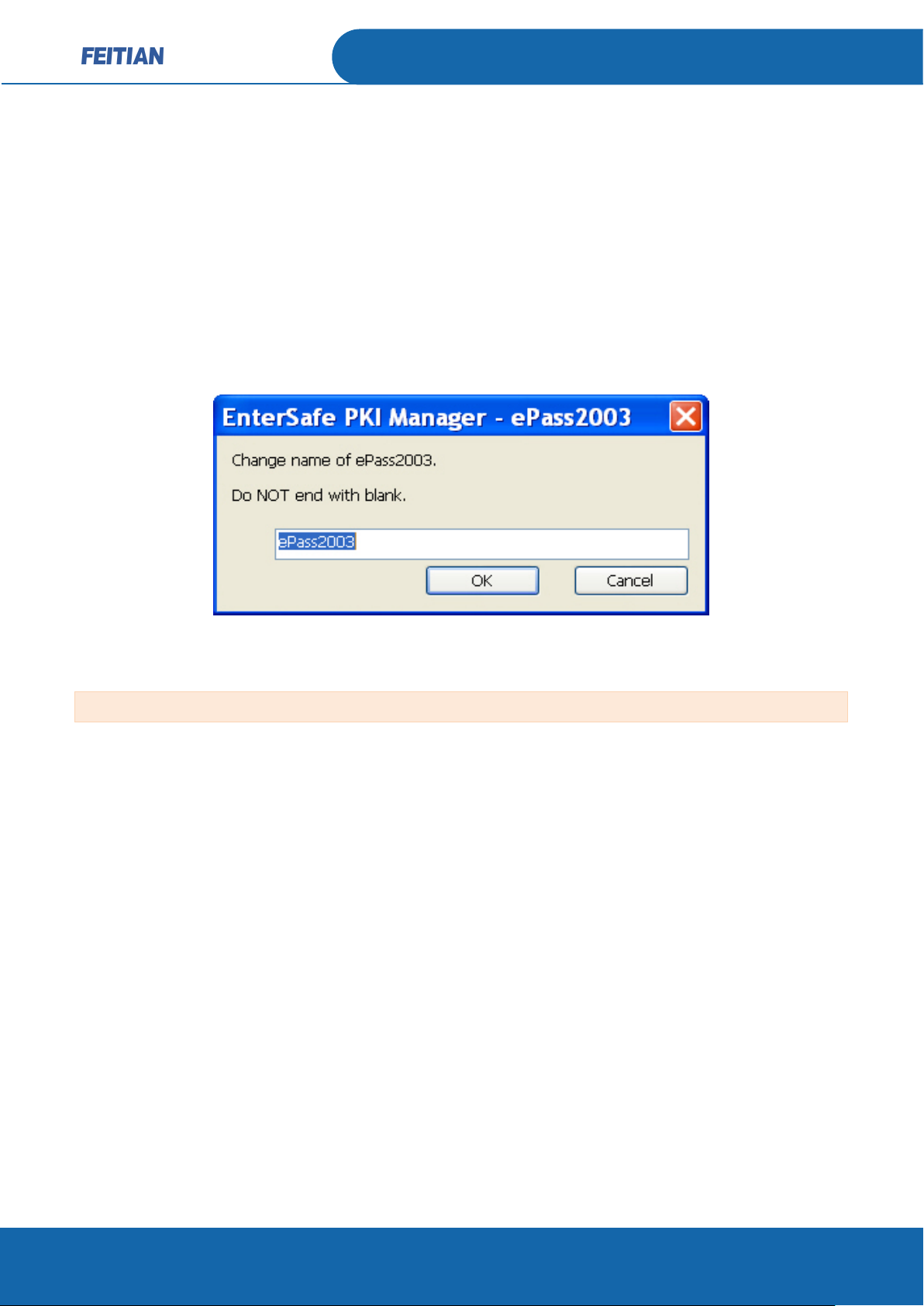

Figure 23 Changing Token Name

2.

Enter a name for the token and click OK.

Note: At most a 32-character name can be provided.

2.6 Changing User PIN

You can change the PIN of your token. In the main interface of the Manager, click Change User PIN button. The

following interface appears. Enter the old and new PINs and confirm the new PIN. Click OK.

20

Figure 24 Changing User PIN

ePass2003 User Guide

You can also enter the PINs by a soft keyboard. To do so, check Soft keyboard.

Figure 25 Soft Keyboard Input

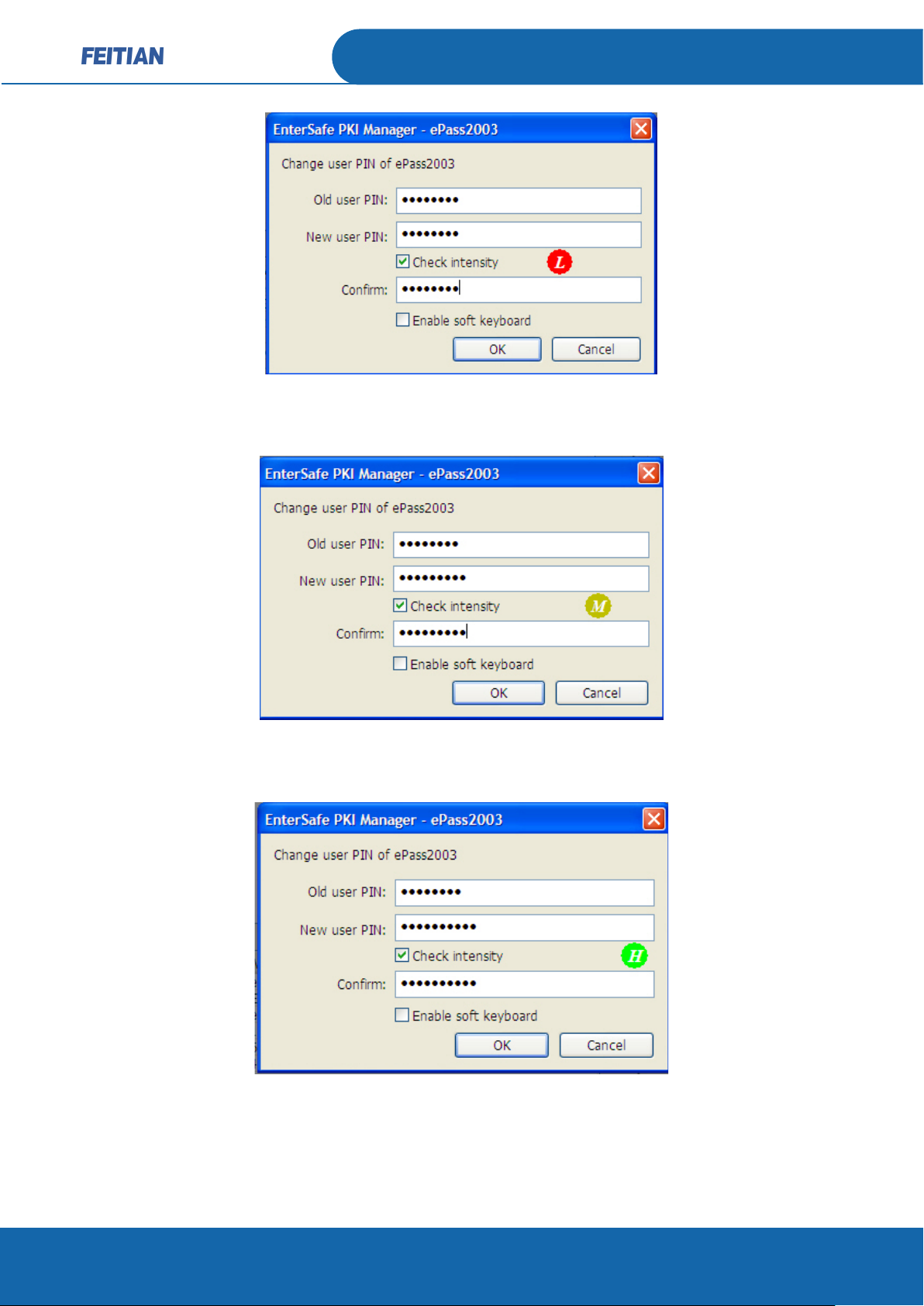

You can check Check intensity option to get aware of the security strength of the PIN you have set. “L” surrounded

by red means “Low”.

21

Figure 26 Low Strength

If the strength is higher, the following interface appears:

ePass2003 User Guide

Figure 27 Medium Strength

We recommend long PINs made up of lower and upper-case letters, numbers and special characters.

Figure 28 High Strength

By clicking OK, the following interface may appear:

22

ePass2003 User Guide

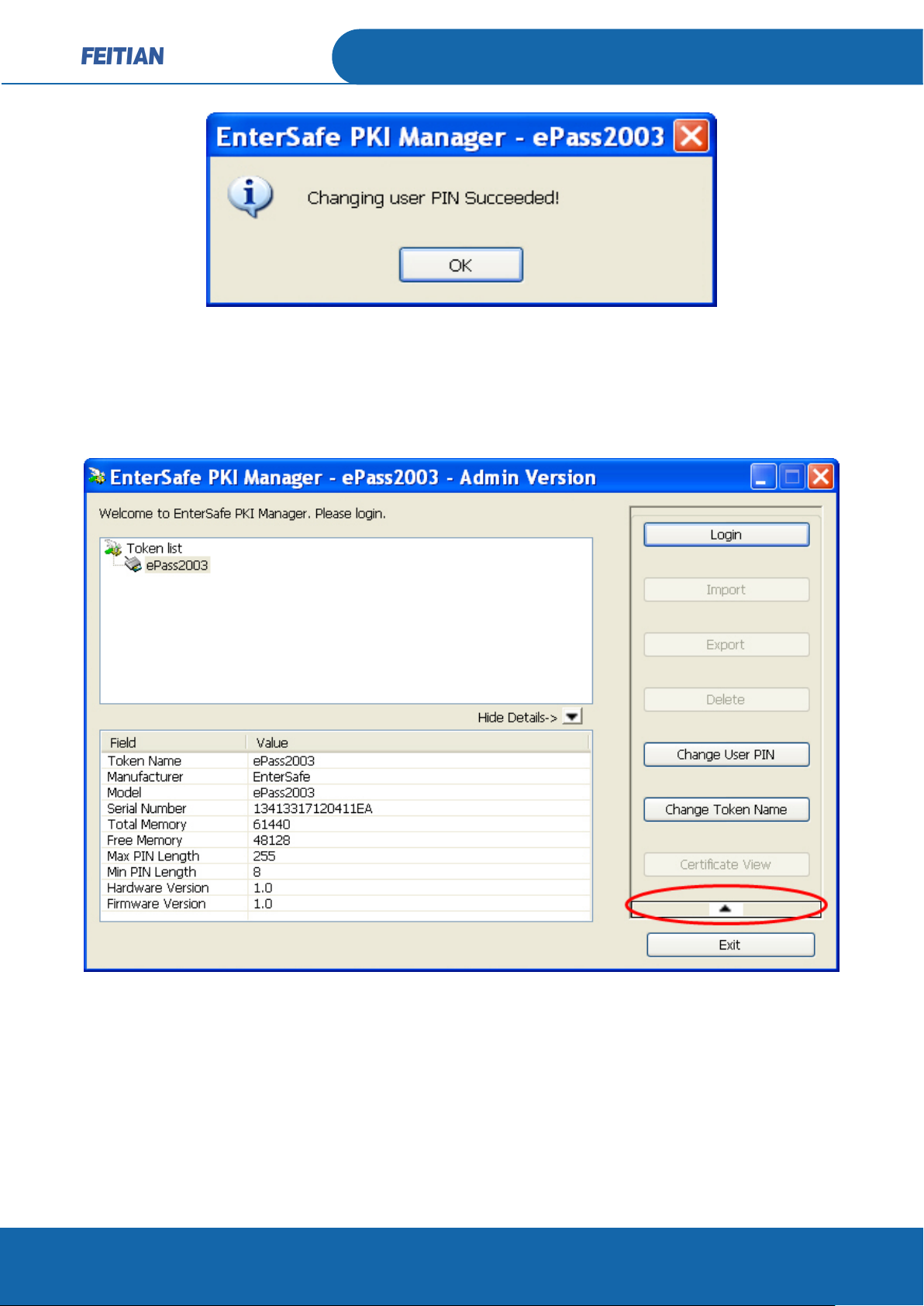

Figure 29 PIN Changed

The above description is for the user version of Manager. The admin version incorporates some additional

functions.

The main interface includes a triangle button for switching buttons.

Figure 30 Admin Version – Main Interface 1

Click this button. The following interface appears:

23

ePass2003 User Guide

Figure 31 Admin Version – Main Interface 2

2.7 Unlocking (Admin Version Only)

The Admin version can be used to unlock a token.

Click Unlock button in the main interface. The following interface appears:

Figure 32 Unlock Dialog Box

You can use a soft keyboard to enter PINs. If you select Soft keyboard option, the following interface appears:

24

ePass2003 User Guide

Figure 33 Soft Keyboard

You can also select Check intensity option to get aware of the security strength of the PIN you have set.

Enter a SO PIN and type and confirm a new PIN. Click OK. The following interface may appear:

Figure 34 Unlocking Succeeded

2.8 Initializing (Admin Version Only)

Click Initialize button in the main interface. The following interface appears:

25

ePass2003 User Guide

Figure 35 Initialization Dialog Box

After completing all parameters, click OK. The following prompt is displayed:

Figure 36 Confirming Initialization

Click Yes to start initializing operation. If the operation is performed successfully, the following interface appears:

Figure 37 Successful Initialization

2.9 Changing SO PIN (Admin Version Only)

Click Change SO PIN in the main interface. The following interface appears:

26

ePass2003 User Guide

Figure 38 Changing SO PIN

Use a soft keyboard to avoid potential attacks. If you select Soft keyboard option, the following interface appears:

Figure 39 Changing SO PIN Using Soft Keyboard

You can also select Check intensity option to get aware of the security strength of the SO PIN you have set.

Enter the old SO PIN, a new SO PIN and confirm the new PIN. Click OK. If the operation is successful, the following

interface appears:

Figure 40 SO PIN Changed

27

ePass2003 User Guide

Chapter 3 Windows PIN Management

3.1 Overview

EnterSafe Minidriver is a new smart card minidriver developed by EnterSafe according to Microsoft Windows

Smart Card Framework.

The new Windows smart card architecture leverages the fact that the cryptography required in common at the top

is separate from the unique smart card hardware interfaces at the bottom. Windows now has a simple smart card

interface layer, called smart card minidriver, which leverages common cryptographic components now included in

the Windows platform.

The cryptography for smart cards has been implemented both in the legacy Cryptography API as well as the

Cryptography API Next Generation (CNG) in Microsoft Windows V ista™ and 2008. The CSP implementation for

CAPI is called the Microsoft Base Smart Card Cryptographic Service Provider, and the CNG implementation is called

the Microsoft Smart Card Key Storage Provider. The Base CSP is not supported natively in those legacy Operating

Systems, but it is available as Microsoft Windows Update # KB909520.

Base CSP and KSP provide the common software cryptographic portions, while the minidriver of a given smart

card compliant with this architecture simply plugs in to provide access to the hardware and software of that

particular smart card.

From an application developer perspective, the Base CSP, KSP and Minidriver interfaces provide a common way to

access smart card features, regardless of the card type.

For users, the new architecture includes support for all preexistent smart card scenarios, and it also provides new

tools for the management of the Personal Identification Number (PIN).

3.2 EnterSafe Minidriver PIN Management for Windows

3.2.1 Changing a User PIN

Generally, the User PIN is a password used to protect the data on the token. If a user operation (Windows logon,

email signature, email encryption, VPN access, etc.) should access the Private Memory, the user will be asked for a

User PIN.

It is recommended that users should often change their PIN to better protect the data on the token. In order to

allow users to change the value of their PIN, several interfaces are available to do so in Windows Vista/2008 and in

28

ePass2003 User Guide

legacy versions of Windows. Users can change the PIN as described below.

3.2.1.1 Changing a User PIN with Windows 2000, XP or Server 2003

Before changing a user PIN with Windows 2000, XP or 2003, users should download and install the update

package # KB909520 to enable the Smart Card PIN Tool. After installing the update package, users can use the PIN

Tool to change a User PIN as follows:

1.

Select the Option Start/Run and type Pi n Tool . The following dialog box appears.

Figure 41 Smart Card PIN Tool – Change a User PIN

Input the Old PIN, the New PIN and then confirm the New PIN.

2.

3.

Click Change Pin button to finish changing the User PIN.

Note: The EnterSafe_Minidriver default PIN is 12345678.

3.2.1.2 Changing a User PIN with Windows Vista, 2008 and Windows 7

In Windows Vista , 2008 and Windows 7, users can change their smart card user PIN using the secure desktop.

The secure desktop is the most trusted context in the operating system. The most common use of the Secure

Desktop is the User Log on to Windows. However, it is also used for other secure operations with user credentials,

29

such as password changes and now smart card PIN management.

To change the PIN of the smart card in Windows Vista, perform operations as follows:

1.

Press Ctrl+Alt+Delete to access the Secure Desktop screen.

2.

Select the Change a Password option.

Attach EnterSafe Minidriver to a USB Port of the computer.

3.

4.

Select the smart card user tile.

5.

Enter the old PIN, the new PIN and confirm the new PIN in the appropriate fields. As shown in following

image:

ePass2003 User Guide

Figure 42 Secure Desktop - Change a User PIN

3.2.2 Unblocking EnterSafe Minideriver

Private data stored on EnterSafe Minidriver is protected by the User PIN. The PIN code retry number is limited by

hardware. Once the preset maximum retry number is exceeded, EnterSafe Minidriver Token will be blocked. Once

the card is blocked, it can no longer be used even you have the correct User PIN. The only way to restore it is by

using the Unblock Card procedure.

30

ePass2003 User Guide

Note: The EnterSafe Minidriver default maximum number of wrong PIN attempts is 10.

3.2.2.1 Example Unblock Procedure

The smart card unblock functionality require the use of an Administrative key that the regular end user should not

have direct access to. The user will require support from a Security Officer to complete this operation.

To protect the confidentiality of the Admin Key, the Unblock Card procedure does not require the end user to

present the Admin key directly. Instead, a challenge-response mechanism is used:

1.

The user retrieves a Challenge from the card.

The user communicates the Challenge to the IT Admin/Helpdesk.

2.

IT Admin/Helpdesk combine the Challenge (8 bytes) and the user’s Admin Key (24 bytes) using the Triple

3.

DES algorithm to calculate the unique Response (8 bytes) to the challenge.

4.

IT Admin/Helpdesk communicates the Response to the end user.

5.

The end user enters the Response value and defines a new value for the User PIN, which will be

established once the Card Unblock has completed.

The smart card confirms that the Response provided is correct, by comparing the value entered by the

6.

user with one generated within the card using the Challenge generated by the card and the Admin Key stored in

the card. If both values match, the card unblock is successful, the new user PIN is established and the PIN attempt

counter is reset.

It is important to note that, like the Verify PIN procedure, the Unblock Card procedure is protected by a maximum

number of unsuccessful unblock attempts. Once the maximum number of unsuccessful unblock attempts is

reached the card will be permanently blocked even to an administrator, and all data stored in the card becomes

permanently inaccessible. For this reason it is important to perform the unblock procedure with great care.

Like the Change PIN procedure, the process and tools used to unblock a Smart Card in Windows V ista/2008 and

the legacy versions of Windows operating systems are different.

3.2.2.2 Unblocking a Smart Card with Windows 2000, XP or Server 2003

For Windows 2000, XP, and Server 2003 and later, the Smart Card PIN Tool used for changing the value of the User

PIN can also be used to unblock the card.

Note that in order to use the PIN Tool the user must have access to a machine that is to be logged on. The user

cannot logon using smart card credentials because the card has already been blocked. Accordingly, if the user’s

organization security policy introduces a smart card logon mechanism, the user will have to access another already

logged machine in order to gain access to the PIN Tool to perform the Card Unblock procedure.

The PIN Tool provides the following dialog box to unblock the card:

31

ePass2003 User Guide

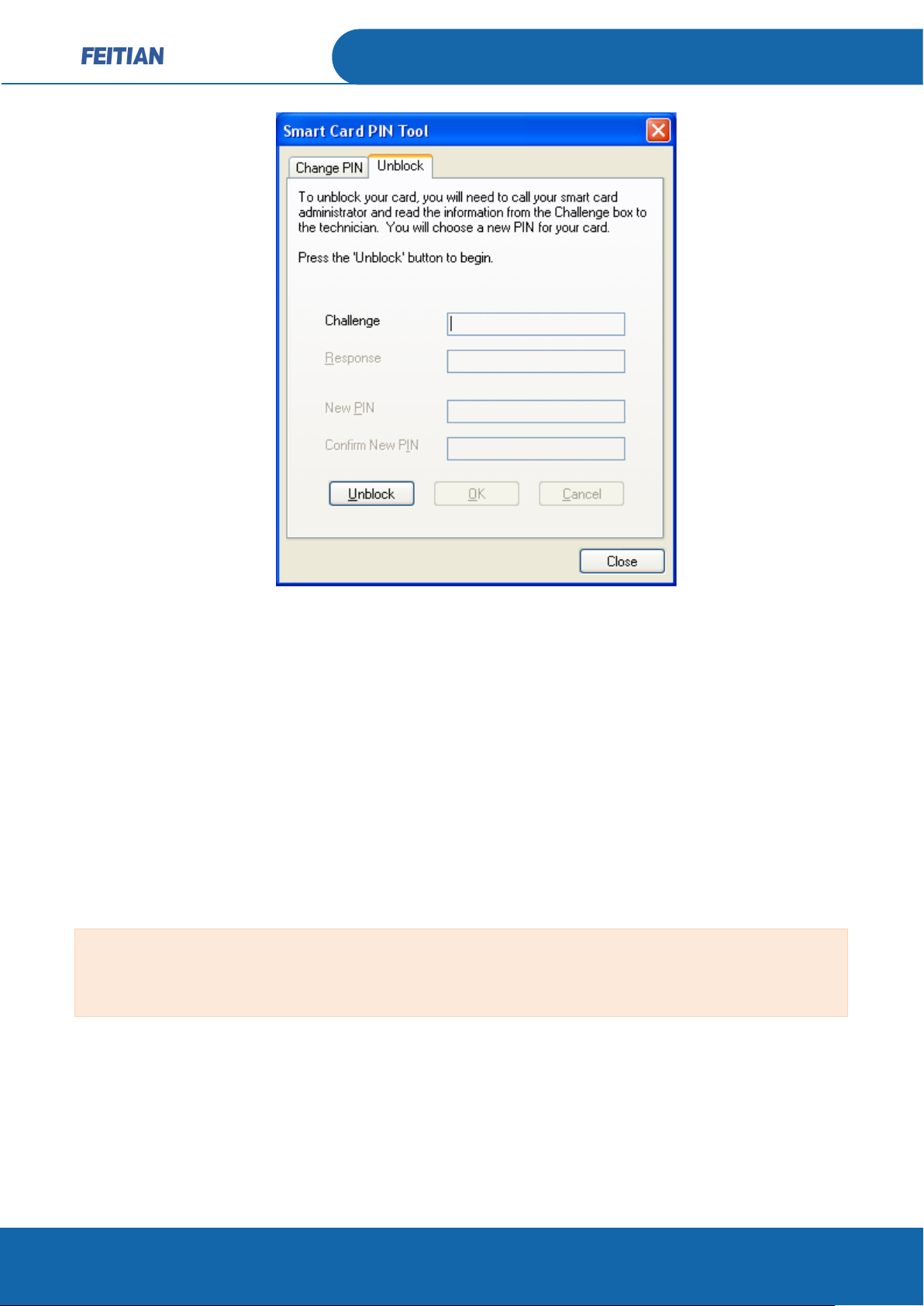

Figure 43 Smart Card PIN Tool – Unb lock

With the blocked Token attached to the USB port, when the user clicks on the Unblock button, the Smart Card will

return the 16 digits of Challenge, and will enable the Response, New PIN and Confirm New PIN fields to allow the

user to enter the corresponding values according to the process previously described. Once the user clicks the OK

button, the Response and New PIN values will be transmitted to the card to complete the card unblock procedure.

3.2.2.3 Unblocking a Smart Card with Windows Vista, 2008 and Windows 7

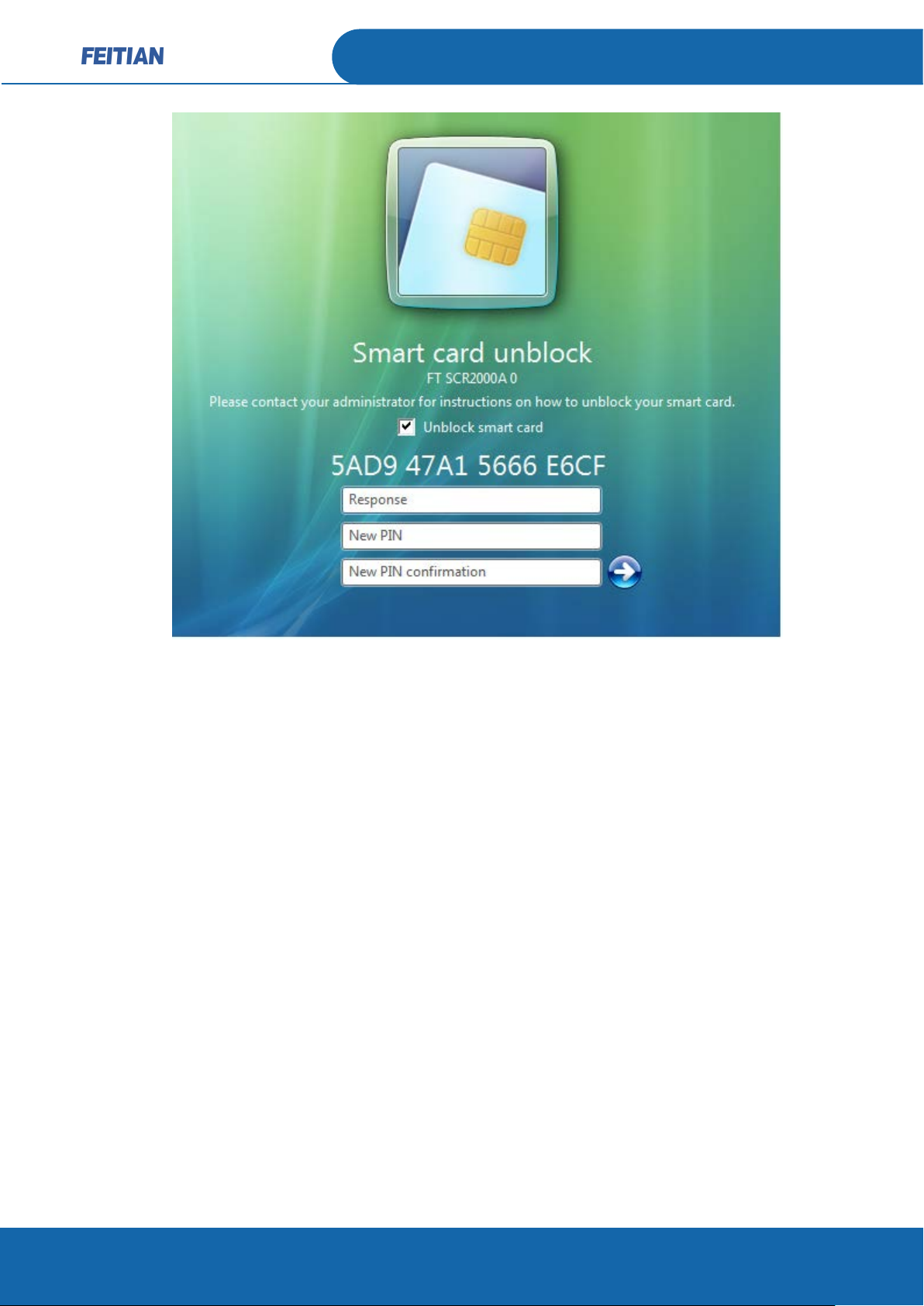

Smart Card Unblock is integrated into the Windows Vista, 2008 and Windows 7 Secure Desktop. However, it is not

configured by default and must be explicitly enabled with Group Policy. When this feature is enabled, the user is

presented with the Smart Card Unblock screen when logon is attempted using a blocked smart card.

Note: Smart card unblock requires that smart cards are assigned an administrator key before they are provided to

users, and that the IT infrastructure includes a secure way to store and access these keys when a user needs

assistance.

3.2.2.3.1 Enabling Unblock Card with Windows Vista, 2008 and Windows 7

The Unblock Card function in the secure desktop user interface is not enabled by default for Windows Vista ,2008

and Windows 7. To enable unblock in the secure desktop user interface, an administrator can use the Group Policy

32

Object Editor snap-in in the Microsoft Management Console (MMC).

Click Start button, type MMC in the Start Search field and then press Enter.

1.

2.

When prompted to run Command Prompt as an administrator, click Allow. This will open the Microsoft

Management Console dialog.

3.

In the Console 1 dialog, click on the File menu and select Add/Remove Snap-in.

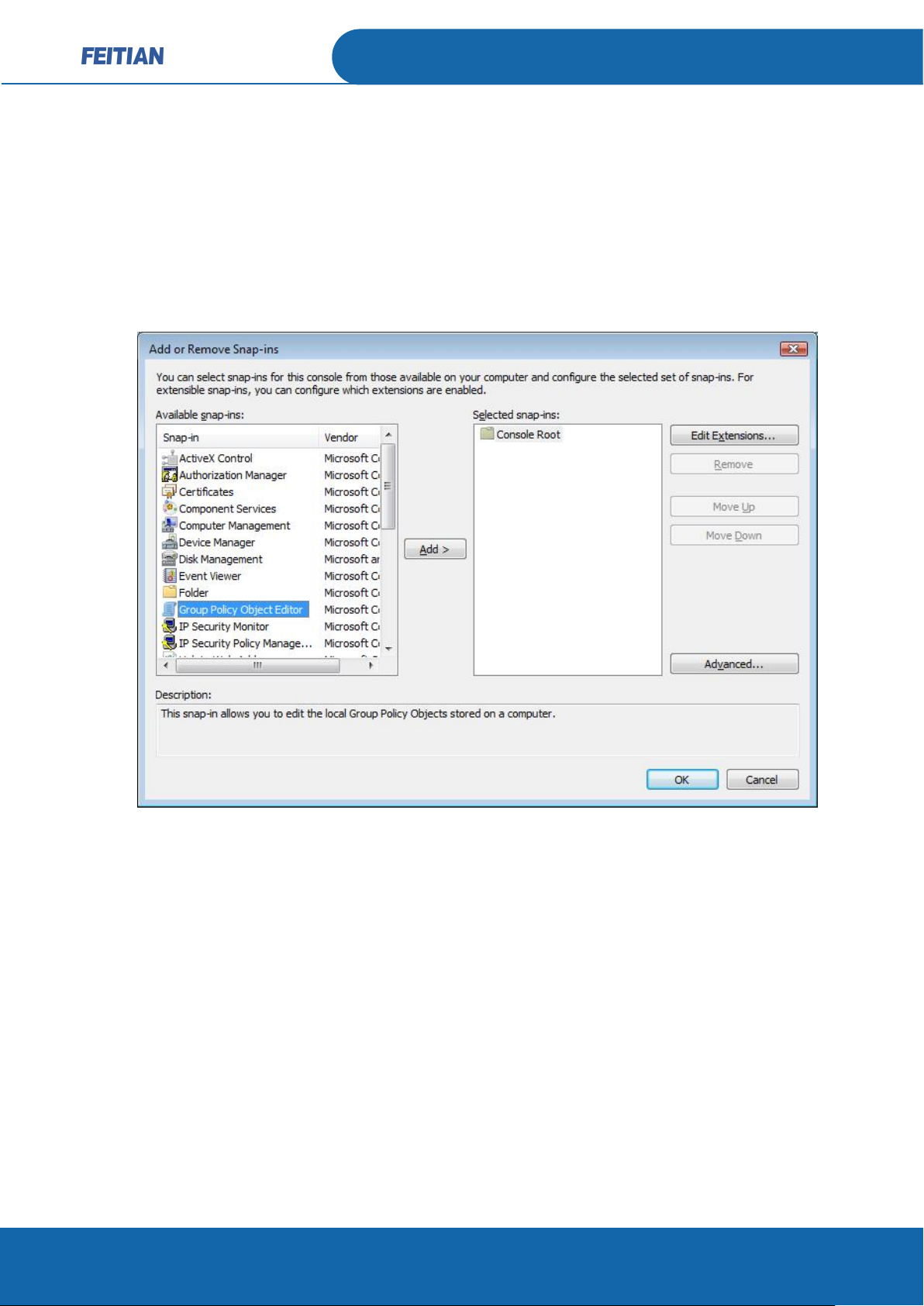

In the Add or Remove Snap-ins dialog box, select Group Policy Object Editor in the Available Snap-ins

4.

pane on the left side, and then click Add, as shown in following image:

ePass2003 User Guide

Figure 44 Add Group Policy Object Editor

5.

You can either enable unblock for the local computer only, or for all computers in the domain.

1)

To enable unblock on the local machine (only), you must be an administrator on the local

computer. Select Local Computer in the Group Policy Object control. Click Finish to close the Select

Group Policy dialog.

To enable unblock on all machines in the domain, you must be a Domain Administrator logged

2)

on to a Domain Controller and select Default Domain Policy in the Group Policy Object control. In the

Select Group Policy Object dialog box, click Finish.

6.

Click OK in the Add or Remove Snap-ins dialog box to close it.

7.

Click on the Local Computer Policy node in the left side pane, then click on Computer

configuration—>Administrative Templates—>Windows Components—> Smart Card. And then double-Click

Allow Integrated Unblock screen to be displayed at time of logon in the Setting list, as shown in following image:

33

ePass2003 User Guide

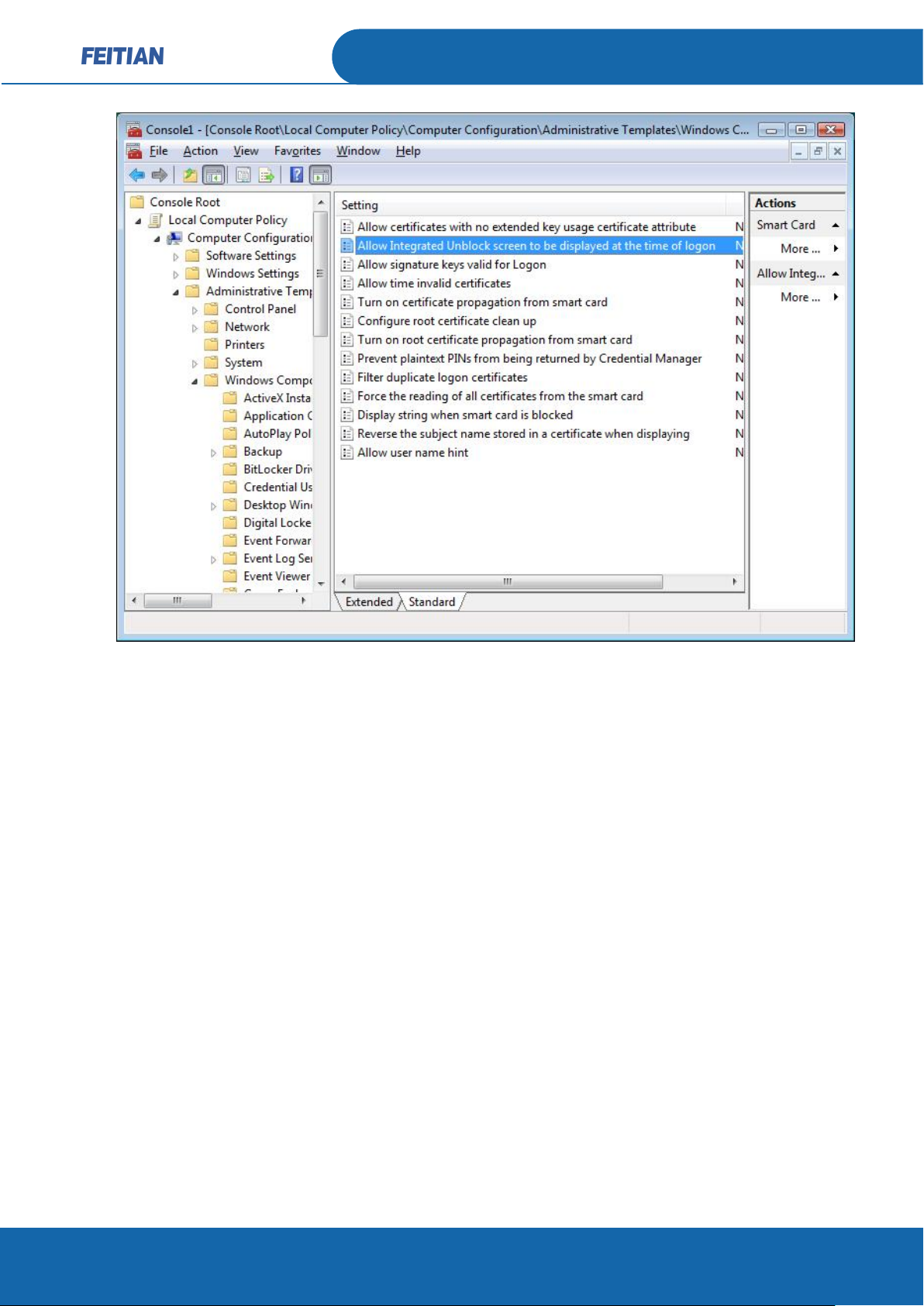

Figure 45 Unblock Smart Card setting

8.

Select the Enabled option button, and then click OK, as shown in following image:

34

ePass2003 User Guide

Figure 46 Enabled Unblock Smart Card

At this point, the Smart Card Unblock screen can also be configured via Group Policy to display a custom string.

This string can be used to provide a deployment-specific phone number for users to call to obtain the response to

the smart card administrator challenge. You can set the custom string as follows:

9.

Back in the Console 1 dialog, select the Local Computer Policy —> Computer Configuration —>

Administrative Templates —> Windows Components —> Smart Card, and double-click on Display string when

smart card is blocked on the right side pane.

Select the Enabled option button and type the string to display on the Unblock screen in the Display

10.

sting when smart card is blocked text box, and then press OK, as shown in following image:

35

ePass2003 User Guide

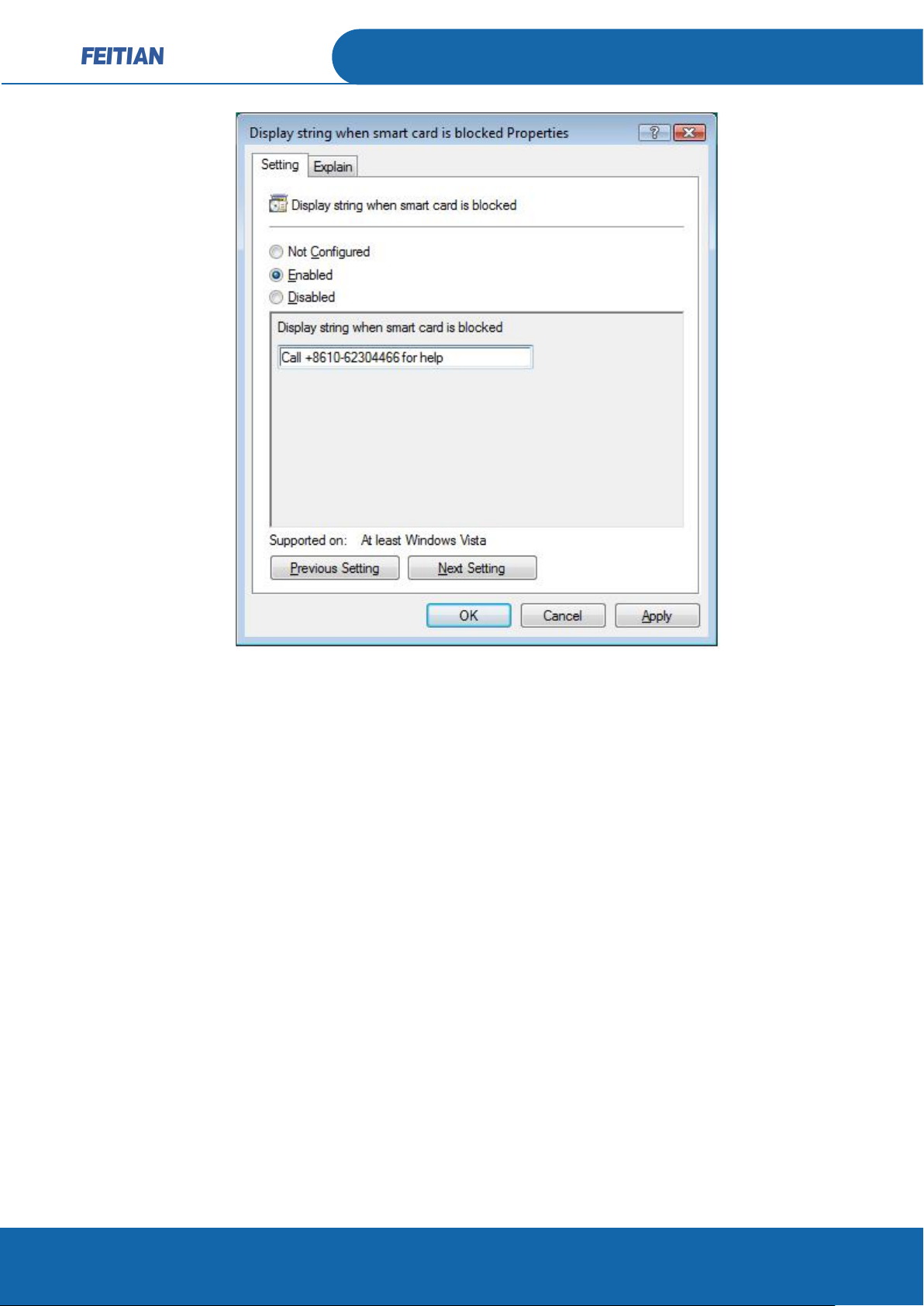

Figure 47 Display string when smart card is blocked Properties

3.2.2.3.2 Unblocking a Smart Card with Windows Vista, 2008 and Windows 7

Same as for the Change PIN function, the Smart Card Unblock is integrated into the Windows Vista, 2008 and

Windows 7 Secure Desktop. However, it is not configured by default and must be explicitly enabled via Group

Policy as 2.2.3.1 described. When this feature is enabled, the user is presented with the Smart Card Unblock

screen when logon is attempted using a blocked smart card,, as shown in following image:

36

ePass2003 User Guide

Figure 48 Secure Desktop – Smart Card Unblock

3.2.2.4 Administrator Tools for Card Unblock

The Smart Card Unblock procedure requires the administrator to be able to calculate the Response to a Challenge

provided by the smart card of any end users that he/she is responsible for. This in turn means that the

administrator shall:

1.

Know or somehow have access to, the administrative key values for all smart cards in use.

Have access to a Triple DES tool to calculate the Response based on the Challenge and the

2.

administrative key of a given user’s smart card.

None of the Windows operating systems provide any means for administrators to handle the secure back-end

storage of the user’s smart cards Administrative keys, nor do they provide a back-end tool to calculate the

response to a challenge.

These features will be commonly provided by any commercial Base CSP compliant Card Management System

(CMS), including Microsoft’s Identity Lifecycle Manager (ILM).

37

Appendix: Terms and Abbreviations

Entry Description

ePass2003

A smart card based token with FIPS proved for PKI

applications, introduced by Feitian Technologies. It is

designed for PKI application systems.

CryptoAPI

Interface (CAPI)

An interface used for cryptography operations,

provided by Microsoft. It provides

ePass2003 User Guide

cryptographic

Smart Card

Minidriver Interface

PKCS#11 Interface

algorithm encapsulation

of equipment irrelevant or

implemented by software. With this interface, it is easy

to develop PKI applications for data

encryption/decryption, authentication and signature

on Windows platforms.

An interface used for cryptography operations,

provided by Microsoft. It provides

algorithm encapsulation

implemented by software

Crypto Provider and Microsoft Smart Card Key Storage Provider.

of equipment irrelevant or

for Microsoft Base Smart Card

cryptographic

A programming interface introduced by RSA. It

abstracts the cryptographic device into a universal logic

view - Cryptographic Token, for use by upper-level

ations, providing device independency and a

applic

manner of resource sharing.

38

ePass2003 User Guide

This device complies with Part 15 of the FCC Rules. O peration is subject to the following two

conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause

undesired operation.

Attention that changes or modification not e xpressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

39
