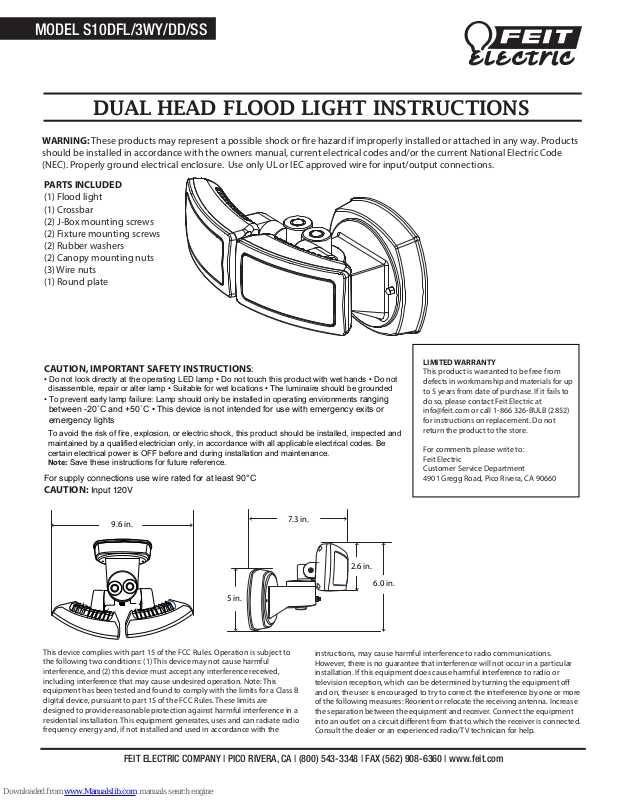

Feit Electric S10DFL/3WY/DD/SS Instruction Manual

MODEL S10DFL/3WY/DD/SS

DUAL HEAD FLOOD LIGHT INSTRUCTIONS

WARNING: These products may represent a possible shock or re hazard if improperly installed or attached in any way. Products
should be installed in accordance with the owners manual, current electrical codes and/or the current National Electric Code
(NEC). Properly ground electrical enclosure. Use only UL or IEC approved wire for input/output connections.

PARTS INCLUDED

(1) Flood light
(1) Crossbar
(2) J-Box mounting screws
(2) Fixture mounting screws
(2) Rubber washers
(2) Canopy mounting nuts
(3) Wire nuts
(1) Round plate

CAUTION, IMPORTANT SAFETY INSTRUCTIONS:

• Do not look directly at the operating LED lamp • Do not touch this product with wet hands • Do not
disassemble, repair or alter lamp • Suitable for wet locations • The luminaire should be grounded

• To prevent early lamp failure: Lamp should only be installed in operating environments

between -20˚C and +50˚C • This device is not intended for use with emergency exits or

emergency lights

To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected and

maintained by a qualified electrician only, in accordance with all applicable electrical codes. Be
certain electrical power is OFF before and during installation and maintenance.

Note: Save these instructions for future reference.

For supply connections use wire rated for at least 90°C

ranging

CAUTION: Input 120V

9.6 in.

5 in.

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Note: This
equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the

7.3 in.

2.6 in.

6.0 in.

instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more
of the following measures: Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver. Connect the equipment
into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

LIMITED WARRANTY

This product is warranted to be free from
defects in workmanship and materials for up
to 5 years from date of purchase. If it fails to
do so, please contact Feit Electric at
[e-mail] or call 1-866 326-BULB (2852)
for instructions on replacement. Do not
return the product to the store.

For comments please write to:
Feit Electric
Customer Service Department
4901 Gregg Road, Pico Rivera, CA 90660

FEIT ELECTRIC COMPANY | PICO RIVERA, CA | [phone] | FAX [phone] | www.feit.com

MODEL S10DFL/3WY/DD/SS

WARNING: TURN OFF THE MAIN POWER AT THE CIRCUIT BREAKER BEFORE
INSTALLING THE FIXTURE IN ORDER TO PREVENT POSSIBLE ELECTRIC SHOCK.

WARNING:

This luminaire should be installed by qualified electrician.

Wall Installation

1. Unscrew the canopy mounting nuts and

remove the fixture crossbar (Fig A).

Fig A. Fig B.

Note: Select your preferred color temperature by using

the switch behind the fixture’s canopy.

3. Using the wire nuts provided, connect the bare grounding

wires from the fixture to the house ground wires. Connect
the white fixture wire to the neutral house wire. Connect the
black fixture wire to the power supply wire (Fig C).

Fig C.

2. Pull the power supply wires to the side and install the fixture
crossbar onto the J-box with the screws provided (Fig B).

4. Adjust the crossbar fixture screws and tighten the center
swivel screws. Insert the canopy holes through the fixture
mounting screws (Fig D).

Fig D.

Green

Black

White

5. Position into place and secure the fixture by installing the

washers and canopy mounting nuts. Place rubber washers

onto fixture, then tighten the nuts (Fig E).

Fig E.

6. Caulk between the light fixture and the wall surface with a
silicone sealant (not included).

FEIT ELECTRIC COMPANY | PICO RIVERA, CA | [phone] | FAX [phone] | www.feit.com

MODEL S10DFL/3WY/DD/SS

4 Inch Round External J-Box Installation

1. Unscrew the canopy mounting nuts and

remove the fixture crossbar (Fig F).

Fig F.

Note: Select your preferred color temperature by using

the switch behind the fixture’s canopy.

3. Using the wire nuts provided, connect the bare grounding

wires from the fixture to the house ground wires. Connect
the white fixture wire to the neutral house wire. Connect
the black fixture wire to the power supply wire (Fig H).

Fig H.

Green

2. Before installing the round plate, add silicone sealant between

the rear of the round plate J-Box. Pull tthe power supply wires

through the round plate and install the round plate along with

the crossbar onto the J-box with the screws provided (Fig G).

Fig G.

4. Adjust the crossbar fixture screws and tighten the center swivel
screws. Before installing the fixture canopy, add silicone sealant
between the front of the round plate and fixture canopy. Insert the
fixture canopy holes through fixture mounting screws (Fig I).

Fig I.

Black

White

COLOR CHANGE SETTINGS

1. You can lock in one color temperature

depending on your preference (Fig K).

2. Soft White - Bright White - Daylight

3. When the slide switch is set to SW (Soft White),
the color temperature fixes at 3000K.

4. When the slide switch is set to BW (Bright White),
the color temperature fixes at 4000K.

5. Position into place and secure the fixture by installing the washers and
canopy mounting nuts. Place the rubber washers onto the fixture then
tighten the nuts (Fig J).

Fig J.

Fig K.

SW BW DL

SW BW DL

5. When the slide switch is set to DL (Daylight),
the color temperature fixes at 5000K.
