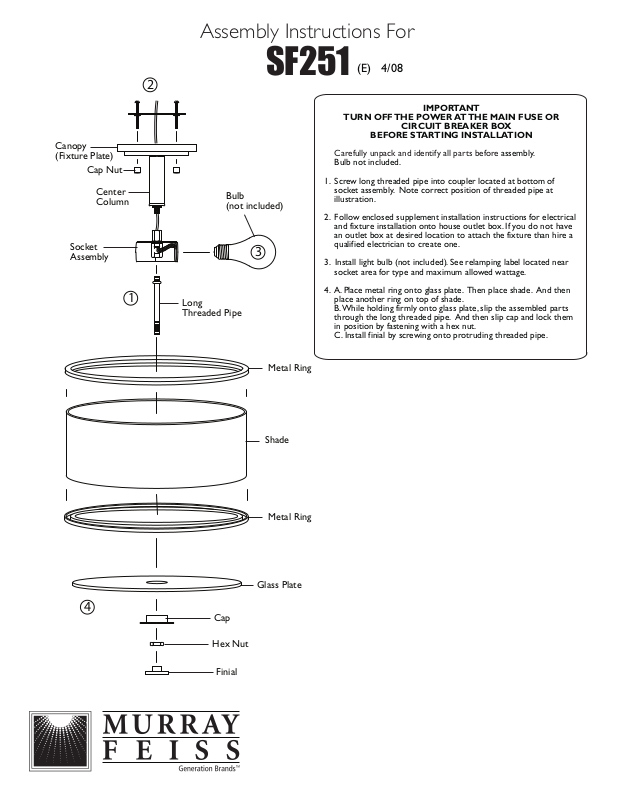

Assembly Instructions For
Canopy
(Fixture Plate)
Cap Nut
Center
Column
Socket
Assembly
SF251
(E) 4/08
2
IMPORTANT
CIRCUIT BREAKER BOX
Bulb
(not included)
TURN OFF THE POWER AT THE MAIN FUSE OR
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly.
Bulb not included.
1. Screw long threaded pipe into coupler located at bottom of
socket assembly. Note correct position of threaded pipe at
illustration.
2. Follow enclosed supplement installation instructions for electrical
and fixture installation onto house outlet box. If you do not have
an outlet box at desired location to attach the fixture than hire a
qualified electrician to create one.
3
3. Install light bulb (not included). See relamping label located near
socket area for type and maximum allowed wattage.
4. A. Place metal ring onto glass plate. Then place shade. And then
1
Long
Threaded Pipe
place another ring on top of shade.
B. While holding firmly onto glass plate, slip the assembled parts
through the long threaded pipe. And then slip cap and lock them
in position by fastening with a hex nut.
C. Install finial by screwing onto protruding threaded pipe.
Metal Ring
Shade
Metal Ring
Glass Plate
4
Cap
Hex Nut
Finial
