Feiss SF237 User Manual

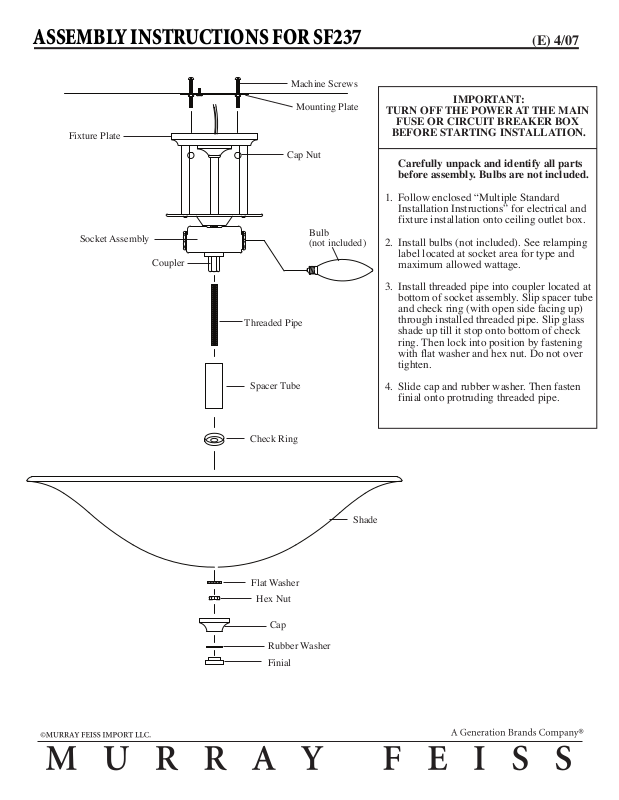

ASSEMBLY INSTRUCTIONS FOR SF237

Machine Screws

Mounting Plate

Fixture Plate

(E) 4/07

IMPORTANT:

TURN OFF THE POWER AT THE MAIN

FUSE OR CIRCUIT BREAKER BOX

BEFORE STARTING INSTALLATION.

Socket Assembly

Coupler

Cap Nut

Threaded Pipe

Spacer Tube

Check Ring

Bulb
(not included)

Carefully unpack and identify all parts

before assembly. Bulbs are not included.

1. Follow enclosed “Multiple Standard
Installation Instructions” for electrical and
fixture installation onto ceiling outlet box.

2. Install bulbs (not included). See relamping
label located at socket area for type and
maximum allowed wattage.

3. Install threaded pipe into coupler located at
bottom of socket assembly. Slip spacer tube
and check ring (with open side facing up)
through installed threaded pipe. Slip glass
shade up till it stop onto bottom of check
ring. Then lock into position by fastening
with flat washer and hex nut. Do not over
tighten.

4. Slide cap and rubber washer. Then fasten
finial onto protruding threaded pipe.

Flat Washer

Hex Nut

Cap

Rubber Washer

Finial

Shade
