Feiss SF231 User Manual

ASSEMBLY INSTRUCTIONS FOR SF231

(E) 4/07

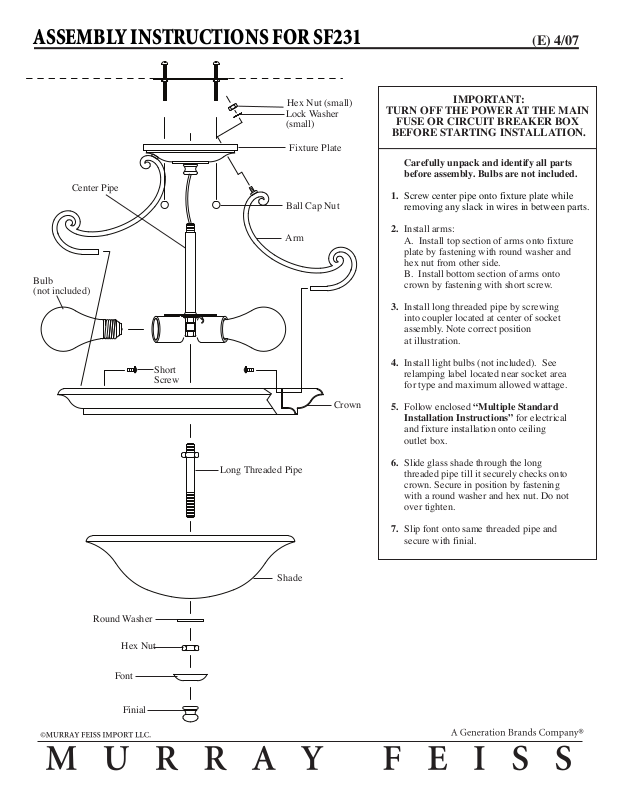

Center Pipe

Bulb
(not included)

Short
Screw

Hex Nut (small)

Lock Washer
(small)

Fixture Plate

Ball Cap Nut

Arm

IMPORTANT:

TURN OFF THE POWER AT THE MAIN

FUSE OR CIRCUIT BREAKER BOX

BEFORE STARTING INSTALLATION.

Carefully unpack and identify all parts

before assembly. Bulbs are not included.

1. Screw center pipe onto fixture plate while

removing any slack in wires in between parts.

2. Install arms:
A. Install top section of arms onto fixture

plate by fastening with round washer and
hex nut from other side.

B. Install bottom section of arms onto

crown by fastening with short screw.

3. Install long threaded pipe by screwing
into coupler located at center of socket

assembly. Note correct position

at illustration.

4. Install light bulbs (not included). See

relamping label located near socket area

for type and maximum allowed wattage.

Round Washer

Hex Nut

Font

Long Threaded Pipe

Shade

Crown

5. Follow enclosed “Multiple Standard
Installation Instructions” for electrical

and fixture installation onto ceiling

outlet box.

6. Slide glass shade through the long

threaded pipe till it securely checks onto

crown. Secure in position by fastening

with a round washer and hex nut. Do not

over tighten.

7. Slip font onto same threaded pipe and
secure with finial.

Finial
