Assembly Instructions For
F2540/3
15-3/8"
21-3/8"
27-3/8"
33-3/8"
39-3/8"
1
3C
(E) 11/09
45-3/8"
51-3/8"
57-3/8"
63-3/8"
69-3/8"
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR
CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
3A
3B

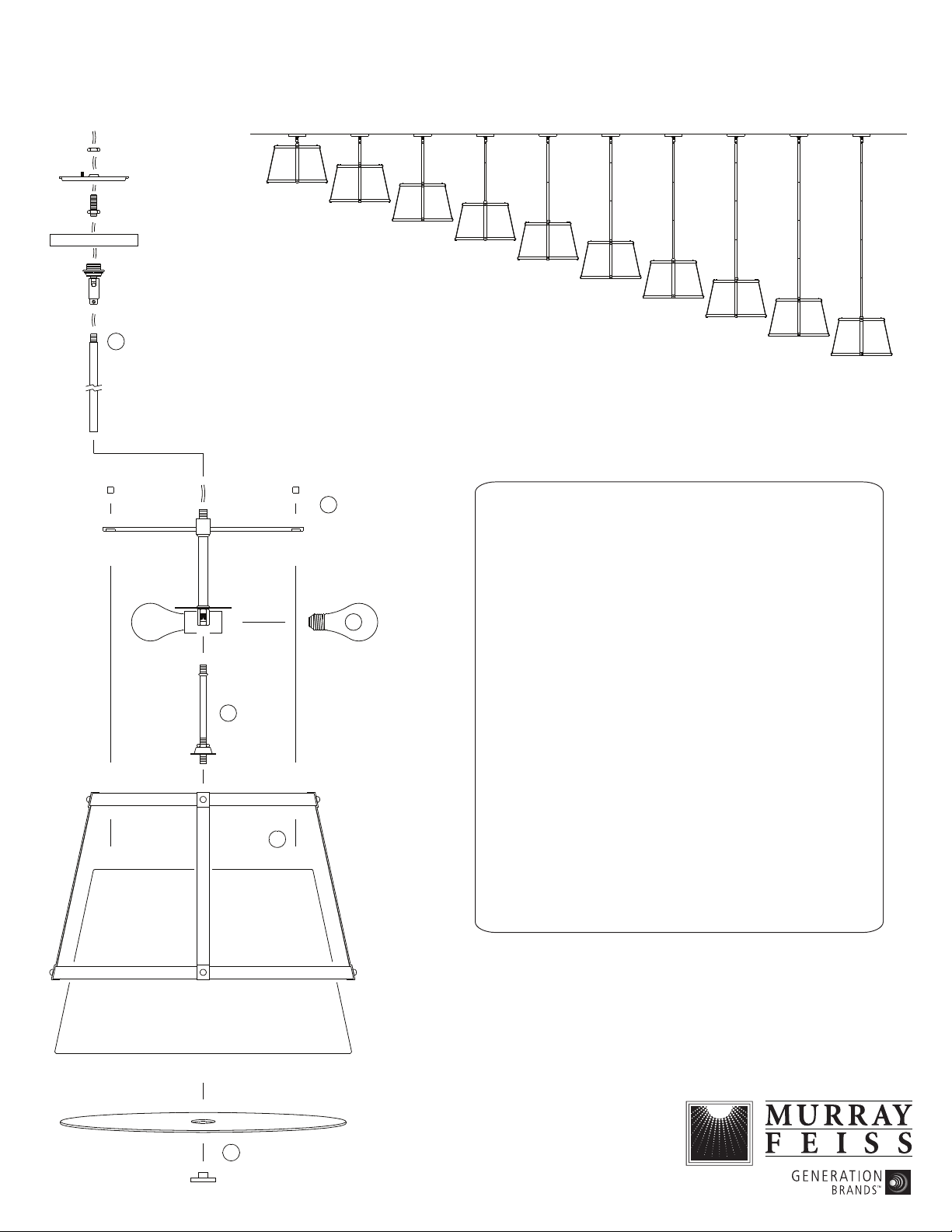

Carefully unpack and identify all parts before assembly. Bulbs
not included.
2
1. Follow enclosed supplement installation instructions for
electrical and fixture installation onto house outlet box. If
you do not have an outlet box at desired location to attach
the fixture then hire a qualified electrician to create one.
2. Install bulb (not included). See relamping label located near
socket area for type and maximum allowed wattage.
3. Install shade
A. Install center pipe by screwing into bottom of socket
assembly.
Note: correct position of center pipe at illustration.
B. Slip frame on top of shade.
C. Slip shade through the installed center pipe, and install
onto spider arms by fastening with cap nuts from above.
4. Install glass plate onto bottom of shade by fastening with
finial. IMPORTANT: DO NOT OVER TIGHTEN.
NOTE: Smooth and clear side of plate should be installed
facing outside.
