Assembly Instructions For
Fixture Loop
Fixture Wires
Required
Extra
F2504/3
1 43
2
x1
1
1
(E) 5/09
5 6 7
22mm
8 9
28mm
Extra PIN
30mm18mm12mm
Qty.
4
4
8
8
16
PIN PART
PIN
DESCRIPTION
Rectangular
Crystal Hook
S Hook
Small Bead
Hook
Used on # 5
Used on # 6,
7, 8, 9
x8x8
3
1
12 6 6 6 12
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR
CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly. Bulbs not
included.
Inner Assembly
Ball
Cap Screw
Outer
Assembly
Bulb
(not included)
Candle
Tube
2
4
5
6
7
FACTORY
8
9
INSTALLED
1. Loosen the ball cap screws (at top) and finial (at bottom), then
gently slide out the inner assembly from outer assembly.
2. Slide fixture loop down through the fixture wires, and then screw
on top of fixture.
3. Follow enclosed supplement installation instructions for electrical
and fixture installation onto house outlet box. If you do not have
an outlet box at desired location to attach the fixture than hire a
qualified electrician to create one.
4. A. Install candle tube by slipping through sockets.
B. Install type-B, candelabra base, of 60 Watt maximum bulbs (not
included).
5. A. Slip outer assembly through inner assembly, and secure them
at top section by fastening with ball cap screws.
B. Secure bottom section of the outer assembly by fastening with
the finial.
6. Install lower assembly by hooking onto finial. NOTE: Bend tight
open hook in order to prevent from getting loose.

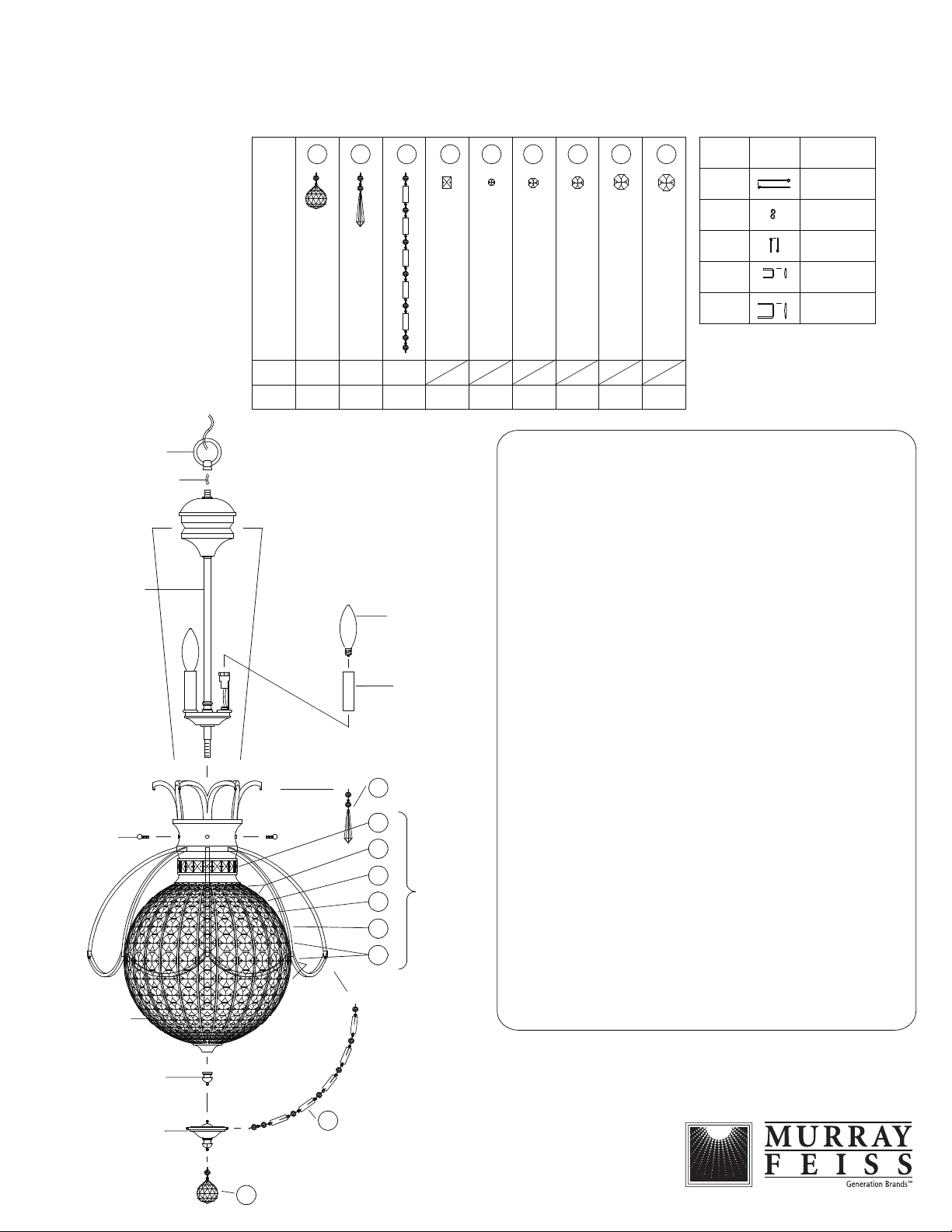

7. Hang all crystal glass parts as shown on drawing.
NOTE:
A. For easier installation of crystal chains #3, hook all chains first
onto the lower assembly and then proceed to hook onto the
middle assembly.
B. To replace broken crystal or pin, extras are included in
hardware bag. Replace by gently bending open pin, remove broken
crystal or pin, hook new one, then close back pin. Avoid bending
pin into sharp angle.
Finial
Lower
Assembly
3
1
