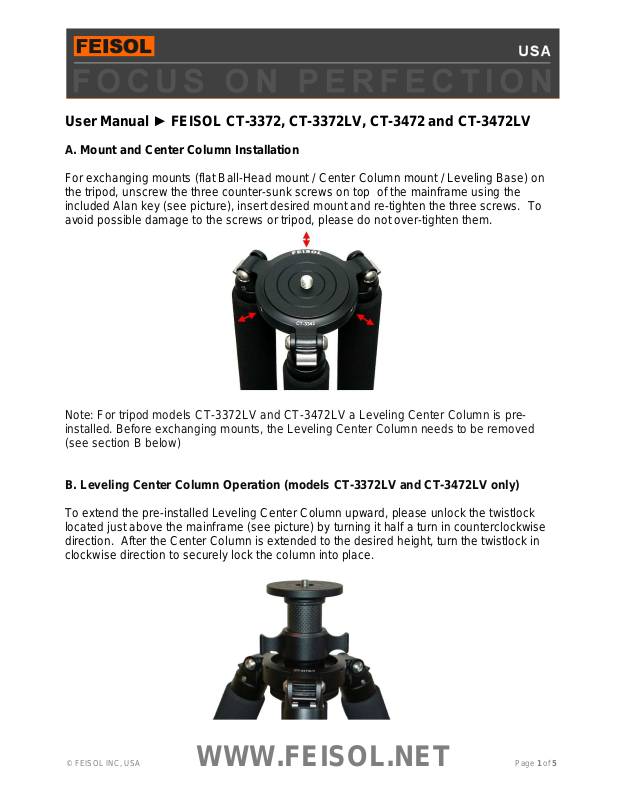

User Manual FEISOL CT-3372, CT-3372LV, CT-3472 and CT-3472LV
A. Mount and Center Column Installation

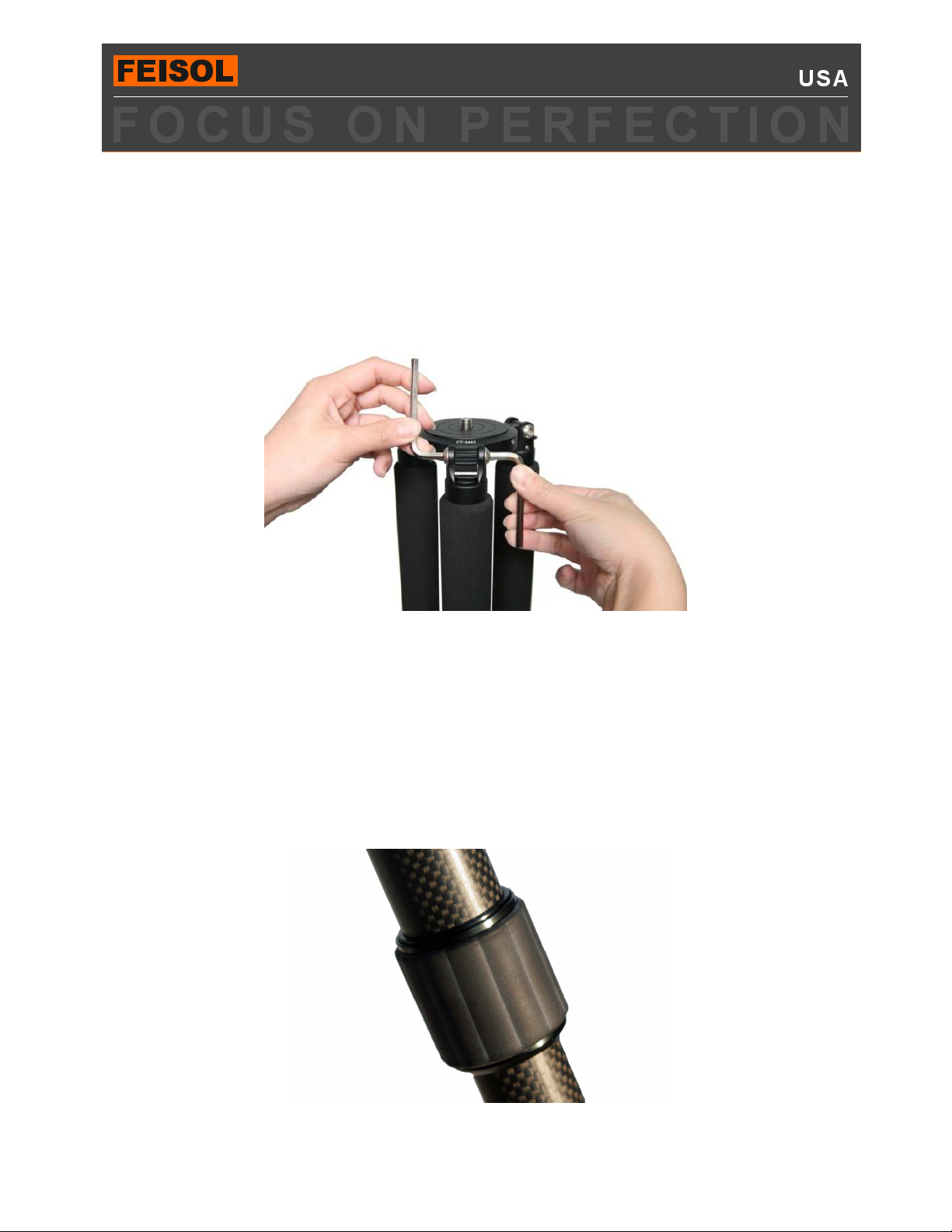

For exchanging mounts (flat Ball-Head mount / Center Column mount / Leveling Base) on the tripod, unscrew the three counter-sunk screws on top of the mainframe using the included Alan key (see picture), insert desired mount and re-tighten the three screws. To avoid possible damage to the screws or tripod, please do not over-tighten them.
Note: For tripod models CT-3372LV and CT-3472LV a Leveling Center Column is pre­installed. Before exchanging mounts, the Leveling Center Column needs to be removed (see section B below)
B. Leveling Center Column Operation (models CT-3372LV and CT-3472LV only)
To extend the pre-installed Leveling Center Column upward, please unlock the twistlock located just above the mainframe (see picture) by turning it half a turn in counterclockwise direction. After the Center Column is extended to the desired height, turn the twistlock in clockwise direction to securely lock the column into place.
© FEISOL INC, USA
WWW.FEISOL.NET
Page 1 of 5
To make Leveling adjustments, please unlock the twistlock located just below the mainframe (see picture) by turning it half a turn in counterclockwise direction. Once the lock is released, the axis of the Center Column can be moved to level. After setting the column at the desired angle, turn the twistlock in clockwise direction to securely lock the column into place. Please do not over-tighten.

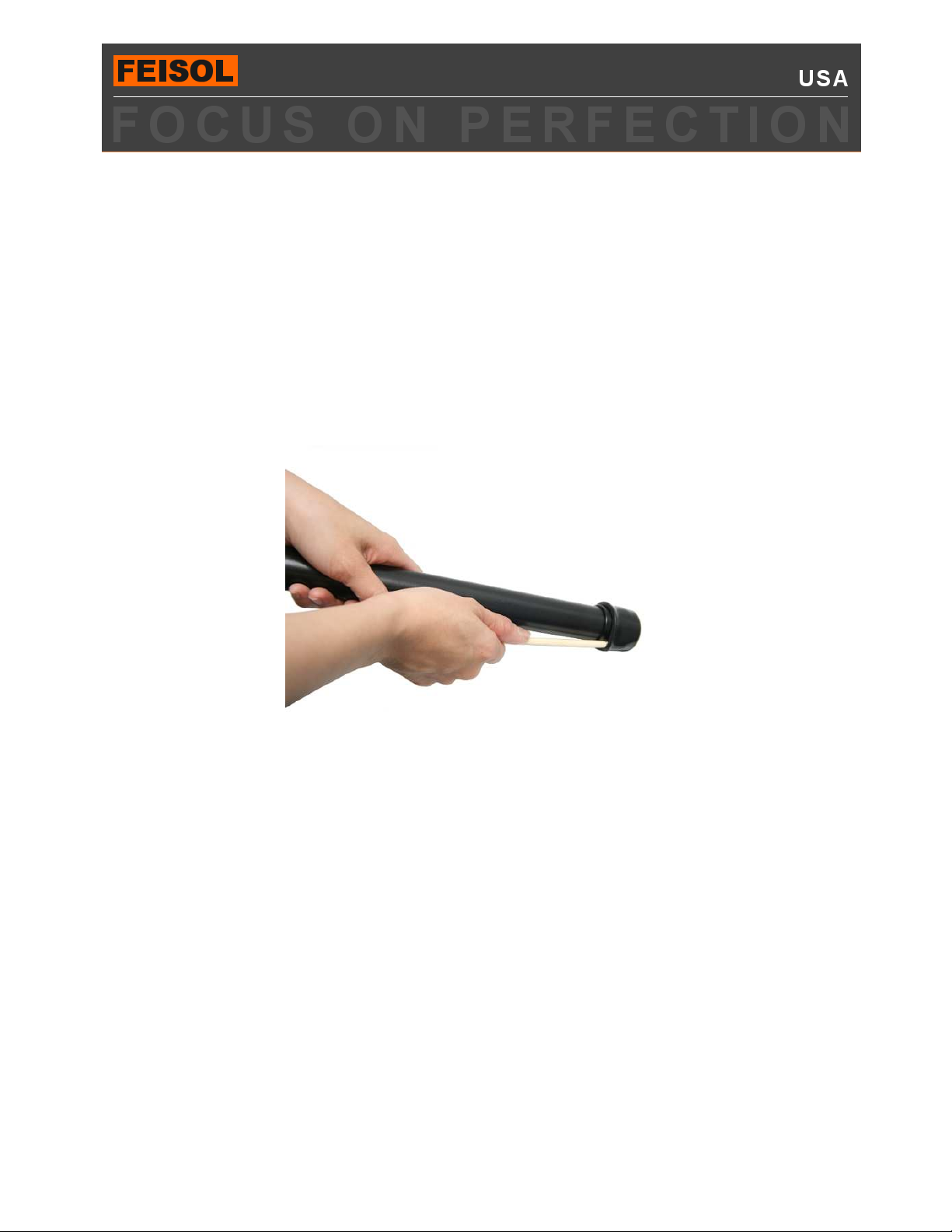

To remove the Leveling Column (in order to install a flat Ball-Head mount/ Center Column mount/ Leveling Base) , unscrew the plate at the bottom of the Center Column by turning it counterclockwise (see picture).

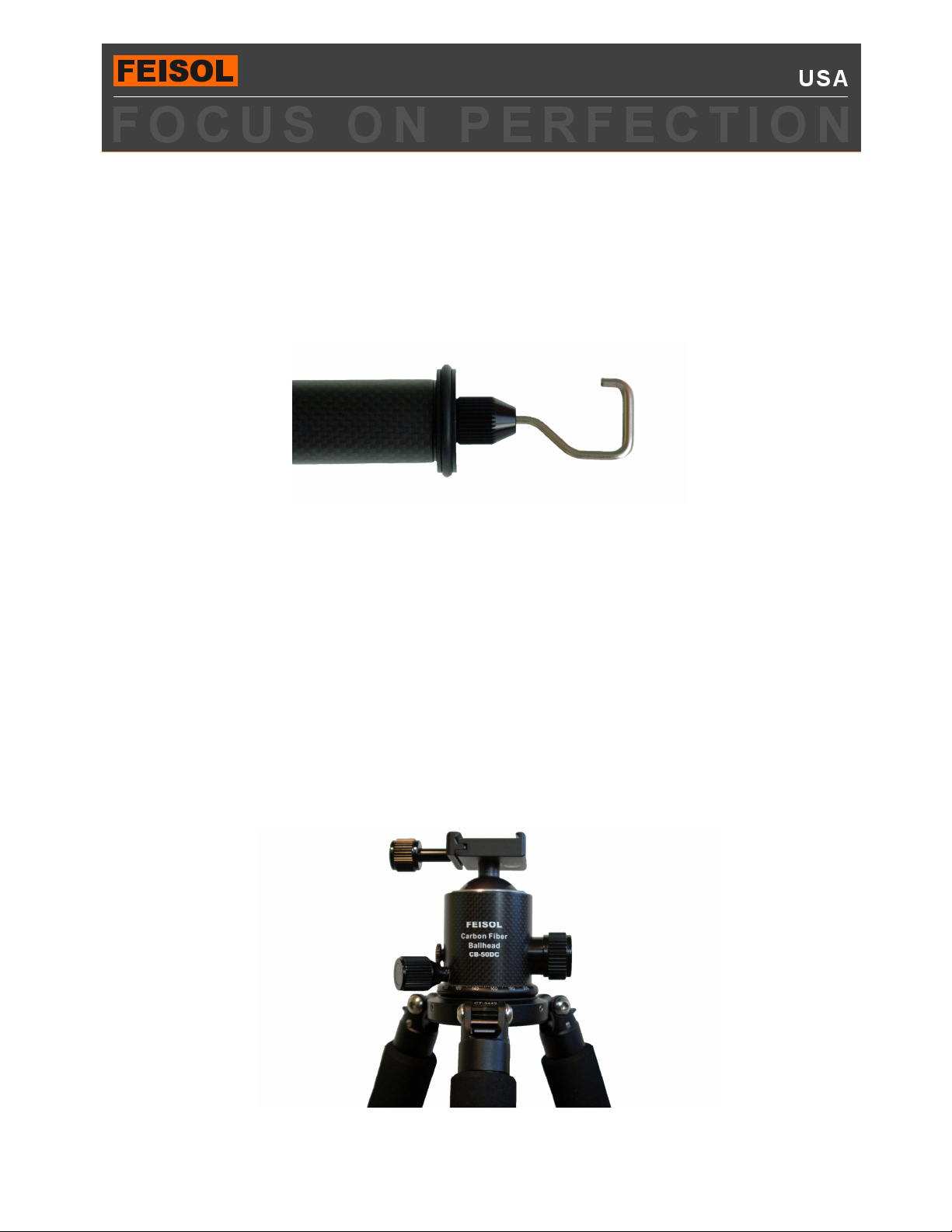

Next, unlock the twistlock of the Center Column by turning it one turn in counterclockwise direction, and pull the Center Column out of its mount. Finally, remove the remaining two pieces of the Leveling Mount by unscrewing them. (For directions for installing alternate mounts please see section A above).
© FEISOL INC, USA
WWW.FEISOL.NET
Page 2 of 5
