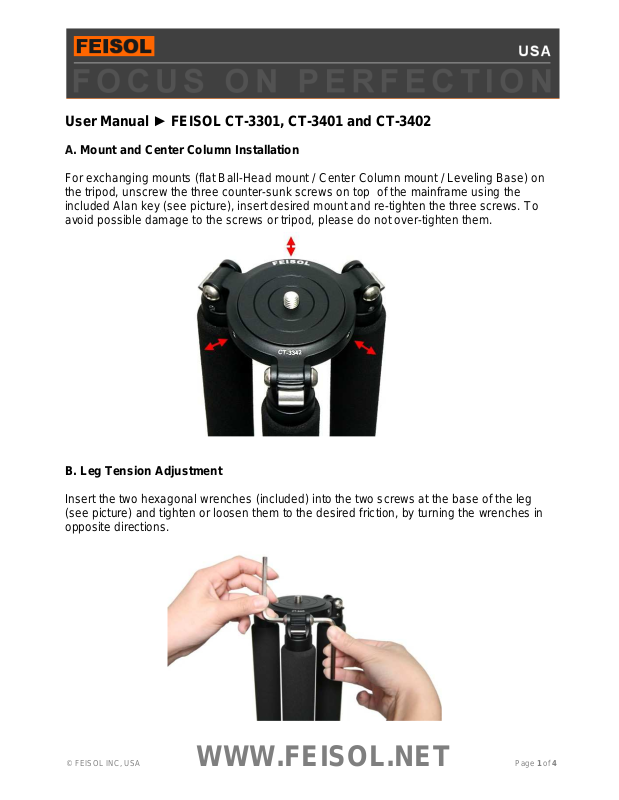

User Manual ► FEISOL CT-3301, CT-3401 and CT-3402
A. Mount and Center Column Installation
For exchanging mounts (flat Ball-Head mount / Center Column mount / Leveling Base) on
the tripod, unscrew the three counter-sunk screws on top of the mainframe using the
included Alan key (see picture), insert desired mount and re-tighten the three screws. To
avoid possible damage to the screws or tripod, please do not over-tighten them.
B. Leg Tension Adjustment
Insert the two hexagonal wrenches (included) into the two screws at the base of the leg
(see picture) and tighten or loosen them to the desired friction, by turning the wrenches in
opposite directions.
© FEISOL INC, USA
WWW.FEISOL.NET
Page 1 of 4
C. Leg Extension
In order to extend a leg section, turn the twist-lock approximately one half turn in
counterclockwise direction. Note: If the twistlock is turned too far, the leg section may fall
out and compression rings may become lost or damaged.
To firmly lock a leg section into place, turn the twist-lock approximately one half turn in
clockwise direction. Please do not over-tighten.
D. Weight Hook Installation
To increase tripod stability during windy conditions a Weight Hook is included, allowing for
heavier objects (backpack, weight bags) to be attached to the tripod. The hook can be
screwed onto the bottom plate of the pre-installed Center Column (see picture).
© FEISOL INC, USA
WWW.FEISOL.NET
Page 2 of 4
