FEISOL CM-1471 User Manual
User Manual ► FEISOL CM-1401 and CM-1471

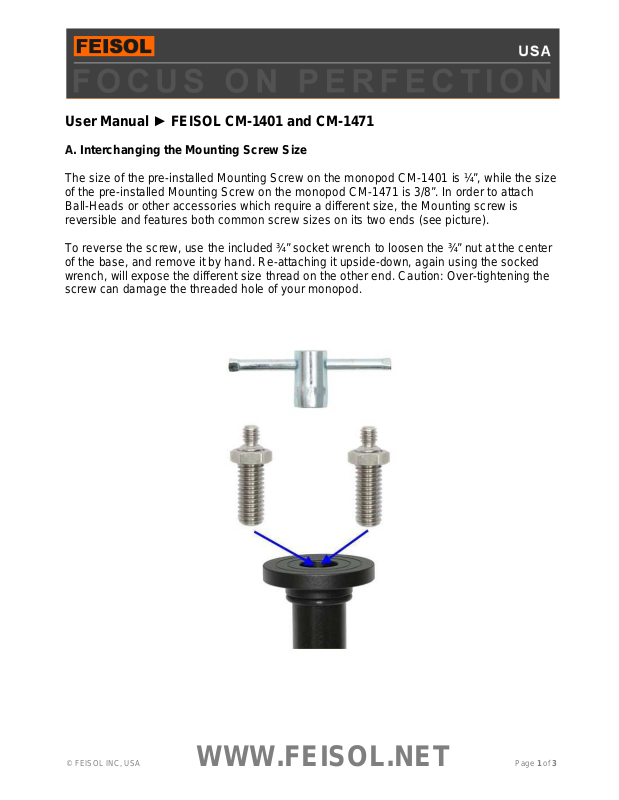

A. Interchanging the Mounting Screw Size
The size of the pre-installed Mounting Screw on the monopod CM-1401 is ¼”, while the size
of the pre-installed Mounting Screw on the monopod CM-1471 is 3/8”. In order to attach
Ball-Heads or other accessories which require a different size, the Mounting screw is
reversible and features both common screw sizes on its two ends (see picture).
To reverse the screw, use the included ¾” socket wrench to loosen the ¾” nut at the center
of the base, and remove it by hand. Re-attaching it upside-down, again using the socked
wrench, will expose the different size thread on the other end. Caution: Over-tightening the
screw can damage the threaded hole of your monopod.
© FEISOL INC, USA
WWW.FEISOL.NET
Page 1 of 3
B. Leg Extension
In order to extend a leg section, turn the twist-lock approximately one half turn in
counterclockwise direction. Note: If the twistlock is turned too far, the leg section may fall
out and compression rings may become lost or damaged.
To firmly lock a leg section into place, turn the twist-lock approximately one half turn in
clockwise direction. Please do not over-tighten.
C. Ball-Head (optional) Installation
Screw the Ball-Head into the mounting screw by turning it clockwise until it fits snugly.
Please do not over-tighten.
© FEISOL INC, USA
WWW.FEISOL.NET
Page 2 of 3
