ASye 636 Kin
Hand Drill
SERVICE
Tool service and maintenance must be performed only by qualified
repair personnel.
When servicing a tool, only use identical replacement parts available
from FEIN.
Repairs on FEIN Power T ools required the use of special tools (pulling devices
and bearing press). Authorized repair centers have trained repair technicians
and equipment necessary to per-form these repairs. Service or repairs performed
by unqualified persons could result in operator injury.
For the location of the repair center near you, please call 1-800-441-9878.
Monday thru Friday, 9AM to 5PM EST. Or, look on our web site at
www .feinus.com and follow the link to “Authorized W arranty Repair Centers”
FEIN Power Tools
1030 Alcon Street
Pittsburgh, PA 15220
Phone: 412-922-8886
July 12, 2004
Fax: 412-922-8767
T oll Free: 1-800-441-9878
Fein Power Tools
ASye 636 Kin

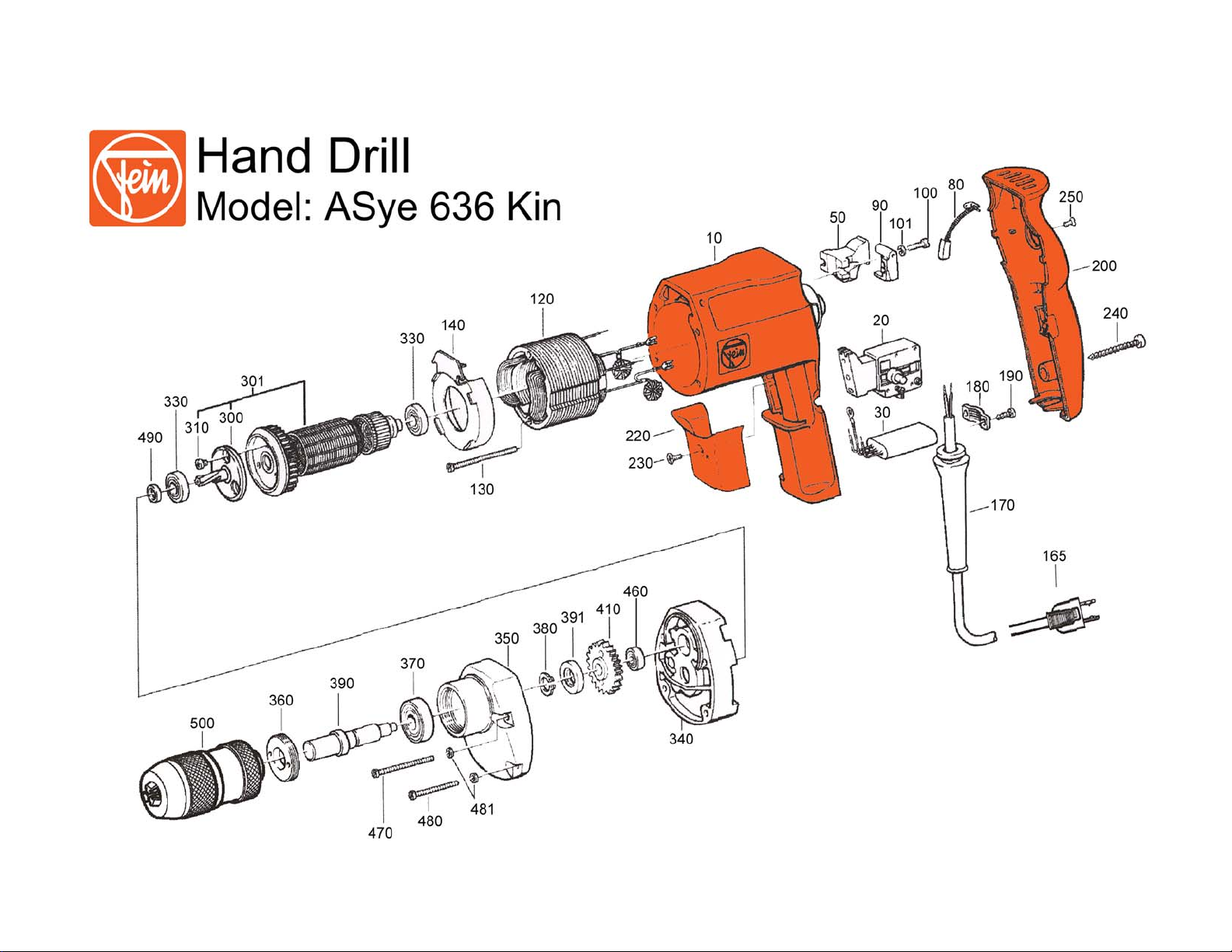

Item Item Number Description Reqd.
10 3-19-01-117-01-5 MOTOR HOUSING 1
20 3-07-01-234-00-2 SPEED CONTROL 1
30 3-07-22-161-01-3 CAPACITOR 1
50 3-07-12-043-00-1 BRUSH HOLDER 2
80 3-07-11-059-00-7 CARBON BRUSH 2
90 3-07-13-010-00-9 BRUSH HOLDER CAP 2
100 4-30-02-014-99-8 SCREW 4
101 4-24-43-002-99-2 LOCKING WASHER 3
120 5-1-203-002-11-3 FIELD COIL 1
130 4-30-02-025-99-1 SCREW 2
140 3-14-28-004-00-0 INSULATING RING 1
165 3-07-07-101-01-2 CABLE 1
170 3-14-13-142-00-9 PROTECTING SLEEVE 1
180 3-24-31-021-00-7 CABLE CLAMP 1
190 4-30-46-002-00-5 SCREW 2
200 3-12-01-066-00-5 HANDLE 1
220 3-28-05-119-00-8 SWITCH SLIDE 1
230 4-30-66-006-03-2 SCREW 1
240 4-30-46-024-00-5 SCREW 1
250 4-30-66-002-99-2 SCREW 1
300 3-37-57-040-00-0 GEAR WHEEL 6T 1
301 5-3-203-001-11-2 ARMATURE 1
310 4-30-64-001-99-3 SCREW 3
330 4-17-01-001-17-2 BALL BEARING 608-RS1 2
340 3-15-06-139-00-8 INTER BEARING 1
350 3-15-08-099-00-1 GEAR HOUSING 1
360 3-26-18-041-00-2 THREADED RING 1
370 4-17-01-007-03-8 BALL BEARING 1
380 4-26-16-013-00-1 LOCKING RING 1
390 3-34-01-056-00-6 DRILL SHAFT 1
391 3-06-02-005-00-9 PACKING RING 1
410 3-36-57-009-00-2 GEAR WHEEL 1
460 4-17-01-202-01-8 BALL BEARING 608-RS1 1
470 4-30-02-024-99-7 SCREW 2
480 4-30-02-021-99-2 SCREW 2
481 4-24-43-002-99-2 LOCKING WASHER 4
490 3-26-12-055-00-8 PACKING RING 1
500 6-32-04-020-00-5 QUICK-ACTION CHUCK 1
