FEIN Turbo Vac III
9-77-25
Operating Instructions
ATTENTION: READ BEFORE USING
• Make sure that the voltage nameplate of the device corresponds to the voltage of
your network. The plug has to be protected with a minimum of 20 Amps.
IMPORTANT! THE VACUUM CLEANER IS SUPPLIED FROM THE
FACTORY WITH A SUPPLY CABLE WITH A GROUNDED PLUG. IT
MUST ONLY BE CONNECTED TO AN APPROVED GROUNDED
SOCKET.
• Before performing any maintenance work, unplug the vacuum from the outlet.
• WARNING! EXPLOSION AND FIRE HAZARD! Never vacuum flammable
fluids or gas, oil, alcohol, solvents, etc. Do not operate near flammable fluids or
gas. Never vacuum warm fluids or materials at more than 140º Fahrenheit
(60º Celsius), such as burning cigarettes, ashes, glowing coals, etc.
• WARNING! DO NOT VACUUM HAZARDOUS/CARCINOGENIC DUST
UNLESS THE OPTIONAL HEPA FILTER IS INSTALLED.
• Do not pull the vac by the cable and do not damage the insulation on the cable.
If the cable is damaged, it must be replaced immediately .
• Always keep the filter cartridge clean so the vacuum cleaner operates properly.
6
2
SUCTION OF DRY DUST AND DIRT
The cloth filter that came with your FEIN T urbo III will contain extracted dust, 5.0
microns in size and larger . If picking up fine dust, you will need to use a pleated filter
cartridge and paper bag, which can be purchased as a (FBK-3) kit . (see page 6 for
kit contents).
Do not use vacuum without a filter. Use the cloth
filter that came with your vacuum, or a pleated
filter. Do not use both at the same time. Failure to
use a filter when dry vacuum cleaning will damage
the motor. NEVER USE VACUUM CLEANER
WITH A WET FILTER CARTRIDGE FOR DRY
VACUUM CLEANING. It quickly becomes clogged
and unusable.
(continue on page 5)
a) T o install the optional filter cartridge G place the
turn screw I inside the flange K . Place the filter
cartridge on the float cage then put the flange assembly on the bottom of the filter . T urn the screw quarter
turn to lock the filter on.
b) In order to remove the filter cartridge turn the
screw I quarter turn counterclockwise and pull out
the filter cartridge.
c) Fix the optional paper dust bag H to the inner
side of the tube-connection in the receptacle: fig.c.
and d. When using this paper dust bag the dirt can
be removed more hygienically and the life of the filter
cartridge will be increased. The paper dust bag H
should be used with the filter cartridge, it should
NEVER be used by itself or with the cloth filter.
3
9-77-25 TURBO III VA C
ITEM # DESCRIPTION PART NUMBER
11 POWER CABLE 3-07-05-065-99-9
12 SCREW 901A11A89
13 CABLE CLAMP 101035K00
16 SCREW 901A19A89
17 WASHER 901D07AG87
18 TERMINAL 905217000
24 SWITCH CABLE 905320AU02
35 SCREW 901A16A89
45 COVER (NEW STYLE) 521006K13
46 SWITCH (M/A) 905308000
47 GASKET 905239A000
73 ELECTRONIC 905331R00
107 SWITCH (ON/OFF) 905306000
123 TIE 905397A000
143 CABLE 905266A002
146 SOCKET 905398K13
200 COVER WITH HANDLE 521049B50
202 COVER GASKET 920021B00
203 COVER SOUNDPROOFING 902033000
204 CLIP 901D04N00
205 COVER BAFFLE 521002K13
206 SIDE SOUNDPROOFING 902048000
209 MOTOR GASKET - 110 VOLT 920042000
210 CHAMBER MOTOR GASKET 920039000
211 MOTOR SOUNDPROOFING 902043000
212 MOTOR - 110 VOLT 918M79A02U
213 (2) CARBON BRUSHES 905459AG02
216 MOTOR SOUNDPROOFING 902036000
217 MOTOR COVER 521003K13
218 MOTOR FILTER 902032A00
219 GASKET - 110 VOLT 920038000
220 FLOAT 521010K00
222 FLOA T CAGE 521007K13
255 PLUG 920060000
280 PLUG 920065000
412 LOCK LEVER 525002089
420 WHEELS 521047K41
427 HOSE RECEPT ACLE 521016A13
445 FIL TER CLOTH 913064AGA6
601 HOSE END 921121AK13
602 HOSE END 921121AK13
605 ADAPTOR- 58/36 921005AK13
652 W A TER T AP ASSEMBL Y 521090AA13
647 TANK 530089AX50
653 LOCK NUT 521096AK13
654 WASHER 901D21AG89
655 O-RING 920097A000
660 HOSE ASSEMBLY 921110AG13
663 RUBBER W ASHER 920098A000
667 CAP 920100A000
4
2
6

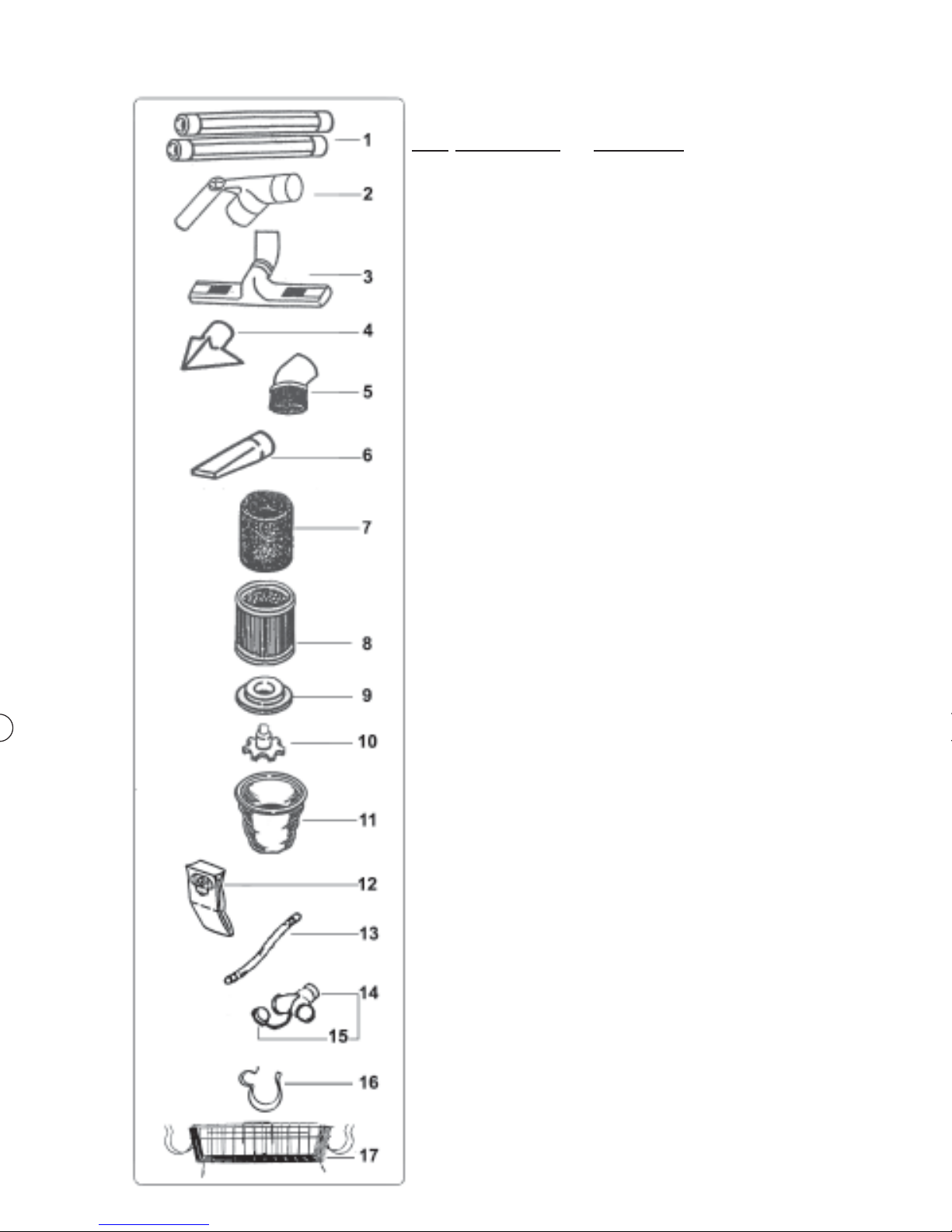

9-77-25 TURBO III VAC ACCESSORIESASSEMBLY INSTRUCTIONS
Item Part Number Description
1 921001AK13 Extension tube (order 2)
2 921085AK13 Handle
3 921081CD13 Floor nozzle
4 921003AK13 Upholstery nozzle
5 921002AK13 Brush
6 921004AK13 Crevice tool
7 90204200 Anti-foam filter
8 TII1MCRN 1Micron filter
TIIHEPA Hepa filter 0.3 microns
9 TII3002 Flange filter
10 TII3001 Turn screw-filter
11 913064AGA6 Cloth filter
12 913048K01 Paper dust bag- 3 pack
13 530300AA41 Waste pipe hose
14 921086AA13 Y connector with cap
15 921087AK13 Y cap
16 3916054A089 Hose cradle
17 526300AA13 Basket and strap
Kits:
FBK-3 TIIMCRN 1 Micron pleated filter
consists 913048A01 Paper dust bag
of 1 each TII3002 Filter flange
TII3001 Flange turn screw
DW3 921001AK13 Extension tube (2)
consists 921004AK13 Crevice nozzle
of 1 each 921085AK13 Handle
902042000 Anti-foam filter
921081CD13 Upholstery nozzle
921081CD13 Floor nozzle
921002AK13 Brush
