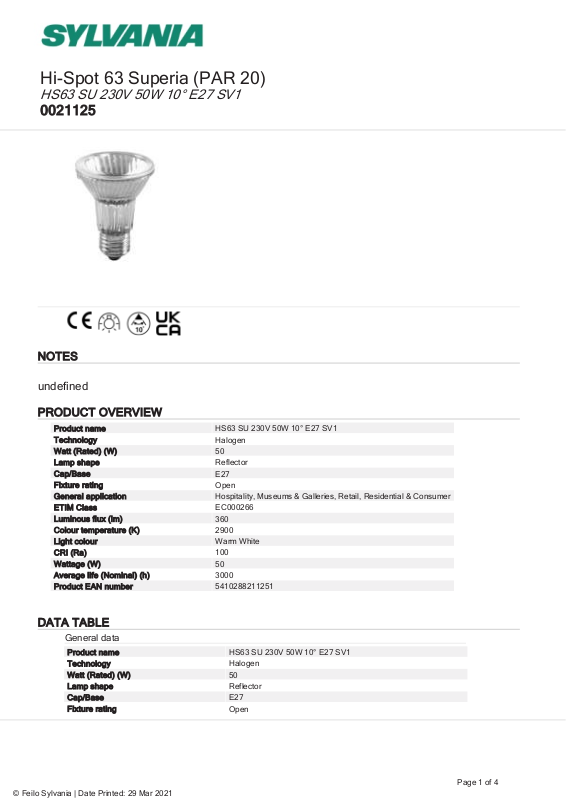

Page 1
Hi-Spot 63 Superia (PAR 20)
HS63 SU 230V 50W 10° E27 SV1
0021125
NOTES
undefined
PRODUCT OVERVIEW
Product name HS63 SU 230V 50W 10° E27 SV1
Technology Halogen
Watt (Rated) (W) 50
Lamp shape Reflector
Cap/Base E27
Fixture rating Open
General application Hospitality, Museums & Galleries, Retail, Residential & Consumer
ETIM Class EC000266
Luminous flux (lm) 360
Colour temperature (K) 2900
Light colour Warm White
CRI (Ra) 100
Wattage (W) 50
Average life (Nominal) (h) 3000
Product EAN number 5410288211251
DATA TABLE
General data
Product name HS63 SU 230V 50W 10° E27 SV1
Technology Halogen
Watt (Rated) (W) 50
Lamp shape Reflector
Cap/Base E27
Fixture rating Open
© Feilo Sylvania | Date Printed: 29 Mar 2021
Page 1 of 4
Page 2
Hi-Spot 63 Superia (PAR 20)
HS63 SU 230V 50W 10° E27 SV1
0021125
General application Hospitality, Museums & Galleries, Retail, Residential & Consumer
ETIM Class EC000266
Optical data
Luminous flux (lm) 360
Colour temperature (K) 2900
Light colour Warm White
Colour Code War
CRI (Ra) 100
Adjustable chromaticity N
Rated Luminous Intensity (cd) 3000
Beam angle (Rated) (°) 10
Lumen maintenance at end of nominal
life (%)
Electrical data
Wattage (W) 50
Equivalent watt (W) 58
Warm-up time to 60% of full light (max)
(s)
Current (A) 0.217
Mains voltage (V) 230V~
Lamp power factor 1
Control gear required No
No. Of switching cycles before premature
failures
Transformer required No

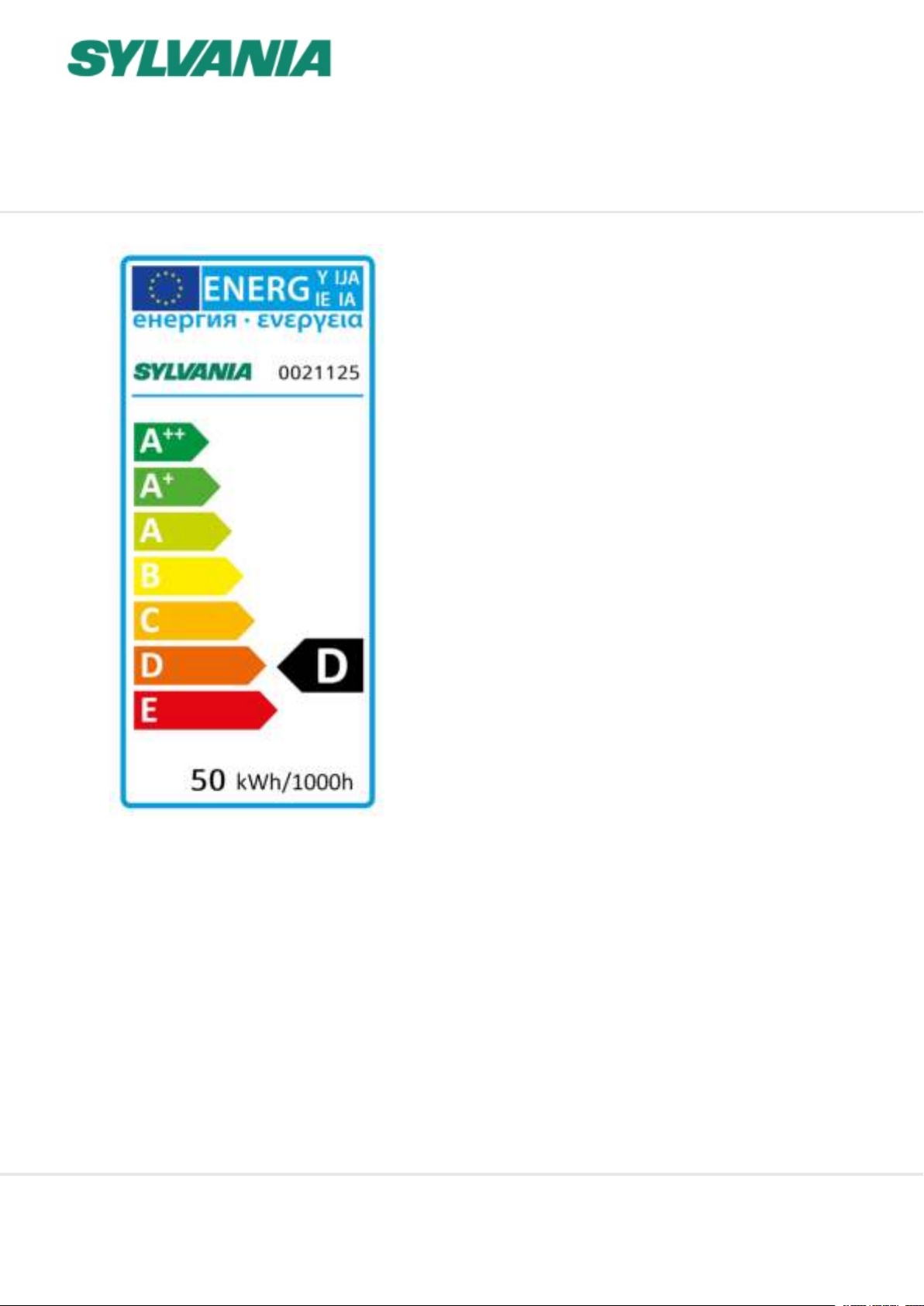

Lamp Energy Label (class) D
kWh per 1000 hours burning time 50
80
Instant Full Light
>12000
Lifetime data
Average life (Nominal) (h) 3000
Average life (Rated) (h) 3000
Physical data
Max. Lamp Diameter (mm) - D 63
Weight (kg) 0.108
Packaging
Single packaging type Carton
Product EAN number 5410288211251
Packaging single length / height (cm) 8.7
Packaging single width (cm) 7.8
Packaging single depth (cm) 7.8
DUN14 (outer) 15410288211258
Units per outer package 15
Packaging outer length / height (cm) 42.5
Packaging outer width (cm) 25.5
Packaging outer depth (cm) 10.5
© Feilo Sylvania | Date Printed: 29 Mar 2021
Page 2 of 4
Page 3
Hi-Spot 63 Superia (PAR 20)
HS63 SU 230V 50W 10° E27 SV1
0021125
Safety data
Breakage cleaning instructions Not applicable
Recommendation for disposal at end of
life
Special purpose lamp No
Intended purpose General lighting
Suitable for household illumination Yes
Suitable for accent lighting Yes
PHOTOMETRY
TECHNICAL DRAWINGS
Not applicable
© Feilo Sylvania | Date Printed: 29 Mar 2021
Page 3 of 4
Page 4
Hi-Spot 63 Superia (PAR 20)
HS63 SU 230V 50W 10° E27 SV1
0021125
© Feilo Sylvania | Date Printed: 29 Mar 2021
Page 4 of 4
