Annex no. 5

Functional Description /

User Manual

ID ISC.PRH200

INSTALLATION

Mobile Reader

draft – public (B)
2014-04-28 – M31210-2e-ID-B.docx

(English)

OBID i-scan® HF

Installation

ID ISC.PRH200

Note

 Copyright 2014 by

FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg
Tel.: [phone]

http://www.feig.de

With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notic e.

Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.

Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.

The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments and does not give
any guaranty for the functionality of the complete system which incorporates the subject of this document.

FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed
with components and testing methods for a level of reliability suitable for use in or in connection with surgical
implants or as critical components in any life support systems whose failure to perform can reasonably be
expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application
designer must take reasonably prudent steps to protect against system failures.

FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu­ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.

®

and OBID i-scan® are registered trademarks of FEIG ELECTRONIC GmbH.

OBID

®

is a registered trademark of Infineon Technologies AG

my-d
I-CODE
Tag-it

®

is a registered trademark of Philips Electronics N.V.

TM

is a registered trademark of Texas Instruments Incorporated.

FEIG ELECTRONIC GmbH Page 2 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

Contents

1 Safety Instructions / Warning - Read before Start-Up 5

1.1 Safety Instructions / Warning - Lithium-ion battery ................................................. 6

1.2 Lithium-ion batteries – Return and Transport .......................................................... 7

1.3 Maintenance ................................................................................................................ 8

1.4 Assembly of the wrist strap ....................................................................................... 8

2 Performance Features of the mobile Reader ID ISC.PRH200 9

2.1 Performance Features ................................................................................................ 9

2.2 Available Reader Types ............................................................................................ 10

2.3 Available Spare Parts ............................................................................................... 10

2.4 Delivery contents ...................................................................................................... 10

3 Start-up 11

3.1 Side view, Button & LED‘s ....................................................................................... 11

3.2 Charge the battery .................................................................................................... 12

4 First Wi-Fi connection with the Reader and scanning transponder 13

4.1 Connection in Access point Mode ........................................................................... 13

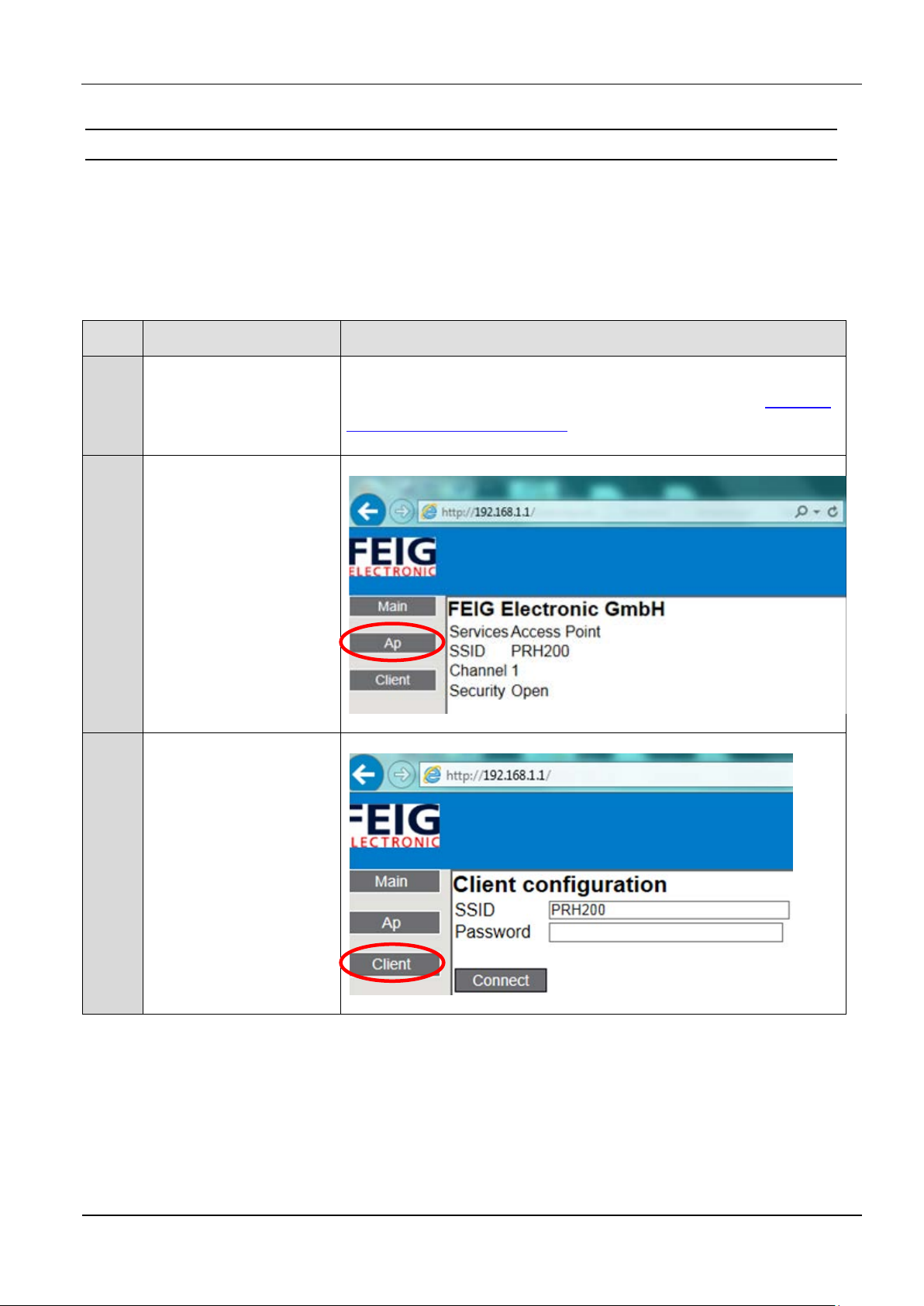

4.2 How to configure the Reader in client mode ........................................................... 16

4.3 Set Wi-Fi parameter to default ................................................................................. 18

4.4 Wi-Fi Interfaces ......................................................................................................... 20

5 Control and Display Elements 21

5.1 Buttons ...................................................................................................................... 21

5.1 HF-ON Motion Detector ............................................................................................ 22

5.2 LEDs .......................................................................................................................... 23

5.3 Buzzer ........................................................................................................................ 24

6 Configuration and testing the Reader using ISOStart 25

FEIG ELECTRONIC GmbH Page 3 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

7 Approvals 30

7.1 Europe (CE) ............................................................................................................... 30

7.2 USA (FCC) and Canada (IC) ..................................................................................... 31

7.3 Label Information Reader ID ISC.PRH200 ............................................................... 33

7.3.1 USA (FCC) and Canada (IC) approved antennas ................................................... 34

8 Technical Data 35

FEIG ELECTRONIC GmbH Page 4 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

1 Safety Instructions / Warning - Read before Start-Up

• The device may only be used for the intended purpose designed by for the manufacturer.

• The operation manual should be conveniently kept available at all times for each user.

• Unauthorized changes and the use of spare parts and additional devices which have not been

sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude any liability by the manufacturer.

• The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.

• Repairs may only be executed by the manufacturer.

• Installation, operation, and maintenance procedures should only be carried out by qualified

personnel.

• Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .

• When working on devices the valid safety regulations must be observed.

• Please observe that some parts of the device may heat severely.

• For installation and dismantling you should wear suitable safety gloves, because parts of

antenna housing could be sharp-edged.

The device is not water proof and should not be exposed to rain or humidity.

Under extreme circumstances water could seep into the device and damage the electronic
circuits.

Special advice for wearers of cardiac pacemakers:

• Although this device doesn't exceed the valid limits for electromagnetic fields you should

keep a minimum distance of 25 cm between the device and your cardiac pacemaker. Do
not holding the reader antenna for any length of time in an immediate proximity of the car­diac pacemakers

FEIG ELECTRONIC GmbH Page 5 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

1.1 Safety Instructions / Warning - Lithium-ion battery

• Use the battery only in the intended device from Typ ID ISC.PRH200.

• Improper use, damaged chargers or battery packs of injury and fire hazard

• Expose the battery pack f or no deviating from the technical data of environmental influences.

Moisture and water, dust, heat, shocks and pressure can damage or destroy the battery pack.

• To use a damaged, deformed or not or iginal sealed battery pack is prohibited. You must be
disposed of properly and Expertly and may no longer be shipped in Packet

• Lithium-ion batt eries must not be in the trash, they must be disposed of separately. Find out.
upon the local authorities to suitable collection

• Charge the battery only with the original by FEIG ELECTRONIC GmbH supplied battery
charger.

• During charging, the ambient temperature should be between 10°C and maximum 45 °C. A
slight warming of the battery during charging and in use is normal.

• Store your battery in a cool, dry place. Permitted temperature range according to technical
data.

• The battery pack must never be shorted out. A short-circuit the battery pack can be very hot,
break and break explosively

• Avoid reverse polarity of positive and negative poles. The battery pack may be damaged or
destroyed.

• Do not heat or throw the battery pack of in fire. Do not charge and leave the battery pack at the
high temperature. The battery pack may ignite explosively and break

• Never disassemble the battery pack. If disassembled battery pack, safety protection circuit m ay
cause breaking and not operated safety system for charge and discharge. May cause heating,
igniting and breaking of cell.

• Do not solder to terminal of battery pack. Safety protection circuit may cause breaking and may
be not operated safety system for charge and discharge. If heat up battery pack over 90°C,
plastic parts may be melting and cell may be leaking and may cause heating, igniting and
breaking by short-circuit internally.

• Do not subject the battery and replace the battery, no strong shocks or a strong impact.

• Do not leave the battery unattended during charging.

• Make sure that the battery label always remain on t he battery pack. The information’s printed

on the label have to be visible during handling the battery pack.

FEIG ELECTRONIC GmbH Page 6 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

1.2 Lithium-ion batteries – Return and Transport

Please note the following instructions for disposal or return and transport of Li-Ion batteries:

• Do not load or transport Li-Ion batteries if damaged. If you have any doubts, please contact
our technical support under [e-mail] or phone [phone].

• If the packaging is damaged, the packaging must be replaced by an undamaged original
packaging before further transport.

• Li-Ion Batteries may only be returned in their original condition and packaging.

• The shipping regulations must be observed.

• In the case of a return, the following label is clearly visible attached to the parcel:

Print out this sheet in A4 format in color, cut it out and attach the label clearly visible on the pack­age.

FEIG ELECTRONIC GmbH Page 7 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

1.3 Maintenance

The reader ID ISC.PRH200 is a design product with high quality surfaces, and should always be
handled with caution. The Device was designed to work reliably and flawlessly for years without
special maintenance.

Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a dishwash­ing liquid – water solution.

To improve the durability and the appearance, please follow the instructions below:

• Keep the reader clean and take care the reader is not scratched. Also regularly apply specific

antistatic products for acrylic surfaces.

• Regularly remove dust and other impurities with a soft cloth and a solution of water with a little

dishwashing liquid.

• Keep the reader dry. All kinds of moisture should be avoided during operation and storage.

Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and
damaging transparent plastic parts.

• Avoid storing or operating the reader at dirty or wet locations. The surfaces or electronic com-

ponents may be-damaging.

If any device not working properly, please contact the appropriate representative.

1.4 Assembly of the wrist strap

The included hand strap is mounted on the provided eyelet and tightened.
To avoid damage, the hand strap to secure it against falling should always be used.

FEIG ELECTRONIC GmbH Page 8 from 37 M31210-2e-ID-B.docx

Fig. 1: Ass embly of the wrist strap

OBID i-scan® HF

Installation

ID ISC.PRH200

2 Performance Features of the mobile Reader ID ISC.PRH200

2.1 Performance Features

ID ISC.PRH200 is a compact, wireless handheld reader, designed for contactless data exchange
with ISO 15693

• Inventory (Inventory books or other media in the shelf)

• Sorting of books or media in a shelf

• Locate a book or media in a shelf or box,

• automatic checking / rewriting of the AFI bytes of all media.

Further applications are laundries, logistical processes as well as document and asset manage­ment. In these areas it is possible to work with ISO 18000-3M3 transponders, optionally.

Depending on the type of media and the reading distance, the output power can be switched be­tween two levels (Standard Mode: 1.5 W and Boost Mode: 4 W). Power supply is a Lithium Ion
rechargeable battery that allows for operating times up to 16 hours*.

If necessary, the battery can be replaced easily and quickly.

transponders, especially in libraries. Typical applications are:

5 multi-colored LED lights and an integrated sounder act as display elements. Thereby all relevant
states are visible on both sides of the device.

Communication with a data base or computer take place through a Wi-Fi interface on the reader,
that supports the most common encryption protocols.

FEIG ELECTRONIC GmbH Page 9 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

2.2 Available Reader Types

Article No. Reader Description

4213.000.00 ID ISC.PRH200 Mobile Reader with rechargeable battery
and Wi-Fi-Interface

Table 1: Available Reader Types

2.3 Available Spare Parts

Article No. Spare part Description

4214.000.00 ID I SC.SRB Spare Rechargeable Battery Spare or additional battery-pack

4215.000.00 I D CHA.Li-Ion Recharger Spare charger for battery-pack

Table 2: Available Spare parts

2.4 Delivery contents

• Mobile Reader with battery and Wi-Fi-Interface

• Lithium-ion battery pack

• Wall power charger & Adapter Set for international socket-outlet

• Wrist strap

• Installation instructions

FEIG ELECTRONIC GmbH Page 10 from 37 M31210-2e-ID-B.docx

OBID i-scan® HF

Installation

ID ISC.PRH200

3 Start-up

3.1 Side view, Button & LED‘s

LED APPL
LED BATT

LED RF-ON

LED Wi-Fi

LED MODE

RF-ON

FEIG ELECTRONIC GmbH Page 11 from 37 M31210-2e-ID-B.docx

Eyelet for
wrist strap

Power-ON

Fig. 2: Housing ID ISC.PRH200
