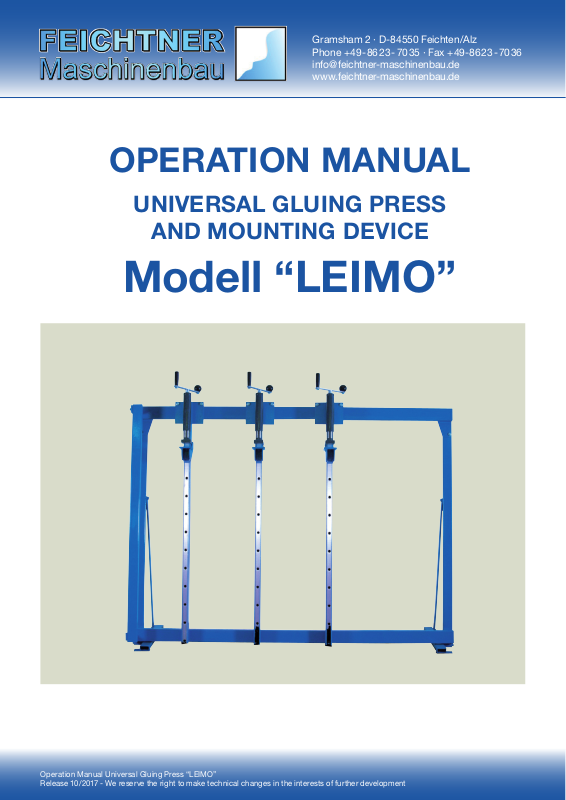

OPERATION MANUAL
UNIVERSAL GLUING PRESS
AND MOUNTING DEVICE
Modell “LEIMO”
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
Page 2
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Contents
ITEM: Page
Contents
Introduction 3
General information 4
Intended usage 5
Safety instructions 6
Device view / Main controls 7
Set up / Operation 8 – 9
Assembling 10 – 13
Technical Data Sheet 14
Warranty conditions 15
EU-declaration of conformity 16
Operation Manual Universal Gluing Press “LEIMO”
Contents Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 3
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Introduction
Dear Costumer!
With the purchase of this frame press you acquired a high quality product, to which we can
congratulate you.
It shows us, that you appreciate quality and technical leadership.
By purchasing the Feichtner frame press you have the following advantages:
Optimized pressure control
Angle accurate pressing of large-format parts
Very good price / performance ratio
Small space requirement
3 press units in the basic equipment
Read the following instructions carefully.
It will provide you a valuable help in the assembly and operation of the new frame press.
Please keep this manual for future reference.
We wish you much pleasure with your new frame press.
Josef Feichtner
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
3
Page 4
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
General information
Before starting and operating the new machine, please read this operation manual carefully and follow
the instructions.
Disregarding this instructions may cause personal injury or property damage.
Operation of the machine is only permitted with devices and spare parts which are included in the
scope of delivery or are listed in the spare and wear parts list.
Accessories must be matched to the basic unit (safety and operability). For more detailed information,
please contact the manufacturer or his contractual partner.
For ease of understanding, the following symbols have been used:
This area represents a special danger to the operating personnel or maintenance
personnel, if the operating instructions are not observed.
Maintenance work must be carried out at certain intervals in these areas.
Note or information on individual components of the machine which make the use
easier or more understandable.
Operation Manual Universal Gluing Press “LEIMO”
4 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 5
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Intended usage
The universal gluing press “LEIMO” is used for gluing applications in the wood processing industry.
Thanks to its easy handling and versatile extras, this press is extremely economical and time-saving
to use.
The Feichtner ** UNIVERSAL GLUING PRESS “LEIMO” ** may only be used for gluing
wood and wood joints.
Observe the instructions given in this operating manual. Use of this device for other than its intended
is unsafe.
The manufacturer does not assume any liability for resulting personal injury and / or material damage
from improper use.
It is recommended to consult a person who already has experience with such a machine when
assembling and setting up the machine.
Only original accessories or spare parts ensure perfect functioning of the machine.
No liability is assumed for damage resulting from the use of external components.
The device should only be operated, maintained and repaired by persons who are
familiar with the intended use and the dangers of the device!
Failure to observe the operating and maintenance instructions described by the manufacturer in these
operating manual excludes any liability on the part of the manufacturer in the event of a defect.
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
5
Page 6
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Safety instructions
4.1 General safety instructions:
Any person charged with setting up,
operation, maintenance and repair must have
read and understood the operating instructions and,
in particular, the chapter on safety.
It is recommended to the machine user to provide in-house operating instructions, prepared by a
person with professional skills and qualifications to train particular operators. The participation of the
instruction and training has to be confirmed by all participants in a written record.
Safety instructions to the machine user and / or operators:
– Any operation, that affects the safety of the equipment, must be omitted.
– The operator must ensure that no unauthorized persons work with or on the machine.
– The operator is obliged to check safety-relevant parts, f. e. protective devices before setting up
and in case of defects to have them repaired before start up the machine.
– The operator has to take care that a holding-down device is used for surface gluing so that the
workpiece cannot fall out of the frame due to the pressing pressure.
– When moving the press arm, hold the pad shoe, so that it cannot fall downwards.
– The pressure elements should only be actuated by means of pure muscular strength and
without the aid of any tools. A violation of the regulations will result in a damage to the gluing
press (bent profiled pipe, broken rack-and-pinion gears) which is excluded from the guarantee.
– It is important to ensure, whether there is any other person in the working area or danger area.
Operation Manual Universal Gluing Press “LEIMO”
6 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 7
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de

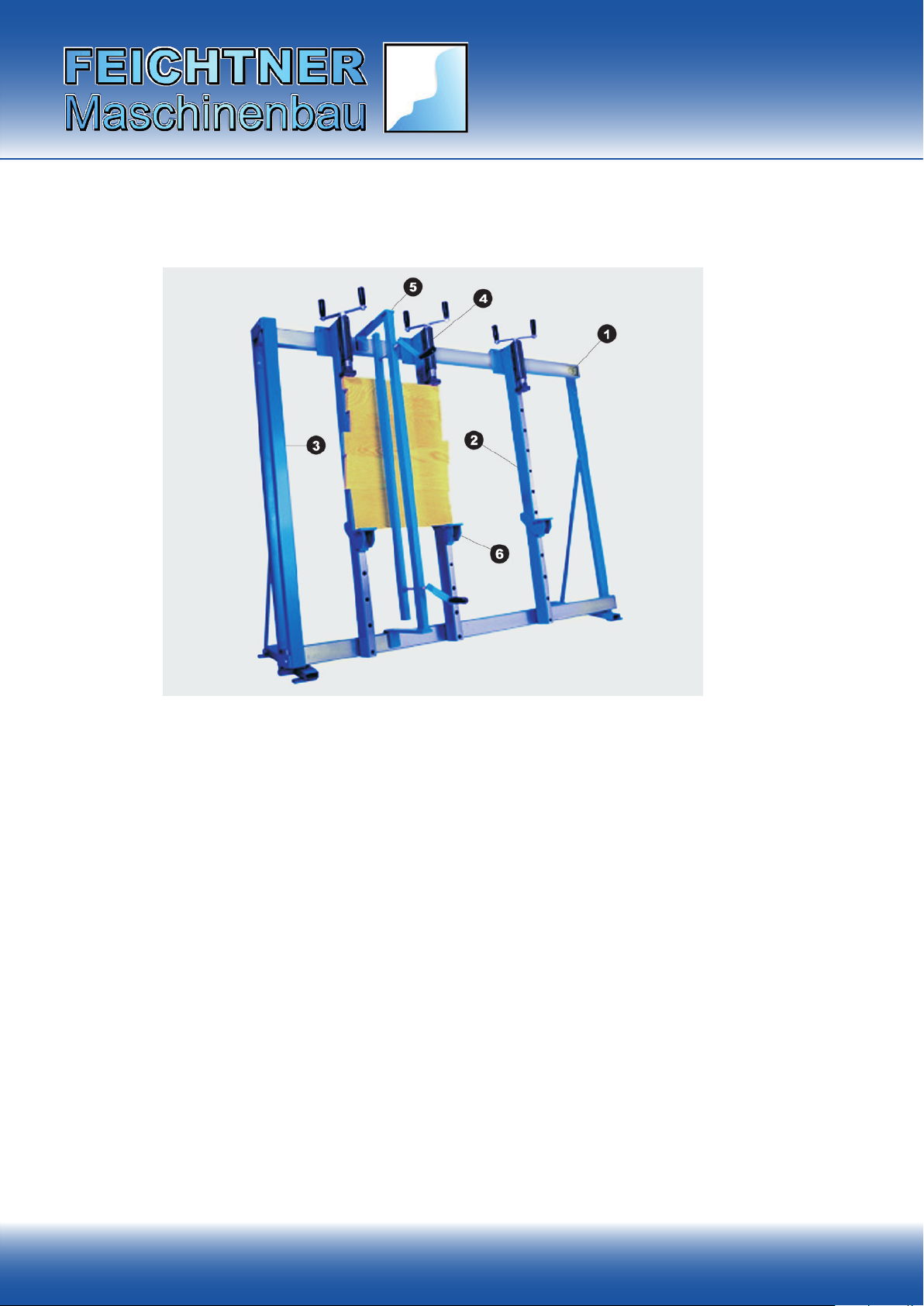

Device view/ Main controls
1) Base frame
2) Press arm vertical
3) 90°-stop device
4) Pressure element
5) Holding down clamp (Accessory)
6) Height adjustable pad shoe
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
7
Page 8
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Set up / Operation
Installation:
Make sure, that the gluing press is freely accessible on a leveled floor, and attach it to the floor.
(Assembling of the press see chapter “Assembling”)
Before starting work:
¾ Always check whether all the controls on the gluing press are okay.
¾ Check whether the pressure elements are free from dirt.
¾ Remove possible glue residues from 90°-stop and pad shoes, so that a clean gluing (bond)
is guaranteed.
Calculate the dimensions of the finished wooden board, so that you can adjust the
press arms and pad shoes accordingly.
¾ Adjust the press arms in such a way (horizontally move) that a uniform distance and thus a uniform
pressing pressure is produced.
¾ Make sure that the pressure elements are cranked all the way up.
¾ Now adjust the pad shoes in such a way that the finished wooden board still receives enough
press pressure (Observe the max. distance of the hydraulic cylinders!).

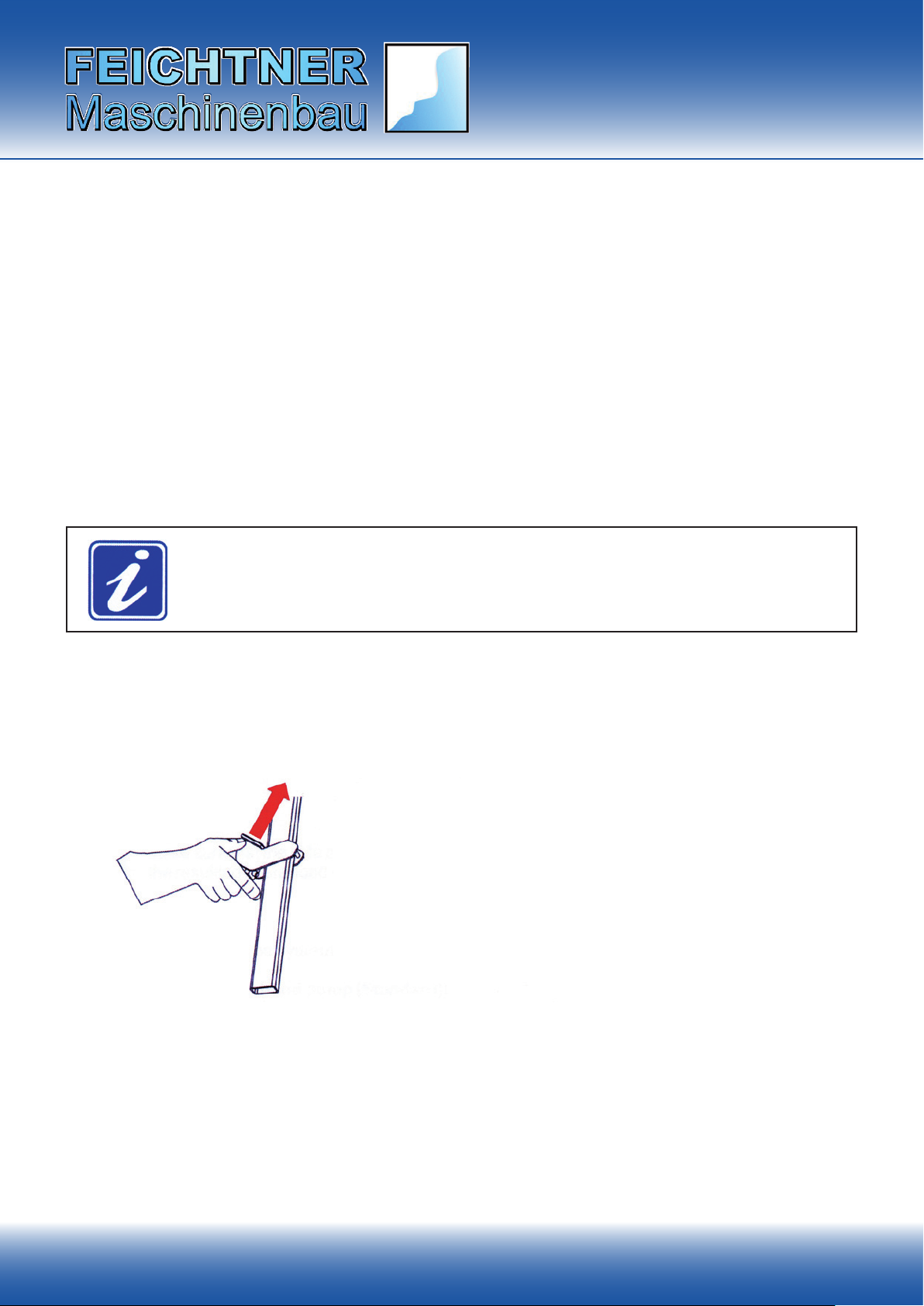

Pull up the pad shoe to release the locking pin.
The pad shoe can now be moved freely.
Then release the pad shoe just before the desired position and
push it until the bolt snaps back into place.
Clamping and gluing process:
If the pad shoes and the press arms have been positioned, the actual working process can be started.
¾ Fill (equip) the press with the glued workpieces, so that they are in contact at the 90°- stop.
¾ Now crank the pressure elements downwards until the desired pressure is reached.
¾ After the required drying time, the pressure elements have to be cranked up again in order to free
the finished wooden plate. The plate can now be lifted off the pad shoes.
Operation Manual Universal Gluing Press “LEIMO”
8 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 9
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Set up / Operation

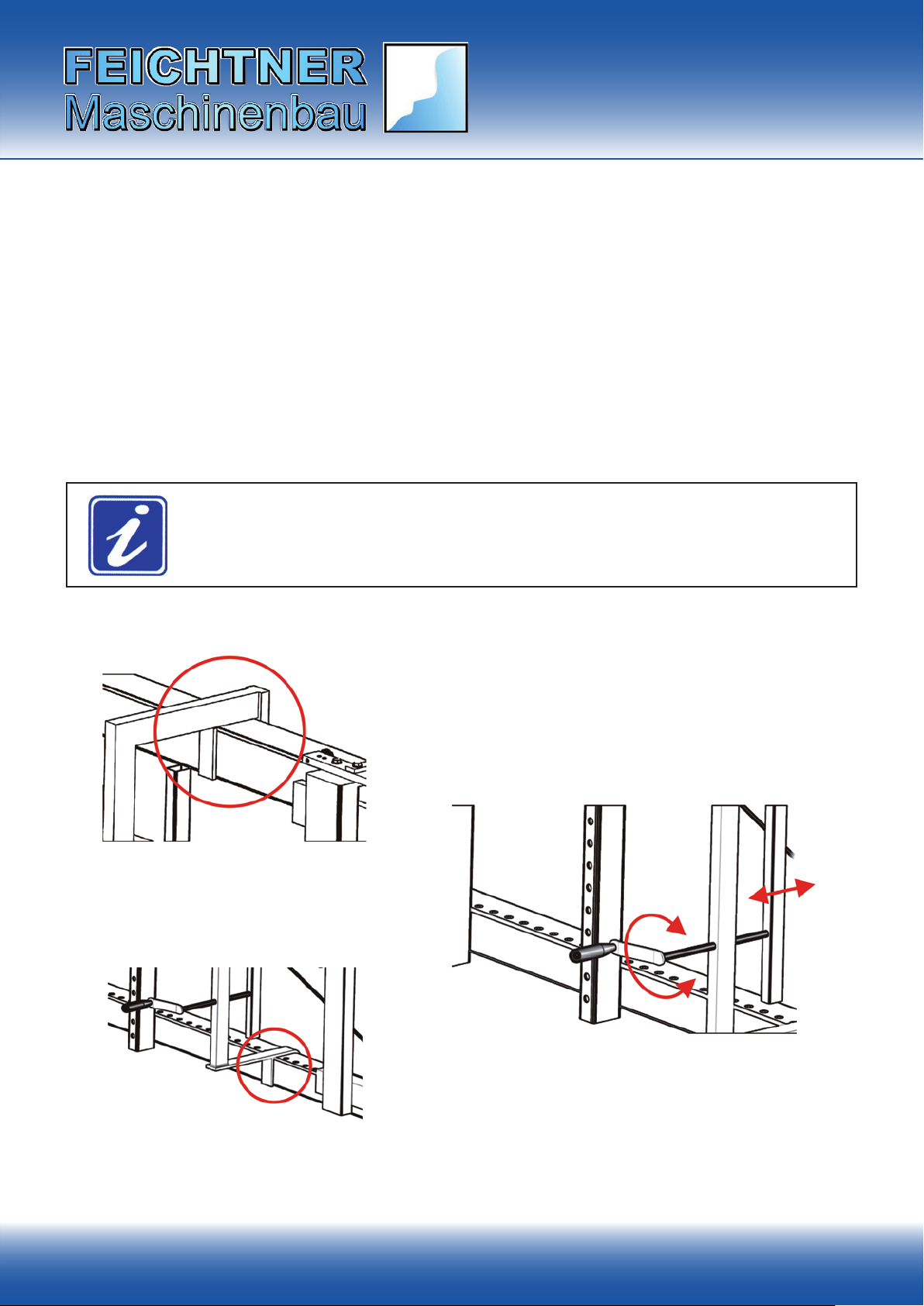

How to use the holding-down device (clamping device) (accessory):
Use a clamping device for surface gluing so that the workpiece does not bend forward during pressing
and the surface becomes even.
¾ The clamping device is simply to be mounted at the upper and lower longitudinal pipes from above.
(see illustrations on the left)
¾ Now move the clamping device to the desired position.
¾ Then crank the hold-down profile in the direction of the wood panel until the workpiece is evenly
against the press arms.
The clamping device serves only to prevent a deflection of the workpiece,
and not as an additional pressing device.

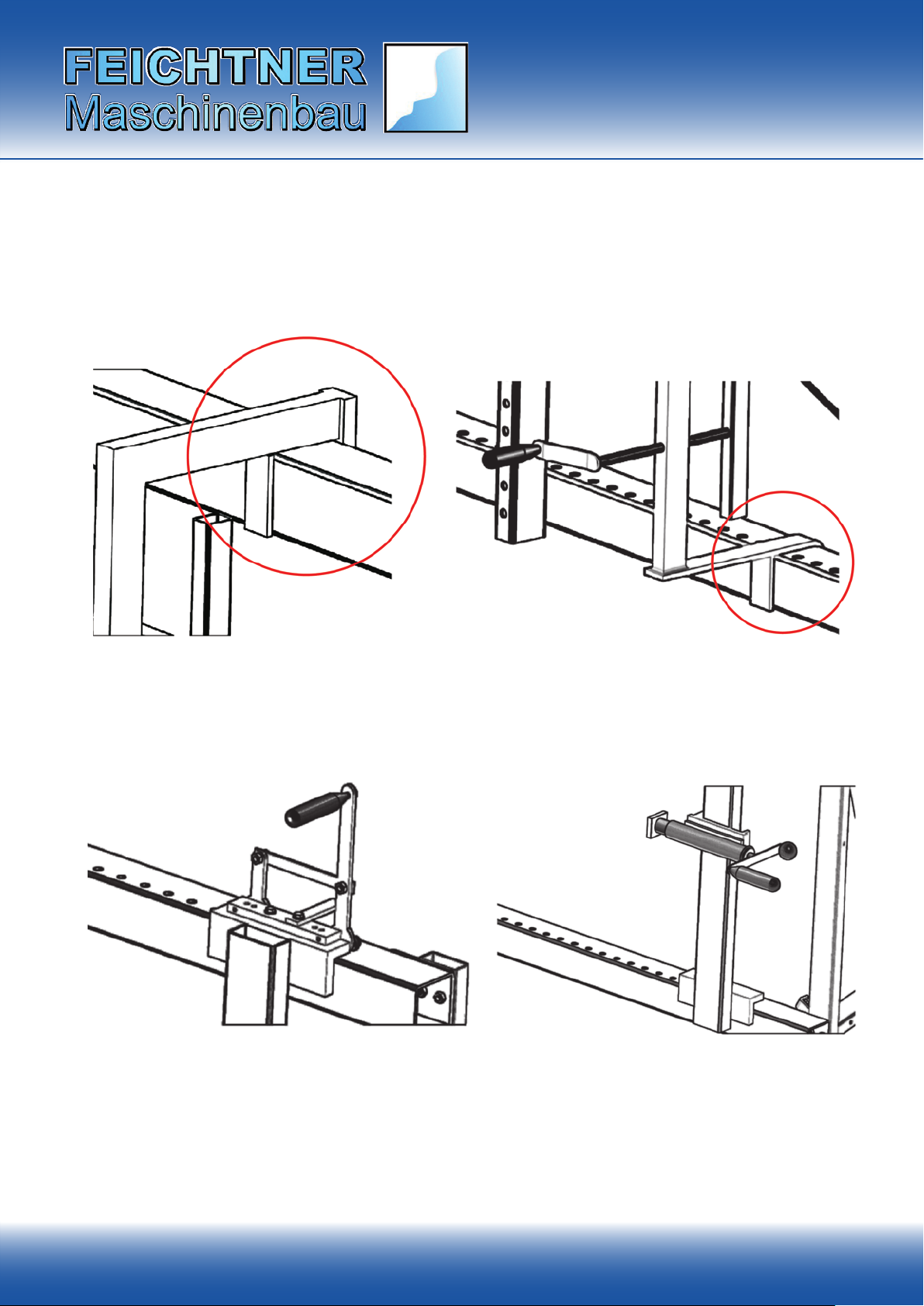

Place the clamping device on the top
Place the clamping device on the work piece by means
of a crank
Mount the clamping device
on the lower position
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
9
Page 10
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de

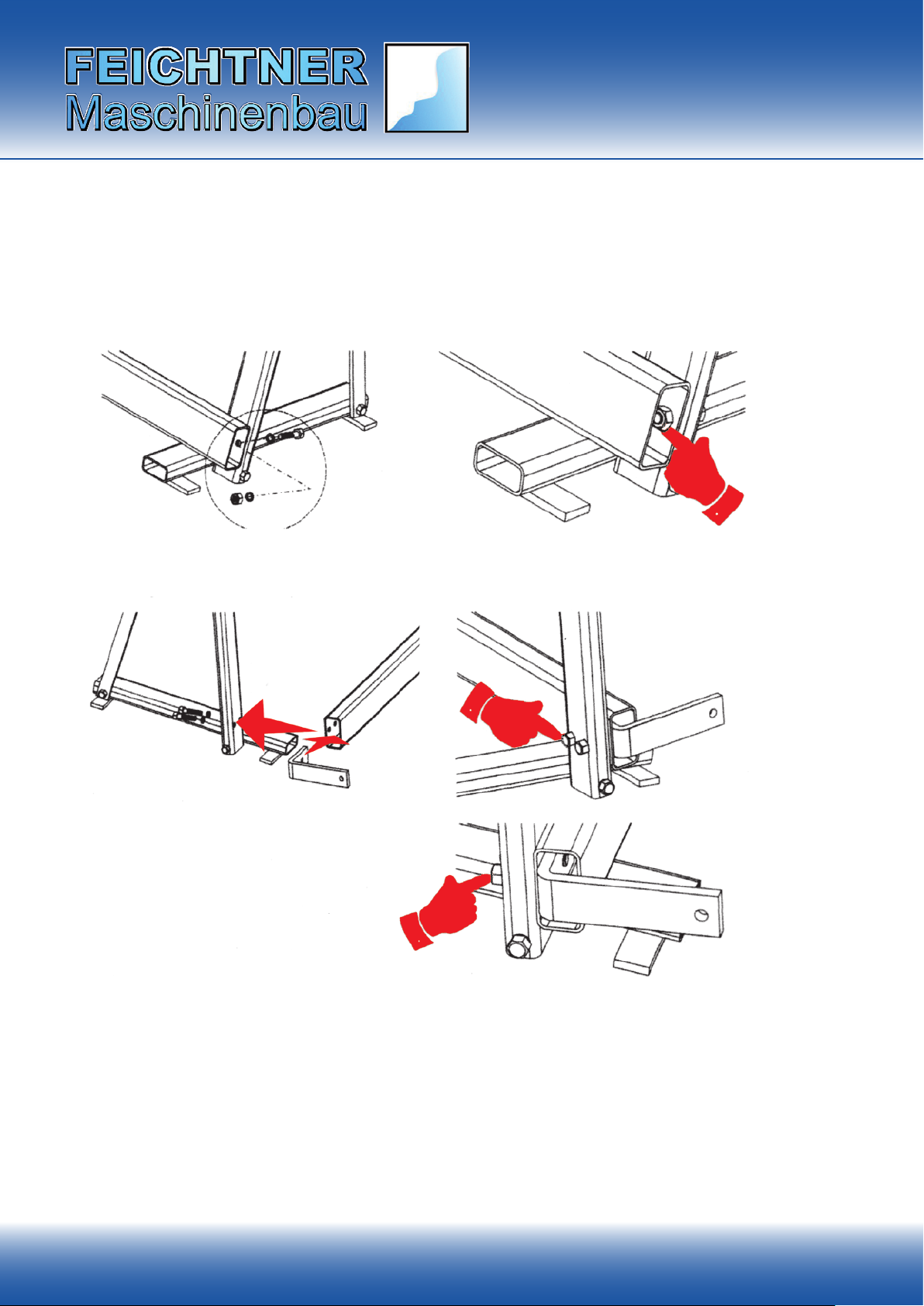

Assembling
1) Place the left and right side parts with the foot tube inside.
2) Now screw the lower longitudinal tube (80/49/2000) with the right side part as shown.
3) In addition, screw one of the two delivered brackets on the left side part.
Operation Manual Universal Gluing Press “LEIMO”
10 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 11
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Assembling

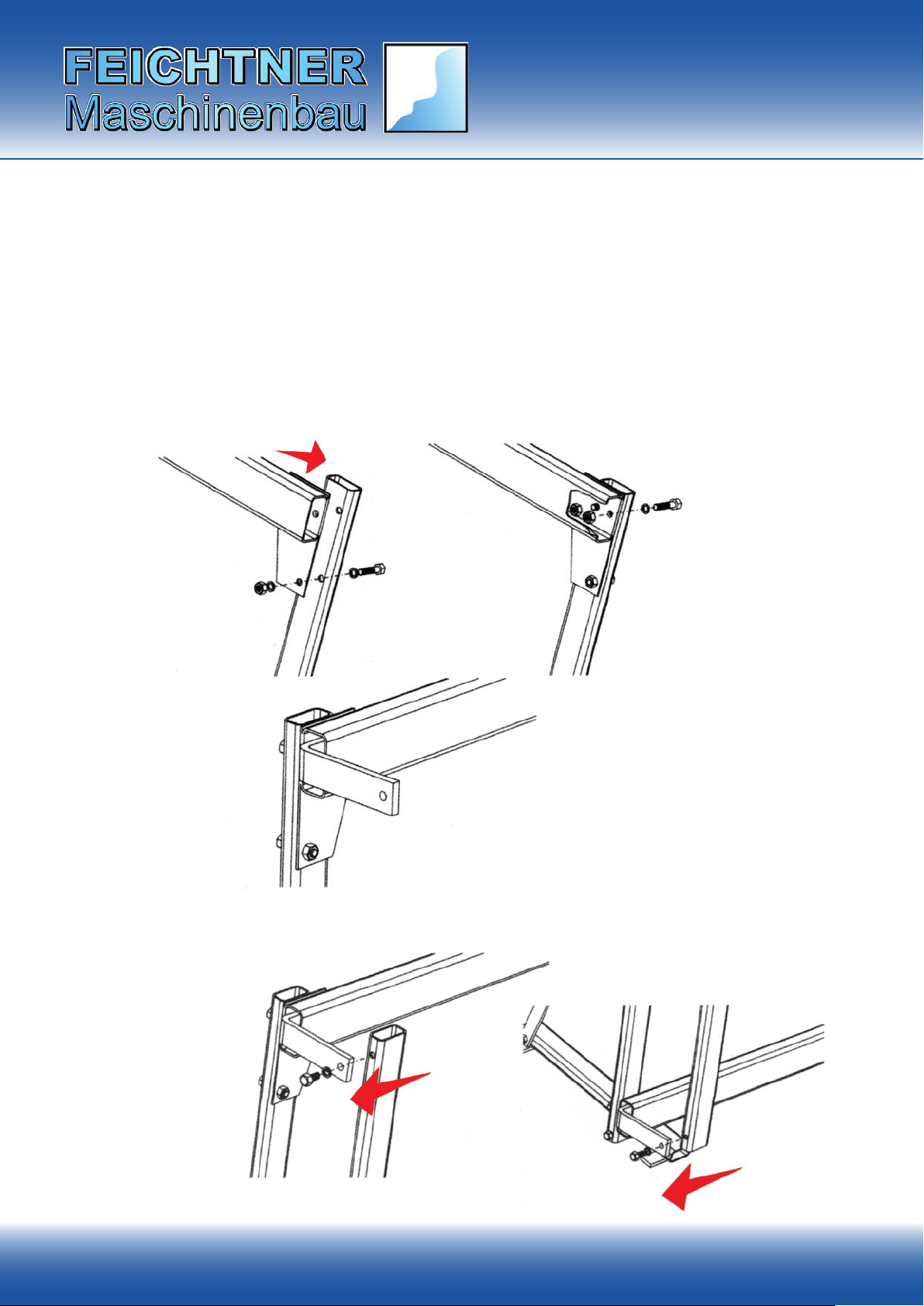

4) Now screw the upper longitudinal strut (80/40/2000) with the right and left side parts as shown on
the lower holes of the flaps under the vertical cross tube.
5) The upper longitudinal strut can now be screwed to the right side part with the remaining two
screws.
6) Now screw the upper longitudinal strut on the left side part with the remaining two screws.
By doing so, the other bracket, as shown in the lower longitudinal tube has not been forgotten.
7) Screw the angle stop (60/30/1500) to the upper and lower bracket now.
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
11
Page 12
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Assembling

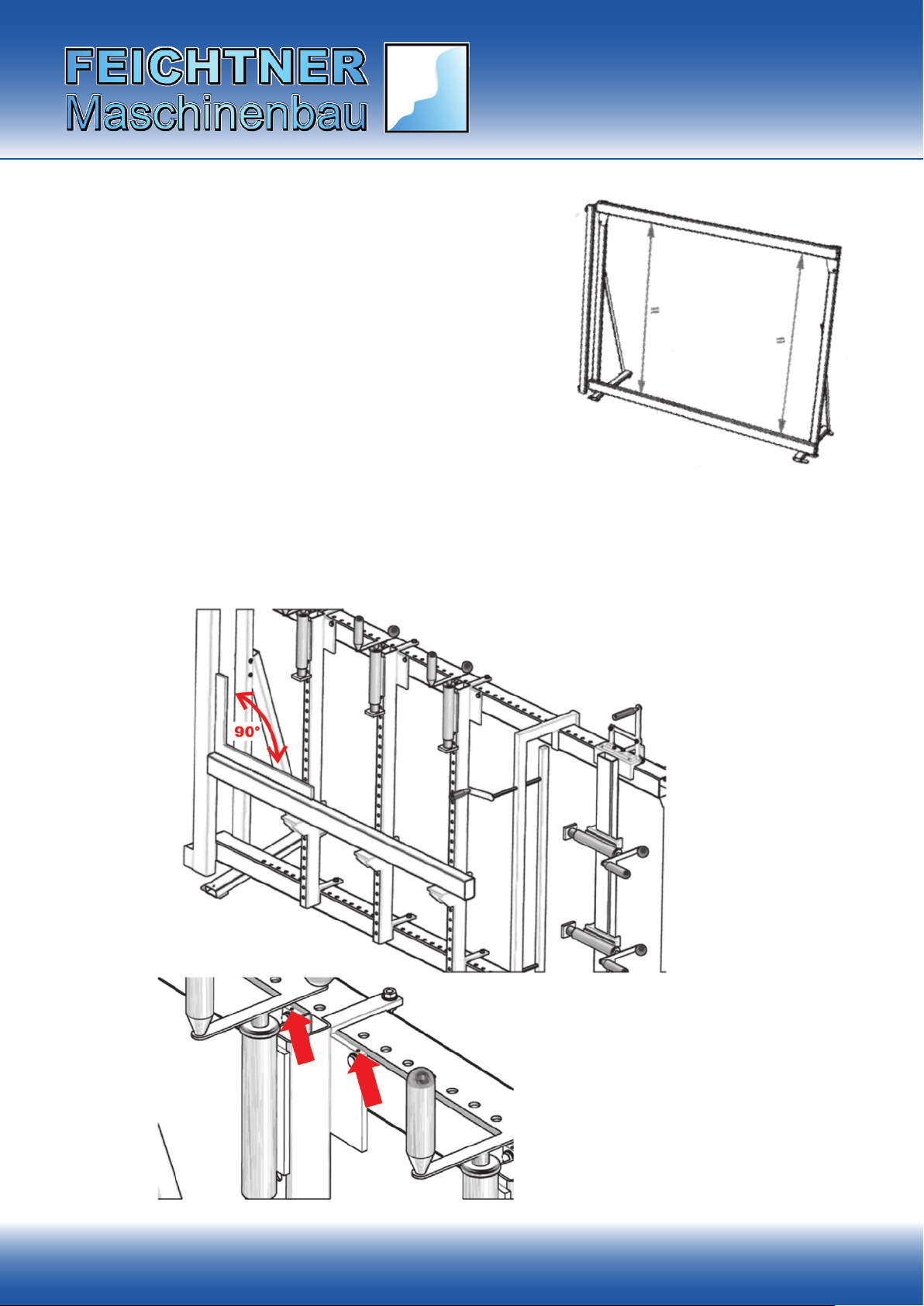

8) Finally, tighten all bolts and nuts under constant
control of the parallelism of the framework firmly.
Check the parallelism from the upper to the lower
longitudinal strut.
9) Now place the mounted press arms into the frame
from above.
10) Thread (mount) the pad shoes from below and allow
them to engage at the same height.
11) Place a straight crossbar across the three pad shoes and check that the crossbar
is parallel to the upper longitudinal tube. It is necessary to check, if the crossbar rests even on all
three pad shoes. If it is required, adjust one or the other pressing arms in height using the grub
screws (headless screws). Check by means of a 90° angle whether the straight crossbar on the
pad shoes to the frame is at right angles and adjust the frame if necessary by adjustment.
Height adjustment by means of grub screw
(headless screw)
Operation Manual Universal Gluing Press “LEIMO”
12 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 13
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Assembling
12) Attach the clamping device (accessory) to the upper and lower longitudinal tubes from above.
13) Place the side pressure device on the longitudinal tubes and make sure that they snap into the
perforated rows of the profiles. The lowering of the side pressure device is initialized by means
of a control lever on the lifting mechanism.
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
13
Page 14
Technical Data Sheet
Longitudinal dimension: 2050 mm
Depth dimension: 500 mm
Height dimension: 1700 mm
Max. clamping dimension: (h x w) 1140 x 1900 mm
Weight: 110 kg
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Standard features:
Loose supplied square profiles (frame)
3 press arms complete with casters
3 pad shoes
All screws, nuts and washers for complete assembly
Operation Manual Universal Gluing Press “LEIMO”
14 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Page 15
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
Warranty conditions
Warranty claims according to our general terms and conditions:
¾ The supplier gives a guarantee for his machines of 2 years. However, this only applies to visible
design errors and material defects. The supplier shall only be liable for defects of the delivery in
such a way that he has to remedy any defective parts of his product free of charge or to deliver it
at his own discretion.
¾ The warranty period begins on the day of delivery.
¾ The defects must be reported to the supplier immediately in writing and the parts concerned
must be sent to him on request. Regarding liability for faulty design or defective design; for
material defects, the supplier is only liable to the extent that he should have been aware of the
defect in the case of application of professional diligence.
¾ The supplier is not liable for damages that have arisen for the following reasons:
– Faulty assembly or setup by the customer or third parties
– Unsuitable or improper use
– Normal wear
– Faulty or careless handling of the machine
– Excessive use
The supplier is not obliged to remedy defects, if the customer has not fulfilled his payment
obligation.
¾ Further claims by the customer, in particular a claim for compensation for damages, which are
not caused by the equipment itself, do not exist.
Handling of spare parts deliveries during guarantee period:
The customer himself sends the defective part back to us free of charge. The workshop manager
assesses the damage and checks whether there is a guarantee claim according to the above
mentioned terms and conditions. The spare part is also sent free to the customer when the warranty
is granted.
Operation Manual Universal Gluing Press “LEIMO”
Release 10/2017 - We reserve the right to make technical changes in the interests of further development
15
Page 16
Gramsham 2 · D-84550 Feichten/Alz
Phone +49- 86 23 - 70 35 · Fax +49-86 23 - 70 36
[email protected]
www.feichtner-maschinenbau.de
EU-declaration of conformity
The manufacturer
Feichtner Maschinenbau
Gramsham 2
D-84550 Feichten an der Alz
declares that the machine described in the enclosed operating manual:
Type: Universal gluing press and mounting device “LEIMO”
Brand: Feichtner
Serial number: __________________________
Manufacture year: __________________________
complies with the guidlines of Directives 2006/42/EC (for machinery).
Applied harmonized standards, in particular:
DIN EN ISO 12100-1
DIN EN ISO 12100-2
Gramsham,
__________________________
_____________________________
Operation Manual Universal Gluing Press “LEIMO”
16 Release 10/2017 – We reserve the right to make technical changes in the interests of further development
Signature / Stamp
Loading...
