Feichter Audio S2, D8 User Manual

S2 D

8

High quality

64 Headphones

Distribution System

Binaural

Professional Systems

User manual

—[Revision 1.0 - June 2015]—

Binaural Professional Distribution System

S

2

/ D8 - technical information

1 | 21

Binaural Professional Distribution System

S

2

/ D8 - technical information

2 | 21

TABLE OF CONTENTS

Safety instructions 4 Technical information 5

POUR COMMENCER

Philosophy 6 Concept 7 Key features 7

OPERATION

Overview 8 Synoptic 9 S2 front facade 10

S2 rear facade 11

D8 front facade 12 D8 rear facade 13 Guide ownership 14 Additional features 16 Advanced features / Exploitation 17 Advanced features / Diagnosis 18

SPECIFICATIONS

General specifications 19 S2 specifications 19 D8 specifications 20 Quality control 21 Contact 21

Binaural Professional Distribution System

S

2

/ D8 - technical information

3 | 21

SAFETY INSTRUCTIONS AND WARNING

Read carefully this manual before using your Feichter Audio devices. Keep it for future reference. If you have an issue during the installation, please contact Feichter Audio assistance.

AUDIO WARNING

This equipment can create high sound levels. Over exposure to excessive sound levels can damage your ears resulting in permanent noiseinduced hearing loss. To avoid hearing damage, limit the time you use the headset at high volume and/or set the volume to a safe level. The vol ume con tro l o f he adp hones is exclusively the responsibility of users.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This product shall not be treated as household

ELECTRICAL WARNING

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of

To avoid the risk of shock and fire, keep this equipment away from rain and other moisture. Do not use this equipment if it is wet. Make sure your devices are properly ventilated. Keep away from any source of heat. Do not attempt to service the equipment. There are no user-serviceable parts inside. Please refer all servicing to Feichter Audio. Any attempt to service the equipment will expose you to a risk of electric shock, and will void the manufacturer’s warranty. The product should be connected only to the correct power supply as indicated on the product. Do not operate with damaged cord. Replace the fuse by an equivalent model.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local waste disposal service or the shop where you purchased the product.

To avoid the risk of shock and fire, keep this equipment away from rain and other moisture. Do not use this equipment if it is wet. Make sure your devices are properly ventilated. Keep away from any source of heat. Do not attempt to service the equipment. There are no user-serviceable parts inside. Please refer all servicing to Feichter Audio. Any attempt to service the equipment will expose you to a risk of electric shock, and will void the manufacturer’s warranty. The product should be connected only to the correct power supply as indicated on the product. Do not operate with damaged cord. Replace the fuse by an equivalent model. This equipment must be grounded. Unplug this apparatus during lightning storms or when unused for long periods go time.

As a precaution, do not wear headphone during starting, even if the system has an advanced protection system, sudden shock noises which could harm your hearing may appear.

This system uses a proprietary network distribution to link D8 boxes. RJ45 sockets are not compatible with Ethernet consumer network. Never attempt to connect Ethernet consumer equipment.

Binaural Professional Distribution System

S

2

/ D8 - technical information

4 | 21

☞

TECHNICAL INFORMATION

The documentation is available in French and English langage and is provided with:

➡

Individual approval report (A6 format delivered with each box)

➡

Paper manual (A5 format with each system)

➡

The electronic version of the manual and a binaural sound movie are available online on Feichter Audio

For comments, suggestions and customer service, please contact us by e-mail:

[email protected]

PACKAGE’S CONTENTS S

2

➡

Power supply unit S

2

➡

Power cable

➡

1/4’’ stereo jack plug («keylock »)

➡

Paper manual

The power supply unit S2 is delivered with a 1/4’’ male jack plug

To prevent any undesired modification during performances the S2 box buttons are locked by default. Buttons can be activated by plugging the provided stereo jack adapter or any standard 1/4" stereo jack in one of the two phones output.

PACKAGE’S CONTENTS D

8

➡

Distribution unit D

8

➡

Paper manual

➡

Additional set of label (ID)

➡

A shielded Cat-5 cable, if applicable

D8 can be delivered with high quality shielded Cat-5 cable. Use only shielded Cat-5 cable.

Unshielded consumer cable can cause damages to components of the system.

Binaural Professional Distribution System

S

2

/ D8 - technical information

5 | 21

☞

PHILOSOPHY

Thank you for choosing our product. Feichter Audio systems are designed with care and enthusiasm and we hope it will meet yours expectations for many years.

Feichter Electronics is associated with Pascal Rueff, pioneer of binaural sound, to design and manufacture in France professional audio equipments which will be particularly appropriated to high quality 3D audio.

Our range of Binaural Professional System fulfill the requirements of binaural production: dynamic, skill, silence. This level of quality, not just to satisfy but to exceed the demands of standard stereo production.

Wear your favorite headphones and discover high quality binaural productions with our products, on the website www.binaural.fr

Binaural Professional Distribution System

S

2

/ D8 - technical information

6 | 21

HIGH QUALITY FOR EACH HEADPHONE

The Feichter Audio’s binaural distribution system is the first solution of immersive sound with no-compromised quality.

Ultra-quiet and dynamic, the couple S2-D8, is the best option to offer an optimal 3D experience over headphone to listening groups.

Modular and easy to install, our system may fits a control room, a studio or concert hall. Its networked architecture allows an unlimited number of headphones.

To ease the installation, the diagnosis mode enables to detect defective devices or any other problem in the system preventing unpleasant surprises.

MAIN FEATURES

➡

PCM 24BITS 96KHZ

➡

INAUDIBLE SELF-NOISE

➡

HIGH QUALITY DAC AND AMPLIFIERS

➡

GLOBAL VOLUME CONTROL

➡

AUTOMATIC DIAGNOSIS OF HEADPHONES (UNPLUGGED OR DEFECTIVE)

➡

HIGH IMMUNITY AGAINST ELECTROMAGNETIC INTERFERENCES

➡

STURDY BUT LIGHTWEIGHT CONSTRUCTION

➡

NEUTRIK

®

CONNECTORS

➡

WORLDWIDE POWER INPUT (100-240VAC) AND BATTERIES (OPTION)

➡

DESIGNED AND MANUFACTURED IN FRANCE

Binaural Professional Distribution System

S

2

/ D8 - technical information

7 | 21

OVERVIEW

There are two types of boxes:

S

2

Power supply and diagnosis unit. Digital audio interface with two high-quality headphones outputs.

D

8

Distribution unit with 8 analog high-quality headphones outputs.

➡

A single S2 box can pilot from one to eight D8 boxes : this means 64 headphones, on a network up to 100 meters cable length.

➡

A single shielded cable with locking connectors delivers sound, power and control.

➡

Each headphone output is controlled by an individual amplifier.

➡

In the "diagnosis mode", S2 allows defaults detection when : headphones are not wellplugged, if their cable is damaged or broken or when the transducer is defective.

➡

This distribution system accepts PCM signals sampled at rates from 44,1 to 96 kHz and encoded from 16 to 24 bits using AES3 or SPDIF (electrical or optical) protocols.

➡

The system is designed to deliver the same quality and sound level to everyone in the audience. Each D8 box has an independent attenuator allowing fine level control to use a different batch of headphones on each box.

➡

Reflections of digital audio signal are prevented by using a resistance of 110 Ω at the end of the network. This impedance is activated by a switch on the last network’s box.

Binaural Professional Distribution System

S

2

/ D8 - technical information

8 | 21

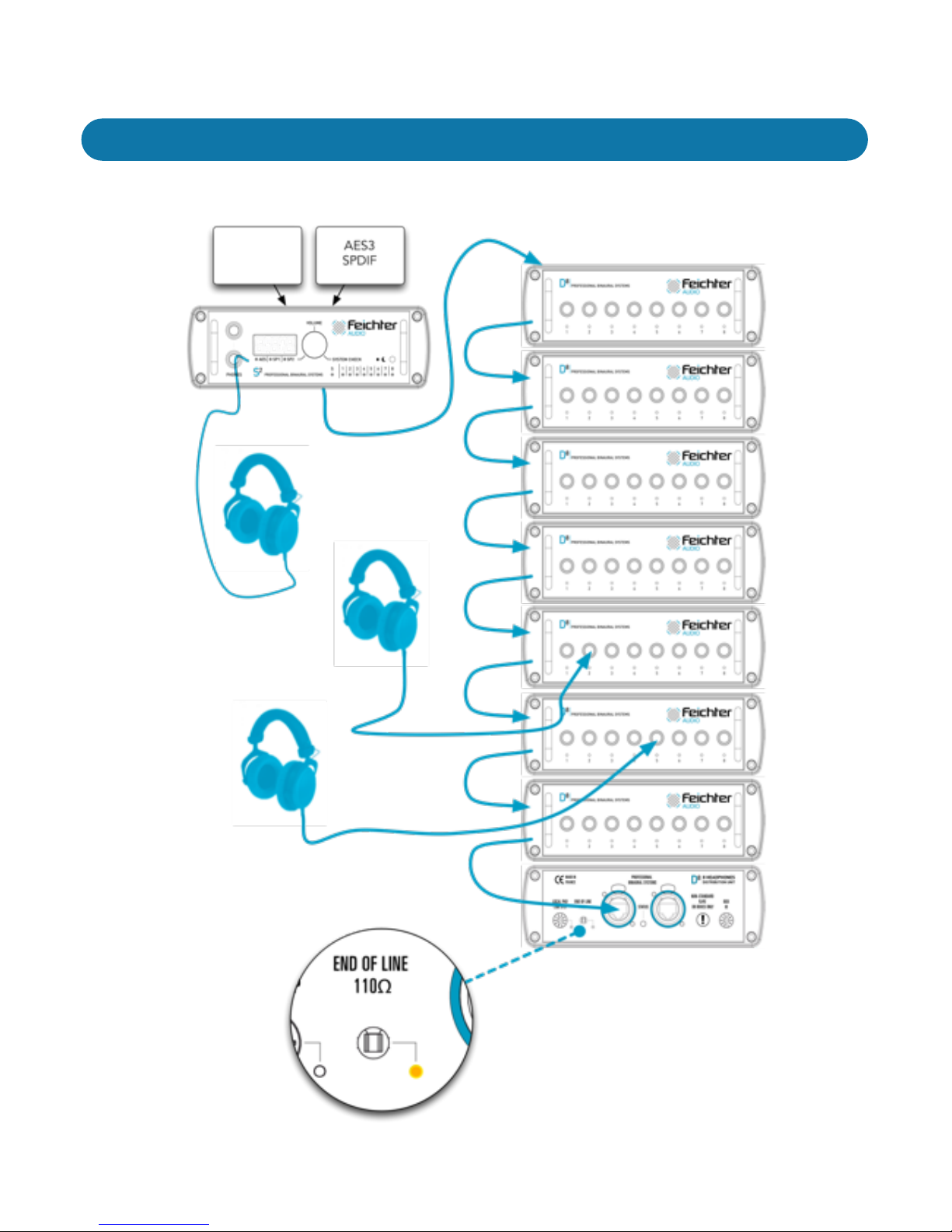

WIRING OVERVIEW

Binaural Professional Distribution System

S

2

/ D8 - technical information

9 | 21

100-240VAC

+T

BATT 48VDC

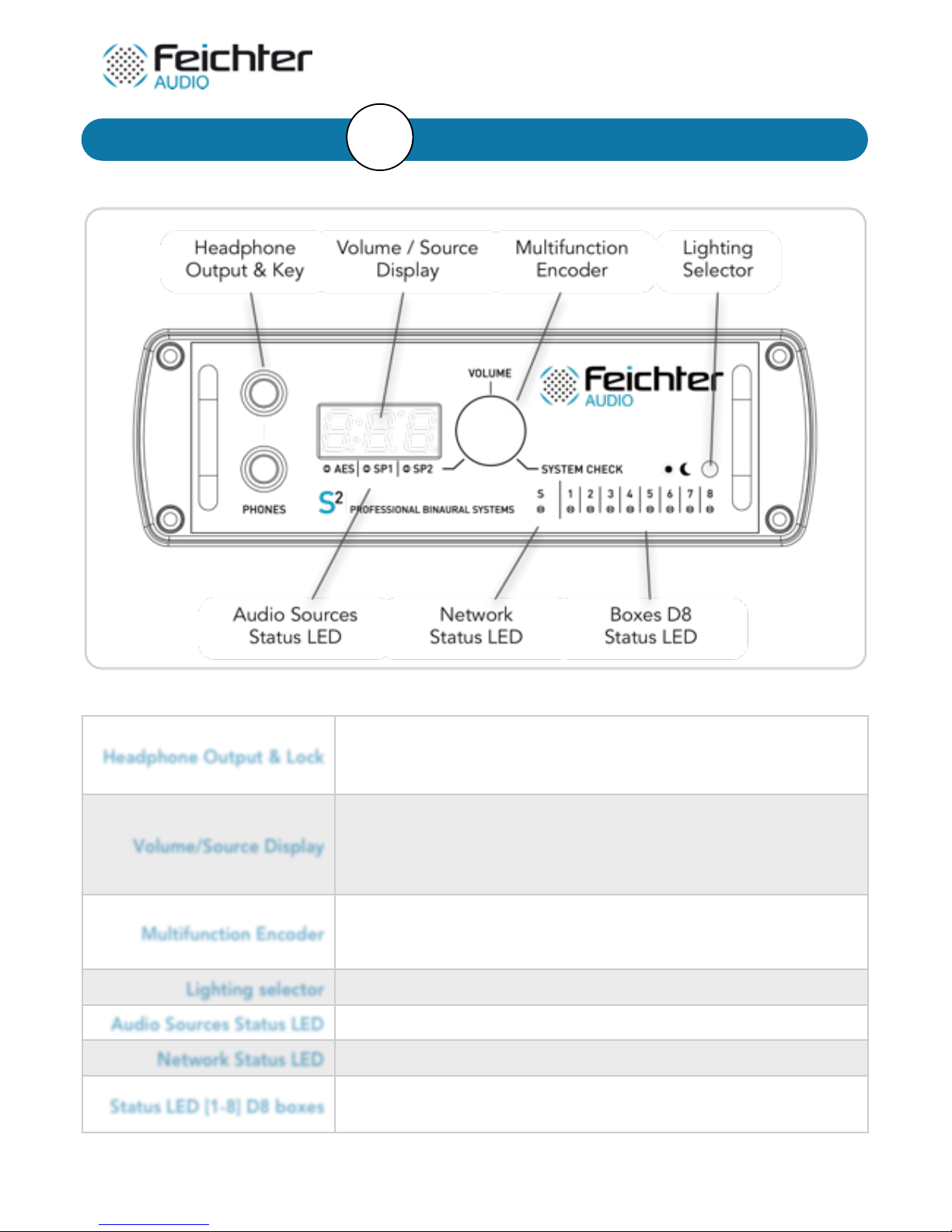

FRONT FACE

Headphone Output & Lock

Two 1/4" headphones outputs Commands lock Saving settings

Volume/Source Display

Level attenuation display in dBFs Visualisation of selected source [AES, SP1, SP2] Diagnosis informations [SYS, End, Id] [---] when commands are locked

Multifunction Encoder

Multi-purpose rotary control: Level control, audio source selection (AES, SP1, SP2) and mode selection (exploitation/ diagnosis)

Lighting selector

Set 3 levels of brigthness (day / night / off)

Audio Sources Status LED

Indicate the activated or selected audio source

Network Status LED

Indicates the general state of the network

Status LED [1-8] D8 boxes

Indicate D8 boxes status and headphones connected

Binaural Professional Distribution System

S

2

/ D8 - technical information

10 | 21

S

2

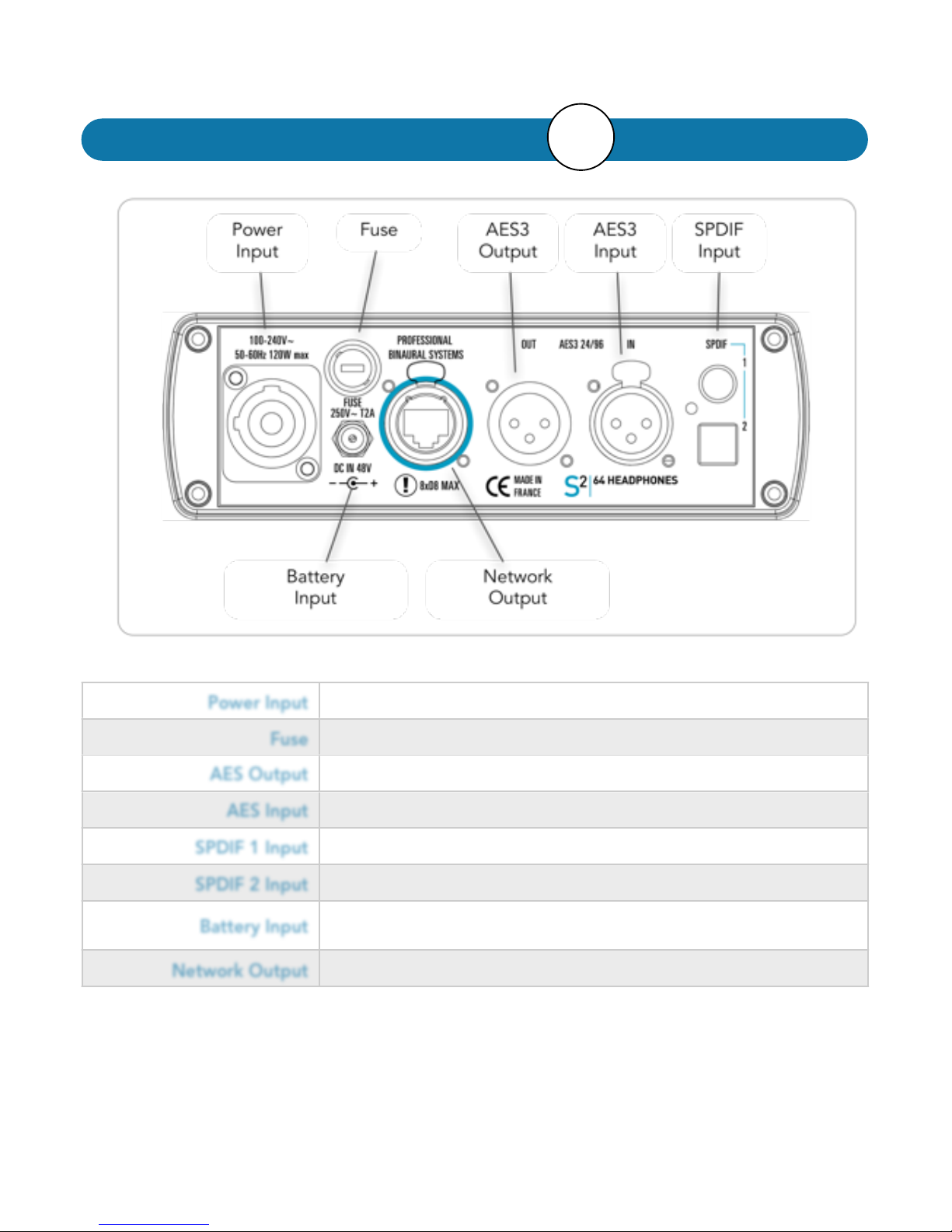

REAR FACE

Power Input

Power supply inlet, 100-240VAC on PowerCon

®

Fuse

Time-delay fuse 2A

AES Output

AES3 digital output (by-passed digital audio input AES3 or SPDIF)

AES Input

AES3 stereo Input

SPDIF 1 Input

SPDIF stereo electric Input

SPDIF 2 Input

SPDIF stereo optical Input

Battery Input

Power supply input, 48VDC barrel jack (5,5mm-2,5mm, ⊕ inside)

Network Output

Output network on EtherCon®

Binaural Professional Distribution System

S

2

/ D8 - technical information

11 | 21

S

2

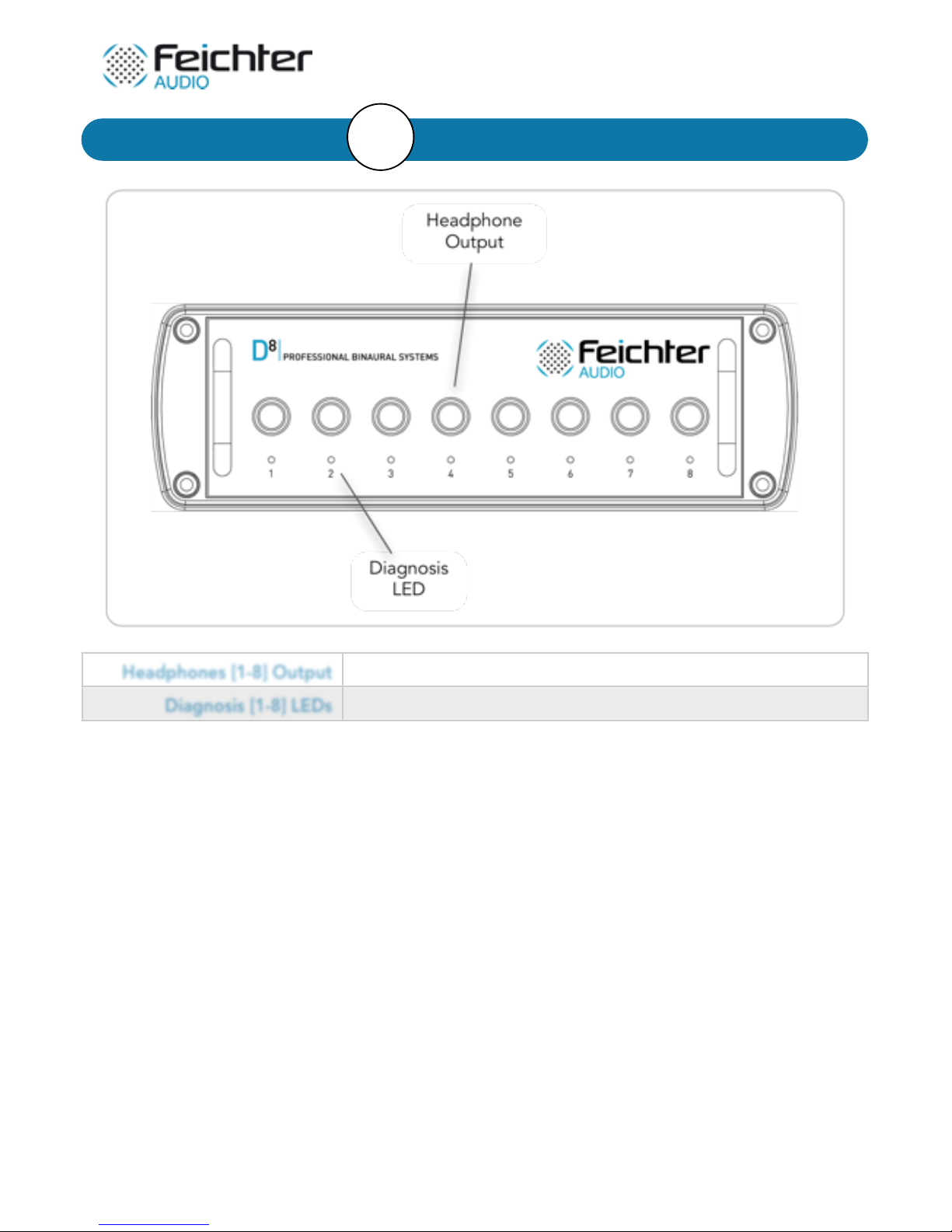

FRONT FACE

Headphones [1-8] Output

1/4" Analog Stereo Headphones Output

Diagnosis [1-8] LEDs

Indicate headphones failures

Binaural Professional Distribution System

S

2

/ D8 - technical information

12 | 21

D

8

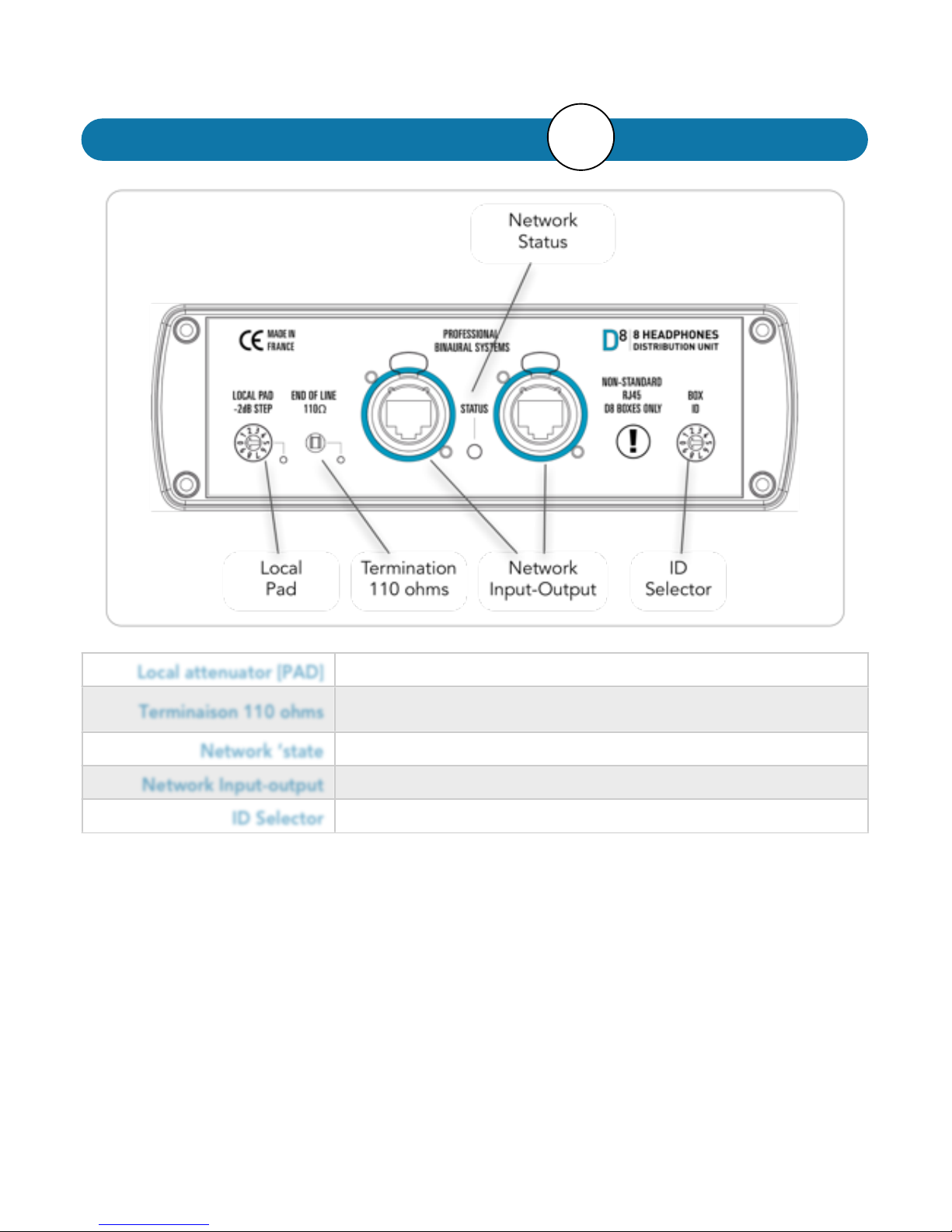

REAR FACE

Local attenuator [PAD]

Adjustable level attenuator from 0 to -18dBFs steps of 2dBFs

Terminaison 110 ohms

Network’s termination button, push it on the last box of the network

Network ‘state

Indicate network addresses problems

Network Input-output

Network Input-output on EtherCon® connector

ID Selector

Box network ID address, hided by a sticker

Binaural Professional Distribution System

S

2

/ D8 - technical information

13 | 21

D

8

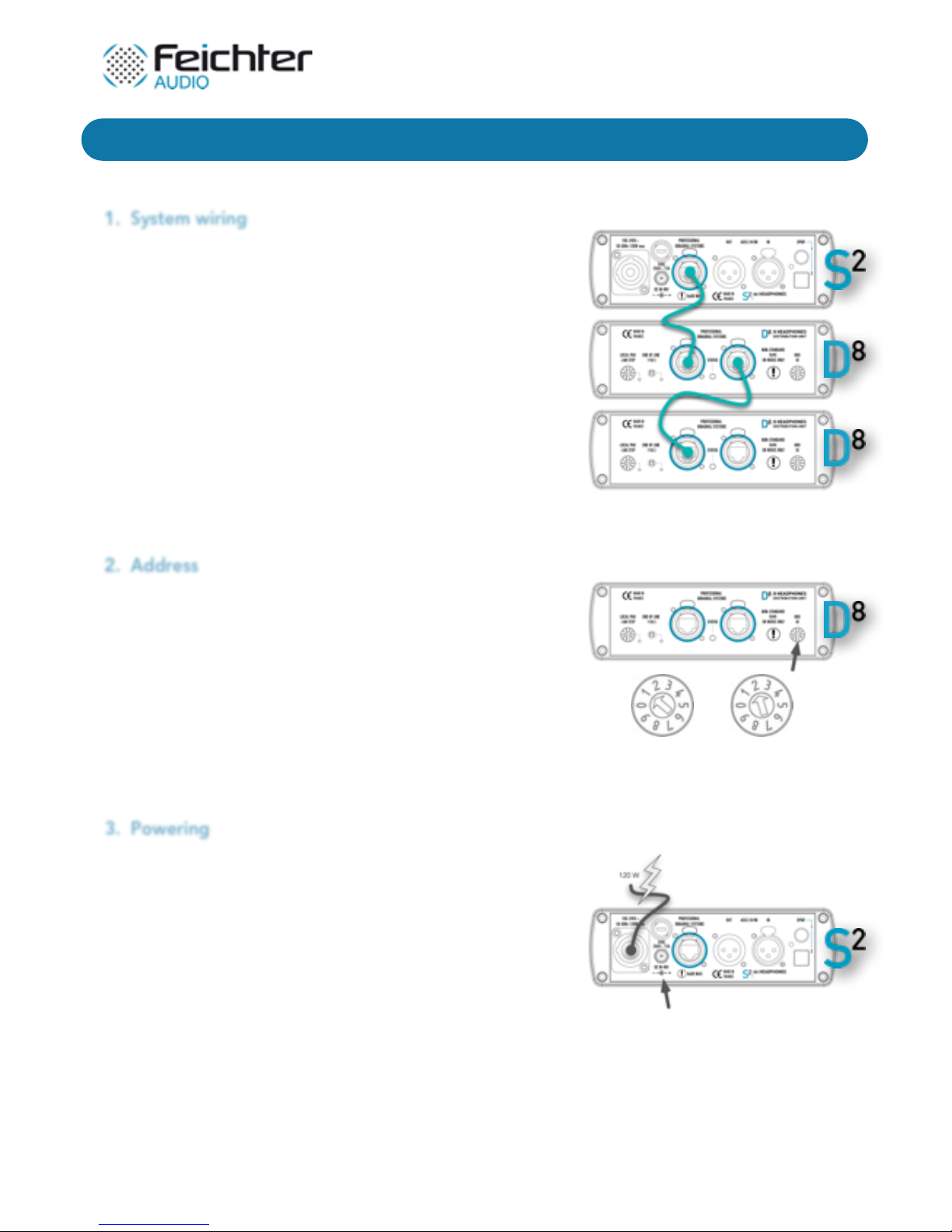

GUIDE OWNERSHIP 1

1. System wiring

➡

Identify EtherCon® co nnector s ma rked by

[PROFESSIONNAL BINAURAL SYSTEMS]

➡

Connect the S2 box with a shielded Cat-5 cable to

the first D8 box

➡

Each EtherCon® plug can be used as input or

output

➡

Connect with another shielded Cat-5 cable, the

next D8 box

➡

Connect uo to eight D8 boxes

2. Address

➡

Each D8 box must have an unique address [ID]

➡

ID 1 is set by default, except if you have bought a

complete system

➡

With a flat screwdriver, set the box ID

➡

The order in the network does not matter, but each

box must have an unique address

3. Powering

➡

Power S2 box with the power cable supplied

(PowerCon® plug

➡

The PowerCon® connector acts as main system

switch by locking and unlocking

➡

OR connect a 48V battery pack (in option) properly

loaded on [DC IN 48V]

➡

The system starts in "exploitation mode" and last

settings are loaded

Binaural Professional Distribution System

S

2

/ D8 - technical information

14 | 21

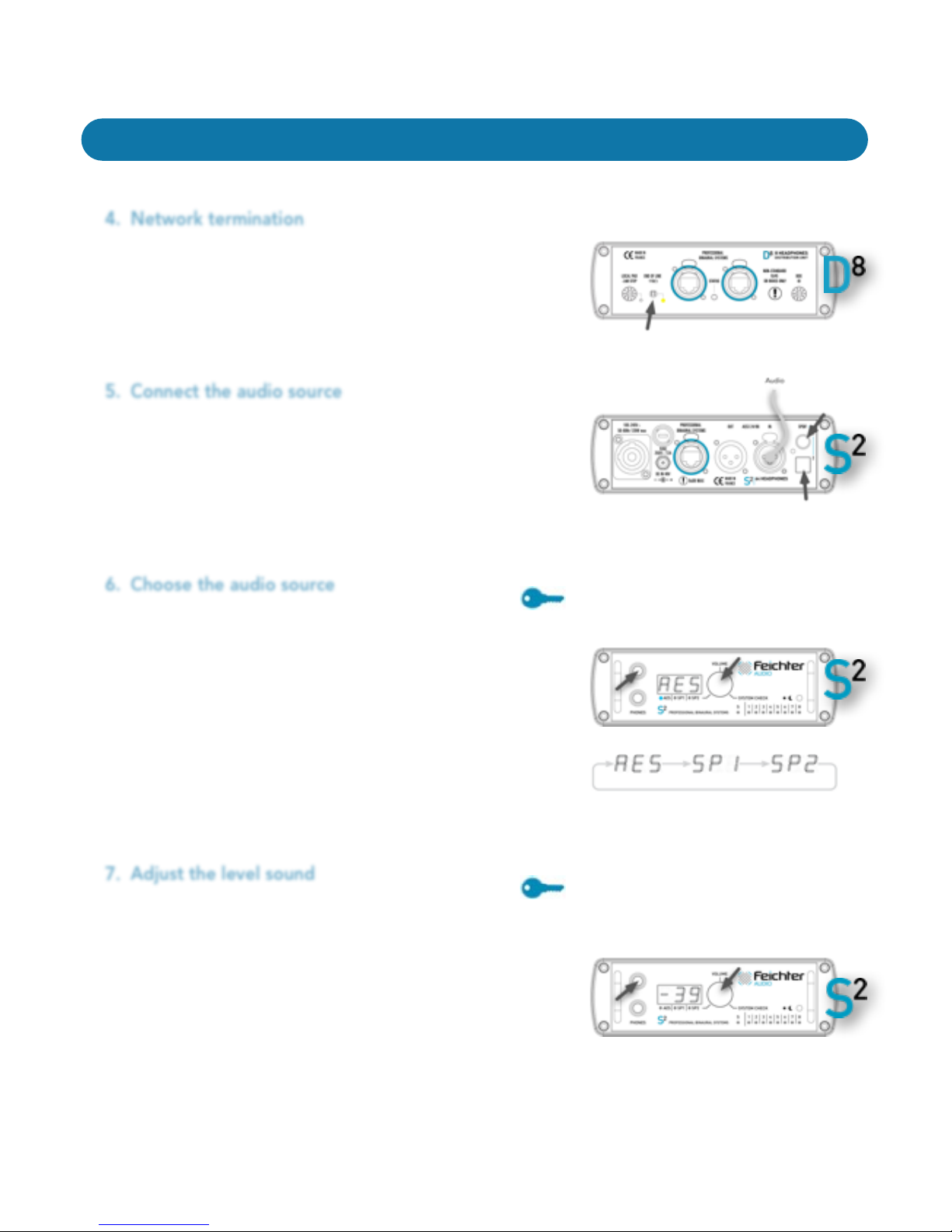

GUIDE OWNERSHIP 2

4. Network termination

➡

On the last D8 box on the network, engage the button [END OF LINE]

➡

The yellow led switches on, network is ready

5. Connect the audio source

➡

Plug a digital audio source to one of the S2 digital audio inputs (44.1 to 96 kHz, 16 to 24 bits)

➡

Formats AES3 and SPDIF (RCA or TOSLINK) are supported

6. Choose the audio source

➡

Unlock the S2 unit by plugging stereo jack in one of the outputs [Phones]

➡

Push the button [volume] once. The active source name is displayed

➡

Turn the button [volume] to select the desired audio source

➡

After three seconds, push the button [volume] again, to confirm the selection

7. Adjust the level sound

➡

Unlock the S2 unit by plugging stereo jack in one of the outputs [Phones]

➡

Turn the button [volume]; the corresponding value is displayed on the screen

➡

The sound level is displayed in dBFs

➡

Level can be adjust by steps of 0.5 dBFs. Lighted point on the right side of the screen represents decimal point values

Binaural Professional Distribution System

S

2

/ D8 - technical information

15 | 21

ADDITIONAL FEATURES

Setting memory

➡

To save volume control and audio source adjustments, the stereo jack must be unplugged for an instant from the [Phones] socket : The LED [S] changes to pink for one second to confirm the saving

➡

When starting, the stored settings are automatically loaded

Display intensity

➡

The button [☼ ☾] controls light intensity (digital display and LEDs) according three modes: day / night / off

➡

Pressing the button changes the intensity from strong (day) to weak (night), then only the LED [S] switches on (off mode)

➡

In off mode, any actions on button [Volume] bring back the lighting to night mode

Setting protected

➡

Outputs [Phones] of S2 boxes acts as a key. All commands (level and source selection) are locked by default

➡

Plug the stereo jack supplied or a standard headphone’s jack into the [Phones] sockets to activate controls and change audio source or sound level

AES3 input

➡

The AES3 (S2) output returns the activated audio source, No matter if the input signal comes from the AES3 or the SPDIF inputs. Link the AES3 output to the AES3 input of another S2 box to expand the network beyond 64 headphones

➡

AES3 output keeps the "Consumer" format when it copies out the SPDIF input : there is no re-encoding of AES3, only an electric adaptation of signals is done

Protection rack handles

➡

D8 box is extremely light, it can be hanged or fastened by its handles

➡

S2 box ’s handles help to protect the button [Volume]; this box is more heavy than D8 box, so we do not recommend hang or fasten the device by its handles

Binaural Professional Distribution System

S

2

/ D8 - technical information

16 | 21

ADVANCED FEATURES / EXPLOITATION

Information of EXPLOITATION MODE

Color LEDs of S2 and D8 boxes display the system state in real time.

LEDs [AES], [SP1] and [SP2] display the state of active audio source

➡

blue: the activated source is valid and delivered to the network

➡

blinking blue: the activated source is not valid

LED [S] indicates network’s state

➡

steady blue: network ok

➡

blinking blue: network ok, but the selected audio source is not valid

LEDs [1-8] and digital display inform about network’s problems

➡

[End] and blinking red: the network is not terminated or the termination is activated twice

➡

[Id] and blinking red: forbidden address are activated (0 or 9) or the same ID is used by two boxes

LEDs [1-8] indicate the status of the corresponding D8 boxes connected to the network

➡

steady blue: D8 box is activated

➡

blinking blue: audio signal is not valid

➡

steady red: D8 box indicates a power supply problem. If it appears, check the wires or the battery level. If the problem remains, contact us

LEDs [1-8] and digital display indicate the boxes using an attenuation [PAD]

➡

steady pink: indicated that PAD button is turned on at the corresponding Box

Binaural Professional Distribution System

S

2

/ D8 - technical information

17 | 21

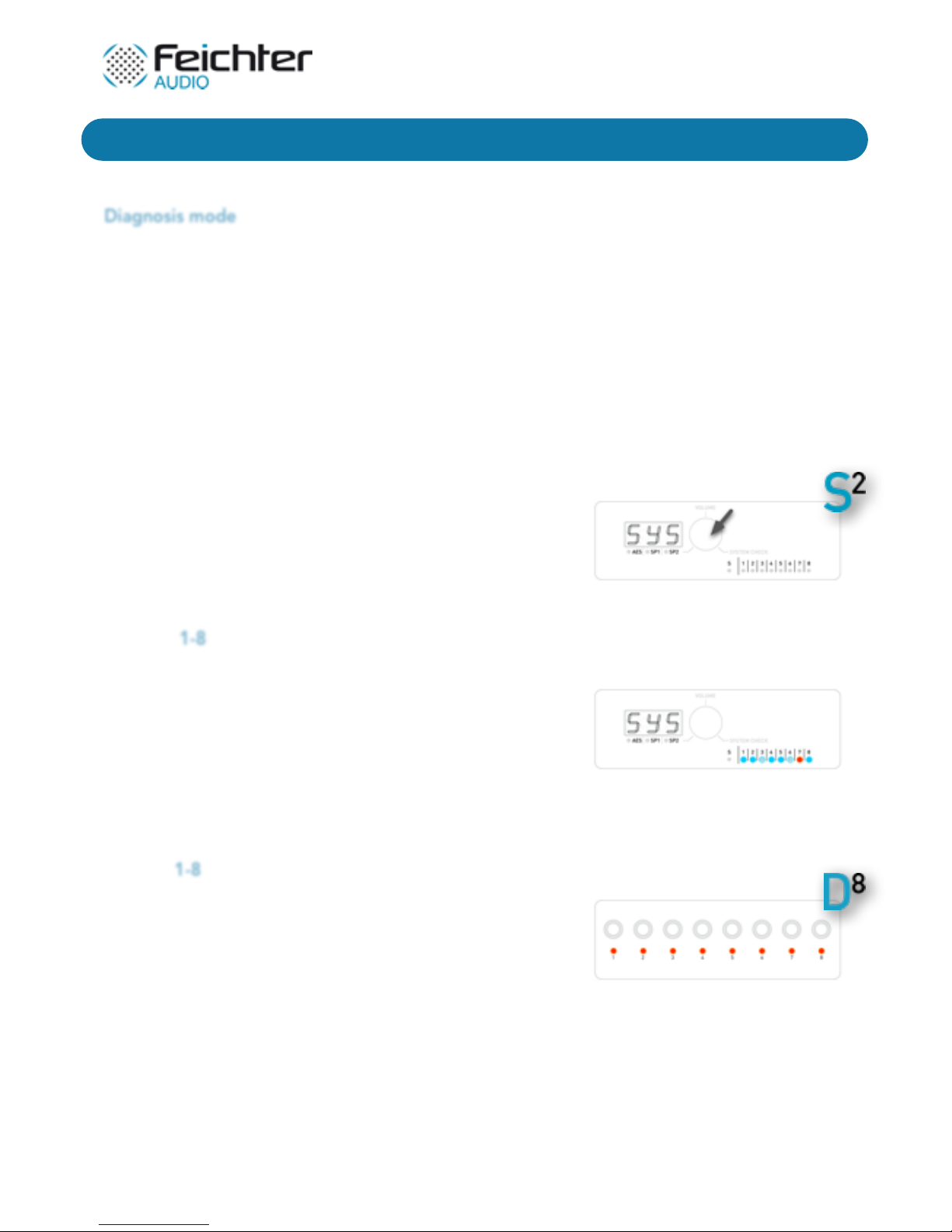

ADVANCED FEATURES / DIAGNOSIS

Diagnosis mode

In "diagnosis mode", the S2 and D8 boxes color LEDs display the headphones conditions. This function is available for headphones with impedances from 16 to 300 ohms. For higher

or smaller impedance, the measurement is no guaranteed.

The diagnosis mode stop the exploitation mode : the diagnosis mode mute the sound signals and the test signal is delivered to the system. This mode is designed to check and setup the installation. The diagnosis mode can be held as long as needed.

To switch to diagnosis mode, press and hold the button [Volume] for 3 seconds

➡

the word [SYS] displays

➡

to confirm press the button again

➡

sound is muted and all LEDs blink

LEDs [1-8] indicate the headphones status on D8 boxes connected to the network

➡

steady blue: 8 working headphones are connected

➡

blinking blue: at least one output headphone is still available

➡

steady red: a problem is detected on at least one headphone

LEDs [1-8] indicate status of output headphones

➡

steady red: light when the socket is free

➡

light off: when the headphones are connected and working properly

➡

blinking red: a problem is detected in the connected headphones

To exit diagnosis mode, press the button [Volume] once or lock the system by unplugging the 1/4 stereo jack of the socket [Phones].

☞

Binaural Professional Distribution System

S

2

/ D8 - technical information

18 | 21

GENERAL SPECIFICATIONS

Frequency response

20Hz-20KHz

0/-1dB

SNR

100dB

re +4dBu, 22KHz BW, unity gain

Distorsion

0,01500%

THD, 1kHz, 0dBFS, on load 32Ohms

Temperature range

+5 à +40°C

Humidity

< 75%

no-condensing

S2 SPECIFICATIONS / POWER SUPPLY UNIT

Sampling frequency

from 28KHz to 108KHz

automatic synchronization with valid frame

Word length

16 to 24bits

Audio digital formats

AES3

electrical SPDIF

optical SPDIF

IEC 60958 Type I XLR

IEC 60958 Type II RCA

IEC 60958 Type II TOSLINK

Network

non-standard

network

RJ45 EtherCon® / Cat-5 shielded

straight cable

Power supply

100-240VAC, 50-60Hz,

120W

Delay-time fuse 2A

PowerCon

®

Auxiliary power supply

48VDC ±6V, 2A

Jack coax cable

barrel jack (5.5mm-2,5mm)

Weight

890 g

aluminum box

Dimensions

170 x 145 x 55

length x depth x high

Binaural Professional Distribution System

S

2

/ D8 - technical information

19 | 21

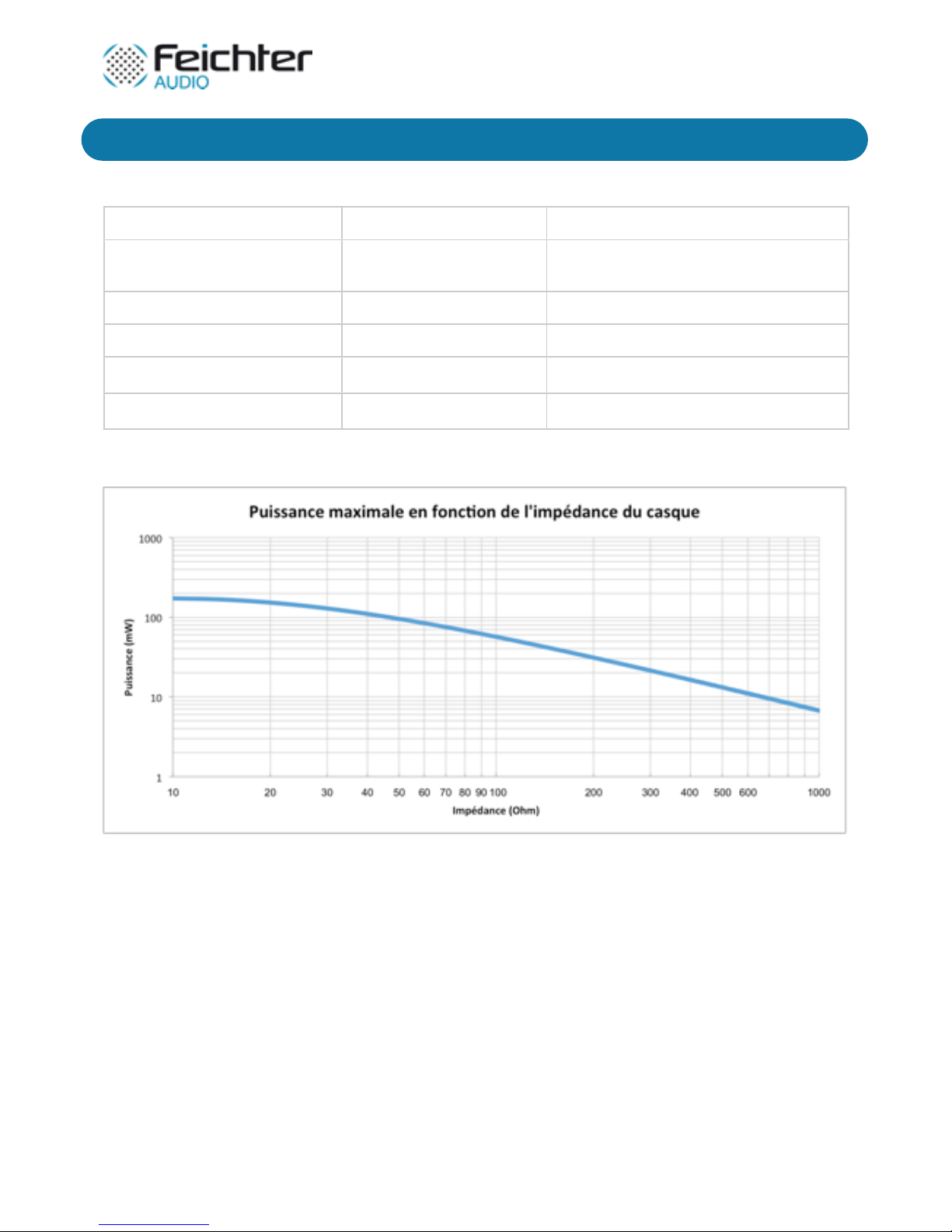

D8 SPECIFICATION / DISTRIBUTION UNIT

Output level max

8dBu

@ 0dBFs, per headphone

Power max

130mW

27mW

with 32 ohms

with 250 ohms

Address

1-8

address 0 and 9 are not use

Attenuation (PAD)

-18dBFs

steps of 2dBFs

Weight

760 g

aluminum box

Dimensions

170 x 145 x 55mm

length x depth x high

Our amplifier’s output level of can seems weak in front of other devices. This conception choice is compatible with EN-50332-2 (150mV / 32 ohms) and guarantee the sound quality for the full scale level. Until 0dBFS and no matter input level, the amplifier’s output does not crunch and the distortion rate is remains very low even for loud sounds. The whole dynamic range is available. It is the user’s responsibility to use an appropriate input signal's level.

Binaural Professional Distribution System

S

2

/ D8 - technical information

20 | 21

DÉCLARATION DE CONFORMITÉ

Feichter Electronics, 5 rue Louis de Broglie, 22300 Lannion, France, declares S2 et D8 products are tested and conformed following standards:

EN 55022 edition 2010 Limited electromagnetic emissions EN 55024 edition 2010 Immunity against electromagnetic interferences EN 60950-1edition 2005 Low-voltage directive EN 50332-2 edition 2003 Acoustic system equipment EN 60958 AES-EBU

Laurent Feichter, 15th june 2015

WWW.FEICHTER-AUDIO.COM

Feichter Audio design and produce systems respecting its social and ecological commitment.

Designed and manufactured in France

Our products are designed and manufactured in our local facilities in Lannion, Britanny. Ours subcontractors are small- and medium-sized businesses and industries: Electronic cards are manufactured in Lannion, the boxes and decorative panels are made in Alsace.

Long service life

The device is designed for professional use and will last for many years. Besides, we conduct durability test on our prototypes, and we perform meticulous quality control on each product before the delivery.

Energy savings

We use the newest technologies of power supply circuitry. Energy saving is guaranteed by the 90% of efficiency of all our power circuits.

Recyclability

Our products can be easily dismantled and do not contained non-recyclable materials.

Control of supply chain

We use exclusively electronic components manufactured by the market leaders. Their certification process and traceability which is used in medical and automotive industry ensure their quality. All components are carefully chosen from certified manufacturers using only responsible raw material (ecological and social large footprint).

FEICHTER ELECTRONICS

+33 2 96 21 66 95

SARL au capital de 14620€ immatriculé au RCS de St Brieuc

SIRET : 534 100 961 00018 / TVA : FR53 534100961

Binaural Professional Distribution System

S

2

/ D8 - technical information

21 | 21
