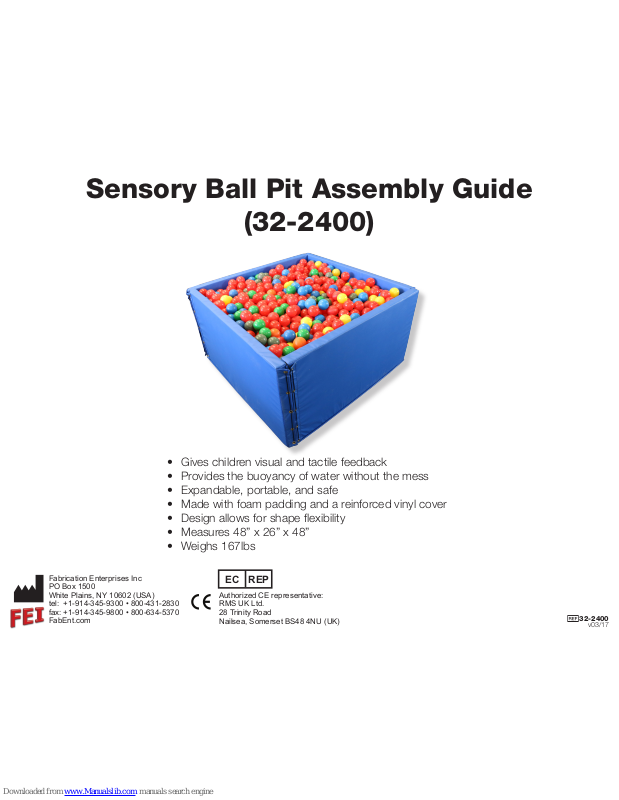

Sensory Ball Pit Assembly Guide

(32-2400)

v03/17

• Gives children visual and tactile feedback

• Provides the buoyancy of water without the mess

• Expandable, portable, and safe

• Made with foam padding and a reinforced vinyl cover

• Design allows for shape flexibility

• Measures 48” x 26” x 48”

• Weighs 167lbs

Fabrication Enterprises Inc
PO Box 1500
White Plains, NY 10602 (USA)
tel: [phone] • 800-431-2830
fax: [phone] • 800-634-5370
FabEnt.com

Authorized CE representative:
RMS UK Ltd.
28 Trinity Road
Nailsea, Somerset BS48 4NU (UK)

EC

REP

32-2400

Assembly Instructions

Before you begin:

• Read through this instruction manual carefully

• Make sure you have all the assembly pieces (listed below)

• Make sure there are no tears in the vinyl

• Make sure you are assembling the ball pit on a flat surface

4 vinyl-covered panels 4 pieces of connecting string 2,500 large balls (4” diameter)

Assembly Pieces

FABRICATION ENTERPRISES INC • PO Box 1500, White Plains, NY 10602 (USA) • tel: [phone] • fax: [phone] • FabEnt.com

3/17

Step 1 Step 2 Step 3 Step 4

Lay the panels on the floor flap side down

as pictured.

Lay the corners in a square so they form

a square and create the bottom of the pit.

Pull the flaps to the center of the square.

Stand the panels up. Making sure the flap

is tucked under the panel.

Make sure the panels meet as pictured

above.

Step 5 Step 6 Step 7 Step 8

Begin tying the panels together with

connecting string. Loop the string

between the two bottom grommet holes.

Take the string on the right and loop it

through the second grommet hole.

Pull the string through the grommet hole

directly across from the second hole.

Repeat with on the left side. The first and

second grommets should look like the

photo above.

Assembly Instructions

FABRICATION ENTERPRISES INC • PO Box 1500, White Plains, NY 10602 (USA) • tel: [phone] • fax: [phone] • FabEnt.com

3/17

Step 9 Step 10 Step 12

Repeat this ladder pattern all the way to
the top. Pull the string tight each time to

ensure a secure hold.

Secure the string at the top by tightly knotting the strings together as shown. Repeat this process with the other panels

until the pit can stand on its own.

Step 13

Fill the ball pit with balls and enjoy.

Assembly Instructions

FABRICATION ENTERPRISES INC • PO Box 1500, White Plains, NY 10602 (USA) • tel: [phone] • fax: [phone] • FabEnt.com

3/17

Caution:

Make sure walls of ball pit are secure
before use. Check for tears or loose
string prior to each use.
