Installation, Operation and Maintenance Manual

Steambath Generator Systems

Residential

Models: MS90E – MS400E and MSSUPER1E – 3E

____________________

IMPORTANT:

Leave this material with the home owner.

____________________

mr.steam

Feel Good Inc.

Page 2

Page 3

READ ME FIRST!

U S A

Designed, Engineered and Assembled in the

REDUCE THE RISK OF OVERHEATING AND SCALDING

EXIT IMMEDIATELY IF UNCOMFORTABLE, DIZZY OR SLEEPY. STAYING TOO LONG IN A HEATED AREA IS CAPABLE OF CAUSING OVERHEATING.

2. SUPERVISE CHILDREN AT ALL TIMES.

3. CHECK WITH A DOCTOR BEFORE USE IF PREGNANT, DIABETIC, IN POOR HEALTH OR UNDER MEDICAL CARE.

4. BREATHING HEATED AIR IN CONJUNCTION WITH CONSUMPTION OF ALCOHOL, DRUGS, OR MEDICATION IS CAPABLE OF CAUSING UNCONSCIOUSNESS.

5. DO NOT CONTACT STEAM HEAD OR STEAM AT THE STEAM HEAD.

REDUCE THE RISK OF SLIPPING AND FALL INJURY

1. USE CARE WHEN ENTERING OR EXITING THE STEAM ROOM. FLOOR MAY BE SLIPPERY

NOTE: FOR ADDITIONAL SAFETY CONSIDERATIONS SEE OWNER”S MANUAL

WHICH IS KEPT:_______________________________________ THE OWNER’S MANUAL CAN BE FOUND AT WWW.MRSTEAM.COM

USE OF STEAM ROOM IN CONJUNCTION WITH CONSUMPTION OF ALCOHOL CAN BE DANGEROUS AND CAN RESULT IN INJURY THROUGH SLIP AND FALL OR OTHERWISE.

mr.steam

43-20 34th Street , Long Island City NY 11101 1800 76 STEAM www.mrsteam.com PUR100378 8.18

WARNING

As you follow these instructions, you will notice warning and caution symbols. This blocked information is important for the safe and efficient installation and operation of this generator. These are types of potential hazards that may occur during installation and operation:

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided may result in minor or moderate injury or product damage.

is used to address practices not related to physical injury.

IMPORTANT NOTE:

information that is especially relevant to a problem-free installation.

All information in these instructions is based on the latest product information available at the time of publication. Sussman-Automatic Corporation reserves the right to make changes at any time without notice. More current instructions may be available at

This highlights

www.mrsteam.com.

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

1. READ AND FOLLOW ALL INSTRUCTIONS

injury or death if improperly used. Steam rooms contain steam and elevated temperatures. Please read and observe all warnings in this manual before installing or using a steam room.

4. A. The wet surfaces of steam enclosures

may be slippery. Use care when entering or leaving.

B. The steam head is hot. DO NOT touch the

steam head and avoid the steam near the steam head.

C. Prolonged use of the steam system can raise

excessively the internal human body temperature and impair the body’s ability to regulate its internal temperature (hyperthermia). Limit your use of steam to 10-15 minutes until you are certain of your body’s reaction.

Supervise children at all times.

Steam is hot and can cause

To reduce the risk of injury:

D. Excessive temperatures have a high

potential for causing fetal damage during the early months of pregnancy. Pregnancy or possibly pregnant women should consult a physician regarding correct exposure.

E. Obese persons and persons with a

history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a steambath.

F. Persons using medication should

consult a physician before using a steambath since some medication may induce drowsiness while other medications may affect heart rate, blood pressure and circulation.

SAVE THESE INSTRUCTIONS

HYPERTHERMIA occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6° F. The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include:

The use of alcohol, drugs, or medication can greatly increase the risk of hyperthermia.

Not Actual Size

mr.steam

43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM

9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM

Sussman-Automatic Corporation®[email protected] www.mrsteam.com

a) Failure to perceive heat; b) Failure to recognize the need to exit the steambath; c) Unawareness of impending risk; d) Fetal damage in pregnant women; e) Physical inability to exit the steambath and f) Unconsciousness.

The manual supplied with the generator includes a peel and stick warning label. Its proper use is an essential part of providing a safe environment for steam room users. The peel and stick warning label must be applied to the wall of the shower or steam enclosure, at a point that is visible to all users. Failure to install this sticker may result in serious injury or death. The location where this owner's manual is kept shall be written in the space provided on the label using permanent ink. For a replacement warning label contact MrSteam customer service at 1-800-76-STEAM or [email protected].

PUR 100472A REV 1.21

Page 4

RESIDENTIAL STEAMBATH GENERATOR SYSTEMS

INSTALLATION, OPERATION & MAINTENANCE MANUAL

MODEL _______________________________

MODELS: MS90E, MS150E, MS225E, MS400E, MSSUPER1E, MSSUPER2E, MSSUPER3E

TABLE OF CONTENTS

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Select Your MrSteam Model . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Generator Specification Chart . . . . . . . . . . . . . . . . . . . . . . . . . 3

_______________________________________________________________________

INSTALLER SECTION

Before Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Steam Room Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Water Quality Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Locating the Steam Generator . . . . . . . . . . . . . . . . . . . . . . . 5

Typical Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . 6

Typical Multi-Installation Instructions . . . . . . . . . . . . . . . . . . . 7

Installation: Plumbing, Water Supply, Drain, Steam Outlet

Safety Valve, Condensation Pan, AromaSteam. . . 8

AromaSteam Steamhead Installation. . . . . . . . . . . . . . . . . . . 9

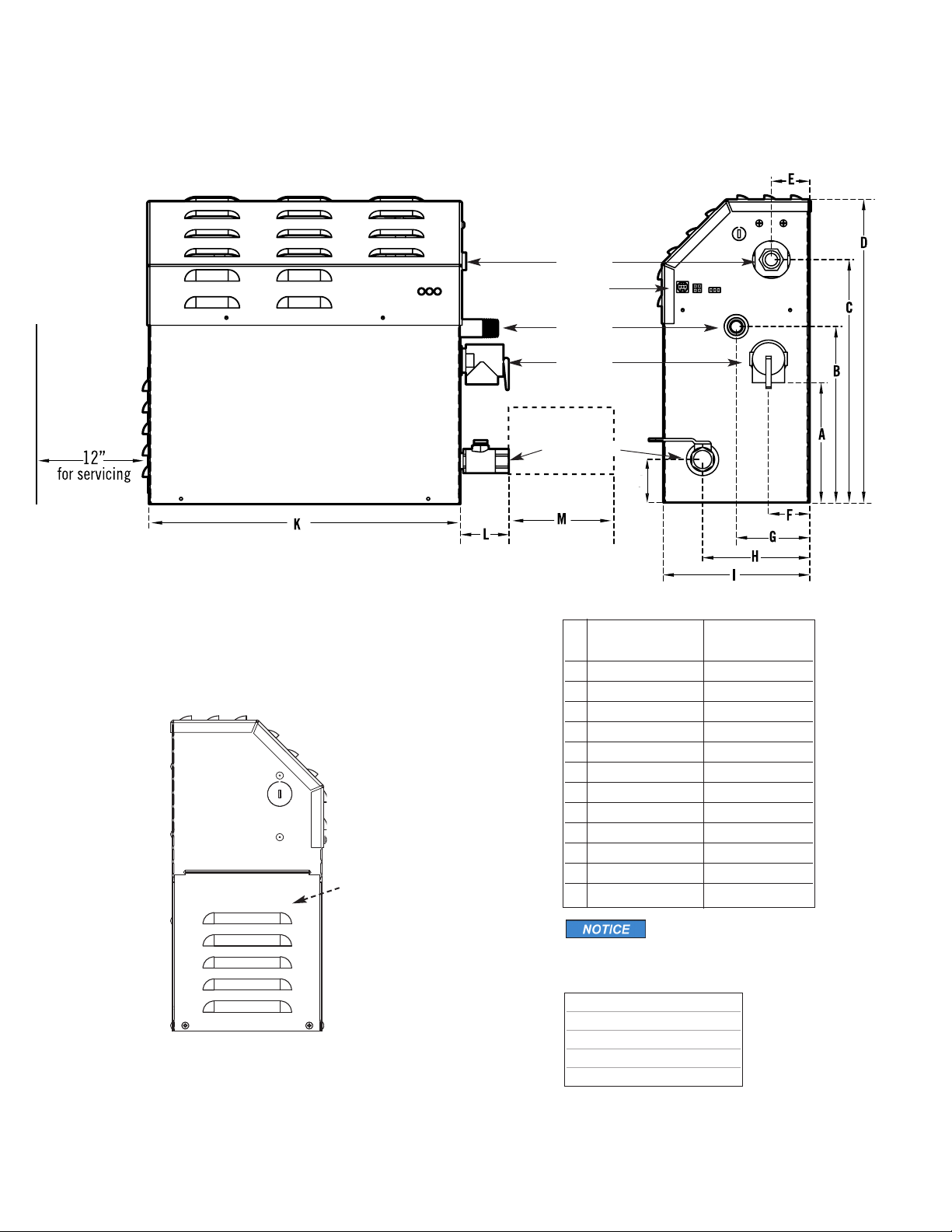

Steam Generator Dimensions . . . . . . . . . . . . . . . . . . . . . . . 10

Electrical Specifications & Field Power Wiring . . . . . . . . . . 11

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

Optional Tandem Cable Diagram . . . . . . . . . . . . . . . . . . . . 13

Initial Start-Up & Checkout . . . . . . . . . . . . . . . . . . . . . . . . . 14

Optional & Accessary Equipment . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System Status Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Liquid Level Control Board . . . . . . . . . . . . . . . . . . . . . . . . . 15

Optional AutoFlush System . . . . . . . . . . . . . . . . . . . . . . . . . 16

Optional Condensation Pan . . . . . . . . . . . . . . . . . . . . . . . . 17

Optional Express Steam . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Parts Identification Diagrams . . . . . . . . . . . . . . . . . . . . . . . . 18

Replacement Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CONTROL INSTALLATION

Before Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Control Rough-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

_______________________________________________________________________

SERIAL NO. ___________________________

HOMEOWNER SECTION

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 21

Setting Steam Bath Temperature & Duration . . . . . . . . . . . 22

Safety & Operating Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Care Tips for Controls and Generator Maintenance . . . . . . 22

Using the AromaSteam Essential Oils . . . . . . . . . . . . . . . . . 23

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

mr.steam

Feel Good Inc.

Page 5

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

SELECT YOUR MrSteam

MrSteam @ Your Fingertips:

Start working smarter with MrSteam’s mobile sizing app, now available for the iPad

Visit mrsteam.com to size your generator automatically or go directly to: http://isizing.mrsteam.com

Materials of construction, room size and special design features such as large glass areas, all affect

Measure length, width & height in feet of the steam/shower or tub/shower

Multiply the Length ____ x Width_____ x Height _____ =

Construction Materials:

For ceramic or porcelain tile on cement board or mortar bed

For natural stones: natural marble, stone, shale, glass block or concrete

For acrylic or fiberglass subtract

Ceiling Height: For each foot above 8 feet (max 10 feet)

4. Total Room Room Volume

, iPod®and most smart phones.

the steam generator model selection.

ROOM VOLUME

to the volume with

material adjustment

Add 0%

Add 50%

Add 40%

Add 15%

use of this steambath system, please note that if

In considering the purchase or

you are pregnant, have a coronary condition, are in poor health, are being treated for any other medical condition, or are using medication or drugs, MrSteam recommends that you obtain the approval of a physician before use. For information about this product and safety issues, please call 1.800.76.STEAM

IMPORTANT NOTES:

For steam rooms constructed of acrylic or synthetic materials, select next lower-rated MS model.

The MrSteam Sizing Chart allows for up to 60 feet of insulated steam piping from the MS generator to the steam room. If the 60 foot steam piping is exceeded consult with factory. The steam generator control locations must be taken into account. A 30 foot cable is standard. Contact MrSteam to purchase an optional 60 ft. cable PN 103990-60 for iTempo for iSteam

and AirTempo®and PN 104117-60

. The maximum cable length is 60 feet.

Compare your Room Volume to the Chart below

and select the appropriate model.

R E S I D E N T I A L S T E A M G E N E R AT O R S S P E C I F I C A T I O N C H A R T

Model No. KW 240v/1PH)† Size‡ Room Vol. Gallons†† Dimensions* Wt. (lbs)**

MS90E 5 21 10 0.67 14½"L x 14¾"H x 6¾"D

MS150E 6 25 8 0.80 14½"L x 14¾"H x 6¾"D

MS225E 7.5 32 8 1.0 14½"L x 14¾"H x 6¾"D

MS400E 9 38 8 1.2 14½"L x 14¾"H x 6¾"D

MSSUPER1E 10 42 8 1.4 17"L x 18½"H x 77⁄8"D

MSSUPER2E 12 50 6 1.6 17"L x 18½"H x 77⁄8"D

MSSUPER3E 15 63 4 2.0 17"L x 18½"H x 7

IMPORTANT NOTES:

• Add C1 suffix to Model No. for 240V/1Ph; Add B1 suffix to Model No. for 208V/1Ph.

• All MrSteam MS Models are cULus Listed and CE approved.

All MS Generators available in 240v/1PH, 208v/1PH and other voltages/phases. † Amps are for 240/1PH rated units. ‡Wire size (AWG) based on minimum 90˚C rated THHN copper conductors. Refer to the National Electrical Code for other types of conductors. See MrSteam Installation and Operation Manual for complete dimensional and installation information.

Amps (for Wire Total Adj. Water Usage Shipping

0-71

72-107

108-161

162-257

258-339

340-411

412-482

⁄8"D

*Dimensions are for generator only, without

AutoFlush® or plumbing features.

**Shipping weight and pricing are for generator only,

without control or steamhead.

†† Water usage based on 20 minutes of operation.

Page 6

mr.steam

REDUCE THE RISK OF OVERHEATING AND SCALDING

EXIT IMMEDIATELY IF UNCOMFORTABLE, DIZZY OR SLEEPY. STAYING TOO LONG IN A HEATED AREA IS CAPABLE OF CAUSING OVERHEATING.

2. SUPERVISE CHILDREN AT ALL TIMES.

3. CHECK WITH A DOCTOR BEFORE USE IF PREGNANT, DIABETIC, IN POOR HEALTH OR UNDER MEDICAL CARE.

4. BREATHING HEATED AIR IN CONJUNCTION WITH CONSUMPTION OF ALCOHOL, DRUGS, OR MEDICATION IS CAPABLE OF CAUSING UNCONSCIOUSNESS.

5. DO NOT CONTACT STEAM HEAD OR STEAM AT THE STEAM HEAD.

REDUCE THE RISK OF SLIPPING AND FALL INJURY

1. USE CARE WHEN ENTERING OR EXITING THE STEAM ROOM. FLOOR MAY BE SLIPPERY

NOTE: FOR ADDITIONAL SAFETY CONSIDERATIONS SEE OWNER”S MANUAL WHICH IS KEPT:_______________________________________

THE OWNER’S MANUAL CAN BE FOUND AT WWW.MRSTEAM.COM

USE OF STEAM ROOM IN CONJUNCTION WITH CONSUMPTION OF ALCOHOL CAN BE DANGEROUS AND CAN RESULT IN INJURY THROUGH SLIP AND FALL OR OTHERWISE.

mr.steam

43-20 34th Street , Long Island City NY 11101 1 800 76 STEAM www.mrsteam.com PUR100378 8.18

WARNING

Installation, Operation & Maintenance Manual

_________________________________________________________________________

BEFORE INSTALLING

Carefully inspect the Steam Generator and packaging for shipping damage. In the event of shipping damage, please contact the carrier for claim information. Our customer service department can assist you with any missing or damaged parts.

Read these instructions before installation or service. Although this MS steambath generator has been fully quali-

fied for shipment by MrSteam reviewed for proper, safe and enjoyable steam bathing:

I N S T A L L E R

, the following must be

1. Verify that the model and accessories specifications are correct for the incoming line voltage.

2. Insure steambath generator has been correctly sized for the steambath room. Pay particular attention to room

STEAM ROOM GUIDELINES

1. Steam room must be completely enclosed, with full walls, door, floor and ceiling.

2. It is recommended that a gasketed door is used for steam containment.

3. To prevent slip and fall hazards, non-slip flooring or non-slip floor strips must be installed in the steam room.

4. Check the suitability of any materials with the

manufacturer. Walls and ceilings must be constructed of water-resistant, non-corrosive surface, such as tile, marble, molded acrylic, or other non-porous material.

5. The ceiling should be sloped to prevent dripping of condensate.

6. Provide a floor drain.

7. No heating, venting or air conditioning devices be installed inside the steam room.

8. Steam room tile construction information is available

from the Tile Council of America, Inc. by purchasing the TCA Handbook for Ceramic Tile Installation. Tel. (864) 646-8453 or www.tileusa.com.

9. Windows that are part of the steam room should be double paned and tempered safety glass.

10. Limit steam room ceiling height to 8 feet. Exceeding 8 feet may require a higher-rated steam

generator.

should

volume and construction. If any questions, please refer to MrSteam sizing and selection guide on page 3.

3. Marble or glass walls or ceilings. “ENLARGE” the room’s size, requiring a generator larger than one based only on the room’s cubic foot (L x H x W) volume.

4. The physical size of the unit, clearance for

plumbing

servicing, and its distance from the steam room must all be considered before final installation.

5. Consider any controls and accessories before initiating installation. Read the Installation and Operation Manual of all controls and accessories available at www.mrsteam.com technical downloads.

6. Record the serial number of the steam generator in the space provided in the table of contents of this manual.

The peel and stick warning label located in this

manual is an essential

part of providing a safe environment for steam room users. The peel and stick warning label must be applied to the wall of the shower or steam enclosure, at a point that is visible to all users. Failure to install this sticker may result in serious injury or death. The location where this owner's manual is kept shall be written in the space provided on the label using permanent ink. For a replacement warning label contact MrSteam customer service at 1-800-76-STEAM or [email protected]

Not Actual Size

Never use damaged equipment, doing so may

result in an inoperative or hazardous installation.

• Discontinue use of the steam generator and control if the steam generator or control are damaged or otherwise not functioning properly. Doing so may result in an inoperative or hazardous installation

• ELECTRICAL SHOCK HAZARD. MrSteam steam generators are connected to 208V or 240V line voltage and contain live electrical components. All installation and service to be performed by qualified and licensed electricians and plumbers only. Installation or service by unqualified persons or failure to use MrSteam parts may result in property damage or in a hazardous condition.

• The MS series of steam generators are for residential use only. Commercial or other nonresidential applications void the warranty and may adversely affect product performance and may represent a safety hazard.

If acrylic, fiberglass or other non-heat resistant materials are used as part of the steam room enclosure. Consult with the material manufacture and see pg. 9, “Installing the Steamhead" for additional details.

IMPORTANT NOTES:

This document contains important safety, operation and maintenance information. Leave this document with the homeowner. Do not discard this document.

The following general information should be used in conjunction with consultations with an architect, designer and contractor in determining factors necessary in providing a suitable and safe steam room.

MrSteam steam generators are intended to be operated with MrSteam iSteam and iGenie®controls only, and are to be installed strictly in accordance with the specific instructions contained in this manual and as supplied in the manuals provided with the controls or accessories.

, AirTempo®, iTempo/Plus®, iTempo®Home Wizard

Page 7

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

WATER QUALITY INFORMATION

For optimum results, the water supply should be tested prior to installation. If the

ineral content exceeds the following recommended limits, various external treat-

m ment processes are recommended to correct the problem.

An analysis of the on-site water must be made by a recognized and reliable water treatment company to ascertain the existing condition and treatment required.

Poor water quality can affect efficiency or result in steam generator damage. Water contains impurities in solution and suspension. These impurities concentrate in the generator. The concentration of these impurities increases as more feedwater is introduced into the generator and steam is produced. If the suspended solids are allowed to concentrate beyond certain limits, a deposit or “scale” will form on the generator internal surfaces. This deposit can interfere with the proper generator operation and cause generator failure. The concentration of these impurities is generally controlled by the water quality and by periodic draining of the generator.

RECOMMENDED FEEDWATER QUALITY

Hardness, ppm 8 – 85 (~0.5 – 5 gpg) P-Alkalinity, ppm 85 – 410 (~5 – 24 gpg) T. Alkalinity, ppm 200 – 500 (~7 – 0 gpg) pH (strength of alkalinity) 8.0 – 11.4

Every 2 months, or more often in “hard” water areas, the manual drain valve should be opened fully flushing out accumulated materials, salts and other particles which are natural by-products of boiling water.

The optional AutoFlush System feature automatically drains the MrSteam tor following each use. A time delay allows the water to cool down (about two hours) before it drains by gravity for a safe and gentle operation.

LOCATING THE STEAM GENERATOR

Select a location as near as practical to the steam room.

Typical locations include: closet, vanity cabinet, heated attic or basement.

The standard length of the cable for connecting the control to the steam generator is 30 feet. The steam generator and control must be located accordingly. A 60 foot cable is available as a special order part for iTempo 103990-60 and PN 104117-60 for iSteam

IMPORTANT NOTE: The control cable should be run in a dedicated 1" conduit to facilitate installation and service.

The maximum cable length is 60 feet.

and AirTempo®, PN

genera-

I N S T A L L E R

DO NOT route iSteam, AirTempo, iTempo/Plus, iTempo, HomeWizard or iGenie control wiring inside conduit

together with power lines or close to hot water or steam piping. Doing so may result in an inoperative or hazardous installation.

(Items 1-4)

1. DO NOT a shock hazard will occur

2. DO NOT ever environmental conditions may result in a shock hazard or affect performance of the generator.

3. To prevent damage to the steam generator or a fire hazard DO NOT flammable or corrosive materials or chemicals such as gasoline, paint thinners, or the like. Installation in areas having high concentrations of chlorine (such as pool equipment room) must be avoided.

4. Burn Hazard. Steam piping, safety valve, drain valve and plumbing become hot during operation and remain hot after shutdown for a period of time. Provide appropriate protection, including insulating plumbing lines. Avoid plumbing runs and steamhead locations that can come in contact with bathers.

5. DO NOT unheated attic or any locations where water could freeze and cause pipes to rupture and cause property damage.

6. Install steambath generator on a solid and level surface. Provide supports under steam generator when wall mounting. Keyhole slots are provided for wall mounting. Insure the steam generator is properly secured and

install steambath generator inside steam room,

install steambath generator outdoors or wher-

install steambath generator near

(Items 5-7)

install steambath generator or plumbing lines in

level when mounting with keyhole slots to prevent damage to the steam generator.

7. Install steambath generator in an upright position only to prevent damage to the generator.

IMPORTANT NOTES: (Items 8-12)

8. Install anti-water hammer device as necessary.

9.Provide a minimum of (12) inches at both ends and top of

the steam generator or as required for servicing. See page 10.

10.

Provide unions as required to facilitate installation

and disconnection of piping.

. MrSteam controls can be located inside the steam room

or on the outside of the steam room. See the Control Installation Manual for your specific control package for specific details.

12. The MS series of steam generators are for residential

use only. Commercial or other nonresidential applications void the warranty and may adversely affect product performance and may represent a safety hazard.

MrSteam Generators (inclusive of the iTempo,

AirTempo and iSteam series Controls) are CE and UL listed.

Suitable for operation in ambient not

exceeding 45 °C (113˚ F)

Page 8

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

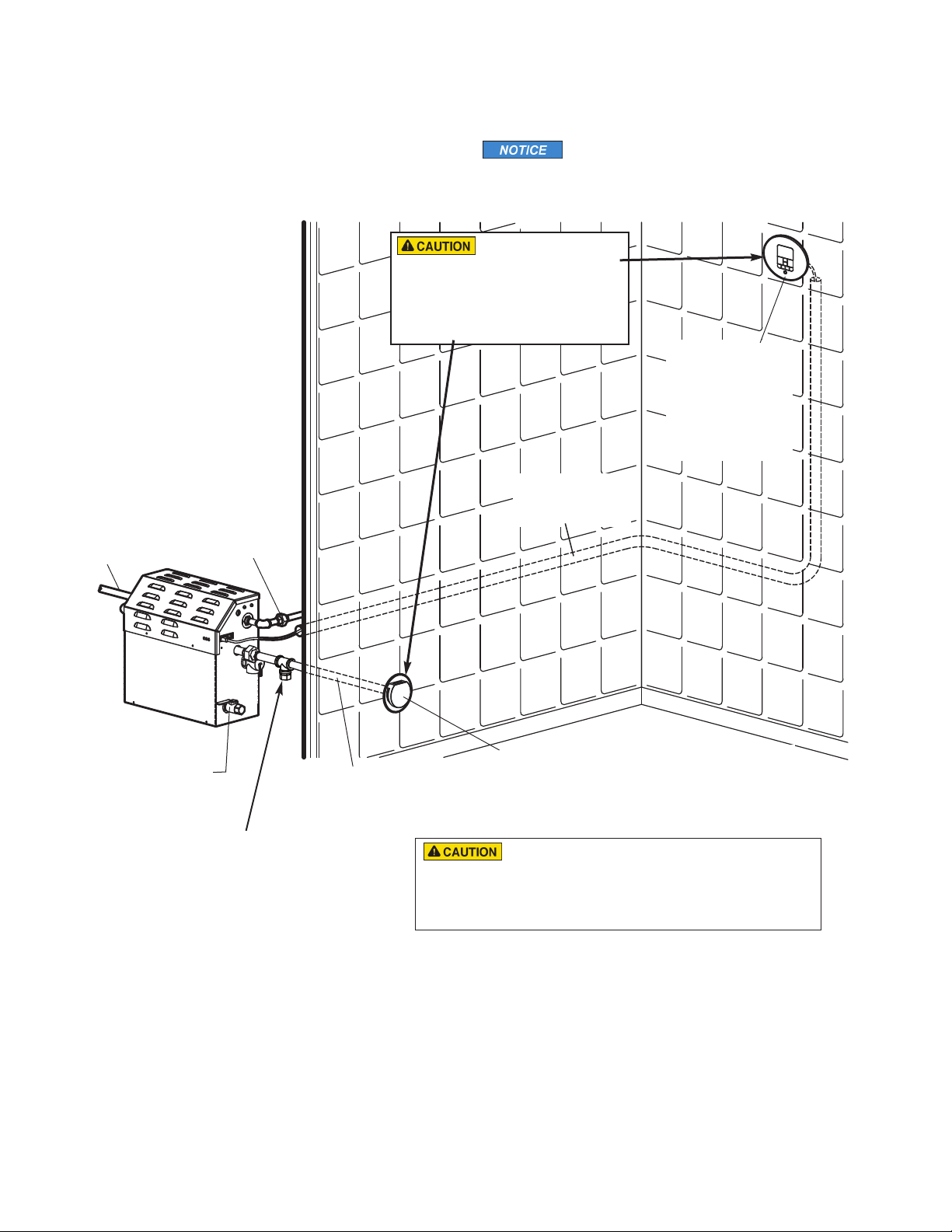

TYPICAL MrSteam INSTALLATION

Provide unions as required to facilitate installation and disconnect of piping

I N S T A L L E R

Field installed power supply

Field installed water supply line

Drawings for illustrative purposes only.

onsult with qualified designer, architect or contractor

C for steam room construction details.

The control features an

integral temperature sensor. Locate the control in a location representative of the desired steam bathing temperatures. Do not locate the control above or near the steam head or direct steam emissions.

Control cable run in 1” conduit (located

behind the wall)

iSteam®, AirTempo®or iTempo/Plus®Control

Refer to Control Installation Manual for installation information

Steam Generator

Drain Valve must be

closed when the optional

AutoFlush is not installed

When installing the optional AromaSteam, install a downward facing 90-degree T in the steam piping. See the AromaSteam Installation Manual for complete information.

Field installed steam piping

Steam Head (shown with optional acrylic shield) See page 9 for Steamhead Installation information

To avoid unintentional steambath operation, do not locate the control where other controls, accessories, shower heads, valves, body sprays or similar within the shower could cause confusion or interfere with the MrSteam control’s intended use and function.

Page 9

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

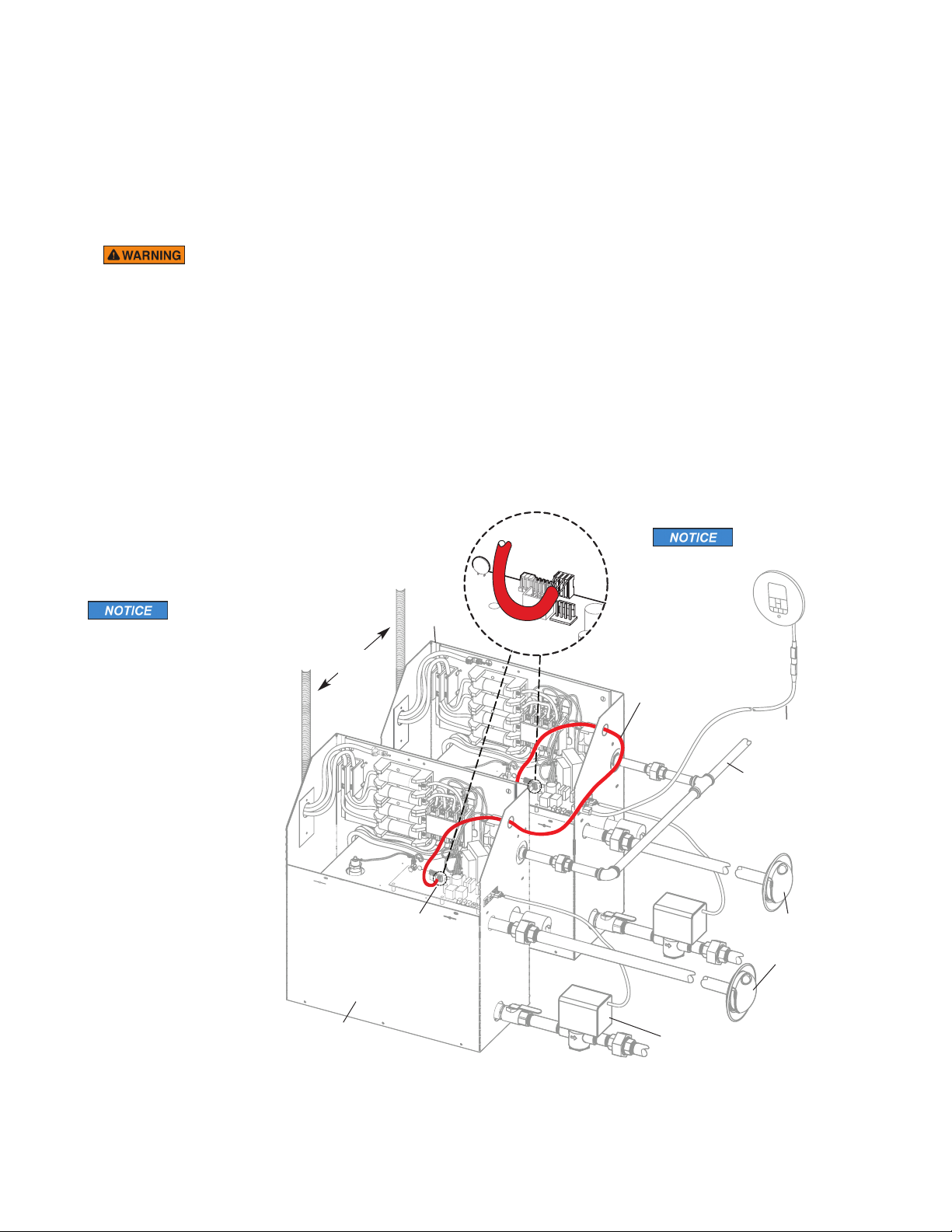

TYPICAL MULTI-INSTALLATION INSTRUCTIONS

(shown with optional AutoFlush)

1. Install each steam generator as in a single installation. Install generators as close as practical to each other, not exceeding 10 feet. The interconnecting cable length is 12 feet.

2. Shock Hazard. Power must be disconnected at the main electrical supply. Remove steam generator covers. Retain screws and covers for reuse.

3. Connect the iSteam per the Installation Manual supplied with each control. The control must be connected to the primary unit.

4. Remove one knock-out on each generator as shown. Insert the ends of interconnecting cable provided (PN 103904) through the knock-outs as shown in diagram. Connect each end to the printed circuit board connector labeled "TANDEM" as shown.

5. Prevent the interconnecting cable from contacting hot surfaces such as steam outlet, safety valve and the like.

6. Connect separate plumbing and power supplies for each unit. Replace covers with cover screws.

Provide unions as required to facilitate installation

and disconnection of piping

will de-energize when the steam room reaches steam bathing temperature resulting in a more gentle and energy efficient operation.

, iTempo/Plus®or AirTempo®control to either unit as

The secondary unit

Power

Supply

Primary Unit

Printed Circuit Board Component shown enlarged for illustrative purpose.

be connected to the primary unit.

Interconnecting Cable

PN 103904

The control must

iSteam,

AirTempo or

iTempo/Plus

Control

I N S T A L L E R

NOTE: Connector wires will be reverse color on the secondary generator

Secondary Unit

Control Cable

Water Feed Line

Steam Heads shown with optional acrylic shields

Optional AutoFlush AutoFlush Installation page 16

, see

All drawings are for illustrative purposes only

Page 10

STEAM PIPING (1⁄2" NPT)

1. DO NOT install any valve in steam piping. Flow of steam must be unobstructed.

2. Use 1/2-inch brass pipe or copper tubing f rom unit to steam head as permitted by codes.

3. Insulate steam piping with fiberglass pipe insulation or similar insulation rated 212° F or higher.

4. Pitch steam piping1/4" per foot towards steam head or steam generator to avoid valleys and trapping of condensate.

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

INSTALLER

INSTALLATION

PLUMBING

All plumbing shall be performed by a qualified licensed plumber and in accordance with applicable National and local codes.

1. Use unions on all pipe connections.

2. Use only brass piping or rigid copper tubing as permitted by codes.

3. DO NOT use black, galvanized, PVC pipe or PEX except as noted below.

WATER SUPPLY (3⁄8" NPT)

1. Connect to cold water line.

Water feed line may be flexible copper tubing,

braided hose, PVC or PEX if permissible by local codes.

2. Provide a shut off valve in the water supply line upstream of

the steambath generator.

3. DO NOT overheat inlet solenoid valve with solder connections.

Overheating will damage parts.

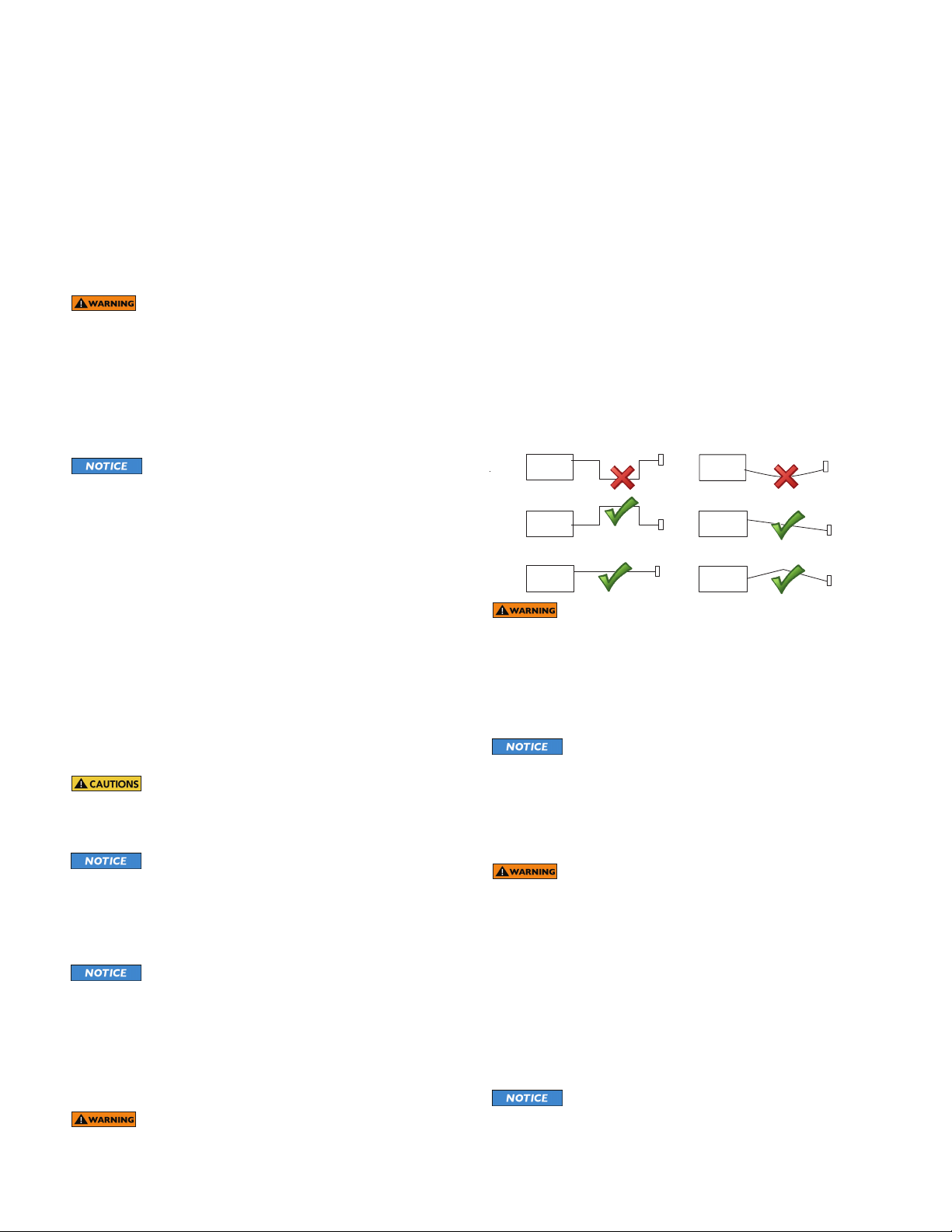

Steam

Generator

Steam

Generator

Steam

Generator

Steam Piping

Steam

Head

Steam Piping

Steam

Head

Steam Piping

Steam

Head

Steam Piping

Steam

Head

Steam Piping

Steam

Head

Steam

Generator

Steam Piping

Steam

Head

INSTALLATION

PLUMBING

All plumbing shall be performed by a qualified licensed plumber and in accordance with applicable National and local codes.

1. Use unions on all pipe connections.

2. Use only brass piping or rigid copper tubing as permitted by codes.

3. DO NOT use black, galvanized, PVC pipe or PEX except as noted below.

Water supply and steam piping must be flushed to remove flux and other debris prior to connecting the steam generator. Failure to flush the steam piping may result in flux poisoning or a hazardous condition. Failure to flush the steam piping may result in blockage or an inoperable system.

WATER SUPPLY (3⁄8" NPT)

1. Connect to cold water line.

Water feed line may be flexible copper tubing,

braided hose, PVC or PEX if permissible by local codes.

2. Provide a shut off valve in the water supply line upstream of the steambath generator.

3. DO NOT overheat inlet solenoid valve with solder connections. Overheating will damage parts.

4. Flush inlet water line thoroughly before making connection to unit.

5. Strainer recommended upstream of feed water connection.

6. In order to reduce operating noise, reducing feed water pres-sure to between 15 - 20 psi is recommended. Optional pres-sure reducing valve part number 104198.

7. Provide anti-water hammer device as required.

8. Install an approved backflow preventer as required by local codes.

DRAIN (1⁄2" NPT)

The drain from the generator should not share an undersink trap, unless the generator is mounted higher than the sink to prevent damage to the generator if the drain backs up.

A drain valve is provided to facilitate servicing. Provide a drain line connection from steambath generator drain valve according to National and local Codes. Check local plumb-ing code for receptor, trap and vent requirements. Do not connect Drain line and Safety Valve line together. Unit drains by gravity.

Do not plumb the generator drain and condensation pan drain together in such a way that will cause drain water to back into condensation pan. DO NOT drain into a steam enclosure or any location where accidental contact with drain water may occur. In the event of a power failure the AutoFlush System valve will open and may discharge boiling water causing a scalding hazard.

DO NOT connect the drain valve to the steam

piping

AROMASTEAM

If the optional AromaSteam Electronic Oil Delivery System (PN: MS AROMA) is to be installed, a 90 degree T plumbing fitting must be installed at a designated location on the steam piping. See the MrSteam AromaSteam Operation and Instruction Manual (PN: 100402) for installation information before the steam piping is installed at the technical downloads section of www.mrsteam.com

STEAM PIPING (1⁄2" NPT)

1. DO NOT install any valve in steam piping. Flow of steam must be unobstructed.

2. Use 1/2-inch brass pipe or copper tubing from unit to steam head as permitted by codes.

3. Insulate steam piping with fiberglass pipe insulation or similar insulation rated 212° F or higher.

4. Pitch steam piping1/4" per foot towards steam head or steam generator to avoid valleys and trapping of condensate.

Failure to pitch the steam piping as required for condensate to drain, may cause condensate to block the flow of steam. Blocking the steam flow may cause steam pressure to discharge boiling water through the steamhead, resulting in a scalding hazard. Blocking the flow of steam may cause steam to discharge through the safety valve, resulting in a scalding hazard.

A 1.5" hole in the steam room is required to mount the steamhead. For Linear steamhead, please refer to the installation instructions.

SAFETY VALVE (3⁄4" NPT)

Where permitted by local codes, provide an outlet plumbing connection for safety valve.

To insure proper and automatic safety valve operation: DO NOT connect a shut off valve or a plug at safety valve outlet. DO NOT connect a shut off valve or any obstruction in steam supply pipe. DO NOT connect the safety-valve output into the steam piping.

CONDENSATION PAN

MrSteam strongly recommends the use of a condensation pan in the unlikely event of a plumbing leak. Check local plumbing codes for receptor, trap and vent requirements. Condensation pans drain by gravity. The condensation pan is equipped with an integral 3/4" fitting. See page 17 for additional condensation pan installation information.

Do not plumb the generator drain and condensation pan drain together in such a way that will cause drain water to back into condensation pan.

Steam Piping

Steam

Generator

Steam Piping

Steam

Generator

Steam Piping

Steam

Generator

Steam

Head

Steam

Head

Steam

Head

Steam

Generator

Steam

Generator

Steam

Generator

Steam Piping

Steam Head

Steam

Head

Steam

Head

All drawings are for illustrative purposes only

Page 11

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

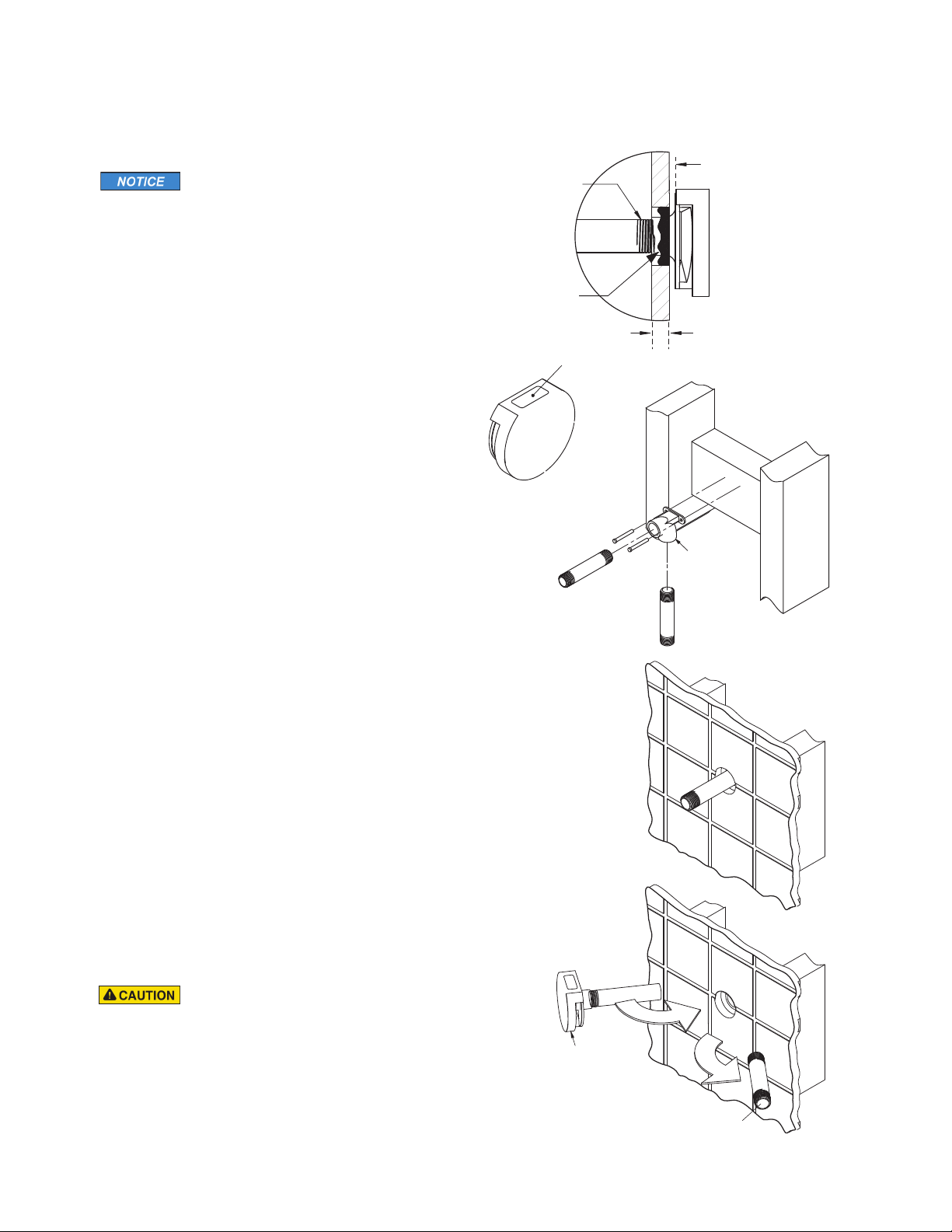

INSTALLING THE ROUND OR SQUARE AROMASTEAM STEAMHEAD

A 1

⁄

" clearance hole around the steam pipe is

needed to mount the steamhead.

STEP 1

Locate steam head 6-12 inches above floor, except for:

1. Tub/shower enclosures, install 6 inches above tub top edge.

2. For enclosures with acrylic or other non-heat resistant flooring install Acrylic Shield Part Number 103938.

3.To prevent door seals from deteriorating do not locate the steam head where direct steam emission would contact door seals.

4. To reduce noise, do not locate steamhead within 12" from a wall.

STEP 2

Install steamhead with the oil well facing up as shown. Hand tightening is sufficient when teflon or equal pipe thread sealing compound is used.

STEP 3

Secure a bronze drop ear fitting to a header and run steam piping from the steam generator to the drop ear fitting. Install a temporary nipple (6" or longer) in the drop ear fitting to locate the steamhead after the wall is finished.

STEP 4

After the wall has been finished, mark on the nipple where the surface of the wall is. Remove the nipple and measure the portion that was in the wall (the end to your mark). Subtract from that dimension and select a brass nipple of that length to finish the installation.

STEP 5

Wrap teflon tape around the threads of the new nipple and screw the nipple into the steamhead. Do not use wrenches or tools which would damage the steamhead's finish. Wrap teflon tape around the threads of the nipple and screw the nipple and steamhead assembly you just made into the drop ear fitting in the wall. The steamhead should be flush with the wall and the well must be facing up.

__________________________________________________________

(1⁄2" NPT)

⁄

" copper

equal sealant on

Apply with silicone or equal

sealant as required for

⁄4"

Use Teflon®or

pipe threads

moisture seal.

Oil Well

Steam Piping

STEP 3

STEP 4

1/8" minimum clearance required when Acrylic Shield is used.

See installation instructions provided with the Acrylic Shield.

End of pipe to be recessed 1/4"

(without Acrylic Shield)

1/8" (with Acrylic Shield)

Drop Ear Fitting

I N S T A L L E R

IMPORTANT NOTE: DO NOT disassemble steamhead. MrSteam’s steamhead is shipped fully assembled and requires no additional assembly.

To preserve steam head finish, DO NOT use wrench or other tools to tighten. DO NOT use abrasive cleansers or chemicals. Use only water with mild soap and a non-abrasive sponge.

Because the steam head and direct steam emissions are very hot, locate the steam head where incidental contact by bather with the steam head or direct steam emission cannot occur.

Consult with supplier of acrylic, fiberglass and other non-heat resistant enclosures for recommended steamhead location. Use Acrylic Shield PN 103938 (round) or PN 103938SQ (square). See instructions provided with steam shield.

STEP 5

Steamhead

(shown with optional acrylic shield

)

Locating Nipple

All drawings are for illustrative purposes only

Page 12

I N S T A L L E R

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

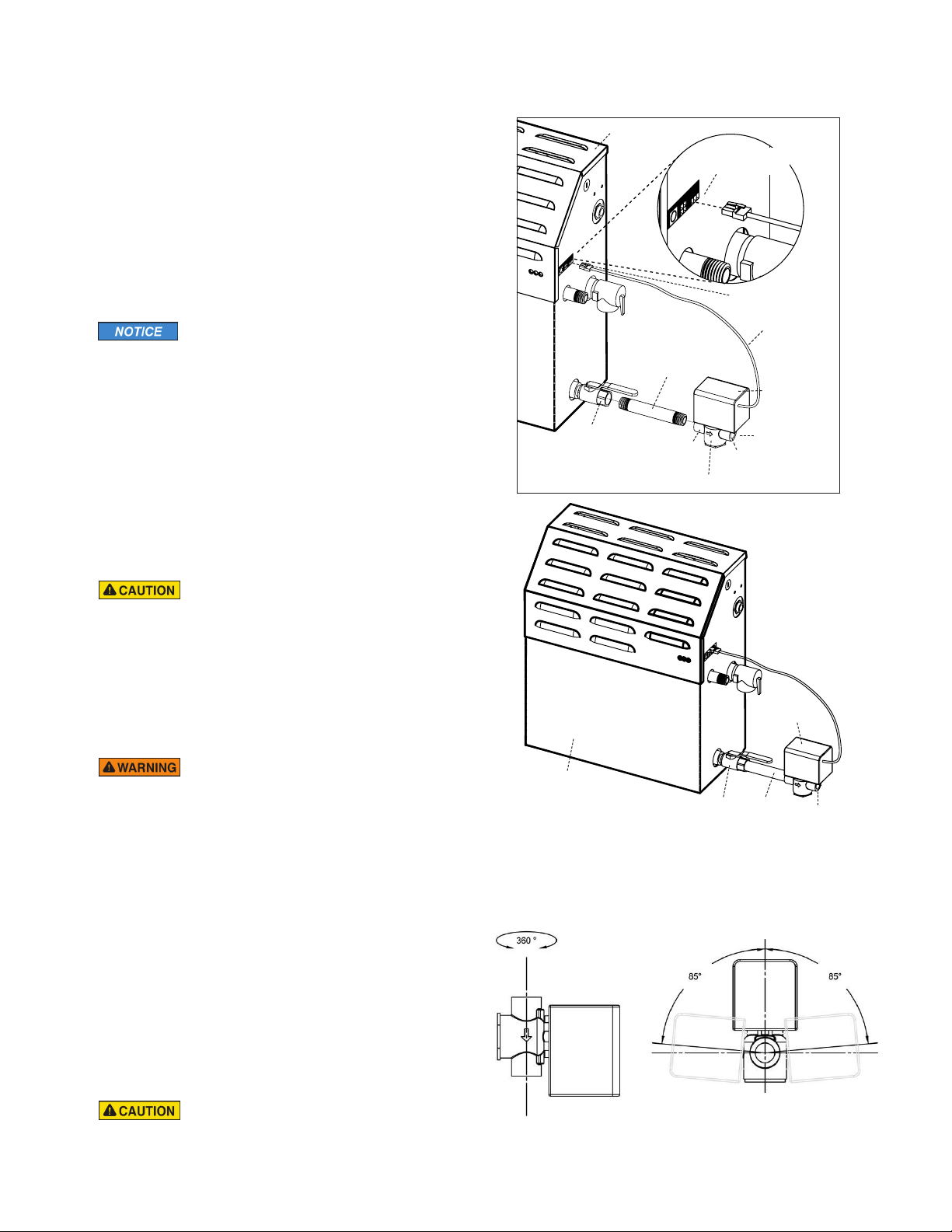

GENERATOR DIAGRAM

Water Inlet

Control &

Accessory

Connections

Steam Outlet

Safety Valve

Optional AutoFlush

Manual Drain Valve

IMPORTANT NOTES:

Provide a minimum of (12) inches at both ends and top of the steam generator or as required for servicing. Alternately, provide unions as required to facilitate installation and disconnection of the steam generator.

The minimum clearance from combustible surfaces is zero all around.

Side View Showing Element Access Panel

TO AVOID EQUIPMENT DAMAGE DO NOT CONNECT POWER SUPPLY DIRECTLY TO ELEMENTS !!!

MS90E - 400E MSSuper1E-3E

_______________________________________

⁄8” NPT

⁄2” NPT

⁄4” NPT

⁄2” NPT

⁄4 (184)

⁄4 (57)

⁄8 (124)

5 (127) 7

⁄8 (206) 97⁄8 (251)

⁄4 (392) 151⁄2 (394)

⁄4 (392) 183⁄4 (476)

⁄8 (48) 11⁄4 (32)

2 (51) 2

⁄8 (149) 6 (152)

5 (127) 4

⁄8 (175) 77⁄8 (200)

2 (51) 2 (51)

⁄2 (368) 17 (432)

⁄2 (64) 21⁄2 (64)

⁄8 (162) 63⁄8 (162)

1. M =Optional AutoFlush

2. All units in inches (MM)

WATER INLET

STEAM OUTLET

SAFETY VALVE

MANUAL DRAIN VALVE

AUTOFLUSH VALVE

All drawings are for illustrative purposes only

Page 13

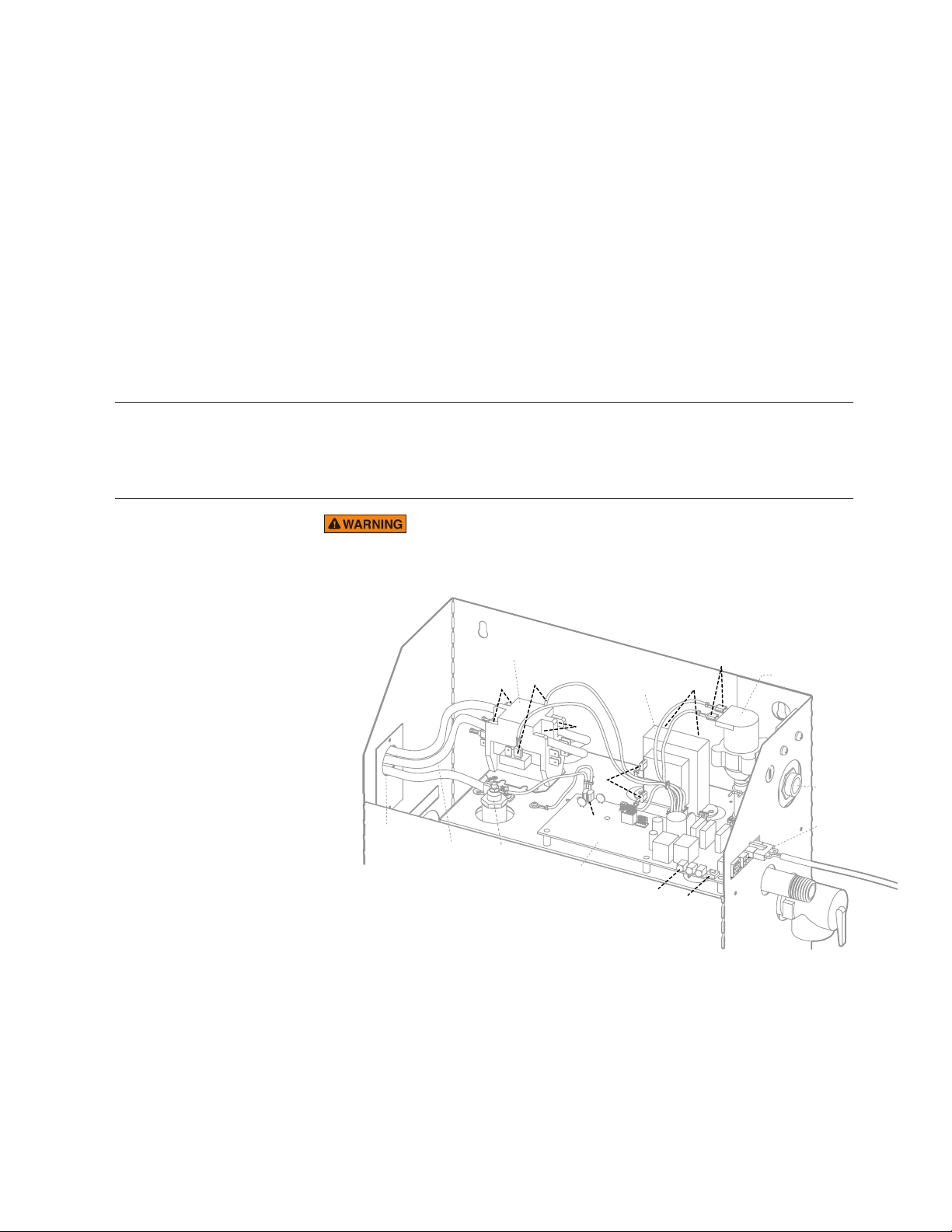

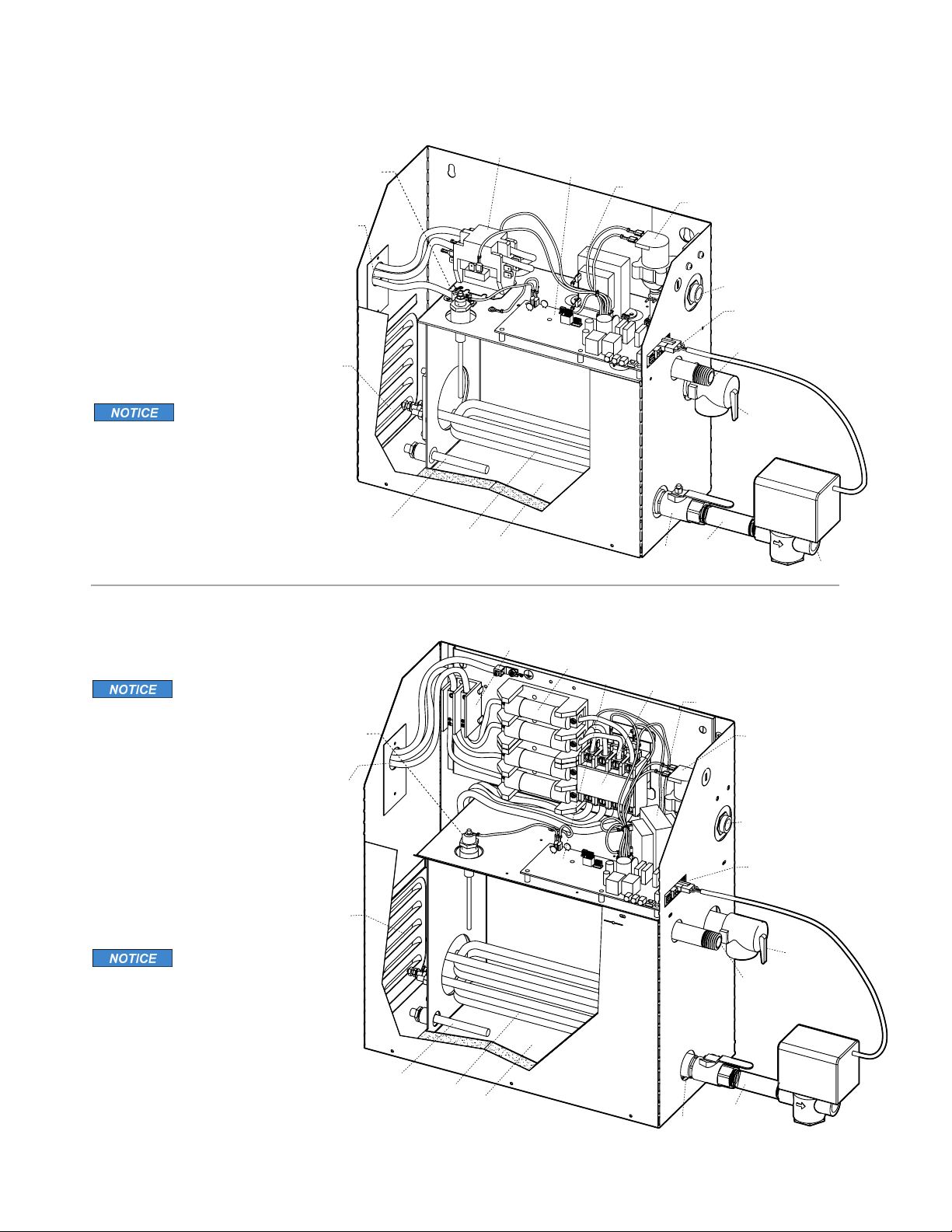

mr.steam

Transformer

Liquid Level Control Board

Water Feed

Solenoid

Water Feed

Liquid

Level Probe

AutoFlush Plug

and Play Connection

(see page 16)

Fuses

Contactor

Power Block

Power Supply Knock-Out

Steam Outlet

Field

Wiring

Transformer

Liquid Level Control Board

Water Feed

Solenoid

Steam

Outlet

Liquid Level Probe

AutoFlush Plug and

Play Connection

(see page 16)

Contactor

Power Supply Knock-Out

Field Wiring

Water Feed

Installation, Operation & Maintenance Manual

__________________________________________________________________________

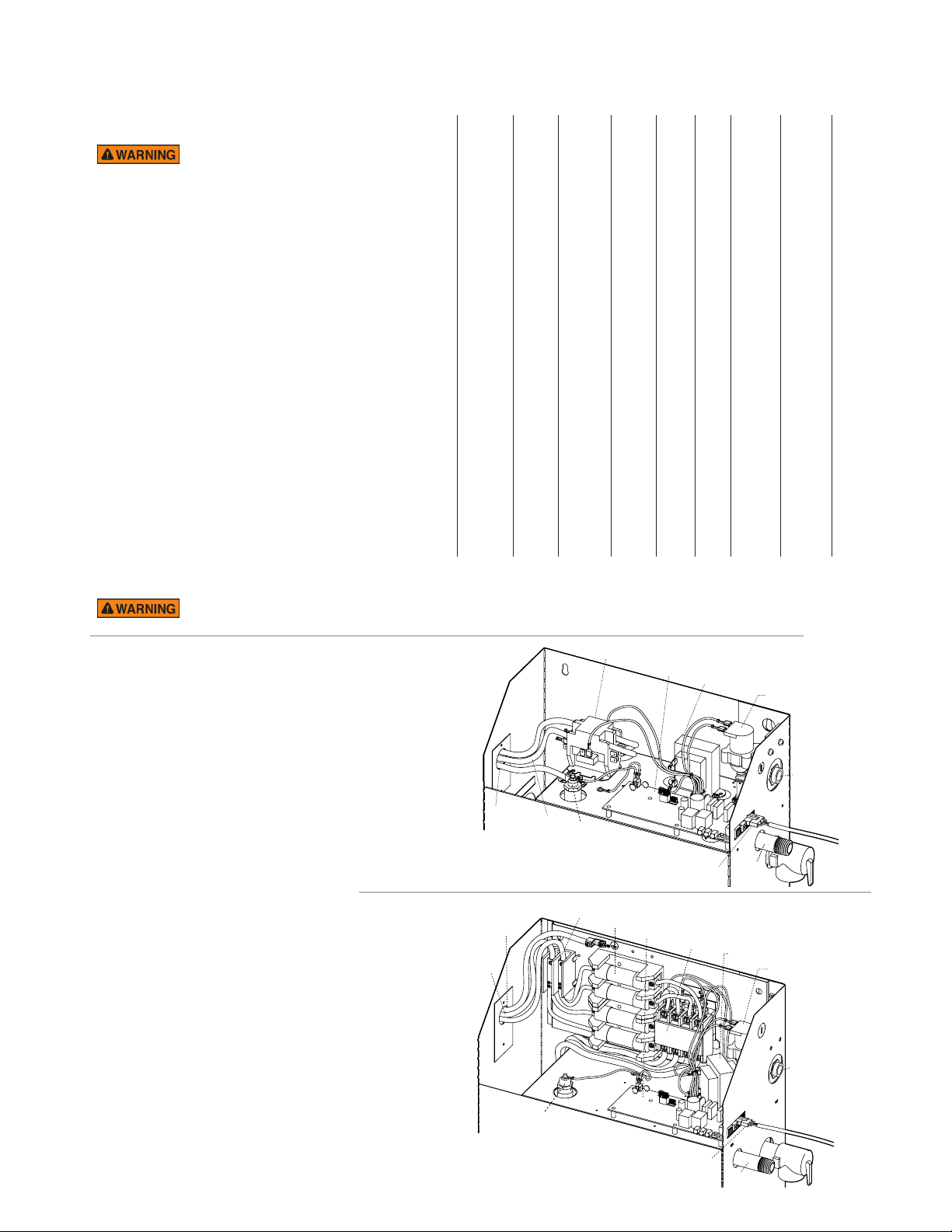

ELEC TRIC AL C HART

ol Max Room Wire Size Wire Size

Volts†Phase Amps

208 1 24 10 8

240 1 21 10 10

3 12 12 12

208 1 29 88

240 1 25 88

3 14 12 12

208 1 36 88

240 1 32 88

3 18 10 10

208 1 44 8 6

240 1 38 88

3 22 10 10

208 1 49 66

3 24 88

208 1 58 64

3 29 88

208 1 73 43

3 36 88

AWG)for 40˚ C (AWG) for 45˚ C

(

Ambient Ambient

ELECTRICAL

All electrical wiring to be installed by a qualified licensed electrician in accordance with National Electrical Code and local electrical code.

POWER WIRING

See “Field Power Wiring” Diagrams (below)

1. Check power voltage. Use 240V rated unit when supply

is greater than 208V. (Most homes have 240V, 1PH service). Use 208V rated unit for 208V power.

2. Use minimum 90˚ C/300V rated insulated copper

conductors only, sized in accordance with National Electrical Code and local electrical code for the current in Ampere Chart. If allowed by codes, NM cable may require a larger wire size than as listed on the chart.

3. Connect suitably sized equipment grounding wire to

ground terminal provided.

4. Install a separate circuit breaker between supply and

unit. Provide a power supply disconnect within sight of the steam generator or one that is capable of being locked in the open position.

For single phase units, use two-wire supply source and

equipment grounding wire. Neutral (white) wire is not required.

PROVIDE A POWER SUPPLY DISCONNECT WITHIN SIGHT OF THE STEAM GENERATOR OR ONE

THAT IS CAPABLE OF BEING LOCKED IN THE OPEN POSITION AS REQUIRED BY CODE.

________________________________________________________________________________________________________

Model No.

________________________________________________________________________________________________________

(Cu. Ft.*)

MS90E 100 5.0 3 14 12 12

_______________________________________________________________________________________________________

MS150E 150 6.0 3 17 10 10

________________________________________________________________________________________________________

MS225E 225 7.5 3 21 10 10

________________________________________________________________________________________________________

MS400E 360 9.0 3 25 88

_______________________________________________________________________________________________________

MSSuper 475 10.0 3 28 88

1E 240 1 42 86

________________________________________________________________________________________________________

MSSuper 575 12.0 3 34 88

2E 240 1 50 66

_______________________________________________________________________________________________________

MSSuper 675 15.0 3 42 86

3E 240 1 63 44

________________________________________________________________________________________________________

*See page 3 for room sizing.

†

All specifications shown are for 208V and 240V Consult factory for other voltage specifications.

I N S T A L L E R

FIELD POWER WIRING

1. TO AVOID EQUIPMENT DAMAGE DO NOT CONNECT POWER SUPPLY DIRECTLY TO ELEMENTS!!!

2. L1, L2, Ground to be field wired

3. Super 1E 240/1 models are not supplied with internal fusing.

4. All Drawings are for illustrative purposes only. Consult with qualified licensed electrician for electrical installation.

Models MS90E – MS400E

(single phase wiring shown)

Models MSSUPER1E-3E

(single phase wiring shown)

Page 14

I N S T A L L E R

ONTACTOR

EATING ELEMENT

HEATER

THERMOSTAT

EXPRESS

STEAM

(

optional)

TO PROBE

CONTROL BOARD

AutoFlush

(optional)

HomeWizard iGenie

(optional)

iSteam, AirTempo, iTempo, iTempoPlus Control

RANSFORMER

OWER INPUT

ROUND

WATER

FEED

OLENOID

VALVE

FAC TORY WIR ING

FIE LD WIR ING

L E G EN D

(All Diagrams)

CONTACTOR

HEATING ELEMENT

TO PROBE

CONTROL BOARD

TRANSFORMER

POWER INPUT

GROUND

ATER

EED

SOLENOID

VALVE

FUSES

HEATER

THERMOSTAT

EXPRESS

STEAM

(optional)

AutoFlush

(optional)

HomeWizard iGenie

(optional)

iSteam, AirTempo, iTempo, iTempoPlus Control

CONTACTOR

HEATING ELEMENT

TO PROBE

CONTROL BOARD

TRANSFORMER

POWER INPUT

GROUND

WATER

FEED

SOLENOID

VALVE

HEATER

THERMOSTAT

EXPRESS

STEAM

(optional)

AutoFlush

(optional)

HomeWizard iGenie (optional)

iSteam, AirTempo, iTempo, iTempoPlus Control

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

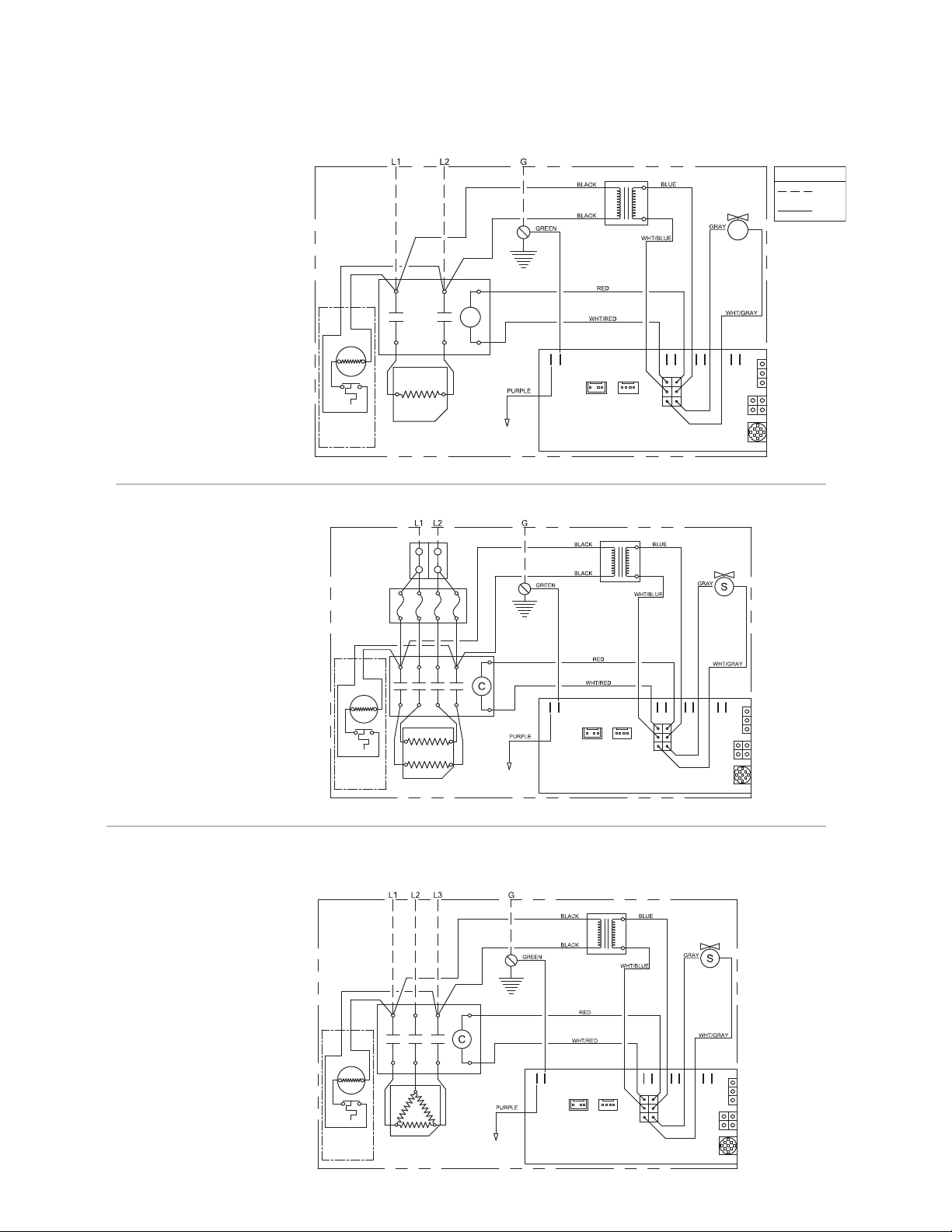

SINGLE PHASE 208/240 VOLT WIRING DIAGRAMS

MODELS MS90E, MS150E, MS225E, MS400E

MODELS MSSUPER1E, MSSUPER2E, MSSUPER3E

(Note: Super1E 240V does not have fuses)

THREE PHASE 208/240 VOLT WIRING DIAGRAM

MODELS MS90E, MS150E, MS225E, MS400E, MSSUPER1E, MSSUPER2E, MSSUPER3E

Page 15

mr.steam

AutoFlush

(optional)

iTempo/Start

(optional)

iSteam, AirTempo or iTempo/Plus

AutoFlush

(optional)

Do Not Connect Control

FAC TORY WIR ING

FIE LD WIR ING

L E G END

(All Diagrams)

{

CONTACTOR

PRIMARY UNIT SECONDARY UNIT

AutoFlush

(optional)

Do Not Connect Control

PLUG THIS END TO PRIMARY UNIT

Note: The control must be connected to the Primary Unit

Optional Tandem Cable for 2-5 Generators

Length is 30 ft. PN: 103917

PRIMARY UNIT SECONDARY UNIT

TO THIRD UNIT

TO FOURTH UNIT

TO FIFTH UNIT

AutoFlush

(optional)

HomeWizard iGenie

(optional)

iSteam, AirTempo, iTempoPlus, iTempo Control

Installation, Operation & Maintenance Manual

__________________________________________________________________________

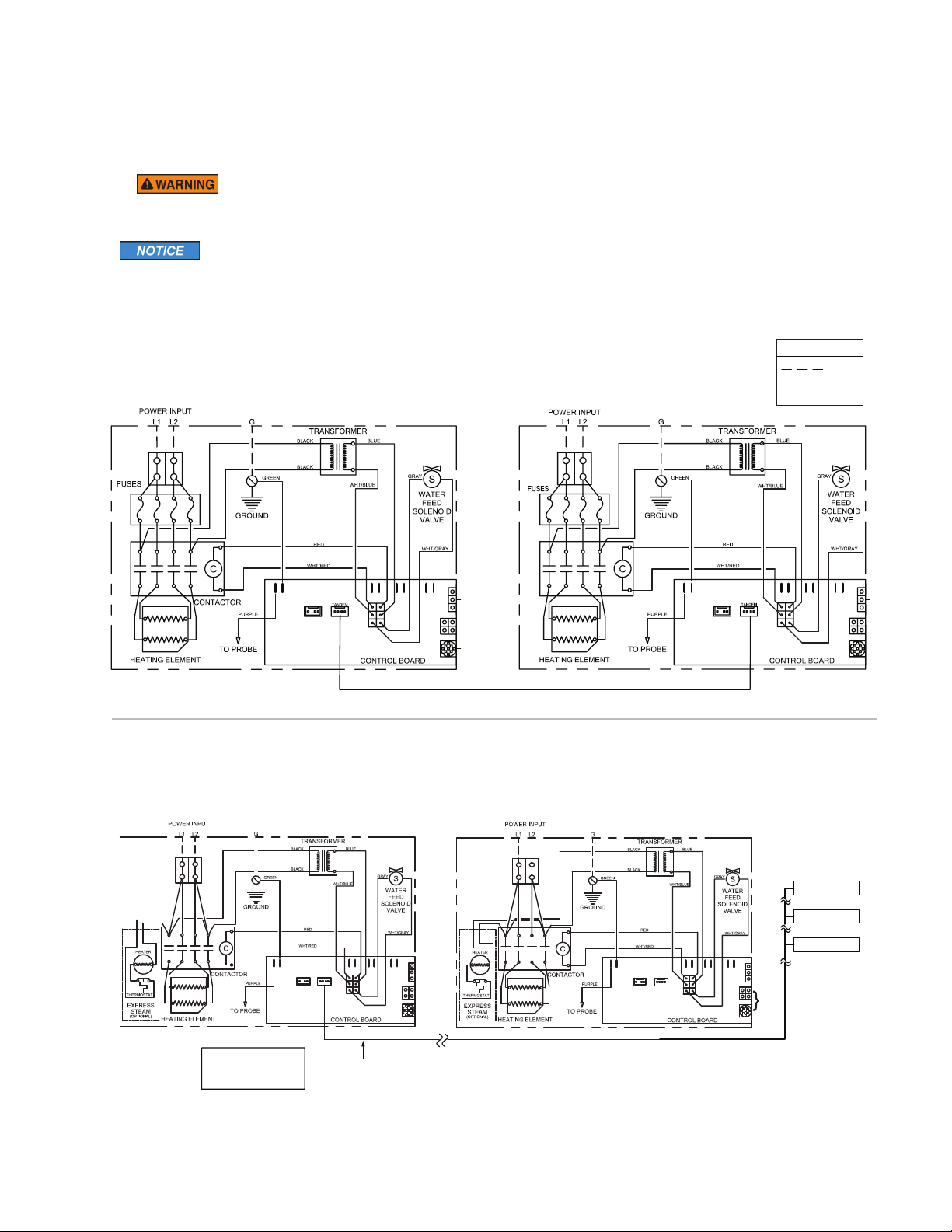

MULTI-INSTALLATION INSTRUCTIONS

Install each unit as in a single installation. Install the two generators as close to each other as possible.

Shock Hazard.

steam generator covers.

3. Connect the iSteam

, AirTempo®or iTempo/Plus®control to either generator per the control instructions.

The control must be connected to the primary unit.

4. Remove one knock-out on each generator as shown. Insert the ends of interconnecting cable provided (PN 103904) through the knock-outs as shown in the Diagram on page 7. Connect each end to the printed circuit board as shown.

5. Connect separate plumbing and power supplies for each unit.

Wiring Diagram

Power must be disconnected at the main electrical supply before removing

I N S T A L L E R

OPTIONAL TANDEM CABLE

For connecting more than 2 steam generators in tandem

Page 16

I N S T A L L E R

Transformer

Liquid Level Control Board

Water Feed

Solenoid

Steam Outlet

Liquid

Level Probe

AutoFlush

Plug and Play Connection

Contactor

Power Supply Knock-Out

Field Wiring

Water Inlet

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

INITIAL START-UP AND CHECKOUT

1. Turn on control. Follow specific instructions provided with controls.

2. Steam will begin to appear in approximately 5 minutes (unless equipped with factory-installed Express Steam option) at the steam head. Steam will shut off when desired temperature is reached and will automatically resume when room temperature drops below set point.

3. Steam will shut off automatically when control counts down to zero. To shut steam off manually, turn control OFF. To clear steam from enclosure area, turn shower on before opening door.

4. If unit does not start and control does not turn ON (control display does not light up) then turn breaker off for 20 seconds and try again.

5. Check all internal and external plumbing fittings for leaks while the steam is on.

OPTIONAL & ACCESSORY EQUIPMENT

Refer to specific instruction manual for installation, operation and maintenance of optional equipment and accessories such as iSteam

, AirTempo®, iTempo/Plus®, iTempo®, Home Wizard®, iGenie®and MSTS.

TROUBLESHOOTING

IMPORTANT NOTE: The model and serial number is printed on

the data plate on the front of the steam bath generator.

Step 1 Check main incoming power to the unit.

Step 2 Ensure the black wires from the pri-

mary side of the transformer are connected to the quick connect tabs on the line side of the contactor.

Step 3 Verify that you have 24VAC coming out of the transformer, WHT & WHT/BLU wires, into the board.

Step 4 Verify that you have the green light on the PC board.

Step 5 Push the white test button to run the generator for 10 minute test cycle. Make sure the steam room is empty.

Step 6 Verify that you have 24 VAC to the water feed solenoid, GRY & WHT/GRY wires (will fill when needed).

Step 7 Temporarily short out the WLS (Purple wire) and GND (Green wire) terminals and verify the contactor engages.

Step 8 When the red light is on, verify 24 VAC, RED & WHT/RED wires, to the contactor.

All electrical troubleshooting to be performed by a qualified licensed electrician

Step 9 Check main voltage on the

load side of the contactor when it is engaged.

Step 10 If all steps on the power path were verified, turn off power to the unit and pull the heating element via the left hand access panel for inspection.

DO NOT disassemble internal components, internal components contain no serviceable parts.

All drawings are for illustrative purposes only

Page 17

mr.steam

Force On

Test Button

Yellow (Water Level)

Green (Power)

Red

(Heater)

Installation, Operation & Maintenance Manual

__________________________________________________________________________

SYSTEM STATUS CODES

The control (either iSteam®, AirTempo®, iTempo®or iTempo/Plus®) may display a status code if the steam generator is not functioning properly.

Code Code Meaning Probable Cause Suggested Remedy

H20 Water level is not Water Supply is off Turn on Water Supply

satisfied within 5 min.

Prr1 Temperature Probe Error Control cable/MSTS cable cut Replace control cable / MSTS or Prr2

Err1 Incorrect Field Supply Voltage Incorrect voltage supplied Supply steam generator with the correct

(green light on liquid level to Generator voltage noted on the data plate label. control board will be off)

Err2 Button on control is pressed Control cover misalignment Remove and reinstall control cover

for more than 5 minutes

Defective water feed solenoid Check/replace water solenoid valve

Water feed probe not functioning Check/clean probe.

Check probe wiring.

Drain Valve Open Check/Close drain valve

AutoFlush not functioning Check/Replace AutoFlush

Internal problem with control/MSTS Replace control / MSTS

Debris behind control cover Remove control cover and clean cover,

control and keypad with a damp cloth

I N S T A L L E R

Errb Water level not satisfied in a tandem set up - Check secondary generators, see H20.

Err7 Liquid Level Control Board malfunction Memory error in LLCB Press ON/OFF to clear.

Replace control if code remains.

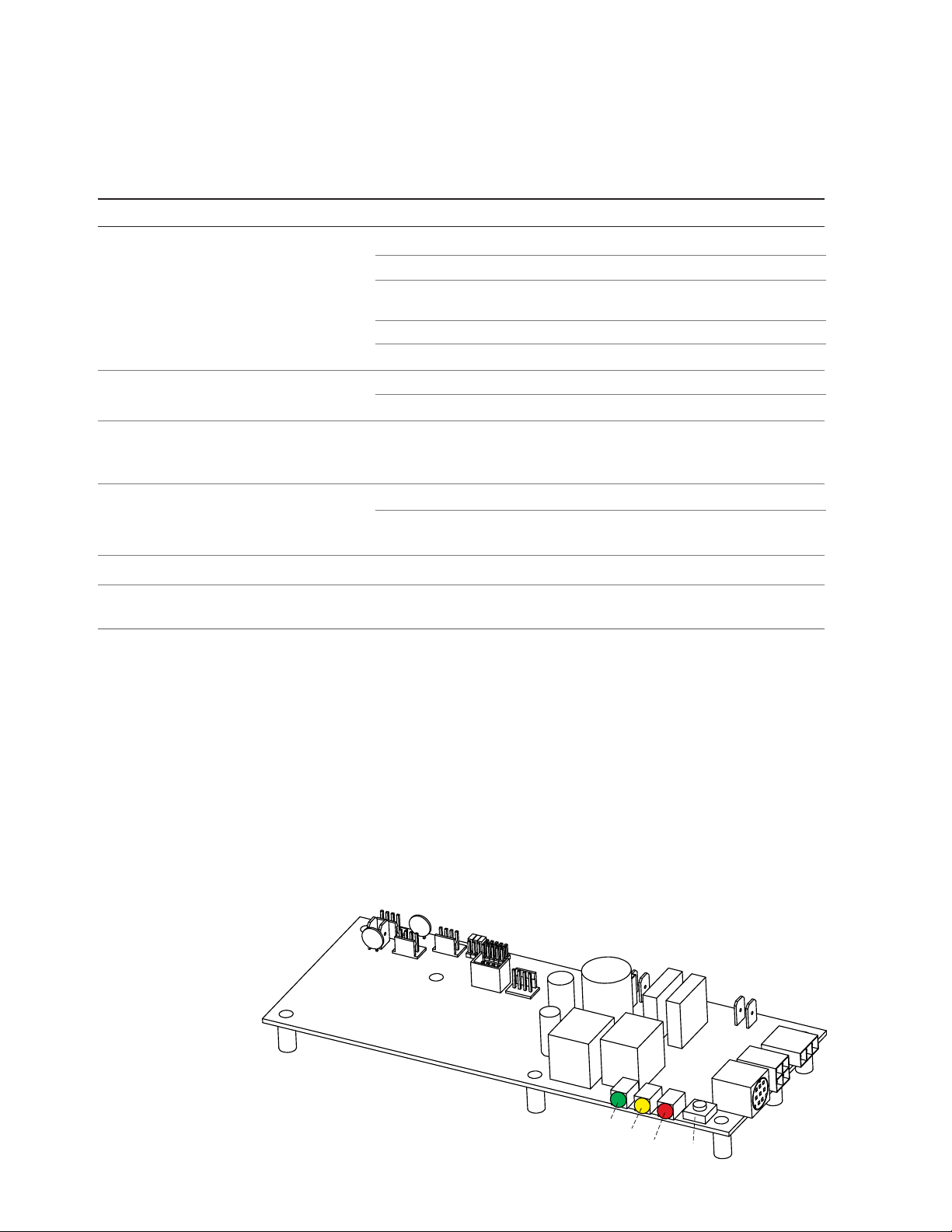

LIQUID LEVEL CONTROL BOARD Explanation of LED Indicators

______________________________________________________________________________________________________________________________________

GREEN LED is ON when there is 208/240 Volt incoming power connected,

______________________________________________________________________________________________________________________________________

YELLOW Water level indicator–LED is OFF when no water is detected (for more that 5 seconds). ON when

______________________________________________________________________________________________________________________________________

RED Contactor relay indicator–LED is ON when relay is closed and sending 24 Volts to the

______________________________________________________________________________________________________________________________________

FORCE ON Press this button to operate the generator. This button is for trouble shooting only and will operate TEST BUTTON

Liquid Level Control Board PN 104288

(shown without wiring)

24 Volt transformer secondary output and on-board 5 Volt DC control power are present.

water level is satisfactory. For units with AutoFlush, if more than five hours have elapsed since last usage and this LED is ON it is indicative of an AutoFlush or water level probe circuit malfunction.

contactor coil. (This LED comes ON if the generator is ON.)

if a control is connected or not. Pressing the button again will shut the generator OFF. The test button will only allow the generator to operate for 10 minutes.

All drawings are for illustrative purposes only

Page 18

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

OPTIONAL AUTOFLUSH

Box Contents

AutoFlush

Valve with Cord

Installation Instructions.

OPERATION

The optional AutoFlush System feature automatically drains the MrSteam generator following each use. A time delay allows the water to cool down (about two hours) before it drains by

I N S T A L L E R

gravity for a safe and gentle operation.

If the Express Steam® option has been installed, the AutoFlush will drain for ten minutes then refill with fresh water to begin the pre-heat cycle.

INSTALLATION INSTRUCTIONS

1. Plumbing to be performed by a qualified plumber and shall be in

accordance with applicable

gravity. A drain line that is lower than the AutoFlush® assembly

must be available. The AutoFlush System valve outlet is

Check plumbing code for receptor, trap and vent requirements.

2. Use copper or brass nipple

to connect AutoFlush “A” and “B” are indicated on bottom of AutoFlush Valve)

national and local codes. Unit drains by

⁄2“ NPT x 31⁄2“ or longer (not supplied)

valve (end "B") to the Drain Valve (valve end

⁄2

“ NPT.

Steam Generator

Nipple

nipple longer

Drain Valve

(shown in the correct open position)

DO NOT REMOVE THIS DRAIN VALVE

3 Pin Connector for AutoFlush

AutoFlush Cord Connector

AutoFlush Cord

copper or brass

⁄2" NPT x 31⁄2" or

(not supplied)

End "B"

Arrow indicates correct direction of flow

End "A"

AutoFlush

Valve

Plumb to Drain Line

DO NOT REMOVE

THE DRAIN VALVE Removal may

cause equipment and property damage. If there is not enough room for the valve, an elbow and a short nipple (not provided) can be added.

3. Open Drain Valve (handle must be aligned with brass nipple).

4. Connect the AutoFlush System cord connector to the three pin connector as shown.

5. The AutoFlush valve must be installed within the orientation range shown.

DO NOT drain into a steam enclosure or any location

where accidental contact with drain water may occur. In the event of

Steam Generator

a power failure the AutoFlush System valve will open and may discharge boiling water causing a scalding hazard.

SWEAT FITTINGS

When using sweat fittings use only tin base solder with a melting

AutoFlush Shown Fully Assembled

point below 600 degrees F. DO NOT overheat. Ends of water supply tubing must be thoroughly clean for a minimum distance of 1" from ends. DO NOT remove valve cover.

TO CHECK OPERATION

on MrSteam and allow tank to fill with water.

1. Turn

2. Turn off MrSteam control. Water should stay in tank.

3. Turn off power at the panel box. Water should discharge from tank.

4. Turn on power at panel box.

5. Repeat

DO NOT TURN OR REMOVE

Drain Valve

THE DRAIN VALVE

(shown in the correct open

position)

AutoFlush Valve

Nipple

Plumb to Drain Line

PROVIDE DRAIN PLUMBING ACCORDING TO LOCAL CODES. PLUMB AS REQUIRED FOR AUTOFLUSH SYSTEM.

All drawings are for illustrative purposes only

Page 19

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

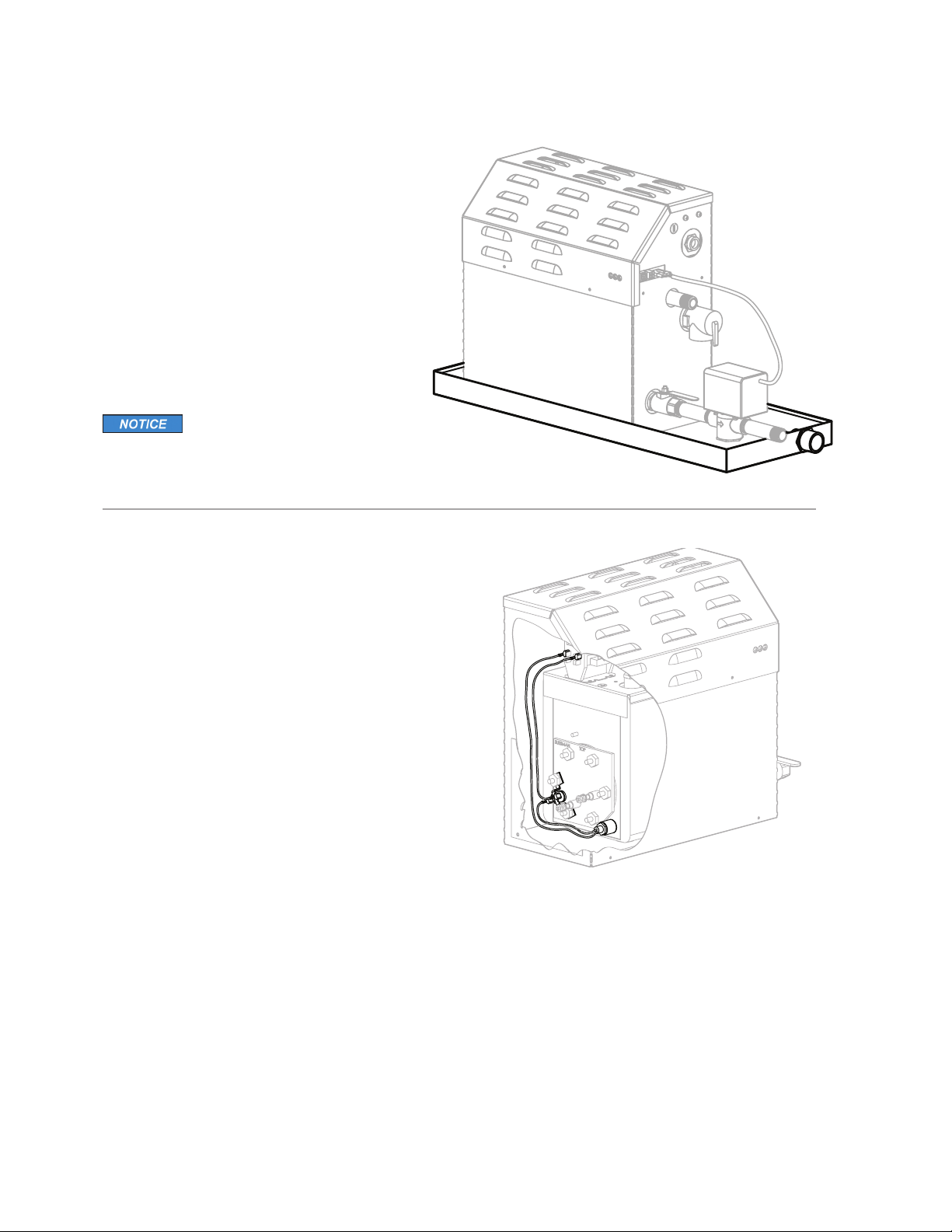

OPTIONAL CONDENSATION PAN

MrSteam strongly recommends the use of a condensation pan in the unlikely event of a plumbing leak.

Locate the condensation pan on a solid level surface and place the steam generator inside the condensation pan. Insure the steam generator is level (see page 5 for locating the steam generator).

All plumbing shall be performed by a qualified licensed plumber and in accordance with applicable national and local codes. Check local plumbing code for receptor, trap and vent requirements. Condensation pans drain by gravity.

The condensation pan is equipped with an integral

female

condensation pan drain together in such a way that will cause drain water to back into condensation pan.

⁄4" NPT fitting.

Do not plumb the generator drain and

I N S T A L L E R

OPTIONAL EXPRESS STEAM

(only available factory installed)

Available for all MS Models. Express Steam generators are equipped with a low power heating element and thermostat to keep the water in the tank warm enough to bring up steam quicker. All Express Steam components and wiring are installed at the factory. No additional wiring or plumbing is required by installers.

All drawings are for illustrative purposes only

Page 20

mr.steam

Transformer

Liquid Level Control Board

Water Feed

Solenoid

Water Inlet

Safety Valve

AutoFlush

Valve

(optional)

Stainless Steel Tank

Heating Element

Express Steam

heater (optional)

Element

Access Cover

Liquid Level Probe

Plug and Play Connection

(see pg. 16)

Power Block

Power Supply

Knock-Out

Contactor

Steam Outlet

Fuses

Nipple

(not included)

Manual Drain Valve

Transformer

Drain Line

Nipple

(not included)

iquid Level

ontrol Board

ater Feed

olenoid

Water Inlet

Safety Valve

utoFlush

alve

(

optional)

Stainless Steel Tank

eating Element

Access

Cover

Liquid

evel

Probe

lug and Play

Connection

(see pg. 16)

ontactor

Power Supply

Knock-Out

team Outlet

Express Steam

eater (optional)

Manual Drain Valve

Installation, Operation & Maintenance Manual

_________________________________________________________________________

PARTS IDENTIFICATION DIAGRAMS

MS REGULAR MODELS: MS90E - MS400E

(with AutoFlush®) shown with cover removed

I N S T A L L E R

FOR ILLUSTRATIVE PURPOSES ONLY.

Some components may be omitted or altered for clarity. DO NOT use for wiring, repair or other purposes not related to component identification.

MS SUPER MODELS: MSSUPE1E - MSSUPER3E

(with AutoFlush®)

shown with cover removed

Super1E 240/1 models are not supplied with internal fusing.

FOR ILLUSTRATIVE PURPOSES ONLY.

Some components may be omitted or altered for clarity. DO NOT use for wiring, repair or other purposes not related to component identification.

Page 21

mr.steam

__________________________________________________________________________

Installation, Operation & Maintenance Manual

REPLACEMENT P

ARTS LIST

___________________________________________________________________________________________________________

Part No. Description Generator

___________________________________________________________________________________________________________

99178MS

99297

100479

10477-3

104288

103904

103917

103990-60

104117-30

104117-60

MSTS

MSTS-60

100476-2

99012

103453

100471-2

99096MS

103938RD

103938SQ

99314

29051BMS

29051CMS

29061BMS

29061CMS

29071BMS

29071CMS

29091BMS

29091CMS

29101BMS

29101CMS

29121BMS

29121CMS

29151BMS

29151CMS

Drain Valve

Safety Valve 15PSI

Water Feed Solenoid Valve w/filter

Transformer 24VAC

Liquid Level Control Board

Tandem Cable for 2 generators (12 ft.)

Tandem Cable for up to 5 generators (30 ft.)

Cable for iTempo® Control (60 ft.)

Cable for iSteam®, AirTempo® & iTempo/Plus® (30 ft.)

Cable for iSteam (60 ft)

Remote Temperature Probe (integral 30ft cable)

Remote Temperature Probe (integral 60ft cable)

Contactor 50A 2-pole

Contactor 50A 3-pole

Contactor 50A 4-pole

Probe Assembly

Heating Element Gasket

Acrylic Shield for Round Steamhead

Acrylic Shield for Square Steamhead

Power Fuse 60A 250V

Heating Element 5 KW 208V Single Phase

Heating Element 5 KW 240V Single Phase

Heating Element 6 KW 208V Single Phase

Heating Element 6 KW 240V Single Phase

Heating Element 7.5 KW 208V Single Phase

Heating Element 7.5 KW 240V Single Phase

Heating Element 9 KW 208V Single Phase

Heating Element 9 KW 240V Single Phase

Heating Element 10 KW 208V Single Phase

Heating Element 10 KW 240V Single Phase

Heating Element 12 KW 208V Single Phase

Heating Element 12 KW 240V Single Phase

Heating Element 15 KW 208V Single Phase

Heating Element 15 KW 240V Single Phase

All Models

MS90E-400E, Single phase

All 3-Phase Models

MSSuper1E–3E

All Models

MSSuper2E–3E

MS90E

MS150E

MS225E

MS400E

MSSUPER1E

MSSUPER2E

MSSUPER3E

I N S T A L L E R

For other voltages and phases contact MrSteam

Page 22

mr.steam

Installation, Operation & Maintenance Manual

_________________________________________________________________________

CONTROL INSTALLATION

Refer to Control Manual for specific installation requirements

BEFORE INSTALLING

Turn power to the steam generator OFF before connecting the control to the generator. Failure to turn the power off will result in an inoperable control.

To avoid unintentional steambath operation,

DO NOT locate the control where other controls, acces-

I N S T A L L E R

sories, shower heads, valves, body sprays or similar within the shower could cause confusion or interfere with the MrSteam control’s intended use and function.

DO NOT use any iSteam iTempo/Plus without reading and understanding its own manual and the MrSteam steam generator Installation and Operation Manual. Failure to read and understand these instructions may result in an inoperative or hazardous installation.

and permanently affixed in a conspicuous location near the steam room. Failure to read and affix this warning sticker in a conspicuous location may result in serious injury or death. .

Install the iSteam, AirTempo, iTempo or iTempo/Plus controls according to installation instructions. Failure to install according to instructions will result in an inoperative control or hazardous overheating or inadequate heating of the steam room.

If an iSteam, AirTempo, iTempo or iTempo/Plus control is installed outside the steam room a Remote Temperature Probe (PN MSTS) must be installed inside the steam room per installation instructions supplied with the Remote Temperature Probe. Failure to install according to instructions will result in an inoperative control and overheating of the steam room.

, iTempo®, HomeWizard®or iGenie®controls

A peel and stick warning sticker must be read

, AirTempo®,

DO NOT route iSteam, iTempo, HomeWizard or iGenie control wiring inside conduit together with power lines or close to hot water or steam piping. Doing so may result in an inoperative or hazardous installation.

DO NOT alter or modify any MrSteam product. Doing so may result in an inoperative or hazardous installation and will void the UL listing and warranty.

IMPORTANT NOTES:

1. Turn power to the steam generator OFF before connect-

ing the control to the generator. Failure to turn the power off will result in an inoperable control.

2. DO NOT operate iSteam, AirTempo, iTempo/Plus, iTempo,

HomeWizard or iGenie controls with other than a MrSteam iSteam, AirTempo, or iTempo compatible steam generator. MrSteam residential steam generators with serial numbers lower than 900000, or any other brand of steam generator are not to be operated with iTempo controls. Doing so may result in an inoperative or hazardous installation. If iSteam is used with a generator having serial number less than 1174000, contact MrSteam technical support for an upgraded PC board.

3. This document contains important safety, operation and

maintenance information. Leave this document with the homeowner. Do not discard this document.

4. Discontinue use of the steam generator or control if the

steam generator is damaged or otherwise not functioning properly. Operating a damaged steam generator may result in an inoperative or hazardous installation

AirTempo,

iTempo/Plus,

CONTROL ROUGH IN

Refer to Installation Instructions for the specific control

IMPORTANT NOTE: The control cable should be run in a dedicated 1” conduit to facilitate installation and service.

Determine the desired installation location of the control. The iSteam®, controls are designed steam room as a matter of personal preference. If the control is installed inside the steam room the control must be located:

2. 4-5 feet above the floor near the bather seating area

3. The control features an integral temperature sensor.

Locate the control in a location representative of the desired steam bathing temperatures. DO NOT locate the control above or near the steam head or direct steam emissions.

4. On a vertical wall

The iSteam and iTempo control cable length is 30 feet. Insure that the control and/or steam generator are located accordingly. An optional 60 foot cable is available, PN

AirTempo®,

to be installed inside or outside the

iTempo® and iTempo/Plus

103990-60 for AirTempo and iTempo and PN 104117-60 for iSteam. Contact a MrSteam technical service representative if a 60 foot cable is required. Excess control cable should be neatly coiled and twisted into a figure 8. The AirTempo dongle is

provided with a 3 foot cable. The maximum cable length is 60 feet.

IMPORTANT NOTES:

•If the control is installed outside the steam room a Remote Temperature Probe Part Number MSTS must be installed inside the steam room, depending on the control.

• Insure MrSteam steam generator is iSteam, AirTempo or iTempo compatible and has a serial number 900000 or higher. If iSteam is used with a generator having serial number less than 1174000, contact MrSteam technical support for an upgraded PC board.

•

See instructions for the MSTS Temperature Probe (located in the Control Installation Manual related to your specific control package) before rough-in or installation of control.

Page 23

mr.steam

REDUCE THE RISK OF OVERHEATING AND SCALDING

EXIT IMMEDIATELY IF UNCOMFORTABLE, DIZZY OR SLEEPY.

STAYING TOO LONG IN A HEATED AREA IS CAPABLE OF CAUSING OVERHEATING.

2. SUPERVISE CHILDREN AT ALL TIMES.

3. CHECK WITH A DOCTOR BEFORE USE IF PREGNANT, DIABETIC, IN POOR HEALTH OR UNDER MEDICAL CARE.

4. BREATHING HEATED AIR IN CONJUNCTION WITH CONSUMPTION OF ALCOHOL, DRUGS, OR MEDICATION IS CAPABLE OF CAUSING UNCONSCIOUSNESS.

5. DO NOT CONTACT STEAM HEAD OR STEAM AT THE STEAM HEAD.

REDUCE THE RISK OF SLIPPING AND FALL INJURY

1. USE CARE WHEN ENTERING OR EXITING THE STEAM ROOM. FLOOR MAY BE SLIPPERY

NOTE: FOR ADDITIONAL SAFETY CONSIDERATIONS SEE OWNER”S MANUAL

WHICH IS KEPT:_______________________________________ THE OWNER’S MANUAL CAN BE FOUND AT WWW.MRSTEAM.COM

USE OF STEAM ROOM IN CONJUNCTION WITH CONSUMPTION OF ALCOHOL CAN BE DANGEROUS AND CAN RESULT IN INJURY THROUGH SLIP AND FALL OR OTHERWISE.

mr.steam

43-20 34th Street , Long Island City NY 11101 1 800 76 STEAM www.mrsteam.com PUR100378 8.18

WARNING

__________________________________________________________________________

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

H O M E O W N E R S E C T I O N

READ ME FIRST!

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided may result in minor or moderate injury or product damage.

is used to address practices not related to physical injury.

IMPORTANT NOTE:

information that is especially relevant to a problem-free installation.

HYPERTHERMIA

nal temperature of the body reaches a level several degrees above the normal body temperature of 98.6° F. The symptoms of hyperthermia include an increase in the internal temperature of the body, dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include:

a) Failure to perceive heat; b) Failure to recognize the need to exit

the steambath; c) Unawareness of impending risk; d) Fetal damage in pregnant women; e) Physical inability to exit the steambath

and

f) Unconsciousness

The use of alcohol, drugs, or medication can greatly increase the risk of hyperthermia.

This highlights

occurs when the inter-

When using this steam bath equipment, basic safety precautions should always be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

1. READ AND FOLLOW ALL INSTRUCTIONS

injury or death if improperly used. Steam rooms contain steam and elevated temperatures. Please read and observe all warnings in this manual before installing or using a steam room.

4. A. The wet surfaces of steam enclosures

may be slippery. Use care when entering or leaving.

B. The steam head is hot. DO NOT touch the

steam head and avoid the steam near the steam head.

C. Prolonged use of the steam system can raise

supplied with the generator includes a peel and stick warning label. Its proper use is an essential part of providing a safe environment for steam room users. The peel and stick warning label must be applied to the wall of the shower or steam enclosure, at a point that is visible to all users. Failure to install this sticker may result in serious injury or death. The location where this owner's manual is kept shall be written in the space provided on the label using permanent ink. For a replacement warning label contact MrSteam customer service at 1-800-76-STEAM or [email protected]

Supervise children at all times.

Steam is hot and can cause

To reduce the risk of injury:

The manual

Not Actual Size

D. Excessive temperatures have a high

potential for causing fetal damage during the early months of pregnancy. Pregnancy or possibly pregnant women should consult a physician regarding correct exposure.

E. Obese persons and persons with a his-

tory of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a steambath.

F. Persons using medication should con-

sult a physician before using a steambath since some medication may induce drowsiness while other medications may affect heart rate, blood pressure and circulation.

SAVE THESE INSTRUCTIONS

Page 24

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

SETTING THE STEAM BATH TEMPERATURE AND DURATION

Set the steam bathing temperature according to personal preference, however it is highly recommended to begin steam bathing at a low temperature

etting to gauge comfort and safety levels. Set duration

s to a maximum of 10 minutes to gauge comfort and safety levels. This will allow the steam generator to heat up and begin producing steam.

SAFETY AND OPERATING

H O M E O W N E R

INFORMATION

DO NOT install or use any iSteam®, AirTempo iGenie MrSteam steam generator Installation and Operation Manual. Failure to read and understand these instructions may result in an inoperative or hazardous installation.

in this manual must be read and permanently affixed in a conspicuous location near the steam room. Failure to read and affix this warning sticker in a conspicuous location may result in serious injury or death.

, iTempo/Plus®, iTempo®, HomeWizard®or

controls without reading and understanding the

The peel and stick warning sticker located

CARE TIPS FOR ALL CONTROLS AND STEAMHEADS

1. Use only mild soap and water on a soft cloth to clean the control and steamhead.

2. DO NOT use abrasive cleansers.

3. If the decorative cover is damaged on the iTempo

r iTempo/Plus call MrSteam technical service for

replacement parts.

Replacement of the decorative covers requires removal and reinstallation of the control from the mounting surfaces.

STEAM GENERATOR MAINTENANCE

MrSteam steambath generators require little maintenance. Other than periodic draining, maintenance procedures are minimal. Every 2 months, or more often in “hard” water areas, the manual drain valve should be opened fully flushing out accumulated materials, salts and other particles which are natural byproducts of boiling water.

Flush a minimum of two-three hours after the con-

trol has been turned off to insure that the water has cooled.

Draining immediately after a steam cycle may expose PVC and other piping to high temperature water. Check local codes. The unit will refill automatically when the control is activated again. In areas of hard water, a MrSteam AutoFlush system is recommended for generator longevity.

Failure to allow the water to cool will expose the equipment and user to scalding water and cause property and personal injury.

To prevent slip and fall hazards non-skip

strips must be installed on the steam room floor.

DO NOT alter or modify any MrSteam product. Doing so may result in an inoperative or hazardous installation and will void the UL listing and warranty.

IMPORTANT NOTES:

lightning, fire, freezing or flooding is not covered under the warranty.

Discontinue use of the steam generator or control if the steam generator is damaged or otherwise not functioning properly. Doing so may result in an inoperative or hazardous condition.

Malfunction due to power spikes,

IMPORTANT NOTE: The model and serial number is printed on the data plate on the front of the steam bath generator.

Page 25

mr.steam

Installation, Operation & Maintenance Manual

__________________________________________________________________________

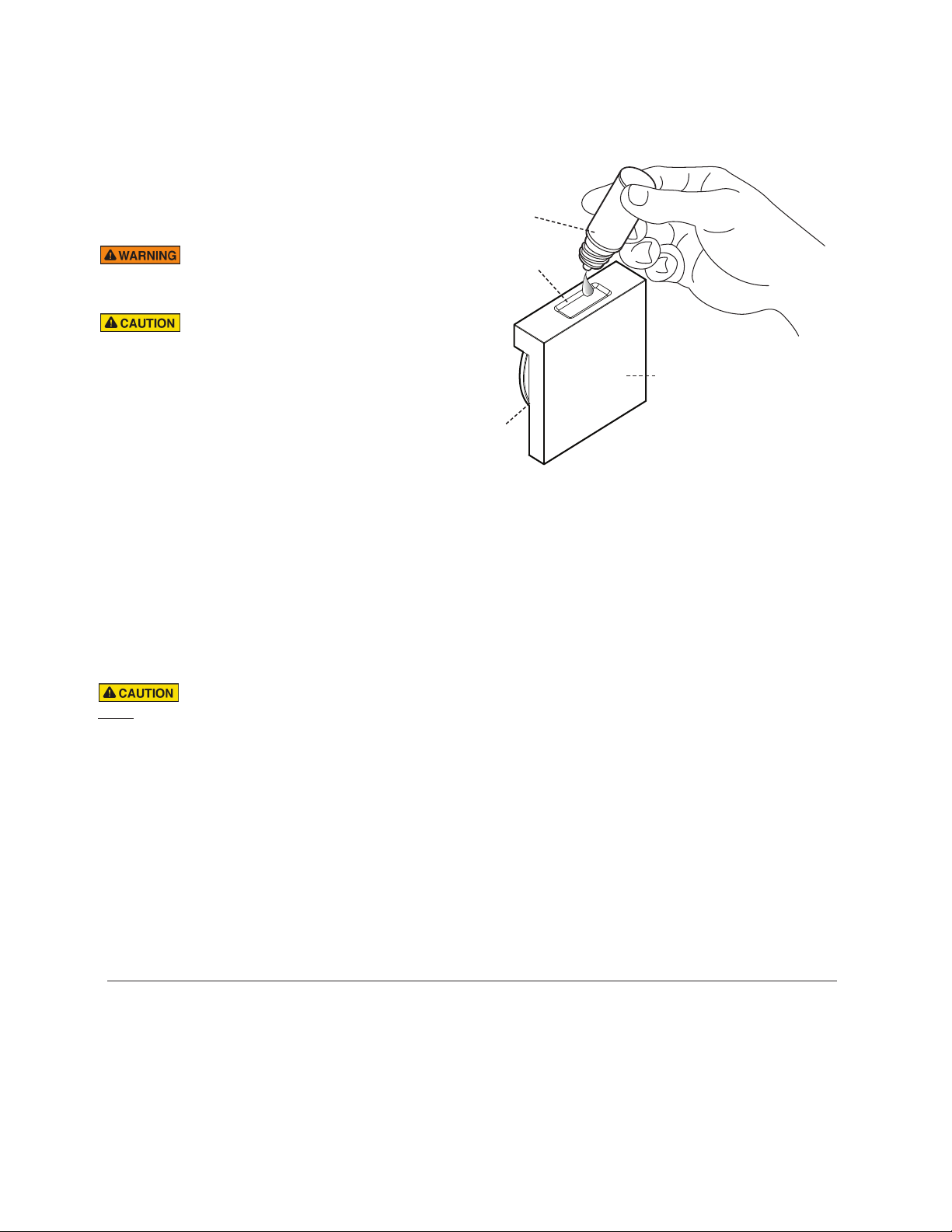

USING

njoy AromaSteam essential oils by placing a drop or two into an unheated AromaSteam steamhead as shown in the illustration. Only use MrSteam AromaSteam essential oils in the MrSteam AromaSteam steamhead.

cause inflammation, burns, headache, nausea and allergic reactions. Consult a physician before using aromatherapy.

1. Use essential oils with caution. Essential oils are for external use only. Keep out of reach of children. Essential oils are highly concentrated and are potent substances and should not be applied directly to the skin as they can be irritants. Use essential oils with caution.

2. recess prior to turning on the steambath. DO NOT place drops in a hot steam head as serous injury can result if you do not follow this warning.

3. Start with one drop to gauge strength and suitability. Limit to a maximum of a few drops for a steam bathing session.

4. The bather should exit the steambath IMMEDIATELY if dizziness occurs. If skin irritation occurs stop using the oils immediately. Remove any excess oil by washing in mild soap and water. If ingested, rinse mouth with water. Administer water or milk to dilute. Contact a physician immediately.

MrSteam ESSENTIAL OILS

Essential oils and/or aroma therapy can

(Items 1-4)

Place the drops into the MrSteam AromaSteam steamhead

AromaSteam 10ml bottle with integrated dropper

Recess for essential oil

H O M E O W N E R

AromaSteam steamhead (install per instructions on pg.9)

Steam emission slot

Aromatic oils should be added to steamhead

turning on the steambath unit. DO NOT add oil

before during steam bathing or when the steam head is heated.

Tightly close bottles when storing oils. Keep bottles away from sources of ignition.

All drawings are for illustrative purposes only

WARRANTY

To view or download the MrSteam Residential Generator Warranty and register your Product go to:

blog.mrsteam.com/wr

Page 26

NOTES

Page 27

NOTES

Page 28

steam

Feel Good Inc.

www.mrsteam.com

Products, information and specifications are subject to change without notice.

Please call Sales & Support at 1.800.76.STEAM (East Coast) or 1.800.72.STEAM (West Coast) for more information.

mr.steam

43-20 34th Street, Long Island City, NY 11101 1 800 76 STEAM I 9410 S. La Cienega Blvd. Inglewood CA 90301 1 800 72 STEAM

2020 © Sussman-Automatic Corporation I MrSteam and des., A Lifetime of Pleasure, AirTempo, AromaFlo, AudioWizard, AutoFlush, AutoSteam, Butler Package, ChromaSteam, Clean Steam...Every Time, Club Therapy, CT Day Spa, Digital 1, Express Steam, Feel Good Inc., From Bathroom to Spa, HomeWizard, iButler, iGenie, iSpa Package, iSteam, iTempo, iTempo/Plus, Linear Steamhead, Making Wellness a Way of Life, Music Therapy, My Steam, SmartSizing, Spa Package, Steam Genie, Steam on Demand, Steam in a Box, Steam@Home, SteamStart, SteamTherapy, Sussman, Tala, Tala Bath & Body, Tempo, The Intelligent Steambath, Valet Package, and Virtual Spa System are registered trademarks of Sussman-Automatic Corporation.

Sussman-Automatic Corporation

[email protected] I www.mrsteam.com

PUR 100472A REV 1. 21
