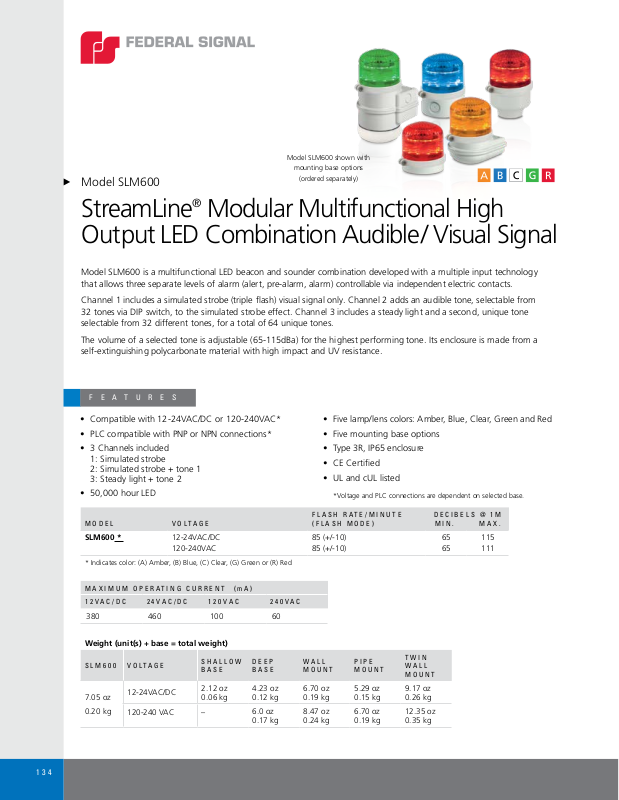

Federal Signal SLM600 Data Sheet
Model SLM600 shown with
mounting base options
Model SLM600
(ordered separately)
StreamLine® Modular Multifunctional High
Output LED Combination Audible/ Visual Signal
Model SLM600 is a multifunctional LED beacon and sounder combination developed with a multiple input technology
that allows three separate levels of alarm (alert, pre-alarm, alarm) controllable via independent electric contacts.
Channel 1 includes a simulated strobe (triple flash) visual signal only. Channel 2 adds an audible tone, selectable from
32 tones via DIP switch, to the simulated strobe effect. Channel 3 includes a steady light and a second, unique tone
selectable from 32 different tones, for a total of 64 unique tones.
The volume of a selected tone is adjustable (65-115dBa) for the highest performing tone. Its enclosure is made from a
self-extinguishing polycarbonate material with high impact and UV resistance.
FEATURES
• Compatible with 12-24VAC/DC or 120-240VAC*
• PLC compatible with PNP or NPN connections*
• 3 Channels included
1: Simulated strobe
2: Simulated strobe + tone 1
3: Steady light + tone 2
• 50,000 hour LED
MODEL VOLTAGE
SLM600 * 12-24VAC/DC
120-240VAC
* Indicates color: (A) Amber, (B) Blue, (C) Clear, (G) Green or (R) Red
MAXIMUM OPERATING CURRENT (mA)
12VAC/DC 24VAC/DC 120VAC 240VAC
380 460 100 60
Weight (unit(s) + base = total weight)
SLM600 VOLTAGE
7.05 oz
0.20 kg
12-24VAC/DC
120-240 VAC –
SHALLOW
BASE
2.12 oz
0.06 kg
DEEP
BASE
4.23 oz
0.12 kg
6.0 oz
0.17 kg
• Five lamp/lens colors: Amber, Blue, Clear, Green and Red
• Five mounting base options
• Type 3R, IP65 enclosure
• CE Certified
• UL and cUL listed
*Voltage and PLC connections are dependent on selected base.
FLASH RATE/MINUTE
(FLASH MODE)
85 (+/-10)
85 (+/-10)
WALL
MOUNT
6.70 oz
0.19 kg
8.47 oz
0.24 kg
PIPE
MOUNT
5.29 oz
0.15 kg
6.70 oz
0.19 kg
DECIBELS @ 1M
MIN. MAX.
TWIN
WALL
MOUNT
9.17 oz
0.26 kg
12.35 oz
0.35 kg
65
65
115
111
134
StreamLine® Modular Multifunctional High Output LED Combination Audible/Visual Signal (SLM600)
ø.157"/ 4.0 mm
1.57"/ 39.9 mm
SPECIFICATIONS HOW TO ORDER
VISUAL SIGNALS
Lamp Life: 50,000 Hours
Light Source: LED
Operating Temperature: -22°F to 122°F -30°C to 50°C
3.44"/ 87.4 mm
3.9"/ 99.1 mm
MOUNTING BASE OPTIONS
Shallow
Base
Wall
Mount
Twin
Wall
Mount
Deep
Base
Pipe
Mount
Model Number
SLMBS-012-024GY Gray 12-24VAC/DC
SLMBS-012-024R Red 12-24VAC/DC
SLMBD-012-024GY Gray 12-24VAC/DC
SLMBD-PNP-012-024GY Gray 12-24VAC/DC
SLMBD-012-024R Red 12-24VAC/DC
SLMBD-120-240GY Gray 120-240VAC
SLMBD-120-240R Red 120-240VAC
SLMBW-012-024GY Gray 12-24VAC/DC
SLMBW-PNP-012-024GY Gray 12-24VAC/DC
SLMBW-120-240GY Gray 120-240VAC
SLMBP-012-024GY Gray 12-24VAC/DC
SLMBP-PNP-012-024GY Gray 12-24VAC/DC
SLMBP-120-240GY Gray 120-240VAC
SLMBT-012-024GY Gray 12-24VAC/DC
SLMBT-PNP-012-024GY Gray 12-24VAC/DC
SLMBT-120-240GY Gray 120-240VAC
Color
Base
• Specify model number SLM600 and color
• Specify required mounting base (see chart)
• Optional dome guard
For shallow mounting base (SLMDG0)
For deep mounting base (SLMDG1)
• Accessories for Twin and Wall Mount Bases
Cable Gland, M20, Gray, 2 Pack (K77700416)
Cable Gland, M20, Red, 2 Pack (K77700416-01)
• Accessories for Pipe Mount Base
1" NPT Adapter (SLMNPT1)
1/2" NPT Adapter (SLMNPT2)
Voltage
2.04"/
51.8 mm
ø.196"/ 5.0 mm
2.04"/
51.8 mm
.196"/ 5.0 mm
2.20"/ 55.9 mm
3.93"/ 99.8 mm
Pipe Mount comes
standard with
1/2" NPT Adapter
3.22"/ 81.8 mm
4.72"/ 119.9 mm
.787"/ 20.0 mm
1.57"/ 39.9 mm
ø.157"/
4.0 mm
3.62"/ 91.9 mm
2.16"/ 54.9 mm
2.28"/ 57.9 mm
ø 3.62"/
92.0 mm
.787"/ 20.0 mm
3.62"/
91.9 mm
4.52"/ 114.8 mm
1.5" NPT
4.60"/ 116.8 mm
.826"/ 21.0 mm
1.81"/ 46.0 mm
2.04"/ 51.8 mm
3.89"/ 98.8 mm
3.82"/ 97.0 mm
2645 Federal Signal Dr., University Park, IL 60484 Tel: +1 708.534.4756 Email: signalsupport@fedsig.com www.fedsig.com | 135
