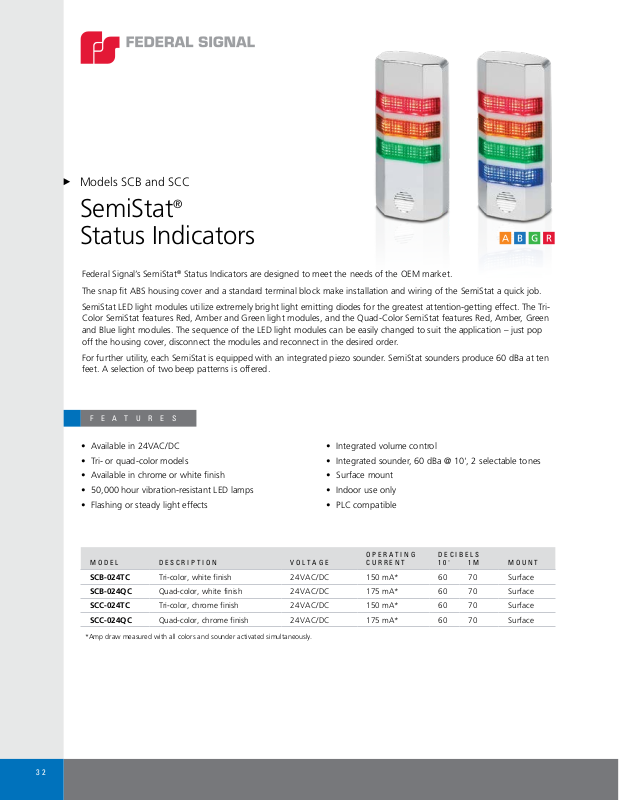

Federal Signal SCB, SCC Data Sheet

Models SCB and SCC

®

SemiStat
Status Indicators

Federal Signal’s SemiStat® Status Indicators are designed to meet the needs of the OEM market.

The snap fit ABS housing cover and a standard terminal block make installation and wiring of the SemiStat a quick job.

SemiStat LED light modules utilize extremely bright light emitting diodes for the greatest attention-getting effect. The Tri­Color SemiStat features Red, Amber and Green light modules, and the Quad-Color SemiStat features Red, Amber, Green
and Blue light modules. The sequence of the LED light modules can be easily changed to suit the application – just pop
off the housing cover, disconnect the modules and reconnect in the desired order.

For further utility, each SemiStat is equipped with an integrated piezo sounder. SemiStat sounders produce 60 dBa at ten
feet. A selection of two beep patterns is offered.

FEATURES

• Available in 24VAC/DC

• Tri- or quad-color models

• Available in chrome or white finish

• 50,000 hour vibration-resistant LED lamps

• Flashing or steady light effects

MODEL DESCRIPTION VOLTAGE

SCB-024TC Tri-color, white finish 24VAC/DC 150 mA* 60 70 Surface

SCB-024QC Quad-color, white finish 24VAC/DC 175 mA* 60 70 Surface

SCC-024TC Tri-color, chrome finish 24VAC/DC 150 mA* 60 70 Surface

SCC-024QC Quad-color, chrome finish 24VAC/DC 175 mA* 60 70 Surface

*Amp draw measured with all colors and sounder activated simultaneously.

• Integrated volume control

• Integrated sounder, 60 dBa @ 10', 2 selectable tones

• Surface mount

• Indoor use only

• PLC compatible

OPERATING DECIBELS

MOUNTCURRENT 10' 1M

3 2

SemiStat® Status Indicators (SCB and SCC)

3.55"/

90.2 mm

1.55"/

39.4 mm

2.91"/

73.9 mm

.34"/

8.5 mm

.17"/

4.3 mm

.26" /

6.6 mm

.47"/

12.0 mm

8.14"/

206.8 mm

1.55" / 39.4 mm

7.09"/

181.1 mm

LED

Modules

Cover

Piezo Sounder

Printed

Circuit Board

Volume Control

VISUAL SIGNALS

Lamp Life: 50,000 Hours

Light Source: LED

Operating Temperature: 32°F to 140°F 0°C to 60°C

Net Weight: 0.7 lbs 0.32 kg
Shipping Weight: 1.0 lbs 0.45 kg

Height: 8.14" 206.8 mm
Width: 3.55" 90.2 mm
Depth: 1.55" 39.4 mm

SPECIFICATIONS REPLACEMENT PARTS

Description Part Number

LED Module, Amber K2001925A-01
LED Module, Blue K2001925A-02
LED Module, Red K2001925A
LED Module, Green K2001925A-03

HOW TO ORDER

–

SCB

TYPE
SCB White Finish
SCC Chrome Finish

024

TC

VOLTAGE
024 (24VAC/DC)

COLORS
TC Tri-color
QC Quad-color

2645 Federal Signal Dr., University Park, IL 60484 Tel: [phone] Email: [e-mail] www.fedsig.com | 33
