StreamLine
®
Low Profile
Strobe Light
Models LP3P, LP3S, LP3T
Federal Signal introduces the Model LP3 low profile strobe light.
This Type 4X strobe is available in five colors: amber, blue, clear,
green and red. An optional dome wire guard is available for the
LP3S and LP3T.
The LP3 is offered in three mounting configurations. LP3P features
an integrated
surface mount — ideal for control panels and other flat or flush
surfaces. The “T-mount” LP3T has a popular 2-hole design for
wall or flush mounting.
Both the LP3S and LP3T include a surface gasket to complete the
Type 4X installation. An optional dome guard is available for use
with the LP3S and LP3T. All LP3 units feature a threaded screwon lens that provides tool-free wiring and strobe tube replacement.
The strobe tube
The LP3 comes in three voltage variations: 12-48VDC, 120VAC
and 240VAC. The state-of-the-art strobe mechanism produces 2.2
joules of energy, while drawing relatively low level amperage.
StreamLine
which are designed to reduce tungsten build-up for longer lamp
maintenance cycles. Careful consideration is given to the relationship
between lamp shape and lens design for maximum light output.
StreamLine products make use of surface mount technology,
which provides a more powerful light in a much smaller package.
The dry-electrolyte capacitor used in StreamLine products runs
cooler than those used in many competitive strobes, resulting in a
more reliable product that won’t fail due to overheating.
1
/2-inch NPT pipe mount. LP3S features a three-hole
is rated for 7,000 hours.
®
strobes feature high-quality, long-life strobe lamps
5
W
Operating Flash Rate/ Joule Candela
Model Voltage Current Minute Output Peak
LP3 12-48VDC 0.44-0.10 amps 65-95 2.2 175,000 51.5
LP3 120VAC 0.10 amps 65-95 2.2 175,000 51.5
yr
Y
T
A
N
R
A
R
LP3 240VAC 0.07 amps 65-95 2.2 175,000 51.5
1
Peak candela is the maximum light intensity generated by a flashing light during its light pulse
2
ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily
1
ECP
2

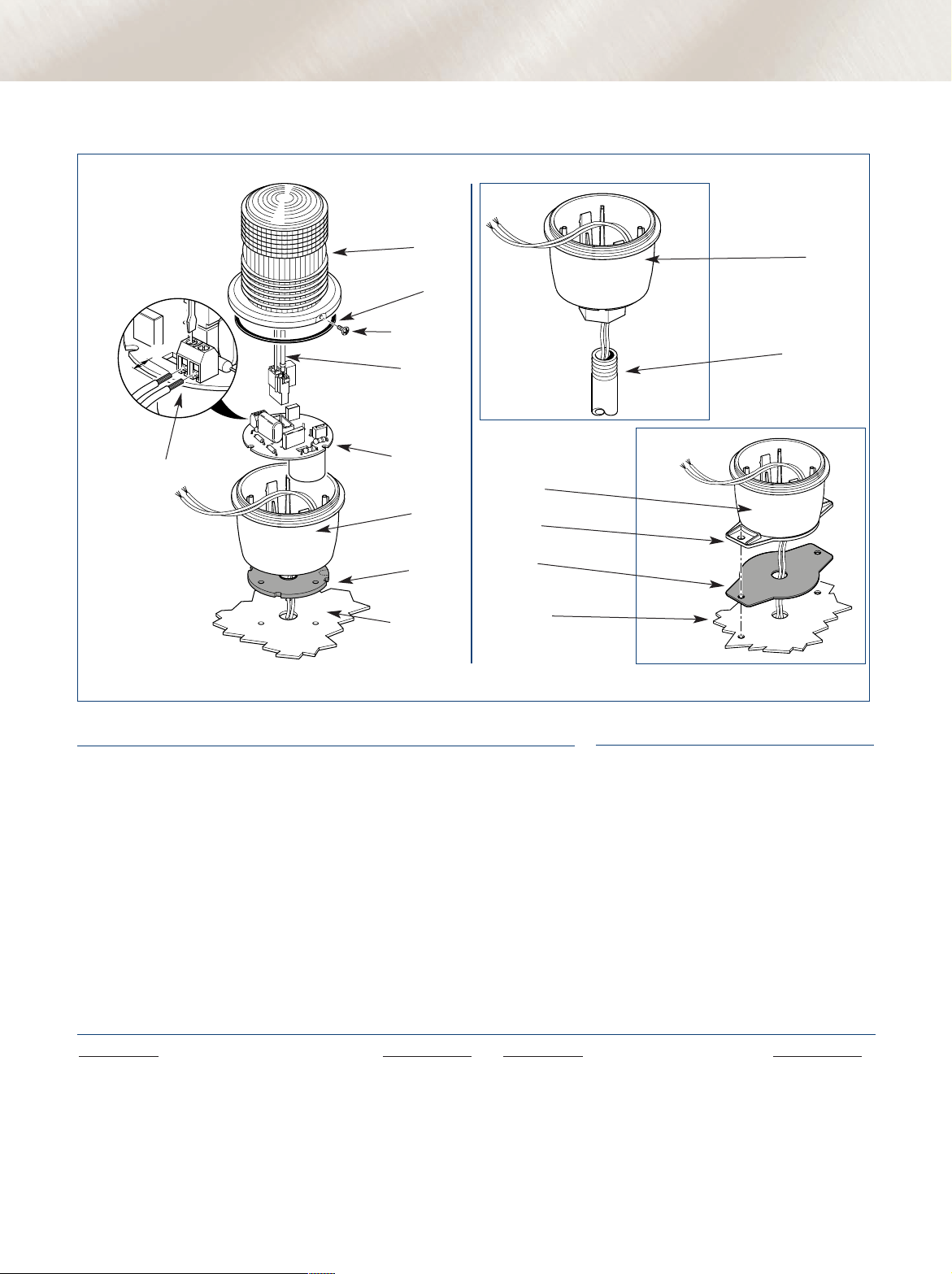

STREAMLINE®LOW PROFILE STROBE LIGHT (LP3S/LP3P/LP3T)
LP3S
Power
Connection
Schematic
.25"
(6.4mm)
Dome
Lens
Gasket
Set Screw
Custom
Strobe Tube
Snap-in Printed
Circuit Board
Assembly
Surface
Mount
Housing
Gasket
Mounting
Surface
LP3P
Housing
T-mount
Gasket
Mounting
Surface
LP3T**
**LP3T-120 & 240VAC shown
Housing
1
/2"
Pipe Mount
SPECIFICATIONS
Lamp Life:* 7,000 hours 7,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 150°F -35°C to 66°C
Net Weight: 7.3 oz. 206.96 g
Shipping Weight: 8.5 oz. 240.98 g
Diameter: 3.125" 7.94 cm
HOW TO ORDER
• Specify model, voltage and color
• Specify options
Wire/Dome guard for LP3S, LP3T
(LP3G)
• Please refer to Model Number Index
LP3 (P,S,T) beginning on page 374
Height (from bottom):
LP3P 5.7" 14.48 cm
LP3S 5.0" 12.7 cm
LP3T 5.1" 12.95 cm
*Optimal hours under ideal conditions.
REPLACEMENT PARTS
Description Part Number Description Part Number
Dome, Amber K8589063A PC Assembly, 12-48VDC K2001316B
Dome, Blue K8589063A-01 PC Assembly, 120VAC K2001317A
Dome, Clear K8589063A-02 PC Assembly, 240VAC K2001317A-01
Dome, Green K8589063A-03 Gasket, Lens K8589013A
Dome, Red K8589063A-04 Gasket, LP3S K8589011A
Strobe Tube K149130A Gasket, LP3T K8589012A
