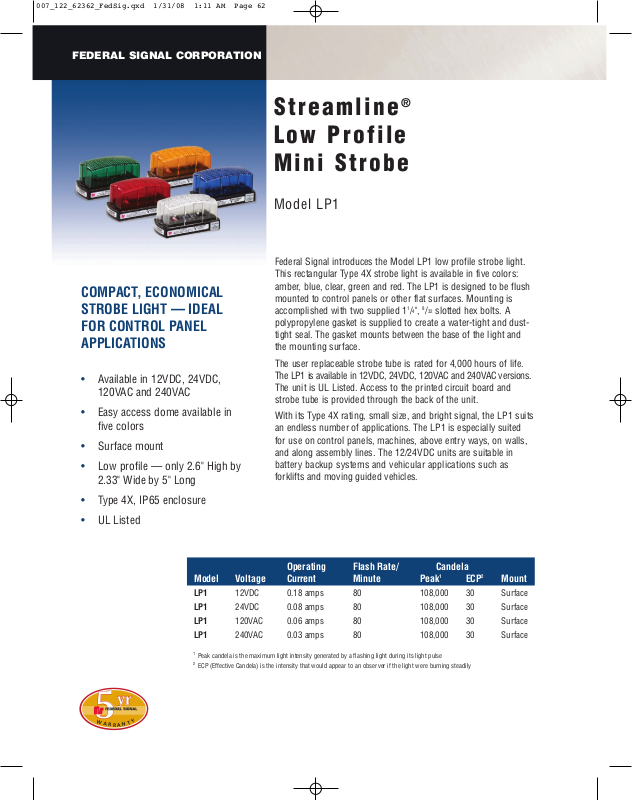

Federal Signal LP1 Catalog Page

FEDERAL SIGNAL CORPORATION

y

COMPACT, ECONOMICAL
STROBE LIGHT — IDEAL
FOR CONTROL PANEL
APPLICATIONS

• Available in 12VDC, 24VDC,

120VAC and 240VAC

• Easy access dome available in

five colors

• Surface mount

• Low profile — only 2.6" High by

2.33" Wide by 5" Long

Streamline

®

Low Profile
Mini Strobe

Model LP1

Federal Signal introduces the Model LP1 low profile strobe light.
This rectangular Type 4X strobe light is available in five colors:
amber, blue, clear, green and red. The LP1 is designed to be flush
mounted to control panels or other flat surfaces. Mounting is
accomplished with two supplied 1
polypropylene gasket is supplied to create a water-tight and dust­tight seal. The gasket mounts between the base of the light and
the mounting surface.

The user replaceable strobe tube is rated for 4,000 hours of life.
The LP1 is available in 12VDC, 24VDC, 120VAC and 240VAC versions.
The unit is UL Listed. Access to the printed circuit board and
strobe tube is provided through the back of the unit.

With

its Type 4X rating, small size, and bright signal, the LP1 suits
an endless number of applications. The LP1 is especially suited
for use on control panels, machines, above entry ways, on walls,
and along assembly lines. The 12/24VDC units are suitable in
battery backup systems and vehicular applications such as
forklifts and moving guided vehicles.

1

/4", 8/32slotted hex bolts. A

• Type 4X, IP65 enclosure

• UL Listed

Operating Flash Rate/ Candela

Model Voltage Current Minute Peak

LP1 12VDC 0.18 amps 80 108,000 30 Surface

LP1 24VDC 0.08 amps 80 108,000 30 Surface

LP1 120VAC 0.06 amps 80 108,000 30 Surface

LP1 240VAC 0.03 amps 80 108,000 30 Surface

1

Peak candela is the maximum light intensity generated by a flashing light during its light pulse

2

ECP (Effective Candela) is the intensity that would appear to an observer if the light were burning steadily

1

ECP

2

Mount

yr

5

W

A

Y

T

N

R

A

R

LOW-PROFILE MINI STROBE (LP1)

One piece construction

Unit assembles

and mounts

with two (2) 11/4"

8/32 slotted hex bolts

Gasket

Strobe Tube

Vertical and

horizontal lensing

provides

superior visibility

SPECIFICATIONS

Lamp Life: 4,000 hours 4,000 hours
Lamp Style: Strobe Strobe
Operating Temperature: -31°F to 151°F -35°C to 66°C
Net Weight: 0.23 lbs. 0.1 kg
Shipping Weight: 0.6 lbs. 0.27 kg
Height: 2.61" 6.63 cm
Width: 2.33" 5.92 cm
Length: 5.05" 12.83 cm

REPLACEMENT PARTS

Description

Replacement Strobe Tube K149128A
Dome, Amber K8435711A-02
Dome, Blue K8435711A-03
Dome, Clear K8435711A
Dome, Green K8435711A-04
Dome, Red K8435711A-01

Part Number

HOW TO ORDER

• Specify model, voltage and color

• Please refer to Model Number Index
LP1 beginning on page 374
