Federal Industries MSG-1054-DC User Manual

Remote refrigeration available.

4' has one drawer, 6' and 8' have two drawers, 10' has

available.

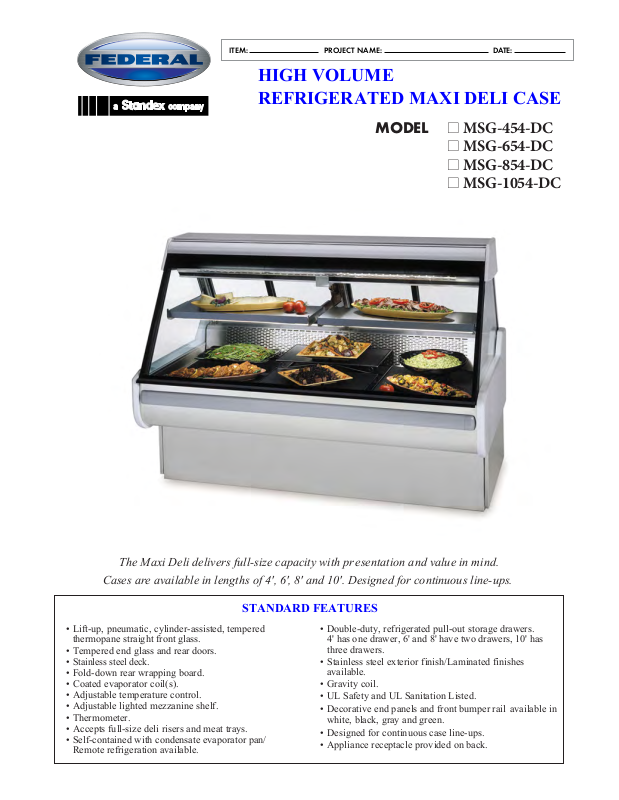

ITEM: PROJECT NAME: DATE:

HIGH VOLUME
REFRIGERATED MAXI DELI CASE

MODEL l

MSG-454-DC

l MSG-654-DC
l MSG-854-DC
l MSG-1054-DC

The Maxi Deli delivers full-size capacity with pr esentation and value in mind.

Cases are available in lengths of 4', 6', 8' and 10'. Designed for continuous line-ups.

STANDARD FEATURES

• Lift-up, pneumatic, cylinder-assisted, tempered
thermopane straight front glass.

• Tempered end glass and rear doors.

•

Stainless steel deck

• Fold-down rear wrapping board.

• Coated evaporator coil(s).

• Adjustable temperature control.

• Adjustable lighted mezzanine shelf.

• Thermometer.

• Accepts full-size deli risers and meat trays.

• Self-contained with condensate evaporator pan/

.

• Double-duty, refrigerated pull-out storage drawers.

three drawers.

• Stainless steel exterior finish/Laminated finishes

• Gravity coil.

• UL Safety and UL Sanitation Listed.

• Decorative end panels and front bumper rail available in

white, black, gray and green.

• Designed for continuous case line-ups.

• Appliance receptacle provided on back.

HIGH VOLUME

REFRIGERATED MAXI DELI CASE

OPTIONAL

ACCESSORIES:

Special Color

Laminated Base
Additional Lighted Mezzanine Shelf
Paper Roll Cutter/Holder
Reflective Ends
Reflective Doors
Remote Refrigeration
Scale Stand
Slicer Stand
Deli Step Pan Holder

or Risers

Promolux Lighting

l LED Lighting
l Cord & Plug

(Self-Contained Models Only,
NEMA 5-20P)

SPECIFICATIONS:

Model L W H Weight (lbs) (Step Pans) 120/60/1 120/60

MSG-454-DC 50" x 42 1/4" x 54" 730 4 3/4 HP - 15.4 AMPS 10.4 AMPS

MSG-654-DC 74" x 42 1/4" x 54" 930 6 3/4 HP - 15.6 AMPS 10.6 AMPS

MSG-854-DC 98" x 42 1/4" x 54" 1,210 8 3/4 HP - 15.8 AMPS 10.8 AMPS

MSG-1054-DC 122" x 42 1/4" x 54" 1,530 10 3/4 HP - 16.0 AMPS 11.0 AMPS

• If a GFCI circuit is required, a GFCI Breaker Must be used instead of GFCI receptacle.

• Includes general purpose receptacle 120V, 3AMP.

• Refrigerated cases are designed to operate in a maximum environment of 75° ambient and 55% relative humidity.

• Due to continuing engineering improvements, specifications are subject to change without notice.

Dimensions Shipping Capacity *Self-Contained *Remote

Look to Federal for Innovative Merchandising

FEDERAL INDUSTRIES

A Standex Company

215 FEDERAL AVENUE, BELLEVILLE, WISCONSIN 53508-9201

EMAIL: [e-mail] WEBSITE: www.federalind.com

FAX: [phone]PHONE: [phone]

10/14
