Page 1
E3788
6/15/2016
INSTALLATION & OPERATIONS INSTRUCTIONS
ITR: Self-Contained & Remote Refrigerated Models
& ITD: Non-Refrigerated Displays
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
FEDERAL INDUSTRIES 215 FEDERAL AVE Belleville, WI 53508
Toll Free 1(800) 356-4206 WI Phone (608) 424-3331 Fax: (608) 424-3234
- 1 -
Page 2
CONTENTS
INTRODUCTION ....................................................................................................................................... 3
WARNING LABELS & SAFETY INSTRUCTIONS .............................................................................. 4
GENERAL ELECTRICAL & GROUNDING ......................................................................................... 5
Permanent Connected ...................................................................................................................... 5
Cord Connected (Option) ................................................................................................................. 5
REFRIGERATION ................................................................................................................................. 7-8
Self Contained Models ..................................................................................................................... 7
Self Contained Refrigeration Operation ...................................................................................... 7
Remote Models ................................................................................................................................ 8
Remote Refrigeration Operation ................................................................................................. 8
Remote Refrigeration Instruction ................................................................................................ 8
Condensate Evaporator pan and Pump ............................................................................................. 8
BASE COMPONENT LAYOUT ............................................................................................................... 6
Non-Refrigerated Models ................................................................................................................. 6
Refrigerated Self Contained Models ................................................................................................ 6
Refrigerated Remote Models ............................................................................................................ 6
INSTALLATION INSTRUCTIONS, FLOOR MODELS ....................................................................... 6
Inspection For Shipping Damage ..................................................................................................... 5
Locating The Display Case .............................................................................................................. 6
Removing Case From Shipping Skid ............................................................................................... 6
Additional Parts ................................................................................................................................ 6
Cleaning ........................................................................................................................................... 6
INSTALLATION INSTRUCTIONS, COUNTER MODELS ................................................................. 6
Inspection For Shipping Damage ..................................................................................................... 5
Locating The Display Case .............................................................................................................. 6
Removing Case From Shipping Skid ............................................................................................... 6
Additional Parts ................................................................................................................................ 6
Cleaning ........................................................................................................................................... 6
CABINET MOUNTING, COUNTER MODELS. .................................................................................... 6
ITD Non Refrigerated Models ......................................................................................................... 6
ITR Refrigerated Self Contained Models ......................................................................................... 6
ITR Refrigerated Remote Models .................................................................................................... 6
Additional Parts ................................................................................................................................ 6
Cleaning ........................................................................................................................................... 6
COMPARTMENT PANEL REMOVAL ............................................................................................ 9-11
Floor Models .............................................................................................................................. 9-10
Counter Models .............................................................................................................................. 10
END PANEL INSTALLATION & REMOVAL ................................................................................ 9-11
SHELVING INSTALLATION & REMOVAL .................................................................................. 9-11
Shelf Brackets & Supports ......................................................................................................... 9-10
Glass Shelves ................................................................................................................................. 11
REAR DOORS REMOVAL ............................................................................................................... 12-13
OPERATING INSTRUCTIONS ....................................................................................................... 16-17
Control Description ........................................................................................................................ 16
Using Electronic Control ................................................................................................................ 16
Initial Startup .................................................................................................................................. 16
Placing Product In Case ................................................................................................................. 20
MAINTENANCE ...................................................................................................................................... 21
Cleaning Condenser Coil................................................................................................................ 22
Top LED Strip Replacement .......................................................................................................... 21
Shelf LED Replacement ................................................................................................................. 21
- 2 -
Page 3
CLEANING INSTRUCTIONS ................................................................................................................ 23
Daily Cleaning ................................................................................................................................ 23
Weekly Cleaning ............................................................................................................................ 24
Weekly Exterior Cleaning .............................................................................................................. 26
SERVICE ................................................................................................................................................... 27
Service Information ........................................................................................................................ 28
Pre-Service Checklist ..................................................................................................................... 28
Electronic Control Operation ......................................................................................................... 16
SALE & DISPOSAL ................................................................................................................................. 32
Owner Responsibility ..................................................................................................................... 32
WIRING DIAGRAMS .............................................................................................................................. 33
REPLACEMENT PARTS ........................................................................................................................ 35
- 3 -
Page 4
INTRODUCTION
Thank you for purchasing a Federal Industries display case. This manual contains important instructions for
installing and servicing the Refrigerated Self-Service Merchandisers. A repair parts list and wiring diagram
are also included in the manual. Read all of these documents carefully before installing or servicing your
case.
Read this manual before installing your case. Keep this manual and refer to it before doing any
service on the equipment. Failure to do so could result in personal injury or damage to the case.
NOTICE
NOTICE
Installation and service of the electrical components in the case must be performed by a licensed
electrician.
The portions of this manual covering components contain technical instructions intended only for persons
qualified to perform electrical work.
Improper or faulty hookup of electrical components in the case can result in severe injury or death.
All electrical wiring hookups must be done in accordance with all applicable local, regional, or
national standards.
DANGER
SERIAL NUMBER
Record the model and serial numbers of the case for easy reference. Always refer to both model and serial
numbers in your correspondence regarding the case.
Case Model__________________________ Serial Number______________________
Condensing Unit Model________________ Serial Number______________________
This manual cannot cover every installation, use, or service situation. If you need additional information,
call or write us:
WARRANTY/TECHNICAL SERVICE DEPARTMENT
Federal Industries
P.O. Box 290
Belleville, WI 53508
Toll Free (800) 356-4206 / WI Phone (608) 424-3331
- 4 -
Page 5
WARNING LABELS & SAFETY INSTRUCTIONS
This is the safety-alert symbol. When you see this symbol on your case or in the
manual, be alert to the potential for personal injury or damage to your equipment.
Be sure you understand all safety messages and always follow recommended precautions and safe
operating procedures.
NOTICE TO EMPLOYERS
You must make sure that everyone who installs, uses, or services your case is thoroughly
familiar with all safety information and procedures.
Important safety information is presented in this section and throughout the manual. The
Following signal words are used in the warning and safety messages:
DANGER: Severe injury or death will occur if you ignore the message.
WARNING: Severe injury or death can occur if you ignore the message.
CAUTION: Minor injury or damage to your case can occur if you ignore the message.
NOTICE: This is important installation, operation, or service information. If you ignore the
message, you may damage your case.
The warning and safety labels shown throughout this manual are placed on your Federal
Industries case at the factory. Follow all warning label instructions. If any warning or safety labels
become lost or damaged, call our customer service department at 1(800) 356-4206 for replacements.
CAUTION
RISK OF ELECTRIC
SHOCK DISCONNECT
POWER BEFORE
SERVICING UNIT.
91-12340
This label is located on the back of the display case. This label is located below the display pan.
CAUTION
HAZARDOUS MOVING PARTS
DO NOT OPERATE UNIT WITH
DISPLAY PANS REMOVED.
- 5 -
Page 6
GENERAL ELECTRICAL & GROUNDING
DANGER:
display case can result in severe injury or death.
MODEL VOLTAGE PERMANENT CONNECTED AMPS CORD CONNECT AMPS/CORD PLUG
ITR3626 & ITR3634 120V/60H/1PH MIN CIRCUIT AMPACITY 13.9/ MAX FUSE SIZE 20 TOTAL AMPS 8.7 / 5-15
ITR4826 & ITR4834 120V/60H/1PH MIN CIRCUIT AMPACITY 16.9/ MAX FUSE SIZE 20 TOTAL AMPS 10.7 / 5-15
ITR6026 & ITR6034 120V/60H/1PH MIN CIRCUIT AMPACITY 17.3/ MAX FUSE SIZE 20 TOTAL AMPS 11.0 / 5-15
MODEL VOLTAGE PERMANENT CONNECTED AMPS
ITR3626 & ITR3634 120V/60H/1PH MIN CIRCUIT AMPACITY 15/ MAX FUSE SIZE 15
ITR4826 & ITR4834 120V/60H/1PH MIN CIRCUIT AMPACITY 15/ MAX FUSE SIZE 15
Improper or faulty hookup of electrical components in the
SELF CONTAINED
REMOTE
ITR6026 & ITR6034 120V/60H/1PH MIN CIRCUIT AMPACITY 15/ MAX FUSE SIZE 15
Permanent Connected
-Only a licensed electrician must perform all case electrical connections.
-All electrical wiring hookups must be done in accordance with all applicable local, regional, or national
electrical standards.
-A separate circuit for each display case is required to prevent other appliances on the same circuit from
overloading the circuit and causing malfunction.
-The electrical service must be grounded upon installation.
-See the electrical data plate located at the rear of the case for proper circuit size and wire ampacity.

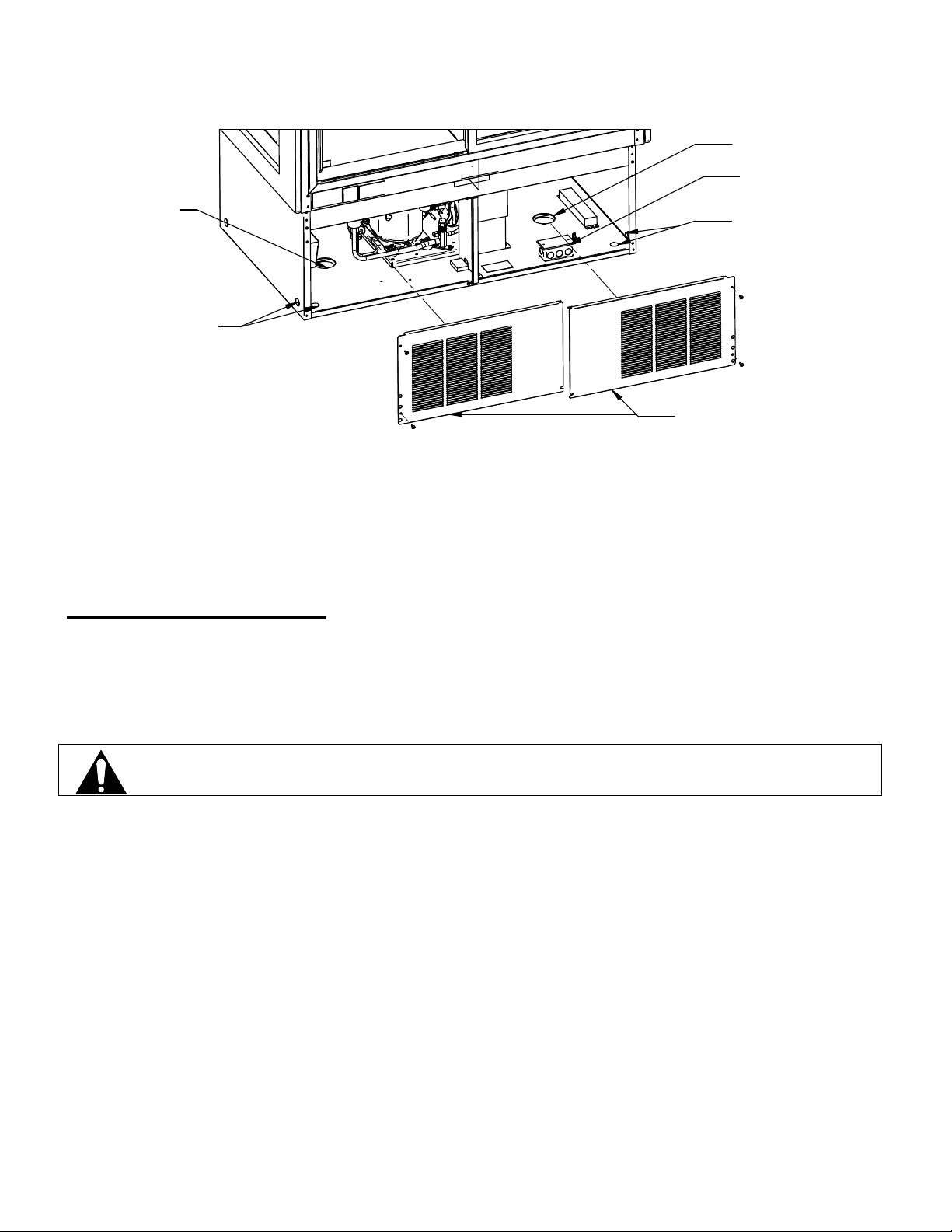

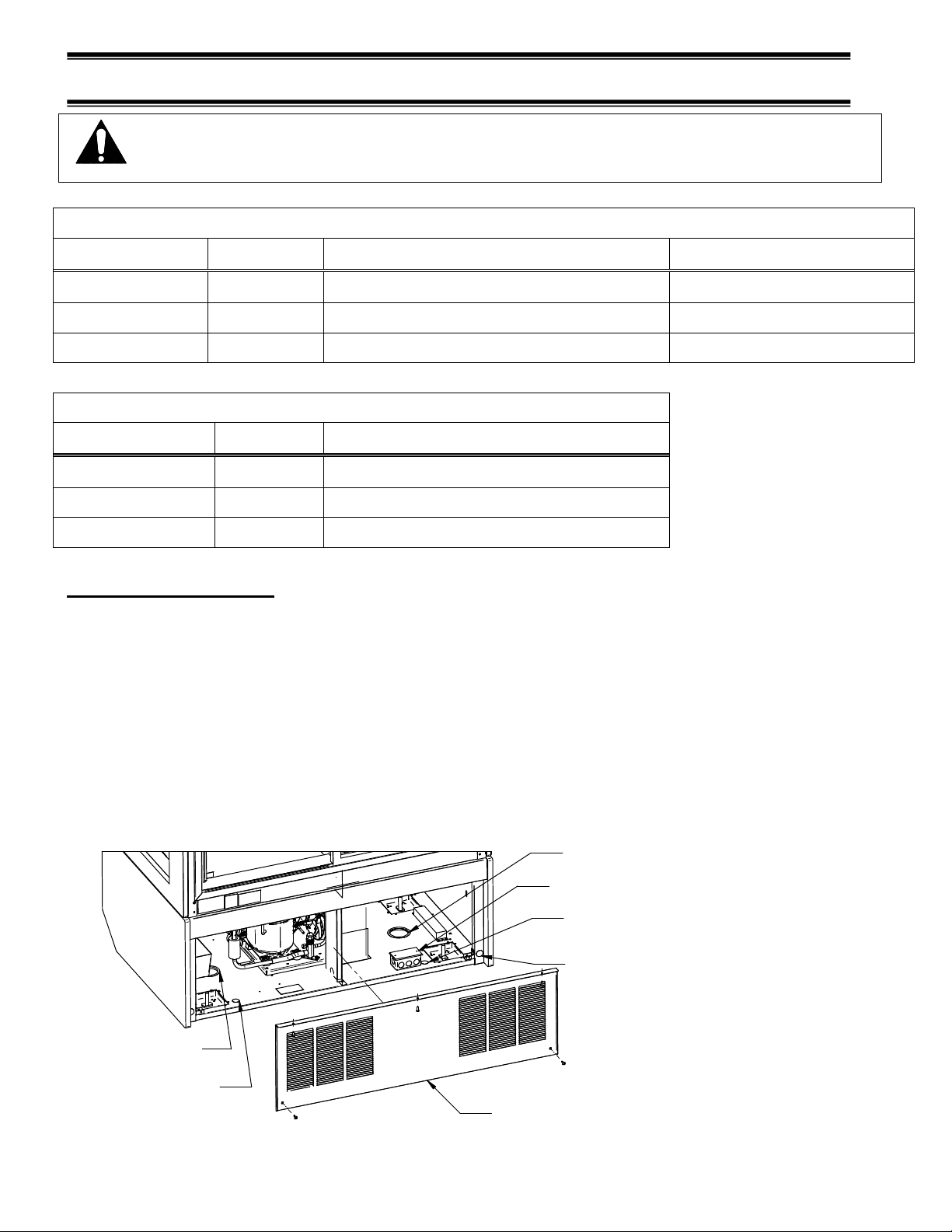

-The electrical connection box is accessible from the rear of the case with rear grill removed. See grill
removal section of this manual for grill removal procedure.

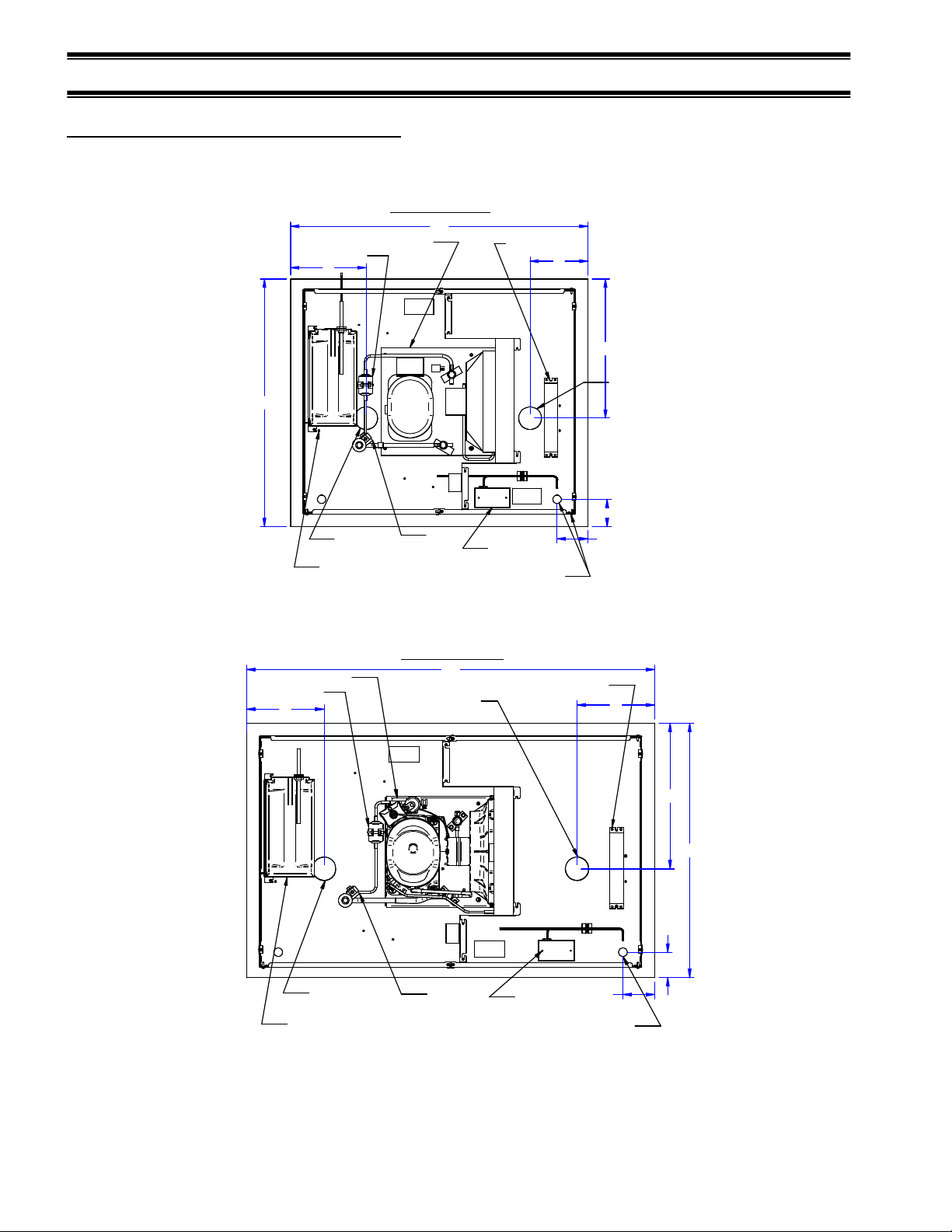

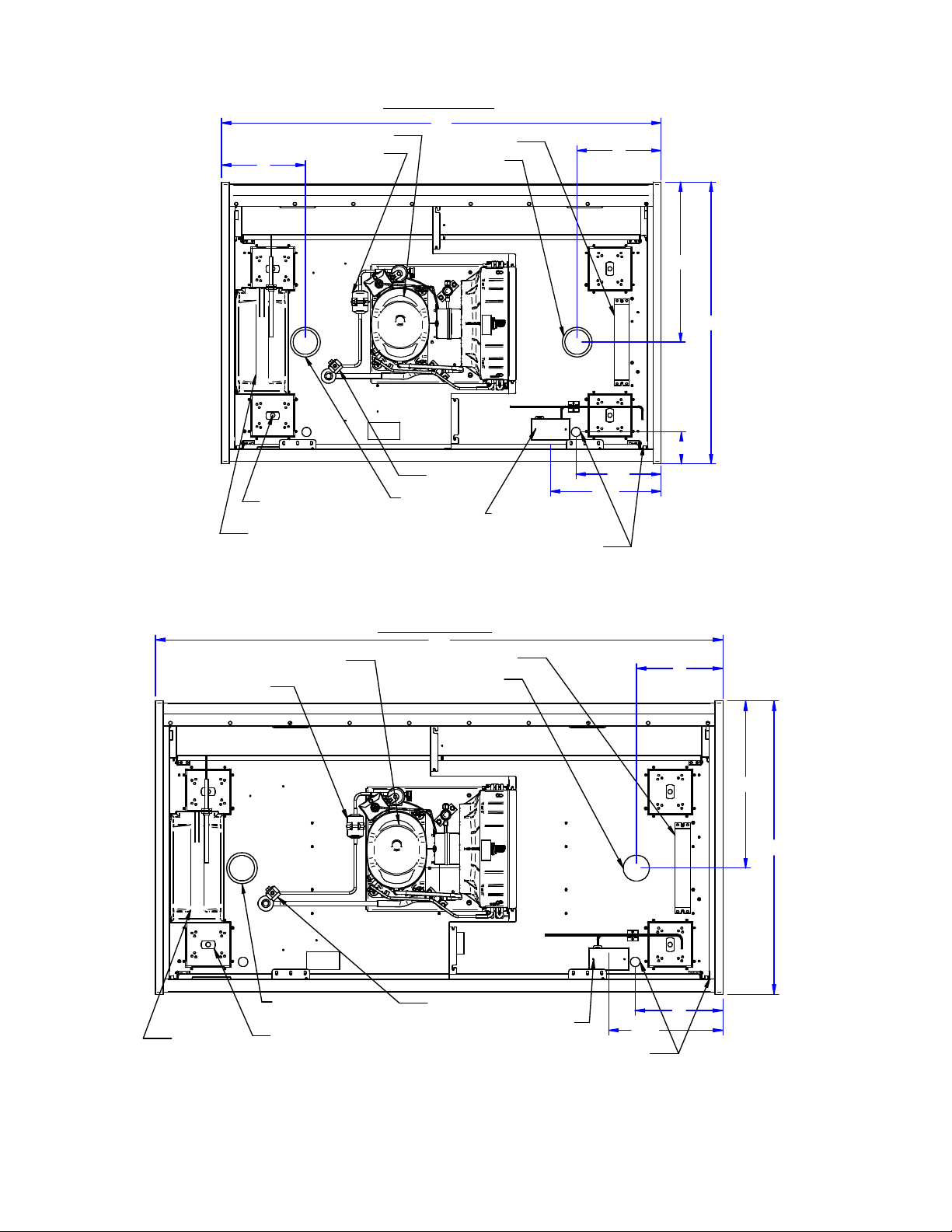

Floor Models:
MISC ACCESS HOLE
FIELD CONNECTION BOX
FLOOR CONDUIT
CONNECTION .875
CONDUIT OR
POWER CORD
CONNECTION .875
O
O
MISC ACCESS HOLE
FLOOR CONDUIT
CONNECTION .875
O
REAR BASE PANEL
- 6 -
Page 7

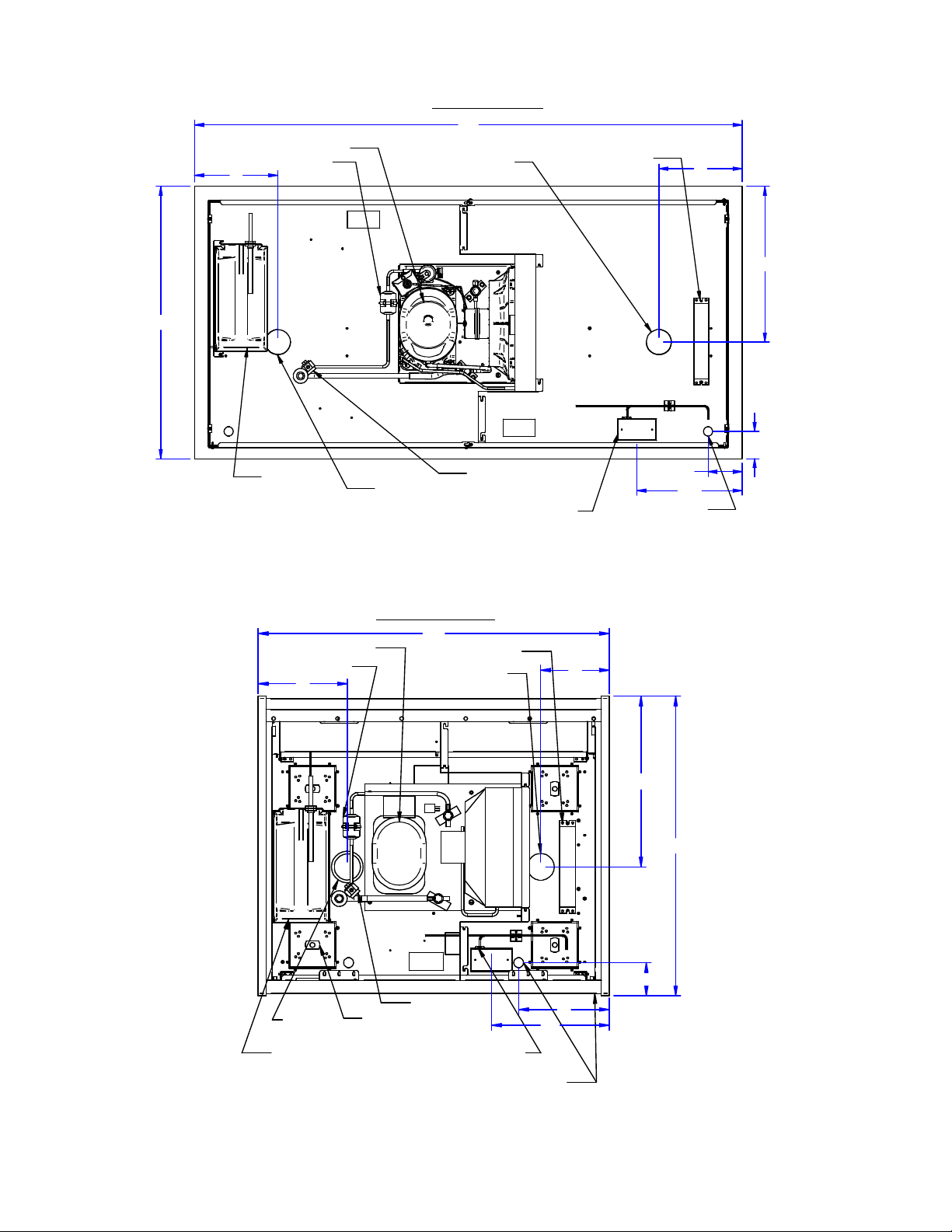

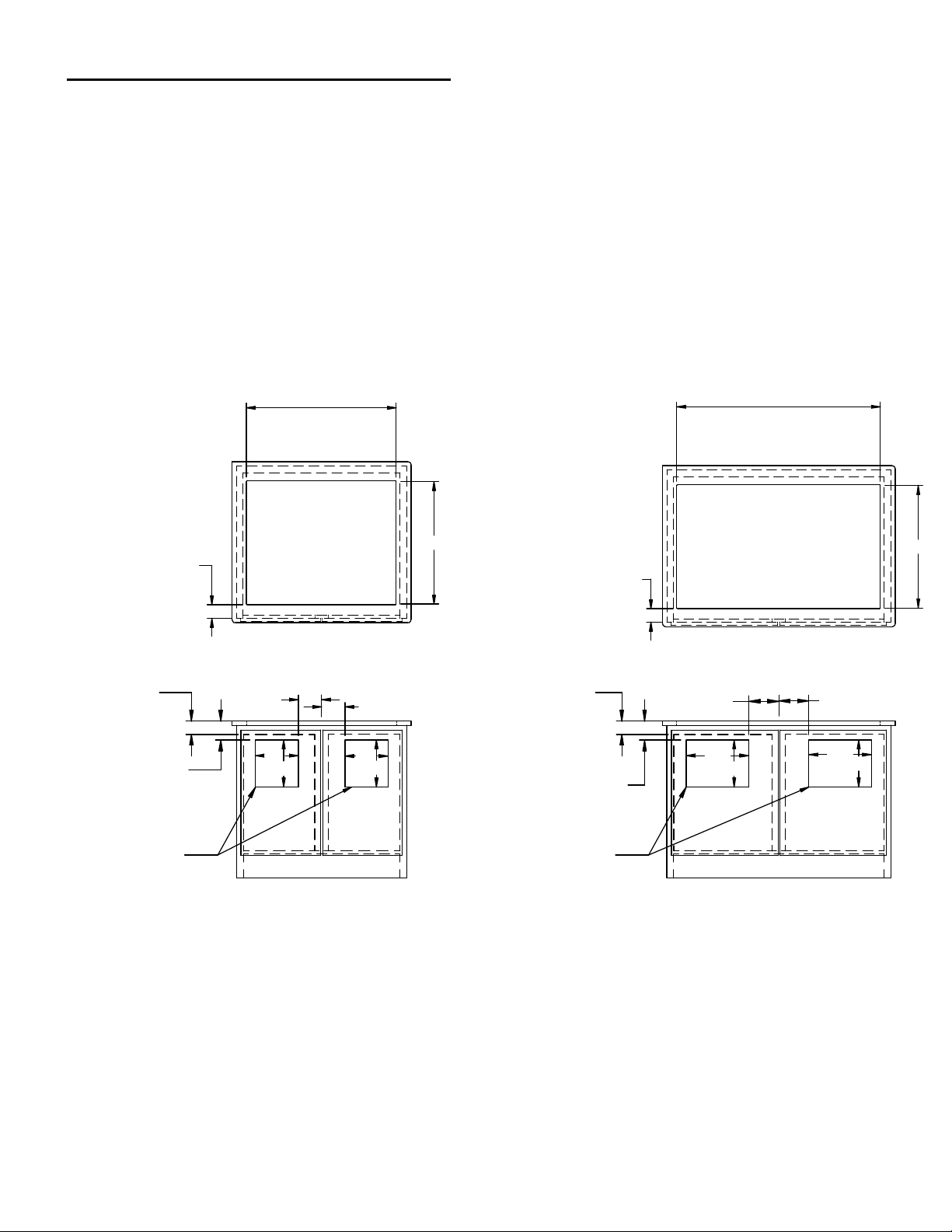

Counter Models:
MISC ACCESS HOLE
FIELD CONNECTION BOX
MISC ACCESS HOLE
CONDUIT OR
POWER CORD
CONNECTION .875
CONDUIT OR
POWER CORD
CONNECTION .875
O
REAR COMPARTMENT PANELS
Cord Connected (OPTION)
-A factory installed optional power cord is properly sized to the amperage requirements of the case. See the
electrical data plate located on the rear exterior of the case for the proper circuit size for each case.
- The cord is factory installed protruding from the rear corner of the case.
-A separate circuit for each display case is required to prevent other appliances on the same circuit from
overloading the circuit and causing malfunction.
CAUTION Risk of Electric Shock. If the cord or plug becomes damaged,
replace only with a cord and plug of the same type".
O
- 7 -
Page 8
REFRIGERATION
Self Contained Models Use pressure gauges to set pressure control.
MODEL CHARGE REFRIGERATION
ITR3626 & ITR3634 18 OZ 1/2HP 3021 BTUH@90F/20F
ITR4826 & ITR4834 20 OZ 1/2HP 3750 BTUH@90F/20F
ITR6026 & ITR6034 24 OZ 1/2HP 3750 BTUH@90F/20F
The self-contained models are shipped from the factory with a completely operational 134A refrigeration
system and require no modifications or adjustments upon installation. Case must be installed as per the
installation section of this manual to provide proper condensing air cooling.
Self Contained Refrigeration Operation
The unit temperature is controlled by an electronic control that senses air temperature and turns
refrigeration on off as required to maintain proper temperature.
The electronic control will also sense a frosted coil that requires a shutdown defrost cycle and shuts down
refrigeration until defrost is complete. There are may also a defined number of daily defrosts that will also
shut the refrigeration solenoid to insure a full defrost occurs. The solenoid will remain off until the either
the off time is reached or until the electronic control senses low temperature set point
Remote Models
PRESSURE CUT
MODEL REFRIGERANT
REFRIGERATION
IN PRESSURE CUT 0UT
ITR3626R & ITR3634R
ITR4826R & ITR4834R
ITR6026R & ITR6034R
R134A 1/2HP 3021 BTUH@90F/20F 32# 0 #
R134A 1/2HP 3750 BTUH@90F/20F 32# 0 #
R134A 1/2HP 3750 BTUH@90F/20F 32# 0 #
Use pressure gauges to set pressure control
Remote Refrigeration Operation
The remote models are designed to use134A refrigerant and shipped from the factory with the evaporator
coil, expansion valve, drier filter, sight glass and refrigerant solenoid valve. The required high-low-pressure
control and remote condenser can be provided as a factory option and will be required to be charged with
134a refrigerant after installation.
The unit temperature is controlled by an electronic control that senses air temperature and opens and closes
the refrigerant solenoid valve as required to maintain proper temperature.
Once proper temperature is reached the solenoid valve closes and shuts off the refrigeration flow to the unit
and initiates a pump down cycle. This will allow the remote low pressure switch to open and shut off
remote compressor. The solenoid will remain off until the either the off time is reached or until the
electronic control senses that low temperature set point has been reached.
The electronic control will also sense a frosted coil that requires a shutdown defrost cycle and closes
solenoid until defrost is complete. There are may also a defined number of daily defrosts that will also shut
the refrigeration solenoid to insure a full defrost occurs. The solenoid will remain off until the either the off
time is reached or until the electronic control senses low temperature set point.
- 8 -
Page 9
Remote Refrigeration Instruction
The condensing unit and pressure control are optionally supplied from the factory for remote location
installation. A remote high low pressure switch must be mounted and wired by the installer. The high low
pressure switch must be wired in series with the compressor power supply as shown in diagram below.
1. Mount condensing unit indoors as close to the remote display case as practical. The refrigeration line
should be as short as possible and must not exceed 30 feet.
2. All refrigeration and/or electrical materials between the condensing unit and display case are to be
supplied by installing contractor.
3. Route properly sized and designed refrigeration lines from the condensing unit to the cabinet.
Horizontal suction lines should be pitched downward towards the condensing unit at least ½” per 10’
run to aid the oil drainage. A “P” trap must be installed in the suction line at the foot of every riser to
insure oil return. Dry nitrogen must be used to flow through tubing while brazing refrigeration lines.
4. Suction line must be insulated the entire length with Armaflex (or equivalent). Do not run liquid line
inside insulation with suction line.
5. The remote high/low-pressure control must be mounted, wired and set pressures by the installer.
6. Leak check condensing unit, cabinet, and all connecting tubing. Cabinet and condensing unit tubing
should be checked to insure no leaks occurred during shipping or from rough handling.
Make certain all refrigeration valves are opened and evacuate system to 500 microns. Charge the
system with refrigerant type specified on the data plates.

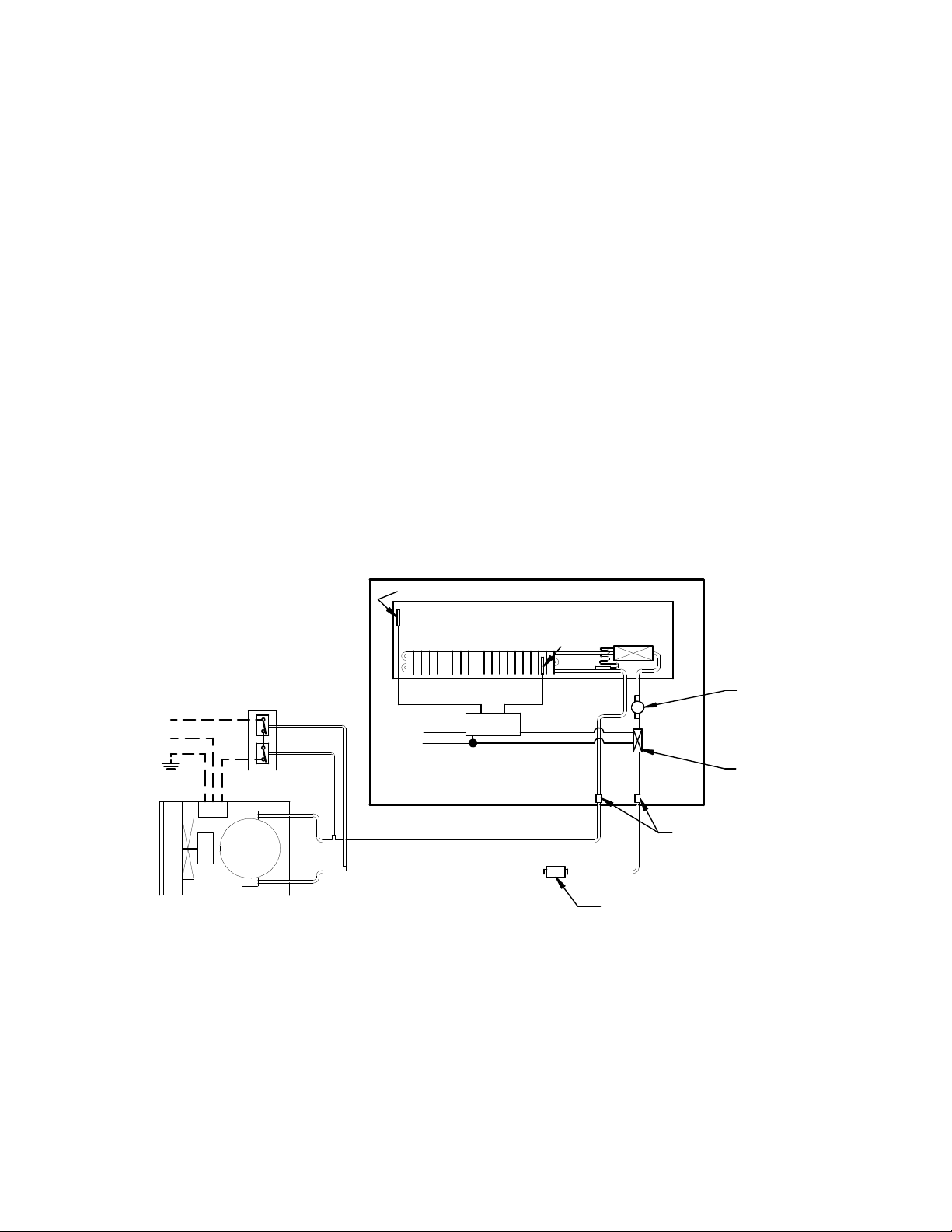

FUSED
POWER
SUPPLY
REMOTE
CONDENSING
UNIT
HOT
REMOTE
HIGH LOW
PRESSURE
CONTROL
HIGH
LOW
DISPLAY CASE
AIR TEMP. CONTROL PROBE
EVAPORATOR
COILS
FUSED
CASE
POWER
SUCTION LINE (INSULATED)
LIQUID LINE
ELECTRONIC
CONTROL
DEFROST
TERMINATE
PROBE
EXPANSION
VALVE
SIGHT GLASS
LIQUID LINE
SOLENOID VALVE
FIELD CONNECTION
DRIER/FILTER
- 9 -
Page 10
-
Condensate Evaporator Pan and Pump
Condensate Evaporator (Standard Self Contained Models)
evaporator may be visible around the case.
The standard Self Contained case is furnished with an electric condensate evaporator. Plumbing
connections are not required.
The condensate evaporator can be removed from the case and the condensate drain can be plumbed to a
drain to conserve energy if desired. Disconnect the condensate evaporator wires at the condensate
evaporator to remove. This must be done by a qualified electrician.
Make sure that the drain line has not been dislodged during shipment and that the drain trap terminates
properly over the water reservoir.
NOTICE: During normal defrost cycles, steam from the condensate
Condensate Pump (Standard Remote, optional Self Contained)
NOTICE: This unit could be shipped with an optional condensate pump. The pump has a
float that turns the pump on automatically when needed.
The pump is mounted in the base compartment. The pump should be cleaned and
inspected every 3-4 months.
When unit is shipped with a condensate pump a condensate discharge hose is supplied from factory. This
hose must be run to a nearby drain. When the condensate pan is full the pump will turn on and pump water
out condensate drain hose. Note Drain hose can be run in verticle direction but must not exceed height of
15 feet
Note: There is a piece of cardboard that has to be removed from the side of the pump to free up the
float. If this is not done, the pump will not turn on and the pan will overflow.
- 10
Page 11
-
BASE COMPONENT LAYOUTS
Refrigerated Self Contained Models
Counter ITR36 Self Contained
FRONT TOP VIEW
36
CONDENSING UNIT
FILTER DRIER
9
30
ACESS
HOLE 2.75
CONDENSATE
EVAPORATOR
OR PUMP
Counter ITR48 Self Contained
SIGHT
GLASS
O
POWER SUPPLY
ELECTRICAL
CONNECTION BOX
ELECTRICAL
CONNECTION .88
7
17
ACESS
HOLE 2.75
3
3.7
O
O
FRONT TOP VIEW
CONDENSING UNIT
FILTER DRIER
9
ACESS
HOLE 2.75
CONDENSATE
EVAPORATOR
OR PUMP
O
48
ACESS
HOLE 2.75
SIGHT
GLASS
POWER SUPPLY
O
ELECTRICAL
CONNECTION BOX
ELECTRICAL
CONNECTION .88
9
17
30
3.0
3.7
O
- 11
Page 12
-
Counter ITR60 Self Contained
CONDENSING UNIT
FILTER DRIER
9
30
FRONT TOP VIEW
60
ACESS
HOLE 2.75
O
POWER SUPPLY
9
17
3
CONDENSATE
EVAPORATOR
OR PUMP
Floor ITR36 Self Contained
CONDENSING UNIT
FILTER DRIER
9
ACESS
HOLE 2.75
FRONT TOP VIEW
SIGHT
GLASS
O
36
POWER SUPPLY
ACESS HOLE
2.75
ELECTRICAL
CONNECTION BOX
O
ELECTRICAL
CONNECTION .88
7
3.7
11.5
O
17.5
30.8
3.4
ACESS
HOLE 2.75
CONDENSATE
EVAPORATOR
OR PUMP
SIGHT GLASS
LEG LEVELER PLATES
OR CASTER POCKETS
O
ELECTRICAL
CONNECTION BOX
ELECTRICAL
CONNECTION .88
9
12
O
- 12
Page 13
-
Floor ITR48 Self Contained
CONDENSING UNIT
9
CONDENSATE
EVAPORATOR
OR PUMP
FILTER DRIER
LEG LEVELER PLATES
OR CASTER POCKETS
Floor ITR60 Self Contained
FRONT TOP VIEW
48
POWER SUPPLY
ACESS HOLE
2.75
SIGHT GLASS
ACESS
HOLE 2.75
O
O
ELECTRICAL
CONNECTION BOX
ELECTRICAL
CONNECTION .88
9
17.5
30.8
3.5
9.2
12.0
O
FRONT TOP VIEW
60
CONDENSING UNIT
FILTER DRIER
ACESS
HOLE 2.75
CONDENSATE
EVAPORATOR
OR PUMP
LEG LEVELER PLATES
OR CASTER POCKETS
O
POWER SUPPLY
ACESS HOLE
2.75
O
SIGHT GLASS
ELECTRICAL
CONNECTION BOX
ELECTRICAL
CONNECTION .88
9
17.5
30.8
9
12.0
O
- 13
Page 14
-
Refrigerated Remote Models
Counter ITR36 Remote
Counter ITR48 Remote
- 14
Page 15
-
Counter ITR48 Remote
Floor ITR36 Self Remote
- 15
Page 16
-
Floor ITR48 Remote
Floor ITR60 Remote
- 16
Page 17
-
INSTALLATION INSTRUCTIONS FLOOR MODELS
Inspection for Shipping Damage
You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates
for damage as soon as they arrive. If damage is noted to shipping crates, cartons, or if a shortage is found,
note this on the bill of lading (all copies) prior to signing.
Locating Display Case
The case must be located where it is not subjected to the direct rays of the sun, heating ducts, grills,
radiator, or ceiling fans, nor should it be located near open doors or main door entrances. Also, avoid
locations where there are excessive air movement or air disturbances.
The case requires a minimum of 36” clearance on side of air intake or air discharge. Do not locate case with
front or back tight against the wall.
No clearance is needed on sides of the unit.
Removing Case From Shipping Skid and General Installation
CAUTION:
door frames and do not pull on end panels when removing the case
from the skid or moving the case. Case damage or glass breakage will result.
1. Remove crate top and sides and note missing or damaged items as explained in the pre-installation
procedures outlined above.
2. Move the case as near as possible to the final location and before removing it from the shipping skid.
3. Remove the (4) brackets that secure the case to the shipping skid.
4. Prepare cabinet according to instructions in this section that pertain to your model.
5. Lift the case off of skid and into required position. Only lift the case from under the front and rear lips
on base of unit.
6. The case must be level for proper drainage of defrost condensate to the condensate evaporator or pump.
Using the wrench provided level and square the case as needed by adjusting the leg leveler in each
corner of base.
7. The leveled case must be sealed to the floor using a NSF Listed Sealant.
Do not push or pull against the top end glass, or
Additional Parts Shipped with Unit.
Remove bubble wrap and packing material for all shelves and panels, brackets, etc. If it is necessary to
remove tape residue from plastic materials, use cleaning compounds recommended in the cleaning section
of this manual. Install panels and shelving as described proper section of this manual.
Cleaning
For initial setup, clean the case as outlined in the “Weekly Cleaning” section of this manual.
- 17
Page 18
-
INSTALLATION INSTRUCTIONS COUNTER MODELS
Inspection for Shipping Damage
You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates
for damage as soon as they arrive. If damage is noted to shipping crates, cartons, or if a shortage is found,
note this on the bill of lading (all copies) prior to signing.
Locating Display Case
The counter units are designed to be placed on or into the top of a cabinet counter. The cabinet that the case
is to be used with must be located where it is not subjected to the direct rays of the sun, heating ducts,
grills, radiator, or ceiling fans, nor should it be located near open doors or main door entrances. Also,
avoid locations where there are excessive air movement or air disturbances.
The refrigerated cases require special consideration of cabinet design to allow condenser air to enter intake
and discharge from cabinet space. The requirements for specific cases outlined in this section must be
followed. Failure to follow these instructions will void warranty.
Removing Case From Shipping Skid and General Installation
CAUTION:
door frames and do not pull on end panels when removing the case
from the skid or moving the case. Case damage or glass breakage will result.
2. Remove crate top and sides and note missing or damaged items as explained in the pre-installation
procedures outlined above.
8. Move the case as near as possible to the final location and before removing it from the shipping skid.
9. Remove the (4) brackets that secure the case to the shipping skid.
10. Prepare cabinet according to Cabinet Mounting Counter Models instruction in next section that pertain
to your model.
11. The counter cases are shipped with end glass removed and lifting handles are provided on each side of
case. Using lifting handles lift the case off of skid and into required position. Once case is placed into
position remove lifting handles and install end glass as described in End Glass Installation Section
12. The counter top that the case is being placed on must be level for proper drainage of defrost condensate
to the condensate evaporator or pump.
13. The case must be sealed to the counter using a NSF Listed Sealant.
Do not push or pull against the top end glass, or
Additional Parts Shipped with Unit.
Remove bubble wrap and packing material for all shelves and panels, brackets, etc. If it is necessary to
remove tape residue from plastic materials, use cleaning compounds recommended in the cleaning
section of this manual. Install panels and shelving as described proper section of this manual.
Cleaning
For initial setup, clean the case as outlined in the “Weekly Cleaning” section of this manual.
- 18
Page 19
-
CABINET MOUNTING COUNTER MODELS
ITD Non-Refrigerated Model Mounting
Cabinet Preparation
The ITD models set directly on top of counter. The Case must be attached and sealed to top of counter to
prevent counter from moving. Counter will require (2) 3/8”dia. holes to be drilled through the counter top
surface to attach case to counter. Use the diagram below for hole location.
Place case on to counter and fasten from under cabinet with (2) 10-32 screws and washers provided.
The case must be sealed to the counter using a NSF Listed Sealant.
IMPORTANT: When placing cases in a line up the number of end panels used will be different. The cut
out and hole placement dimension will need to be adjusted for each particular line up circumstance. See
LINE UPS INTALLATION section of this manual.
ITR 36" OUTSIDE OF CASE 36.0"
ITR 48" OUTSIDE OF CASE 48.0"
ITR 60" OUTSIDE OF CASE 60.0"
FRONT
DRILL 3/8 O MOUNTING
HOLE THROUGH COUNTER
DRILL 3/8 O MOUNTING
HOLE THROUGH COUNTER
TOP VIEW
ITR 36" MOUNTING HOLE CENTERS 33.5"
ITR 48" MOUNTING HOLE CENTERS 45.5"
ITR 60" MOUNTING HOLE CENTERS 57.5"
30.0
OUTSIDE
OF CASE
15.0
MOUNTING HOLE
CASE CENTER
- 19
Page 20
-
ITR Refrigerated Self Contained Models
Cabinet Preparation
The ITR Self Contained models have a large condenser compartment hanging from the bottom of case that
contains the condenser and condensate evaporator unit. This compartment hangs inside the cabinet
compartment. The interior of the cabinet must be open to allow space for this compartment.

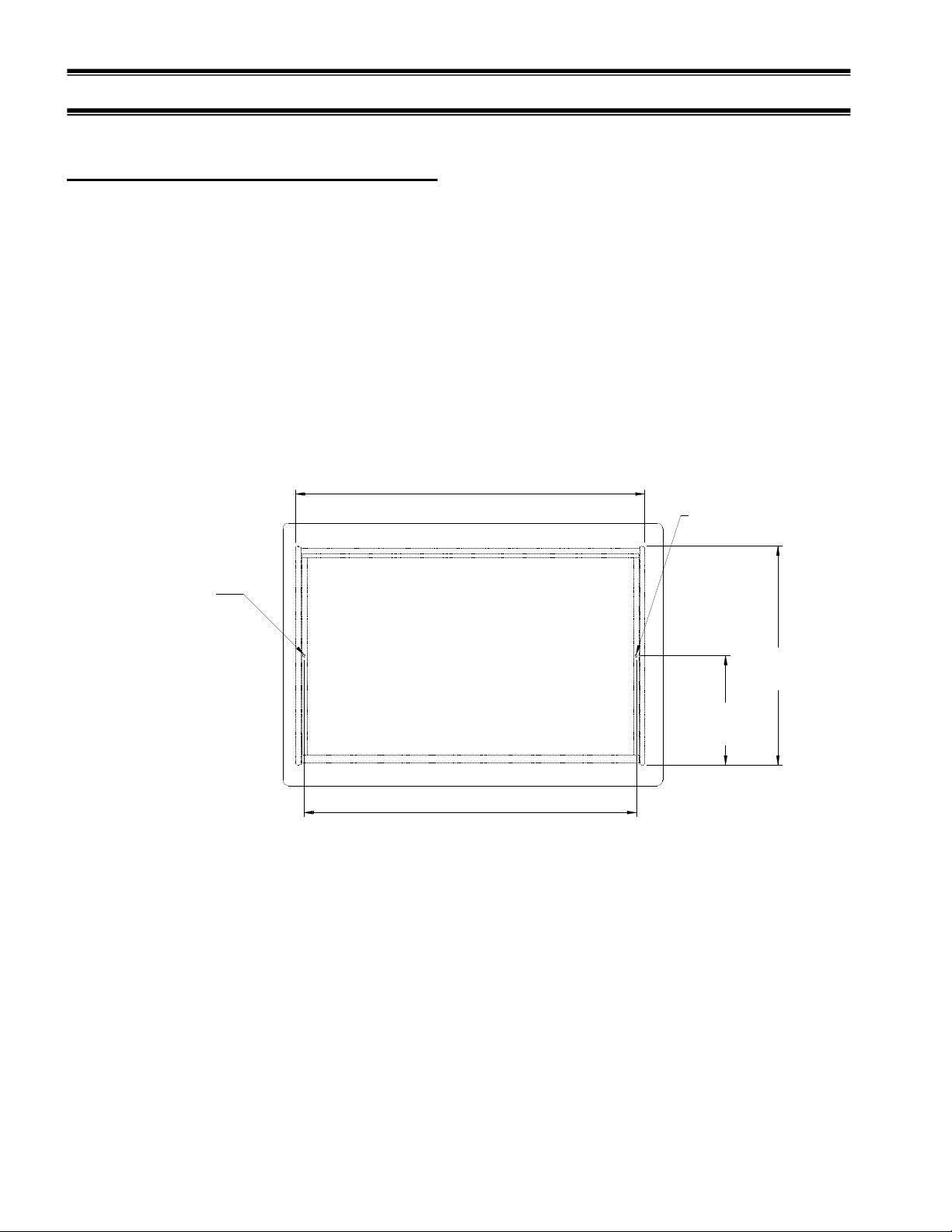

Cabinet Cutout
The countertop must be cut to allow the case’s base and condenser compartment to drop into the cabinet
interior. Use the diagram below for cutout dimensions.
IMPORTANT: When placing cases in a line up the number of end panels used will be different. The cut
out and hole placement dimension will need to be adjusted for each particular line up circumstance. See
LINE UP INTALLATION section of this manual.
ITR 48" WIDE 45.5"
ITR 36" WIDE 33.5"
CENTER TOP CUTOUT
WITH CENTER OF REAR DOORS
FRONT
ITR 60" WIDE 57.5"
CENTER TOP CUTOUT
WITH CENTER OF REAR DOORS
FRONT
2.00" TO 3.5" REF FROM TOP
CUT OUT TO BACK OF DOOR
3.00 MAX
FROM TOP TO
DOOR CUT OUT
4.25 FROM TOP OF
COUNTER TO TOP OF
GRILL CUTOUT
GRILL CUT OUTS
TOP CUT OUT
BACK
C
5.2
9.6
10.5
BACK
27.37
TOP CUT OUT
2.00" TO 3.5" REF FROM TOP
CUT OUT TO BACK OF DOOR
27.37
BACK
C
L
5.2
3.00 MAX
FROM TOP TO
6.7
L
6.7
DOOR CUT OUT
9.6
10.5
14.0
10.5
14.0
10.5
4.25 FROM TOP OF
COUNTER TO TOP OF
GRILL CUTOUT
GRILL CUT OUTS
BACK
- 20
Page 21
-
Case Install
The Inner Outer Duct Assemblies and Retainer Brackets are shipped attached to the case refrigeration
compartment. The Duct Assemblies and Retainer Brackets must be removed before setting case into
cabinet opening. To disassemble remove the (8) screws holding each Duct Assembly to the louvered panel
also remove the (2) screws holding each Retainer Bracket.
The case is shipped without end panels to provide handles to lift case into cabinet.
Once case is placed into cabinet remove the (4) handles and install side glass as described in End Panel
Installation section of this manual.
LIFT HANDLES
Once case is in place it must be secured to prevent it from moving during use. Reattach the Retainer
Brackets that were previously removed in same location using the #8 hex head screws. Push bracket up
tight to bottom of counter top and tighten screws. Predrill (4) 5/32 holes ½” deep into the counter top. (Be
careful not to drill through top of counter)
(2) #10 X 5/8 SCREWS
SCREW INTO BOTTOM OF
COUNTER TOP. PRE DRILL 5/32 HOLES
1/2" DEEP. BECARFUL NOT TO DRILL
THROUGH TOP OF COUNTER.
RETAINER
BRACKETS
(2) #8 HEX HEAD
SCREWS ATTACHED
TO CASE
- 21
Page 22
-

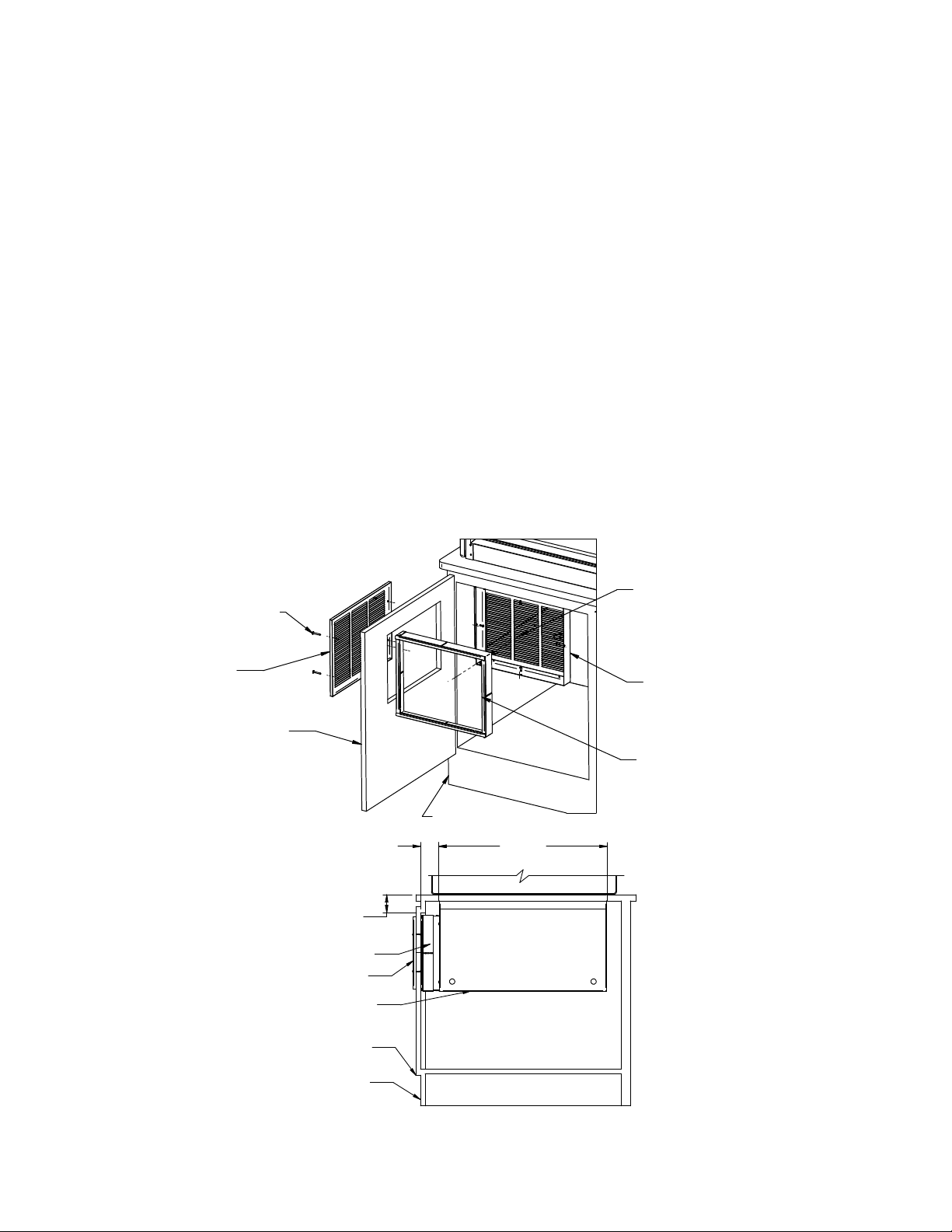

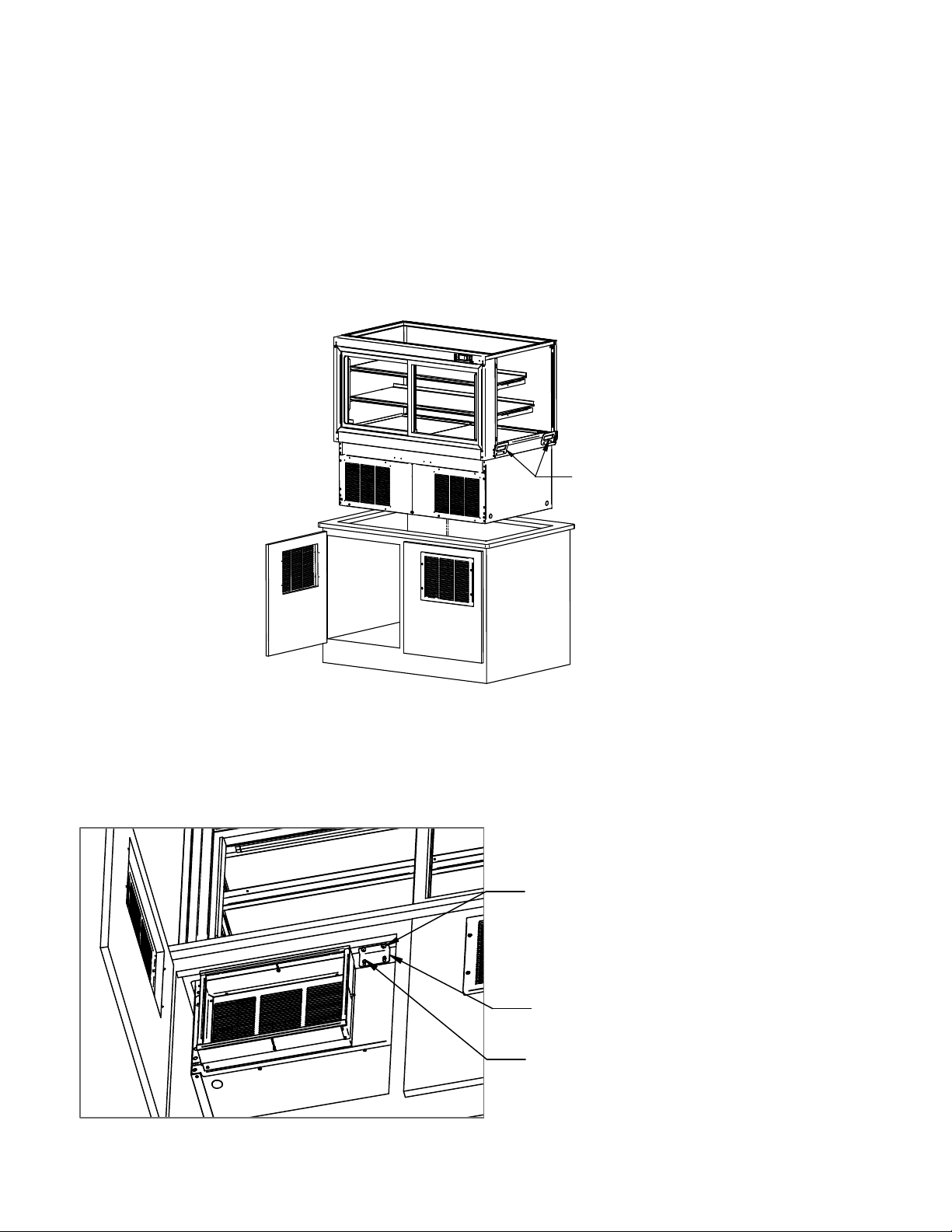

Condenser Air Duct
IMPORTANT: Federal Industries reserves the right to deny warranty if the cabinet is not ducted to
allow proper condenser air intake and discharge or if the cabinet louvers are not installed properly
or if condenser air intake and discharge air is blocked or located near a source of heat.
The condenser air intake and discharge must be separated and vented out of the cabinet compartment for
case to operate. The required louver grills and expandable ducts for both intake and discharge are provided
with case.
Note: The intake and discharge louvered panels mounted to condenser compartment are located on the back
of the compartment and solid panels are mounted to front of the compartment when shipped from factory.
This set up is for air intake and discharge out of the back of the cabinet. The intake and discharge louvered
panels can be moved to front of compartment and the solid panels moved to the back of compartment if air
intake and discharge is required out of front of cabinet
The Outer Duct must be adjusted so that the gasket seals against the Cabinet Door. Remove the (4) screws
located inside of the Outer Duct. There are multiple holes in the Outer Duct. Move Outer Duct to desired
depth and reinstall (4) screws. CTest close door and be sure Gasket seals hits door
Center the supplied Grills on outside of Cabinet Doors and mark holes onto doors. Drill 1/8 holes into door
in marked positions. With Grill flanges against door screw Grill to cabinet door with (4) supplied #8 x1-1/4
screws.
SCREW,#8 X 1.25"LG
GRILL
CABINET DOOR
2.00 TO 3.25
FROM TOP CUT OUT
TO INSIDE OF DOOR
3.00 MAX
FROM TOP TO
DOOR CUT OUT
DUCT ASSEMBLY
GRILL
DROP IN
REFRIGERATION
COMPARTMENT
CABINET DOOR OR
REMOVABLE PANEL
CABINET
CABINET
27.38
CUT OUT
DROP IN
REFRIGERATION
COMPARTMENT
LOUVERED PANEL
INNER DUCT
OUTER DUCT
WITH GASKET
SIDE VIEW
- 22
Page 23
-
ITR Refrigerated Remote Models
Cabinet Preparation
The ITR Remote models have a large condensate evaporator compartment hanging from the bottom of case
that contains the condensate evaporator pan. This compartment hangs inside the cabinet compartment. The
interior of the cabinet must be open to allow space for this compartment. The countertop must be cut to
allow the case’s base and condenser compartment to drop into the cabinet interior. Use the diagram below
for cutout dimensions.
Once the case is placed into cutout it must be secured to cabinet using brackets and wood screws provided.
IMPORTANT: When placing cases in a line up the number of end panels used will be different. The cut
out and hole placement dimension will need to be adjusted for each particular line up circumstance. See
LINE UP INTALLATION section of this manual.
The condensate air louvers are located on each side of the condensate evaporator compartment. Do not
block these louvers. The louver panel provided with case must be installed in the cabinet to allow
condensate moisture to vent. The louver can be placed on any side of cabinet, but must be as near to the top
as possible. A 6” minimum clearance must be maintained from cabinet louver.
Connect remote refrigeration lines
1. Remove the cover by removing the (4) screws on the bottom of case inside the cabinet
compartment.
1. Connect remote refrigeration as described in the Remote Connection section in this manual. A 2-3/4
hole through the condensate evaporator compartment is provided.
2. Make sure that the drain line has not been dislodged during shipment and that the drain trap is
located properly over the water reservoir of the condensate evaporator pan.
3. Reinstall evaporator condensate cover.
- 23
Page 24
-

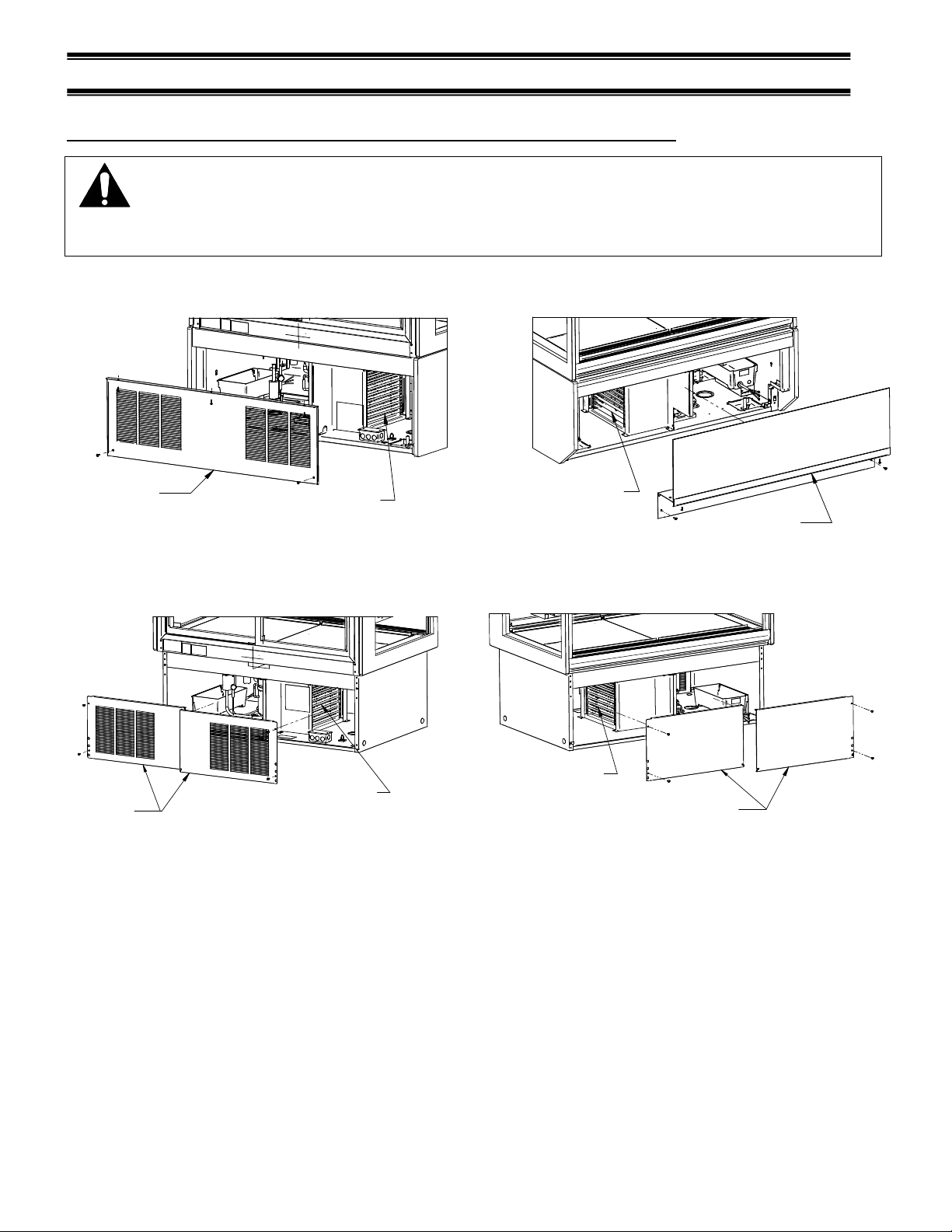

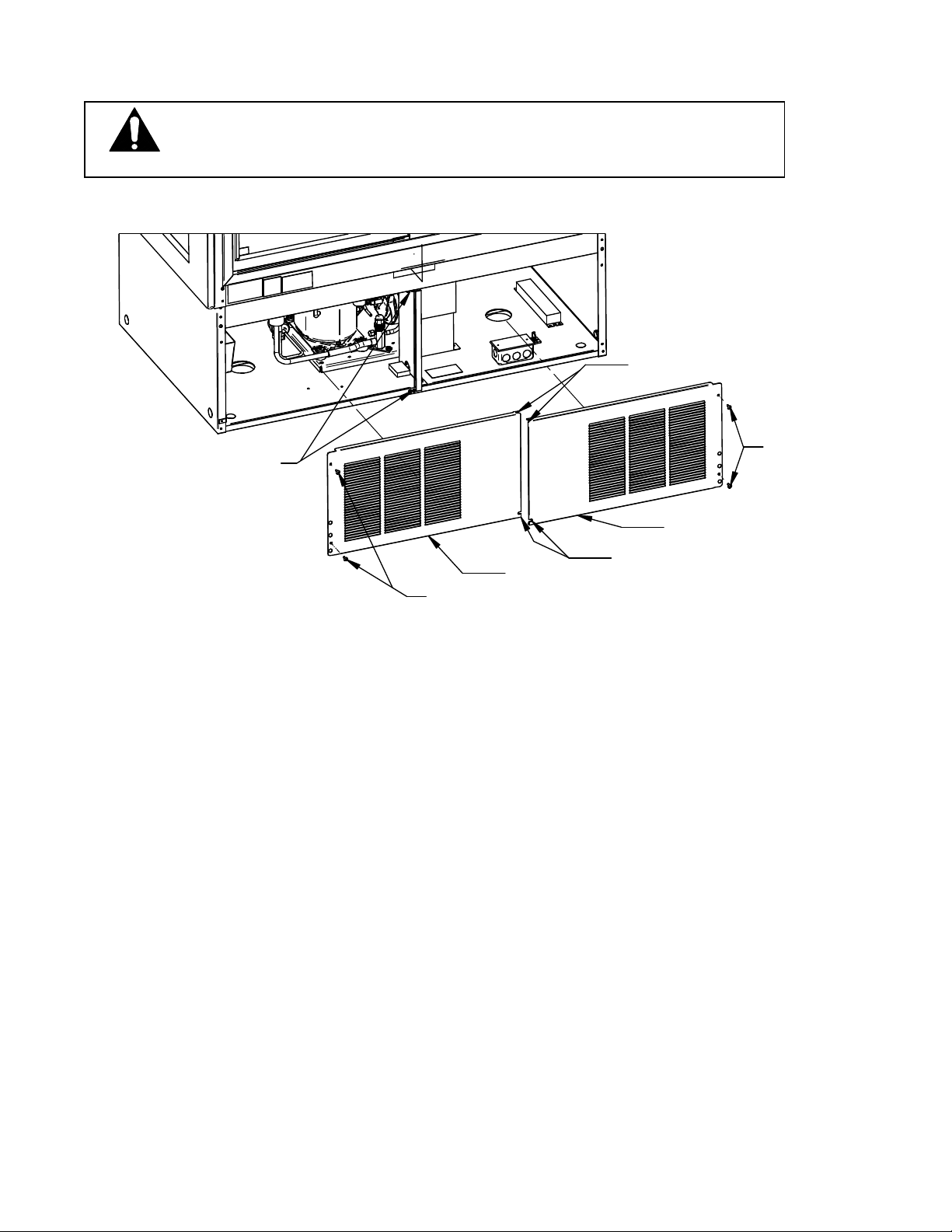

Refrigeration Compartment Panel Removal
Floor Models
DANGER: Electric shock hazard. Do not operate unit with panels removed.
Panels must be in place when operating the case.

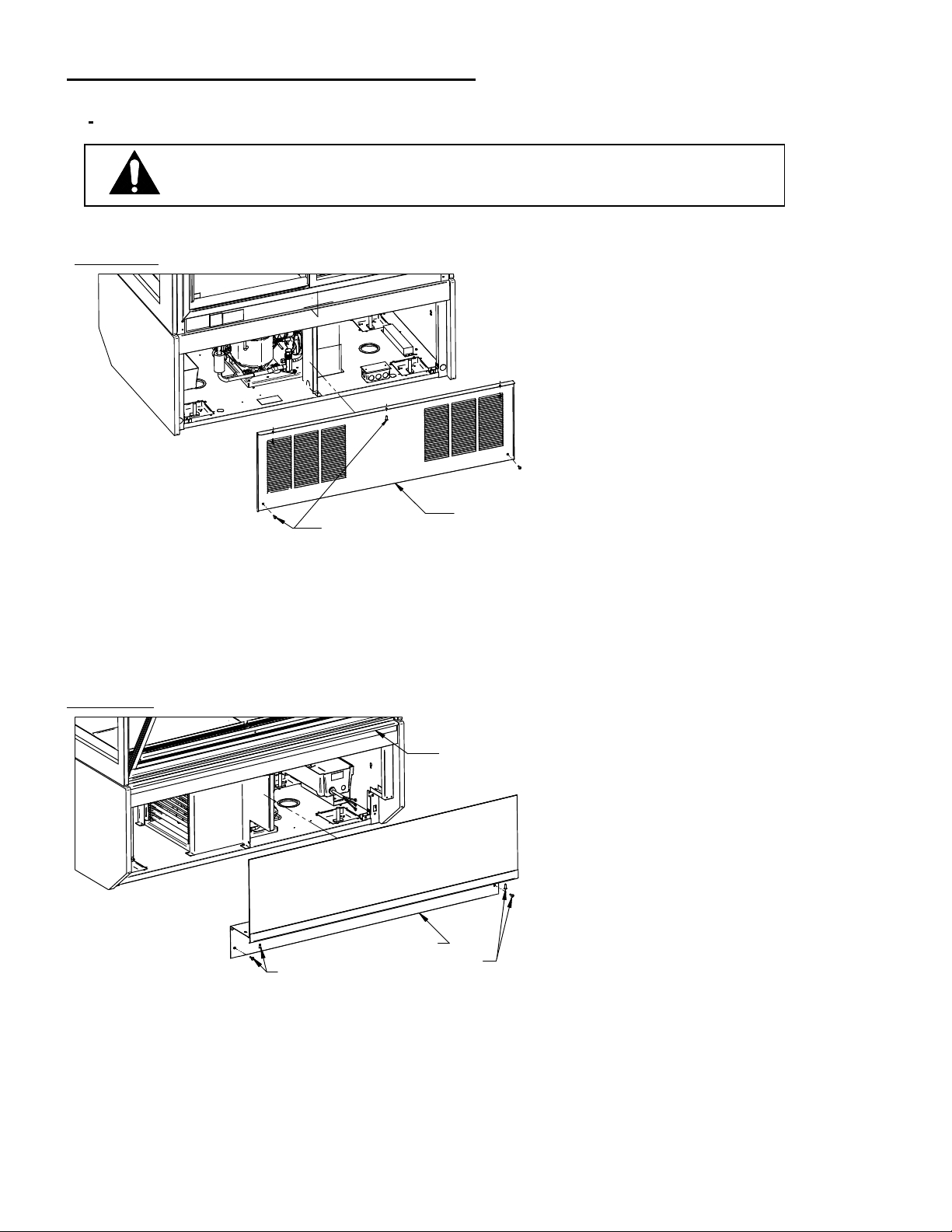

Back Panel
REAR BASE PANEL
SCREWS
REAR BASE PANEL
1. Disconnect power to Display Case.
2. Remove Philips head screws located in each lower corner of panel.
3. Remove Philips head screws located on top of panel under the base cross member.
4. Pull top of panel outward until lip on bottom of panel clears bottom of base and remove from case.
Front Panel
TOP PANEL
RETAINER
FRONT PANEL
FRONT PANEL
SCREWS
1.
Disconnect power to Display Case.
2.
Remove (2) front panel phillips head screws from each lower corner of front panel (1) is located on
FRONT PANEL
SCREWS
front of panel and the other under the recess behind trim strip. Do not remove the screws holding
trip strip to front panel.
3.
Slide the front panel down until it slides out of the top panel retainer lip at the top of the panel.
4.
Install panel in reverse order.
- 24
Page 25
-
Counter Models
DANGER: Electric shock hazard. Do not operate unit with panels removed.
Panels must be in place when operating the case.
PANEL CENTER
ATTACHMENT
POINTS.
PANEL TOP SLOTS
PANEL
SCREWS
PANEL
PANEL
PANEL BOTTOM SLOTS
PANEL SCREWS
On counter drop in models, the panels are split to allow panel to easily be removed out of swinging cabinet
doors that may have a center post.
Also note that unit is shipped with louvered panels on back of case and solid panels on front. This allows
air flow for condenser to be in and out of the back of cabinet. These louvered panels can be switched with
solid front panels to allow air flow in and out front of cabinet. They can also be mixed with one louver
panel in front and one in back to allow front condenser air in or out of front and rear air in or out back. This
must be determined before placing unit into counter and cabinet must be prepped to allow desired air flow
See cabinet prep section of this manual. When removing and installing panels be sure panels are reinstalled
in correct location to allow condenser air flow.
Note: The front and back panels instruction are identical.
1. Disconnect power to Display Case.
2. Open cabinet door to allow access to condenser compartment.
3. Remove (2) panel screws in outside upper and lower corners of panel.
4. Slide slotted end of panel out of center attachment point and remove from case. Note: Do not
remove screws from center attachment point.
- 25
Page 26
-

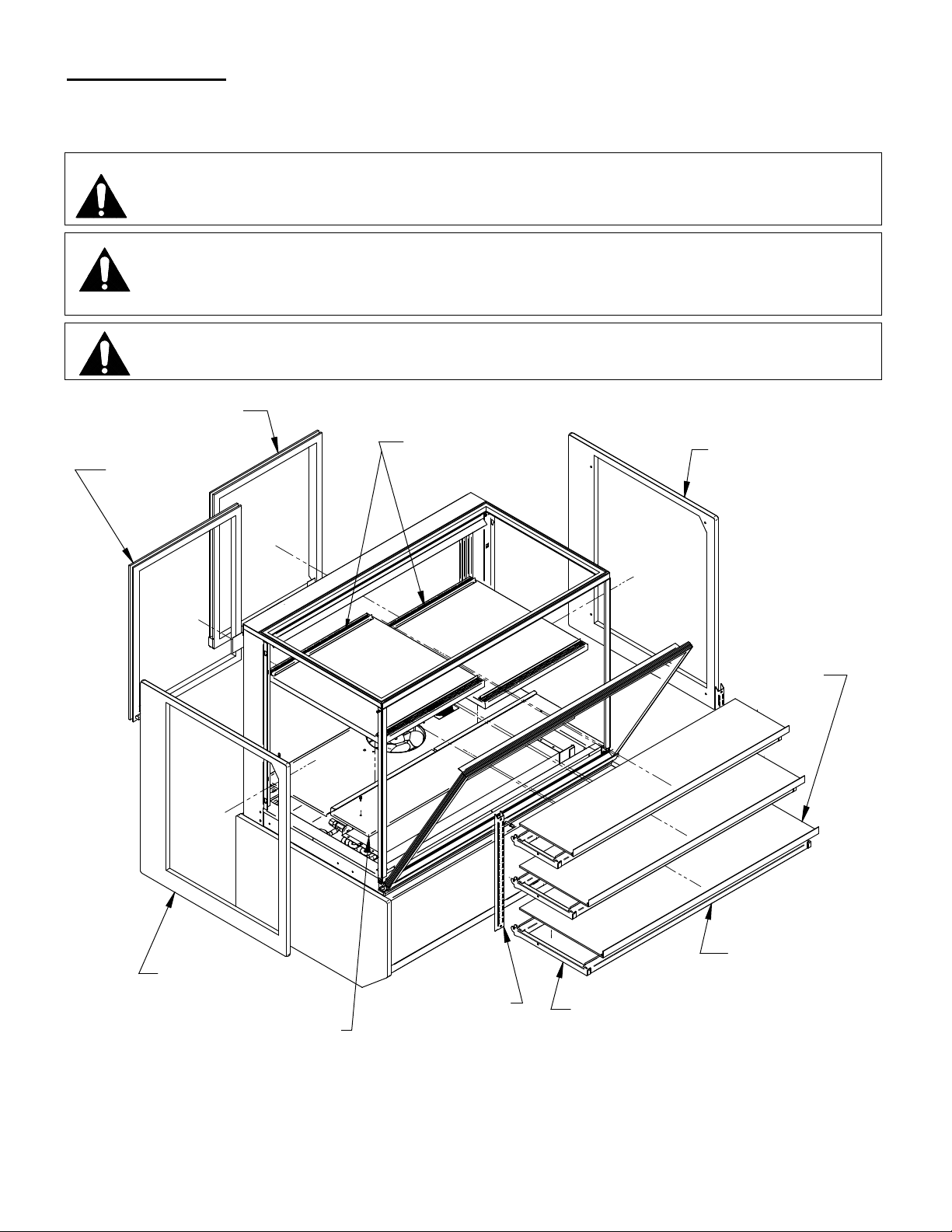

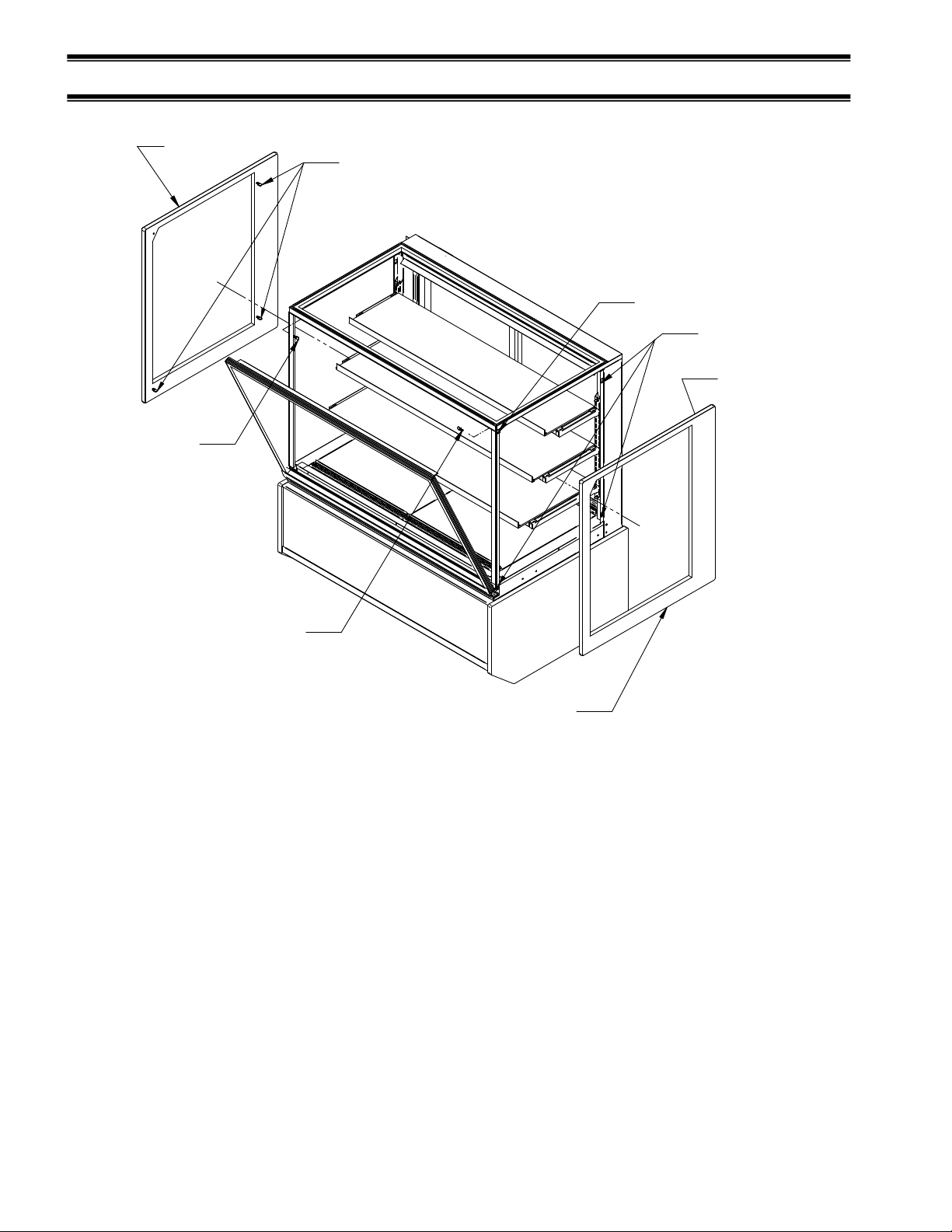

END PANEL INSTALLATION
LEFT END
PANEL
(1) THUMB SCREW
1/4-20 X .5LG
(3) THUMB SCREWS
1/4-20 X .5LG
(1) HOLE
(3) KEY SLOTS
(3) THUMB SCREWS
1/4-20 X .5LG
(1) THUMB SCREW
1/4-20 X .5LG
RIGHT END
PANEL
-End Glass is shipped installed on Floor model units.
-End glass is shipped loose on counter drop in units and will need to be installed after unit is placed in to
counter and lift handles are removed.
When placing cases in a line up, the number of end panels and end panel type may vary.
See Case Line Up Installation section of this manual.
1. On each side of case there are (3) keyhole mounting slots for easier installation of glass. There is
(1) mounting hole in the front top corner of case to prevent glass from accidently popping off of end
of case.
2. Screw (3) thumb screw about half way into end panel in location of the keyholes in case as shown.
3. Align end panel thumb screws with keyholes and hook end panel on to case. Do not tighten thumb
screws at this time.
4. Align the mounting hole in top front corner of case with top front hole in end panel and attach with
¼-20 x .5LG thumb screw
5. Tighten all (4) thumb screws by hand.
6. Remove end panels in reverse order.
- 26
Page 27
-

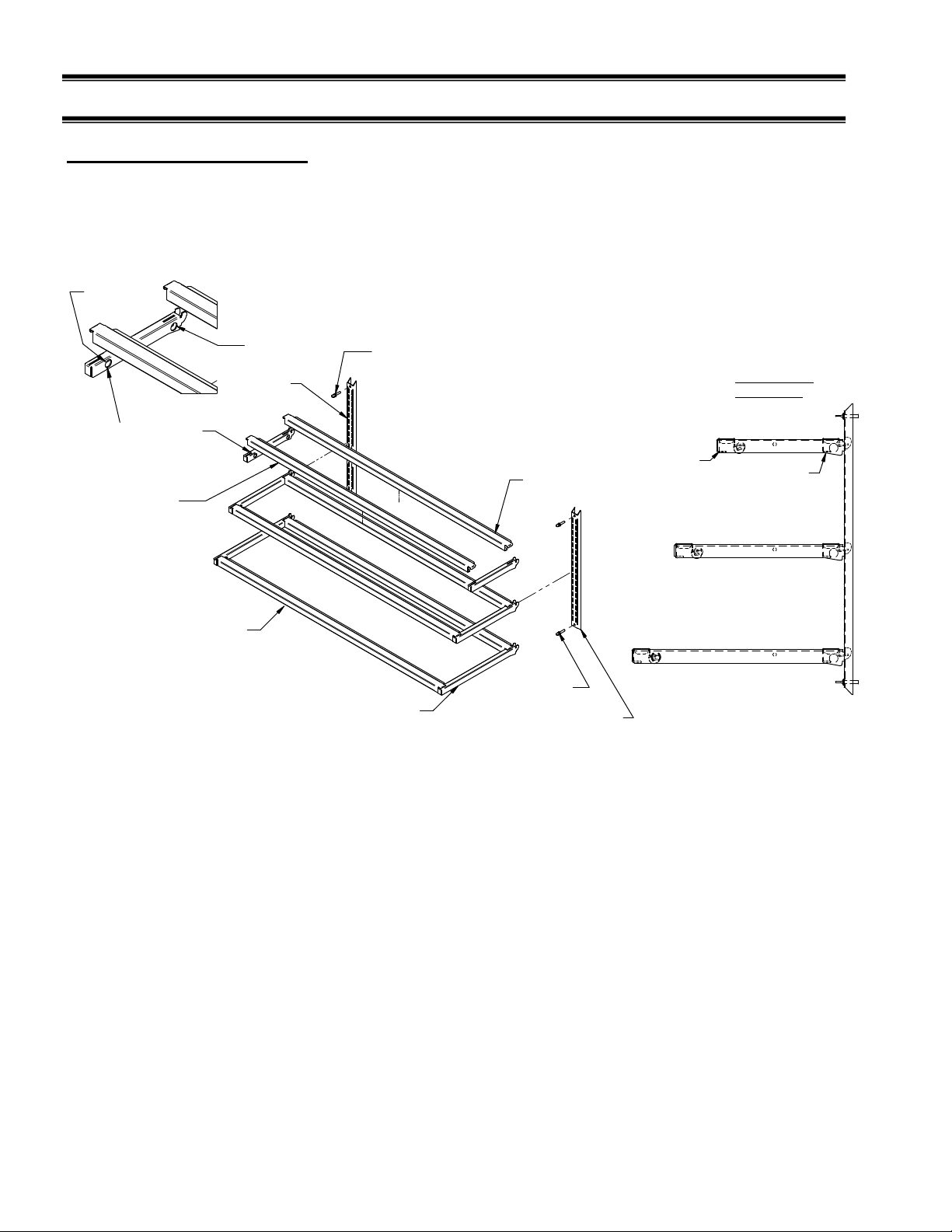

SHELVING INSTALLATION & REMOVAL

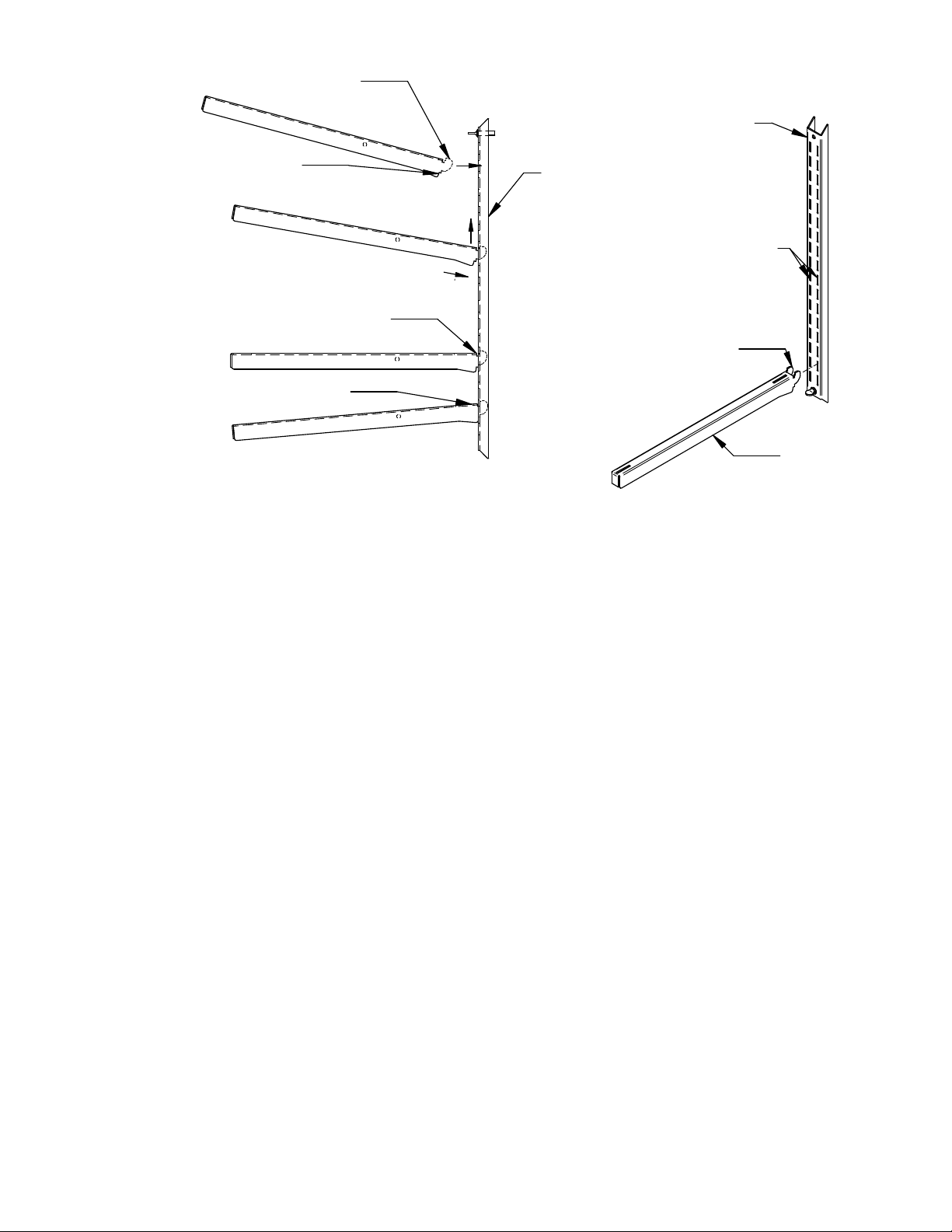

Shelf Bracket & Supports
NOTE: Different shelf sizes and quantities are optional from factory so shelf bracket quantity and size may
vary, but procedure is the same.
CORD OUT
HOLE
CORD IN HOLE
SHELF
STANDARD
SHELF BRACKET
WITH 1/2" CORD
HOLES
FRONT
SUPPORT
W/LED LIGHT
GLASS SHELF
PRODUCT STOP
SHELF STANDARD
RETAINING SCREWS
SHELF BRACKET
NO CORD HOLES
REAR SHELF
SUPPORT
SHELF STANDARD
RETAINING SCREWS
SHELF STANDARD
FRONT SHELF
SUPPORT
WITH LIGHT
TYPICAL SHELF
ARANGEMENT
FRONT SHELF
SUPPORT
1. Turn the light switch to the off position. Remove rear doors as described in the “Rear Door Removal”
section of this manual to allow access to interior of case.
2. Follow the instruction in the illustration below. Starting with the longest brackets for bottom shelf insert
(1) of the (2) shelf brackets in the desired shelf standard slot on one side of the case. Place the long
second shelf bracket in the same shelf standard slot on the opposite end of case. Important; The bracket
with the ½ hole must be on the light cord side of case.
3. Repeat procedure for middle shelf brackets and the shortest top brackets. NOTE: Different shelf sizes
and quantities are optional from factory so shelf bracket quantity and size may vary, but procedure is
the same.
1. Tilt shelf bracket upward and install shelf bracket hook into desired slot.
2. Lift shelf bracket hook up behind back of shelf standard and rotate the shelf bracket
downward until desired shelf bracket tab rests on front of shelf standard.
3. Bracket can be either flat 0 degrees or an a 5 degree downward tilt as shown.
- 27
Page 28
-
SHELF BRACKET HOOK
SHELF BRACKET TAB
0 AND 5
v
1.
SHELF
STANDARD
SHELF
STANDARD
2.
SHELF
STANDARD
SLOT
FLAT SHELF POSITION
HOOK
3.
5v SHELF POSITION
SHELF
BRACKET
4. Once all shelf brackets are installed in desired position run each shelf light cord into ½ hole in back of
shelf bracket and out the ½” hole in the front of shelf bracket. The shelf light cord length can be
adjusted by pulling out cord from cord grommet or pushing cord back into cord grommet.
5. Install front shelf supports with LED lights on to shelf brackets. All shelf supports with the lights are
the same. The LED light must be facing towards back of case. Hook shelf support end flanges into front
notch of shelf brackets on each side of case.
6. Install rear shelf supports with no lights on to shelf brackets. All shelf supports with no lights are the
same. The flange on shelf support should be facing towards back of case. Hook shelf support end
flanges into rear notch of shelf brackets on each side of case
7. Push shelf light cords into end of LED light. NOTE: Do not plug cord in backwards. There are (2)
humps on end of cord that must align with humps in end of LED light.
Damage LED light strip.
8. Manage desired cord lengths by pulling out cord from cord grommet or pushing cord back into cord
grommet.
NOTE: Cords always remain in case they are not removable.
Plugging in the cord upside down will
- 28
Page 29
-

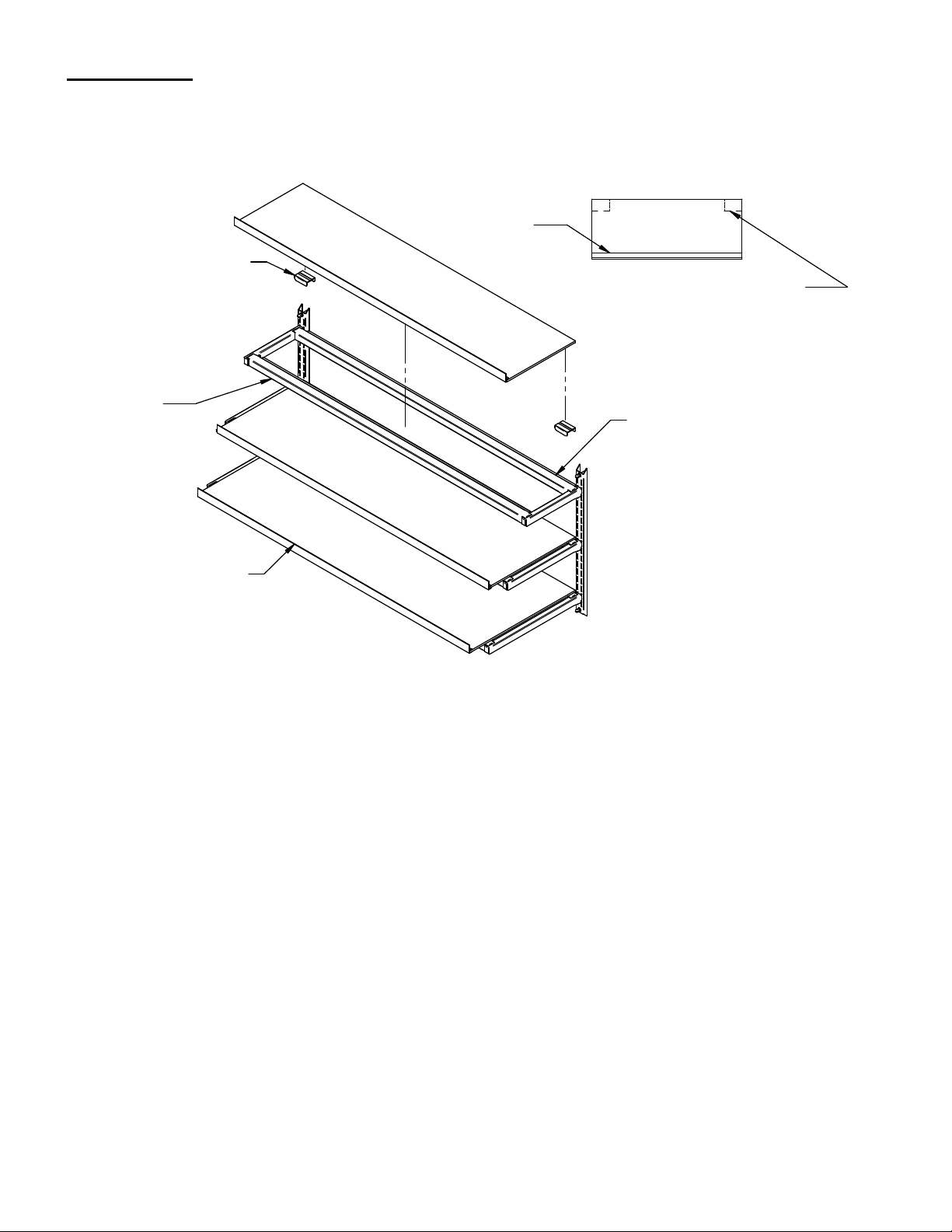

Glass Shelves
GLASS SHELF
RETAINER CLIP
FRONT
SUPPORT
W/LED LIGHT
TOP VIEW
PRODUCT STOP
CLIP LOCATED IN FAR
CORNER OF GLASS SHELF.
CLIPS FIELD INSTALLED TO GLASS.
REAR SHELF
SUPPORT
GLASS SHELF
PRODUCT STOP
1. For first time installation attach (2) glass shelf retainer clips to each glass shelf in location shown in
illustration. Clean area of glass where glass shelf holder is to be located with rubbing alcohol and let
air dry before installing shelf glass holder. Remove backing from tape located on flat side of glass shelf
holder. Position the glass shelf holders in the (2) far corners of glass. Repeat for each glass shelf.
2. Place front of glass
3. Set each glass shelf on to the shelf supports so that the glass shelf retainer clip straddles the rear
support. The top glass should be the narrowest glass and the bottom glass shelf should be the widest.
- 29
Page 30
-

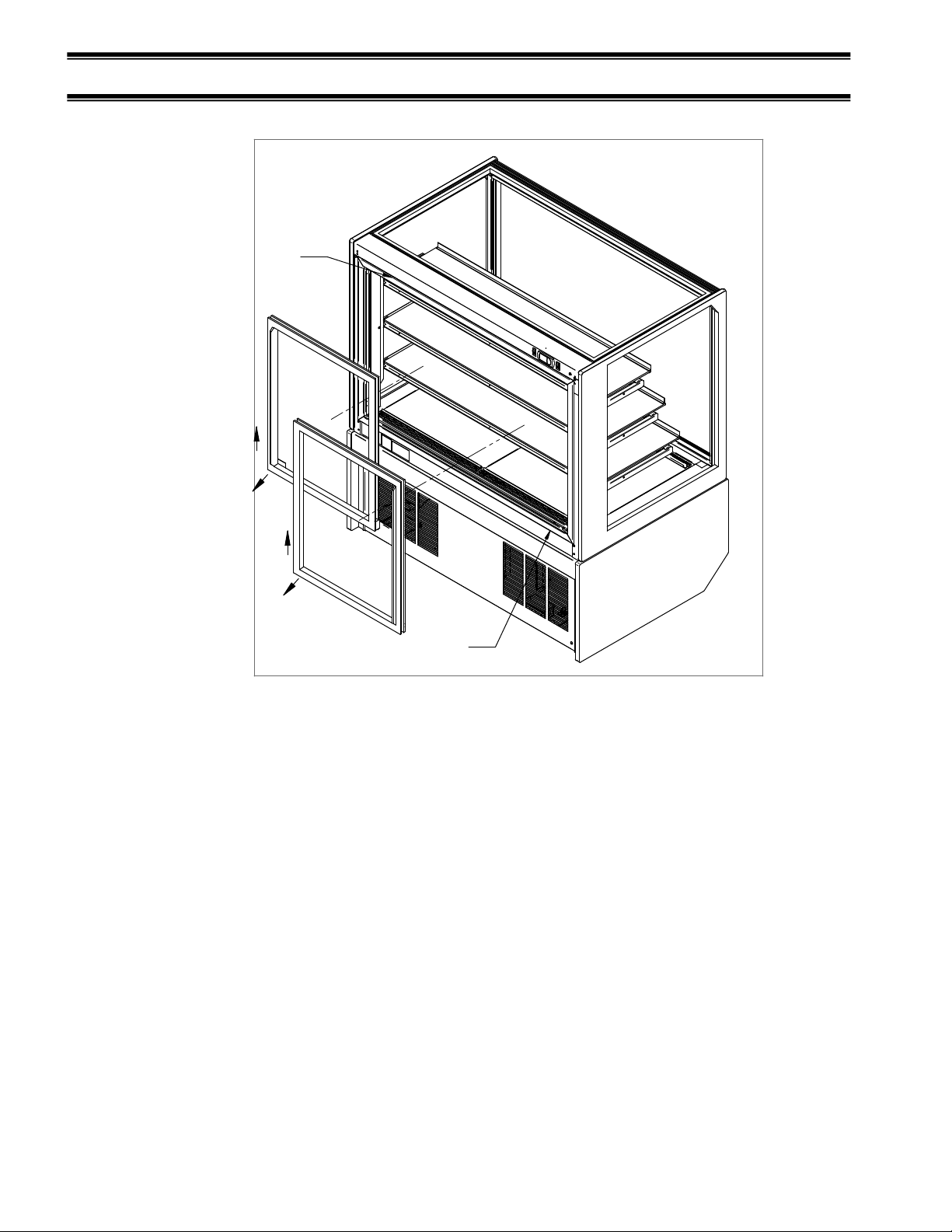

REAR DOORS REMOVAL
UPPER TRACK
1. LIFT UP DOOR
2. SWING BOTTOM OUT
1. LIFT UP DOOR
2. SWING BOTTOM OUT
LOWER TRACK
1. Start with the outer door and lift the door upward until the bottom edge of door clears the
lower track and then swing the bottom of the door outward and down out of upper track.
2. After the outer door is removed repeat the procedure for the inner door.
3.
Reverse this procedure for door reinstallation. The doors are not interchangeable.
- 30
Page 31
-
OPERATING INSTRUCTIONS
Control Description
NOTICE:
This refrigerated display case is designed to operate
in a maximum environment of 80 DEG. F and 55% relative
humidity. Exceeding these limits will cause poor case
performance and sweating of glass panels
.

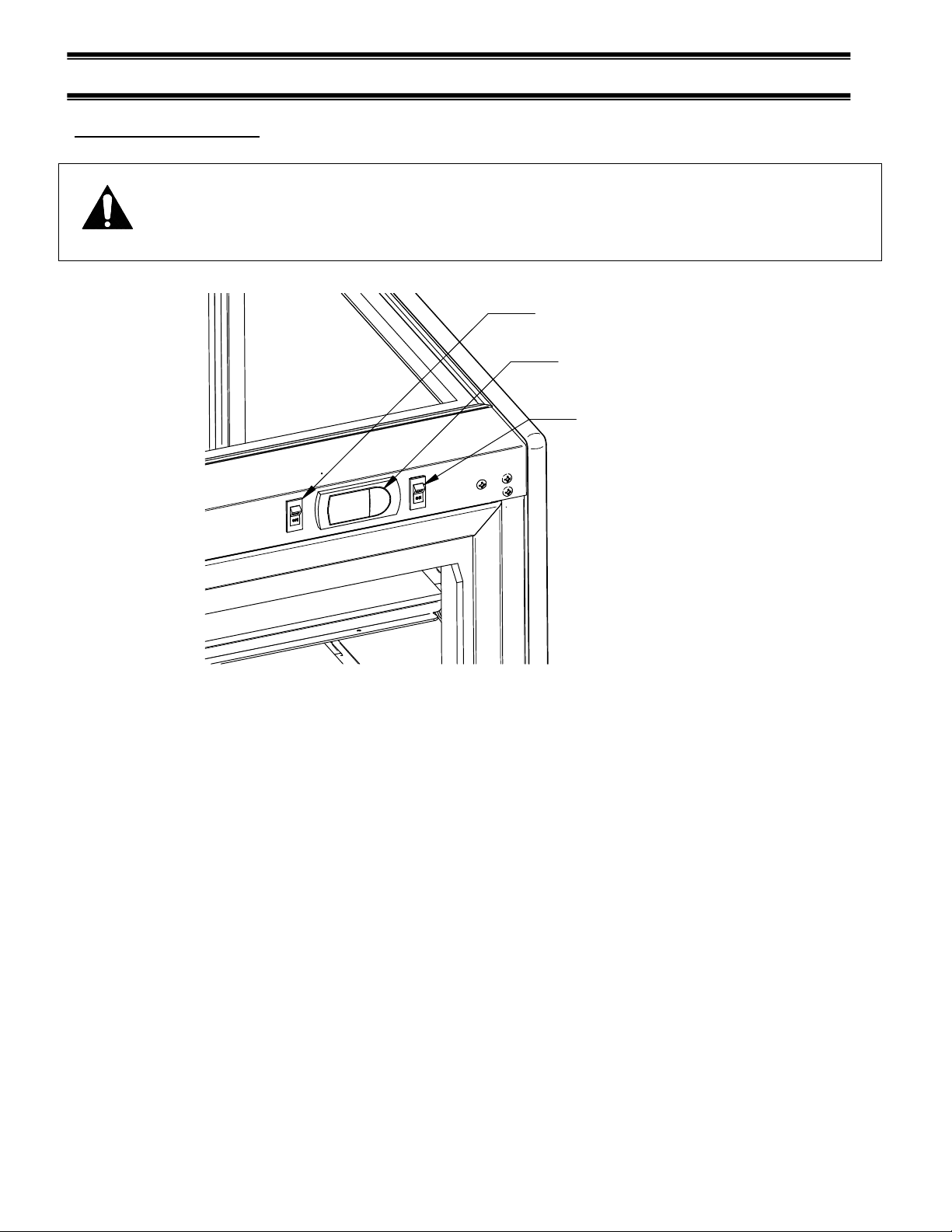

LIGHT SWITCH
ELECTRONIC
CONTROL
POWER SWITCH
Power Switch
The unit has a power switch that turns off power to the entire unit, including the condensate evaporator and
the lights.
Light Switch
The unit has a light switch that turns on and off the interior lights of unit.
Electronic Temperature Control (Refrigerated Models Only)
The temperature control allows the user to adjust the temperature of the display merchandiser to their
needs. When not in adjustment mode the read out shows relative interior case temperature.
- 31
Page 32
-
USING THE ELECTRONIC TEMPERATURE CONTROL (
Refrigerated Models Only)
COMPRESSOR RUN
INDICATOR
DEFROST MODE INDICATOR

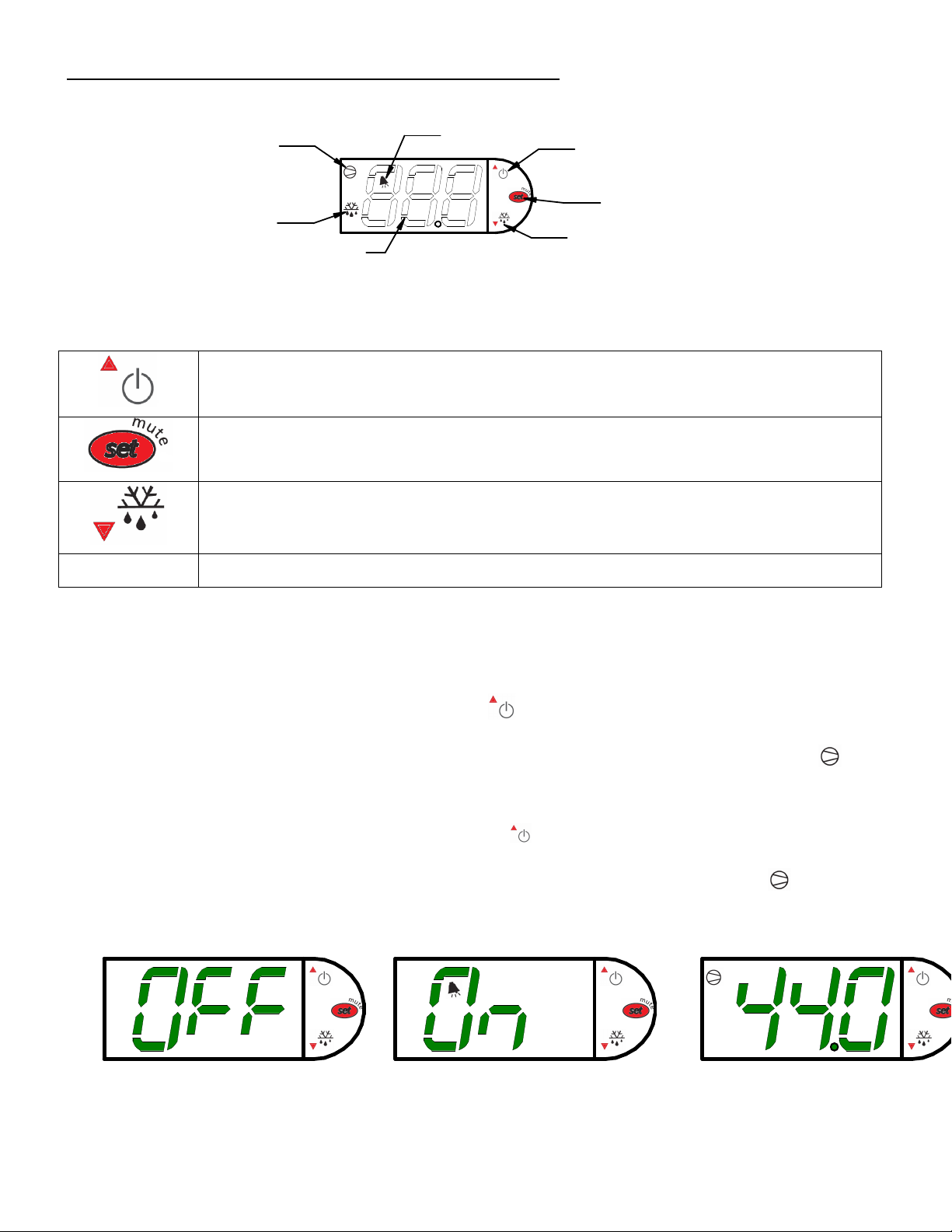

Button Overview
Press and hold this button for 3 seconds to turn system on (if off) or off (if on).
Also used to adjust set point when in set point adjust mode
Press to enter set point adjust mode, confirm set point changes, and mute alarms.
Press and hold this button for 3 seconds to initiate a manual defrost (and cancel defrost
if initiated), also adjusts set point down when in set point adjust mode
DIGITAL DISPLAY
ALARM INDICATOR
POWER TO CONTROL ON/OFF
AND SET POINT UP ADJUST
SET POINT ADJUST MODE
MANUAL DEFROST AND
SET POINT DOWN ADJUST
Powering on control
To turn refrigeration control power on, press and hold for approx. five seconds. The display will read
“On” while the button is depressed. When the control powers on, the display will read the relative current
case temperature (on initial startup this would be room temperature). The compressor run indicator
will illuminate on the display, meaning that the compressor is running. (Note: the control may already be
in the on mode when shipped from factory).
To turn refrigeration control power to off, press and hold for approx. five seconds. The display will
read “Off” while the button is depressed. When the control powers off the display will flash back and
forth between the relative current case temperature and “Off”. The compressor run indicator will be
off on the display. When refrigeration control is in the off mode cabinet lights and evaporator fans will
still operate, but the compressor will not turn on causing the case to gradually reach room temperature.
- 32
Page 33
-
Adjusting the set point
The set point is what determines how cold the display case will hold food and beverage. To adjust the set
point press and hold the button approx. 5 seconds until the display begins to flash a number. Then
press the use the
button to scroll number up (colder) or press the
button to scroll number lower
(warmer). There are nine (9) available set points numbers, the higher the number of the set point, the
colder the display case will run, with setting “9” being the coldest and setting “1” being the warmest.
Once you have chosen your desired setting press the button again to confirm your choice.
Entering manual defrost mode
In order to initiate a manual defrost press and hold the button approx. 5 seconds. The control will
read “dEF” while the button is being held. The defrost is initiated when the defrost mode indicator
illuminates on the display. The control display will then return to reading the case temperature. When the
defrost mode indicator turns off the defrost is complete and the compressor will turn back on
illuminating the compressor run indicator .
Error codes

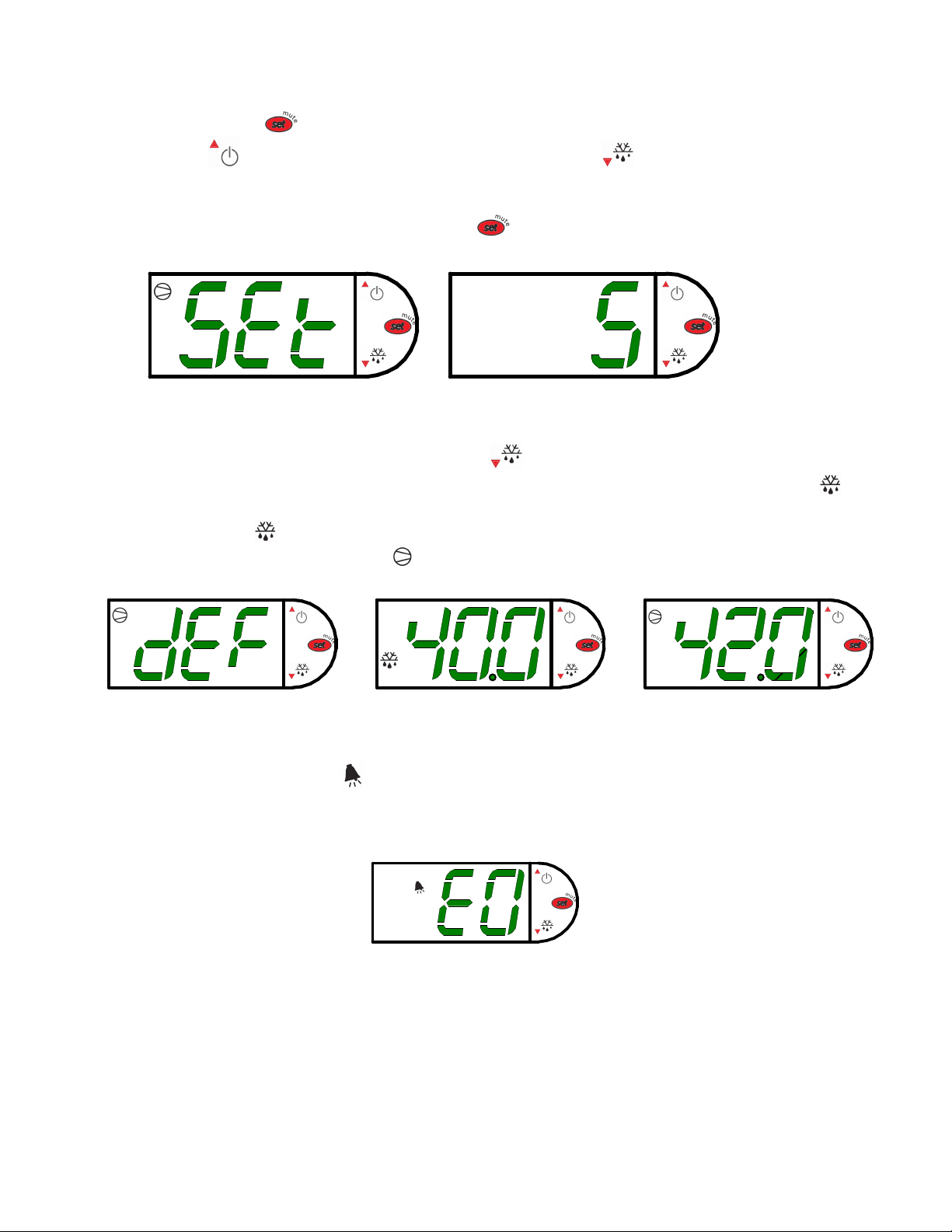

It is possible for error codes to be displayed on the control screen. In the event of a malfunction an alarm
will sound and the alarm indicator will be displayed on the display. An error code or codes will flash
intermittently on the display. If there are multiple codes, the display will continuously cycle through
them. The following photo shows error code “E0” as an example.
Mute: You may mute the alarm by pressing and releasing the wrench button. The red ringing bell and all
error codes will still be displayed. When the fault is remedied the control will return to normal operation
and will automatically clear the codes from the display.
- 33
Page 34
-
INITIAL STARTUP
After all the checks outlined in the installation section of this manual have been made, the case is ready to
be put into service. Turn on the Power at the breaker box and flip the Power Switch and Light Switch on
unit to the on position. Also ensure that the control is powered on as described above.
(Refrigerated Models Only)
At start up from a warm unit, it is recommended that the temperature control is set to a warmer setting,
such as 1. After the unit has gone through several cycles, adjust the control to a mid range setting, then to a
colder setting if necessary to maintain desired product temperature. Allow refrigerated models to run for at
least two hours before placing pre chilled product into unit
Placing Product into Case
After completing shelving installation as outlined in “Shelving Installation and Removal” section of
this manual you may begin placing product into the display case.
- Do not exceed 100 pounds of weight per shelf. Heavy product should be distributed evenly across
the entire shelving area.
- Determine desired shelving location and angle before placing product in case. Product must be
removed to readjust shelf location and angle.
(Refrigerated Models)
- Do not overhang the front shelves with product. Product may overhang rear of shelf, but allow a
minimum of 1-1/2” between product and rear door. Improper clearance in front and rear of shelf
will block the refrigerated airflow and could cause product loss.
-Do not block the slots along the front or rear of the case display pan. Covering these slots will
block the refrigerated airflow and could cause product loss.
-The display pan is removable for cleaning and can become dislodged in shipment. To ensure
proper airflow and performance of the case, make sure that the display pan is pushed completely
down into evaporation tub. Check that the pan is installed properly before placing product the
display pans.
-CASE SHOULD BE STOCKED WITH PRE-CHILLED PRODUCT
ONLY.
ATTENTION:
- This Federal refrigerated display case is designed to operate in a
maximum environment of 80 DEG. F and 55% relative humidity.
Exceeding these limits could cause poor case performance and
sweating of glass panels.
- 34
Page 35
-
MAINTENANCE
Cleaning Condenser Coil (All Self Contained Refrigerated Units)
NOTICE:
Condenser coil must be cleaned a minimum of twice per month to insure
proper refrigeration performance and prevent compressor failure.
Failure to clean condenser coil will void condenser warranty.
FLOOR BASE ITR MODEL
BACK PANEL
COUNTER ITR MODEL
BACK PANELS
It is very important that the Condenser coil is cleaned twice per month to insure proper refrigeration
performance and to prevent compressor failure. Failure to clean condenser coil will void condenser
warranty.
The condenser can be cleaned from either the front or the back of case depending on which is more
accessible.
1. Disconnect power to the unit.
2. Remove the back or front panels located on the base or condenser compartment of unit. See Panel
Removal section of this manual.
3. Carefully vacuum the front surface of condenser coil. Take care not to bend coil fins with vacuum
cleaner nozzle.
4. Reinstall all panel and retaining screws and reconnect power.
VACUUM FRONT
SURFACE OF
CONDENSER COIL
VACUUM FRONT
SURFACE OF
CONDENSER COIL
VACUUM FRONT
SURFACE OF
CONDENSER COIL
VACUUM FRONT
SURFACE OF
CONDENSER COIL
FRONT PANEL
FRONT PANEL
- 35
Page 36
-
ELECTRONIC CONTROL OPERATION
Operation
The control uses two sensors, one located in the air stream and one located on the evaporator coil.
The sensor located in the air stream is referred to as the temperature control sensor. The sensor
located on the evaporator coil is referred to as the defrost probe.
The temperature control sensor is located on the plastic tub behind the evaporator coil on the
centerline of the display case in the cold air stream. The sensor location is critical for proper
operation on the unit. Do not move or relocate this sensor.
The coil sensor is strapped to the evaporator coil. This sensor location is critical for proper
operation of the unit. Do not move or relocate this sensor.
The temperature control is set to cut in at 38°F (3.3°C). The Temp control cuts out at 24°F (-4.4°C)
at the coldest setting (“9”) and 32°F (0.0°C) at the warmest setting (“1”).
Defrost Cycle
The control is programmed to initiate defrost via two different methods. There are 3 programmed
defrost cycles in the case which will initiate a defrost cycle every 8 hours. The unit does not have a
time clock so the defrost cycles cannot be set for any specific time of day.
The unit also has an ‘On demand’ defrost feature that will initiate a defrost when the temperature
differential between the evaporator temperature and the air temperature is more than 18°F (-7.8°C)
for 5 minutes into the refrigeration cycle (e.g. if the air stream probe measures 32°F/0°C or greater
and the defrost probe measures 20°F/-6.7°C or lower for five minutes). Once initiated the defrost
cycle will terminate when evaporator coil sensor reaches 43°F (6.1°C).
If a manual defrost is required, one can be initiated by pressing and holding the down arrow for
approx. five seconds. This is typically unnecessary and should only be performed if special
circumstances require it.
Control Parameters
Table 1 - Control Parameters
Parameter Description
Compressor Min On Time
Compressor Min Off Time
Compressor Max Run Time
Defrost Termination Temp [°F]
Time to subsequent defrost
Defrost on demand differential [°F]
Delay for defrost on demand
Time delay to the next defrost on demand
Control Setpoint
Compressor Cut in [°F]
Compressor Cut out [°F]
Time to first defrost
Defrost duration
(Refrigerated Models Only)
1 2 3 4 5 6 7 8 9
38.0
32.0 31.0 30.0 29.0 28.0 27.0 26.0 25.0 24.0
2 min
2 min
60 min
43.0
8 hr
8 hr
30 min
18.0
5 min
30 min
- 36
Page 37
-
Error Codes
Error codes may be encountered if either the controller or the display case is malfunctioning. The following
is a list of error codes that may be encountered.
Table 2 - Error Codes and Resolutions
Code
E0
E1
EE
EF
Description Cause Resolution
Temperature probe
error
Defrost probe error See E0
Unit parameter
reading error
Operating parameter
reading error
Probe signal is interrupted or
short-circuited
Operating conditions 1. Remedy abnormal operating conditions. The
See EE
1. Check to ensure probe wires and quick
disconnect are secure in control.
2. Check probe resistance to table below. If 0
resistance is present check wiring insulation. If
infinite resistance is present check for breaks in
wiring (meter will likely read overload or very
high in the mega-ohm range).
3. Ensure that probes are wired per the wiring
diagram provided.
4. Replace probe if other remedies fail, or if probe
resistance deviates from “Error! Reference
source not found.” Error! Reference source
not found.
control is rated to operate in a range of 14 to
122°F (-10 to 50°C) and less than 90%RH noncondensing.
2. Replace control if problem persists.
Table 3 - Temperature Probe Common Resistance Chart
Probe Temp Maximum Resistance [Ω] Normal Resistance [Ω] Minimum Resistance [Ω]
32°F (0°C)
77°F (25°C)
212°F (100°C)
27.83 27.28 26.74
10.1 10 9.9
1 0.97 0.94
- 37
Page 38
-
Top LED Light Replacement
1. Turn power switch and light switch to off position.
2. Snap existing LED strip out of retaining clips.
3. Unplug 24v DC power wire from end of existing LED light strip.
1. Reattach the 24v DC power wire into end of the new LED light strip. NOTE: Do not plug cord in
backwards. There are (2) humps on end of cord that must align with humps in end of LED light.
Plugging in the cord upside down will Damage LED light strip.
4. Snap the new LED light strip into retainer clips.
5. Turn power switch and light switch to on position.
Shelf Light Bulb Replacement
2. Turn power switch and light switch to off position.
3. Remove Shelf from display case.
4. Unplug 24v DC power wire from end of existing LED light strip.
5. Remove the shelf support with light from case.
6. Use a putty knife between the LED and the shelf support to cut the double sided adhesive holding
LED light strip to case. Clean as much adhesive off of shelf support as possible.
7. Attach new LED light strip to shelf support using double sided adhesive.
8. Reinstall shelf support and shelf into case.
9. Reattach the 24v DC power wire into end of the new LED light strip. NOTE: Do not plug cord in
backwards. There are (2) humps on end of cord that must align with humps in end of LED light.
Plugging in the cord upside down will Damage LED light strip.
10. Turn power switch and light switch to on position.
- 38
Page 39
-
Daily Cleaning
The case should be cleaned thoroughly, as described in the weekly cleaning section, before it is
used for the first time.
NOTICE:
CLEANING INSTRUCTIONS
Avoid splashing or soaking any electrical components with water to
prevent electrical damage to the case.
NOTICE:
Shut off lights and power switches and remove all product from case.
Allow sufficient time for the unit to reach room temperature before
proceeding with cleaning.
NOTICE:
Remove all product from case before proceeding with cleaning
procedure.
NOTICE:
Acrylic front air deflector requires special washing procedures to
prevent hazing and yellowing of material.
NOTICE:
This case is not designed to be cleaned by flushing.
Note: For major spills or foreign material buildup use complete weekly cleaning instructions.
Note: Detergents are not recommended and do not use abrasive cleaners or pads to prevent
scratching of surfaces.
1. Clean all foreign materials from the door opening.
2. Wipe complete interior areas of case using a damp cloth.
3. To allow easier access to clean interior tilt the front glass forward. Tilt the front glass out by
grabbing the top edge of glass with finger tips and pulling it away from magnetic strips on case.
Tilt glass until it stops at about 30 degrees angle. IMPORTANT: Hold on to the glass until it
stops and do not let it free fall. Allowing glass may damage glass or hinge. The glass can then
be cleaned with common window cleaners. Close the glass by pushing glass back up agaist
magnetic gasket in closed position.
4. The remaining exterior surface should be wiped down using any ammoniated cleaners or soapy
warm water.
5. IMPORTANT: Cleaning the clear acrylic plastic front air deflector require special care to
prevent hazing and yellowing of material. Lightly dust (not wipe) surface with clean soft cloth.
Then the surface can be wiped carefully with a soft, wet cloth or chamois. The cloth or chamois
must be kept free of grit by frequently rinsing in clean water. Grease and oil can be removed
with kerosene. Do not use window cleaners or kitchen scouring compounds. DO NOT use
solvents such as Acetone, Benzene, Carbon Tetrachloride, and Lacquer Thinners. A spray wax
such as Pledge or Maguire’s polish can be applied and wiped with a clean soft cloth. The wax
tends to fill in and hide small scratches.
.
- 39
Page 40
-
Weekly Cleaning
This procedure is recommended on a weekly basis. It may need to be performed more often if
necessary to maintain a clean, sanitary case. The case should be cleaned to this procedure before
using the first time.
NOTICE:
Avoid splashing or soaking any electrical components with water to
prevent electrical damage to the case.
NOTICE:
NOTICE:
REAR DOOR
OUTER
REAR DOOR
INNER
Shut off lights and power switches and remove all product from case.
Allow sufficient time for the unit to reach room temperature before
proceeding with cleaning.
Remove all product from case before proceeding with cleaning
procedure.
DISPLAY DECK
GLASS END
PANEL
SHELVING
SHELF
GLASS END
PANEL
EVAP FAN SHROUD
SHELF
STANDARD
SHELF
BRACKET
SUPPORTS
ASSEMBLY
- 40
Page 41
-
1. Disconnect power to display case.
2. Remove all interior shelving as described in the shelving installation and removal section of this
manual.
3. Remove both shelf standards from interior of case by removing thumb screws located at top and
bottom of shelf standard.
4. Remove end glass as described in end panel removal section of this manual.
(Step 5 & 6 Refrigerated Models Only)
5. Lift the Display Deck(s) up and out of evaporator tub and remove from case.
6. Remove the evaporator fan shroud by removing the thumbscrews along the backside of evaporator
fan shroud and the (2) thumb screws on each side of evaporator coil. Unplug fan(s) from wire
harness and remove evaporator fan shroud with fan attached from case.
7. Clean the entire interior of the case using warm soapy water. Wipe off all soapy water with a damp
cloth and allow to dry.
8. Clean all shelves, shelf support bars, shelf standards, shelf brackets, and display deck using warm
soapy water and a brush. Rinse thoroughly and allow to dry.
9. Clean behind front glass hing using warm soapy water and sweeping debris to each end and
10. Clean all foreign material from inner and outer rear door tracks using warm soapy water and a
brush. Apply a light film of lubricant such as PAM to make the doors operate smoother.
11. Clean both sides of the doors, end glass and front glass using any common window cleaner.
NOTE: Front glass can be tilted forward to simplify front glass cleaning. To allow easier access to
clean interior tilt the front glass forward. Tilt the front glass out by grabbing the top edge of glass
with finger tips and pulling it away from magnetic strips on case. Tilt glass until it stops at about 30
degrees angle. IMPORTANT: Hold on to the glass until it stops and do not let it free fall. Allowing
glass may damage glass or hinge. The glass can then be cleaned with common window cleaners.
Close the glass by pushing glass back up agaist magnetic gasket in closed position.
12. Reassemble the case in reverse order.
Weekly Exterior Cleaning
1. Clean the front, end glass and rear doors using any common window cleaner.
2. The exterior surfaces should be wiped down using any ammoniated cleansers or warm soapy water.
- 41
Page 42
-
SERVICE
Service Information
RISK OF ELECTRIC SHOCK
BEFORE SERVICING UNIT
Service problems or request for repair parts from authorized service agencies, trained service personnel, or
owners should be referred to:
P.O. Box 290
Special Service Situations
There are rare occasions when the refrigerant charge must be evacuated from a case in order to
perform service work. In those situations, Federal Industries recommends that the refrigerant
charge be evacuated into a recovery system to prevent the possibility of hydrofluorocarbons
(HFC’s) from being released into the atmosphere.
If moisture or liquid is observed around or under a Federal Industries case, an immediate
investigation should be made by qualified personnel to determine the source of the moisture or
liquid. The investigation made should determine if the case is malfunctioning or if there is a simple
housekeeping problem.
CAUTION
Before any service work is performed
on the case, make sure all power is
DISCONNECT POWER
disconnected to the case.
CUSTOMER SERVICE DEPARTMENT
Federal Industries
Belleville, WI 53508
Toll Free: (800) 356-4206 / WI Phone (608) 424-3331
Fax: (608) 424-3234
NOTICE
: Moisture or liquid around or under a case is a potential slip/fall hazard
for persons walking by or working in the general area of the case. Any
case malfunction or housekeeping problem that creates a slip/fall hazard
around or under a case should be corrected immediately.
- 42
Page 43
-
Pre-Service Checklist
You may avoid the cost and inconvenience of an unnecessary service call by first reviewing this
checklist of frequently encountered situations that can cause unsatisfactory case performance.
CAUTION: Before servicing case turn off power at the main breaker of fuse
box.
Case Does Not Operate
-Check for disconnected power supply.
-Check for tripped breaker or blown fuse.
-Check that power switch is on.
Lights Do Not Operate
-Check that light switch is on.
-Be sure light cord is properly seated into LED light strip.
-Is the light cord plugged in to light strip upside down.
- Be sure that the rear doors are closed and tightly sealed.
-Check for a blocked or dirty condenser coil fins.
-Is the case installed properly to allow adequate air flow to and from condenser?
Case Temperature Too Warm
-Check that the cold air inlet and outlet slots are not blocked.
-Check cold airflow. Lack of adequate cold airflow could be a defective evaporator fan or
blocked evaporator coil. Check that paper or foreign material is not blocking evaporator.
If the evaporator coil is blocked due to excessive frost, turn the power switch “off” position
for approximately one hour to defrost.
-Check that the electronic control settings are correct.
-Check environment conditions. This case is designed to operate in no more than 80 degree
55 percent humidity.
- 43
Page 44
-
SALE & DISPOSAL
Owner Responsibility
If you sell or give away your Federal Industries case you must make sure that all safety labels and
the Installation-Service Manual are included with it. If you need replacement labels or manuals,
Federal Industries will provide them free of charge. Contact the customer service department at
Federal Industries at (800) 356-4206.
The customer service department at Federal Industries should be contacted at the time of sale or
disposal of your case so records may be kept of its new location.
If you sell or give away your Federal Industries case and you evacuate the refrigerant charge before
shipment. Federal Industries recommends that the charge be evacuated into a recovery system to
prevent the possibility of HFC’s from being released into the atmosphere.
\
- 44
Page 45
-

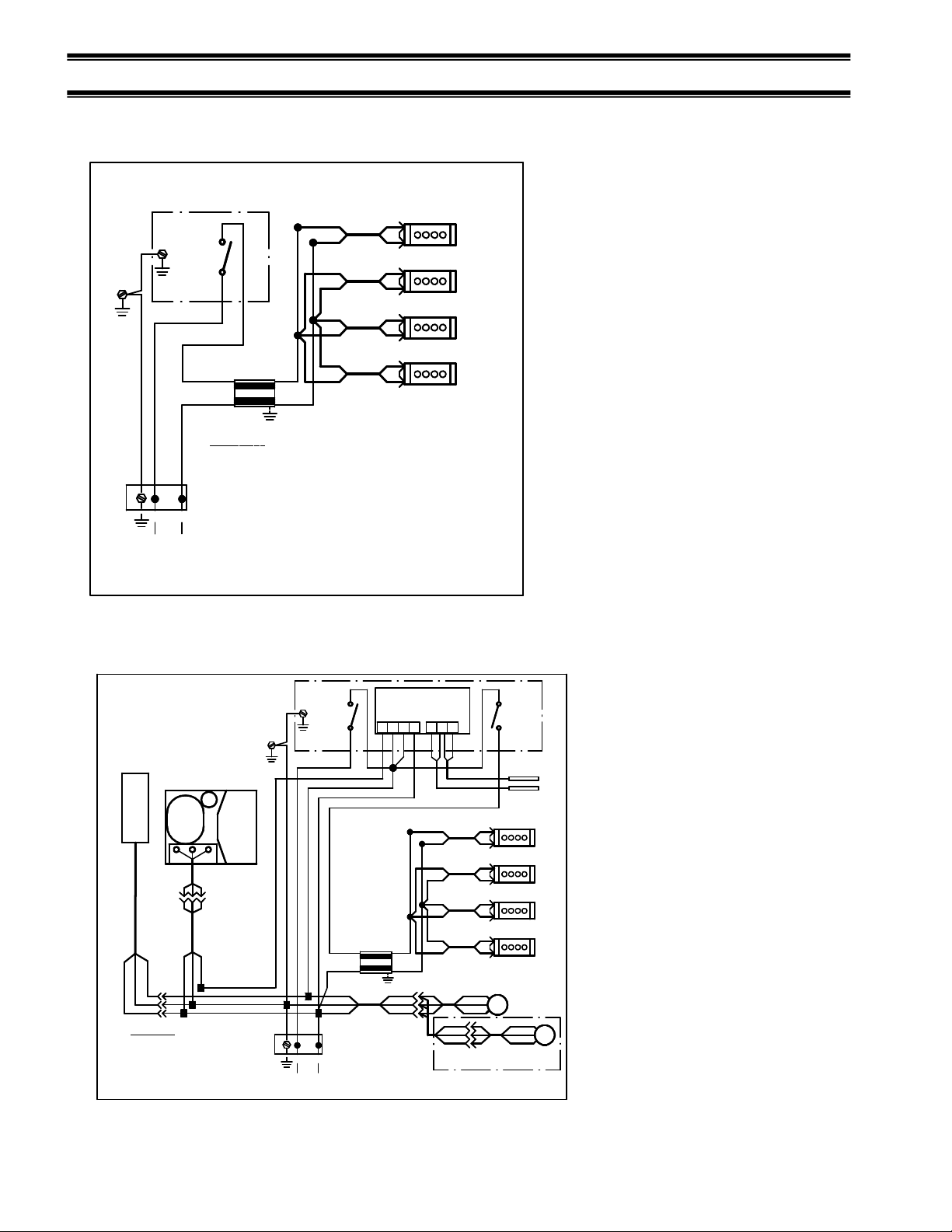

MAIN WIRING DIAGRAMS
Non-Refrigerated
TOP COVER
+
RIB
-
+
RIB
-
-
RIB
+
-
RIB
+
LIGHT QUANTITY
WILL VARY BY MODEL
LIGHT
SWITCH
G
G
W
BLK
120V/1PH/60HZ
BLK
BLK
24V POWER
SUPPLY
BLK
W
COLOR CODE
BLK = BLACK
W = WHITE
DARK LINES REPRESENT
CONDUCTOR CORD
B = BLUE
G = GREN
RIB
B
R
RIB
RIB
R
RIB
B
ITD DRY NON REFRIGERATED
MODELS
91-20579 4/26/16
TOP
LIGHT
SHELF
LIGHT
SHELF
LIGHT
SHELF
LIGHT
Refrigerated Self Contained
G
FOR DETAILS.
Y
BLK
G
G
BLK
120V/1PH/60HZ
TOP COVER
POWER
SWITCH
W
BLK
W
ITR SELF CONTAINED
MODELS
91-20568 4/25/16
CONDENSATE PUMP
OR EVAPORATOR
PLUG
B
G/Y
BRW
BLK/RIB
COLOR CODE
BLK = BLACK
W = WHITE
R = RED
DARK LINES REPRESENT
CONDUCTOR CORD
B = BLUE
Y = YELLOW
G/Y = GREEN/YELLOW
CONDENSING
UNIT
BLK
BLK/C
IN COMP.
SEE DIAGRAM
Y
BLK
G
W
BLK
Y
BLK
W
BLK
BLK
LIGHT QUANTITY
WILL VARY BY MODEL
24V POWER
SUPPLY
BLK
W
BLK
BLK/C
BLK/RIB
Y
45
BLK
BLK
BLK/C
BLK/RIB
BLK
CAREL
CONTROL
W
B
R
R
B
PLUG
LIGHT
BLK
BLK
BLK/RIB
BLK/RIB
PLUG
RIB
RIB
RIB
RIB
SWITCH
DEFROST PROBE
TEMP PROBE
+
TOP
LIGHT
+
SHELF
LIGHT
-
-
SHELF
LIGHT
+
+
SHELF
LIGHT
M
BLK
BLK/RIB
BLK/RIB
(2) FANS 5' ONLY
M
96 7
10
8
W
R
W
R
RIB
RIB
RIB
RIB
BLK
BLK/C
BLK/RIB
- 45
Page 46
-

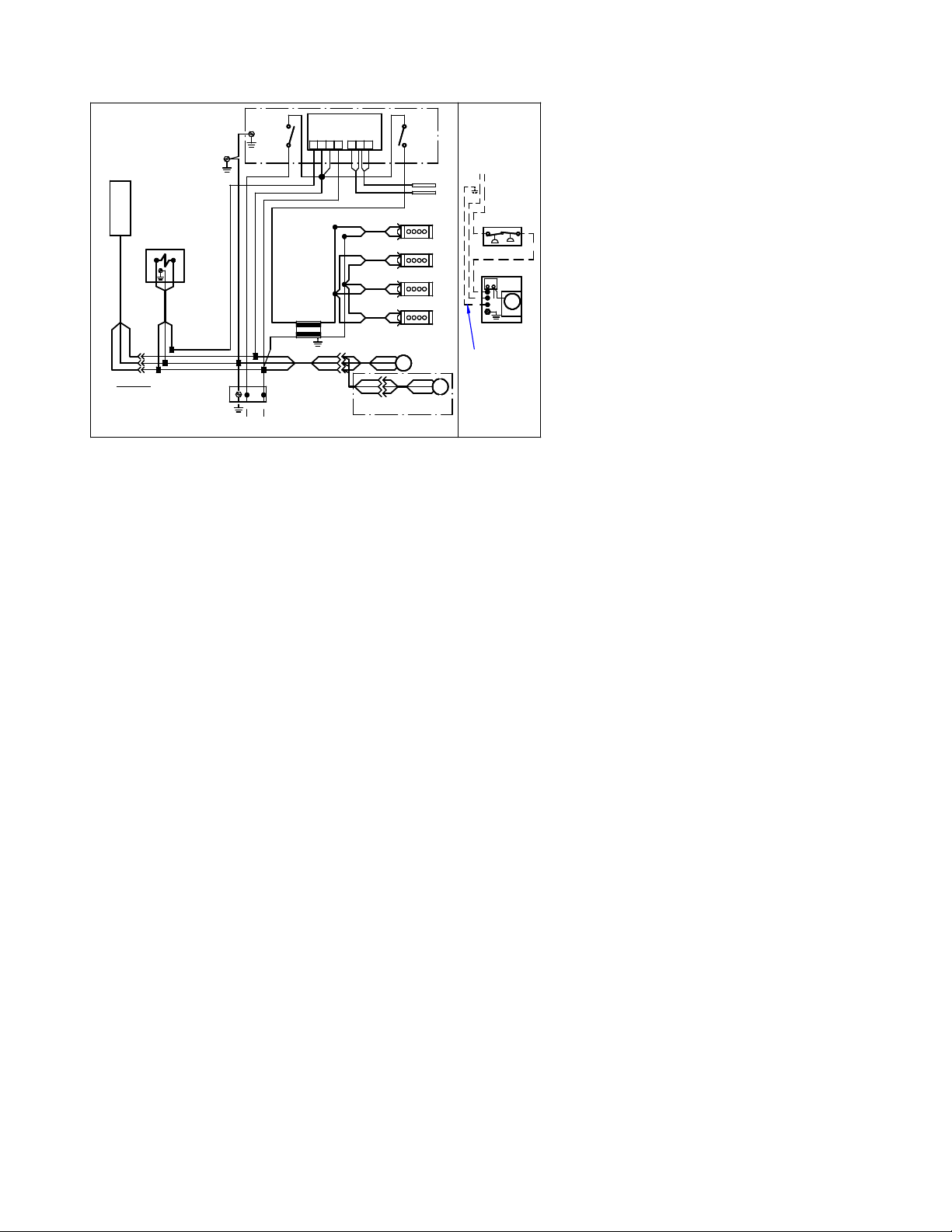

Refrigerated Remote
ITR REMOTE MODELS
91-20567 4/25/16
CONDENSATE PUMP
OR EVAPORATOR
REFRIG
SOLENOID
B
G/Y
BRW
BLK/RIB
COLOR CODE
B = BLUE
BLK = BLACK
Y = YELLOW
W = WHITE
G/Y = GREEN/YELLOW
R = RED
DARK LINES REPRESENT
CONDUCTOR CORD
5 9
Y
24V POWER
SUPPLY
CAREL
CONTROL
4
6 7 10
W
BLK
BLK
R
R
PLUG
BLK
BLK/C
BLK/RIB
LIGHT
W
BLK
R
BLK/RIB
BLK
RIB
RIB
RIB
RIB
BLK
BLK/RIB
PLUG
SWITCH
DEFROST PROBE
TEMP PROBE
+
+
-
+
+
M
BLK
BLK/RIB
BLK/RIB
(2) FANS 5' ONLY
TOP
LIGHT
SHELF
LIGHT
SHELF
LIGHT
SHELF
LIGHT
ALL FIELD WIRED
OPTIONAL REMOTE
M
MOUNTED & WIRED
COMPONENTS
SEPARATE
POWER SUPPLY
REMOTE
PRESSURE
CONTROL
HI/LO PRESS SW
Y
4 5
RELAY
M
FAN
REMOTE
COMPRESSOR
Y
8
W
R
RIB
B
RIB
RIB
RIB
B
BLK/C
BLK/RIB
TOP COVER
BLK
BLK/C
Y
BLK
G
W
POWER
SWITCH
G
W
Y
BLK
G
BLK
G
W
BLK
120V/1PH/60HZ
BLK
Y
BLK
W
BLK
BLK
LIGHT QUANTITY
WILL VARY BY MODEL
BLK
W
BLK
BLK/C
BLK/RIB
- 46
Page 47
-
REPLACEMENT PARTS
ITD36
ITD48
ITD60
ITR36
ITR48
ITR60
TOP GLASS
TOP
SIDE
G UNIT
EVAPORATOR
EVAPORATOR
DOOR LEFT
DOOR RIGHT
BRACKET 9"
SUPORT (NO
ELECTICAL COMPONENTS
MODELS LIGHT
SWITCH
41-11066 41-11066 39-20555 42-20550-5 43-20475 91-20579
41-11066 41-11066 39-20555 42-20550-10 43-20475 91-20579
41-11066 41-11066 39-20555 42-20550-11 43-20475 91-20579
41-11066 41-11066 39-20555 42-15441 43-20475 91-20568 91-20567
41-11066 41-11066 39-20555 42-15441 43-20475 91-20568 91-20567
41-11066 41-11066 39-20555 42-15441 43-20475 91-20568 91-20567
GLASS COMPONENTS
MODELS FRONT
GLASS
POWER
SWITCH
LIGHT
POWER
SUPPLY
END GLASS
CLEAR. L.H.
LIGHT 24V
LED STRIP
END GLASS
CLEAR. R.H.
SHELF
LIGHT
CORD
END GLASS
REFL. L.H.
SC MAIN
WIRING
DIAGRAM
END GLASS
REFL. R.H.
REMOTE
MAIN WIRING
DIAGRAM
FRONT
GLASS
MAGNET
DRY MAIN
WIRING
DIAGRAM
FRONT
GLASS
MAGNET
ITD3626
ITD4826
ITD6026
ITD3634
ITD4834
ITD6034
ITR3626
ITR4826
ITR6026
ITR3634
ITR4834
ITR6034
50-20471-4 50-20472-1 50-20471-1L 50-20471-1R 50-20471-1LA 50-20471-1RA 64-20476-1 64-20476-5
50-20471-5 50-20472-2 50-20471-1L 50-20471-1R 50-20471-1LA 50-20471-1RA 64-20476-2 64-20476-5
50-20471-6 50-20472-3 50-20471-1L 50-20471-1R 50-20471-1LA 50-20471-1RA 64-20476-3 64-20476-5
50-20471-1 50-20472-1 50-20471-L 50-20471-R 50-20471-1LA 50-20471-1RA 64-20476-1 64-20476-4
50-20471-2 50-20472-2 50-20471-L 50-20471-R 50-20471-1LA 50-20471-1RA 64-20476-2 64-20476-4
50-20471-3 50-20472-3 50-20471-L 50-20471-R 50-20471-1LA 50-20471-1RA 64-20476-3 64-20476-4
50-20471-1L 50-20471-1R 50-20471-1LA 50-20471-1RA 64-20476-1 64-20476-5
50-20471-1L 50-20471-1R 50-20471-1LA 50-20471-1RA 64-20476-2 64-20476-5
50-20471-1L 50-20471-1R 50-20471-1LA 50-20471-1RA 64-20476-3 64-20476-5
50-20471-L 50-20471-R 50-20471-1LA 50-20471-1RA 64-20476-1 64-20476-4
50-20471-L 50-20471-R 50-20471-1LA 50-20471-1RA 64-20476-2 64-20476-4
50-20471-L 50-20471-R 50-20471-1LA 50-20471-1RA 64-20476-3 64-20476-4
REFRIGERATION COMPONENTS
MODELS CONDENSIN
(SC) 120V
EVAPORATOR
ITR36
ITR48
ITR60
30-20347 33-16019 32-20431 41-11628 72-11450 32-12626 32-20558-14 32-19866 40-20420
COIL
30-20513 33-16020 32-12625 41-11628 72-11450 32-12626 32-20558-14 32-19866 40-20420
30-20513 33-18283 32-12625 41-11628 72-11450 32-12626 32-20558-14 32-19866 40-20420
EXPANSION
VALVE
DOOR COMPONENTS
MODELS
ITD3626
ITD4826
ITD6026
ITD3634
ITD4834
ITD6034
DOOR
CLEAR
RIGHT
CLEAR
53-20467-4 53-20468-4 53-20467-4A 53-20468-4A
53-20467-5 53-20468-5 53-20467-5A 53-20468-5A
53-20467-6 53-20468-6 53-20467-6A 53-20468-6A
53-20467-1 53-20468-1 53-20467-1A 53-20468-1A
53-20467-2 53-20468-2 53-20467-2A 53-20468-2A
53-20467-3 53-20468-3 53-20467-3A 53-20468-3A
DOOR LEFT
REFLECTIVE
REFLECTIVE
SHELF COMPONENTS
MODELS
ITD3626
ITD4826
ITD6026
ITD3634
ITD4834
ITD6034
GLASS
SHELF 11"
- 52-20473-2 52-20473-3 - M20441-2L/1R M20441-3L/1R M20379-1
- 52-20473-5 52-20473-6 - M20441-2L/1R M20441-3L/1R M20379-2
- 52-20473-8 52-20473-9 - M20441-2L/1R M20441-3L/1R M20379-3
52-20473-1 52-20473-2 52-20473-3 M20441-1L/1R M20441-2L/1R M20441-3L/1R M20379-1
52-20473-4 52-20473-5 52-20473-6 M20441-1L/1R M20441-2L/1R M20441-3L/1R M20379-2
52-20473-7 52-20473-8 52-20473-9 M20441-1L/1R M20441-2L/1R M20441-3L/1R M20379-3
GLASS
SHELF 14"
GLASS
SHELF 17"
SHELF
FAN MOTOR
FAN BLADE
SHELF
BRACKET
12"
FILTER DRIER
SHELF
BRACKET 15"
ELECTRONIC
SHELF
LIGHT)
CONTROL
TEMPERATUR
E PROBE
CONDENSATE
PAN ASSY
200W 120V
- 47
Loading...
